Presentation done to the ruby user group from berlin about graphdbs

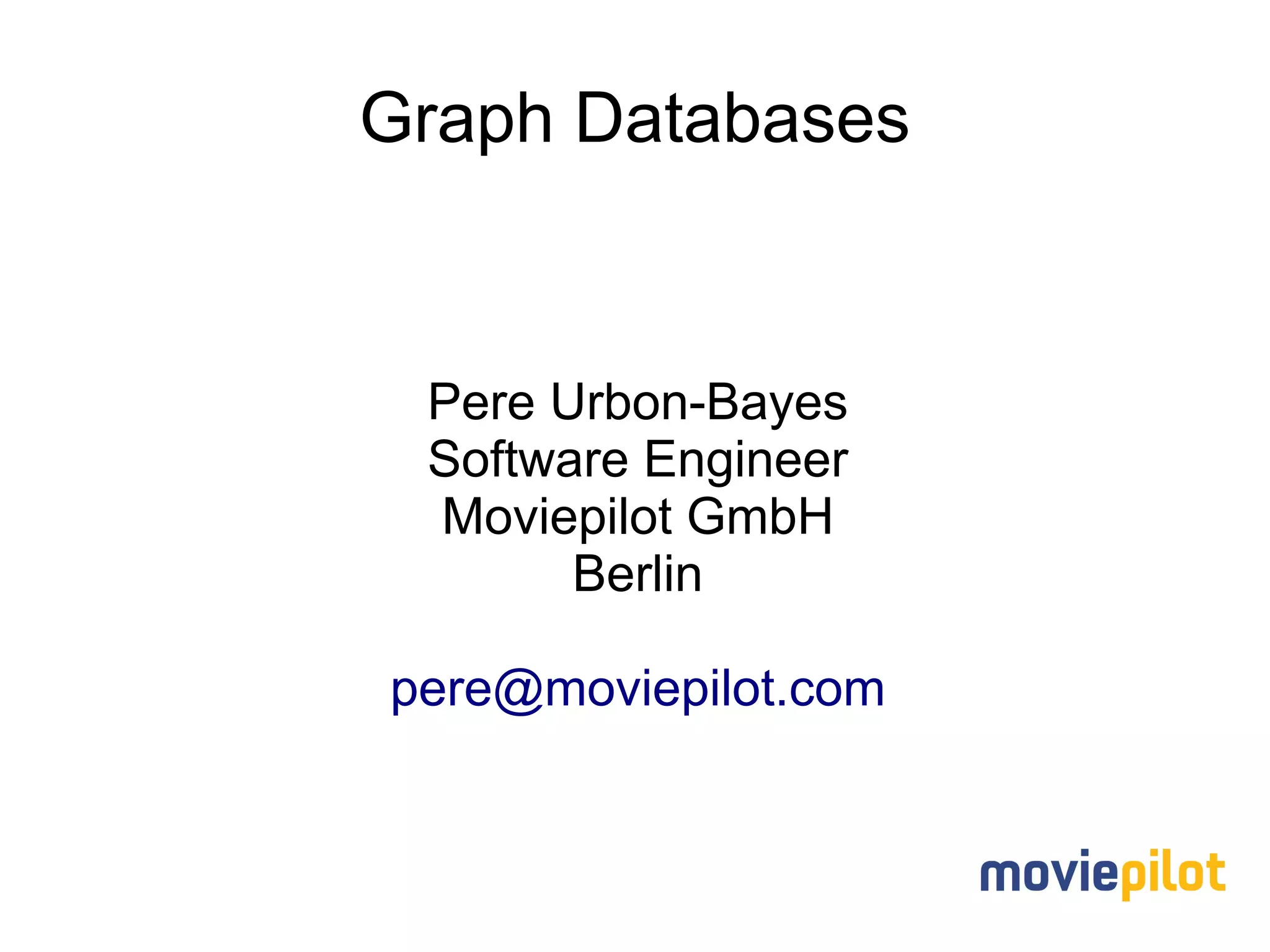

1. Graph Databases
Pere Urbon-Bayes
Software Engineer
Moviepilot GmbH
Berlin
pere@moviepilot.com

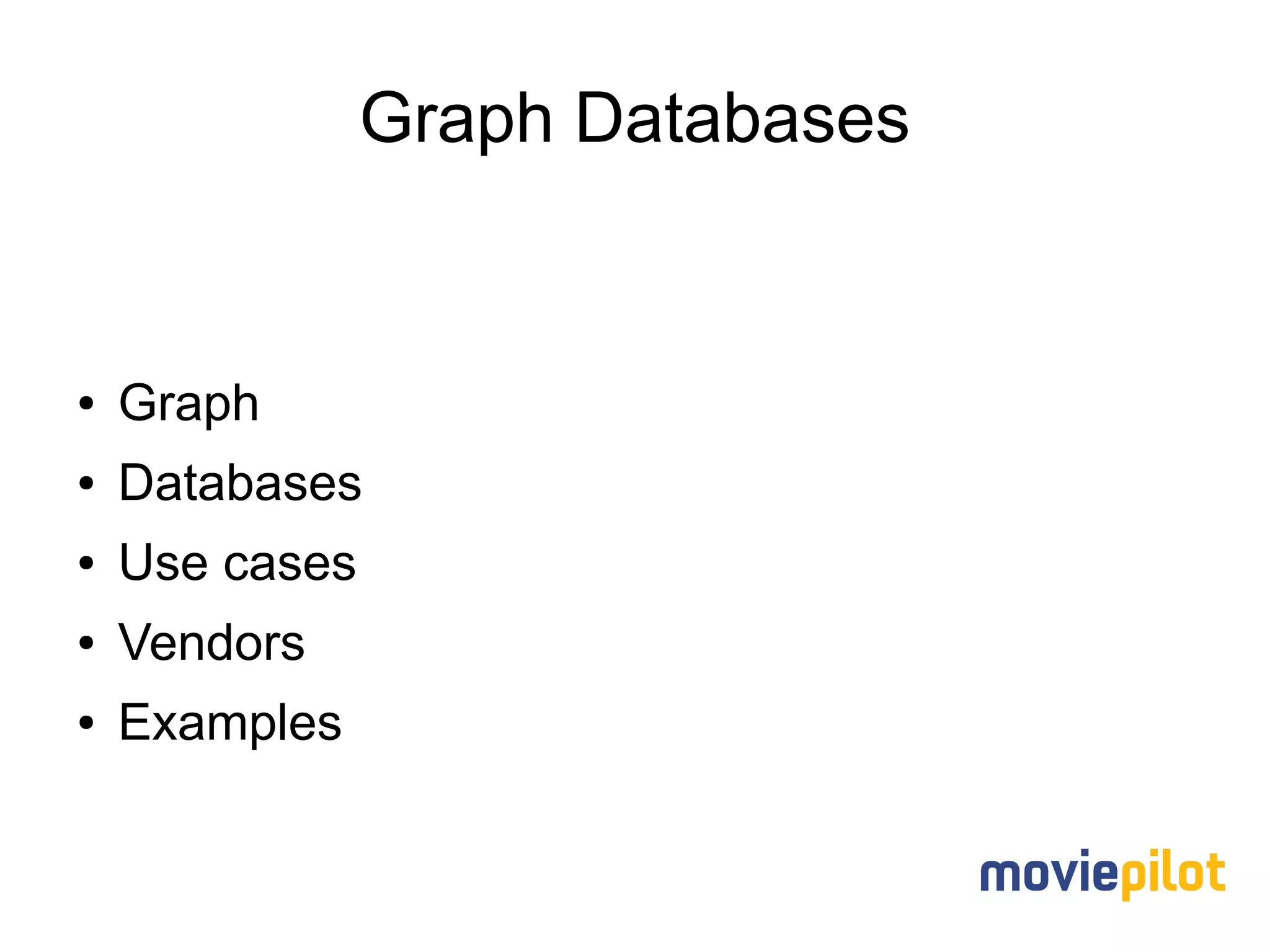

2. Graph Databases
● Graph
● Databases
● Use cases
● Vendors
● Examples

3. Graph Databases
Graph G(V,E) where V = {V1, V2, ..., VN} and
E = {E1, E2, ... , EN}
EN = (VN, VM)
● Directed, Undirected
● Mixed
● Multigraph
● Weighted
● ....

4. Graph Databases
Tots els camins porten a Roma
Alle Wege führen nach Rom

5. Graph Databases
{
'Implementations' : {
'matrix' : [ 'adjacency', 'incidence' ],
'list' : [ 'adjacency', 'incidence' ],
.....
}

6. Graph Databases
{ {
A:{ vertex : [A, B, C, D]
out: [B,C], edges : {
in: [C], [A,B],
} [B,C],
[D,A],
B:{ [C,A]
out : [C] }
} }
C:{ A
in : [A]
}
} C
B

7. Graph Databases
The property graph
Abstraction layer
Nodes
Edges
Properties on both
Adam Balduim played in Full Metal Jacket
played
Actor
Movie
name = Adam Balduim
title = Full Metal Jacket

8. Graph Databases
A graph database is a database that uses graph
structures with nodes, edges, and properties to
represent and store information.
General graph databases that can store any
graph are distinct from specialized graph
databases such as triple stores and network
databases.
[wikipedia.org]

9. Graph Databases
GraphDB Vendors Overview!

10. Graph Databases
Vendors
Neo4J (neo4j.org)
Embedded, disk-based, fully transactional Java
persistence engine that stores data structured in
graphs rather than in tables.
Dual-Licensed AGPL and Commercial.
High Availability, scalability, concurrent,etc.

11. Graph Databases
Vendors
OrientDB
An embedded pure java fast, transactional,
scalable document-graph storage engine.
Schema free, ACID, suport for SQL and JSON.
Apache License 2.0
More info: http://www.orientechnologies.com/

12. Graph Database
Vendors
● Dex: The high performance graph database.
● HyperGraphDB: An IA and semantic web
graph database.
● Infogrid: The Internet Graph database.
● Sones: SaaS dot Net Graph database.
● VertexDB: High performance database server.

13. Graph Database
Graph processing frameworks
● Phoebus : Pregel
implementation in
Erlang.
● Pregel : Google
graph processing
platform.
● Trinity : Microsoft C#
future graph platform.
● Apache Hama:
Distributed computing
over graphs.

14. Graph Database
Graph APIs
● Blueprints: A Java api for the property graph.
● Gremlin: A graph query language.
● Pipes: A graph processing framework.
● Rexter: A REST server used to access
graphdbs.

15. Graph Databases
● Use cases

16. Graph Database
Use cases
● Task planning.
● Scheduling
● Process assignation
● Routing
● Logistics
● League planning

17. Graph Database
Use cases
● Clustering
● Social analysis
● Hubs
● Graph mining
● Centrality measures
● Location based services

18. Graph Database
Use cases
● Recommendation
● Heuristics
● Local
– Shortest Paths
– Hammock functions.
– Walks
– Search algorithms, like A*
– Shooting stars
– K-nearest neighbors

19. Graph Database
Use cases
● Semantic web.
● RDF (OWL) store
● RDF-Sail
● SPARQL
● Linked data
● Link analysis
● Structure mining

20. Graph Database
Neo4j.rb Neo4j using JRuby
