1. GOOGIE
ARCHITECTURE
(1945-early 1970s)
S U BMI TT ED B Y :
A N A MI K A PATI L
KHYATI G A R DE

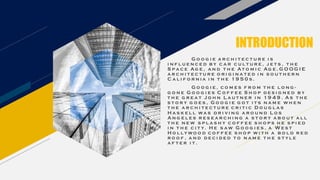

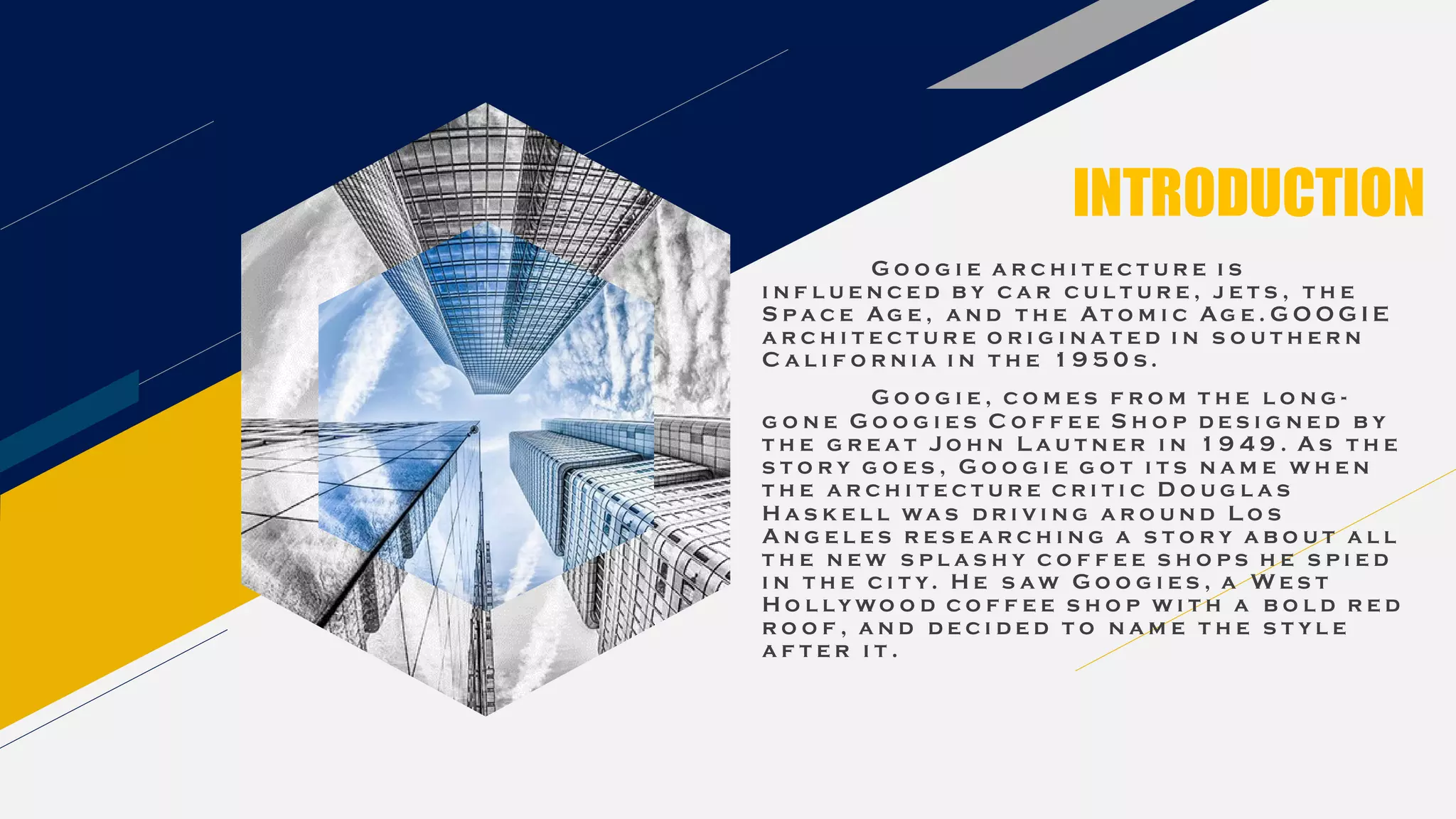

2. INTRODUCTION
G o o g i e a r c h i t e c t u r e i s
i n f l u e n c e d b y c a r c u l t u r e , j e t s , t h e
S p a c e Ag e , a n d t h e At o m i c Ag e . G O O G I E
a r c h i t e c t u r e o r i g i n a t e d i n s o u t h e r n
C a l i f o r n i a i n t h e 1 9 5 0 s .
G o o g i e , c o m e s f r o m t h e l o n g -
g o n e G o o g i e s C o f f e e S h o p d e s i g n e d b y
t h e g r e a t J o h n L a u t n e r i n 1 9 4 9 . A s t h e
s t o r y g o e s , G o o g i e g o t i t s n a m e w h e n
t h e a r c h i t e c t u r e c r i t i c D o u g l a s
H a s k e l l wa s d r i v i n g a r o u n d L o s
A n g e l e s r e s e a r c h i n g a s t o r y a b o u t a l l
t h e n e w s p l a s h y c o f f e e s h o p s h e s p i e d
i n t h e c i t y. H e s aw G o o g i e s , a W e s t
H o l l y wo o d c o f f e e s h o p w i t h a b o l d r e d
r o o f , a n d d e c i d e d t o n a m e t h e s t y l e
a f t e r i t .

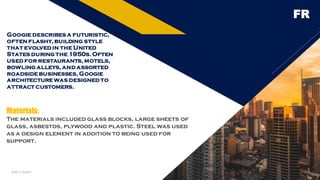

3. FR
Googie describes a futuristic,
often flashy,building style
that evolved in the United
States during the 1950s.Often
used for restaurants,motels,
bowling alleys,and assorted
roadsidebusinesses,Googie
architecturewas designed to
attract customers.
Add a footer 3
Materials:
The materials included glass blocks, large sheets of
glass, asbestos, plywood and plastic. Steel was used
as a design element in addition to being used for
support.

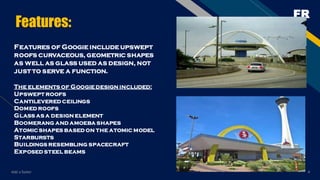

4. FR
Features:
Features of Googie include upswept
roofs curvaceous, geometric shapes
as well as glass used as design, not
just to serve a function.
The elements of Googie design included:
Upswept roofs
Cantilevered ceilings
Domed roofs
Glass as a design element
Boomerang and amoeba shapes
Atomicshapes based on the atomic model
Starbursts
Buildings resembling spacecraft
Exposed steel beams
Add a footer 4

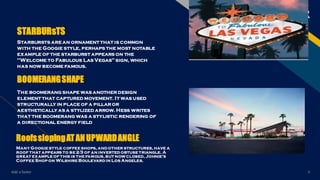

5. FR
Starbursts are an ornament that is common
with the Googie style, perhaps the most notable
example of the starburst appears on the
"Welcome to Fabulous Las Vegas" sign, which
has now become famous.
BOOMERANGSHAPE
The boomerang shape was another design
element that captured movement. It was used
structurally in place of a pillar or
aesthetically as a stylized arrow. Hess writes
that the boomerang was a stylistic rendering of
a directional energy field
RoofsslopingATANUPWARDANGLE
Many Googie style coffee shops, and other structures, have a
roof that appears to be 2⁄3 of an inverted obtuse triangle. A
great example of this is the famous, but now closed, Johnie's
Coffee Shop on Wilshire Boulevard in Los Angeles.
Add a footer 5
STARBURsTS

6. FR

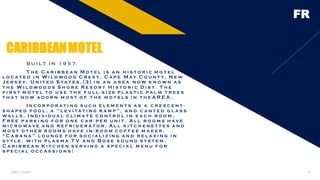

B U I LT I N 1 9 5 7.
T h e C a r i b b e a n M o t e l i s a n h i s t o r i c m o t e l
l o c a t e d i n W i l d wo o d C r e s t , C a p e M ay C o u n t y, N e w
J e r s e y, U n i t e d S t a t e s , [ 3 ] i n a n a r e a n o w k n o w n a s
t h e W i l d wo o d s S h o r e R e s o r t H i s t o r i c D i s t . T h e
f i r s t m o t e l t o u s e t h e f u l l - s i z e p l a s t i c p a l m t r e e s
t h a t n o w a d o r n m o s t o f t h e m o t e l s i n t h e A R E A .
I n c o r p o r a t i n g s u c h e l e m e n t s a s a c r e s c e n t -
s h a p e d p o o l , a " l e v i t a t i n g r a m p " , a n d c a n t e d g l a s s
wa l l s , I n d i v i d u a l c l i m a t e c o n t r o l i n e a c h r o o m ,
F r e e p a r k i n g f o r o n e c a r p e r u n i t . A l l r o o m s h av e
m i c r o wav e a n d r e f r i g e r a t o r . A l l k i t c h e n e t t e s a n d
m o s t o t h e r r o o m s h av e i n - r o o m c o f f e e m a k e r .
“ C a b a n a ” l o u n g e f o r s o c i a l i z i n g a n d r e l a x i n g i n
s t y l e . w i t h p l a s m a T V a n d B o s e s o u n d s y s t e m .
C a r i b b e a n K i t c h e n s e r v i n g a s p e c i a l m e n u f o r
s p e c i a l o c c a s s i o n s !

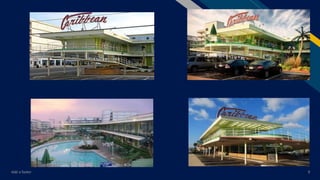

CARIBBEANMOTEL
Add a footer 6

7. FR
ARCHITECTURE
Two-storymotel with manydetails typical of this era in Wildwoodmotel construction. •
Features such at thelevitating ramp and lean in/leanout glass walls of the second-floorlounge
demonstratethe time's preoccupation with "futuristic"effects, whilethefake palm trees and C-
shaped pool are examples of the motels'pursuit of exoticvacationthemes. • The designshows a
particularlycreative use of neon and other night lighting—angular roofmoldings areembedded
with multicoloredlights. • Extensively-usedplateglass emphasizes theera's design preoccupation
with making ambiguous distinctionsbetweeninsideand outside.
The motel rooms haveframeconstructionwith cinderblockwalls. 4. Structural system,
framing: Woodframing with cement block walls; deck supportedby steel columns; rampsupported
by steel braces discreetlyconnectedto triangular steel columns—which gives theramp the
illusionof floating. Theramp marks a graceful sweep from thesecond-floor deck to the inner
court.
The insidecourtyardon the first and secondfloors arelined with 6' wide open porches.
The secondfloor porch has a simple, openironrailing, with threehorizontal rails, andvertical
posts spaced several feet apart. The motel rooms haveplate-glass windowswhichcomprisethe
entirewall facing the inner court. The lower portion of thesewindows wereoriginallylouvered
to allowfor air circulation,but have nowbeen covered with siding.
Flat built-uproof, recentlyrenovated with rubberizedcovering. Angledroof moldings
with embedded lights describedabove. At night theCaribbean takes on an a different dimension
because of the mainsign, the multi-coloredlights embeddedinthe roof and porch moldings, the
glowof the pool. Thereare no interior halls inwhich to housestairways; theopenstairways are
along the motels exterior. A"levitating"concreteramp is used in lieu of a stairwayto access the
secondfloor of the motel from thepool area. The floors areof 2' x 12' plywoodboards. 4. Wall
and ceiling finish:Cinderblock walls havea stippledplaster finish. Bathrooms haveoriginal tiles
in four color schemes. 5. Decorativefeatures: Themotel's "decorative" distinctiveness lies in its
external details; the room interiorsare intentionallysparseor unornamented.
Add a footer 7

8. FR
Add a footer 8
CARIBBEANMOTELPLAN

9. FR
Add a footer 9

10. FR
Add a footer

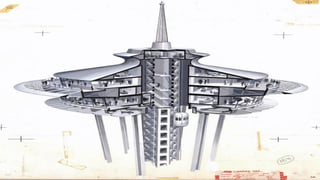

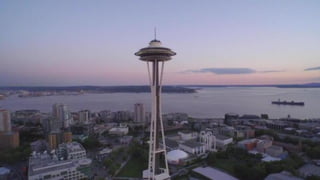

SPACENEEDLE
• A 1962 construction of seattles landmark. The architecture of the Space Needle is the
result of a compromise between the designs of two men, Edward E. Carlson and John
Graham
• a 14,400 square foot (1337.8 square meter) site WITH The first step was to dig a hole 30
feet (9 meters) deep and 120 feet (36.6 meters) across into which the building’s
foundation could be poured. This concrete pour would be the largest attempted in the
West to that date: over the course of an entire day, a total of 467 cement trucks worked
to fill the gaping hole.
• The structure comprises a steel tripod, with each of the three legs pinched just above
the middle of their height.
• The height of structure is 184m.
• The Space Needle has an observation deck at 520 ft (160 m)[
• Visitors can reach the top of the Space Needle by elevators The trip takes 41 seconds
• 2 restaurants at the height of 150m.
• The main stairwell has 848 steps from the basement to the top of the observation deck.
•

11. FR
Add a footer 11

12. FR
Add a footer 12

13. FR
Add a footer 13

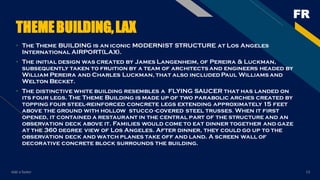

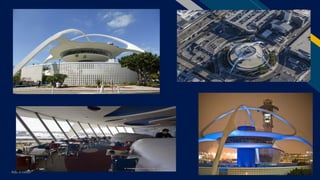

THEMEBUILDING,LAX
• The Theme BUILDING is an iconic MODERNIST STRUCTURE at Los Angeles
International AIRPORT(LAX).
• The initial design was created by James Langenheim, of Pereira & Luckman,
subsequently taken to fruition by a team of architects and engineers headed by
William Pereira and Charles Luckman, that also included Paul Williams and
Welton Becket.
• The distinctive white building resembles a FLYING SAUCER that has landed on
its four legs. The Theme Building is made up of two parabolic arches created by
topping four steel-reinforced concrete legs extending approximately 15 feet
above the ground with hollow stucco -covered steel trusses. When it first
opened, it contained a restaurant in the central part of the structure and an
observation deck above it. Families would come to eat dinner together and gaze
at the 360 degree view of Los Angeles. After dinner, they could go up to the
observation deck and watch planes take off and land. A screen wall of
decorative concrete block surrounds the building.

14. FR
Add a footer 14

15. FR
Add a footer 15

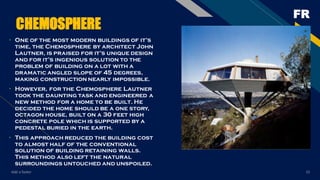

CHEMOSPHERE
• One of the most modern buildings of it’s
time, the Chemosphere by architect John
Lautner, is praised for it’s unique design
and for it’s ingenious solution to the
problem of building on a lot with a
dramatic angled slope of 45 degrees,
making construction nearly impossible.
• However, for the Chemosphere Lautner
took the daunting task and engineered a
new method for a home to be built. He
decided the home should be a one story,
octagon house, built on a 30 feet high
concrete pole which is supported by a
pedestal buried in the earth.
• This approach reduced the building cost
to almost half of the conventional
solution of building retaining walls.
This method also left the natural
surroundings untouched and unspoiled.

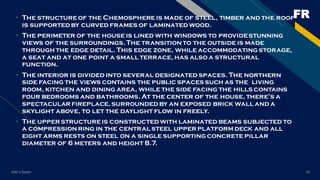

16. FR
Add a footer 16

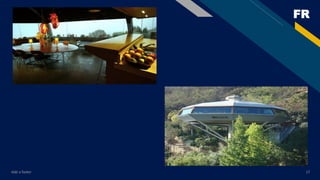

• The structureof the Chemosphere is made of steel, timber and the roof
is supportedby curved frames of laminatedwood.
• The perimeter of the house is lined with windows to providestunning
views of the surroundings.The transitionto the outside is made
through the edge detail. This edge zone, while accommodatingstorage,
a seat and at one point a small terrace, has also a structural
function.
• The interior is divided into several designated spaces. The northern
side facing the views contains the public spaces such as the living
room, kitchen and dining area, while the side facing the hills contains
four bedrooms and bathrooms. At the center of the house, there’s a
spectacular fireplace,surroundedby an exposed brick wall and a
skylight above, to let the daylight flow in freely.
• The upper structureis constructedwith laminated beams subjected to
a compressionring in the central steel upper platformdeck and all
eight arms rests on steel on a single supportingconcrete pillar
diameter of 6 meters and height 8.7.

17. FR
Add a footer 17

18. FR
Thank You.
THANKYOU
