1. Go with the Flow: Automating
Business Processes with Clicks
July 10th 2014

2. #forcewebinar
Speaker
Bill Takacs
Product Manager, Visual Workflow
sfdcbill
btakacs@salesforce.com

3. #forcewebinar
Safe Harbor
Safe harbor statement under the Private Securities Litigation Reform Act of 1995:
This presentation may contain forward-looking statements that involve risks, uncertainties, and assumptions. If any such uncertainties materialize or if any of
the assumptions proves incorrect, the results of salesforce.com, inc. could differ materially from the results expressed or implied by the forward-looking
statements we make. All statements other than statements of historical fact could be deemed forward-looking, including any projections of product or service
availability, subscriber growth, earnings, revenues, or other financial items and any statements regarding strategies or plans of management for future
operations, statements of belief, any statements concerning new, planned, or upgraded services or technology developments and customer contracts or use
of our services.
The risks and uncertainties referred to above include – but are not limited to – risks associated with developing and delivering new functionality for our
service, new products and services, our new business model, our past operating losses, possible fluctuations in our operating results and rate of growth,
interruptions or delays in our Web hosting, breach of our security measures, the outcome of intellectual property and other litigation, risks associated with
possible mergers and acquisitions, the immature market in which we operate, our relatively limited operating history, our ability to expand, retain, and
motivate our employees and manage our growth, new releases of our service and successful customer deployment, our limited history reselling non-
salesforce.com products, and utilization and selling to larger enterprise customers. Further information on potential factors that could affect the financial
results of salesforce.com, inc. is included in our annual report on Form 10-Q for the most recent fiscal quarter ended July 31, 2012. This documents and
others containing important disclosures are available on the SEC Filings section of the Investor Information section of our Web site.
Any unreleased services or features referenced in this or other presentations, press releases or public statements are not currently available and may not be
delivered on time or at all. Customers who purchase our services should make the purchase decisions based upon features that are currently available.
Salesforce.com, inc. assumes no obligation and does not intend to update these forward-looking statements.

4. #forcewebinar

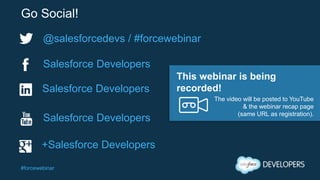

Go Social!
@salesforcedevs / #forcewebinar
Salesforce Developers
+Salesforce Developers
Salesforce Developers
Salesforce Developers
The video will be posted to YouTube
& the webinar recap page
(same URL as registration).
This webinar is being
recorded!

5. #forcewebinar

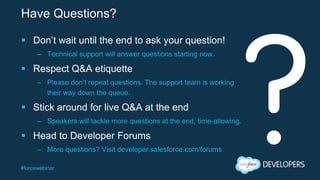

Have Questions?
 Don’t wait until the end to ask your question!
– Technical support will answer questions starting now.
 Respect Q&A etiquette
– Please don’t repeat questions. The support team is working
their way down the queue.
 Stick around for live Q&A at the end
– Speakers will tackle more questions at the end, time-allowing.
 Head to Developer Forums
– More questions? Visit developer.salesforce.com/forums

6. #forcewebinar
Agenda
 What is Salesforce Visual Workflow
 Why Salesforce Visual Workflow
 How to use Visual Workflow
 Demo

7. #forcewebinar

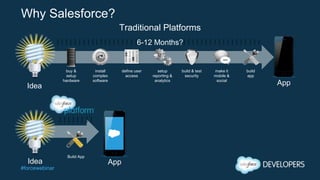

Why Salesforce?
Idea
Build App
Idea
buy &
setup
hardware
install
complex
software
define user
access
build & test
security
make it
mobile &
social
setup
reporting &
analytics
build
app
Traditional Platforms
6-12 Months?
App
App

8. #forcewebinar
Develop, package and instantly deploy apps
Access rich APIs and frameworks
Code in your favorite language
Add fields, design layouts, and manage users
Point-and-click workflow & business logic
Drag-and-drop reports and dashboards
Programmatic Declarative

9. #forcewebinar
What is Visual Workflow
 Declarative toolset to build and execute processes related to
Salesforce domains: Marketing, sales, service and support
 Extensible via APEX and Visualforce
 Currently working on the ability to handle process
orchestration and long running processes – BPM “Light”

10. #forcewebinar
Why automate your business processes?

11. #forcewebinar

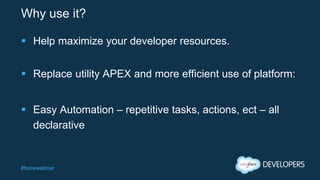

Why use it?
 Help maximize your developer resources.
 Replace utility APEX and more efficient use of platform:
 Easy Automation – repetitive tasks, actions, ect – all
declarative

12. #forcewebinar

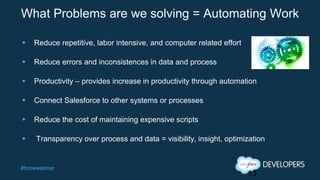

What Problems are we solving = Automating Work
 Reduce repetitive, labor intensive, and computer related effort
 Reduce errors and inconsistences in data and process
 Productivity – provides increase in productivity through automation
 Connect Salesforce to other systems or processes
 Reduce the cost of maintaining expensive scripts
 Transparency over process and data = visibility, insight, optimization
13

13. #forcewebinar
Business Value
 Lower cost
 Cost Avoidance
 Revenue / Margin Contribution
 Customer Experience

14. #forcewebinar

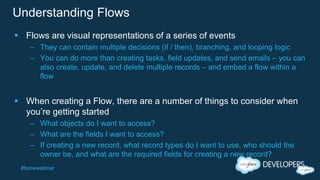

Understanding Flows
 Flows are visual representations of a series of events
– They can contain multiple decisions (if / then), branching, and looping logic
– You can do more than creating tasks, field updates, and send emails – you can
also create, update, and delete multiple records – and embed a flow within a
flow
 When creating a Flow, there are a number of things to consider when
you’re getting started
– What objects do I want to access?
– What are the fields I want to access?
– If creating a new record, what record types do I want to use, who should the
owner be, and what are the required fields for creating a new record?

15. #forcewebinar

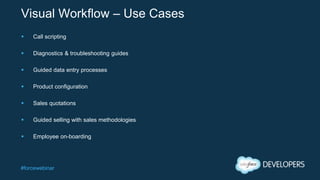

Visual Workflow – Use Cases
 Call scripting
 Diagnostics & troubleshooting guides
 Guided data entry processes
 Product configuration
 Sales quotations
 Guided selling with sales methodologies
 Employee on-boarding

16. #forcewebinar

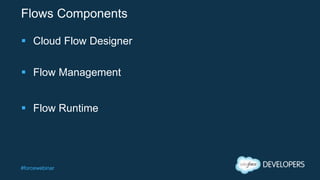

Flows Components
 Cloud Flow Designer
 Flow Management
 Flow Runtime

17. #forcewebinar

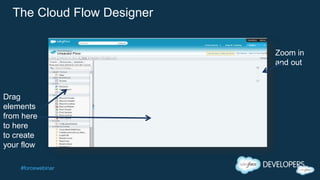

The Cloud Flow Designer
Drag
elements
from here
to here
to create
your flow
Zoom in
and out

18. #forcewebinar
The Cloud Flow Designer
The Step element
allows you to sketch
out a draft of a flow –
I’ll be honest, I never
use this, mostly
because you can’t
activate a flow if it
has any steps in it
The screen is where you
design what the user sees
– text, questions,
checkboxes, etc
Decision element is a logic
branching point, where you
can create an if/then
statement, like with
Workflow Rules – only, it’s
much more robust,
allowing you to draw
multiple outcomes, and
you can have multiple
decisions in one flow
The first tab is your palette

19. #forcewebinar

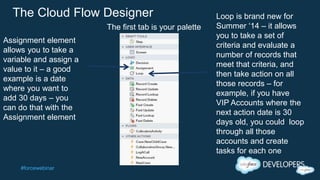

The Cloud Flow Designer
Assignment element
allows you to take a
variable and assign a
value to it – a good
example is a date
where you want to
add 30 days – you
can do that with the
Assignment element
Loop is brand new for
Summer ‘14 – it allows
you to take a set of
criteria and evaluate a
number of records that
meet that criteria, and
then take action on all
those records – for
example, if you have
VIP Accounts where the
next action date is 30
days old, you could loop
through all those
accounts and create
tasks for each one
The first tab is your palette

20. #forcewebinar

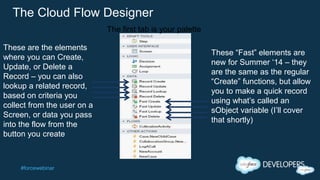

The Cloud Flow Designer
These are the elements
where you can Create,
Update, or Delete a
Record – you can also
lookup a related record,
based on criteria you
collect from the user on a
Screen, or data you pass
into the flow from the
button you create
These “Fast” elements are
new for Summer ‘14 – they
are the same as the regular
“Create” functions, but allow
you to make a quick record
using what’s called an
sObject variable (I’ll cover
that shortly)
The first tab is your palette

21. #forcewebinar

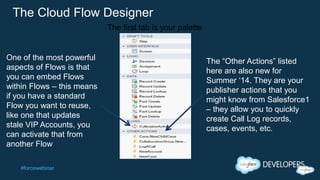

The Cloud Flow Designer
One of the most powerful
aspects of Flows is that
you can embed Flows
within Flows – this means
if you have a standard
Flow you want to reuse,
like one that updates
stale VIP Accounts, you
can activate that from
another Flow
The “Other Actions” listed
here are also new for
Summer ‘14. They are your
publisher actions that you
might know from Salesforce1
– they allow you to quickly
create Call Log records,
cases, events, etc.
The first tab is your palette

22. #forcewebinar

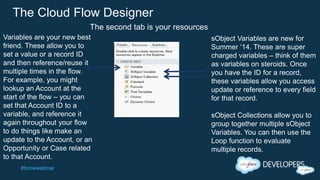

The Cloud Flow Designer
Variables are your new best
friend. These allow you to
set a value or a record ID
and then reference/reuse it
multiple times in the flow.
For example, you might
lookup an Account at the
start of the flow – you can
set that Account ID to a
variable, and reference it
again throughout your flow
to do things like make an
update to the Account, or an
Opportunity or Case related
to that Account.
sObject Variables are new for
Summer ‘14. These are super
charged variables – think of them
as variables on steroids. Once
you have the ID for a record,
these variables allow you access
update or reference to every field
for that record.
sObject Collections allow you to
group together multiple sObject
Variables. You can then use the
Loop function to evaluate
multiple records.
The second tab is your resources

23. #forcewebinar

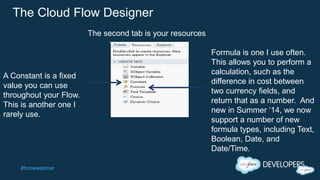

The Cloud Flow Designer
A Constant is a fixed
value you can use
throughout your Flow.
This is another one I
rarely use.
Formula is one I use often.
This allows you to perform a
calculation, such as the
difference in cost between
two currency fields, and
return that as a number. And
new in Summer ‘14, we now
support a number of new
formula types, including Text,
Boolean, Date, and
Date/Time.
The second tab is your resources

24. #forcewebinar

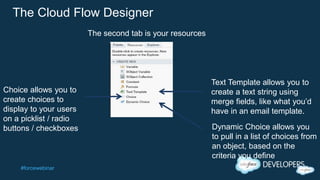

The Cloud Flow Designer
Choice allows you to
create choices to
display to your users
on a picklist / radio
buttons / checkboxes
Text Template allows you to
create a text string using
merge fields, like what you’d
have in an email template.
The second tab is your resources
Dynamic Choice allows you
to pull in a list of choices from
an object, based on the
criteria you define

25. #forcewebinar

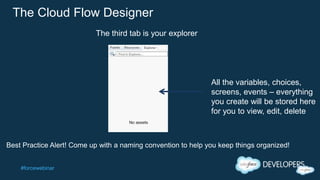

The Cloud Flow Designer
All the variables, choices,
screens, events – everything
you create will be stored here
for you to view, edit, delete
The third tab is your explorer
Best Practice Alert! Come up with a naming convention to help you keep things organized!

26. #forcewebinar

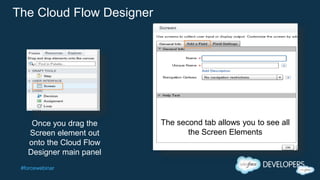

The Cloud Flow Designer
Once you drag the
Screen element out
onto the Cloud Flow
Designer main panel
The second tab allows you to see all
the Screen Elements

27. #forcewebinar

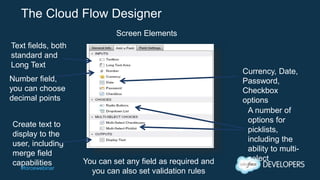

The Cloud Flow Designer
Screen Elements
Text fields, both
standard and
Long Text
Number field,
you can choose
decimal points
You can set any field as required and
you can also set validation rules
Currency, Date,
Password,
Checkbox
options
A number of
options for
picklists,
including the
ability to multi-
select
Create text to
display to the
user, including
merge field
capabilities

28. #forcewebinar

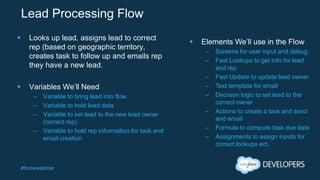

Lead Processing Flow
 Looks up lead, assigns lead to correct
rep (based on geographic territory,
creates task to follow up and emails rep
they have a new lead.
 Variables We’ll Need
– Variable to bring lead into flow
– Variable to hold lead data
– Variable to set lead to the new lead owner
(correct rep)
– Variable to hold rep information for task and
email creation
 Elements We’ll use in the Flow
– Screens for user input and debug
– Fast Lookups to get info for lead
and rep
– Fast Update to update lead owner
– Text template for email
– Decision logic to set lead to the
correct owner
– Actions to create a task and send
and email
– Formula to compute task due date
– Assignments to assign inputs for
correct lookups ect.

29. #forcewebinar
Flow Management

30. #forcewebinar

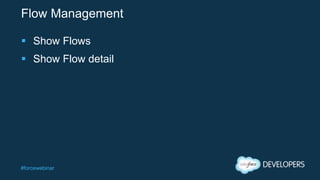

Flow Management
 Show Flows
 Show Flow detail

31. #forcewebinar
Flow Runtime

32. #forcewebinar
Let’s Build a Simple Flow

33. #forcewebinar
Flow Best Practices

34. #forcewebinar
Flow Best Practices
 Design before you build
 Think through your data and variables
– Build a convention for you variables
 Use IDs to bring data into the Flow
 Use Screens to debug or emails for headless

35. #forcewebinar
Survey
Your feedback is crucial to the success
of our webinar programs. Thank you!
http://bit.ly/flowtogo
#forcewebinar

36. #forcewebinar
www.summerofhacks.com
July 11-
13
July 18-
20
July 25-
27
July 18-
20
#summerofhacks

37. #forcewebinar
October 13-16, 2014 • San Francisco,
CA
$899 DEVELOPER DISCOUNT CODE:
D14DVLPR
#devzone

38. #forcewebinar
Q&A
Bill Takacs
Product Manager, Visual Workflow
sfdcbill
btakacs@salesforce.com
If we don’t get to your question you can post them at:
Workflow Success Community: http://bit.ly/successqa
Developer Forum: http://bit.ly/devforumqa
