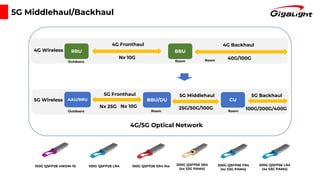

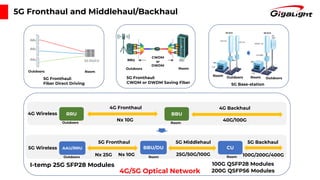

5G Fronthaul and Middlehaul/Backhaul
RRU BBU
AAU/RRU BBU/DU CU
4G Fronthaul
5G Fronthaul 5G Middlehaul 5G Backhaul
4G Backhaul
4G Wireless
5G Wireless
Nx 10G
Nx 25G Nx 10G 25G/50G/100G 100G/200G/400G
40G/100G
4G/5G Optical Network
5G Base-station
5G Fronthaul:
Fiber Direct Driving
CWDM
or
DWDM
RRU
5G Fronthaul:
CWDM or DWDM Saving Fiber
Outdoors
Outdoors
Outdoors
Outdoors
Room
Room
Room
Room
Room Room
RoomOutdoors Outdoors
I-temp 25G SFP28 Modules
200G QSFP56 Modules
100G QSFP28 Modules
3

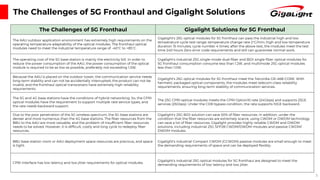

The Challenges of 5G Fronthaul and Gigalight Solutions
The Challenges of 5G Fronthaul Gigalight Solutions for 5G Fronthaul
The AAU outdoor application environment has extremely high requirements on the
operating temperature adaptability of the optical modules. The fronthaul optical
modules need to meet the industrial temperature range of -40°C to +85°C.
Gigalight's 25G optical modules for 5G fronthaul can pass the industrial high and low
temperature cycle test range; temperature change rate 2°C/min; high and low temperature
duration 15 minutes; cycle number 4 times; after the above test, the modules meet the test
time 240 hours Zero error code requirements and still can guarantee normal work.
The operating cost of the 5G base station is mainly the electricity bill. In order to
reduce the power consumption of the AAU, the power consumption of the optical
module is required to be as low as possible, preferably not exceeding 1.5W.
Gigalight's industrial 25G single-mode dual-fiber and BiDi single-fiber optical modules for
5G fronthaul consumption consume less than 1.2W, and multimode 25G optical modules
less than 1.0W.
Because the AAU is placed on the outdoor tower, the communication service needs
long-term stability and can not be accidentally interrupted, the product can not be
invalid, and the fronthaul optical transceivers have extremely high reliability
requirements.
Gigalight's 25G optical modules for 5G fronthaul meet the Telcordia GR-468-CORE. With
hermetic packaged optical components, the modules meet telecom-class reliability
requirements, ensuring long-term stability of communication services.
The 5G and 4G base stations have the conditions of hybrid networking. So, the CPRI
optical modules have the requirement to support multiple rate service types, and
the rate needs backward support.
The 25G CPRI optical modules meets the CPRI Option10 rate (24Gbps) and supports 25GE
services (25Gbps). Under the CDR bypass condition, the rate supports 10GE backward.
Due to the poor penetration of the 5G wireless spectrum, the 5G base stations are
denser and more numerous than the 4G base stations. The fiber resources from the
BBU to the AAU are more valuable, and the problem of insufficient fiber resources
needs to be solved. However, it is difficult, costly and long cycle to redeploy fiber
resources.
Gigalight's 25G BiDi solution can save 50% of fiber resources. In addition, under the
condition that the fiber resources are extremely scarce, using CWDM or DWDM technology
can save a lot of fiber resources. Gigalight provides highly reliable CWDM and DWDM
solutions, including industrial 25G SFP28 CWDM/DWDM modules and passive CWDM/
DWDM modules.
BBU base station room or AAU deployment space resources are precious, and space
is tight.
Gigalight's industrial Compact CWDM (CCWDM) passive modules are small enough to meet
the demanding requirements of space and can be deployed flexibly.
CPRI interface has low latency and low jitter requirements for optical modules.
Gigalight's industrial 25G optical modules for 5G fronthaul are designed to meet the
demanding requirements of low latency and low jitter.
4

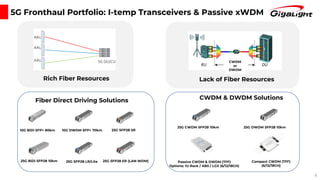

5G Fronthaul Portfolio: I-temp Transceivers & Passive xWDM
Rich Fiber Resources
CWDM
or
DWDM
Lack of Fiber Resources
25G SFP28 ER (LAN-WDM)25G BiDi SFP28 10km
25G SFP28 SR
25G SFP28 LR/Lite
25G CWDM SFP28 10km 25G DWDM SFP28 10km
Passive CWDM & DWDM (TFF)
Options: 1U Rack / ABS / LGX (6/12/18CH)
Compact CWDM (TFF)
(6/12/18CH)
Fiber Direct Driving Solutions CWDM & DWDM Solutions
10G BiDi SFP+ 80km 10G DWDM SFP+ 70km

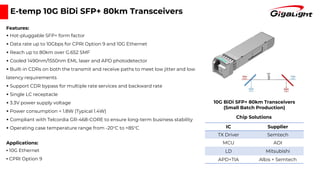

E-temp 10G BiDi SFP+ 80km Transceivers
Features:
▪ Hot-pluggable SFP+ form factor
▪ Data rate up to 10Gbps for CPRI Option 9 and 10G Ethernet
▪ Reach up to 80km over G.652 SMF
▪ Cooled 1490nm/1550nm EML laser and APD photodetector
▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low
latency requirements
▪ Support CDR bypass for multiple rate services and backward rate
▪ Single LC receptacle
▪ 3.3V power supply voltage
▪ Power consumption < 1.8W (Typical 1.4W)
▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability
▪ Operating case temperature range from -20°C to +85°C
Applications:
▪ 10G Ethernet
▪ CPRI Option 9
IC Supplier
TX Driver Semtech
MCU ADI
LD Mitsubishi
APD+TIA Albis + Semtech
Chip Solutions
10G BiDi SFP+ 80km Transceivers
(Small Batch Production)

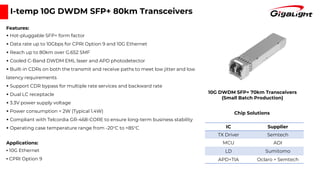

I-temp 10G DWDM SFP+ 80km Transceivers
Features:
▪ Hot-pluggable SFP+ form factor
▪ Data rate up to 10Gbps for CPRI Option 9 and 10G Ethernet
▪ Reach up to 80km over G.652 SMF
▪ Cooled C-Band DWDM EML laser and APD photodetector
▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low
latency requirements
▪ Support CDR bypass for multiple rate services and backward rate
▪ Dual LC receptacle
▪ 3.3V power supply voltage
▪ Power consumption < 2W (Typical 1.4W)
▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability
▪ Operating case temperature range from -20°C to +85°C
Applications:
▪ 10G Ethernet
▪ CPRI Option 9
IC Supplier
TX Driver Semtech
MCU ADI
LD Sumitomo
APD+TIA Oclaro + Semtech
Chip Solutions
10G DWDM SFP+ 70km Transceivers
(Small Batch Production)

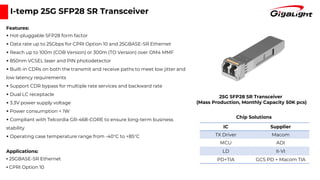

I-temp 25G SFP28 SR Transceiver
Features:
▪ Hot-pluggable SFP28 form factor
▪ Data rate up to 25Gbps for CPRI Option 10 and 25GBASE-SR Ethernet
▪ Reach up to 100m (COB Version) or 300m (TO Version) over OM4 MMF
▪ 850nm VCSEL laser and PIN photodetector
▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and
low latency requirements
▪ Support CDR bypass for multiple rate services and backward rate
▪ Dual LC receptacle
▪ 3.3V power supply voltage
▪ Power consumption < 1W
▪ Compliant with Telcordia GR-468-CORE to ensure long-term business
stability
▪ Operating case temperature range from -40°C to +85°C
Applications:
▪ 25GBASE-SR Ethernet
▪ CPRI Option 10
IC Supplier
TX Driver Macom
MCU ADI
LD II-VI
PD+TIA GCS PD + Macom TIA
Chip Solutions
25G SFP28 SR Transceiver
(Mass Production, Monthly Capacity 50K pcs)

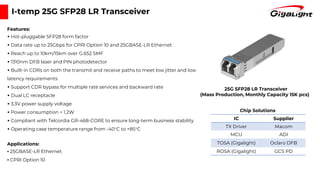

I-temp 25G SFP28 LR Transceiver
Features:
▪ Hot-pluggable SFP28 form factor
▪ Data rate up to 25Gbps for CPRI Option 10 and 25GBASE-LR Ethernet
▪ Reach up to 10km/15km over G.652 SMF
▪ 1310nm DFB laser and PIN photodetector
▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low
latency requirements
▪ Support CDR bypass for multiple rate services and backward rate
▪ Dual LC receptacle
▪ 3.3V power supply voltage
▪ Power consumption < 1.2W
▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability
▪ Operating case temperature range from -40°C to +85°C
Applications:
▪ 25GBASE-LR Ethernet
▪ CPRI Option 10
IC Supplier
TX Driver Macom
MCU ADI
TOSA (Gigalight) Oclaro DFB
ROSA (Gigalight) GCS PD
Chip Solutions
25G SFP28 LR Transceiver
(Mass Production, Monthly Capacity 15K pcs)

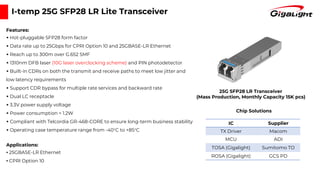

I-temp 25G SFP28 LR Lite Transceiver
Features:
▪ Hot-pluggable SFP28 form factor
▪ Data rate up to 25Gbps for CPRI Option 10 and 25GBASE-LR Ethernet
▪ Reach up to 300m over G.652 SMF
▪ 1310nm DFB laser (10G laser overclocking scheme) and PIN photodetector
▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and
low latency requirements
▪ Support CDR bypass for multiple rate services and backward rate
▪ Dual LC receptacle
▪ 3.3V power supply voltage
▪ Power consumption < 1.2W
▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability
▪ Operating case temperature range from -40°C to +85°C
Applications:
▪ 25GBASE-LR Ethernet
▪ CPRI Option 10
IC Supplier
TX Driver Macom
MCU ADI
TOSA (Gigalight) Sumitomo TO
ROSA (Gigalight) GCS PD
Chip Solutions
25G SFP28 LR Transceiver
(Mass Production, Monthly Capacity 15K pcs)

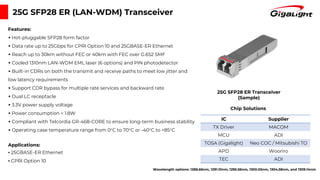

25G SFP28 ER (LAN-WDM) Transceiver
Features:
▪ Hot-pluggable SFP28 form factor
▪ Data rate up to 25Gbps for CPRI Option 10 and 25GBASE-ER Ethernet
▪ Reach up to 30km without FEC or 40km with FEC over G.652 SMF
▪ Cooled 1310nm LAN-WDM EML laser (6 options) and PIN photodetector
▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and
low latency requirements
▪ Support CDR bypass for multiple rate services and backward rate
▪ Dual LC receptacle
▪ 3.3V power supply voltage
▪ Power consumption < 1.8W
▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability
▪ Operating case temperature range from 0°C to 70°C or -40°C to +85°C
Applications:
▪ 25GBASE-ER Ethernet
▪ CPRI Option 10
IC Supplier
TX Driver MACOM
MCU ADI
TOSA (Gigalight) Neo COC / Mitsubishi TO
APD Wooriro
TEC ADI
Chip Solutions
25G SFP28 ER Transceiver
(Sample)
Wavelength options: 1286.66nm, 1291.10nm, 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm

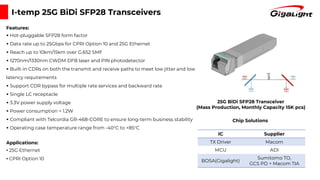

I-temp 25G BiDi SFP28 Transceivers
Features:
▪ Hot-pluggable SFP28 form factor
▪ Data rate up to 25Gbps for CPRI Option 10 and 25G Ethernet
▪ Reach up to 10km/15km over G.652 SMF
▪ 1270nm/1330nm CWDM DFB laser and PIN photodetector
▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low
latency requirements
▪ Support CDR bypass for multiple rate services and backward rate
▪ Single LC receptacle
▪ 3.3V power supply voltage
▪ Power consumption < 1.2W
▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability
▪ Operating case temperature range from -40°C to +85°C
Applications:
▪ 25G Ethernet
▪ CPRI Option 10
IC Supplier
TX Driver Macom
MCU ADI
BOSA(Gigalight)
Sumitomo TO,
GCS PD + Macom TIA
25G BiDi SFP28 Transceiver
(Mass Production, Monthly Capacity 15K pcs)
Chip Solutions
IC Supplier
TX Driver MACOM
MCU ADI
DFB/EML Taiwan / Sumitomo
APD Wooriro
TEC ADI

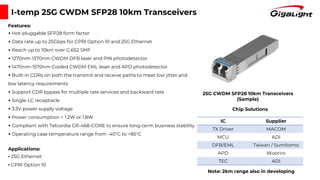

I-temp 25G CWDM SFP28 10km Transceivers
Features:
▪ Hot-pluggable SFP28 form factor
▪ Data rate up to 25Gbps for CPRI Option 10 and 25G Ethernet
▪ Reach up to 10km over G.652 SMF
▪ 1270nm-1370nm CWDM DFB laser and PIN photodetector
▪ 1470nm-1570nm Cooled CWDM EML laser and APD photodetector
▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and
low latency requirements
▪ Support CDR bypass for multiple rate services and backward rate
▪ Single LC receptacle
▪ 3.3V power supply voltage
▪ Power consumption < 1.2W or 1.8W
▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability
▪ Operating case temperature range from -40°C to +85°C
Applications:
▪ 25G Ethernet
▪ CPRI Option 10
25G CWDM SFP28 10km Transceivers
(Sample)
Chip Solutions
Note: 2km range also in developing
IC Supplier
TX Driver MACOM
MCU ADI
EML(Gigalight) Neo COC
APD Wooriro
TEC ADI

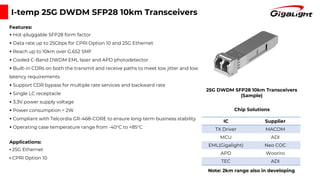

I-temp 25G DWDM SFP28 10km Transceivers
25G DWDM SFP28 10km Transceivers
(Sample)
Chip Solutions
Features:
▪ Hot-pluggable SFP28 form factor
▪ Data rate up to 25Gbps for CPRI Option 10 and 25G Ethernet
▪ Reach up to 10km over G.652 SMF
▪ Cooled C-Band DWDM EML laser and APD photodetector
▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low
latency requirements
▪ Support CDR bypass for multiple rate services and backward rate
▪ Single LC receptacle
▪ 3.3V power supply voltage
▪ Power consumption < 2W
▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability
▪ Operating case temperature range from -40°C to +85°C
Applications:
▪ 25G Ethernet
▪ CPRI Option 10
Note: 2km range also in developing
Product Description Wavelength Reach
Optical
Interface
Fiber Type
(Count)
LD PD
Power
Consumption
Temperature
Product
Status
10G BiDi SFP+ 80km 1490nm/1550nm 80km Single LC SMF (1) EML APD < 1.4W -20 to +85 PP
10G DWDM SFP+ 80km 1528nm-1563nm 80km Dual LC SMF (2) EML APD < 2.0W -40 to +85 PP
25G SFP28 SR (COB) 850nm 100m Dual LC OM4 (2) VCSEL PIN < 1W -40 to +85 MP
25G SFP28 CSR (TO) 850nm 300m Dual LC OM4 (2) VCSEL PIN < 1W -40 to +85 MP
25G SFP28 LR 1310nm 10km/15km Dual LC SMF (2) DFB PIN < 1.2W -40 to +85 MP
25G SFP28 LR Lite (300m) 1310nm 300m Dual LC SMF (2) DFB PIN < 1.2W -40 to +85 Sample
25G BiDi SFP28 10km 1270nm/1330nm 10km/15km Single LC SMF (1) DFB PIN < 1.2W -40 to +85 MP
25G SFP28 ER (LAN-WDM) 1286nm-1309nm 20Km Dual LC SMF (2) EML APD < 1.8W 0 to 70 / -40 to +85 Sample
25G CWDM SFP28 10km 1270nm-1370nm 10km Dual LC SMF (2) DFB PIN < 1.2W -40 to +85 Sample
25G CWDM SFP28 10km 1470nm-1570nm 10km Dual LC SMF (2) EML APD < 1.8W -40 to +85 Sample
25G DWDM SFP28 10km 1528nm-1563nm 10km Dual LC SMF (2) EML APD < 1.8W -40 to +85 Sample

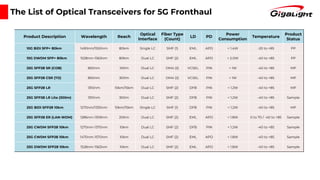

2The List of Optical Transceivers for 5G Fronthaul
5G Middlehaul/Backhaul
RRU BBU
AAU/RRU BBU/DU CU
4G Fronthaul
5G Fronthaul 5G Middlehaul 5G Backhaul
4G Backhaul
4G Wireless
5G Wireless
Nx 10G
Nx 25G Nx 10G 25G/50G/100G 100G/200G/400G
40G/100G
4G/5G Optical Network
Outdoors
Outdoors
Room
Room Room
Room
200G QSFP56 FR4
(4x 53G PAM4)
200G QSFP56 LR4
(4x 53G PAM4)
200G QSFP56 SR4
(4x 53G PAM4)
100G QSFP28 4WDM-10 100G QSFP28 LR4 100G QSFP28 ER4 lite
100G QSFP28 4WDM-10 Transceiver
(Sample)
I-temp 100G QSFP28 4WDM-10 Transceiver
Features:
▪ Hot-pluggable QSFP28 form factor
▪ Data rate up to 103.125Gbps for 100G Ethernet
▪ Reach up to 10km over G.652 SMF
▪ 4CH uncooled CWDM DML lasers and PIN photodetectors
▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low
latency requirements
▪ Dual LC receptacle
▪ 3.3V power supply voltage
▪ Power consumption < 3.5W (Typical)
▪ Operating case temperature range from 0°C to 70°C or -40°C to +85°C
Applications:
▪ 100G Ethernet
▪ 5G Optical Network
IC Supplier
TX CDR MACOM
RX CDR + TIA MACOM
TOSA with LD Gigalight TOSA
ROSA Gigalight ROSA
Chip Solutions
100G QSFP28 4WDM-10 Transceiver
(Mass Production)
IC Supplier
TX CDR MACOM
RX CDR + TIA MACOM
TOSA with LD Gigalight TOSA
ROSA Gigalight ROSA

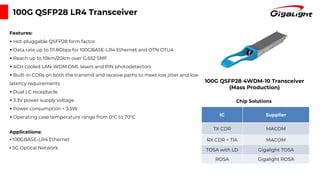

100G QSFP28 LR4 Transceiver
Features:
▪ Hot-pluggable QSFP28 form factor
▪ Data rate up to 111.8Gbps for 100GBASE-LR4 Ethernet and OTN OTU4
▪ Reach up to 10km/20km over G.652 SMF
▪ 4CH cooled LAN-WDM DML lasers and PIN photodetectors
▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low
latency requirements
▪ Dual LC receptacle
▪ 3.3V power supply voltage
▪ Power consumption < 3.5W
▪ Operating case temperature range from 0°C to 70°C
Applications:
▪ 100GBASE-LR4 Ethernet
▪ 5G Optical Network
Chip Solutions
IC Supplier
Laser Driver MACOM/SEMTECH
TIA MACOM/SEMTECH
DFB BROADCOM/OCLARO
PD GCS/ALBIS/BROACOM

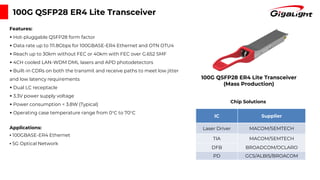

100G QSFP28 ER4 Lite Transceiver
Features:
▪ Hot-pluggable QSFP28 form factor
▪ Data rate up to 111.8Gbps for 100GBASE-ER4 Ethernet and OTN OTU4
▪ Reach up to 30km without FEC or 40km with FEC over G.652 SMF
▪ 4CH cooled LAN-WDM DML lasers and APD photodetectors
▪ Built-in CDRs on both the transmit and receive paths to meet low jitter
and low latency requirements
▪ Dual LC receptacle
▪ 3.3V power supply voltage
▪ Power consumption < 3.8W (Typical)
▪ Operating case temperature range from 0°C to 70°C
Applications:
▪ 100GBASE-ER4 Ethernet
▪ 5G Optical Network
100G QSFP28 ER4 Lite Transceiver
(Mass Production)
Chip Solutions

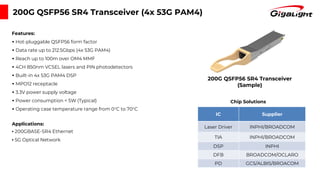

200G QSFP56 SR4 Transceiver
(Sample)
IC Supplier
Laser Driver INPHI/BROADCOM
TIA INPHI/BROADCOM
DSP INPHI
DFB BROADCOM/OCLARO
PD GCS/ALBIS/BROACOM
200G QSFP56 SR4 Transceiver (4x 53G PAM4)
Features:
▪ Hot-pluggable QSFP56 form factor
▪ Data rate up to 212.5Gbps (4x 53G PAM4)
▪ Reach up to 100m over OM4 MMF
▪ 4CH 850nm VCSEL lasers and PIN photodetectors
▪ Built-in 4x 53G PAM4 DSP
▪ MPO12 receptacle
▪ 3.3V power supply voltage
▪ Power consumption < 5W (Typical)
▪ Operating case temperature range from 0°C to 70°C
Applications:
▪ 200GBASE-SR4 Ethernet
▪ 5G Optical Network
Chip Solutions
200G QSFP56 SR4 Transceiver (4x 53G PAM4)
INPHI
4x 53G
PAM4
DSP
M
P
O
VCSEL
4X 53G
PAM4
PD
PD
PD
PD
VCSEL
VCSEL
VCSELDriver&TIA
AVAILABILITY: NOW, NPI
200G QSFP56 SR4 Transceiver
IC Supplier
Laser Driver INPHI/MACOM/SEMTECH
TIA INPHI/MACOM/SEMTECH
DSP INPHI
DFB BROADCOM/OCLARO
PD GCS/ALBIS/BROACOM

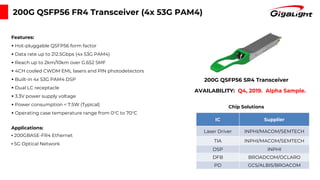

200G QSFP56 FR4 Transceiver (4x 53G PAM4)
Features:
▪ Hot-pluggable QSFP56 form factor
▪ Data rate up to 212.5Gbps (4x 53G PAM4)
▪ Reach up to 2km/10km over G.652 SMF
▪ 4CH cooled CWDM EML lasers and PIN photodetectors
▪ Built-in 4x 53G PAM4 DSP
▪ Dual LC receptacle
▪ 3.3V power supply voltage
▪ Power consumption < 7.5W (Typical)
▪ Operating case temperature range from 0°C to 70°C
Applications:
▪ 200GBASE-FR4 Ethernet
▪ 5G Optical Network
AVAILABILITY: Q4, 2019. Alpha Sample.
Chip Solutions

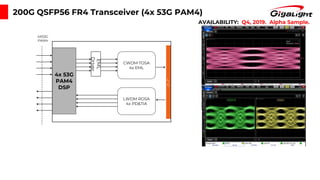

200G QSFP56 FR4 Transceiver (4x 53G PAM4)
4x 53G
PAM4
DSP
L
C
4X53G
PAM4
LWDM ROSA
4x PD&TIA
EML
Driver
CWDM TOSA
4x EML
AVAILABILITY: Q4, 2019. Alpha Sample.

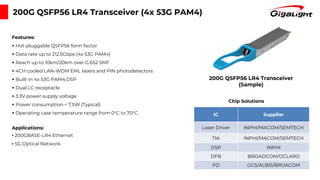

200G QSFP56 LR4 Transceiver
(Sample)
IC Supplier
Laser Driver INPHI/MACOM/SEMTECH
TIA INPHI/MACOM/SEMTECH
DSP INPHI
DFB BROADCOM/OCLARO
PD GCS/ALBIS/BROACOM
200G QSFP56 LR4 Transceiver (4x 53G PAM4)
Features:
▪ Hot-pluggable QSFP56 form factor
▪ Data rate up to 212.5Gbps (4x 53G PAM4)
▪ Reach up to 10km/20km over G.652 SMF
▪ 4CH cooled LAN-WDM EML lasers and PIN photodetectors
▪ Built-in 4x 53G PAM4 DSP
▪ Dual LC receptacle
▪ 3.3V power supply voltage
▪ Power consumption < 7.5W (Typical)
▪ Operating case temperature range from 0°C to 70°C
Applications:
▪ 200GBASE-LR4 Ethernet
▪ 5G Optical Network
Chip Solutions
4x 53G
PAM4
DSP
L
C
4X53G
PAM4
LWDM ROSA
4x PD&TIA
EML
Driver
LWDM TOSA
4x EML

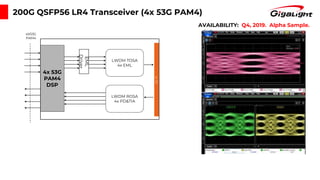

AVAILABILITY: Q4, 2019. Alpha Sample.
200G QSFP56 LR4 Transceiver (4x 53G PAM4)
Product Description Data Rate Wavelength Reach
Optical
Interface
Fiber Type
(Count)
LD PD
Power
Consumption
Temperature
Product
Status
100G QSFP28 4WDM10 4x 25G NRZ CWDM 10km Dual LC SMF (2) DML PIN < 3.5W 0-70 MP
100G QSFP28 LR4 4x 25G NRZ LAN-WDM 10km Dual LC SMF (2) DML PIN < 3.5W 0-70 MP
100G QSFP28 ER4 lite 4x 25G NRZ LAN-WDM 30km/40km Dual LC SMF (2) DML APD < 3.8W 0-70 MP
200G QSFP56 SR4 4x 53G PAM4 VCSEL 100m MPO12 OM4 (8) VCSEL PIN < 5W 0-70 Q3 2019
200G QSFP56 FR4 4x 53G PAM4 LAN-WDM 2~10km Dual LC SMF (2) EML APD < 7.5W 0-70 Sample
200G QSFP56 LR4 4x 53G PAM4 CWDM 10~20 km Dual LC SMF (2) EML APD < 7.5W 0-70 Sample

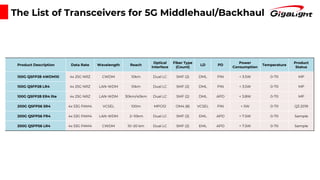

2The List of Transceivers for 5G Middlehaul/Backhaul
Optical Interconnection Design Innovator
Design drives drive progress. Every day is a battle with creativity!
Thanks!

More Related Content

What's hot

IBM's new Flashsystem 900
IBM's new Flashsystem 900IBM's new Flashsystem 900
IBM's new Flashsystem 900Stefan Lein

Gponfundamentals 130805074507-phpapp02
Gponfundamentals 130805074507-phpapp02Gponfundamentals 130805074507-phpapp02
Gponfundamentals 130805074507-phpapp02morris otieno

Basics Of Semiconductor Memories
Basics Of Semiconductor MemoriesBasics Of Semiconductor Memories
Basics Of Semiconductor MemoriesRahul Bandhe

3D V-Cache
3D V-Cache 3D V-Cache
3D V-Cache AMD

Basics of DWDM Technology
Basics of DWDM TechnologyBasics of DWDM Technology
Basics of DWDM TechnologyPankaj Lahariya

Nokia ultra site bts
Nokia ultra site btsNokia ultra site bts
Nokia ultra site btsAnkit Ricks

Composants reconfigurables
Composants reconfigurablesComposants reconfigurables
Composants reconfigurablesPeronnin Eric

Formation Bus de Terrain _Partie 3_5 _SERCOS III
Formation Bus de Terrain _Partie 3_5 _SERCOS IIIFormation Bus de Terrain _Partie 3_5 _SERCOS III
Formation Bus de Terrain _Partie 3_5 _SERCOS IIIWojciech GOMOLKA

Lect 2 ARM processor architecture
Lect 2 ARM processor architectureLect 2 ARM processor architecture
Lect 2 ARM processor architectureDr.YNM

【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...
【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...
【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...Ryuichi Yasunaga

GSM RF Interview Q&A
GSM RF Interview Q&AGSM RF Interview Q&A
GSM RF Interview Q&AYayvo.com

2018 04-12 boletin n4
2018 04-12 boletin n42018 04-12 boletin n4
2018 04-12 boletin n4victoriovega

Pci express transaction
Pci express transactionPci express transaction
Pci express transactiony38y38


What's hot (20)

IBM's new Flashsystem 900
IBM's new Flashsystem 900IBM's new Flashsystem 900
IBM's new Flashsystem 900

eMMC 5.0 Total IP Solution
eMMC 5.0 Total IP SolutioneMMC 5.0 Total IP Solution
eMMC 5.0 Total IP Solution

Gponfundamentals 130805074507-phpapp02
Gponfundamentals 130805074507-phpapp02Gponfundamentals 130805074507-phpapp02
Gponfundamentals 130805074507-phpapp02

WDM Basics
WDM BasicsWDM Basics
WDM Basics

Basics Of Semiconductor Memories
Basics Of Semiconductor MemoriesBasics Of Semiconductor Memories
Basics Of Semiconductor Memories

3D V-Cache
3D V-Cache 3D V-Cache
3D V-Cache

Basics of DWDM Technology
Basics of DWDM TechnologyBasics of DWDM Technology
Basics of DWDM Technology

Nokia ultra site bts
Nokia ultra site btsNokia ultra site bts
Nokia ultra site bts

Introduction to ARM
Introduction to ARMIntroduction to ARM
Introduction to ARM

Composants reconfigurables
Composants reconfigurablesComposants reconfigurables
Composants reconfigurables

GPON Introduction
GPON IntroductionGPON Introduction
GPON Introduction

Formation Bus de Terrain _Partie 3_5 _SERCOS III
Formation Bus de Terrain _Partie 3_5 _SERCOS IIIFormation Bus de Terrain _Partie 3_5 _SERCOS III
Formation Bus de Terrain _Partie 3_5 _SERCOS III

DDR SDRAM : Notes
DDR SDRAM : NotesDDR SDRAM : Notes
DDR SDRAM : Notes

Lect 2 ARM processor architecture
Lect 2 ARM processor architectureLect 2 ARM processor architecture
Lect 2 ARM processor architecture

【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...
【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...
【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...

LTE Basics - II
LTE Basics - IILTE Basics - II
LTE Basics - II

GSM RF Interview Q&A
GSM RF Interview Q&AGSM RF Interview Q&A
GSM RF Interview Q&A

2018 04-12 boletin n4
2018 04-12 boletin n42018 04-12 boletin n4
2018 04-12 boletin n4

Pci express transaction
Pci express transactionPci express transaction
Pci express transaction

RBS 6601.pdf
RBS 6601.pdfRBS 6601.pdf
RBS 6601.pdf


Similar to Gigalight Solutions for 5G Optical Network

Gigalight Solutions for Data Center and Cloud Computing
Gigalight Solutions for Data Center and Cloud ComputingGigalight Solutions for Data Center and Cloud Computing
Gigalight Solutions for Data Center and Cloud ComputingGigalight

Fujitsu Iccad Presentation--Enable 100G
Fujitsu Iccad Presentation--Enable 100GFujitsu Iccad Presentation--Enable 100G
Fujitsu Iccad Presentation--Enable 100Gkennliu

Open optical edge connecting mobile access networks
Open optical edge connecting mobile access networksOpen optical edge connecting mobile access networks
Open optical edge connecting mobile access networksADVA

cisco-qsfp-100g-lr4-s=-datasheet.pdf
cisco-qsfp-100g-lr4-s=-datasheet.pdfcisco-qsfp-100g-lr4-s=-datasheet.pdf
cisco-qsfp-100g-lr4-s=-datasheet.pdfHi-Network.com

Meet the industry's first pluggable 10G demarcation device
Meet the industry's first pluggable 10G demarcation deviceMeet the industry's first pluggable 10G demarcation device
Meet the industry's first pluggable 10G demarcation deviceADVA

Closer Look at 400G QSFP-DD Optical Transceiver Module
Closer Look at 400G QSFP-DD Optical Transceiver ModuleCloser Look at 400G QSFP-DD Optical Transceiver Module
Closer Look at 400G QSFP-DD Optical Transceiver ModuleSun Telecom

The coherent optical edge
The coherent optical edgeThe coherent optical edge
The coherent optical edgeADVA

cisco-x2-10gb-lr-datasheet.pdf
cisco-x2-10gb-lr-datasheet.pdfcisco-x2-10gb-lr-datasheet.pdf
cisco-x2-10gb-lr-datasheet.pdfHi-Network.com

494197038-Baseband-6648-Commercial-Presentation.pdf
494197038-Baseband-6648-Commercial-Presentation.pdf494197038-Baseband-6648-Commercial-Presentation.pdf
494197038-Baseband-6648-Commercial-Presentation.pdfmehdiberenji

OFC 2019 - 100G DWDM DCI/Metro Network Solutions - Debating alternatives to ...
OFC 2019 -  100G DWDM DCI/Metro Network Solutions - Debating alternatives to ...OFC 2019 -  100G DWDM DCI/Metro Network Solutions - Debating alternatives to ...
OFC 2019 - 100G DWDM DCI/Metro Network Solutions - Debating alternatives to ...Tim Yount

cisco-qsfp-100g-sr4-s=-datasheet.pdf
cisco-qsfp-100g-sr4-s=-datasheet.pdfcisco-qsfp-100g-sr4-s=-datasheet.pdf
cisco-qsfp-100g-sr4-s=-datasheet.pdfHi-Network.com

Introducing Coherent 100ZR for the optical edge
Introducing Coherent 100ZR for the optical edgeIntroducing Coherent 100ZR for the optical edge
Introducing Coherent 100ZR for the optical edgeADVA

A Quick Guide to Understanding QSFP28 LR4 Optical Transceiver
A Quick Guide to Understanding QSFP28 LR4 Optical TransceiverA Quick Guide to Understanding QSFP28 LR4 Optical Transceiver
A Quick Guide to Understanding QSFP28 LR4 Optical TransceiverSun Telecom

SFP Transceiver Module
SFP Transceiver ModuleSFP Transceiver Module
SFP Transceiver ModuleCeleste Yang

Secure, High Performance Transport Networks Based on WDM Technology
Secure, High Performance Transport Networks Based on WDM TechnologySecure, High Performance Transport Networks Based on WDM Technology
Secure, High Performance Transport Networks Based on WDM TechnologyADVA

cisco-glc-fe-100lx-rgd-datasheet.pdf
cisco-glc-fe-100lx-rgd-datasheet.pdfcisco-glc-fe-100lx-rgd-datasheet.pdf
cisco-glc-fe-100lx-rgd-datasheet.pdfHi-Network.com

cisco-xfp-10glr-oc192sr-datasheet.pdf
cisco-xfp-10glr-oc192sr-datasheet.pdfcisco-xfp-10glr-oc192sr-datasheet.pdf
cisco-xfp-10glr-oc192sr-datasheet.pdfHi-Network.com


Similar to Gigalight Solutions for 5G Optical Network (20)

Mits 5G brief solution 2021
Mits 5G brief solution 2021Mits 5G brief solution 2021
Mits 5G brief solution 2021

Gigalight Solutions for Data Center and Cloud Computing
Gigalight Solutions for Data Center and Cloud ComputingGigalight Solutions for Data Center and Cloud Computing
Gigalight Solutions for Data Center and Cloud Computing

Fujitsu Iccad Presentation--Enable 100G
Fujitsu Iccad Presentation--Enable 100GFujitsu Iccad Presentation--Enable 100G
Fujitsu Iccad Presentation--Enable 100G

Open optical edge connecting mobile access networks
Open optical edge connecting mobile access networksOpen optical edge connecting mobile access networks
Open optical edge connecting mobile access networks

cisco-qsfp-100g-lr4-s=-datasheet.pdf
cisco-qsfp-100g-lr4-s=-datasheet.pdfcisco-qsfp-100g-lr4-s=-datasheet.pdf
cisco-qsfp-100g-lr4-s=-datasheet.pdf

Meet the industry's first pluggable 10G demarcation device
Meet the industry's first pluggable 10G demarcation deviceMeet the industry's first pluggable 10G demarcation device
Meet the industry's first pluggable 10G demarcation device

Closer Look at 400G QSFP-DD Optical Transceiver Module
Closer Look at 400G QSFP-DD Optical Transceiver ModuleCloser Look at 400G QSFP-DD Optical Transceiver Module
Closer Look at 400G QSFP-DD Optical Transceiver Module

The coherent optical edge
The coherent optical edgeThe coherent optical edge
The coherent optical edge

cisco-x2-10gb-lr-datasheet.pdf
cisco-x2-10gb-lr-datasheet.pdfcisco-x2-10gb-lr-datasheet.pdf
cisco-x2-10gb-lr-datasheet.pdf

494197038-Baseband-6648-Commercial-Presentation.pdf
494197038-Baseband-6648-Commercial-Presentation.pdf494197038-Baseband-6648-Commercial-Presentation.pdf
494197038-Baseband-6648-Commercial-Presentation.pdf

IGS-6325-8T8S4X Industrial Managed Ethernet Switch
IGS-6325-8T8S4X  Industrial Managed Ethernet SwitchIGS-6325-8T8S4X  Industrial Managed Ethernet Switch
IGS-6325-8T8S4X Industrial Managed Ethernet Switch

OFC 2019 - 100G DWDM DCI/Metro Network Solutions - Debating alternatives to ...
OFC 2019 -  100G DWDM DCI/Metro Network Solutions - Debating alternatives to ...OFC 2019 -  100G DWDM DCI/Metro Network Solutions - Debating alternatives to ...
OFC 2019 - 100G DWDM DCI/Metro Network Solutions - Debating alternatives to ...

cisco-qsfp-100g-sr4-s=-datasheet.pdf
cisco-qsfp-100g-sr4-s=-datasheet.pdfcisco-qsfp-100g-sr4-s=-datasheet.pdf
cisco-qsfp-100g-sr4-s=-datasheet.pdf

Introducing Coherent 100ZR for the optical edge
Introducing Coherent 100ZR for the optical edgeIntroducing Coherent 100ZR for the optical edge
Introducing Coherent 100ZR for the optical edge

A Quick Guide to Understanding QSFP28 LR4 Optical Transceiver
A Quick Guide to Understanding QSFP28 LR4 Optical TransceiverA Quick Guide to Understanding QSFP28 LR4 Optical Transceiver
A Quick Guide to Understanding QSFP28 LR4 Optical Transceiver

SFP Transceiver Module
SFP Transceiver ModuleSFP Transceiver Module
SFP Transceiver Module

Secure, High Performance Transport Networks Based on WDM Technology
Secure, High Performance Transport Networks Based on WDM TechnologySecure, High Performance Transport Networks Based on WDM Technology
Secure, High Performance Transport Networks Based on WDM Technology

IGS-20040MT Industrial Managed Switch
IGS-20040MT Industrial Managed Switch  IGS-20040MT Industrial Managed Switch
IGS-20040MT Industrial Managed Switch

cisco-glc-fe-100lx-rgd-datasheet.pdf
cisco-glc-fe-100lx-rgd-datasheet.pdfcisco-glc-fe-100lx-rgd-datasheet.pdf
cisco-glc-fe-100lx-rgd-datasheet.pdf

cisco-xfp-10glr-oc192sr-datasheet.pdf
cisco-xfp-10glr-oc192sr-datasheet.pdfcisco-xfp-10glr-oc192sr-datasheet.pdf
cisco-xfp-10glr-oc192sr-datasheet.pdf


More from Gigalight

GIGALIGHT-Optical Transceiver SiPh MZ Quad Operating Point Locking
GIGALIGHT-Optical Transceiver SiPh MZ Quad Operating Point LockingGIGALIGHT-Optical Transceiver SiPh MZ Quad Operating Point Locking
GIGALIGHT-Optical Transceiver SiPh MZ Quad Operating Point LockingGigalight

Open Data Center Interconnect Products and Solutions Brochure -GL.pdf
Open Data Center Interconnect Products and Solutions Brochure -GL.pdfOpen Data Center Interconnect Products and Solutions Brochure -GL.pdf
Open Data Center Interconnect Products and Solutions Brochure -GL.pdfGigalight

Overview of Gigalight
Overview of GigalightOverview of Gigalight
Overview of GigalightGigalight

Passive Optical Components - Gigalight Product Overview
Passive Optical Components - Gigalight Product OverviewPassive Optical Components - Gigalight Product Overview
Passive Optical Components - Gigalight Product OverviewGigalight

MTP/MPO Cabling Solution - Gigalight Product Overview
MTP/MPO Cabling Solution - Gigalight Product OverviewMTP/MPO Cabling Solution - Gigalight Product Overview
MTP/MPO Cabling Solution - Gigalight Product OverviewGigalight

The Introduction of Gigalight
The Introduction of GigalightThe Introduction of Gigalight
The Introduction of GigalightGigalight


More from Gigalight (6)

GIGALIGHT-Optical Transceiver SiPh MZ Quad Operating Point Locking
GIGALIGHT-Optical Transceiver SiPh MZ Quad Operating Point LockingGIGALIGHT-Optical Transceiver SiPh MZ Quad Operating Point Locking
GIGALIGHT-Optical Transceiver SiPh MZ Quad Operating Point Locking

Open Data Center Interconnect Products and Solutions Brochure -GL.pdf
Open Data Center Interconnect Products and Solutions Brochure -GL.pdfOpen Data Center Interconnect Products and Solutions Brochure -GL.pdf
Open Data Center Interconnect Products and Solutions Brochure -GL.pdf

Overview of Gigalight
Overview of GigalightOverview of Gigalight
Overview of Gigalight

Passive Optical Components - Gigalight Product Overview
Passive Optical Components - Gigalight Product OverviewPassive Optical Components - Gigalight Product Overview
Passive Optical Components - Gigalight Product Overview

MTP/MPO Cabling Solution - Gigalight Product Overview
MTP/MPO Cabling Solution - Gigalight Product OverviewMTP/MPO Cabling Solution - Gigalight Product Overview
MTP/MPO Cabling Solution - Gigalight Product Overview

The Introduction of Gigalight
The Introduction of GigalightThe Introduction of Gigalight
The Introduction of Gigalight


Recently uploaded

原版1:1复刻斯坦福大学毕业证Stanford毕业证留信学历认证
原版1:1复刻斯坦福大学毕业证Stanford毕业证留信学历认证原版1:1复刻斯坦福大学毕业证Stanford毕业证留信学历认证
原版1:1复刻斯坦福大学毕业证Stanford毕业证留信学历认证gwhohjj

定制加拿大滑铁卢大学毕业证(Waterloo毕业证书)成绩单(文凭)原版一比一
定制加拿大滑铁卢大学毕业证(Waterloo毕业证书)成绩单(文凭)原版一比一定制加拿大滑铁卢大学毕业证(Waterloo毕业证书)成绩单(文凭)原版一比一
定制加拿大滑铁卢大学毕业证(Waterloo毕业证书)成绩单(文凭)原版一比一zul5vf0pq

Alambagh Call Girl 9548273370 , Call Girls Service Lucknow
Alambagh Call Girl 9548273370 , Call Girls Service LucknowAlambagh Call Girl 9548273370 , Call Girls Service Lucknow
Alambagh Call Girl 9548273370 , Call Girls Service Lucknowmakika9823

(办理学位证)加州州立大学北岭分校毕业证成绩单原版一比一
(办理学位证)加州州立大学北岭分校毕业证成绩单原版一比一(办理学位证)加州州立大学北岭分校毕业证成绩单原版一比一
(办理学位证)加州州立大学北岭分校毕业证成绩单原版一比一Fi sss

如何办理伦敦大学伯贝克学院毕业证(BBK毕业证) 成绩单留信学历认证原版一比一
如何办理伦敦大学伯贝克学院毕业证(BBK毕业证) 成绩单留信学历认证原版一比一如何办理伦敦大学伯贝克学院毕业证(BBK毕业证) 成绩单留信学历认证原版一比一
如何办理伦敦大学伯贝克学院毕业证(BBK毕业证) 成绩单留信学历认证原版一比一ga6c6bdl

(MEGHA) Hinjewadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune E...
(MEGHA) Hinjewadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune E...(MEGHA) Hinjewadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune E...
(MEGHA) Hinjewadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune E...ranjana rawat

定制(RHUL学位证)伦敦大学皇家霍洛威学院毕业证成绩单原版一比一
定制(RHUL学位证)伦敦大学皇家霍洛威学院毕业证成绩单原版一比一定制(RHUL学位证)伦敦大学皇家霍洛威学院毕业证成绩单原版一比一
定制(RHUL学位证)伦敦大学皇家霍洛威学院毕业证成绩单原版一比一ss ss

如何办理(Adelaide毕业证)阿德莱德大学毕业证成绩单Adelaide学历认证真实可查
如何办理(Adelaide毕业证)阿德莱德大学毕业证成绩单Adelaide学历认证真实可查如何办理(Adelaide毕业证)阿德莱德大学毕业证成绩单Adelaide学历认证真实可查
如何办理(Adelaide毕业证)阿德莱德大学毕业证成绩单Adelaide学历认证真实可查awo24iot

(ANIKA) Wanwadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...
(ANIKA) Wanwadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...(ANIKA) Wanwadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...
(ANIKA) Wanwadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...ranjana rawat

(办理学位证)多伦多大学毕业证成绩单原版一比一
(办理学位证)多伦多大学毕业证成绩单原版一比一(办理学位证)多伦多大学毕业证成绩单原版一比一
(办理学位证)多伦多大学毕业证成绩单原版一比一C SSS

Vip Udupi Call Girls 7001305949 WhatsApp Number 24x7 Best Services
Vip Udupi Call Girls 7001305949 WhatsApp Number 24x7 Best ServicesVip Udupi Call Girls 7001305949 WhatsApp Number 24x7 Best Services
Vip Udupi Call Girls 7001305949 WhatsApp Number 24x7 Best Servicesnajka9823

Beautiful Sapna Call Girls CP 9711199012 ☎ Call /Whatsapps
Beautiful Sapna Call Girls CP 9711199012 ☎ Call /WhatsappsBeautiful Sapna Call Girls CP 9711199012 ☎ Call /Whatsapps
Beautiful Sapna Call Girls CP 9711199012 ☎ Call /Whatsappssapnasaifi408

Russian Call Girls Kolkata Chhaya 🤌 8250192130 🚀 Vip Call Girls Kolkata
Russian Call Girls Kolkata Chhaya 🤌  8250192130 🚀 Vip Call Girls KolkataRussian Call Girls Kolkata Chhaya 🤌  8250192130 🚀 Vip Call Girls Kolkata
Russian Call Girls Kolkata Chhaya 🤌 8250192130 🚀 Vip Call Girls Kolkataanamikaraghav4

Call Girls In Munirka>༒9599632723 Incall_OutCall Available
Call Girls In Munirka>༒9599632723 Incall_OutCall AvailableCall Girls In Munirka>༒9599632723 Incall_OutCall Available
Call Girls In Munirka>༒9599632723 Incall_OutCall AvailableCall Girls in Delhi

Call Girls Service Kolkata Aishwarya 🤌 8250192130 🚀 Vip Call Girls Kolkata
Call Girls Service Kolkata Aishwarya 🤌  8250192130 🚀 Vip Call Girls KolkataCall Girls Service Kolkata Aishwarya 🤌  8250192130 🚀 Vip Call Girls Kolkata
Call Girls Service Kolkata Aishwarya 🤌 8250192130 🚀 Vip Call Girls Kolkataanamikaraghav4

如何办理(NUS毕业证书)新加坡国立大学毕业证成绩单留信学历认证原版一比一
如何办理(NUS毕业证书)新加坡国立大学毕业证成绩单留信学历认证原版一比一如何办理(NUS毕业证书)新加坡国立大学毕业证成绩单留信学历认证原版一比一
如何办理(NUS毕业证书)新加坡国立大学毕业证成绩单留信学历认证原版一比一ga6c6bdl

(SANA) Call Girls Landewadi ( 7001035870 ) HI-Fi Pune Escorts Service
(SANA) Call Girls Landewadi ( 7001035870 ) HI-Fi Pune Escorts Service(SANA) Call Girls Landewadi ( 7001035870 ) HI-Fi Pune Escorts Service
(SANA) Call Girls Landewadi ( 7001035870 ) HI-Fi Pune Escorts Serviceranjana rawat

Slim Call Girls Service Badshah Nagar * 9548273370 Naughty Call Girls Service...
Slim Call Girls Service Badshah Nagar * 9548273370 Naughty Call Girls Service...Slim Call Girls Service Badshah Nagar * 9548273370 Naughty Call Girls Service...
Slim Call Girls Service Badshah Nagar * 9548273370 Naughty Call Girls Service...nagunakhan

办理(CSU毕业证书)澳洲查理斯特大学毕业证成绩单原版一比一
办理(CSU毕业证书)澳洲查理斯特大学毕业证成绩单原版一比一办理(CSU毕业证书)澳洲查理斯特大学毕业证成绩单原版一比一
办理(CSU毕业证书)澳洲查理斯特大学毕业证成绩单原版一比一diploma 1


Recently uploaded (20)

原版1:1复刻斯坦福大学毕业证Stanford毕业证留信学历认证
原版1:1复刻斯坦福大学毕业证Stanford毕业证留信学历认证原版1:1复刻斯坦福大学毕业证Stanford毕业证留信学历认证
原版1:1复刻斯坦福大学毕业证Stanford毕业证留信学历认证

定制加拿大滑铁卢大学毕业证(Waterloo毕业证书)成绩单(文凭)原版一比一
定制加拿大滑铁卢大学毕业证(Waterloo毕业证书)成绩单(文凭)原版一比一定制加拿大滑铁卢大学毕业证(Waterloo毕业证书)成绩单(文凭)原版一比一
定制加拿大滑铁卢大学毕业证(Waterloo毕业证书)成绩单(文凭)原版一比一

Alambagh Call Girl 9548273370 , Call Girls Service Lucknow
Alambagh Call Girl 9548273370 , Call Girls Service LucknowAlambagh Call Girl 9548273370 , Call Girls Service Lucknow
Alambagh Call Girl 9548273370 , Call Girls Service Lucknow

(办理学位证)加州州立大学北岭分校毕业证成绩单原版一比一
(办理学位证)加州州立大学北岭分校毕业证成绩单原版一比一(办理学位证)加州州立大学北岭分校毕业证成绩单原版一比一
(办理学位证)加州州立大学北岭分校毕业证成绩单原版一比一

如何办理伦敦大学伯贝克学院毕业证(BBK毕业证) 成绩单留信学历认证原版一比一
如何办理伦敦大学伯贝克学院毕业证(BBK毕业证) 成绩单留信学历认证原版一比一如何办理伦敦大学伯贝克学院毕业证(BBK毕业证) 成绩单留信学历认证原版一比一
如何办理伦敦大学伯贝克学院毕业证(BBK毕业证) 成绩单留信学历认证原版一比一

(MEGHA) Hinjewadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune E...
(MEGHA) Hinjewadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune E...(MEGHA) Hinjewadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune E...
(MEGHA) Hinjewadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune E...

CIVIL ENGINEERING
CIVIL ENGINEERINGCIVIL ENGINEERING
CIVIL ENGINEERING

定制(RHUL学位证)伦敦大学皇家霍洛威学院毕业证成绩单原版一比一
定制(RHUL学位证)伦敦大学皇家霍洛威学院毕业证成绩单原版一比一定制(RHUL学位证)伦敦大学皇家霍洛威学院毕业证成绩单原版一比一
定制(RHUL学位证)伦敦大学皇家霍洛威学院毕业证成绩单原版一比一

如何办理(Adelaide毕业证)阿德莱德大学毕业证成绩单Adelaide学历认证真实可查
如何办理(Adelaide毕业证)阿德莱德大学毕业证成绩单Adelaide学历认证真实可查如何办理(Adelaide毕业证)阿德莱德大学毕业证成绩单Adelaide学历认证真实可查
如何办理(Adelaide毕业证)阿德莱德大学毕业证成绩单Adelaide学历认证真实可查

(ANIKA) Wanwadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...
(ANIKA) Wanwadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...(ANIKA) Wanwadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...
(ANIKA) Wanwadi Call Girls Just Call 7001035870 [ Cash on Delivery ] Pune Esc...

(办理学位证)多伦多大学毕业证成绩单原版一比一
(办理学位证)多伦多大学毕业证成绩单原版一比一(办理学位证)多伦多大学毕业证成绩单原版一比一
(办理学位证)多伦多大学毕业证成绩单原版一比一

Vip Udupi Call Girls 7001305949 WhatsApp Number 24x7 Best Services
Vip Udupi Call Girls 7001305949 WhatsApp Number 24x7 Best ServicesVip Udupi Call Girls 7001305949 WhatsApp Number 24x7 Best Services
Vip Udupi Call Girls 7001305949 WhatsApp Number 24x7 Best Services

Beautiful Sapna Call Girls CP 9711199012 ☎ Call /Whatsapps
Beautiful Sapna Call Girls CP 9711199012 ☎ Call /WhatsappsBeautiful Sapna Call Girls CP 9711199012 ☎ Call /Whatsapps
Beautiful Sapna Call Girls CP 9711199012 ☎ Call /Whatsapps

Russian Call Girls Kolkata Chhaya 🤌 8250192130 🚀 Vip Call Girls Kolkata
Russian Call Girls Kolkata Chhaya 🤌  8250192130 🚀 Vip Call Girls KolkataRussian Call Girls Kolkata Chhaya 🤌  8250192130 🚀 Vip Call Girls Kolkata
Russian Call Girls Kolkata Chhaya 🤌 8250192130 🚀 Vip Call Girls Kolkata

Call Girls In Munirka>༒9599632723 Incall_OutCall Available
Call Girls In Munirka>༒9599632723 Incall_OutCall AvailableCall Girls In Munirka>༒9599632723 Incall_OutCall Available
Call Girls In Munirka>༒9599632723 Incall_OutCall Available

Call Girls Service Kolkata Aishwarya 🤌 8250192130 🚀 Vip Call Girls Kolkata
Call Girls Service Kolkata Aishwarya 🤌  8250192130 🚀 Vip Call Girls KolkataCall Girls Service Kolkata Aishwarya 🤌  8250192130 🚀 Vip Call Girls Kolkata
Call Girls Service Kolkata Aishwarya 🤌 8250192130 🚀 Vip Call Girls Kolkata

如何办理(NUS毕业证书)新加坡国立大学毕业证成绩单留信学历认证原版一比一
如何办理(NUS毕业证书)新加坡国立大学毕业证成绩单留信学历认证原版一比一如何办理(NUS毕业证书)新加坡国立大学毕业证成绩单留信学历认证原版一比一
如何办理(NUS毕业证书)新加坡国立大学毕业证成绩单留信学历认证原版一比一

(SANA) Call Girls Landewadi ( 7001035870 ) HI-Fi Pune Escorts Service
(SANA) Call Girls Landewadi ( 7001035870 ) HI-Fi Pune Escorts Service(SANA) Call Girls Landewadi ( 7001035870 ) HI-Fi Pune Escorts Service
(SANA) Call Girls Landewadi ( 7001035870 ) HI-Fi Pune Escorts Service

Slim Call Girls Service Badshah Nagar * 9548273370 Naughty Call Girls Service...
Slim Call Girls Service Badshah Nagar * 9548273370 Naughty Call Girls Service...Slim Call Girls Service Badshah Nagar * 9548273370 Naughty Call Girls Service...
Slim Call Girls Service Badshah Nagar * 9548273370 Naughty Call Girls Service...

办理(CSU毕业证书)澳洲查理斯特大学毕业证成绩单原版一比一
办理(CSU毕业证书)澳洲查理斯特大学毕业证成绩单原版一比一办理(CSU毕业证书)澳洲查理斯特大学毕业证成绩单原版一比一
办理(CSU毕业证书)澳洲查理斯特大学毕业证成绩单原版一比一


Gigalight Solutions for 5G Optical Network

  • 2. 5G Fronthaul and Middlehaul/Backhaul RRU BBU AAU/RRU BBU/DU CU 4G Fronthaul 5G Fronthaul 5G Middlehaul 5G Backhaul 4G Backhaul 4G Wireless 5G Wireless Nx 10G Nx 25G Nx 10G 25G/50G/100G 100G/200G/400G 40G/100G 4G/5G Optical Network 5G Base-station 5G Fronthaul: Fiber Direct Driving CWDM or DWDM RRU 5G Fronthaul: CWDM or DWDM Saving Fiber Outdoors Outdoors Outdoors Outdoors Room Room Room Room Room Room RoomOutdoors Outdoors I-temp 25G SFP28 Modules 200G QSFP56 Modules 100G QSFP28 Modules
  • 3. 3 The Challenges of 5G Fronthaul and Gigalight Solutions The Challenges of 5G Fronthaul Gigalight Solutions for 5G Fronthaul The AAU outdoor application environment has extremely high requirements on the operating temperature adaptability of the optical modules. The fronthaul optical modules need to meet the industrial temperature range of -40°C to +85°C. Gigalight's 25G optical modules for 5G fronthaul can pass the industrial high and low temperature cycle test range; temperature change rate 2°C/min; high and low temperature duration 15 minutes; cycle number 4 times; after the above test, the modules meet the test time 240 hours Zero error code requirements and still can guarantee normal work. The operating cost of the 5G base station is mainly the electricity bill. In order to reduce the power consumption of the AAU, the power consumption of the optical module is required to be as low as possible, preferably not exceeding 1.5W. Gigalight's industrial 25G single-mode dual-fiber and BiDi single-fiber optical modules for 5G fronthaul consumption consume less than 1.2W, and multimode 25G optical modules less than 1.0W. Because the AAU is placed on the outdoor tower, the communication service needs long-term stability and can not be accidentally interrupted, the product can not be invalid, and the fronthaul optical transceivers have extremely high reliability requirements. Gigalight's 25G optical modules for 5G fronthaul meet the Telcordia GR-468-CORE. With hermetic packaged optical components, the modules meet telecom-class reliability requirements, ensuring long-term stability of communication services. The 5G and 4G base stations have the conditions of hybrid networking. So, the CPRI optical modules have the requirement to support multiple rate service types, and the rate needs backward support. The 25G CPRI optical modules meets the CPRI Option10 rate (24Gbps) and supports 25GE services (25Gbps). Under the CDR bypass condition, the rate supports 10GE backward. Due to the poor penetration of the 5G wireless spectrum, the 5G base stations are denser and more numerous than the 4G base stations. The fiber resources from the BBU to the AAU are more valuable, and the problem of insufficient fiber resources needs to be solved. However, it is difficult, costly and long cycle to redeploy fiber resources. Gigalight's 25G BiDi solution can save 50% of fiber resources. In addition, under the condition that the fiber resources are extremely scarce, using CWDM or DWDM technology can save a lot of fiber resources. Gigalight provides highly reliable CWDM and DWDM solutions, including industrial 25G SFP28 CWDM/DWDM modules and passive CWDM/ DWDM modules. BBU base station room or AAU deployment space resources are precious, and space is tight. Gigalight's industrial Compact CWDM (CCWDM) passive modules are small enough to meet the demanding requirements of space and can be deployed flexibly. CPRI interface has low latency and low jitter requirements for optical modules. Gigalight's industrial 25G optical modules for 5G fronthaul are designed to meet the demanding requirements of low latency and low jitter.
  • 4. 4 5G Fronthaul Portfolio: I-temp Transceivers & Passive xWDM Rich Fiber Resources CWDM or DWDM Lack of Fiber Resources 25G SFP28 ER (LAN-WDM)25G BiDi SFP28 10km 25G SFP28 SR 25G SFP28 LR/Lite 25G CWDM SFP28 10km 25G DWDM SFP28 10km Passive CWDM & DWDM (TFF) Options: 1U Rack / ABS / LGX (6/12/18CH) Compact CWDM (TFF) (6/12/18CH) Fiber Direct Driving Solutions CWDM & DWDM Solutions 10G BiDi SFP+ 80km 10G DWDM SFP+ 70km
  • 5. E-temp 10G BiDi SFP+ 80km Transceivers Features: ▪ Hot-pluggable SFP+ form factor ▪ Data rate up to 10Gbps for CPRI Option 9 and 10G Ethernet ▪ Reach up to 80km over G.652 SMF ▪ Cooled 1490nm/1550nm EML laser and APD photodetector ▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low latency requirements ▪ Support CDR bypass for multiple rate services and backward rate ▪ Single LC receptacle ▪ 3.3V power supply voltage ▪ Power consumption < 1.8W (Typical 1.4W) ▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability ▪ Operating case temperature range from -20°C to +85°C Applications: ▪ 10G Ethernet ▪ CPRI Option 9 IC Supplier TX Driver Semtech MCU ADI LD Mitsubishi APD+TIA Albis + Semtech Chip Solutions 10G BiDi SFP+ 80km Transceivers (Small Batch Production)
  • 6. I-temp 10G DWDM SFP+ 80km Transceivers Features: ▪ Hot-pluggable SFP+ form factor ▪ Data rate up to 10Gbps for CPRI Option 9 and 10G Ethernet ▪ Reach up to 80km over G.652 SMF ▪ Cooled C-Band DWDM EML laser and APD photodetector ▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low latency requirements ▪ Support CDR bypass for multiple rate services and backward rate ▪ Dual LC receptacle ▪ 3.3V power supply voltage ▪ Power consumption < 2W (Typical 1.4W) ▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability ▪ Operating case temperature range from -20°C to +85°C Applications: ▪ 10G Ethernet ▪ CPRI Option 9 IC Supplier TX Driver Semtech MCU ADI LD Sumitomo APD+TIA Oclaro + Semtech Chip Solutions 10G DWDM SFP+ 70km Transceivers (Small Batch Production)
  • 7. I-temp 25G SFP28 SR Transceiver Features: ▪ Hot-pluggable SFP28 form factor ▪ Data rate up to 25Gbps for CPRI Option 10 and 25GBASE-SR Ethernet ▪ Reach up to 100m (COB Version) or 300m (TO Version) over OM4 MMF ▪ 850nm VCSEL laser and PIN photodetector ▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low latency requirements ▪ Support CDR bypass for multiple rate services and backward rate ▪ Dual LC receptacle ▪ 3.3V power supply voltage ▪ Power consumption < 1W ▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability ▪ Operating case temperature range from -40°C to +85°C Applications: ▪ 25GBASE-SR Ethernet ▪ CPRI Option 10 IC Supplier TX Driver Macom MCU ADI LD II-VI PD+TIA GCS PD + Macom TIA Chip Solutions 25G SFP28 SR Transceiver (Mass Production, Monthly Capacity 50K pcs)
  • 8. I-temp 25G SFP28 LR Transceiver Features: ▪ Hot-pluggable SFP28 form factor ▪ Data rate up to 25Gbps for CPRI Option 10 and 25GBASE-LR Ethernet ▪ Reach up to 10km/15km over G.652 SMF ▪ 1310nm DFB laser and PIN photodetector ▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low latency requirements ▪ Support CDR bypass for multiple rate services and backward rate ▪ Dual LC receptacle ▪ 3.3V power supply voltage ▪ Power consumption < 1.2W ▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability ▪ Operating case temperature range from -40°C to +85°C Applications: ▪ 25GBASE-LR Ethernet ▪ CPRI Option 10 IC Supplier TX Driver Macom MCU ADI TOSA (Gigalight) Oclaro DFB ROSA (Gigalight) GCS PD Chip Solutions 25G SFP28 LR Transceiver (Mass Production, Monthly Capacity 15K pcs)
  • 9. I-temp 25G SFP28 LR Lite Transceiver Features: ▪ Hot-pluggable SFP28 form factor ▪ Data rate up to 25Gbps for CPRI Option 10 and 25GBASE-LR Ethernet ▪ Reach up to 300m over G.652 SMF ▪ 1310nm DFB laser (10G laser overclocking scheme) and PIN photodetector ▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low latency requirements ▪ Support CDR bypass for multiple rate services and backward rate ▪ Dual LC receptacle ▪ 3.3V power supply voltage ▪ Power consumption < 1.2W ▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability ▪ Operating case temperature range from -40°C to +85°C Applications: ▪ 25GBASE-LR Ethernet ▪ CPRI Option 10 IC Supplier TX Driver Macom MCU ADI TOSA (Gigalight) Sumitomo TO ROSA (Gigalight) GCS PD Chip Solutions 25G SFP28 LR Transceiver (Mass Production, Monthly Capacity 15K pcs)
  • 10. 25G SFP28 ER (LAN-WDM) Transceiver Features: ▪ Hot-pluggable SFP28 form factor ▪ Data rate up to 25Gbps for CPRI Option 10 and 25GBASE-ER Ethernet ▪ Reach up to 30km without FEC or 40km with FEC over G.652 SMF ▪ Cooled 1310nm LAN-WDM EML laser (6 options) and PIN photodetector ▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low latency requirements ▪ Support CDR bypass for multiple rate services and backward rate ▪ Dual LC receptacle ▪ 3.3V power supply voltage ▪ Power consumption < 1.8W ▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability ▪ Operating case temperature range from 0°C to 70°C or -40°C to +85°C Applications: ▪ 25GBASE-ER Ethernet ▪ CPRI Option 10 IC Supplier TX Driver MACOM MCU ADI TOSA (Gigalight) Neo COC / Mitsubishi TO APD Wooriro TEC ADI Chip Solutions 25G SFP28 ER Transceiver (Sample) Wavelength options: 1286.66nm, 1291.10nm, 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm
  • 11. I-temp 25G BiDi SFP28 Transceivers Features: ▪ Hot-pluggable SFP28 form factor ▪ Data rate up to 25Gbps for CPRI Option 10 and 25G Ethernet ▪ Reach up to 10km/15km over G.652 SMF ▪ 1270nm/1330nm CWDM DFB laser and PIN photodetector ▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low latency requirements ▪ Support CDR bypass for multiple rate services and backward rate ▪ Single LC receptacle ▪ 3.3V power supply voltage ▪ Power consumption < 1.2W ▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability ▪ Operating case temperature range from -40°C to +85°C Applications: ▪ 25G Ethernet ▪ CPRI Option 10 IC Supplier TX Driver Macom MCU ADI BOSA(Gigalight) Sumitomo TO, GCS PD + Macom TIA 25G BiDi SFP28 Transceiver (Mass Production, Monthly Capacity 15K pcs) Chip Solutions
  • 12. IC Supplier TX Driver MACOM MCU ADI DFB/EML Taiwan / Sumitomo APD Wooriro TEC ADI I-temp 25G CWDM SFP28 10km Transceivers Features: ▪ Hot-pluggable SFP28 form factor ▪ Data rate up to 25Gbps for CPRI Option 10 and 25G Ethernet ▪ Reach up to 10km over G.652 SMF ▪ 1270nm-1370nm CWDM DFB laser and PIN photodetector ▪ 1470nm-1570nm Cooled CWDM EML laser and APD photodetector ▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low latency requirements ▪ Support CDR bypass for multiple rate services and backward rate ▪ Single LC receptacle ▪ 3.3V power supply voltage ▪ Power consumption < 1.2W or 1.8W ▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability ▪ Operating case temperature range from -40°C to +85°C Applications: ▪ 25G Ethernet ▪ CPRI Option 10 25G CWDM SFP28 10km Transceivers (Sample) Chip Solutions Note: 2km range also in developing
  • 13. IC Supplier TX Driver MACOM MCU ADI EML(Gigalight) Neo COC APD Wooriro TEC ADI I-temp 25G DWDM SFP28 10km Transceivers 25G DWDM SFP28 10km Transceivers (Sample) Chip Solutions Features: ▪ Hot-pluggable SFP28 form factor ▪ Data rate up to 25Gbps for CPRI Option 10 and 25G Ethernet ▪ Reach up to 10km over G.652 SMF ▪ Cooled C-Band DWDM EML laser and APD photodetector ▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low latency requirements ▪ Support CDR bypass for multiple rate services and backward rate ▪ Single LC receptacle ▪ 3.3V power supply voltage ▪ Power consumption < 2W ▪ Compliant with Telcordia GR-468-CORE to ensure long-term business stability ▪ Operating case temperature range from -40°C to +85°C Applications: ▪ 25G Ethernet ▪ CPRI Option 10 Note: 2km range also in developing
  • 14. Product Description Wavelength Reach Optical Interface Fiber Type (Count) LD PD Power Consumption Temperature Product Status 10G BiDi SFP+ 80km 1490nm/1550nm 80km Single LC SMF (1) EML APD < 1.4W -20 to +85 PP 10G DWDM SFP+ 80km 1528nm-1563nm 80km Dual LC SMF (2) EML APD < 2.0W -40 to +85 PP 25G SFP28 SR (COB) 850nm 100m Dual LC OM4 (2) VCSEL PIN < 1W -40 to +85 MP 25G SFP28 CSR (TO) 850nm 300m Dual LC OM4 (2) VCSEL PIN < 1W -40 to +85 MP 25G SFP28 LR 1310nm 10km/15km Dual LC SMF (2) DFB PIN < 1.2W -40 to +85 MP 25G SFP28 LR Lite (300m) 1310nm 300m Dual LC SMF (2) DFB PIN < 1.2W -40 to +85 Sample 25G BiDi SFP28 10km 1270nm/1330nm 10km/15km Single LC SMF (1) DFB PIN < 1.2W -40 to +85 MP 25G SFP28 ER (LAN-WDM) 1286nm-1309nm 20Km Dual LC SMF (2) EML APD < 1.8W 0 to 70 / -40 to +85 Sample 25G CWDM SFP28 10km 1270nm-1370nm 10km Dual LC SMF (2) DFB PIN < 1.2W -40 to +85 Sample 25G CWDM SFP28 10km 1470nm-1570nm 10km Dual LC SMF (2) EML APD < 1.8W -40 to +85 Sample 25G DWDM SFP28 10km 1528nm-1563nm 10km Dual LC SMF (2) EML APD < 1.8W -40 to +85 Sample 2The List of Optical Transceivers for 5G Fronthaul
  • 15. 5G Middlehaul/Backhaul RRU BBU AAU/RRU BBU/DU CU 4G Fronthaul 5G Fronthaul 5G Middlehaul 5G Backhaul 4G Backhaul 4G Wireless 5G Wireless Nx 10G Nx 25G Nx 10G 25G/50G/100G 100G/200G/400G 40G/100G 4G/5G Optical Network Outdoors Outdoors Room Room Room Room 200G QSFP56 FR4 (4x 53G PAM4) 200G QSFP56 LR4 (4x 53G PAM4) 200G QSFP56 SR4 (4x 53G PAM4) 100G QSFP28 4WDM-10 100G QSFP28 LR4 100G QSFP28 ER4 lite
  • 16. 100G QSFP28 4WDM-10 Transceiver (Sample) I-temp 100G QSFP28 4WDM-10 Transceiver Features: ▪ Hot-pluggable QSFP28 form factor ▪ Data rate up to 103.125Gbps for 100G Ethernet ▪ Reach up to 10km over G.652 SMF ▪ 4CH uncooled CWDM DML lasers and PIN photodetectors ▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low latency requirements ▪ Dual LC receptacle ▪ 3.3V power supply voltage ▪ Power consumption < 3.5W (Typical) ▪ Operating case temperature range from 0°C to 70°C or -40°C to +85°C Applications: ▪ 100G Ethernet ▪ 5G Optical Network IC Supplier TX CDR MACOM RX CDR + TIA MACOM TOSA with LD Gigalight TOSA ROSA Gigalight ROSA Chip Solutions
  • 17. 100G QSFP28 4WDM-10 Transceiver (Mass Production) IC Supplier TX CDR MACOM RX CDR + TIA MACOM TOSA with LD Gigalight TOSA ROSA Gigalight ROSA 100G QSFP28 LR4 Transceiver Features: ▪ Hot-pluggable QSFP28 form factor ▪ Data rate up to 111.8Gbps for 100GBASE-LR4 Ethernet and OTN OTU4 ▪ Reach up to 10km/20km over G.652 SMF ▪ 4CH cooled LAN-WDM DML lasers and PIN photodetectors ▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low latency requirements ▪ Dual LC receptacle ▪ 3.3V power supply voltage ▪ Power consumption < 3.5W ▪ Operating case temperature range from 0°C to 70°C Applications: ▪ 100GBASE-LR4 Ethernet ▪ 5G Optical Network Chip Solutions
  • 18. IC Supplier Laser Driver MACOM/SEMTECH TIA MACOM/SEMTECH DFB BROADCOM/OCLARO PD GCS/ALBIS/BROACOM 100G QSFP28 ER4 Lite Transceiver Features: ▪ Hot-pluggable QSFP28 form factor ▪ Data rate up to 111.8Gbps for 100GBASE-ER4 Ethernet and OTN OTU4 ▪ Reach up to 30km without FEC or 40km with FEC over G.652 SMF ▪ 4CH cooled LAN-WDM DML lasers and APD photodetectors ▪ Built-in CDRs on both the transmit and receive paths to meet low jitter and low latency requirements ▪ Dual LC receptacle ▪ 3.3V power supply voltage ▪ Power consumption < 3.8W (Typical) ▪ Operating case temperature range from 0°C to 70°C Applications: ▪ 100GBASE-ER4 Ethernet ▪ 5G Optical Network 100G QSFP28 ER4 Lite Transceiver (Mass Production) Chip Solutions
  • 19. 200G QSFP56 SR4 Transceiver (Sample) IC Supplier Laser Driver INPHI/BROADCOM TIA INPHI/BROADCOM DSP INPHI DFB BROADCOM/OCLARO PD GCS/ALBIS/BROACOM 200G QSFP56 SR4 Transceiver (4x 53G PAM4) Features: ▪ Hot-pluggable QSFP56 form factor ▪ Data rate up to 212.5Gbps (4x 53G PAM4) ▪ Reach up to 100m over OM4 MMF ▪ 4CH 850nm VCSEL lasers and PIN photodetectors ▪ Built-in 4x 53G PAM4 DSP ▪ MPO12 receptacle ▪ 3.3V power supply voltage ▪ Power consumption < 5W (Typical) ▪ Operating case temperature range from 0°C to 70°C Applications: ▪ 200GBASE-SR4 Ethernet ▪ 5G Optical Network Chip Solutions
  • 20. 200G QSFP56 SR4 Transceiver (4x 53G PAM4) INPHI 4x 53G PAM4 DSP M P O VCSEL 4X 53G PAM4 PD PD PD PD VCSEL VCSEL VCSELDriver&TIA AVAILABILITY: NOW, NPI
  • 21. 200G QSFP56 SR4 Transceiver IC Supplier Laser Driver INPHI/MACOM/SEMTECH TIA INPHI/MACOM/SEMTECH DSP INPHI DFB BROADCOM/OCLARO PD GCS/ALBIS/BROACOM 200G QSFP56 FR4 Transceiver (4x 53G PAM4) Features: ▪ Hot-pluggable QSFP56 form factor ▪ Data rate up to 212.5Gbps (4x 53G PAM4) ▪ Reach up to 2km/10km over G.652 SMF ▪ 4CH cooled CWDM EML lasers and PIN photodetectors ▪ Built-in 4x 53G PAM4 DSP ▪ Dual LC receptacle ▪ 3.3V power supply voltage ▪ Power consumption < 7.5W (Typical) ▪ Operating case temperature range from 0°C to 70°C Applications: ▪ 200GBASE-FR4 Ethernet ▪ 5G Optical Network AVAILABILITY: Q4, 2019. Alpha Sample. Chip Solutions
  • 22. 200G QSFP56 FR4 Transceiver (4x 53G PAM4) 4x 53G PAM4 DSP L C 4X53G PAM4 LWDM ROSA 4x PD&TIA EML Driver CWDM TOSA 4x EML AVAILABILITY: Q4, 2019. Alpha Sample.
  • 23. 200G QSFP56 LR4 Transceiver (Sample) IC Supplier Laser Driver INPHI/MACOM/SEMTECH TIA INPHI/MACOM/SEMTECH DSP INPHI DFB BROADCOM/OCLARO PD GCS/ALBIS/BROACOM 200G QSFP56 LR4 Transceiver (4x 53G PAM4) Features: ▪ Hot-pluggable QSFP56 form factor ▪ Data rate up to 212.5Gbps (4x 53G PAM4) ▪ Reach up to 10km/20km over G.652 SMF ▪ 4CH cooled LAN-WDM EML lasers and PIN photodetectors ▪ Built-in 4x 53G PAM4 DSP ▪ Dual LC receptacle ▪ 3.3V power supply voltage ▪ Power consumption < 7.5W (Typical) ▪ Operating case temperature range from 0°C to 70°C Applications: ▪ 200GBASE-LR4 Ethernet ▪ 5G Optical Network Chip Solutions
  • 24. 4x 53G PAM4 DSP L C 4X53G PAM4 LWDM ROSA 4x PD&TIA EML Driver LWDM TOSA 4x EML AVAILABILITY: Q4, 2019. Alpha Sample. 200G QSFP56 LR4 Transceiver (4x 53G PAM4)
  • 25. Product Description Data Rate Wavelength Reach Optical Interface Fiber Type (Count) LD PD Power Consumption Temperature Product Status 100G QSFP28 4WDM10 4x 25G NRZ CWDM 10km Dual LC SMF (2) DML PIN < 3.5W 0-70 MP 100G QSFP28 LR4 4x 25G NRZ LAN-WDM 10km Dual LC SMF (2) DML PIN < 3.5W 0-70 MP 100G QSFP28 ER4 lite 4x 25G NRZ LAN-WDM 30km/40km Dual LC SMF (2) DML APD < 3.8W 0-70 MP 200G QSFP56 SR4 4x 53G PAM4 VCSEL 100m MPO12 OM4 (8) VCSEL PIN < 5W 0-70 Q3 2019 200G QSFP56 FR4 4x 53G PAM4 LAN-WDM 2~10km Dual LC SMF (2) EML APD < 7.5W 0-70 Sample 200G QSFP56 LR4 4x 53G PAM4 CWDM 10~20 km Dual LC SMF (2) EML APD < 7.5W 0-70 Sample 2The List of Transceivers for 5G Middlehaul/Backhaul
  • 26. Optical Interconnection Design Innovator Design drives drive progress. Every day is a battle with creativity! Thanks!
