Outlook of 400G Datacenter Optical Architecture

The document presents an overview of the 400G datacenter optical architecture, highlighting the rapid growth in demand for 400G optics since 2019. It discusses the evolution of transceiver technologies, including PAM4 modulation and the competitive landscape of optical solutions, as well as Gigalight's product offerings. Key insights include the architectural frameworks for deploying 400G solutions and the implications for data center interconnection technology.

Technology◦
Related topics:
Data Center Overview•
Download as PDF, PPTX
Outlook of 400G Datacenter Optical Architecture 2021 JANOG48 Presentation Public. Copyright © GigaLight 2021. All rights reserved.
Market Forecast of transceiver in Data Center 2 Data Center Optical Module Rate Evolution Demands of 400G optics start from 2019, growing fast. 4CH (4x100G) is the mainstream solution, 8CH (8x50G) is the option also.

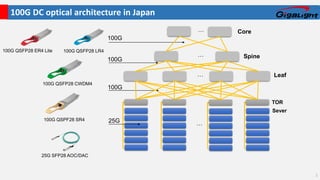

100G DC optical architecture in Japan 25G 100G 100G 100G … … … … Core Spine Leaf TOR Sever 25G SFP28 AOC/DAC 100G QSPF28 SR4 100G QSFP28 CWDM4 100G QSFP28 LR4 100G QSFP28 ER4 Lite 3

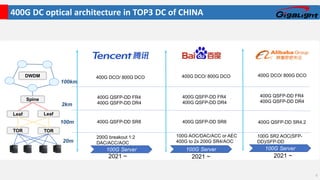

100G AOC/DAC 100km Spine Leaf Leaf TOR TOR DWDM 2km 100m 20m 400G QSFP-DD FR4 400G QSFP-DD DR4 400G QSFP-DD SR8 400G DCO/ 800G DCO 200G breakout 1:2 DAC/ACC/AOC 100G Server 2021 ~ 400G QSFP-DD FR4 400G QSFP-DD DR4 400G QSFP-DD SR8 400G DCO/ 800G DCO 100G AOC/DAC/ACC or AEC 400G to 2x 200G SR4/AOC 100G Server 2021 ~ 100G SR2 AOC(SFP- DD)/SFP-DD 100G Server 400G QSFP-DD FR4 400G QSFP-DD DR4 400G QSFP-DD SR4.2 400G DCO/ 800G DCO 2021 ~ 4 400G DC optical architecture in TOP3 DC of CHINA
Design Schema of 400G Optics 5 4CH (4x100G PAM4) 8CH (8x50G PAM4) 400G FR4/LR4 400G DR4 400G FR8/LR8 400G SR8/PSM8
What is PAM4 6 ✓ When the NRZ data rate is increased from 25Gb/s to 50Gb/s, the Nyquist frequency becomes approx. 28GHz, at which the RF insertion loss is about 62dB for IEEE worst-case compliance backplane traces. ✓ PAM4 has the advantage of packing 2 bits into a symbol, thus reduces the bandwidth by half. The Nyquist frequency is now 14GHz and the insertion loss is reduced to approx.33dB, which can be compensated by today's technology.
50G PAM4 Vs 100G PAM4 Factor 8×50G PAM4 4×100G PAM4 Standard(LR8&LR4) IEEE 802.3bs 400GBASE-LR8 400G-LR4-10 100G Lambda MSA Latency 8:8 DSP, without Gearbox, x usec 8:4 DSP, with Gearbox, xx usec Transmission Distance /km(LR8&LR4) ≤20km ≤10km Power Consumption/Watts (LR8&LR4) ≤12 ≤13 Laser Available Vcsel, DML, EML, SiPh EML, SiPh Chipsets Resource Mature Being Mature Current Cost $$$$ $$$ 7
Flexible-400G Optics Portfolio 8*50G NRZ Structure 100km Spine Leaf Leaf TOR TOR DWDM 2~10km 100m 20m 400G QSFP-DD LR8 50G PAM4 Structure 200G QSFP56 DR4/FR4 100G PAM4 Structure 400G CFP2 DCO / 400G QSFP-DD ZR+ 200G/400G CFP2 DCO 200G SR4-4x50G AOC 200G DAC-4x50G DAC 400G AOC/DAC 1x4 Breakout 1x8 Breakout Cost, Technology, Simplified, Reconfigurable 400G QSFP-DD DR4 400G QSFP-DD LR4 8

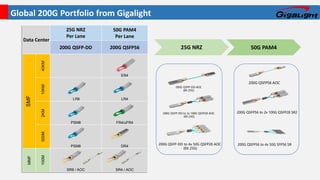

Global 200G Portfolio from Gigalight Data Center 25G NRZ Per Lane 50G PAM4 Per Lane 200G QSFP-DD 200G QSFP56 SMF 40KM ER4 10KM LR8 LR4 2KM PSM8 FR4/uFR4 500M PSM8 DR4 MMF 100M SR8 / AOC SR4 / AOC 200G QSFP-DD AOC (8X 25G) 200G QSFP-DD to 2x 100G QSFP28 AOC (8X 25G) 200G QSFP-DD to 4x 50G QSFP28 AOC (8X 25G) 200G QSFP56 AOC 200G QSFP56 to 2x 100G QSFP28 SR2 200G QSFP56 to 4x 50G SFP56 SR 25G NRZ 50G PAM4

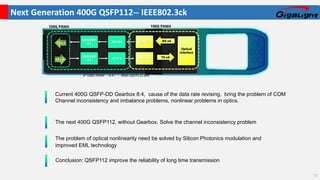

Next Generation 400G QSFP112-- IEEE802.3ck 10 CDR/DSP X4 TIA X4 PD X4 RX x4 CDR/DSP X4 LD X 4 Laser X4 TX x4 TX x 4 RX x 4 100G PAM4 Optical Interface 100G PAM4 4*100G PAM4 （4:4） - 400G QSFP112 xR4 The next 400G QSFP112, without Gearbox, Solve the channel inconsistency problem The problem of optical nonlinearity need be solved by Silicon Photonics modulation and improved EML technology Current 400G QSFP-DD Gearbox 8:4, cause of the data rate revising, bring the problem of COM Channel inconsistency and imbalance problems, nonlinear problems in optics. Conclusion: QSFP112 improve the reliability of long time transmission
About GigaLight Moscow Shenzhen Beijing Shanghai corporate HQ R&D Center Wuhan Sales & Support Sales & Support (in preparation ) Taiwan Bangalore EU HQ and Marketing R&D, Operation and Sales Wuhan R&D. Center 1 2 3 4 2006 E s t a b l i s h e d 116 million RMB R e g i s t e r e d c a p i t a l 430 em ploye es in total, 80+ R&D and engineers N u m b e r o f e m p l o y e e s Total area of manufacturing and R&D center is over 25,000 ㎡ S p a c e HQ: Shenzhen, China R&D Center: Shenzhen, Wuhan Factory: Shenzhen, Yancheng Sales&Support: Shenzhen, Shanghai, Beijing, Taiwan, Bangalore, Moscow, EU Yancheng 11
GigaLight Product Segment 50G/100G/200G/400G DAC Datacenter interconnection 100G/200G/400G TRCV&AOC&MPO 25G IT TRCV/ xWDM Passive /100G/200G/400G TRCV 5G Carrier network interconnection 10G/40G/100G TRCV 100G/200G DCO & xWDM Passive Metro WDM and Coherent communication 3G/12G-SDI TRCV&Extender HD video interconnection MPO/MTP/Patch cord cabling Optical Cables Server Highspeed Copper interconnection 12
THANK YOU FOR ATTENETIONS! 2021 JANOG48 Presentation Public. Copyright © GigaLight 2021. All rights reserved.
