1. Getting Your
Hands On
Graphs
Nathan T Freeman
Chief Software Architect

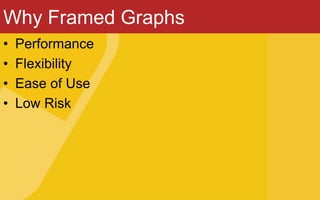

2. Why Framed Graphs
• Performance
• Flexibility
• Ease of Use
• Low Risk

3. Today’s Mission
• Help you understand the power of GraphNSF
• Show you concrete examples
• Avoid making your brain hurt
– But please understand, we’re drinking from a
firehose for two hours
– This is all I’ve done since 2014

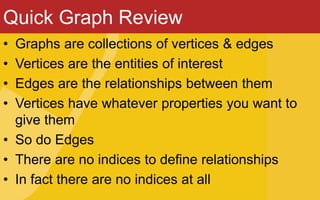

4. Quick Graph Review
• Graphs are collections of vertices & edges
• Vertices are the entities of interest
• Edges are the relationships between them
• Vertices have whatever properties you want to
give them
• So do Edges
• There are no indices to define relationships
• In fact there are no indices at all

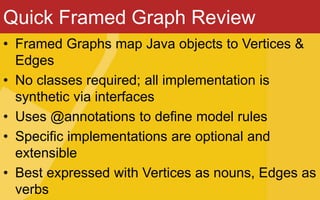

5. Quick Framed Graph Review
• Framed Graphs map Java objects to Vertices &
Edges
• No classes required; all implementation is
synthetic via interfaces
• Uses @annotations to define model rules
• Specific implementations are optional and
extensible
• Best expressed with Vertices as nouns, Edges as
verbs

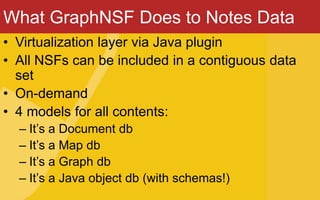

6. What GraphNSF Does to Notes Data
• Virtualization layer via Java plugin
• All NSFs can be included in a contiguous data
set
• On-demand
• 4 models for all contents:
– It’s a Document db
– It’s a Map db
– It’s a Graph db
– It’s a Java object db (with schemas!)

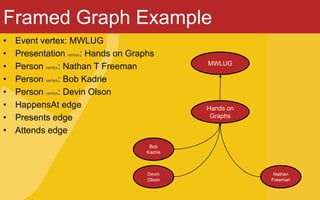

7. Framed Graph Example
• Event vertex: MWLUG
• Presentation vertex: Hands on Graphs
• Person vertex: Nathan T Freeman
• Person vertex: Bob Kadrie
• Person vertex: Devin Olson
• HappensAt edge
• Presents edge
• Attends edge
MWLUG
Hands on
Graphs
Bob
Kadrie
Devin
Olson
Nathan
Freeman

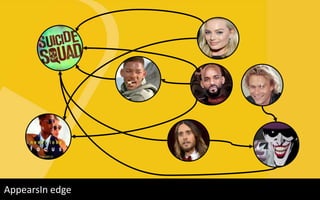

8. Movie vertex: Suicide SquadActor vertex: Will SmithActor vertex: Margot RobbieStarsIn edgeMovie vertex: FocusActor vertex: Jared LetoCharacter vertex: JokerPortrays edgeActor vertex: Heath LedgerCharacter vertex: Will SmithAppearsIn edge
r

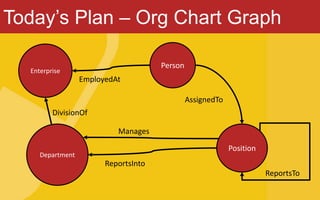

9. Today’s Plan – Org Chart Graph
Enterprise
Person
Department
Position
EmployedAt
ReportsInto
DivisionOf
AssignedTo
Manages
ReportsTo

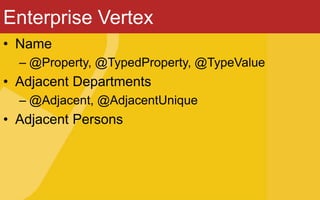

10. Enterprise Vertex
• Name
– @Property, @TypedProperty, @TypeValue
• Adjacent Departments
– @Adjacent, @AdjacentUnique
• Adjacent Persons

11. Person Vertex
• First Name
• Last Name
• Email
• Phone
• Adjacent Enterprise
• Adjacent Positions

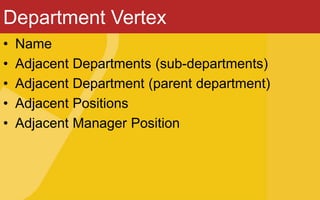

12. Department Vertex
• Name
• Adjacent Departments (sub-departments)
• Adjacent Department (parent department)
• Adjacent Positions
• Adjacent Manager Position

13. Position Vertex
• Title
• Description
• Adjacent Department
• Adjacent Persons (Reports)
• Adjacent Person (Boss)

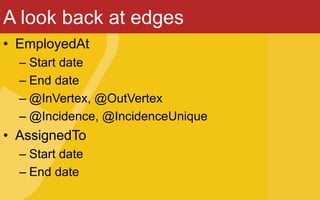

14. A look back at edges
• EmployedAt
– Start date
– End date
– @InVertex, @OutVertex
– @Incidence, @IncidenceUnique
• AssignedTo
– Start date
– End date

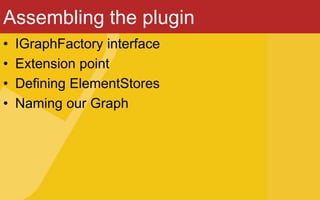

15. Assembling the plugin
• IGraphFactory interface
• Extension point
• Defining ElementStores
• Naming our Graph

16. We have a Graph. What next?

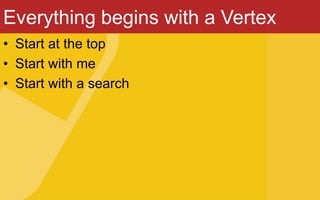

17. Everything begins with a Vertex
• Start at the top
• Start with me
• Start with a search

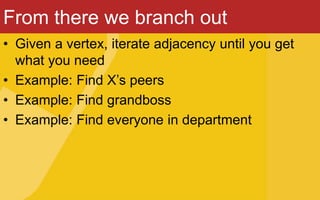

18. From there we branch out
• Given a vertex, iterate adjacency until you get
what you need
• Example: Find X’s peers
• Example: Find grandboss
• Example: Find everyone in department

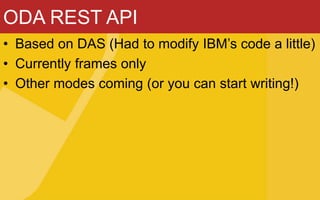

19. ODA REST API
• Based on DAS (Had to modify IBM’s code a little)
• Currently frames only
• Other modes coming (or you can start writing!)

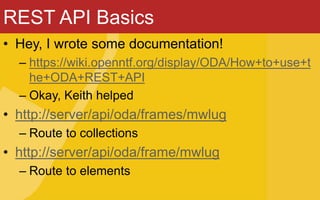

20. REST API Basics
• Hey, I wrote some documentation!
– https://wiki.openntf.org/display/ODA/How+to+use+t
he+ODA+REST+API
– Okay, Keith helped
• http://server/api/oda/frames/mwlug
– Route to collections
• http://server/api/oda/frame/mwlug
– Route to elements

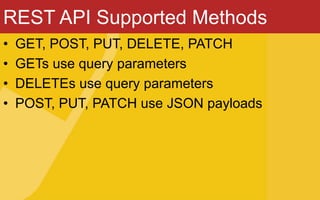

21. REST API Supported Methods
• GET, POST, PUT, DELETE, PATCH
• GETs use query parameters
• DELETEs use query parameters
• POST, PUT, PATCH use JSON payloads

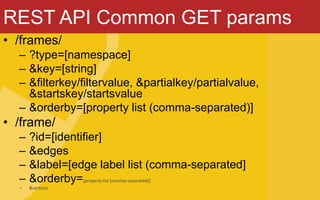

22. REST API Common GET params
• /frames/
– ?type=[namespace]
– &key=[string]
– &filterkey/filtervalue, &partialkey/partialvalue,
&startskey/startsvalue
– &orderby=[property list (comma-separated)]
• /frame/
– ?id=[identifier]
– &edges
– &label=[edge label list (comma-separated]
– &orderby=[property list (comma-separated)]
– &vertices

23. REST API Common POST params
• /frames/ - none. Only payload
• /frame/
– ?id=[identifier]
– Payload is one or more edges

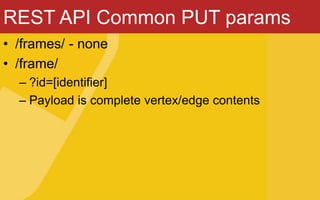

24. REST API Common PUT params
• /frames/ - none
• /frame/
– ?id=[identifier]
– Payload is complete vertex/edge contents

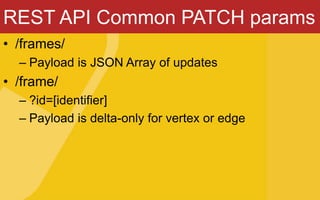

25. REST API Common PATCH params
• /frames/
– Payload is JSON Array of updates
• /frame/
– ?id=[identifier]
– Payload is delta-only for vertex or edge

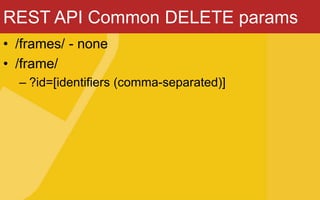

26. REST API Common DELETE params
• /frames/ - none
• /frame/
– ?id=[identifiers (comma-separated)]

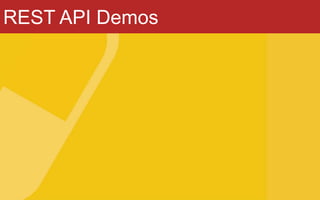

27. REST API Demos

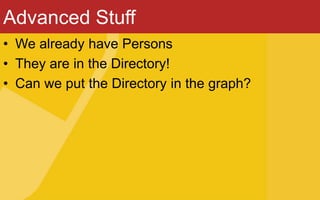

28. Advanced Stuff
• We already have Persons
• They are in the Directory!
• Can we put the Directory in the graph?

29. The Problem
• When we create edges between vertices, the
vertices are modified.
• This could mean a LOT of updates to the
Directory in an active graph
• Lots of updates to the Directory is double plus
bad

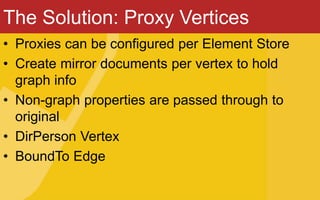

30. The Solution: Proxy Vertices
• Proxies can be configured per Element Store
• Create mirror documents per vertex to hold
graph info
• Non-graph properties are passed through to
original
• DirPerson Vertex
• BoundTo Edge

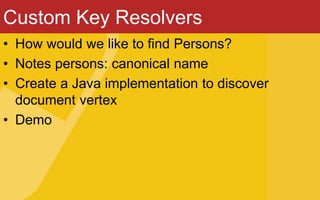

31. Custom Key Resolvers
• How would we like to find Persons?
• Notes persons: canonical name
• Create a Java implementation to discover
document vertex
• Demo

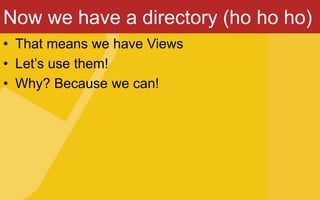

32. Now we have a directory (ho ho ho)
• That means we have Views
• Let’s use them!
• Why? Because we can!

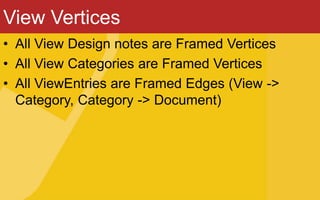

33. View Vertices
• All View Design notes are Framed Vertices
• All View Categories are Framed Vertices
• All ViewEntries are Framed Edges (View ->
Category, Category -> Document)

34. Nathan T Freeman
ntf@redpillnow.com
redpillnow.comwww
Acapulco, Mexico
Nathanfreeman.wordpress.com
