1. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
IoT with only
your laptop
PETE GALLAGHER
PJGCREATIONS.CO.UK
26/09/2019

2. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
About Me
Pete Gallagher
@pete_codes / @PJGCreations
www.PeteCodes.co.uk
www.PJGCreations.co.uk
Pete@PJGCreations.co.uk
IT Consultant
Decades of Desktop, Web & Embedded Software experience,
Meetup Organiser,
STEM Ambassador, Code Club Organiser … Gadget Addict
Father of two inquisitive girls

3. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
What we’re going to be doing…
Basic Intro to IoT
The Hardware
The Software
Q&A

4. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
What is IoT?

5. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

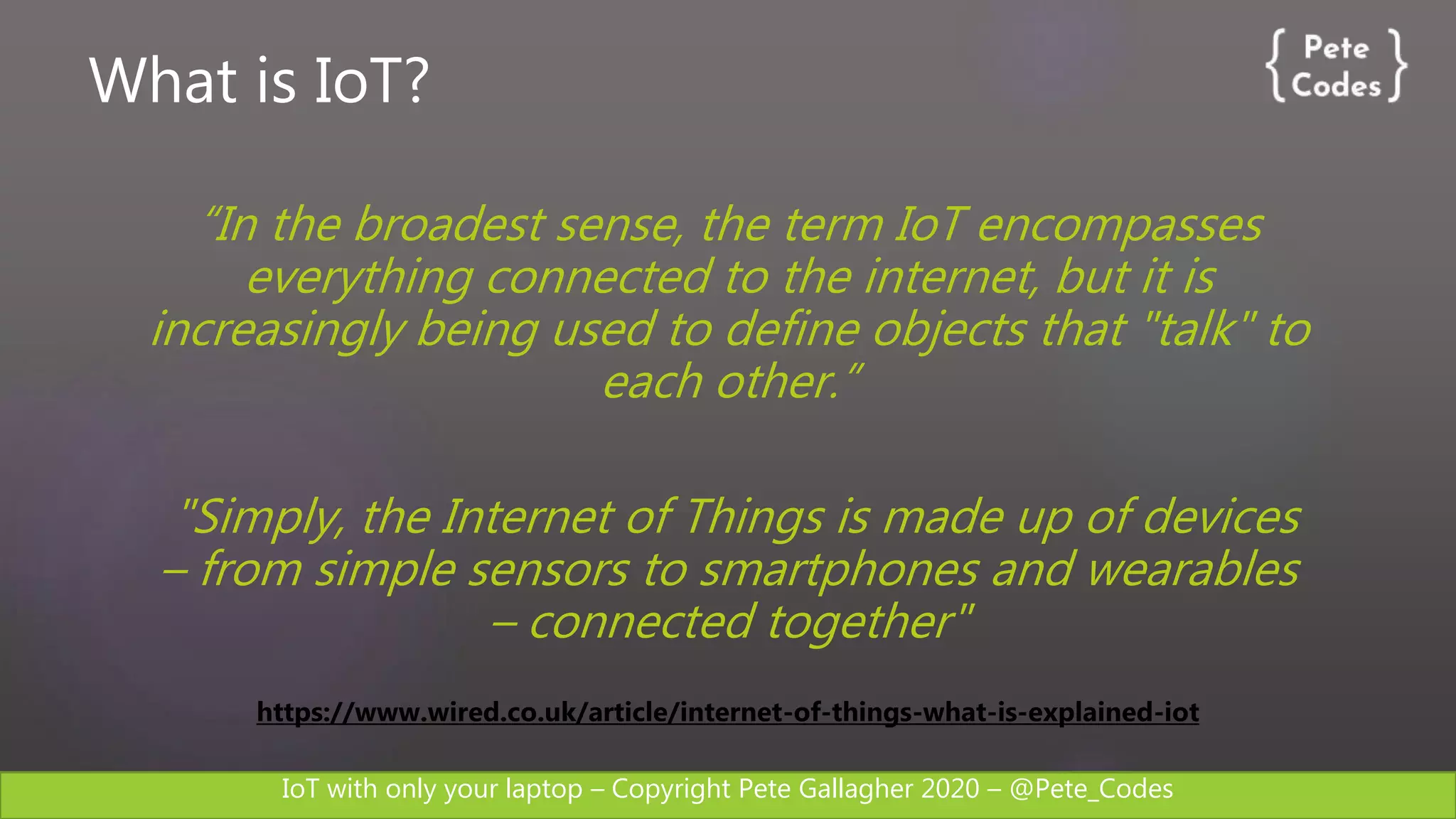

What is IoT?
“In the broadest sense, the term IoT encompasses
everything connected to the internet, but it is
increasingly being used to define objects that "talk" to
each other.”
"Simply, the Internet of Things is made up of devices
– from simple sensors to smartphones and wearables
– connected together"
https://www.wired.co.uk/article/internet-of-things-what-is-explained-iot

6. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
What is IoT?

7. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
http://bit.ly/gartnertrends2018

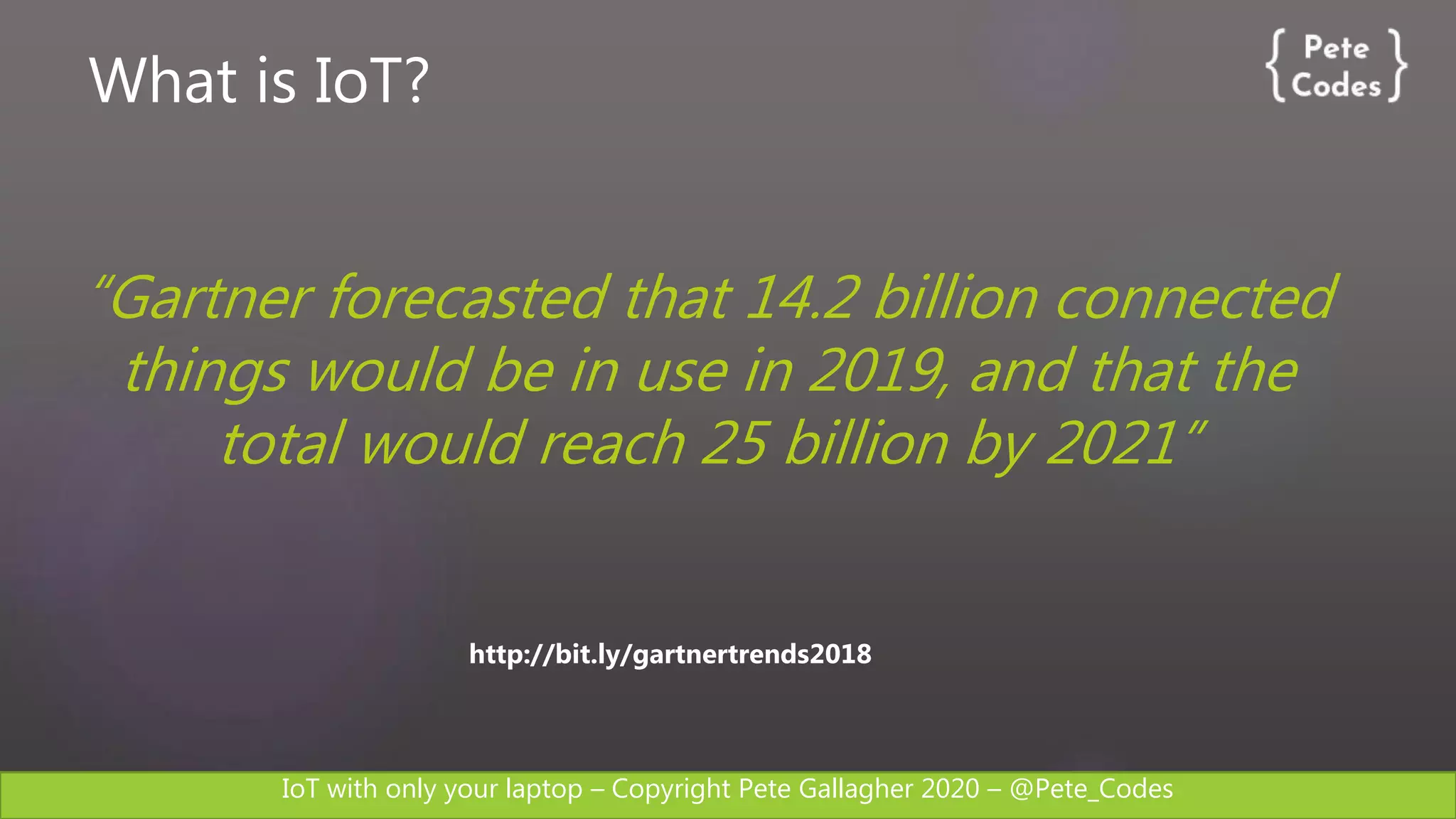

“Gartner forecasted that 14.2 billion connected
things would be in use in 2019, and that the
total would reach 25 billion by 2021”
What is IoT?

8. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
https://www.statista.com/statistics/471264/iot-number-of-connected-devices-worldwide/
What is IoT?
0
10
20
30
40
50
60
70
80
2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025
Billions Of Connected IoT Devices By Year
26.66
35.82
0
10
20
30
40
50
60
70
80
2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025
Billions Of Connected IoT Devices By Year

9. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
It’s Big!

10. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Really Big!

11. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

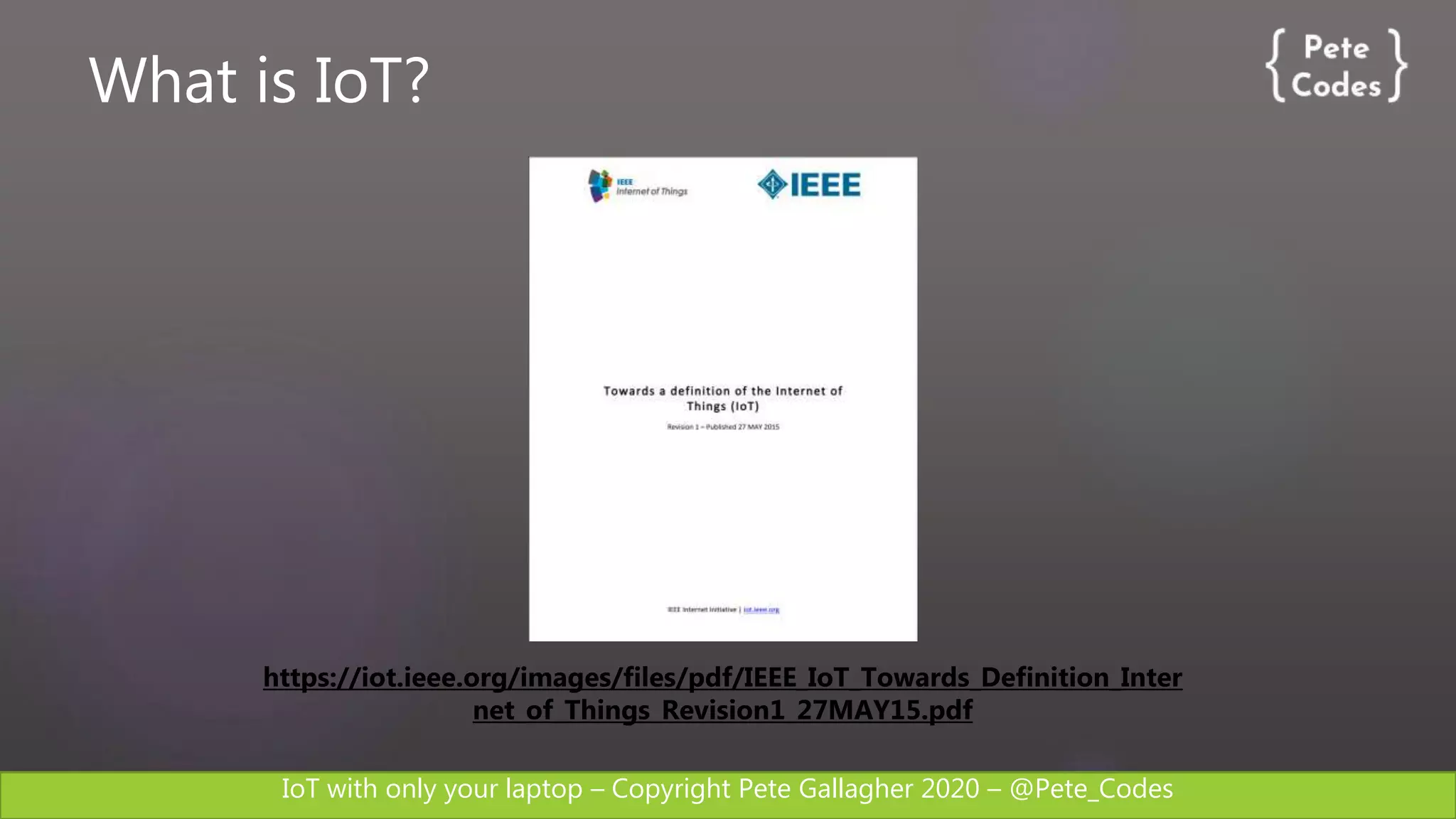

https://iot.ieee.org/images/files/pdf/IEEE_IoT_Towards_Definition_Inter
net_of_Things_Revision1_27MAY15.pdf
What is IoT?

12. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Internet of s**t…

13. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

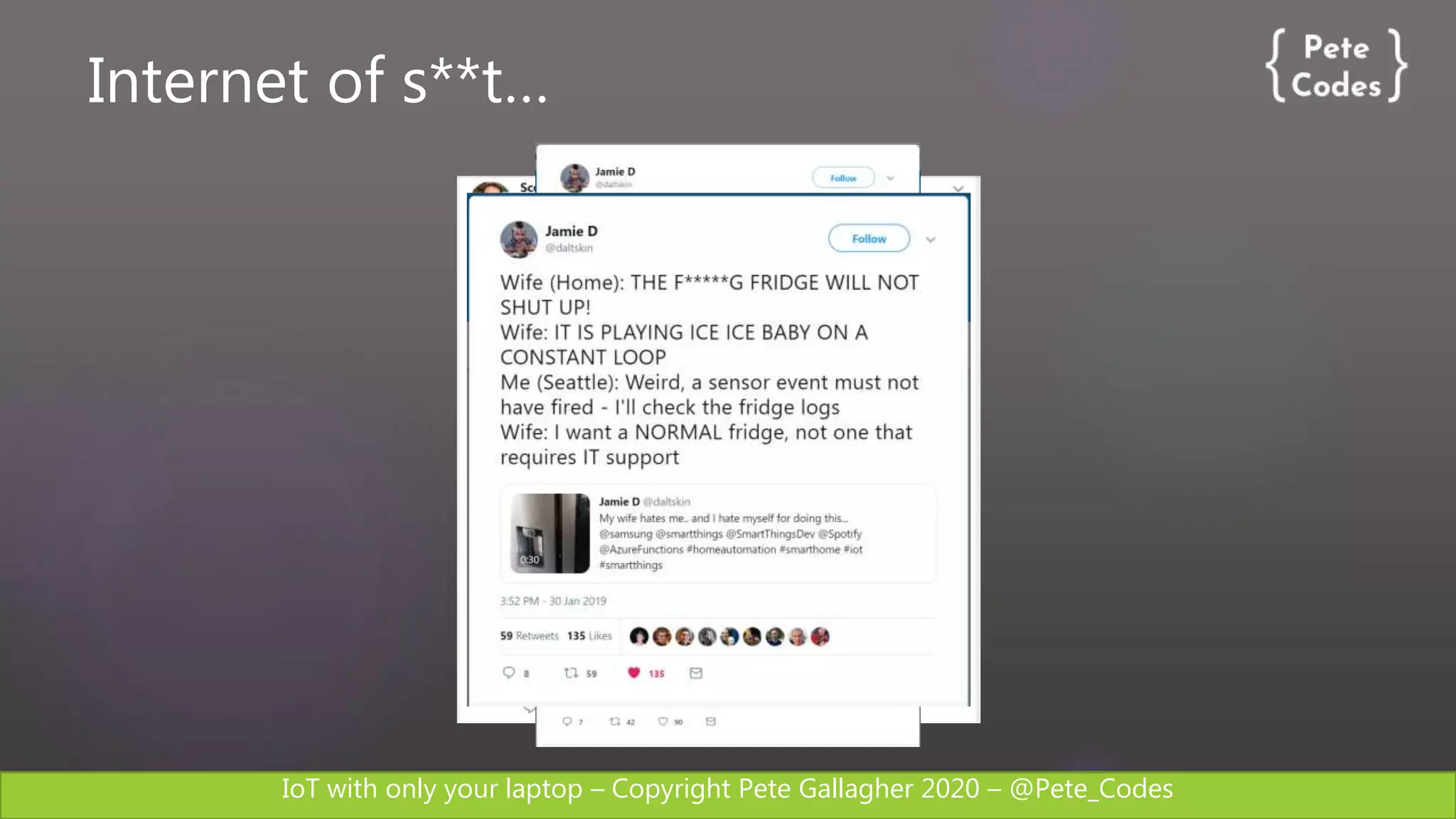

Internet of s**t…

14. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Internet of s**t…

15. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Internet of s**t…

16. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Internet of s**t…

17. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Internet of s**t…
John Romkey

18. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

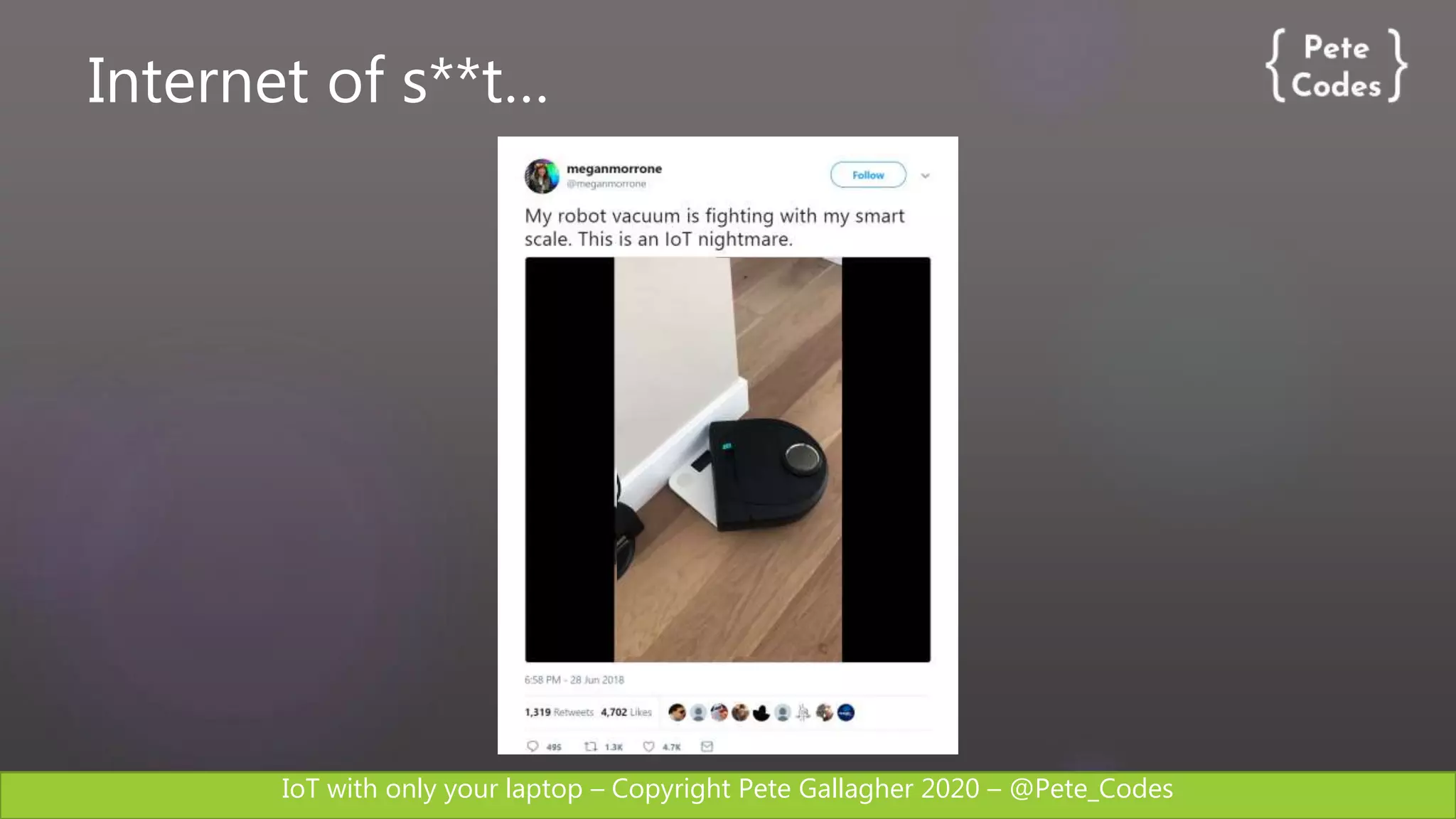

Internet of s**t…

19. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Internet of s**t…

20. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Internet of s**t…

21. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
What is IoT for me?

22. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
IoT for me…

23. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

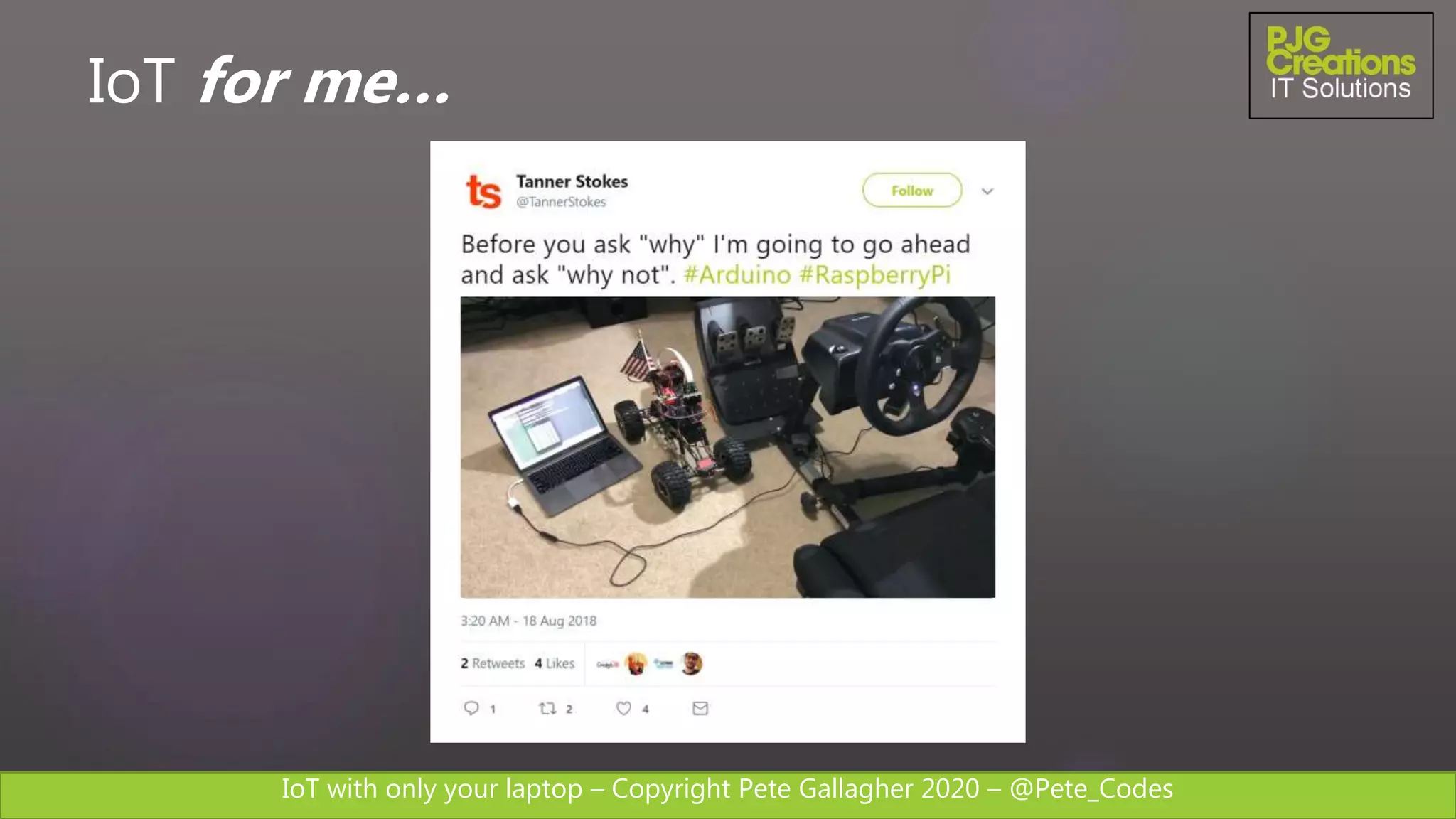

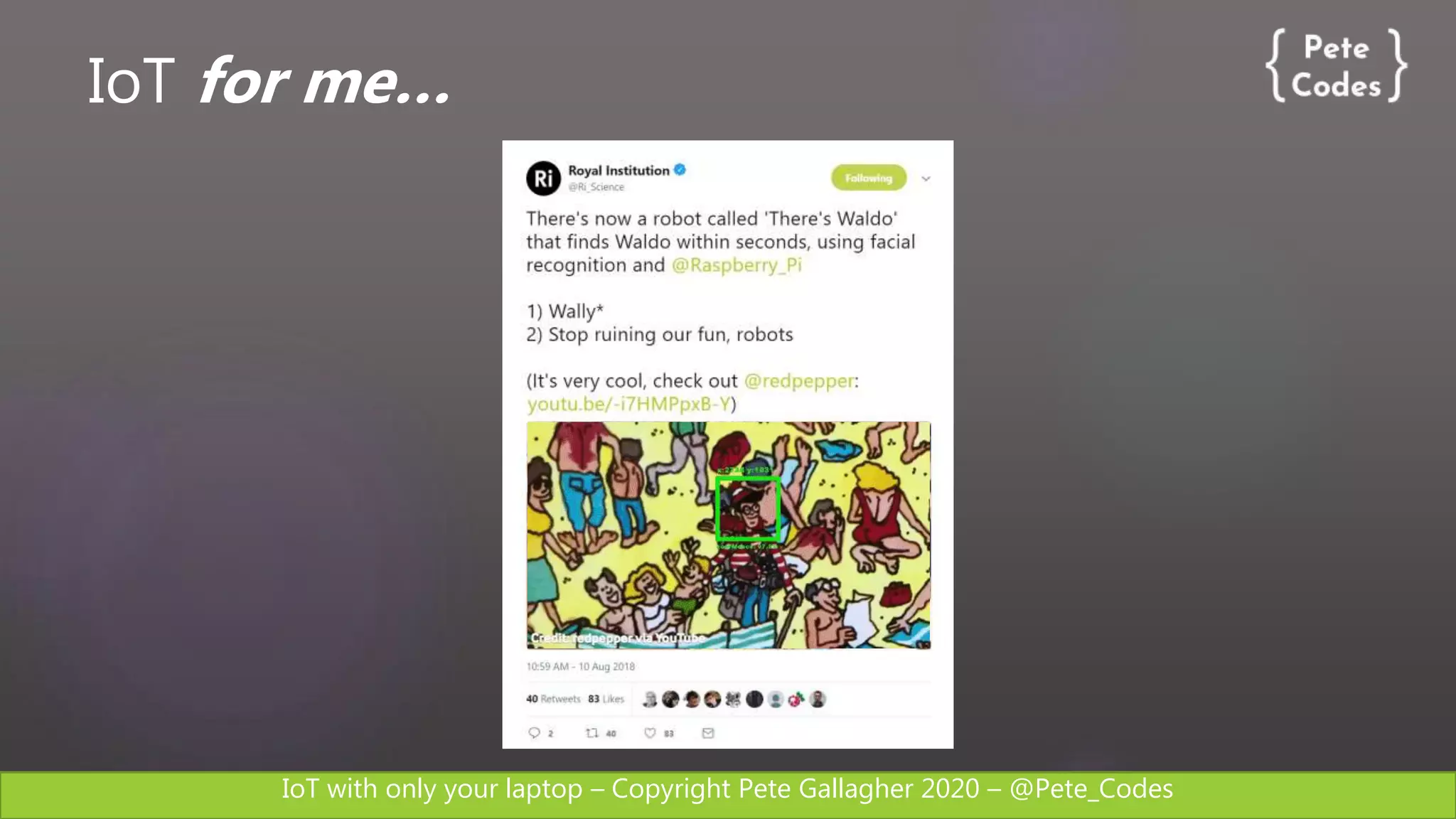

IoT for me…

24. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
IoT for me…

25. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
IoT for me…

26. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
IoT for me…

27. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
An Industry Example…

28. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
The Connected Cow

29. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
The Connected Cow
“To identify a cow in heat, you need to
spend at least 20-30 minutes in the
stables, four to five times a day”

30. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

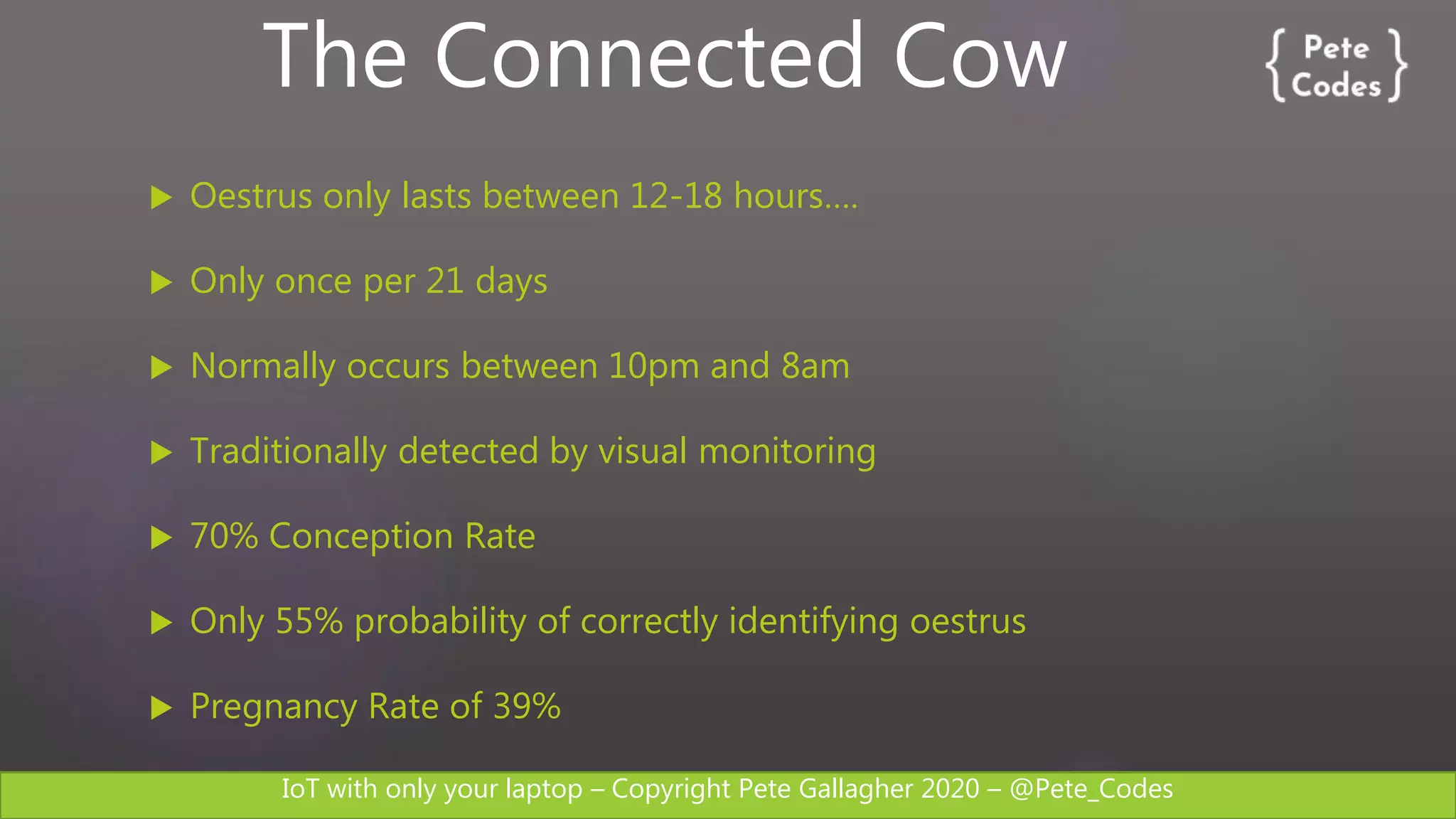

 Oestrus only lasts between 12-18 hours….
 Only once per 21 days
 Normally occurs between 10pm and 8am
 Traditionally detected by visual monitoring
 70% Conception Rate
 Only 55% probability of correctly identifying oestrus
 Pregnancy Rate of 39%
The Connected Cow

31. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

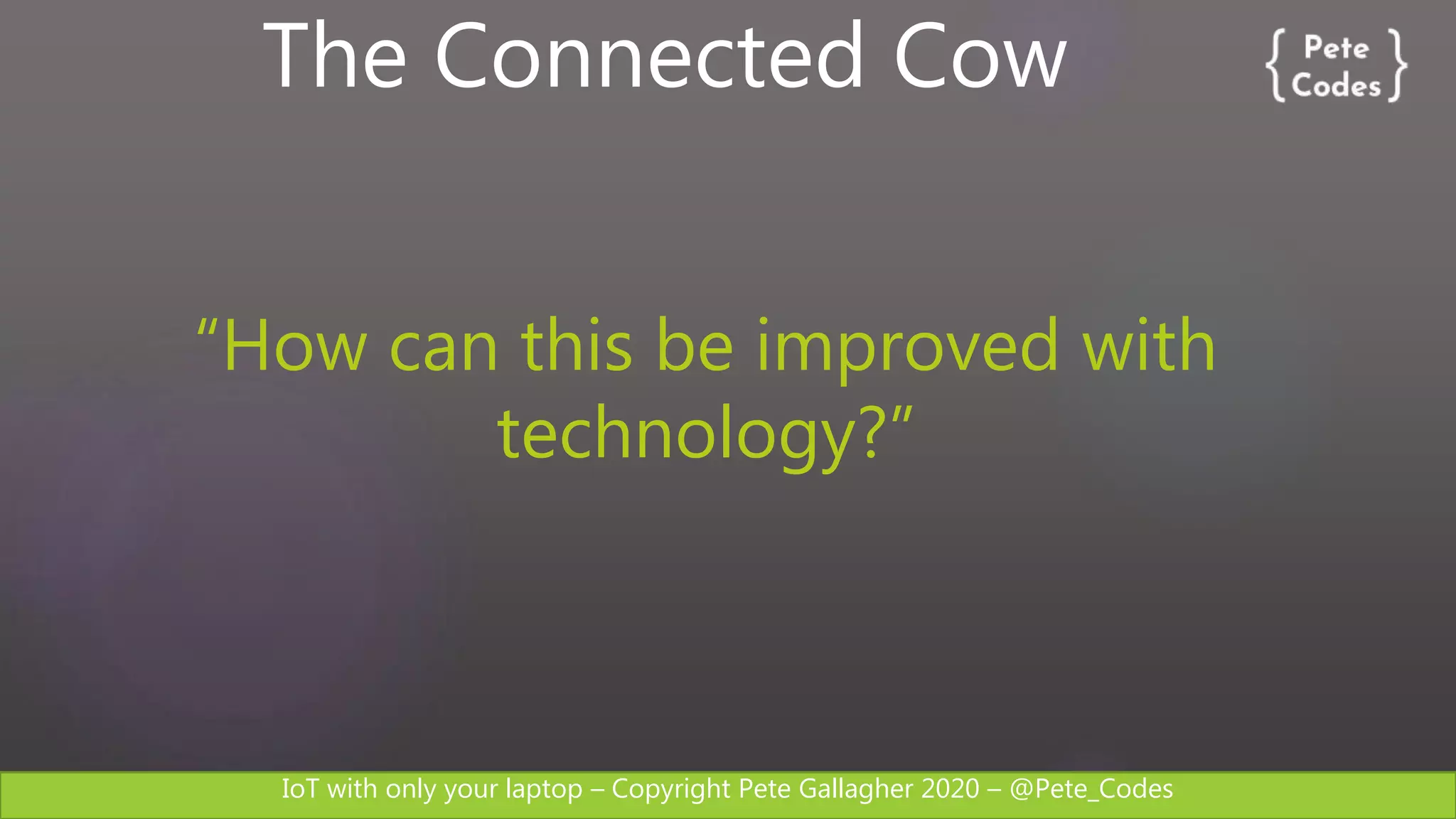

The Connected Cow
“How can this be improved with
technology?”

32. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

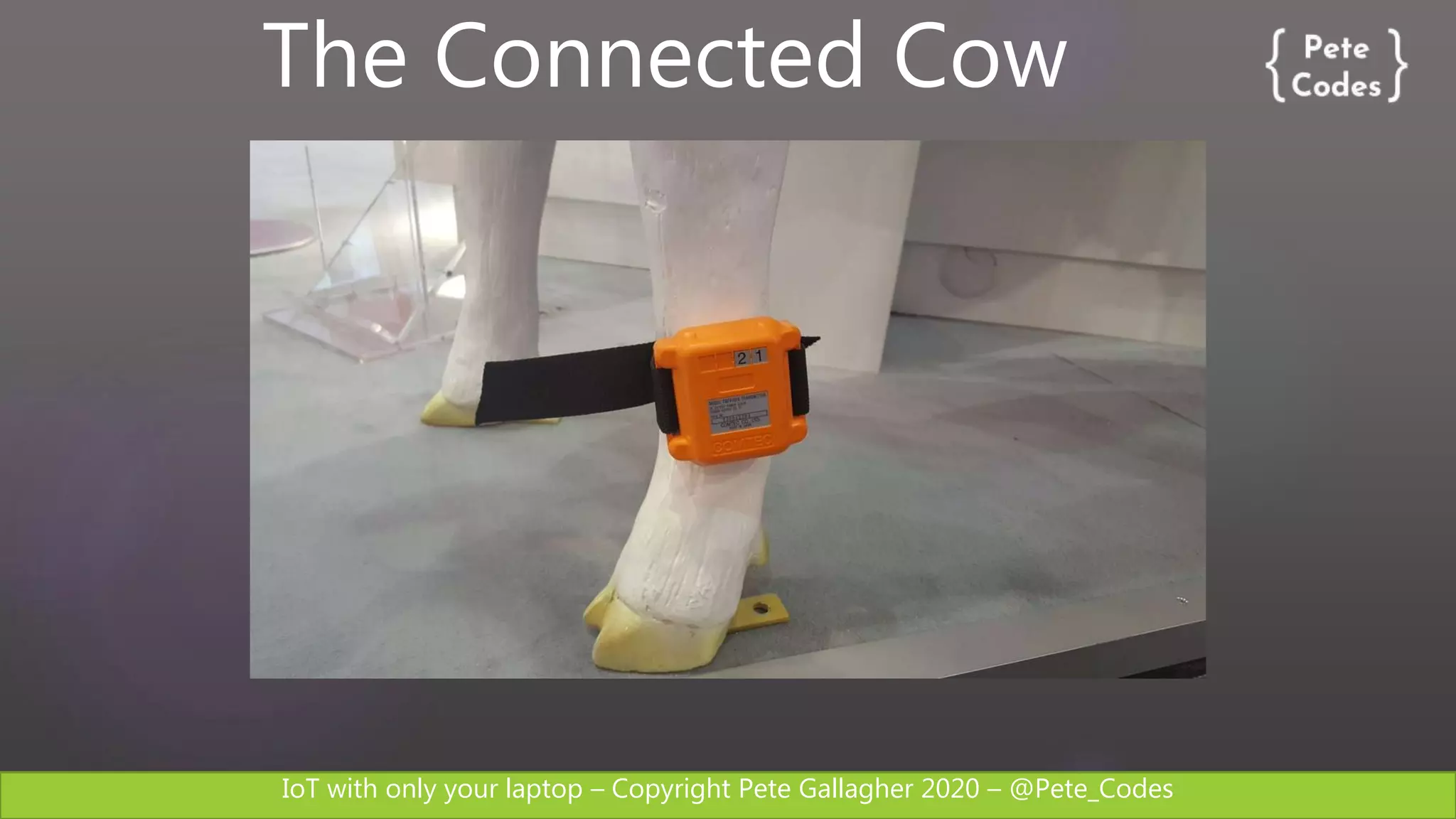

The Connected Cow

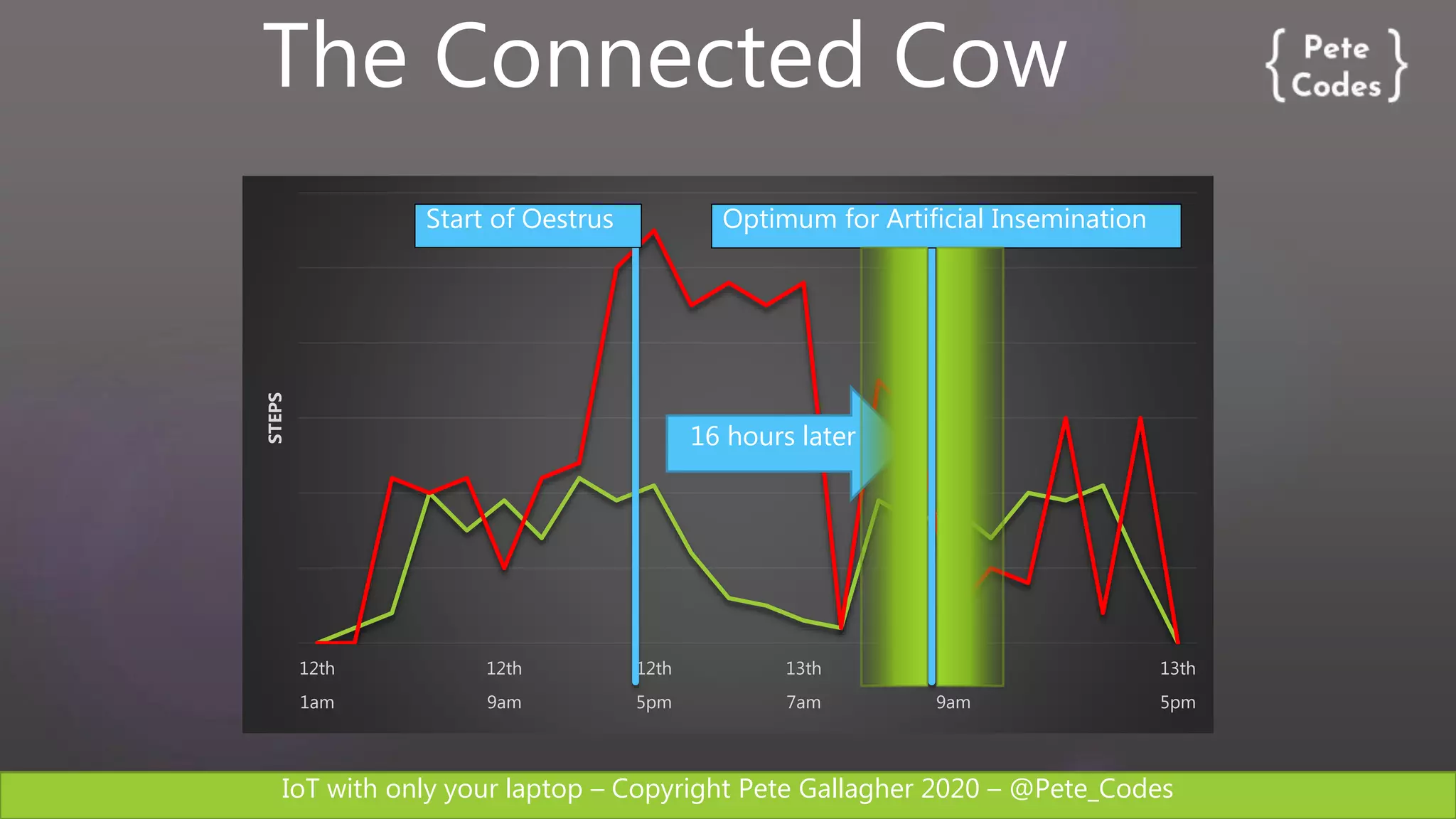

33. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
The Connected Cow
12th
1am
12th
9am
12th
5pm
13th
7am
13th
9am
13th
5pm
STEPS
16 hours later
Start of Oestrus Optimum for Artificial Insemination

34. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

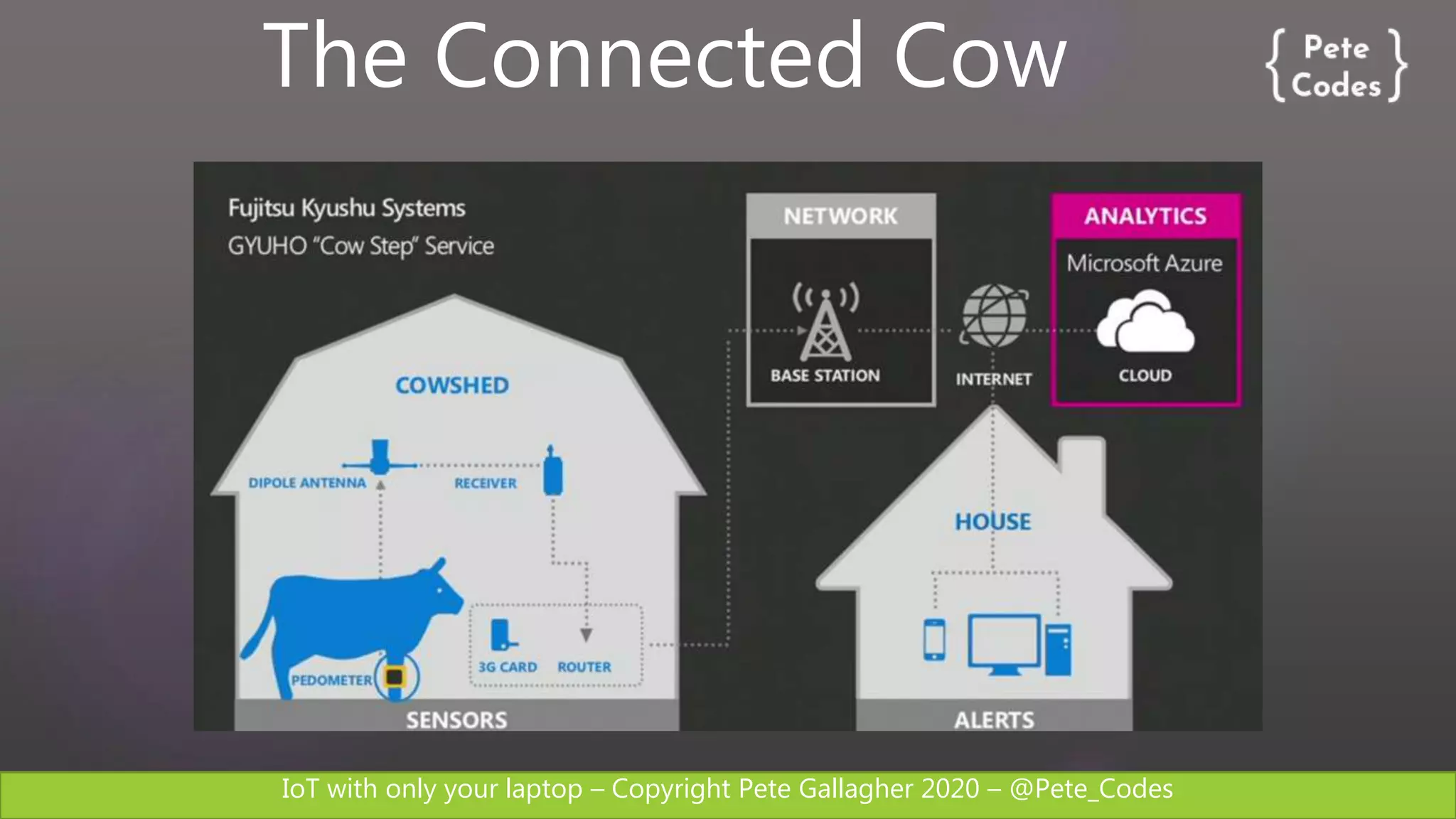

The Connected Cow

35. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
The Hardware…

36. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

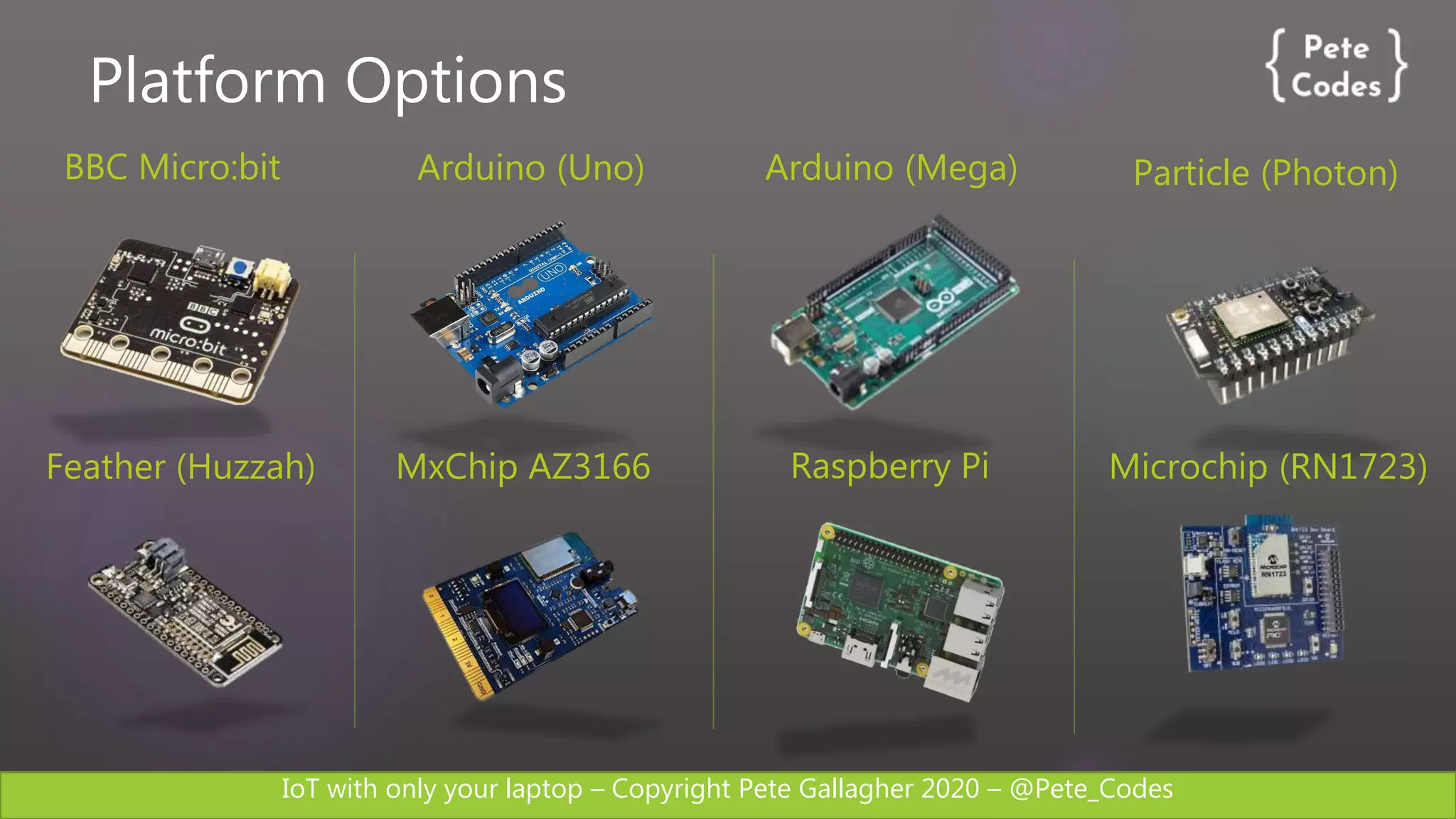

Platform Options
Raspberry Pi
Arduino (Uno) Particle (Photon)BBC Micro:bit
Microchip (RN1723)MxChip AZ3166Feather (Huzzah)
Arduino (Mega)

37. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

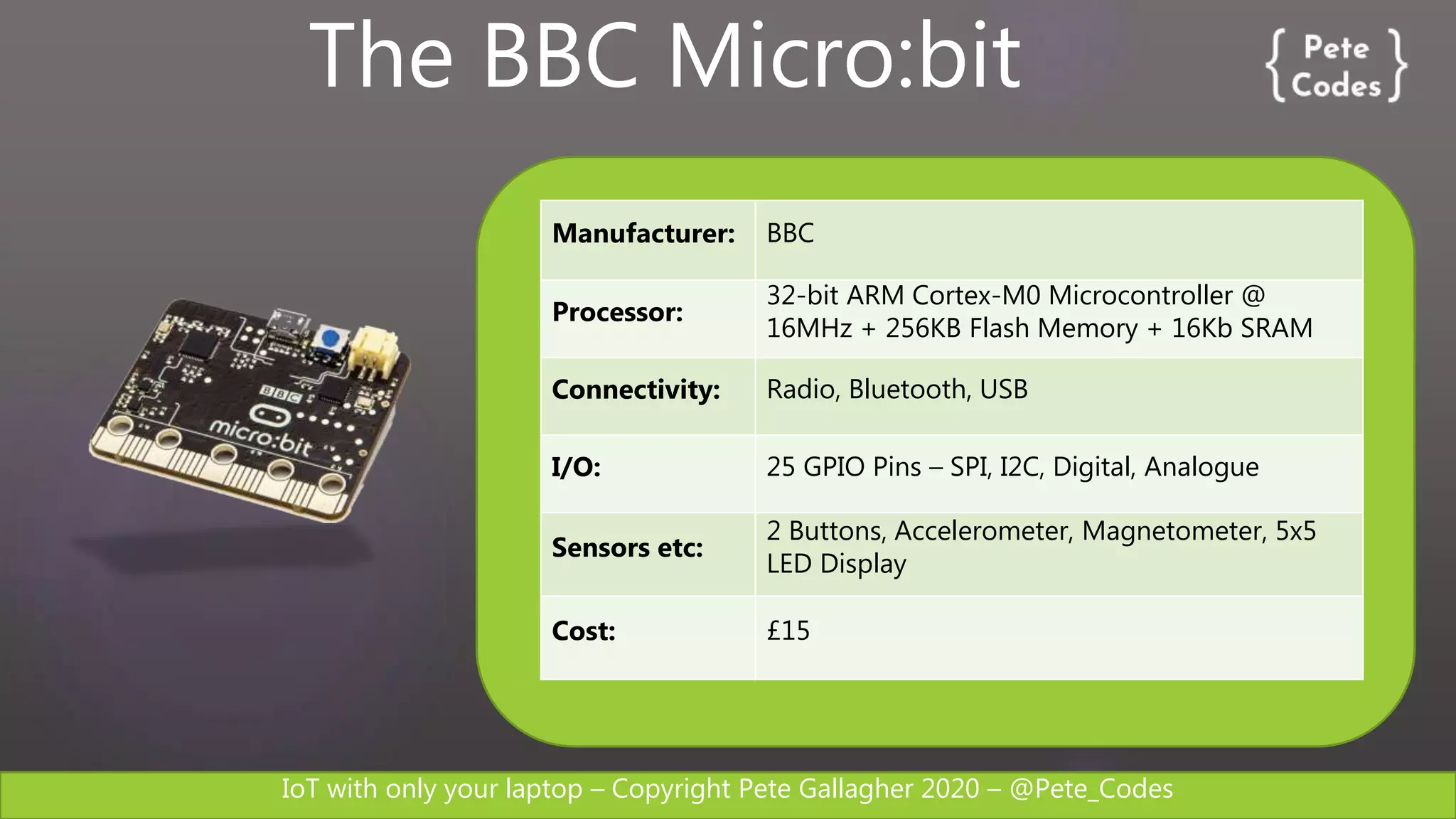

Manufacturer: BBC
Processor:
32-bit ARM Cortex-M0 Microcontroller @
16MHz + 256KB Flash Memory + 16Kb SRAM
Connectivity: Radio, Bluetooth, USB
I/O: 25 GPIO Pins – SPI, I2C, Digital, Analogue
Sensors etc:
2 Buttons, Accelerometer, Magnetometer, 5x5
LED Display
Cost: £15
The BBC Micro:bit

38. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

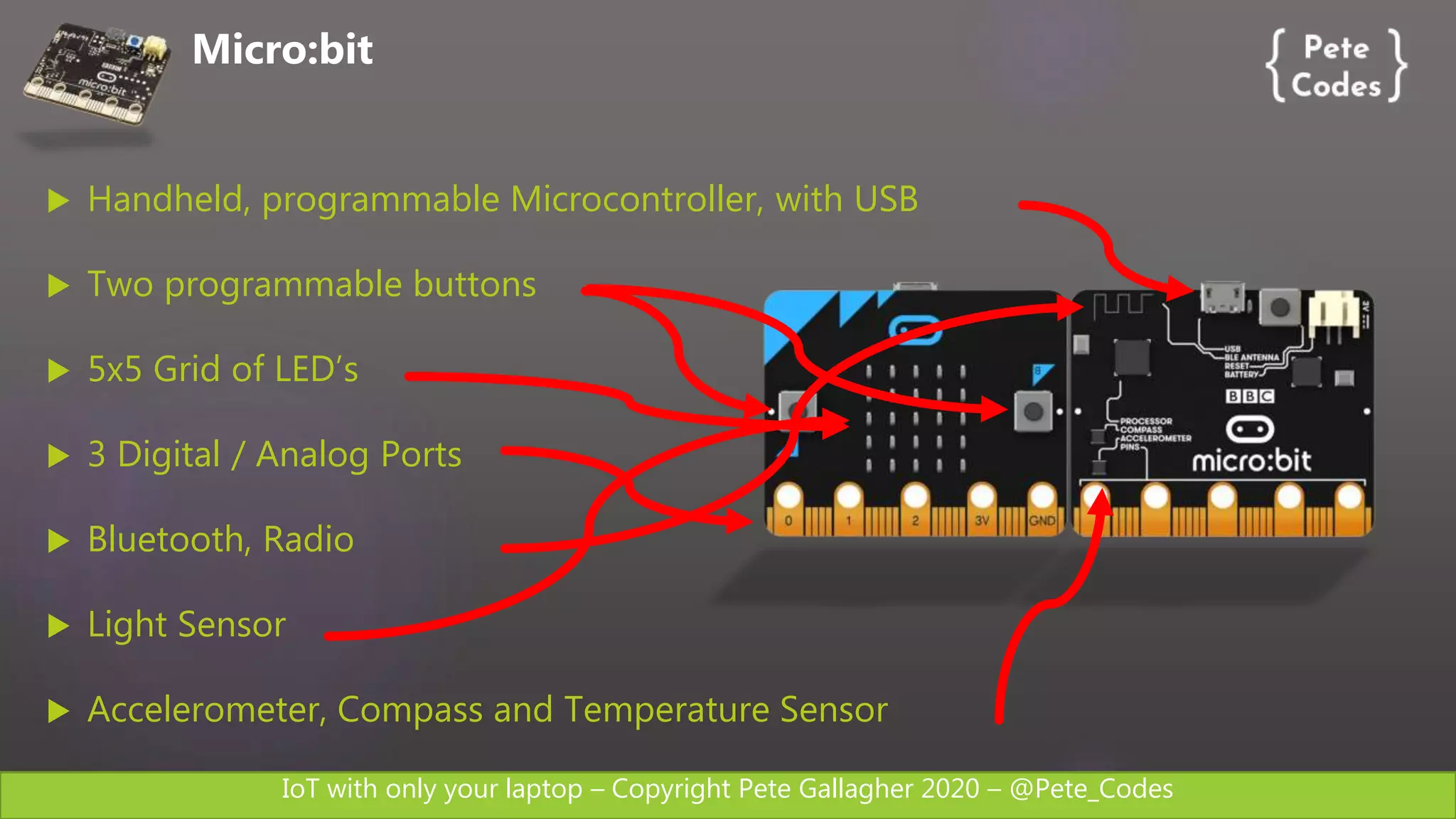

 Handheld, programmable Microcontroller, with USB
 Two programmable buttons
 5x5 Grid of LED’s
 3 Digital / Analog Ports
 Bluetooth, Radio
 Light Sensor
 Accelerometer, Compass and Temperature Sensor
Micro:bit

39. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

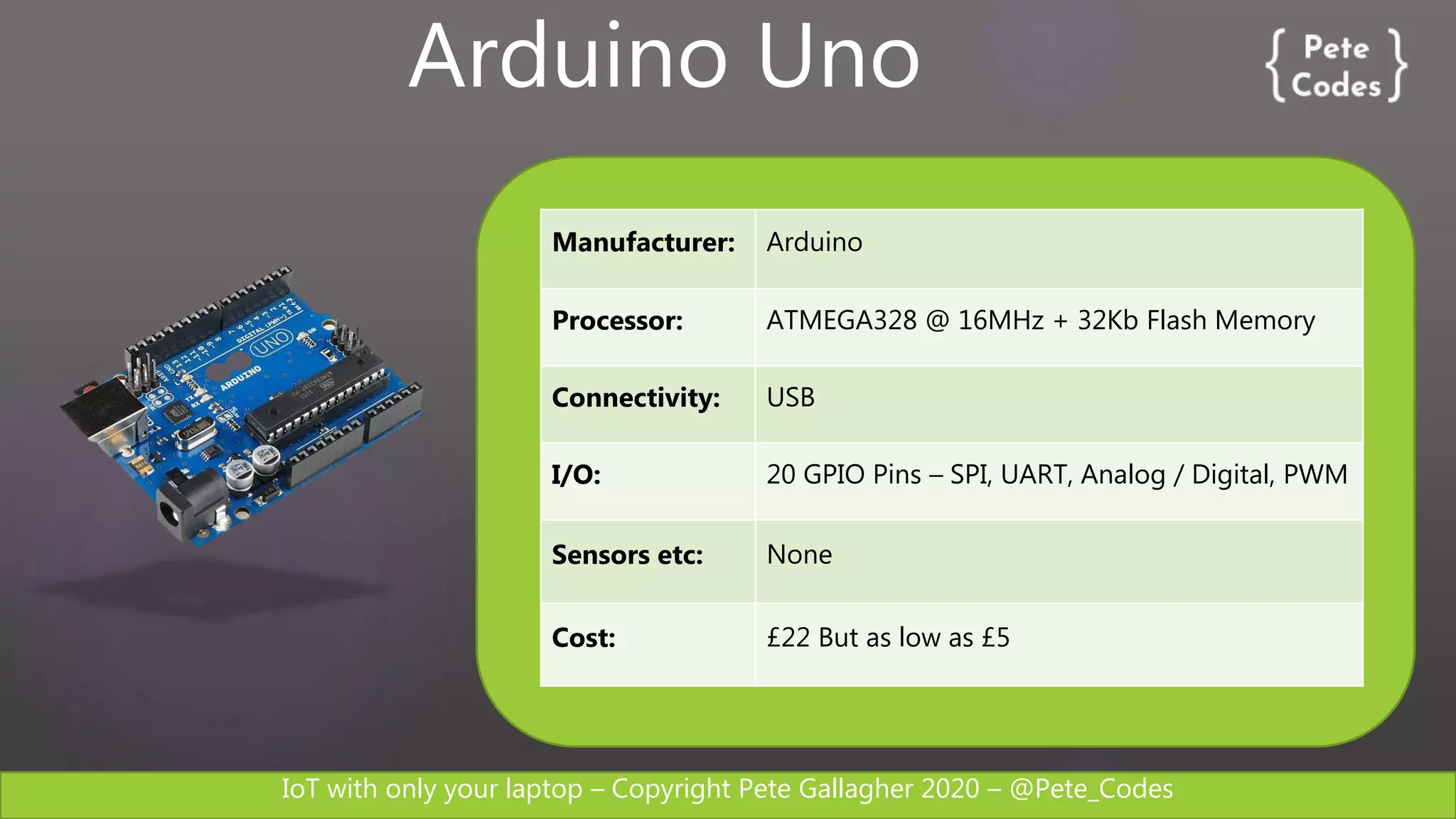

Manufacturer: Arduino
Processor: ATMEGA328 @ 16MHz + 32Kb Flash Memory
Connectivity: USB
I/O: 20 GPIO Pins – SPI, UART, Analog / Digital, PWM
Sensors etc: None
Cost: £22 But as low as £5
Arduino Uno

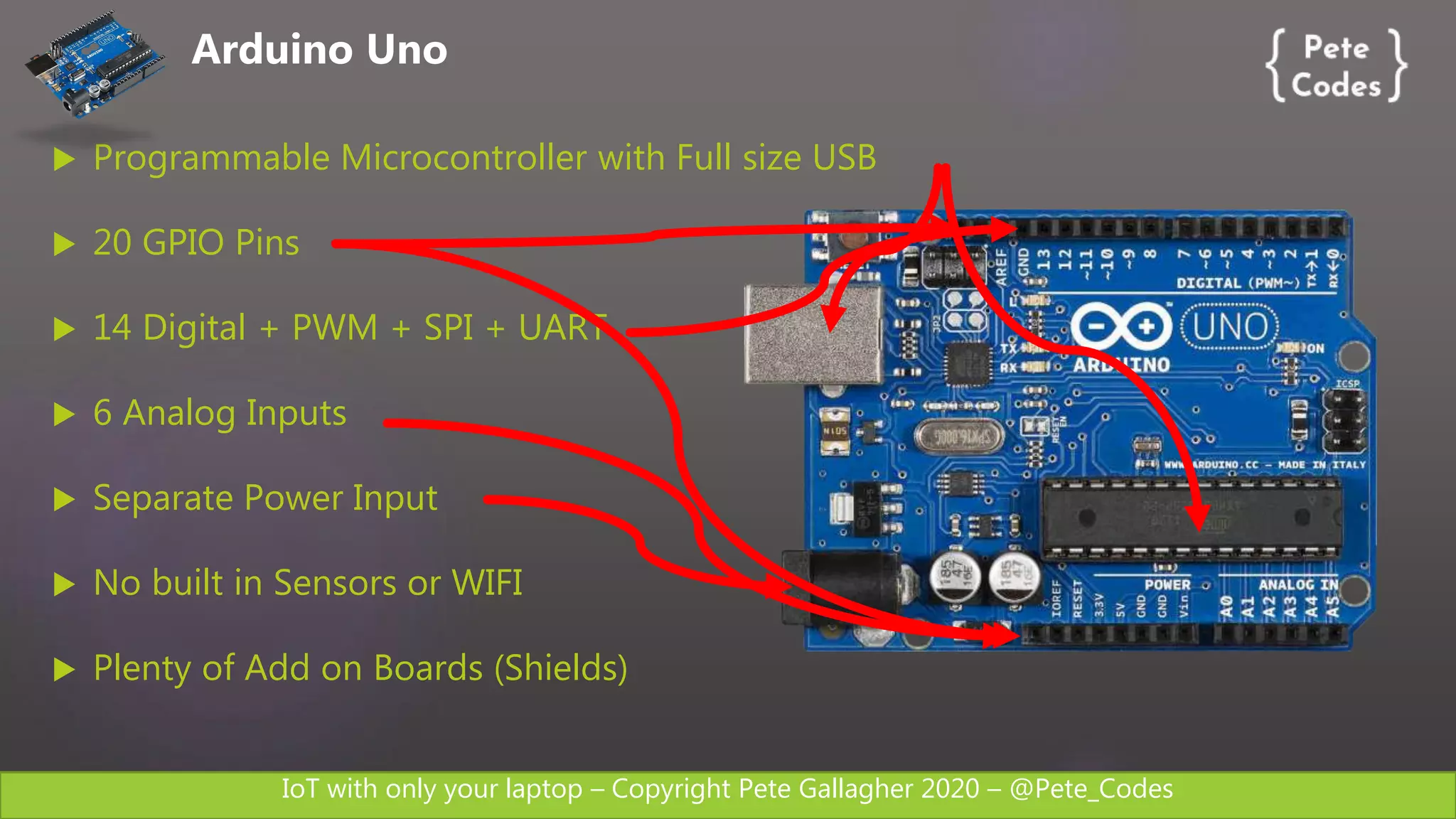

40. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
 Programmable Microcontroller with Full size USB
 20 GPIO Pins
 14 Digital + PWM + SPI + UART
 6 Analog Inputs
 Separate Power Input
 No built in Sensors or WIFI
 Plenty of Add on Boards (Shields)
Arduino Uno

41. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

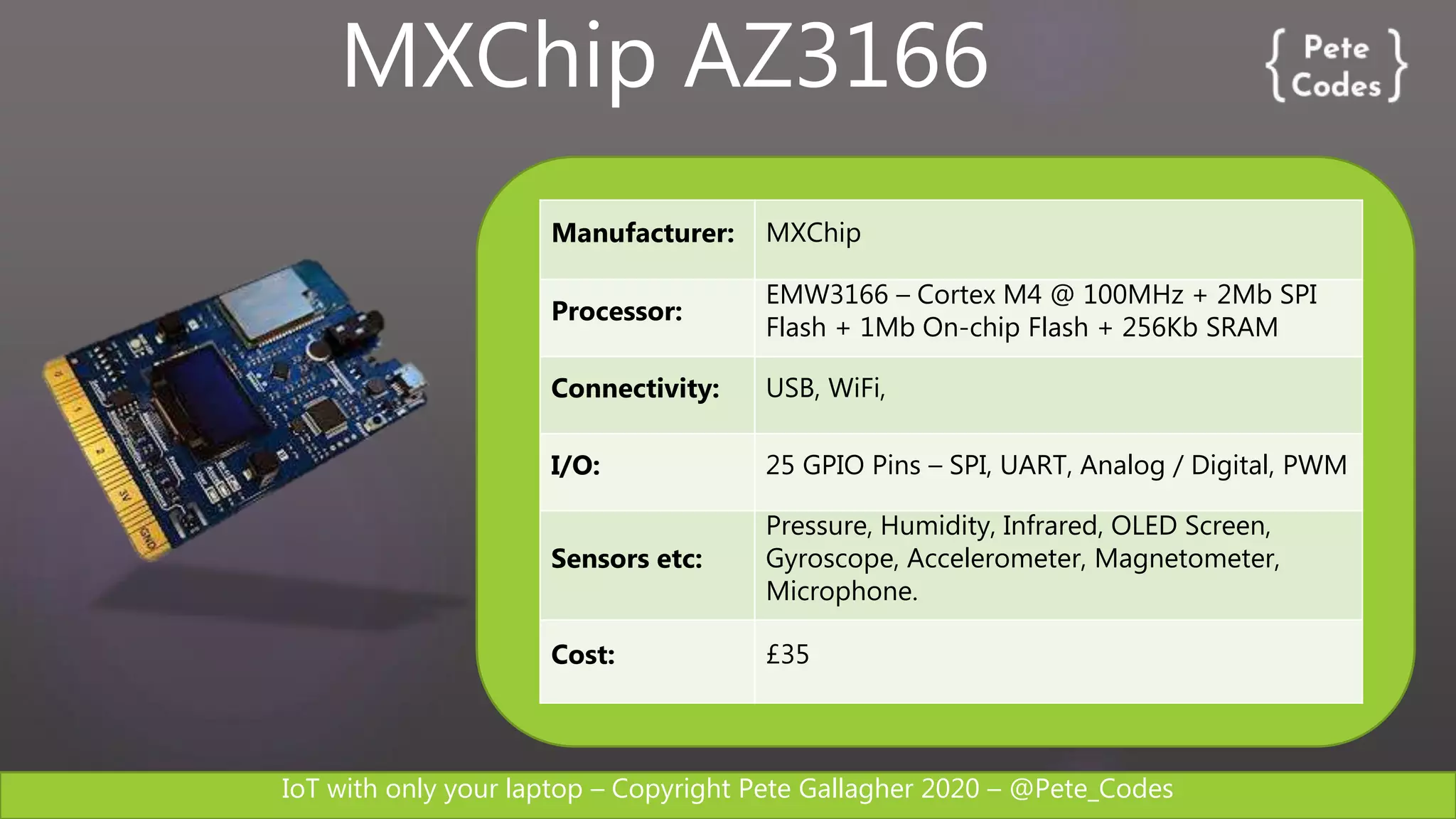

Manufacturer: MXChip
Processor:
EMW3166 – Cortex M4 @ 100MHz + 2Mb SPI
Flash + 1Mb On-chip Flash + 256Kb SRAM
Connectivity: USB, WiFi,
I/O: 25 GPIO Pins – SPI, UART, Analog / Digital, PWM
Sensors etc:
Pressure, Humidity, Infrared, OLED Screen,
Gyroscope, Accelerometer, Magnetometer,
Microphone.
Cost: £35
MXChip AZ3166

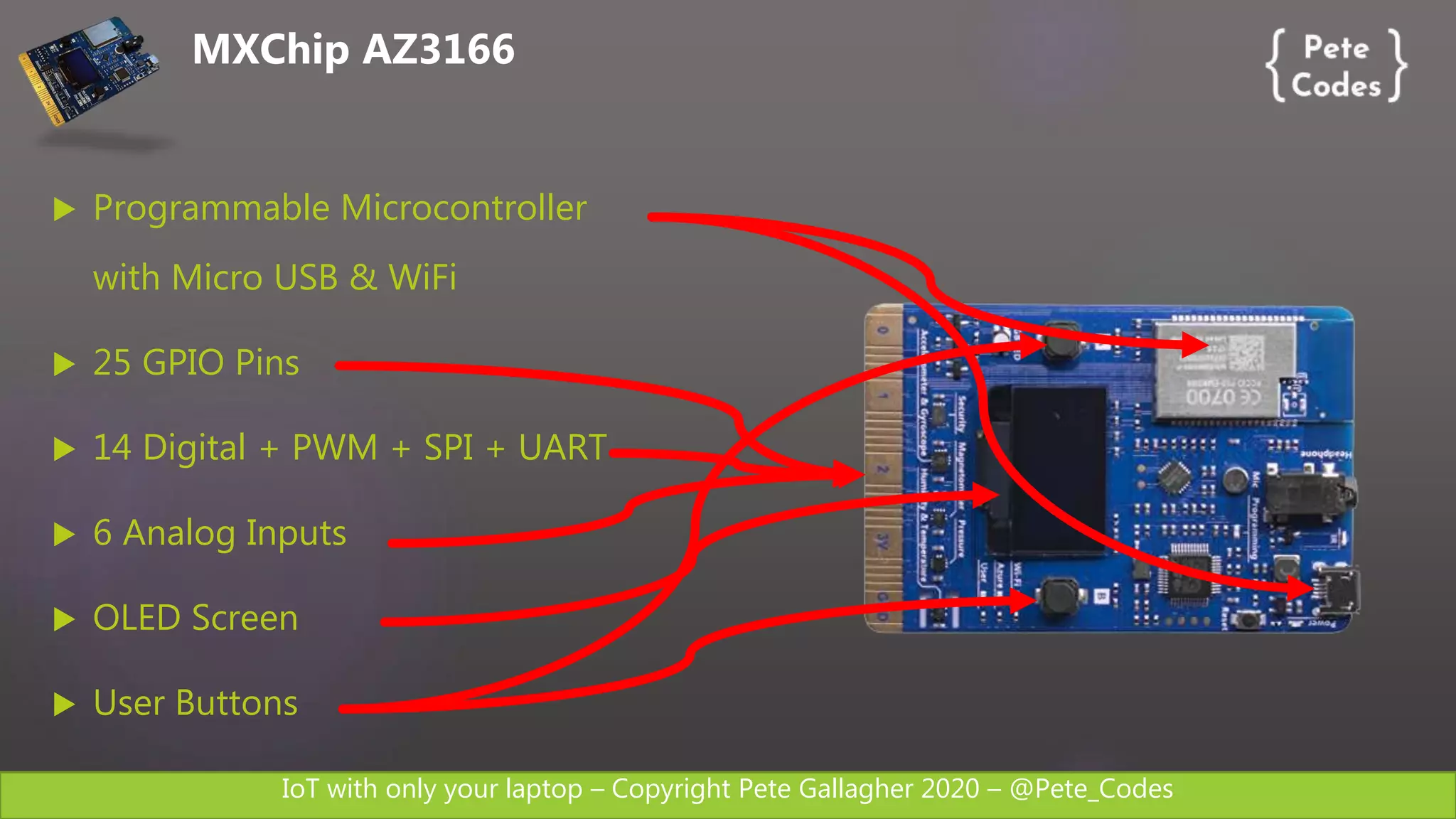

42. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
 Programmable Microcontroller
with Micro USB & WiFi
 25 GPIO Pins
 14 Digital + PWM + SPI + UART
 6 Analog Inputs
 OLED Screen
 User Buttons
MXChip AZ3166

43. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

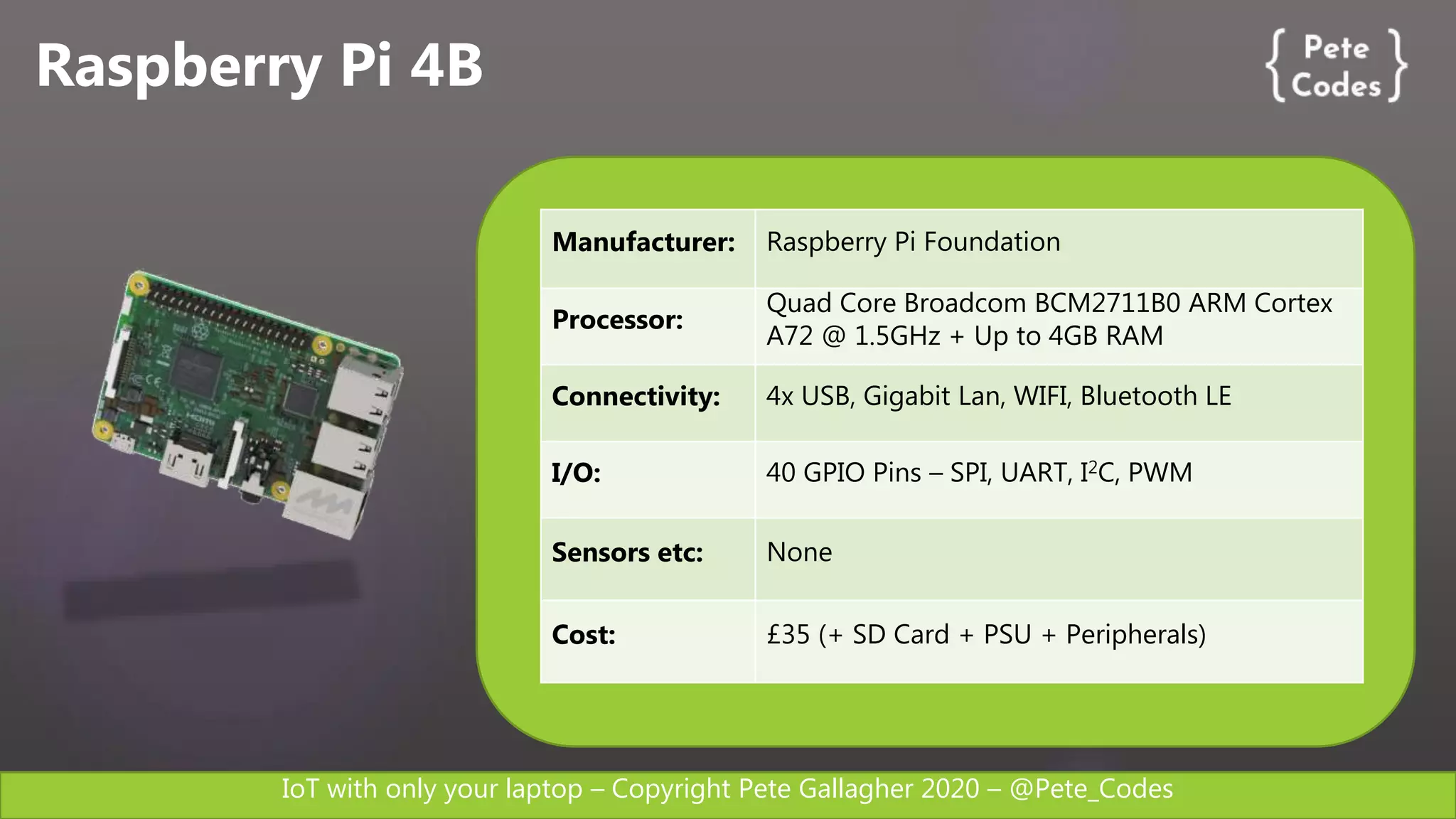

Raspberry Pi 4B
Manufacturer: Raspberry Pi Foundation
Processor:
Quad Core Broadcom BCM2711B0 ARM Cortex
A72 @ 1.5GHz + Up to 4GB RAM
Connectivity: 4x USB, Gigabit Lan, WIFI, Bluetooth LE
I/O: 40 GPIO Pins – SPI, UART, I2C, PWM
Sensors etc: None
Cost: £35 (+ SD Card + PSU + Peripherals)

44. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

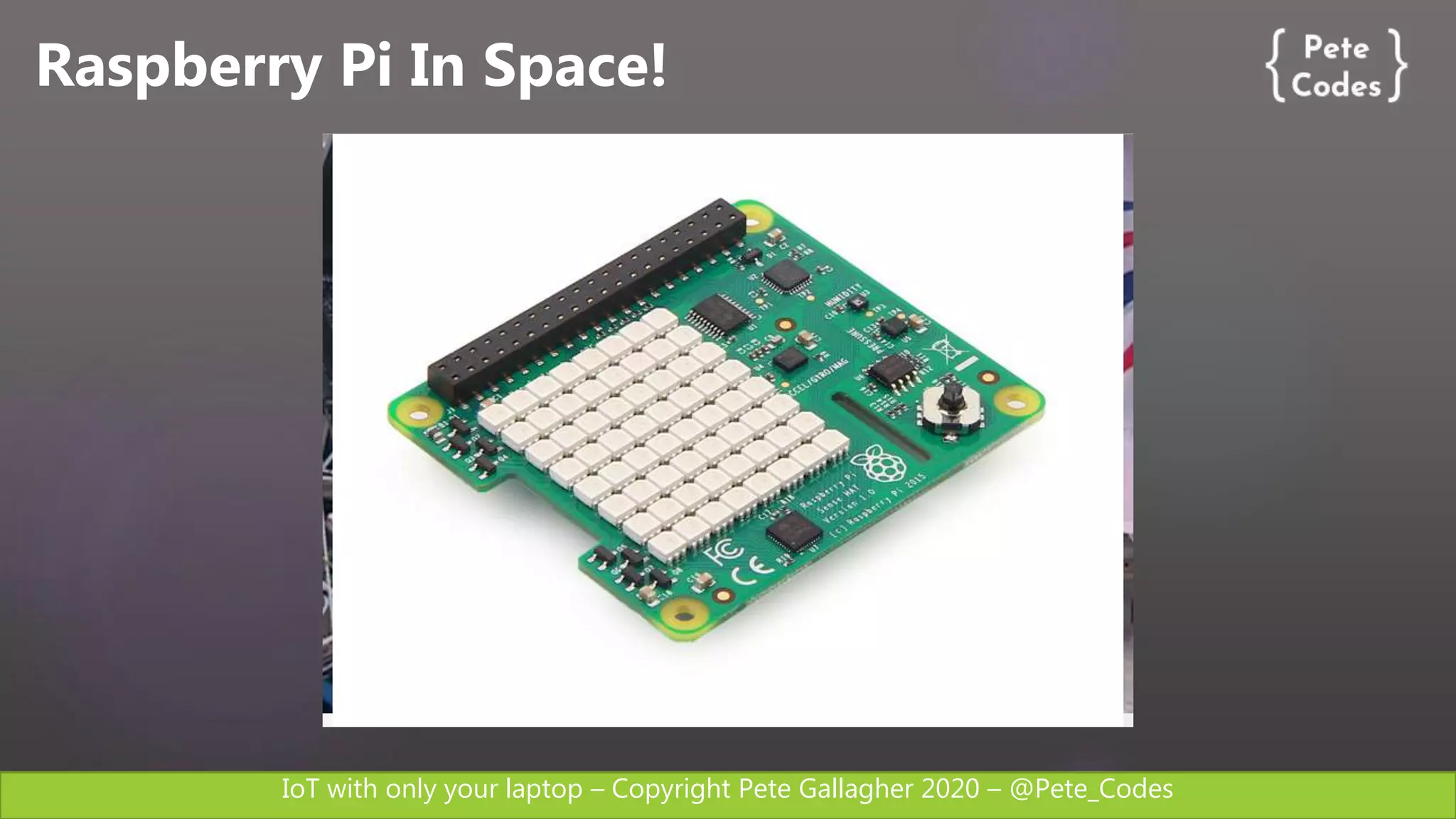

Raspberry Pi In Space!

45. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

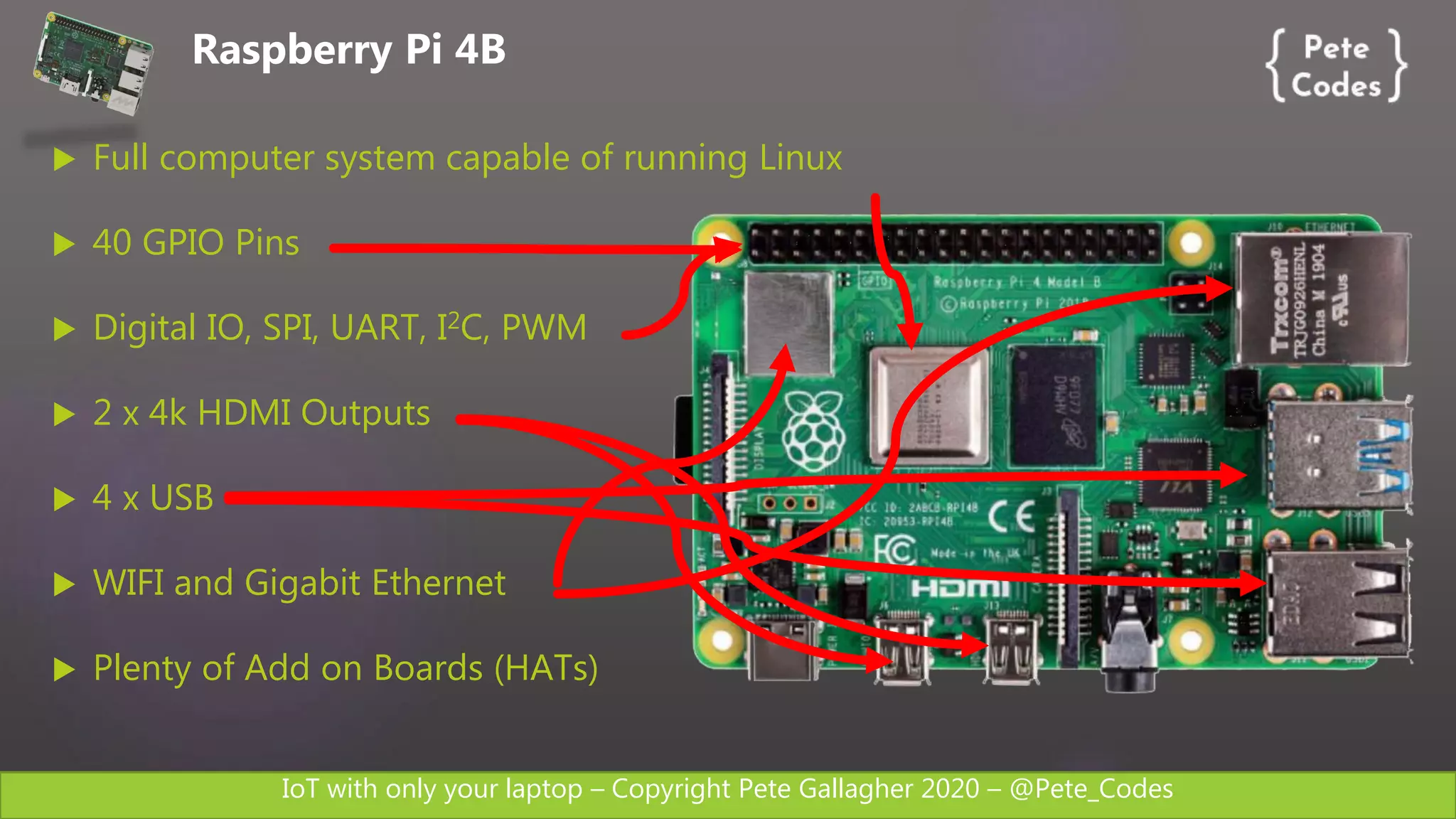

 Full computer system capable of running Linux
 40 GPIO Pins
 Digital IO, SPI, UART, I2C, PWM
 2 x 4k HDMI Outputs
 4 x USB
 WIFI and Gigabit Ethernet
 Plenty of Add on Boards (HATs)
Raspberry Pi 4B

46. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Get it?

47. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
WHAT?

48. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

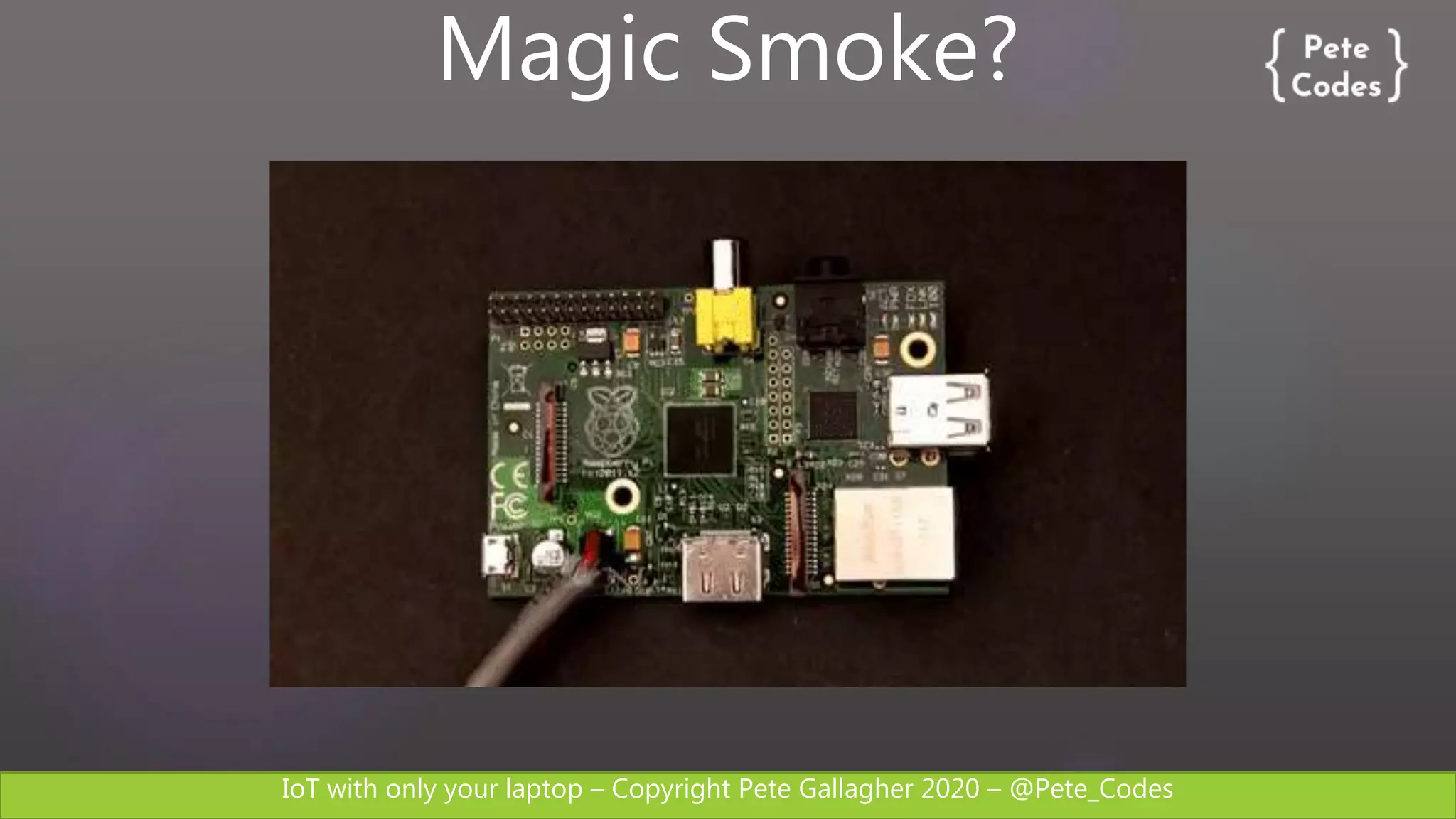

Magic Smoke?

49. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Later Maybe?

50. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
The Software…

51. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

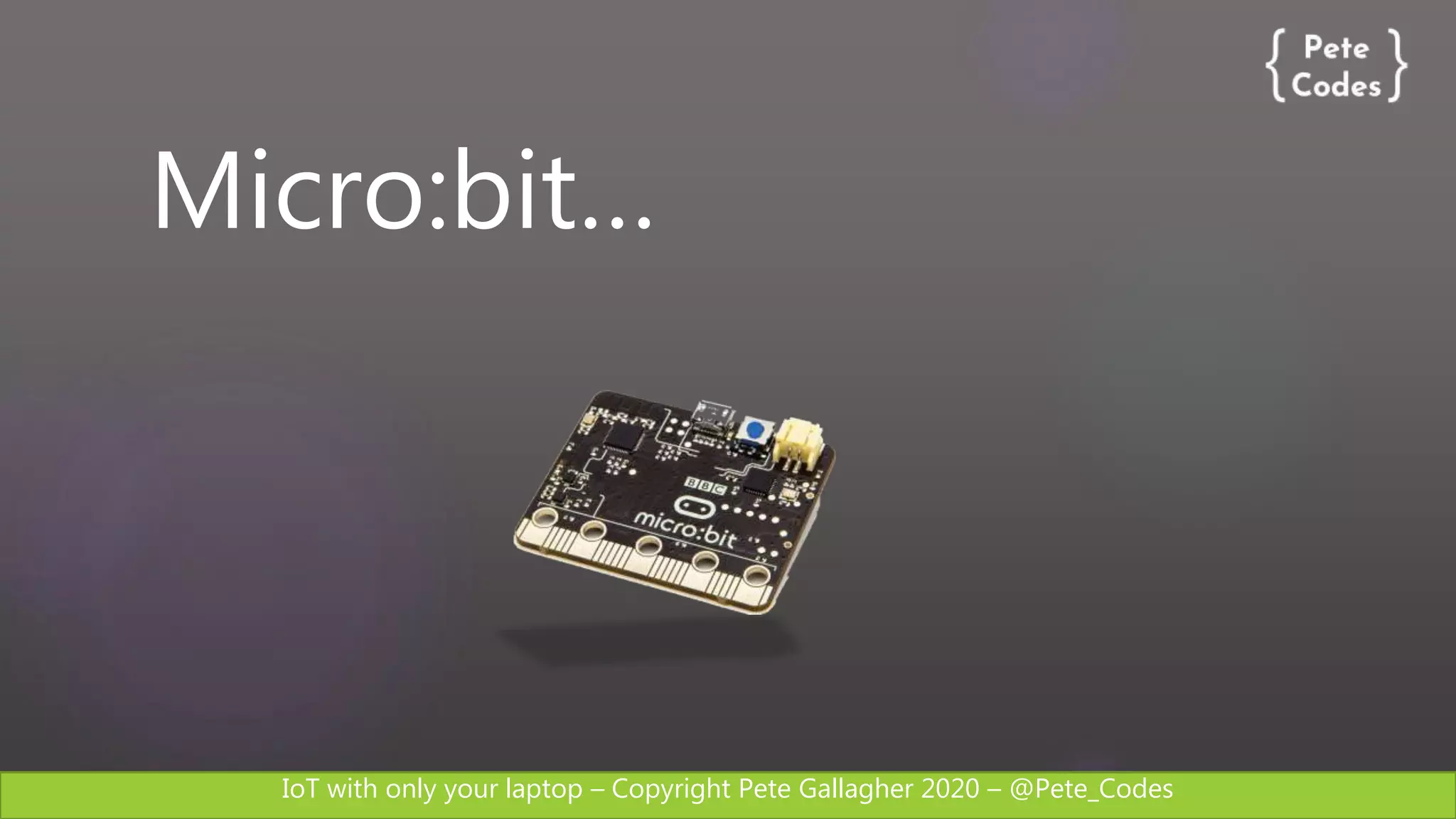

Micro:bit…

52. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

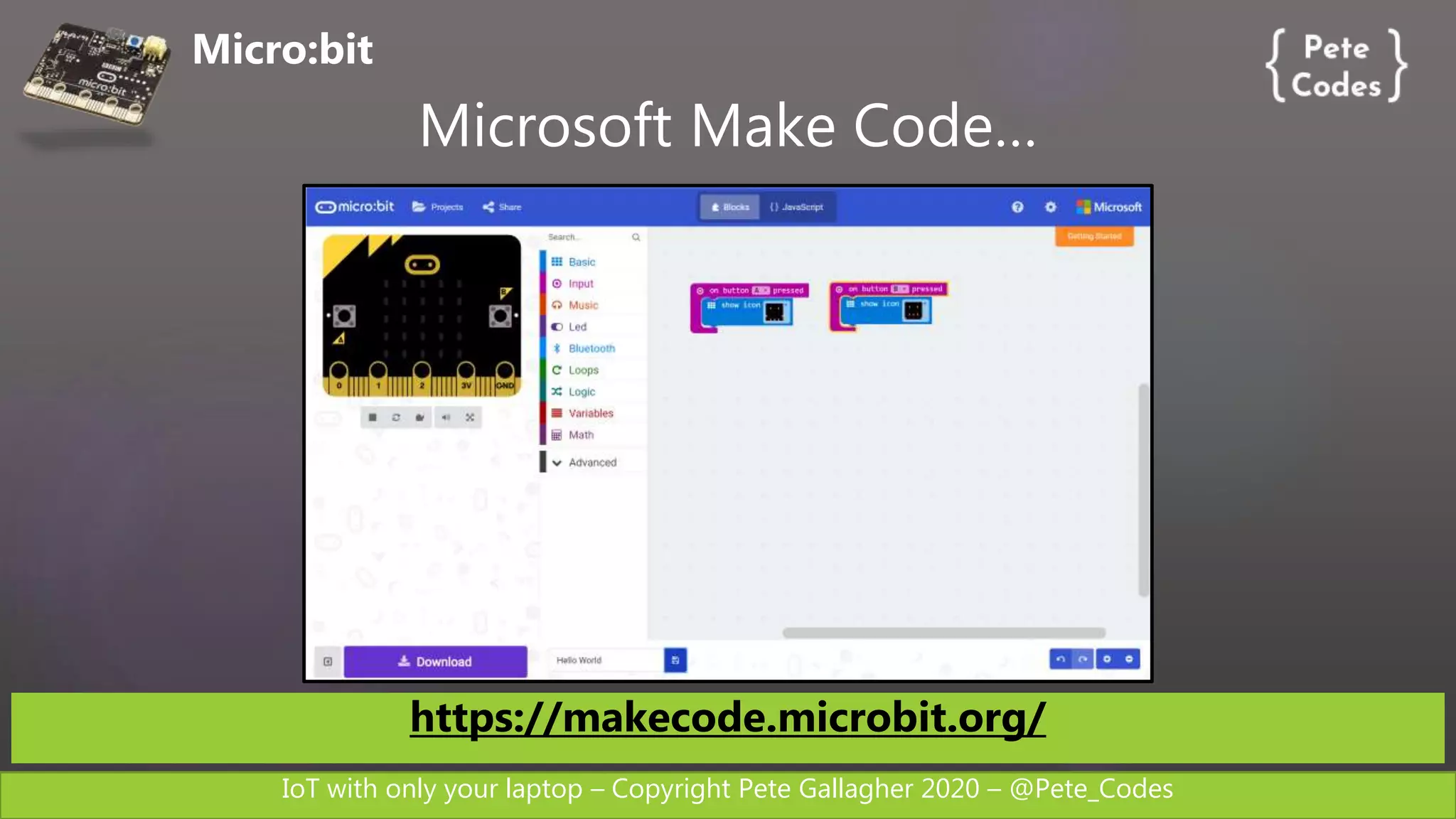

Micro:bit
Microsoft Make Code…
https://makecode.microbit.org/

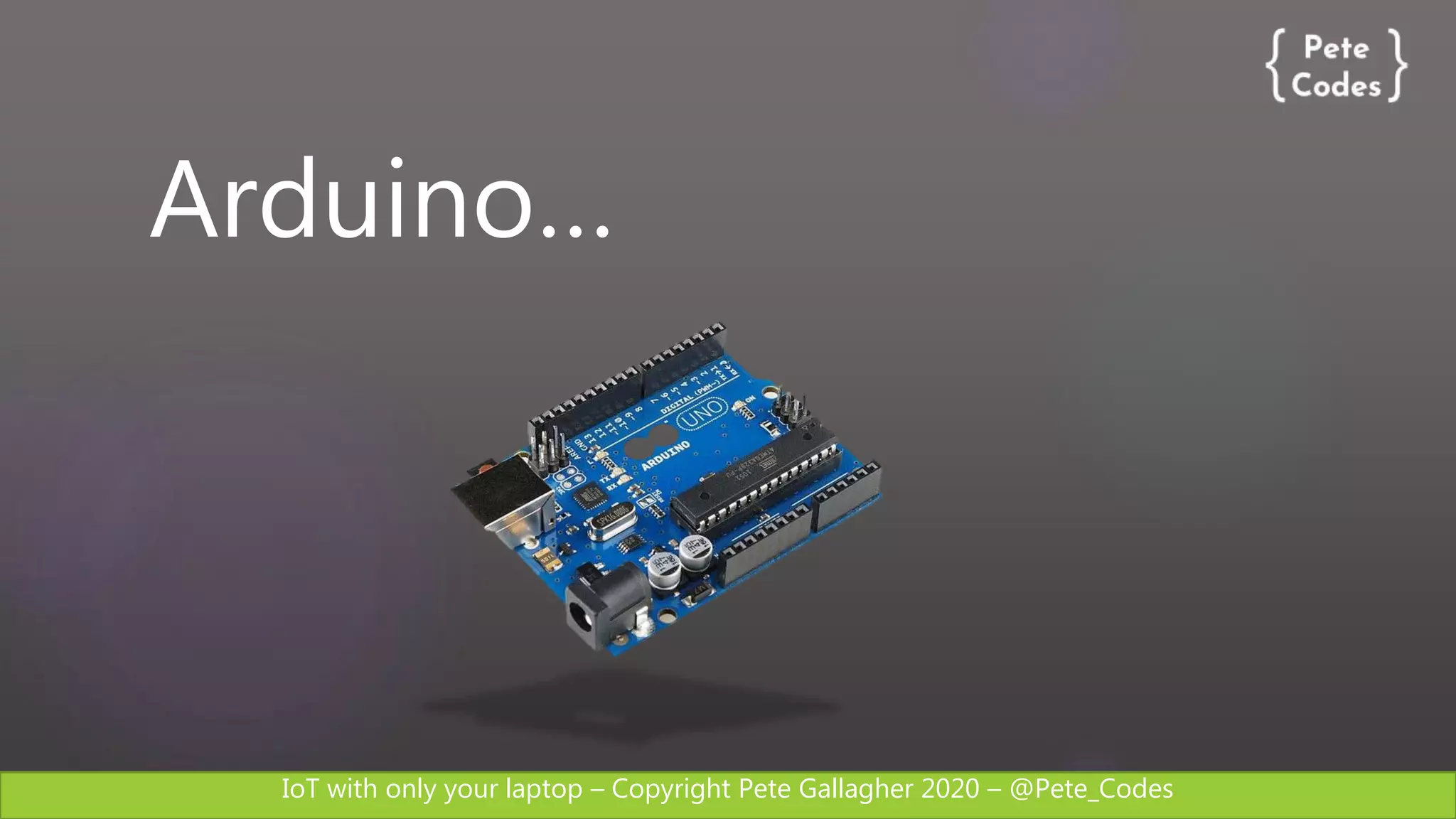

53. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Arduino…

54. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

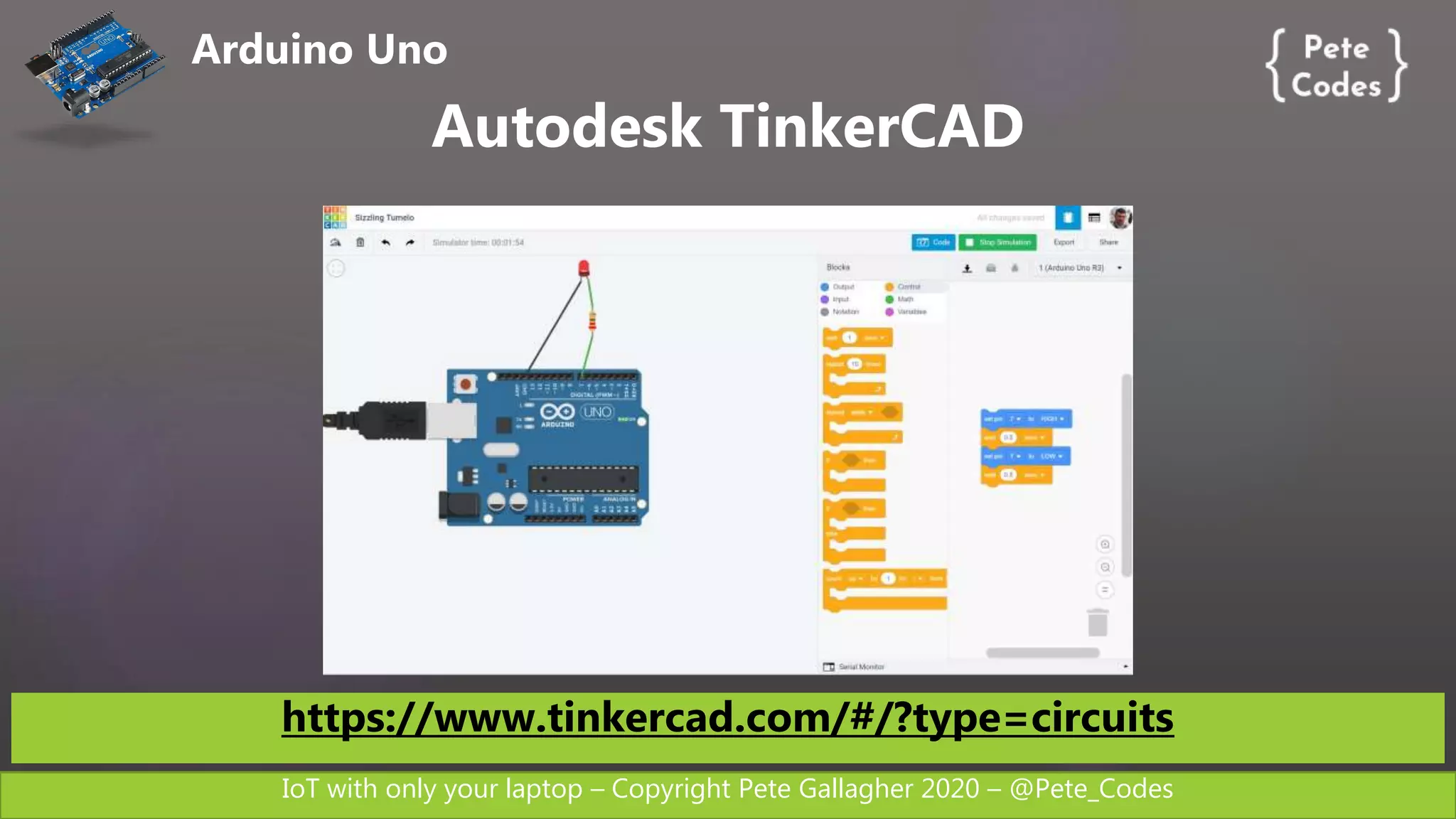

Arduino Uno
Autodesk TinkerCAD
https://www.tinkercad.com/#/?type=circuits

55. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

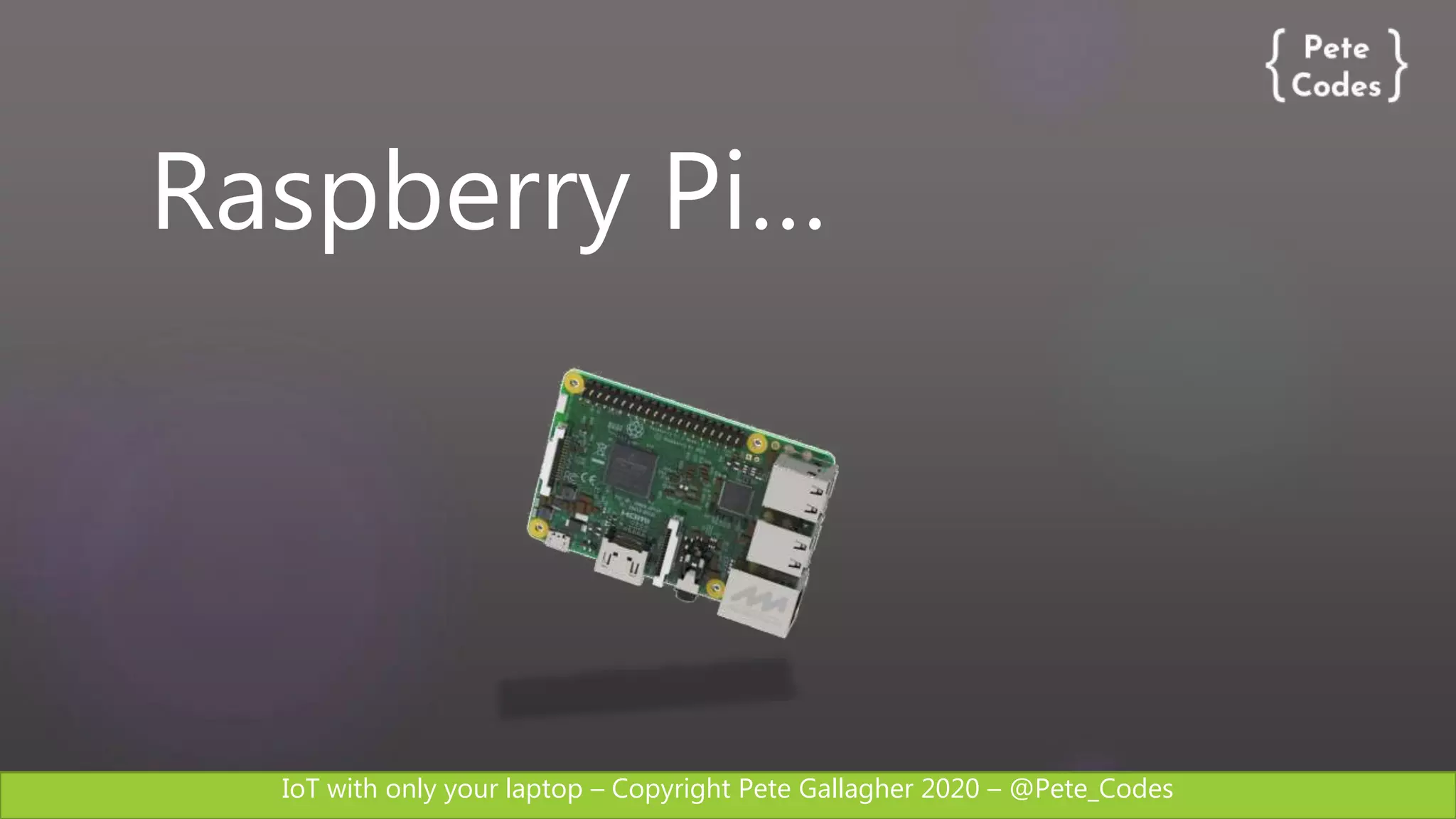

Raspberry Pi…

56. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

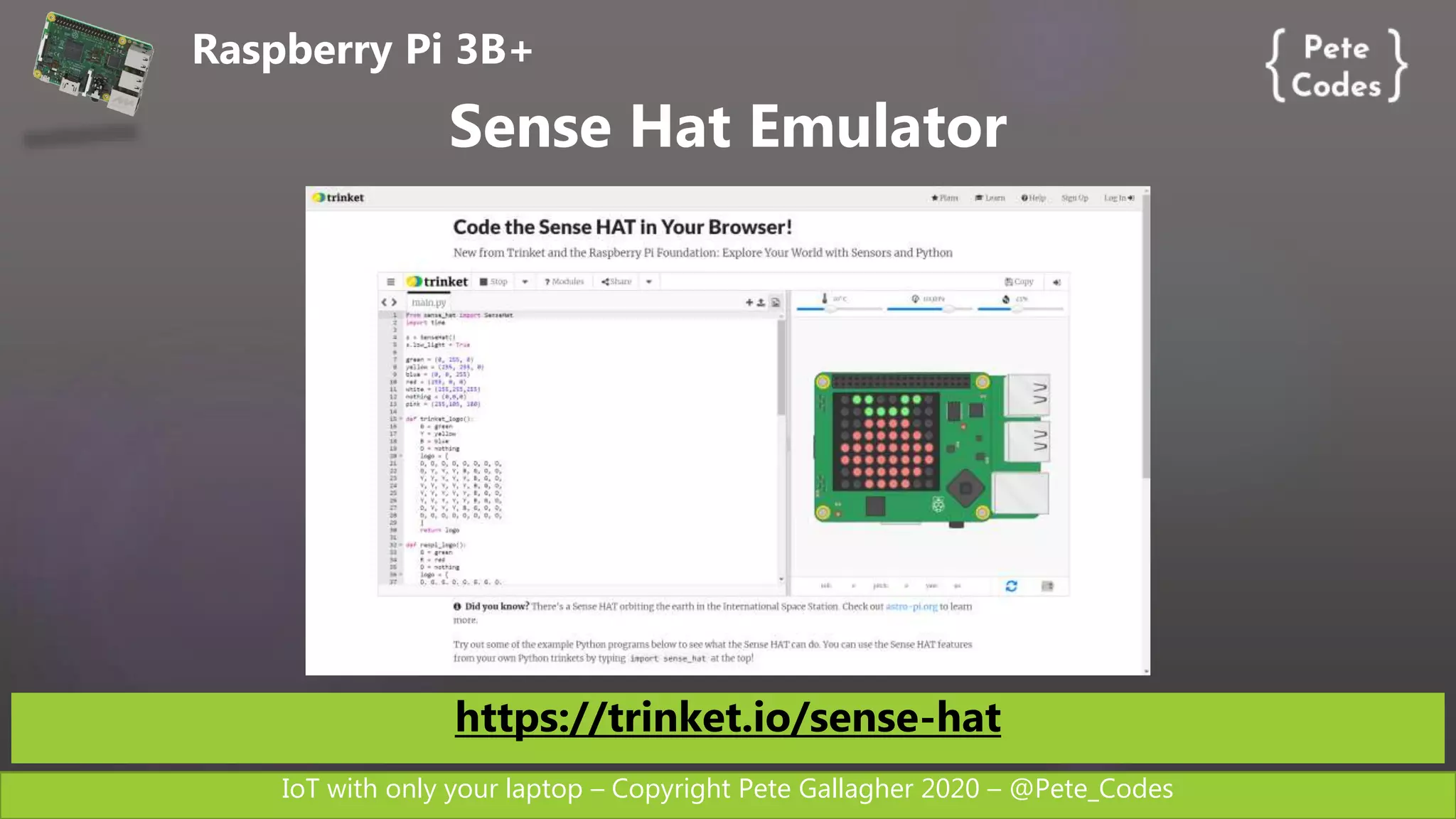

Sense Hat Emulator
https://trinket.io/sense-hat
Raspberry Pi 3B+

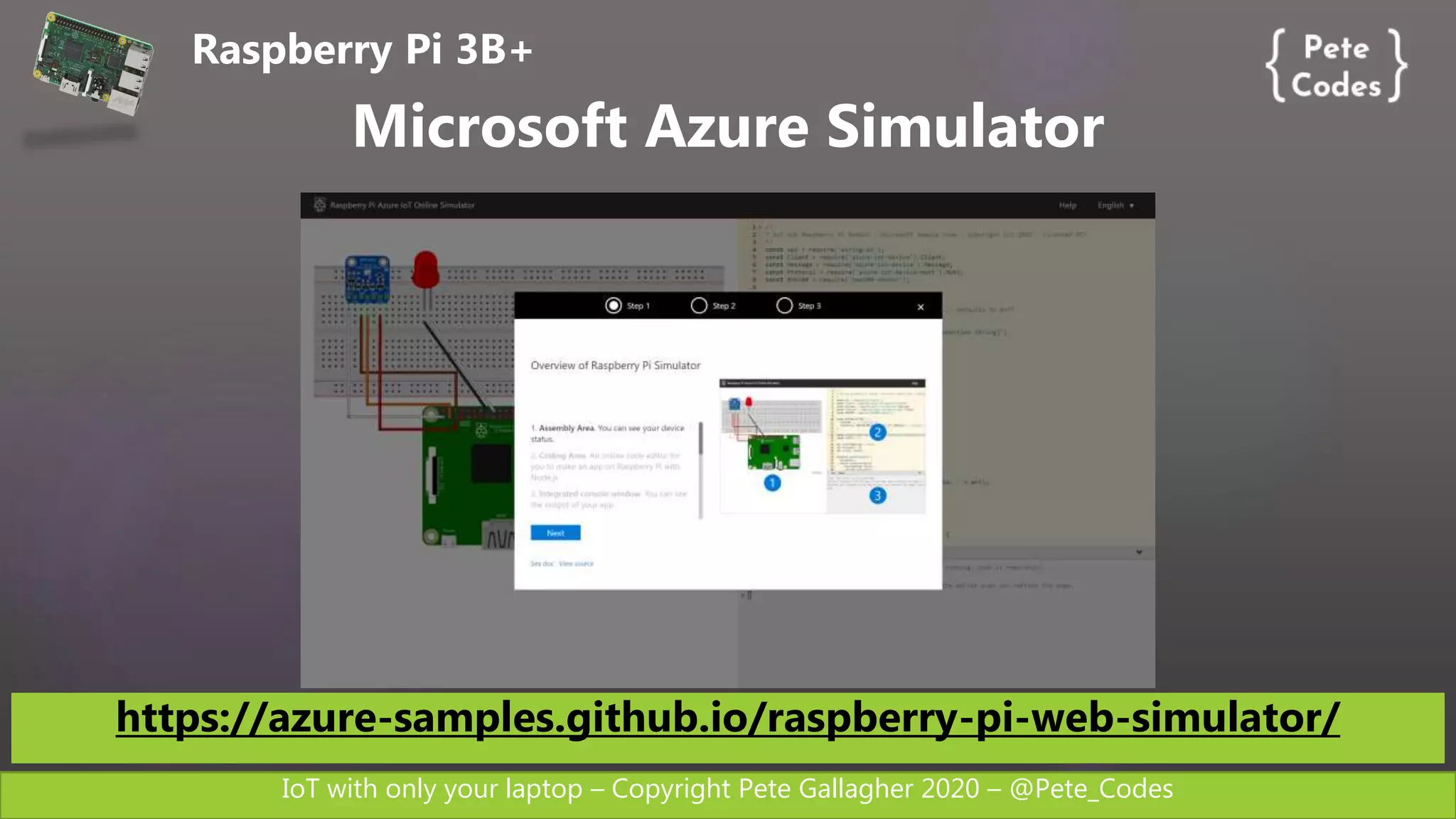

57. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Raspberry Pi 3B+
Microsoft Azure Simulator
https://azure-samples.github.io/raspberry-pi-web-simulator/

58. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

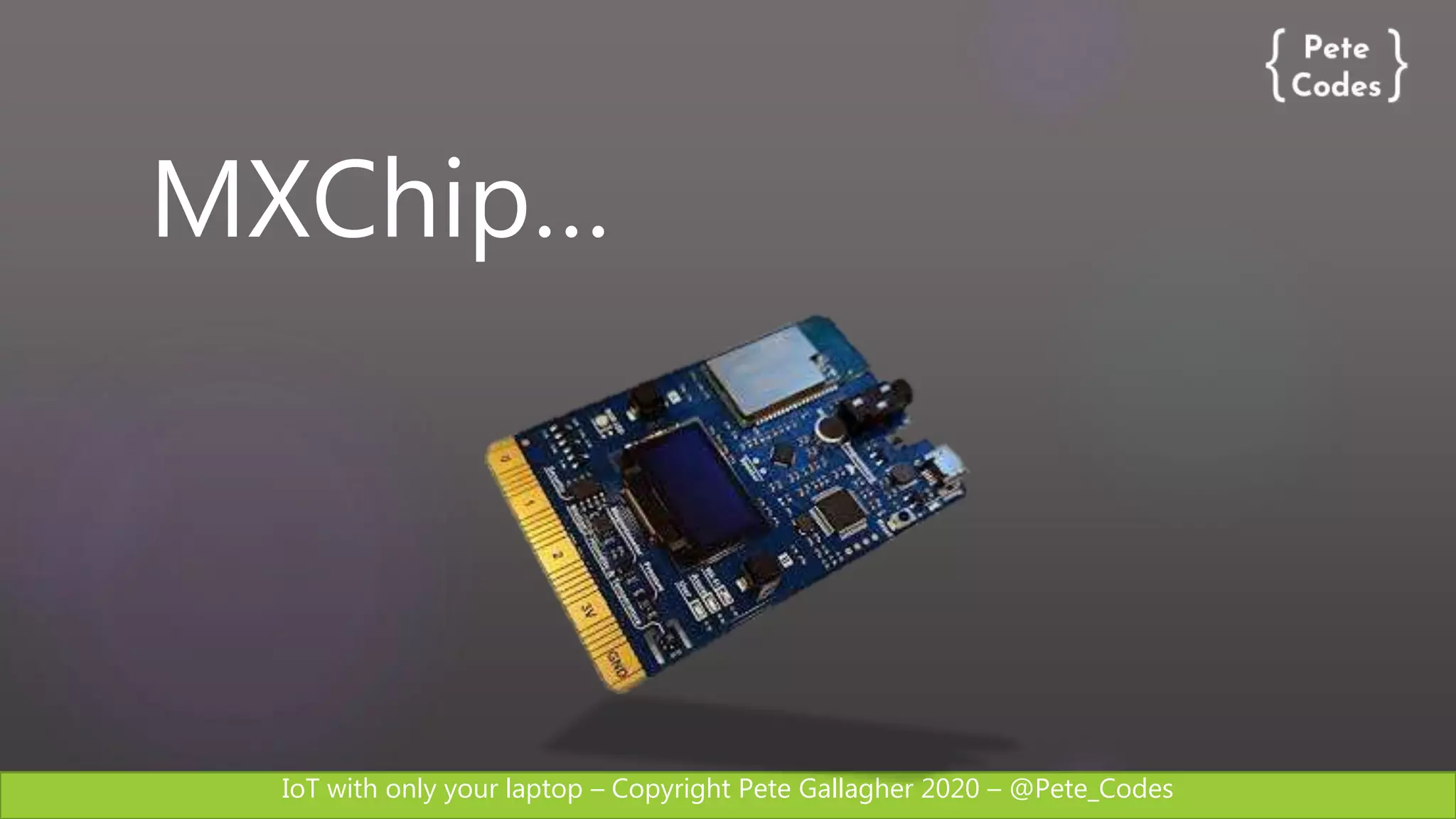

MXChip…

59. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

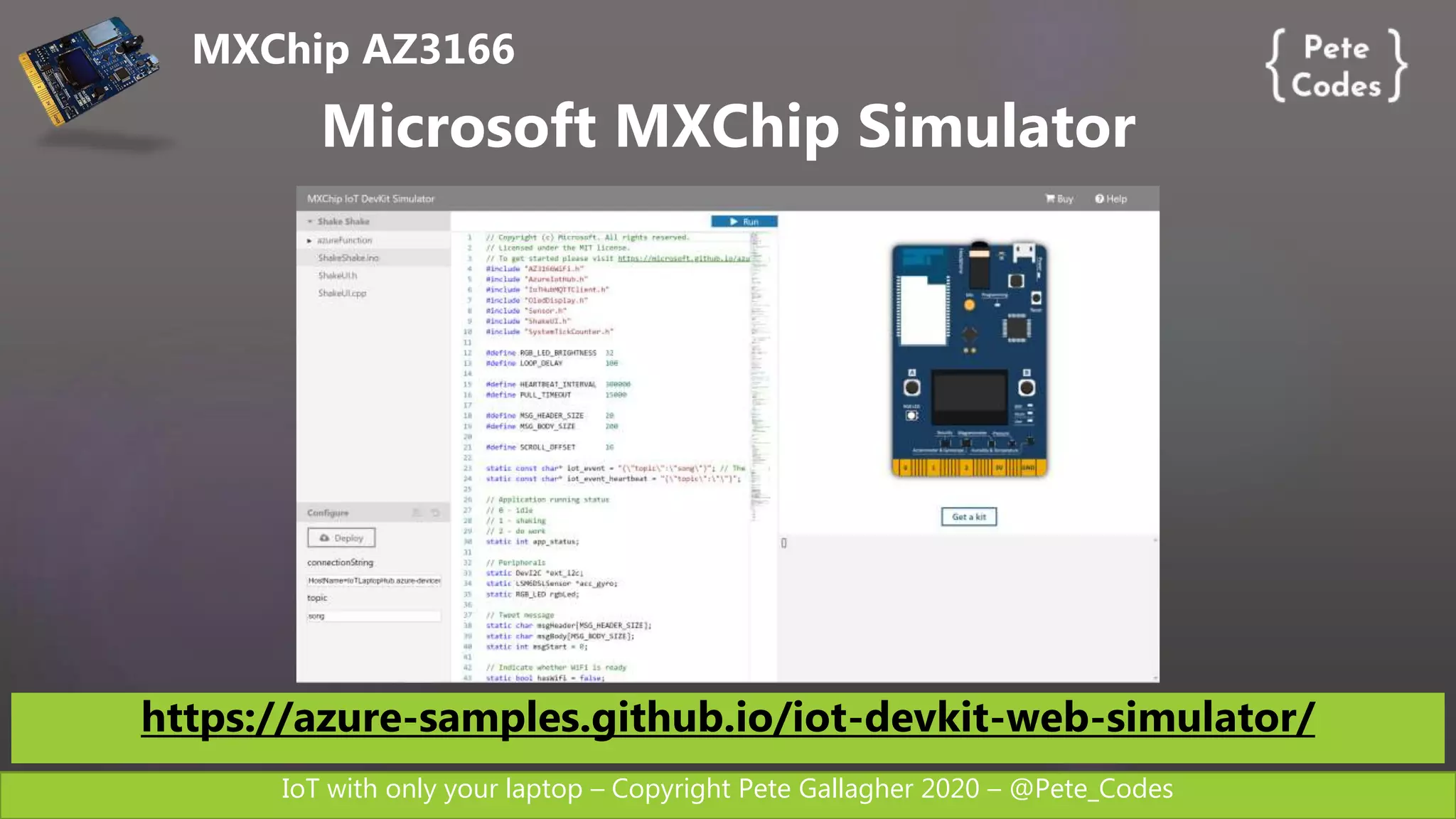

Microsoft MXChip Simulator
https://azure-samples.github.io/iot-devkit-web-simulator/
MXChip AZ3166

60. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

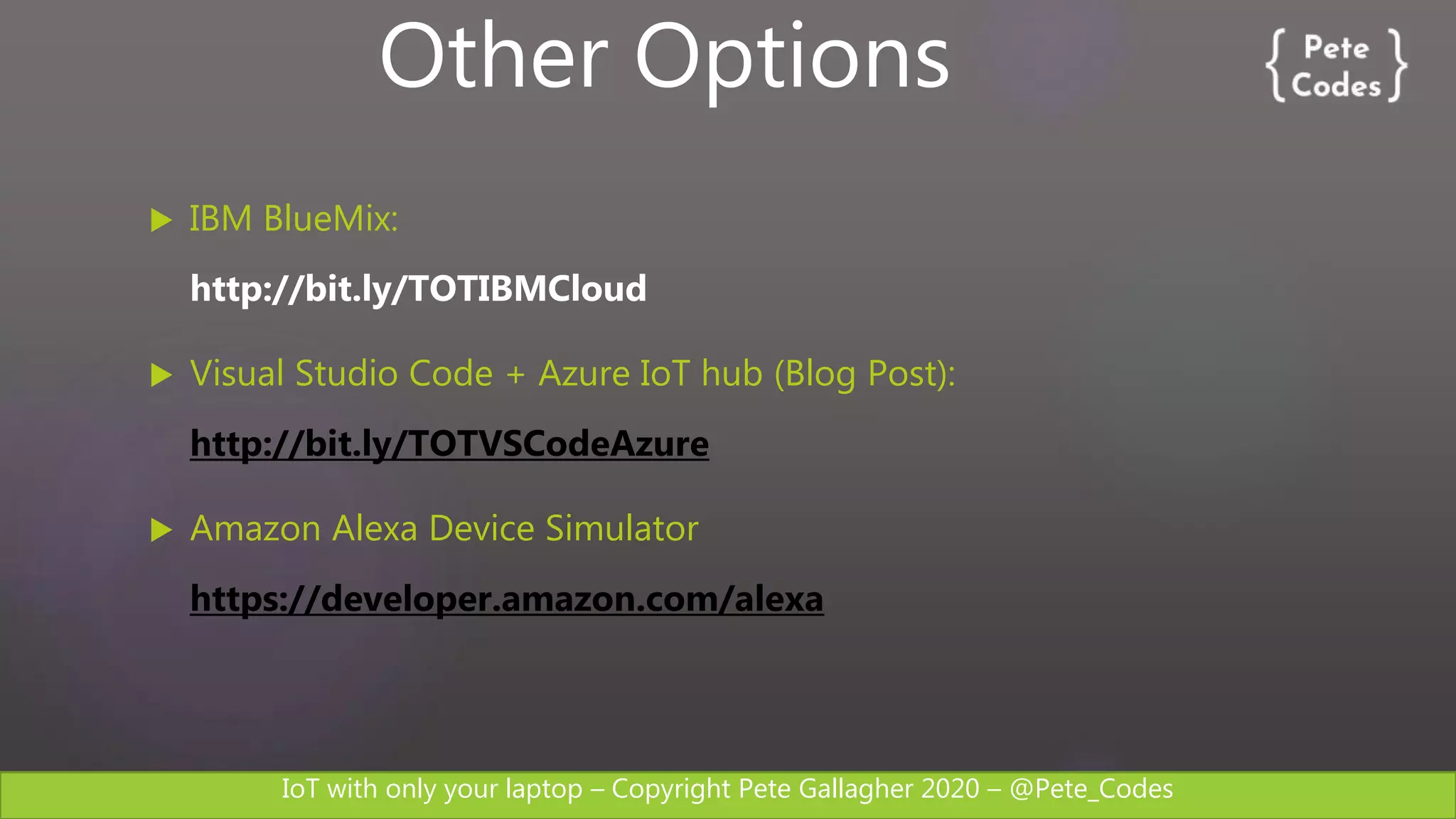

 IBM BlueMix:
http://bit.ly/TOTIBMCloud
 Visual Studio Code + Azure IoT hub (Blog Post):
http://bit.ly/TOTVSCodeAzure
 Amazon Alexa Device Simulator
https://developer.amazon.com/alexa
Other Options

61. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
I’m excited…
… What next?

62. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Build Something!

63. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Build Something!

64. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Build Something!

65. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Build Something!

66. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
 Microsoft Make Code (Micro:bit):
https://makecode.microbit.org/
 TinkerCAD Circuits (Arduino Uno):
https://www.tinkercad.com/#/?type=circuits
 Arduino IDE
https://www.arduino.cc/en/Main/Software
 Sense Hat Emulator (Raspberry Pi):
https://trinket.io/sense-hat
 Microsoft IoT DevKit Simulator (MXChip):
https://azure-samples.github.io/iot-devkit-
web-simulator/
 Microsoft Azure Simulator (Raspberry Pi):
https://azure-samples.github.io/raspberry-pi-
web-simulator/
Links

67. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes

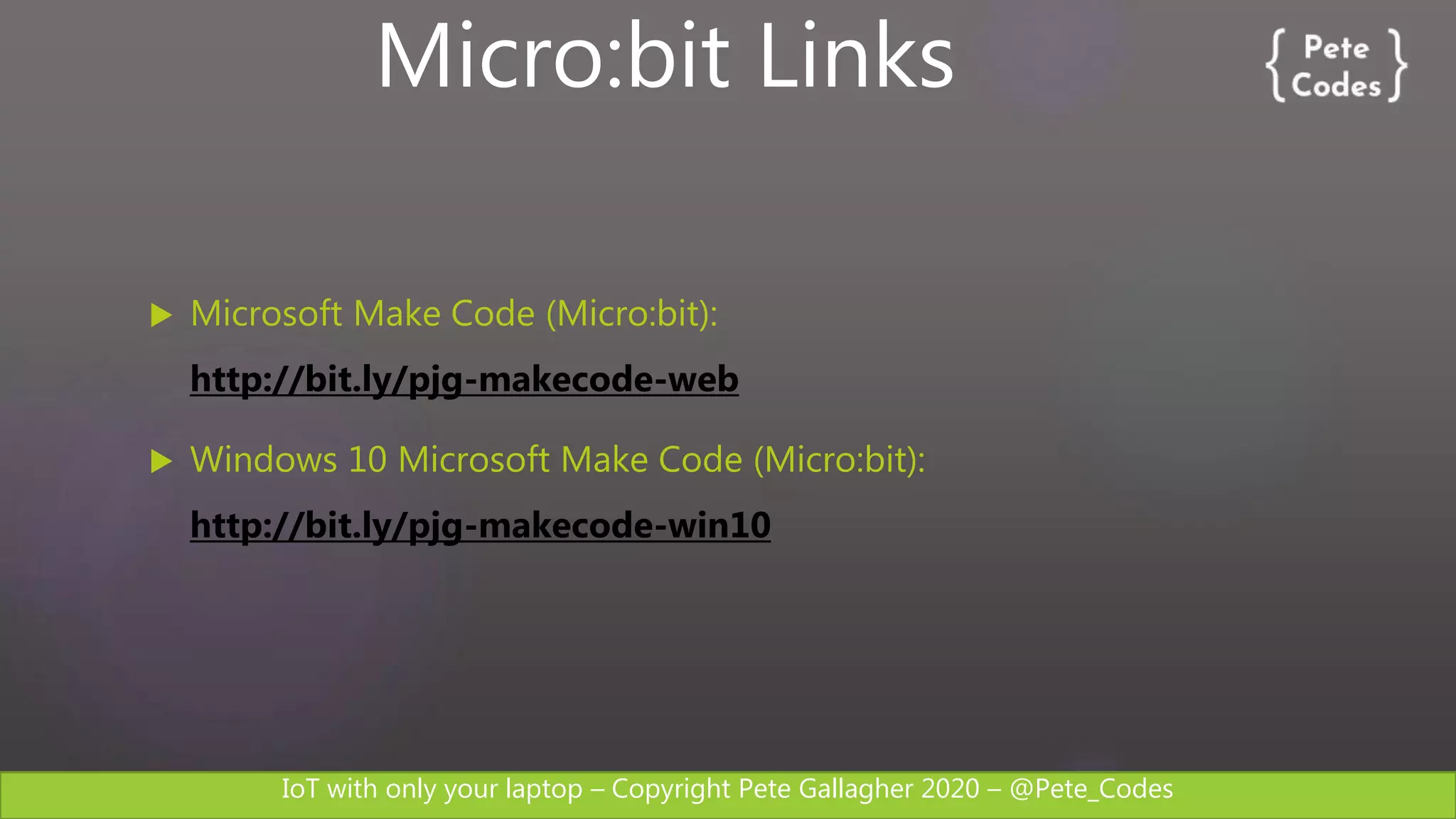

 Microsoft Make Code (Micro:bit):
http://bit.ly/pjg-makecode-web
 Windows 10 Microsoft Make Code (Micro:bit):
http://bit.ly/pjg-makecode-win10
Micro:bit Links

68. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
 TinkerCAD Circuits (Arduino Uno):
http://bit.ly/pjg-tinkercad
 Arduino IDE
http://bit.ly/pjg-arduino-ide
 Arduino Web Editor
http://bit.ly/pjg-arduino-ide-web
 Arduino Create Plugin
http://bit.ly/pjg-arduino-plugin
 Windows 10 Arduino IDE
http://bit.ly/pjg-arduino-ide-win10
Arduino Links

69. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
 The Connected Cow:
http://bit.ly/TOTConnectedCow
 Microsoft Virtual Academy IoT Course:
http://bit.ly/TOTMSVAIOT
Further Learning

70. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
 Twitter
@pete_codes / @PJGCreations
 Email:
pete@pjgcreations.co.uk
 Notts IoT:
https://www.nottsiot.co.uk
 Dot Net Notts:
https://www.dotnetnotts.co
 Notts Dev Workshop:
https://www.nottsdevworkshop.co.uk
 LATi:
https://www.lati.org.uk
 Tonight’s Slides:
http://bit.ly/IoTDotNetSheff2020
Contact Me

71. IoT with only your laptop – Copyright Pete Gallagher 2020 – @Pete_Codes
Thanks!
@pete_codes
pete@pjgcreations.co.uk
