Getting started with IoT
with only your laptop
PETE GALLAGHER
PJGCREATIONS.CO.UK
02/03/2019

2. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

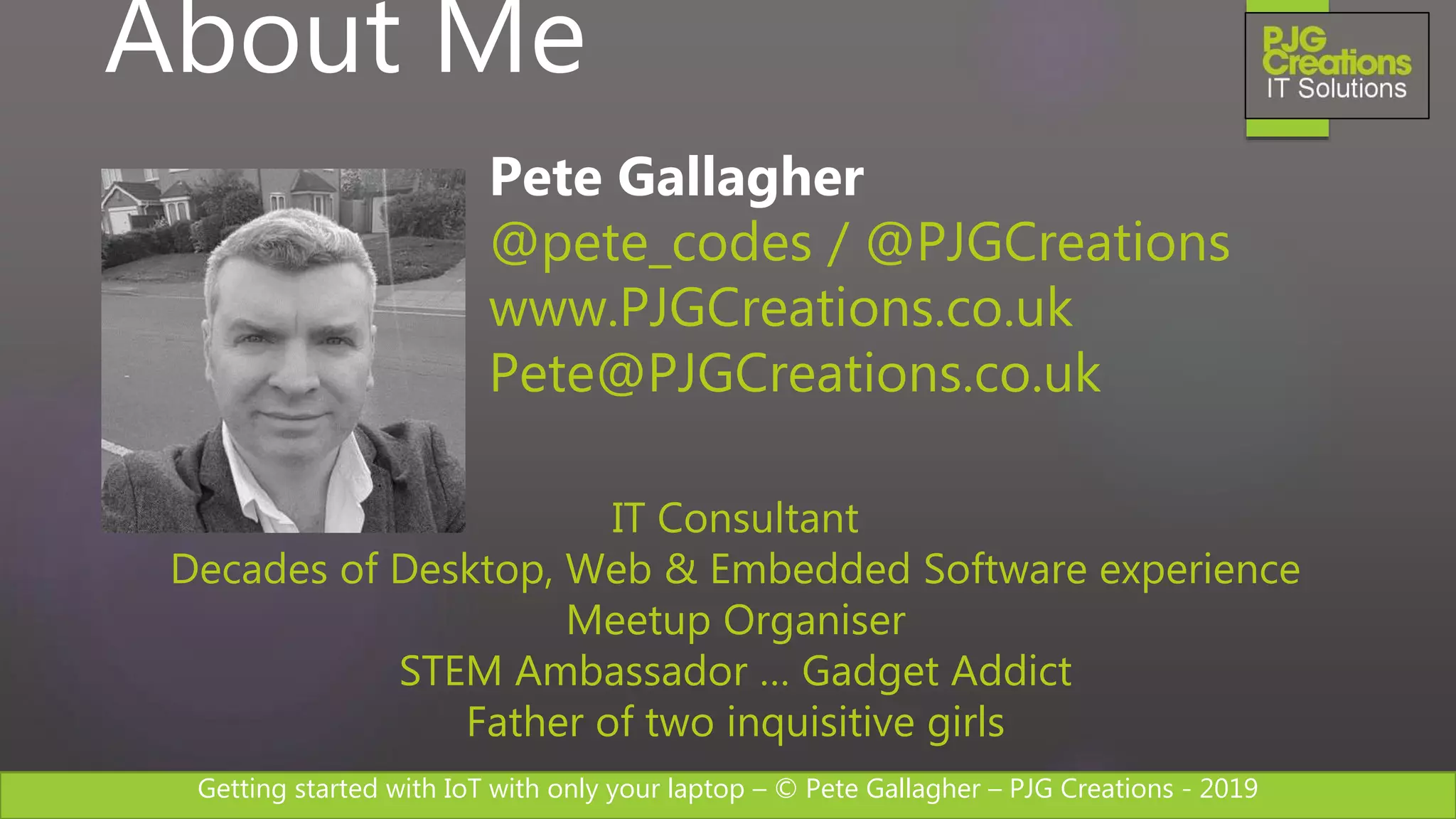

About Me
Pete Gallagher
@pete_codes / @PJGCreations
www.PJGCreations.co.uk
Pete@PJGCreations.co.uk
IT Consultant
Decades of Desktop, Web & Embedded Software experience
Meetup Organiser
STEM Ambassador … Gadget Addict
Father of two inquisitive girls

3. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

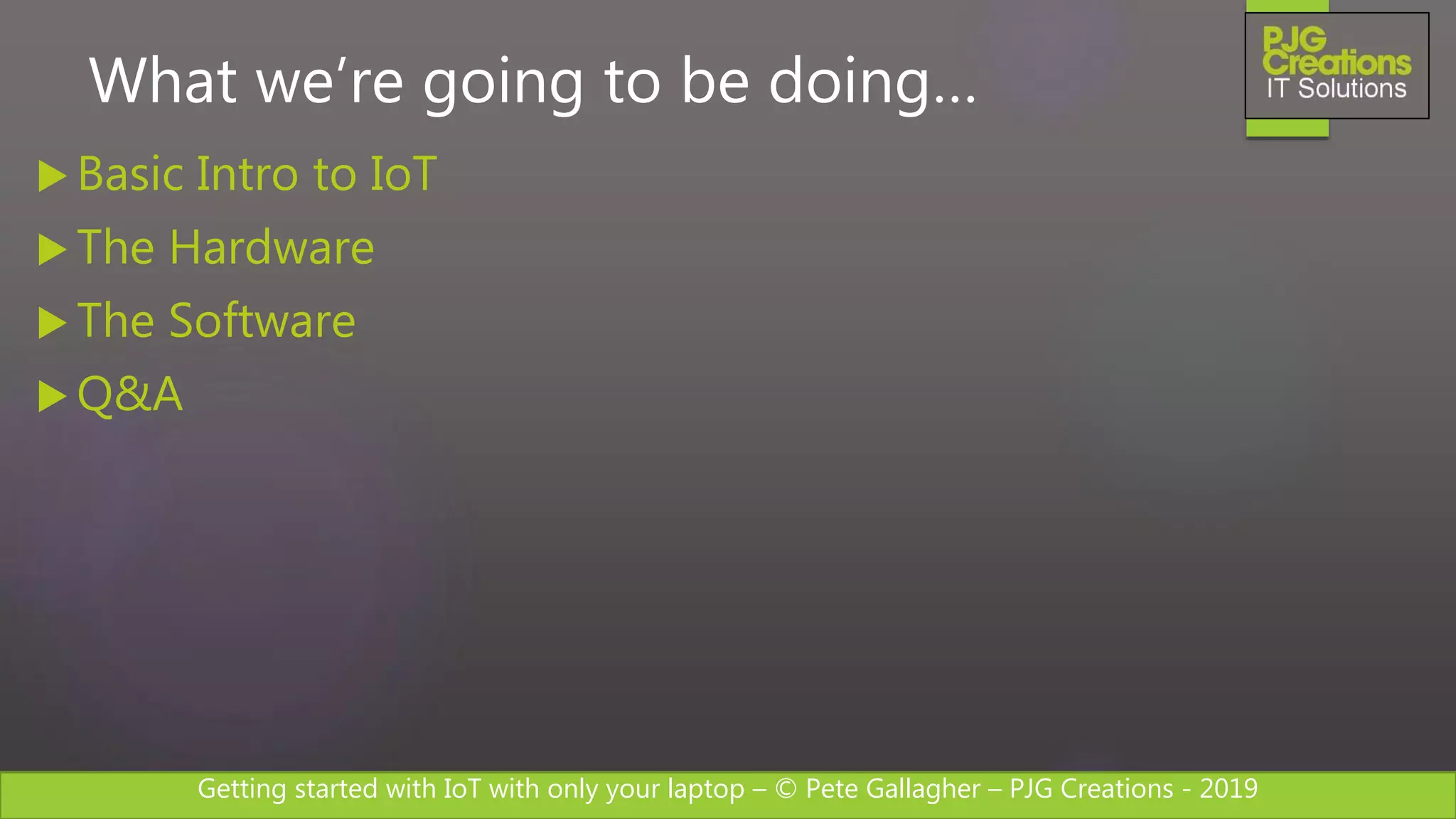

What we’re going to be doing…
 Basic Intro to IoT
 The Hardware
 The Software
 Q&A

4. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
What is IoT?

5. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
It’s Big!

6. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

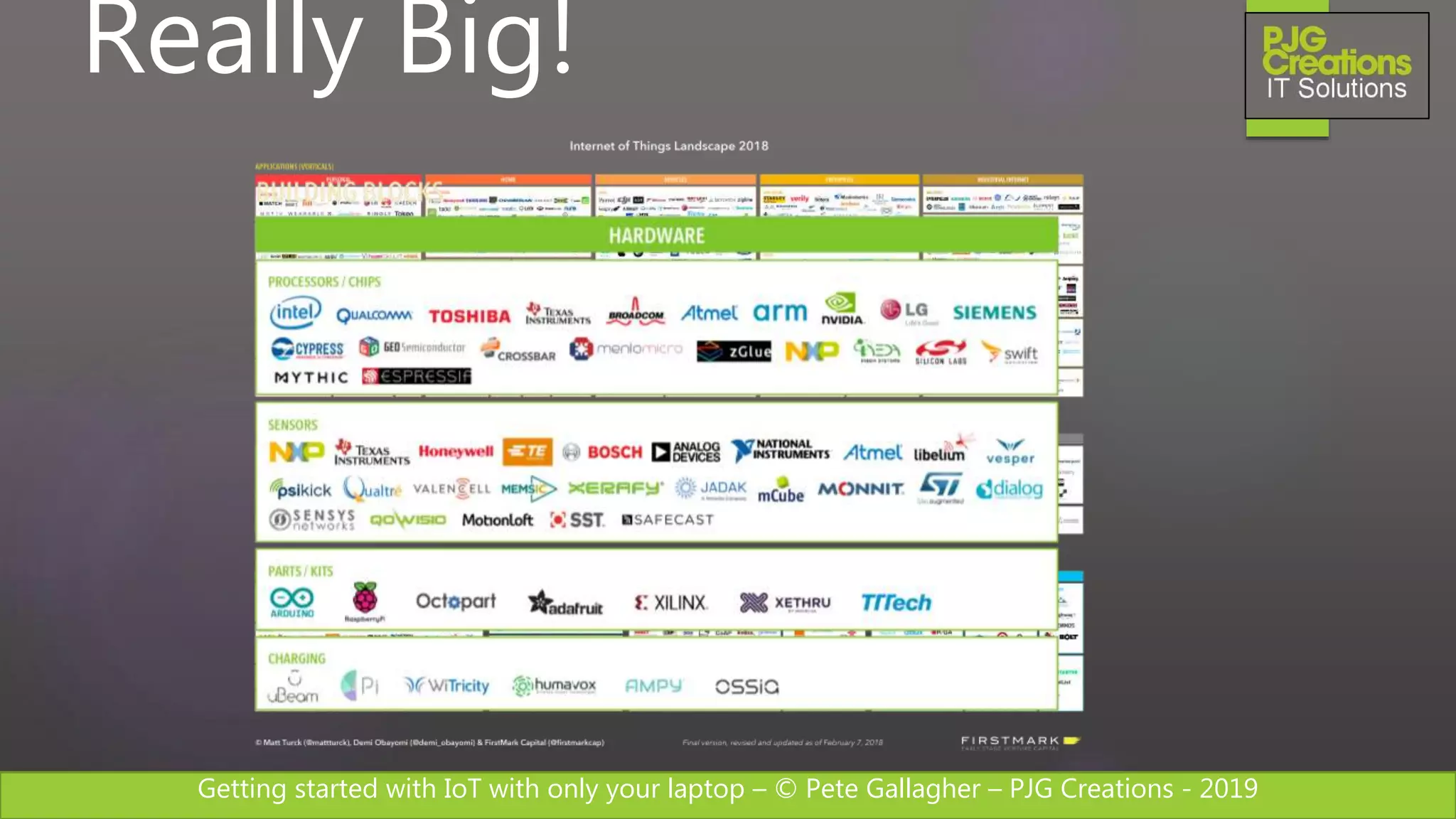

Really Big!

7. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

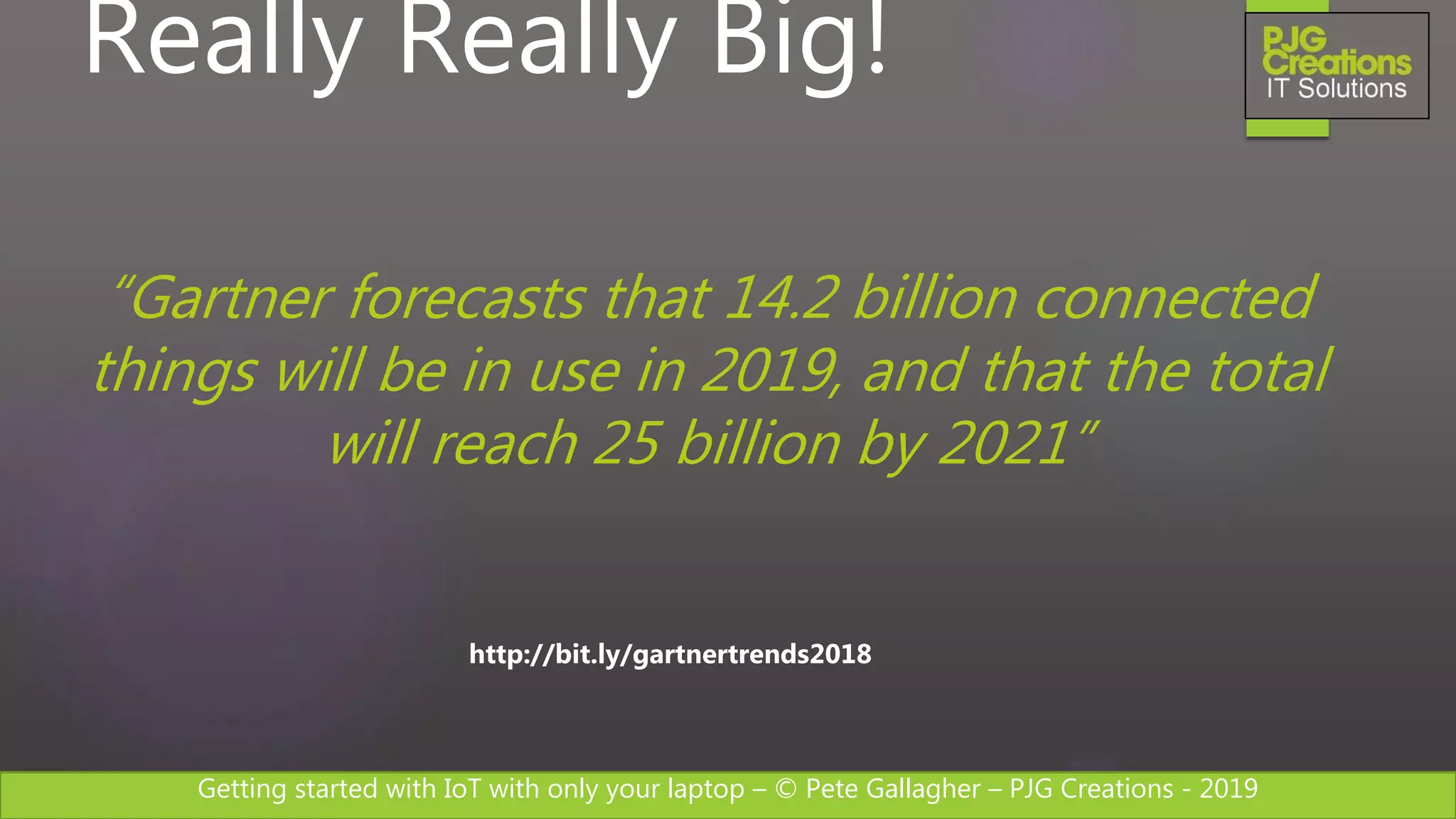

Really Really Big!
http://bit.ly/gartnertrends2018
“Gartner forecasts that 14.2 billion connected
things will be in use in 2019, and that the total
will reach 25 billion by 2021”

8. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
What is IoT?

9. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

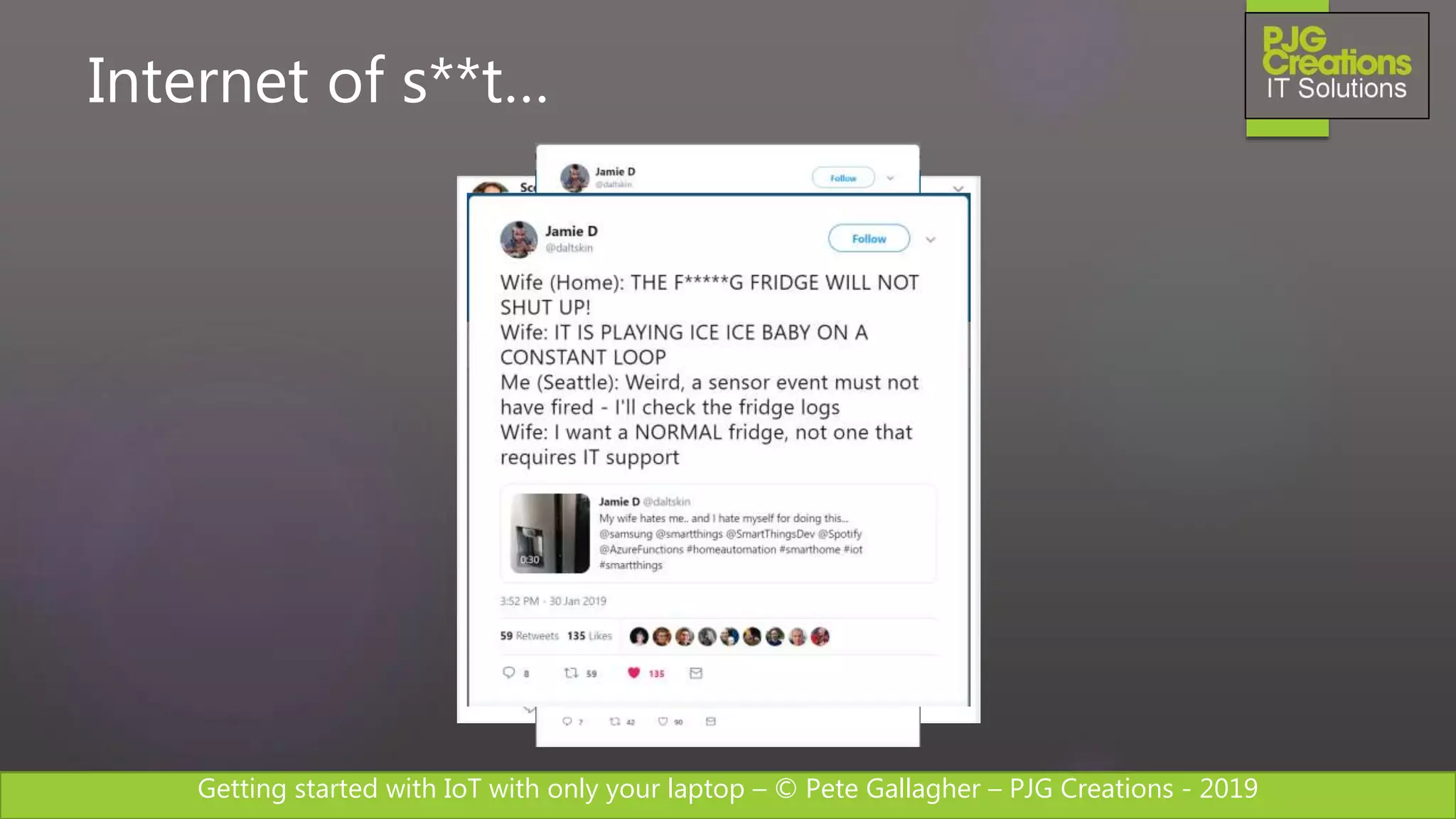

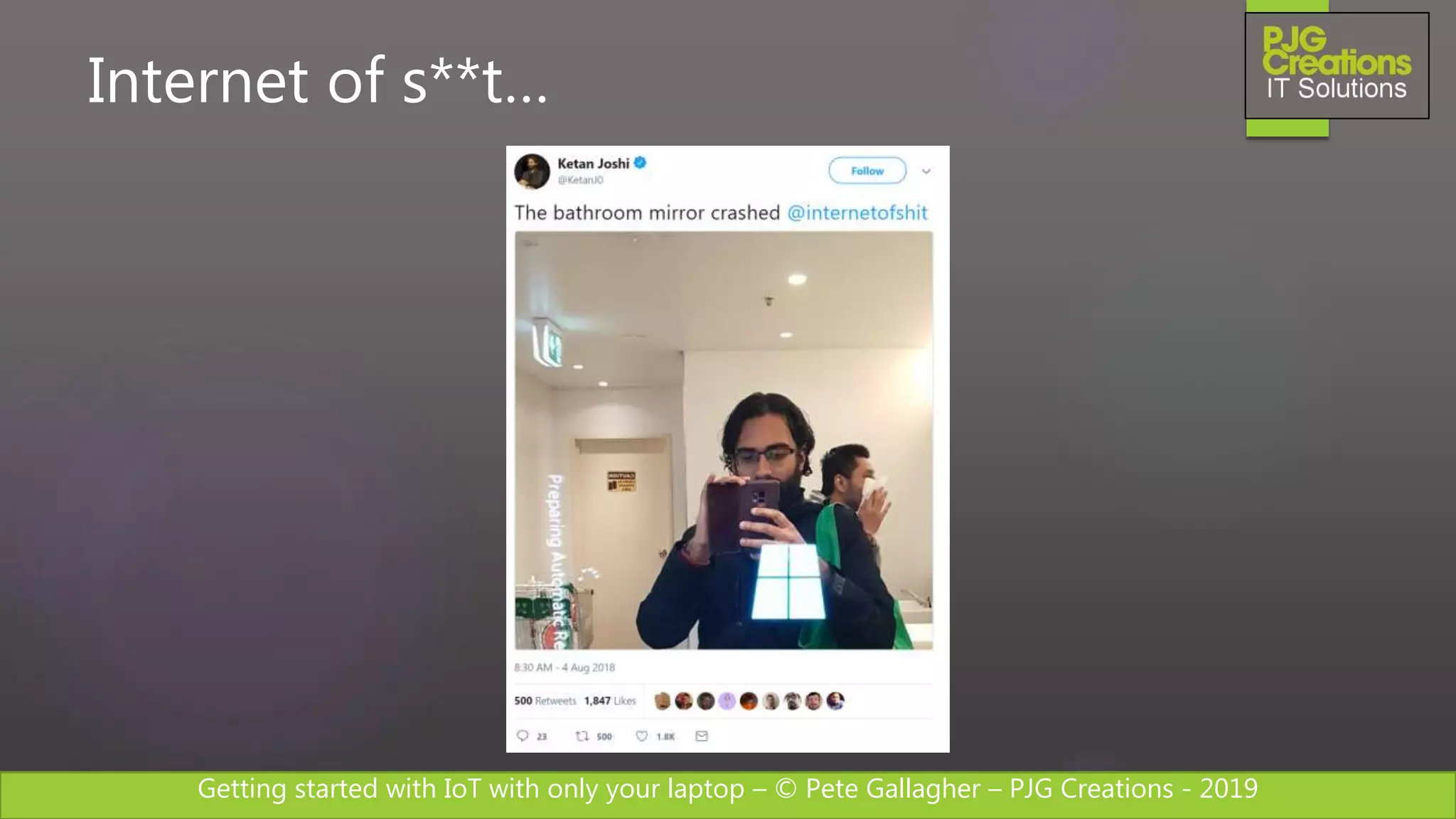

Internet of s**t…

10. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Internet of s**t…

11. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Internet of s**t…

12. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Internet of s**t…

13. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Internet of s**t…

14. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Internet of s**t…

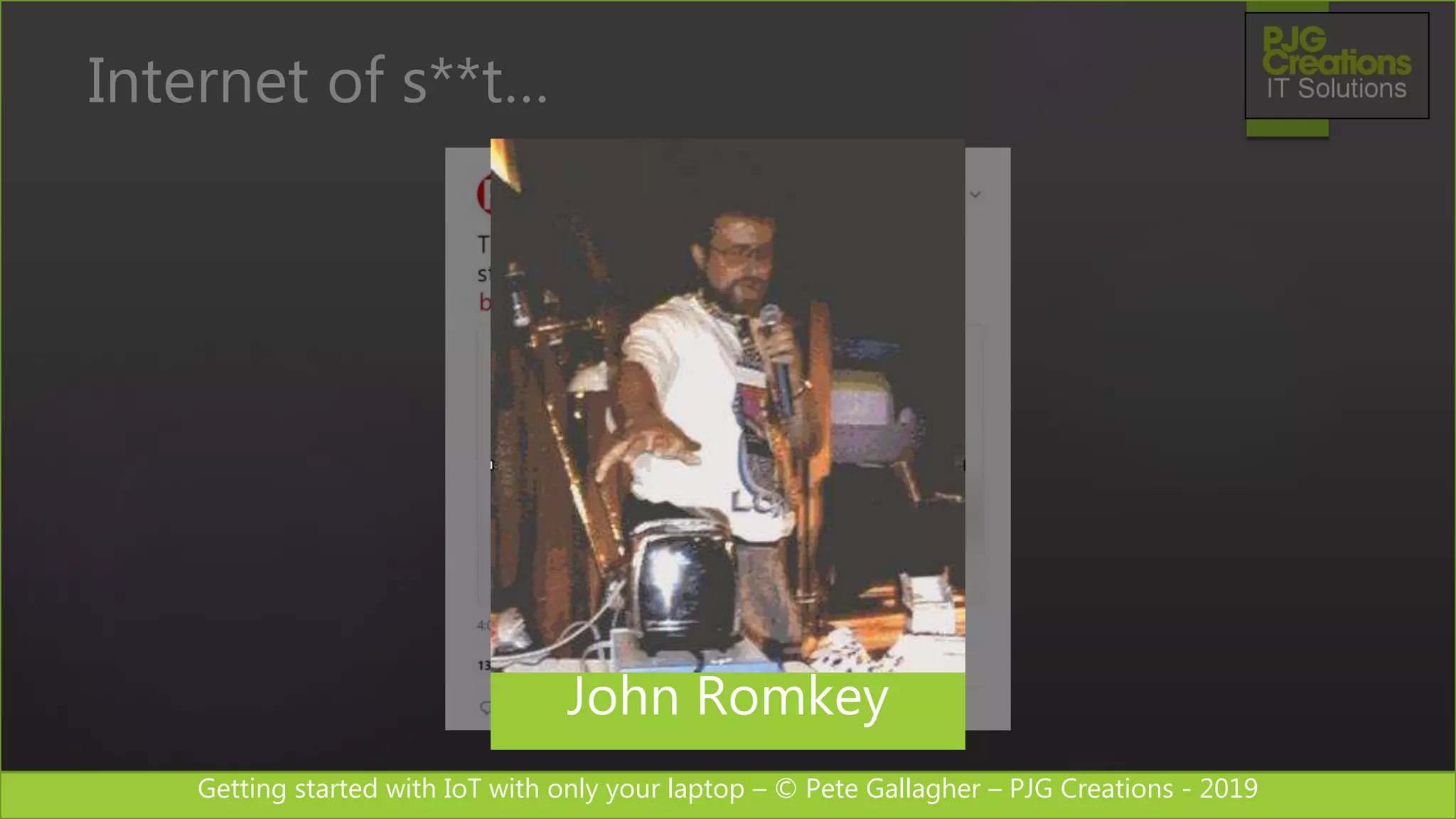

John Romkey

15. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Internet of s**t…

16. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Internet of s**t…

17. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Internet of s**t…

18. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
What is IoT for me?

19. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

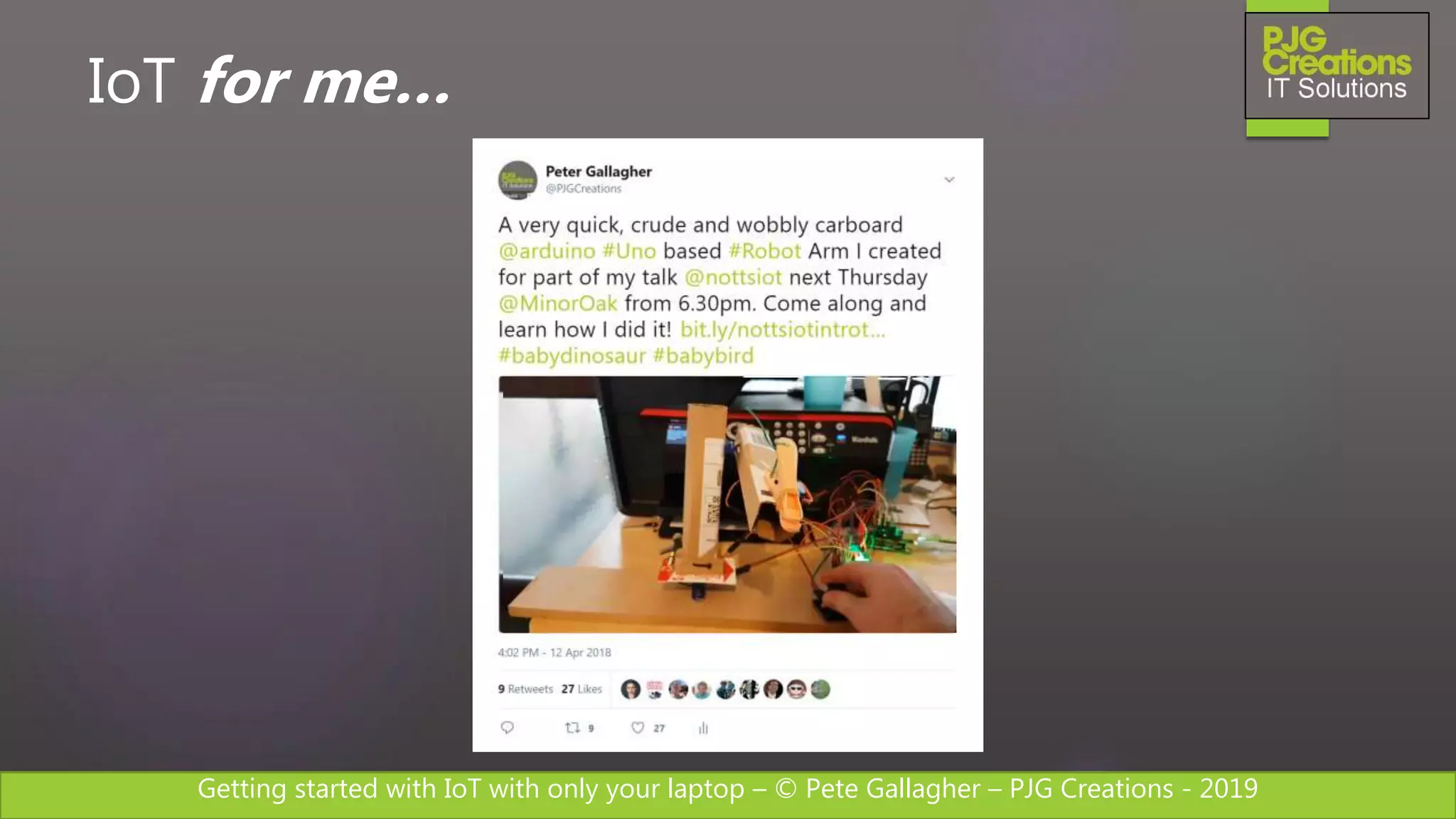

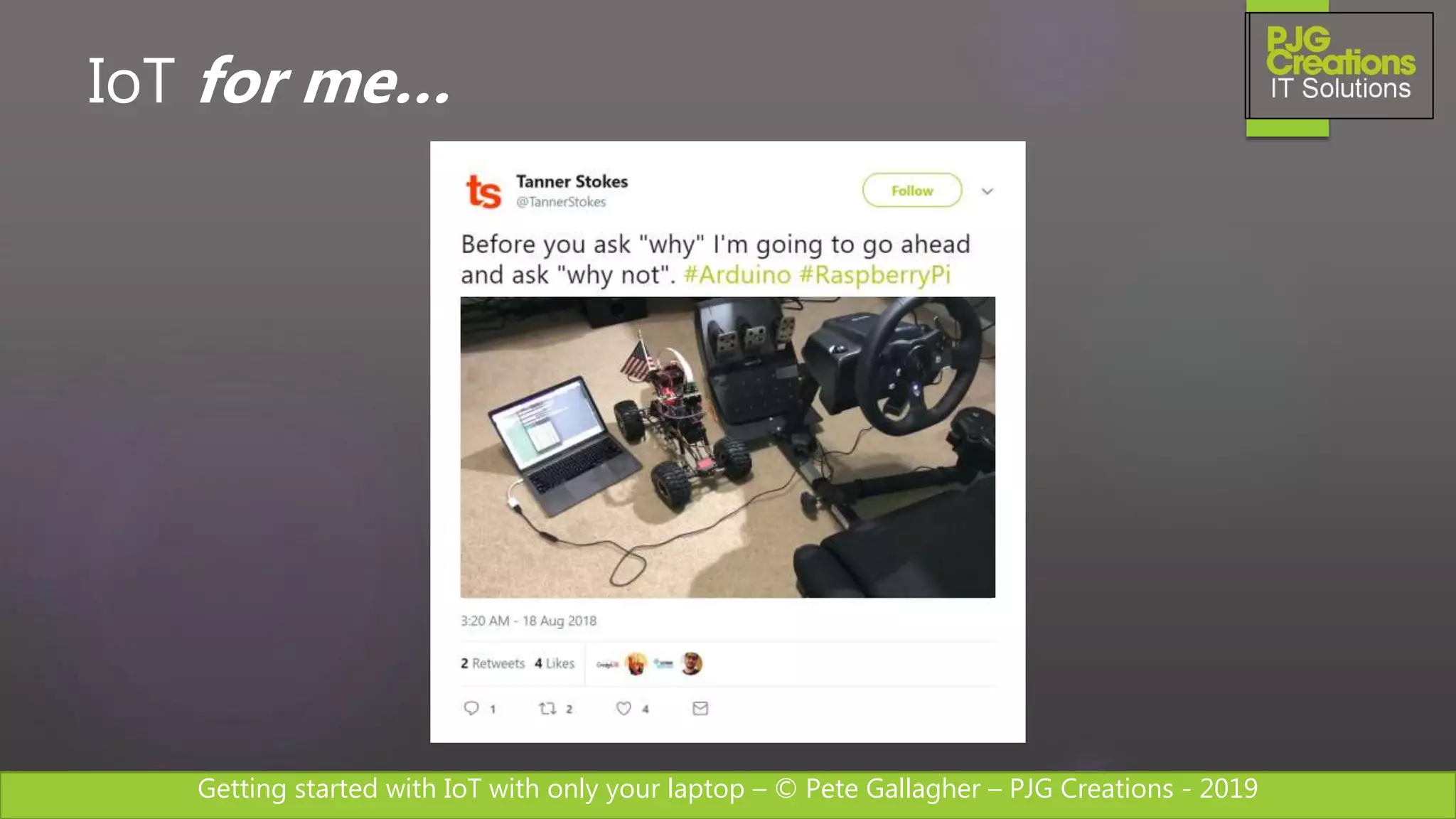

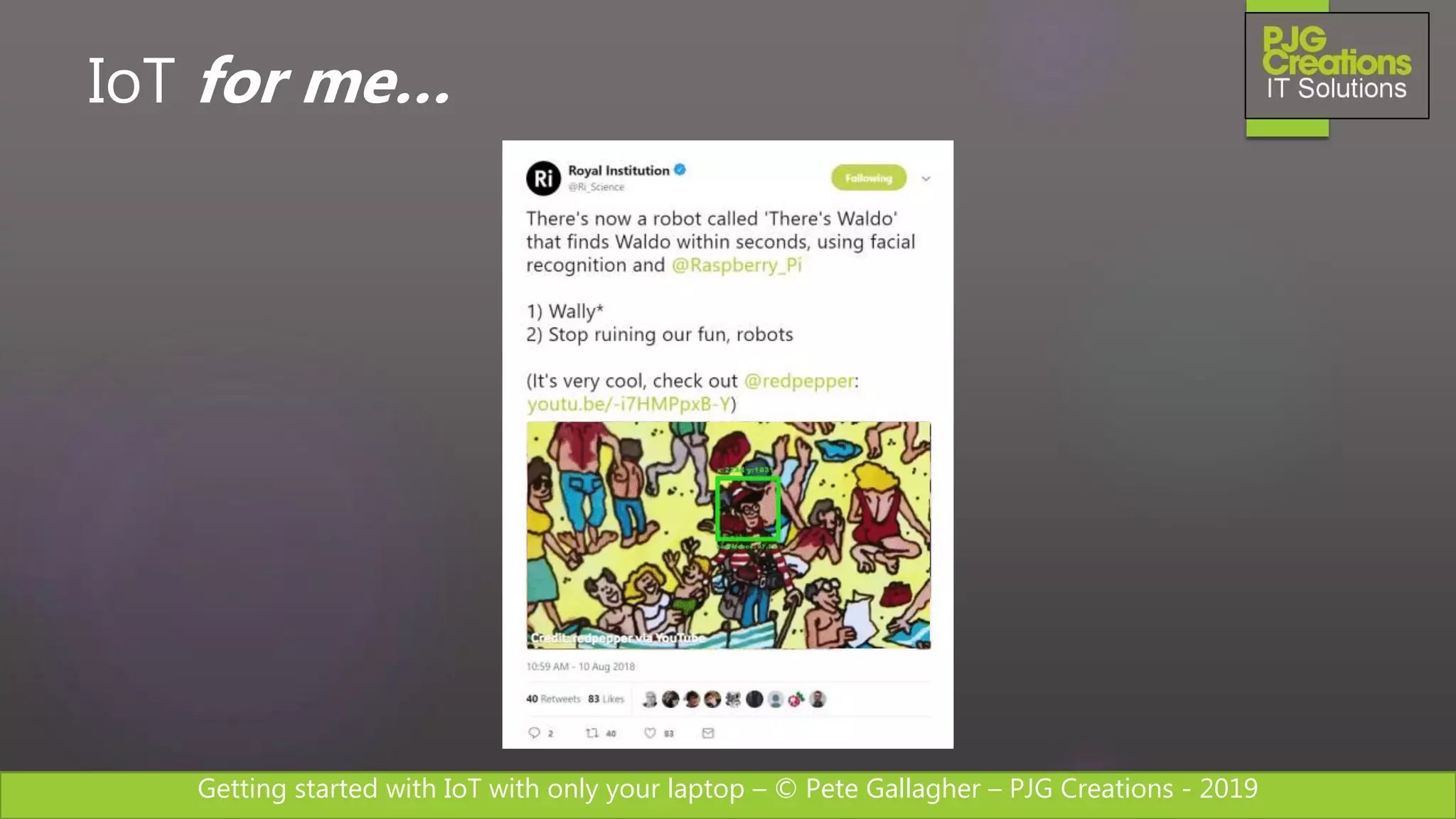

IoT for me…

20. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
IoT for me…

21. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
IoT for me…

22. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
IoT for me…

23. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
IoT for me…

24. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
An Industry Example…

25. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

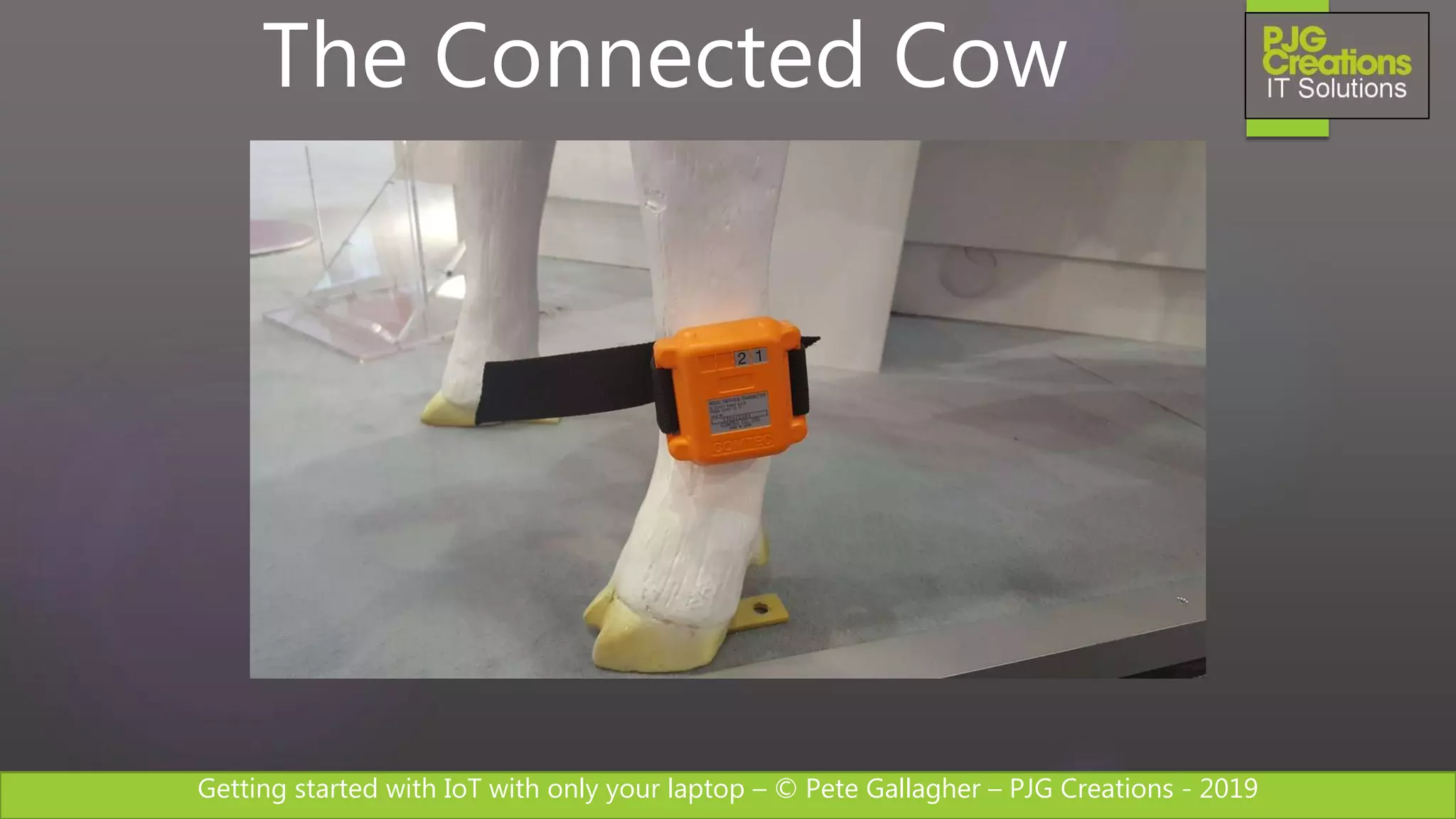

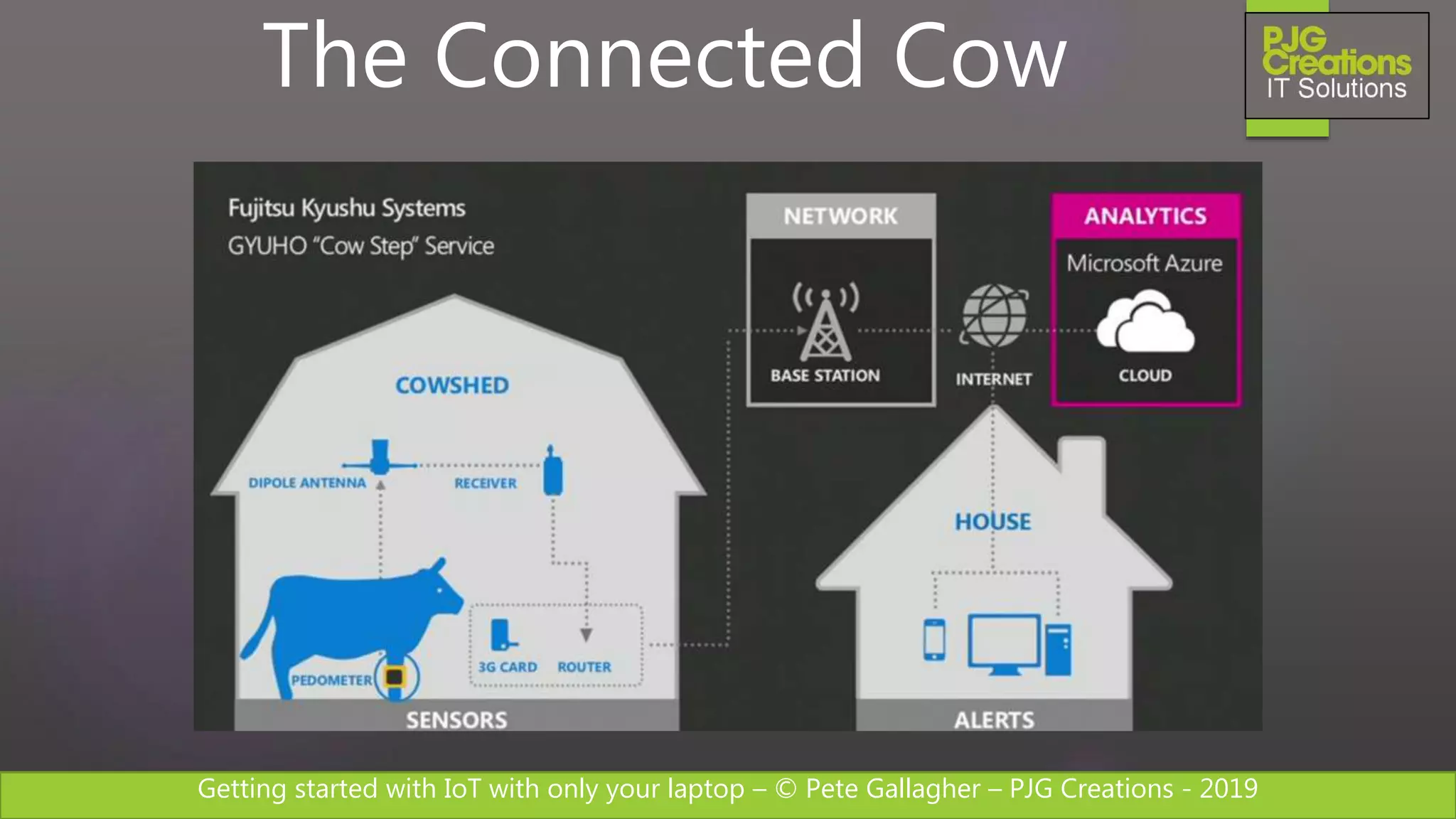

The Connected Cow

26. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
The Connected Cow

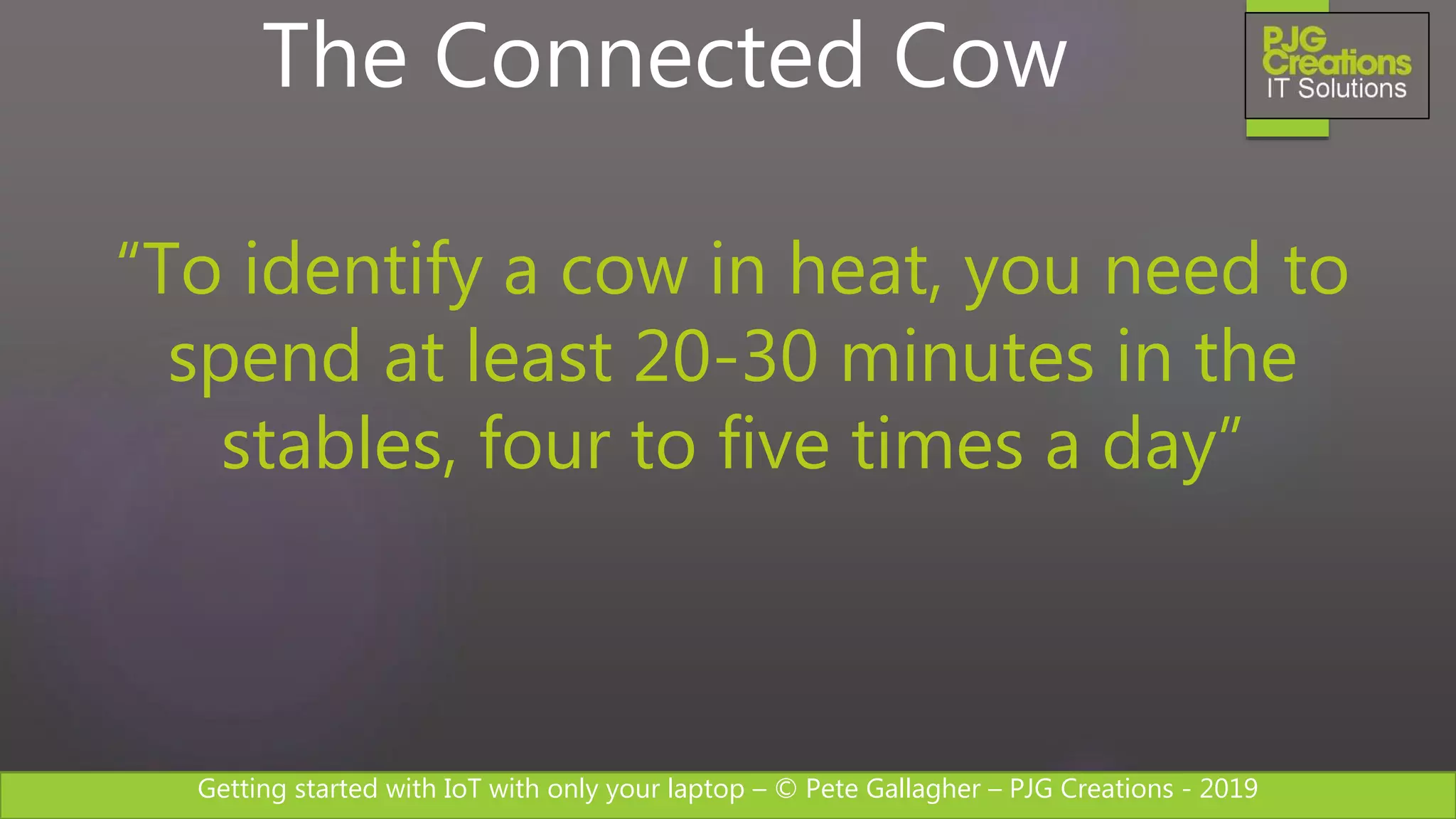

“To identify a cow in heat, you need to
spend at least 20-30 minutes in the
stables, four to five times a day”

27. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

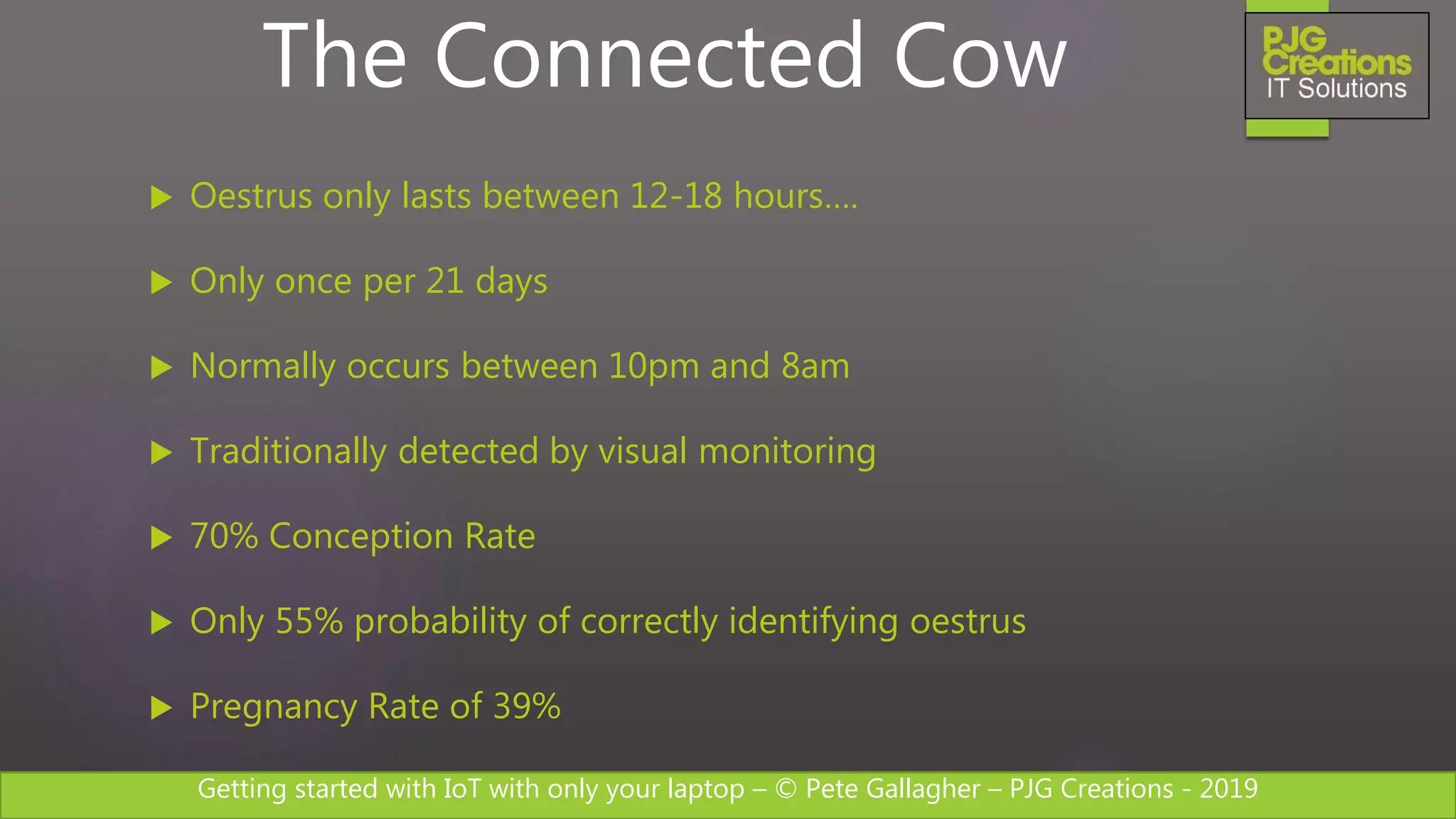

 Oestrus only lasts between 12-18 hours….
 Only once per 21 days
 Normally occurs between 10pm and 8am
 Traditionally detected by visual monitoring
 70% Conception Rate
 Only 55% probability of correctly identifying oestrus
 Pregnancy Rate of 39%
The Connected Cow

28. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
The Connected Cow
“How can this be improved with
technology?”

29. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

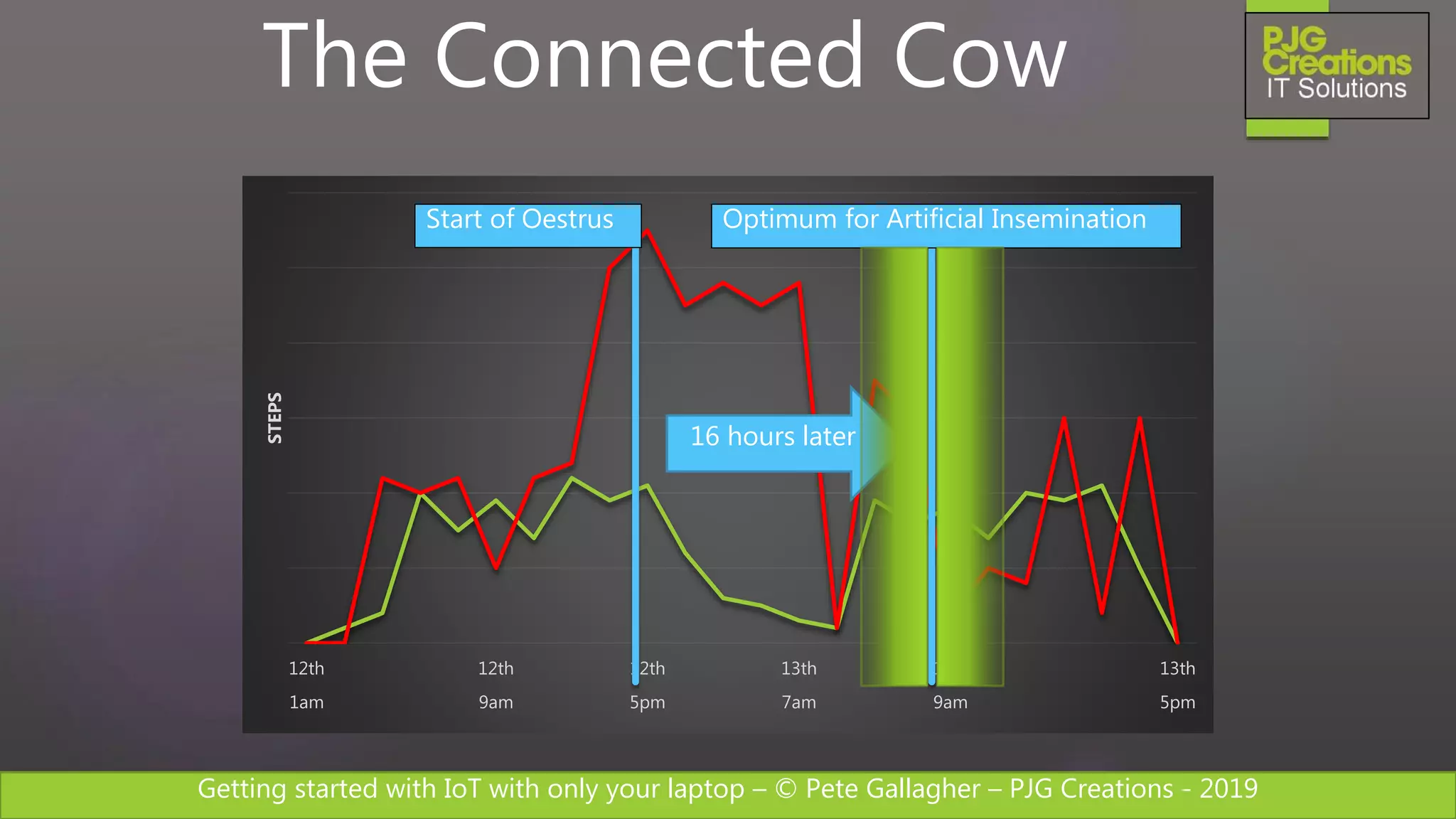

The Connected Cow

30. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
The Connected Cow
12th
1am
12th
9am
12th
5pm
13th
7am
13th
9am
13th
5pm
STEPS
16 hours later
Start of Oestrus Optimum for Artificial Insemination

31. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
The Connected Cow

32. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
The Hardware…

33. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

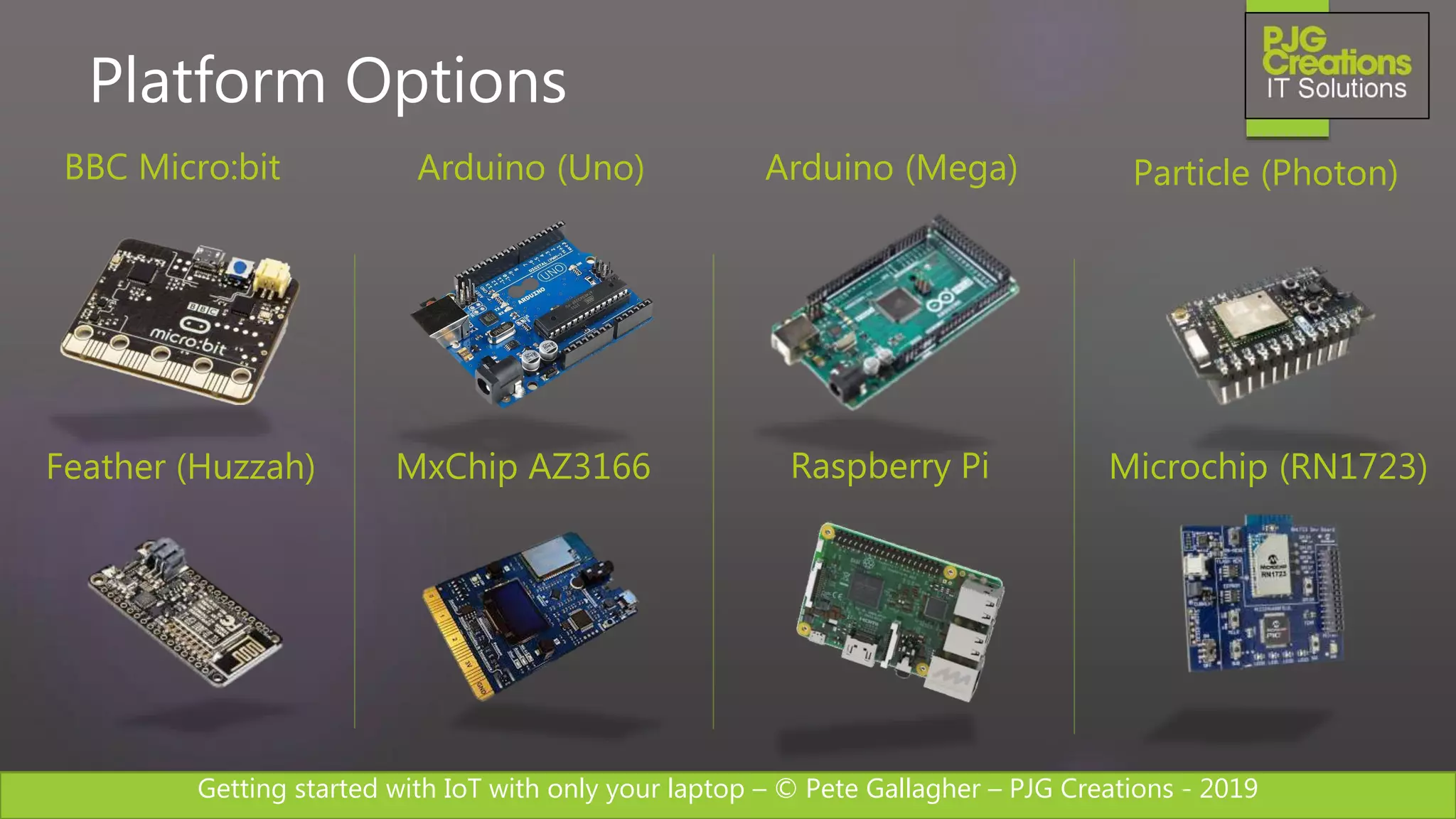

Platform Options
Raspberry Pi
Arduino (Uno) Particle (Photon)BBC Micro:bit
Microchip (RN1723)MxChip AZ3166Feather (Huzzah)
Arduino (Mega)

34. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

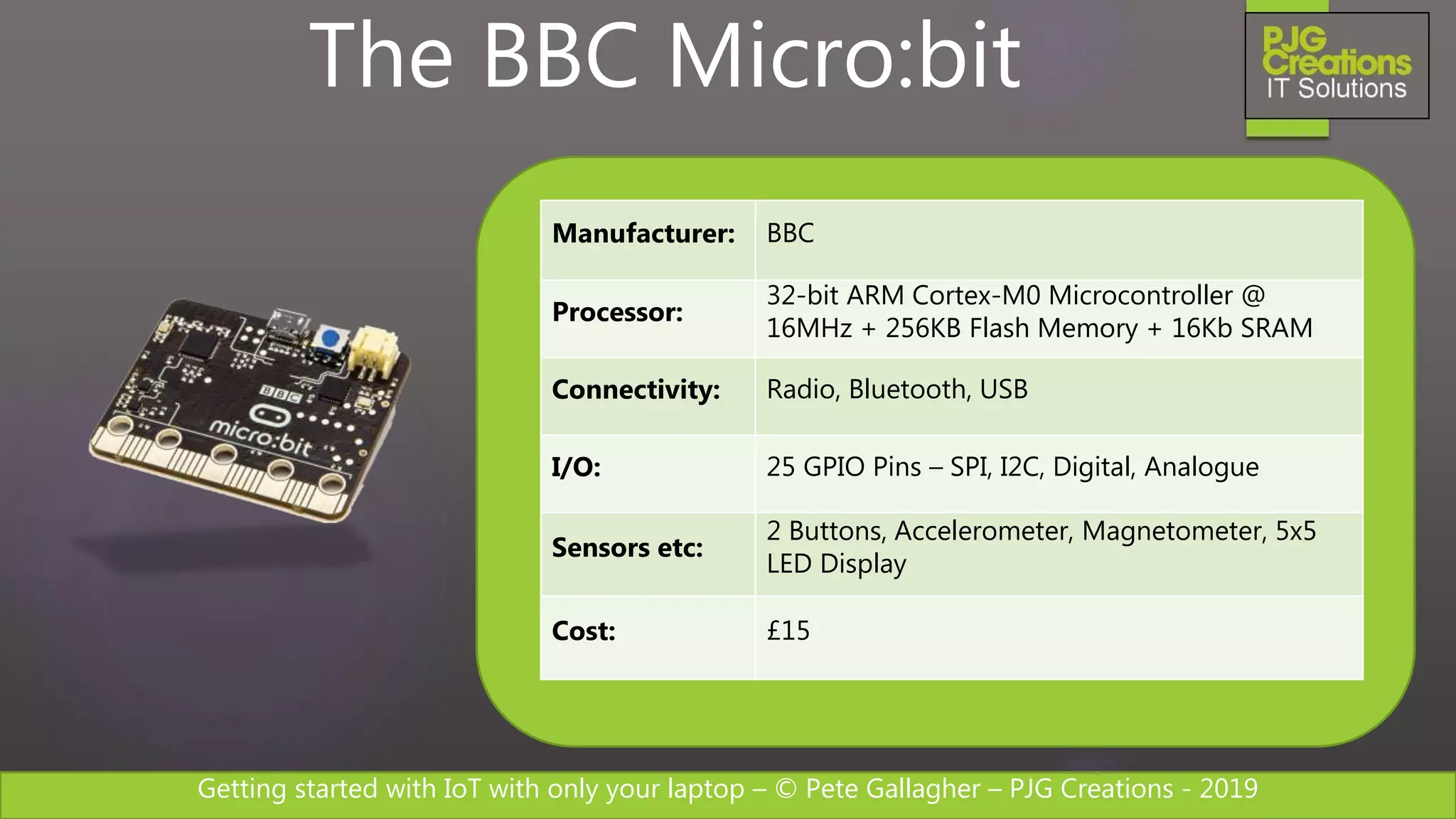

Manufacturer: BBC
Processor:
32-bit ARM Cortex-M0 Microcontroller @
16MHz + 256KB Flash Memory + 16Kb SRAM
Connectivity: Radio, Bluetooth, USB
I/O: 25 GPIO Pins – SPI, I2C, Digital, Analogue
Sensors etc:
2 Buttons, Accelerometer, Magnetometer, 5x5
LED Display
Cost: £15
The BBC Micro:bit

35. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

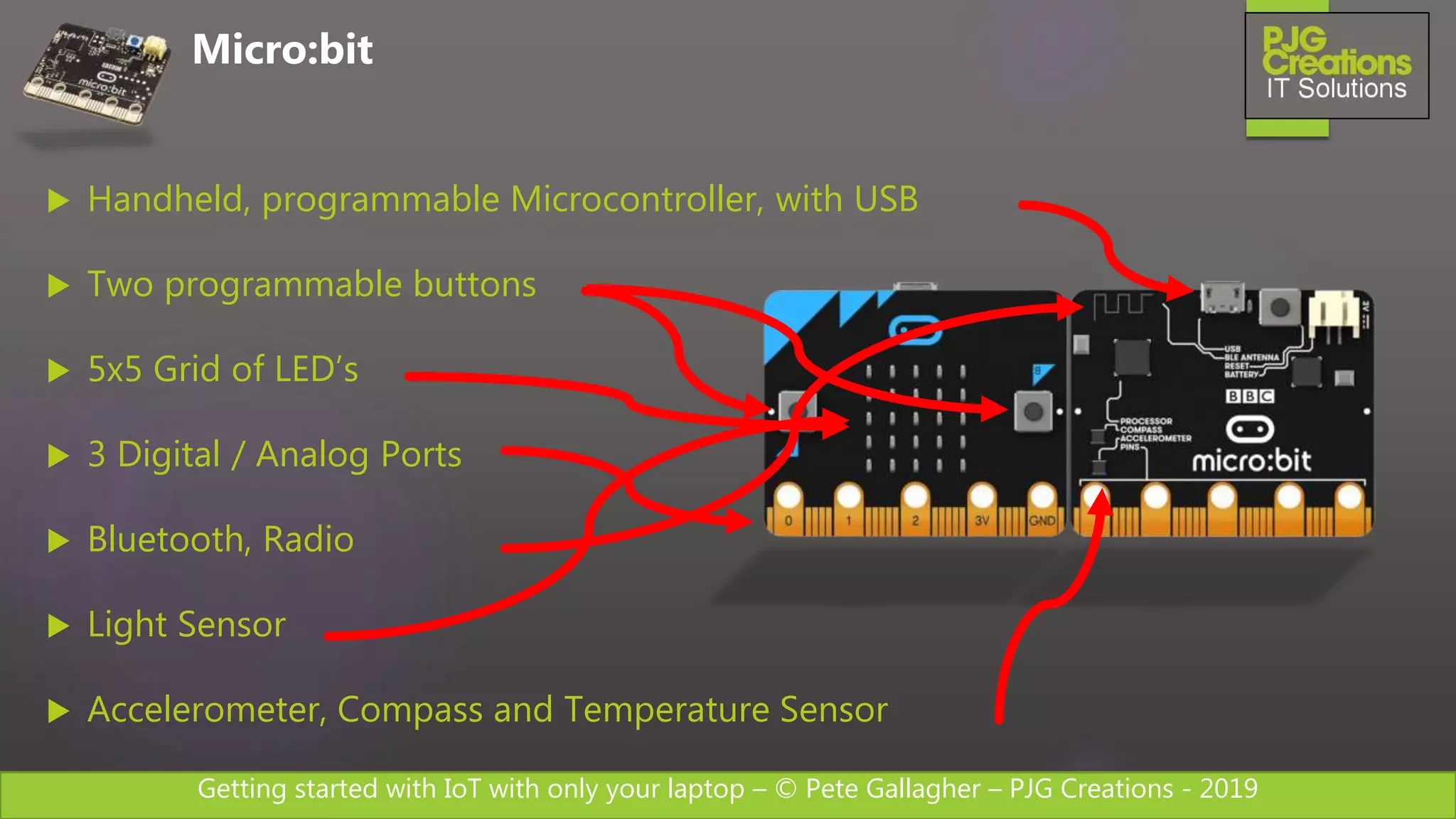

 Handheld, programmable Microcontroller, with USB
 Two programmable buttons
 5x5 Grid of LED’s
 3 Digital / Analog Ports
 Bluetooth, Radio
 Light Sensor
 Accelerometer, Compass and Temperature Sensor
Micro:bit

36. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

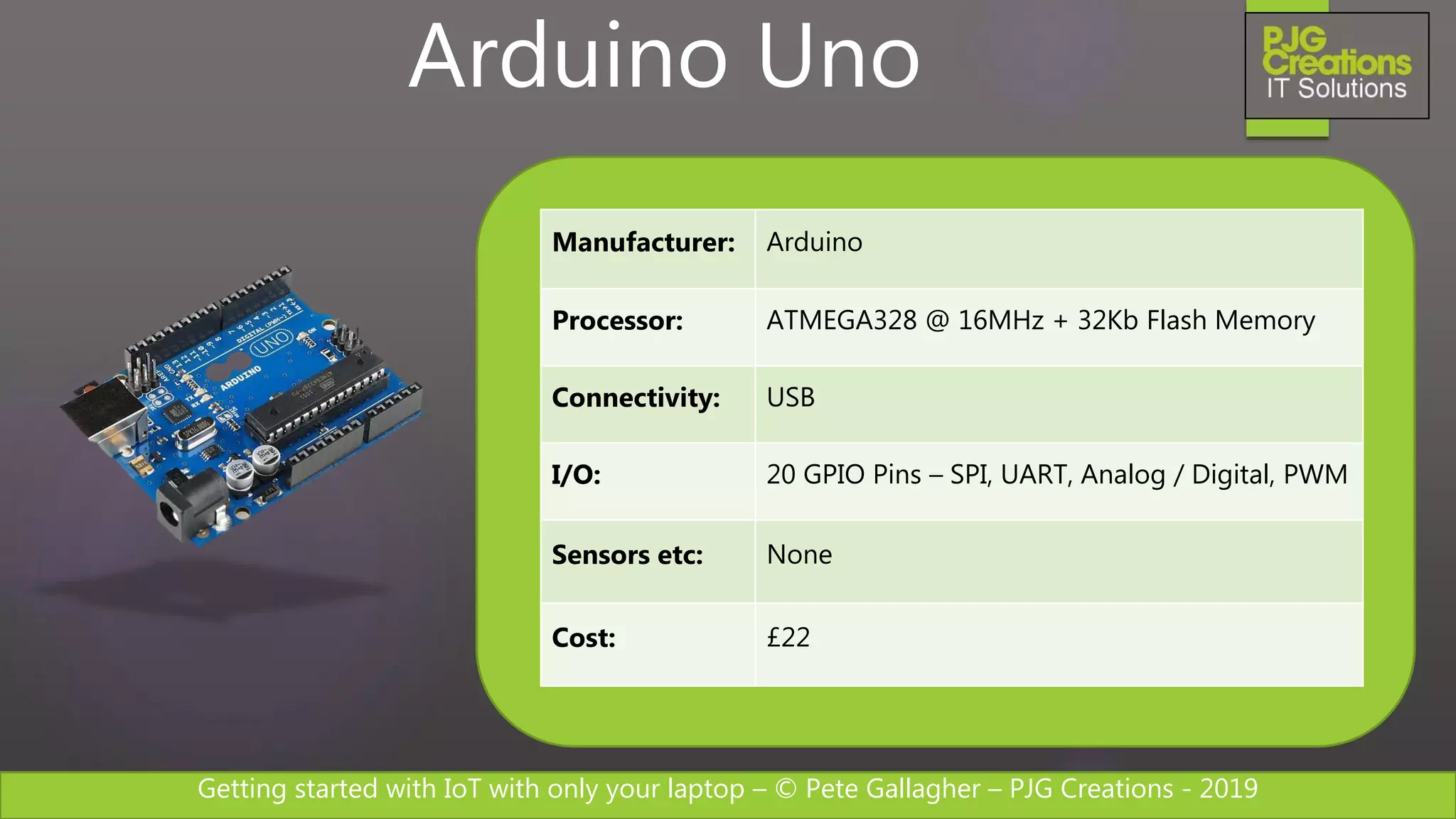

Manufacturer: Arduino
Processor: ATMEGA328 @ 16MHz + 32Kb Flash Memory
Connectivity: USB
I/O: 20 GPIO Pins – SPI, UART, Analog / Digital, PWM
Sensors etc: None
Cost: £22
Arduino Uno

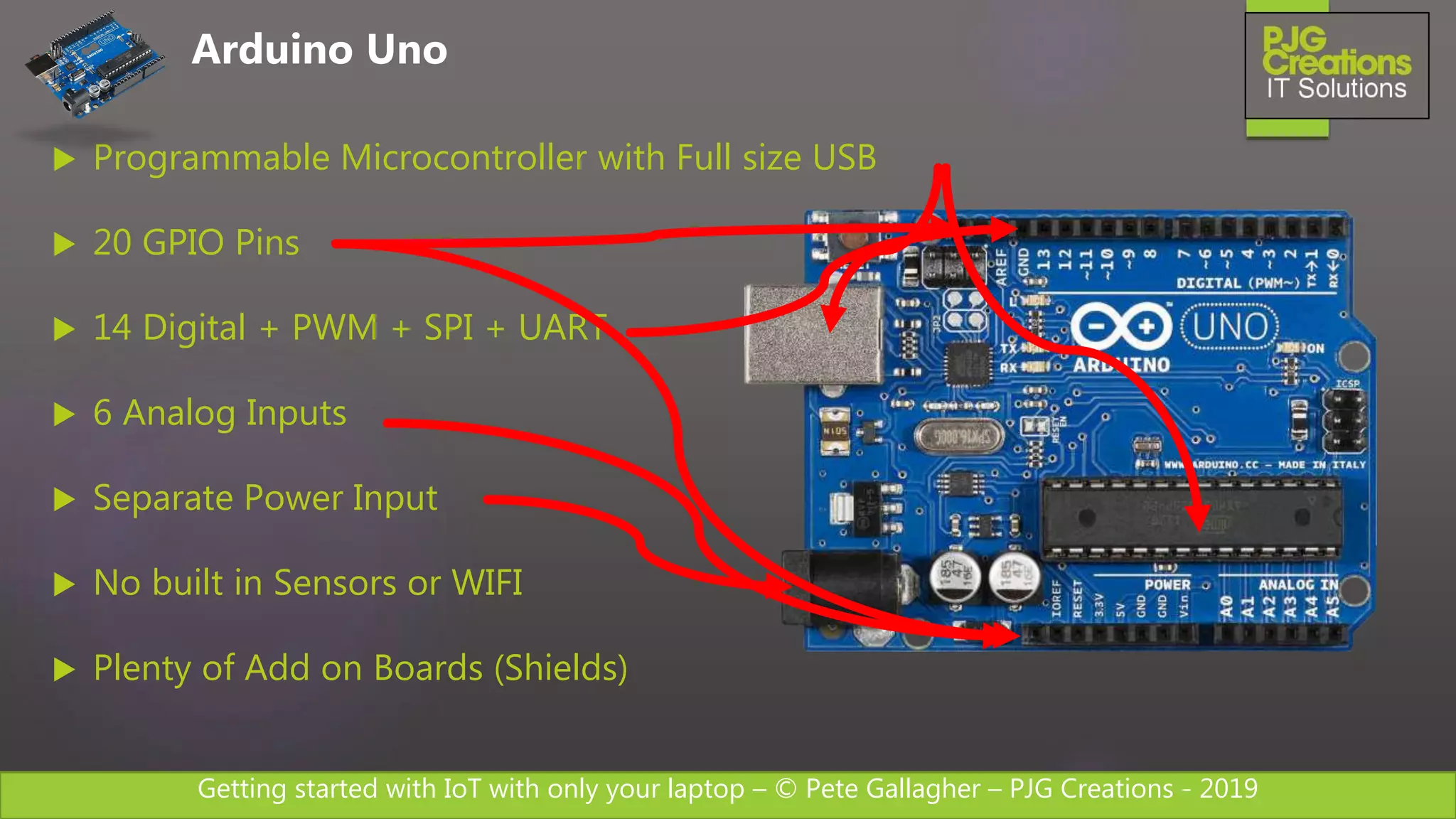

37. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
 Programmable Microcontroller with Full size USB
 20 GPIO Pins
 14 Digital + PWM + SPI + UART
 6 Analog Inputs
 Separate Power Input
 No built in Sensors or WIFI
 Plenty of Add on Boards (Shields)
Arduino Uno

38. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

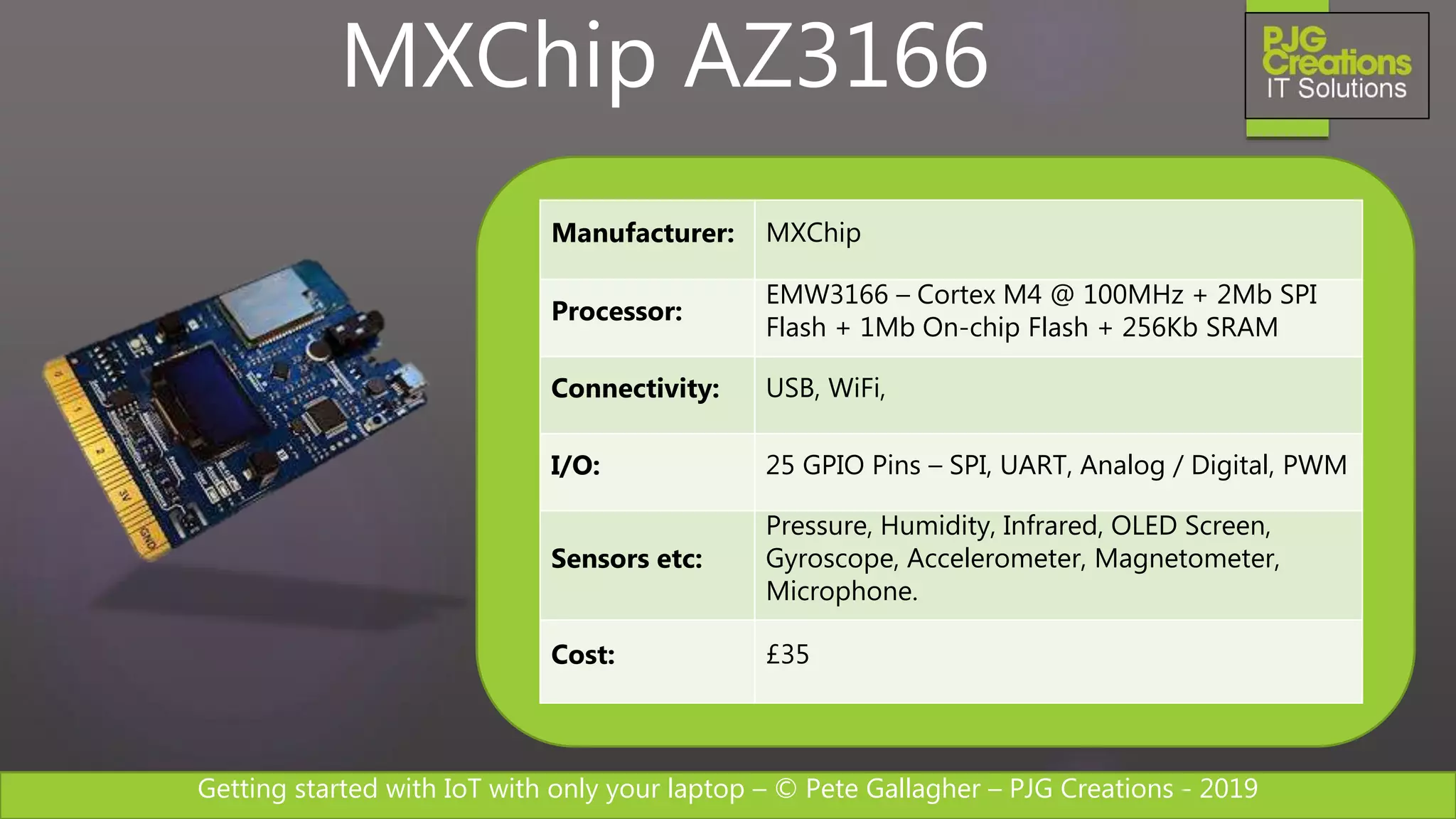

Manufacturer: MXChip
Processor:
EMW3166 – Cortex M4 @ 100MHz + 2Mb SPI
Flash + 1Mb On-chip Flash + 256Kb SRAM
Connectivity: USB, WiFi,
I/O: 25 GPIO Pins – SPI, UART, Analog / Digital, PWM
Sensors etc:
Pressure, Humidity, Infrared, OLED Screen,
Gyroscope, Accelerometer, Magnetometer,
Microphone.
Cost: £35
MXChip AZ3166

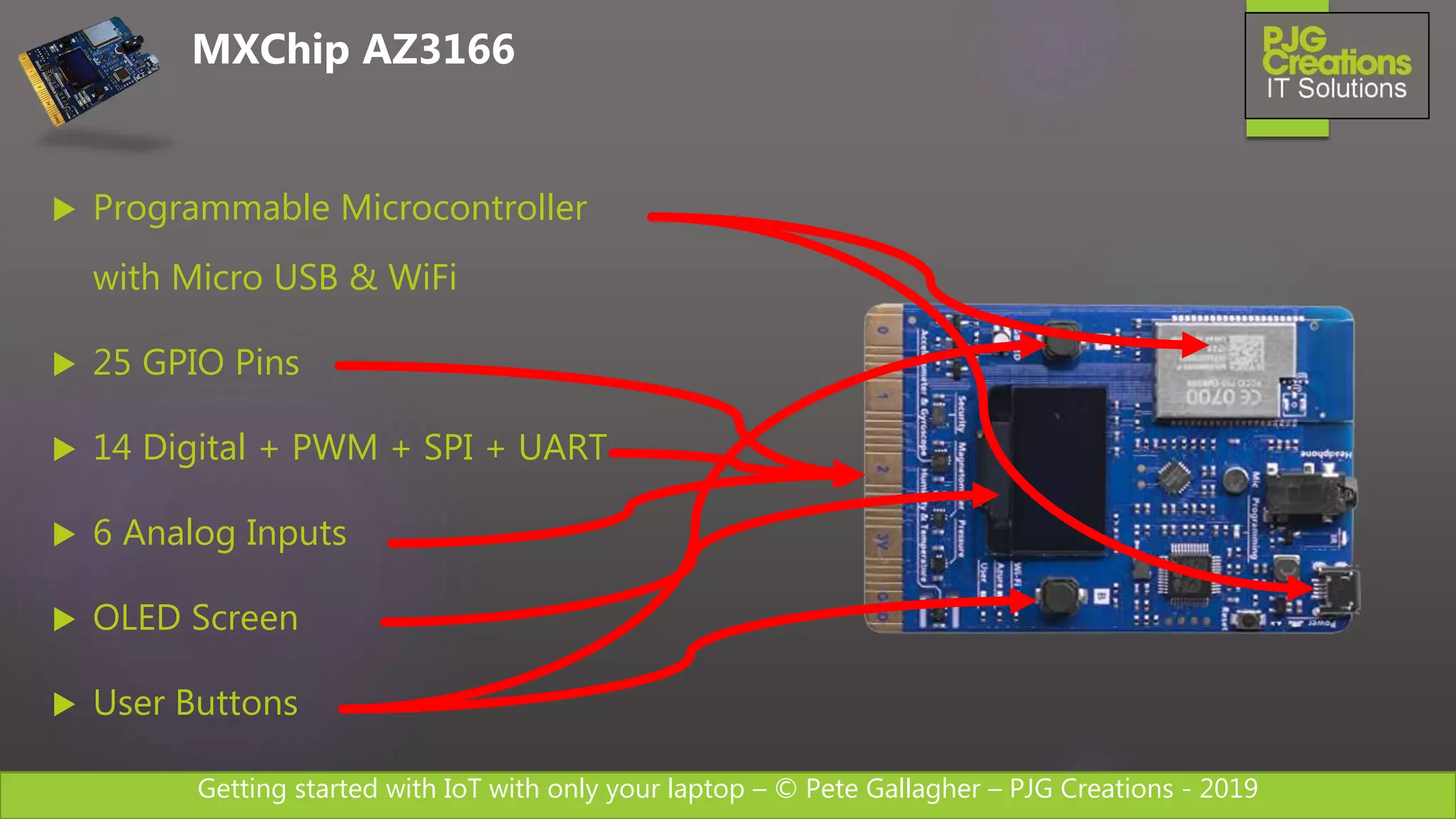

39. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
 Programmable Microcontroller
with Micro USB & WiFi
 25 GPIO Pins
 14 Digital + PWM + SPI + UART
 6 Analog Inputs
 OLED Screen
 User Buttons
MXChip AZ3166

40. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

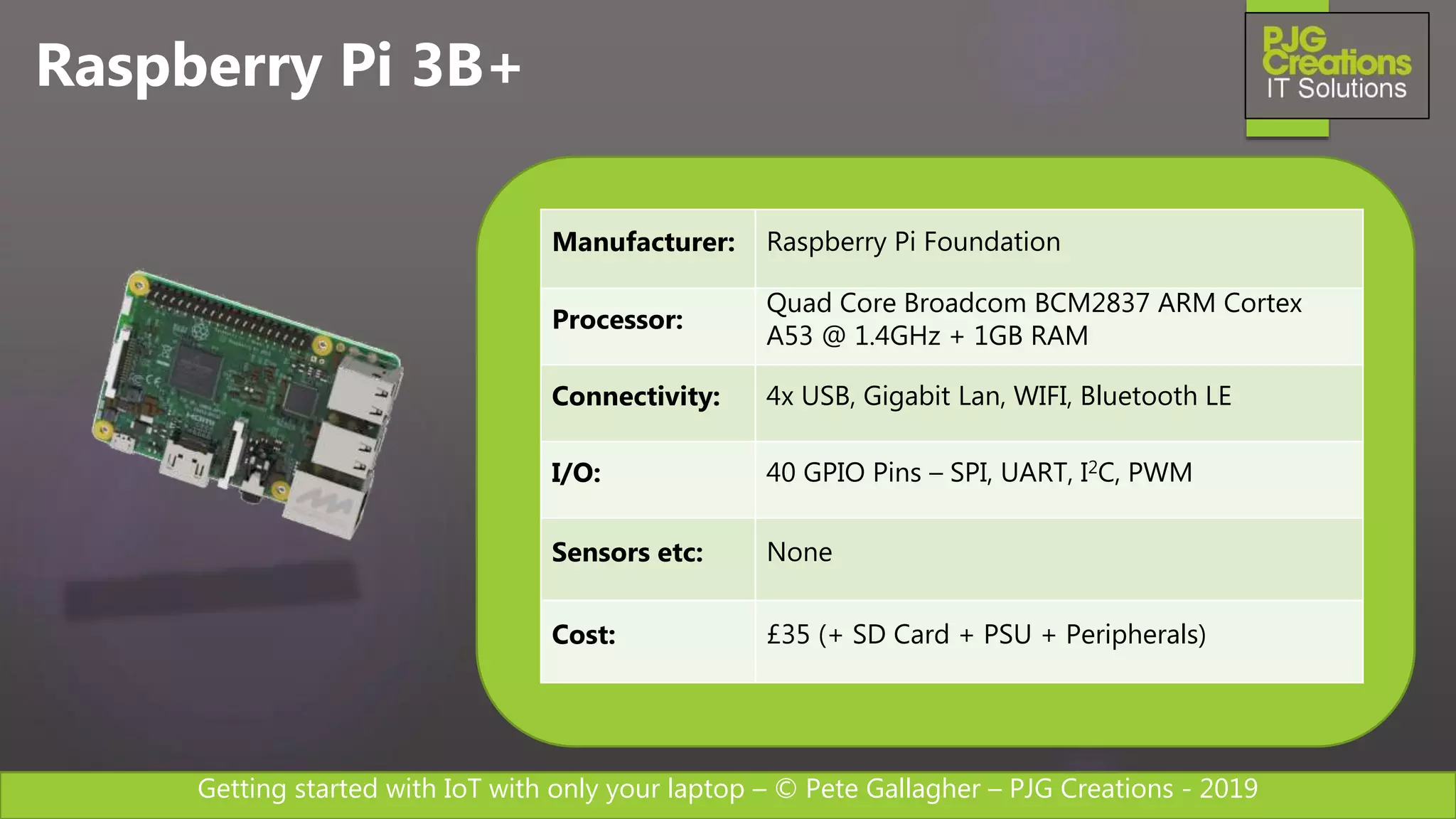

Raspberry Pi 3B+
Manufacturer: Raspberry Pi Foundation
Processor:
Quad Core Broadcom BCM2837 ARM Cortex
A53 @ 1.4GHz + 1GB RAM
Connectivity: 4x USB, Gigabit Lan, WIFI, Bluetooth LE
I/O: 40 GPIO Pins – SPI, UART, I2C, PWM
Sensors etc: None
Cost: £35 (+ SD Card + PSU + Peripherals)

41. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

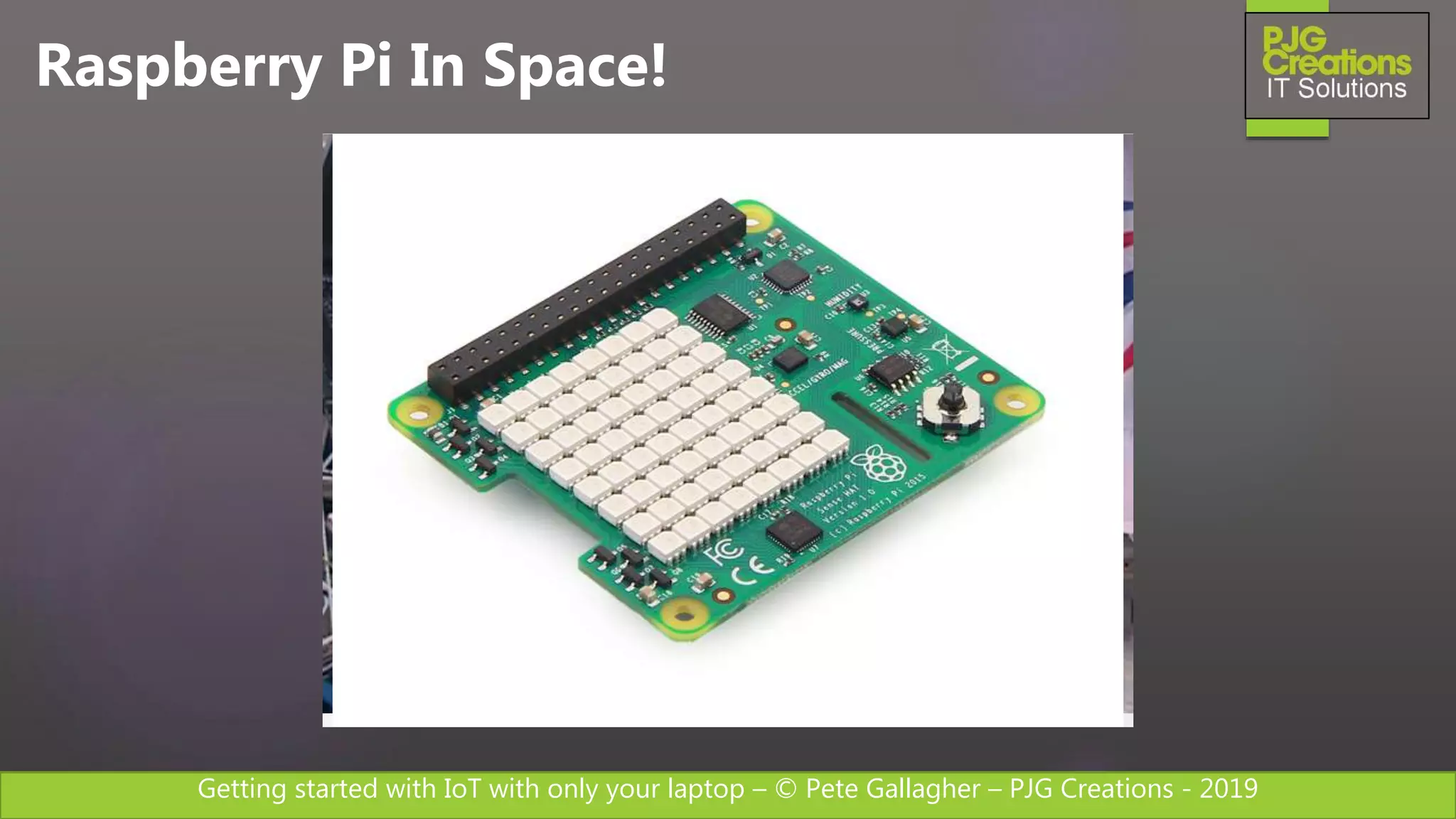

Raspberry Pi In Space!

42. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

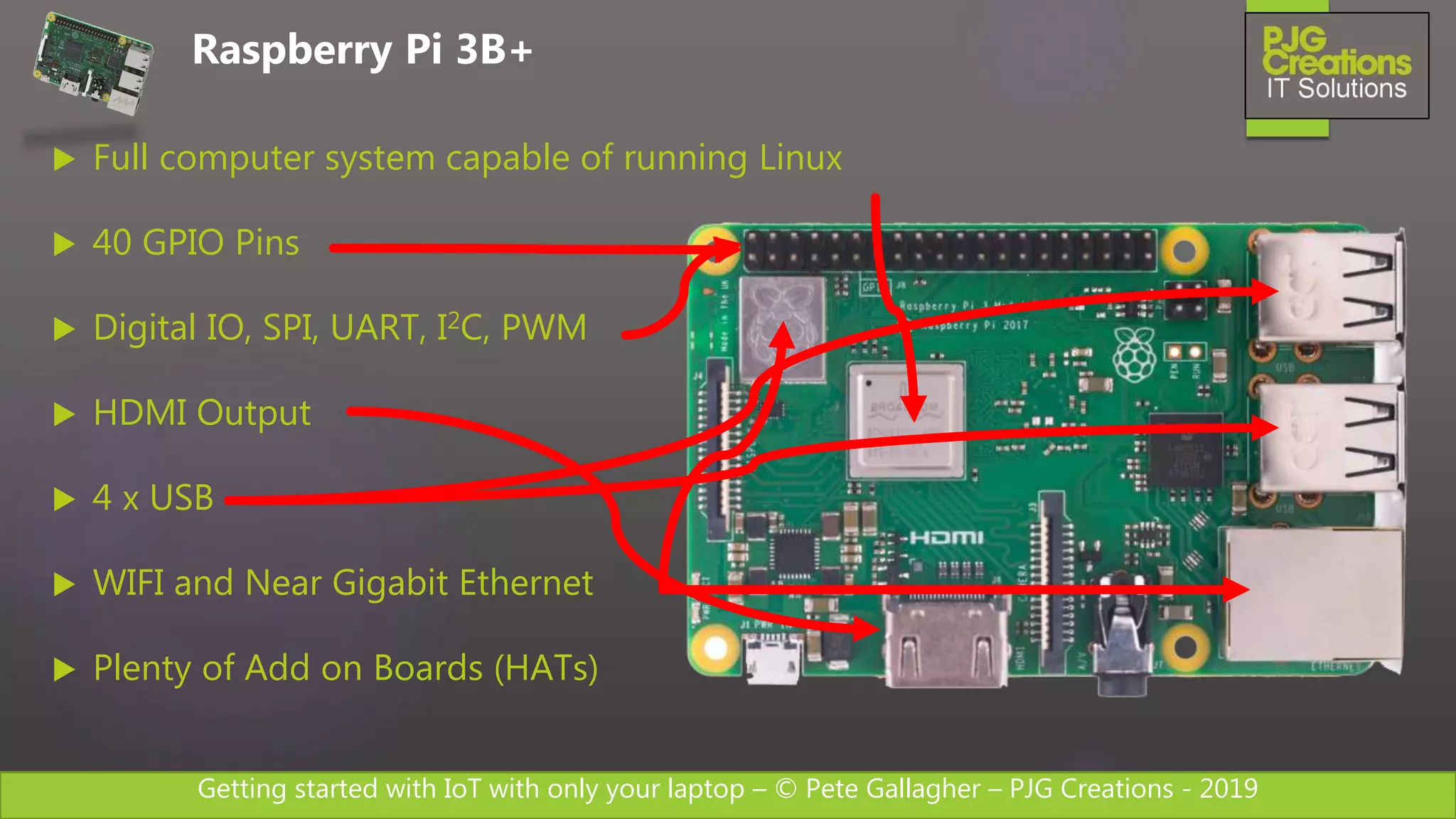

 Full computer system capable of running Linux
 40 GPIO Pins
 Digital IO, SPI, UART, I2C, PWM
 HDMI Output
 4 x USB
 WIFI and Near Gigabit Ethernet
 Plenty of Add on Boards (HATs)
Raspberry Pi 3B+

43. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Get it?

44. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
WHAT?

45. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

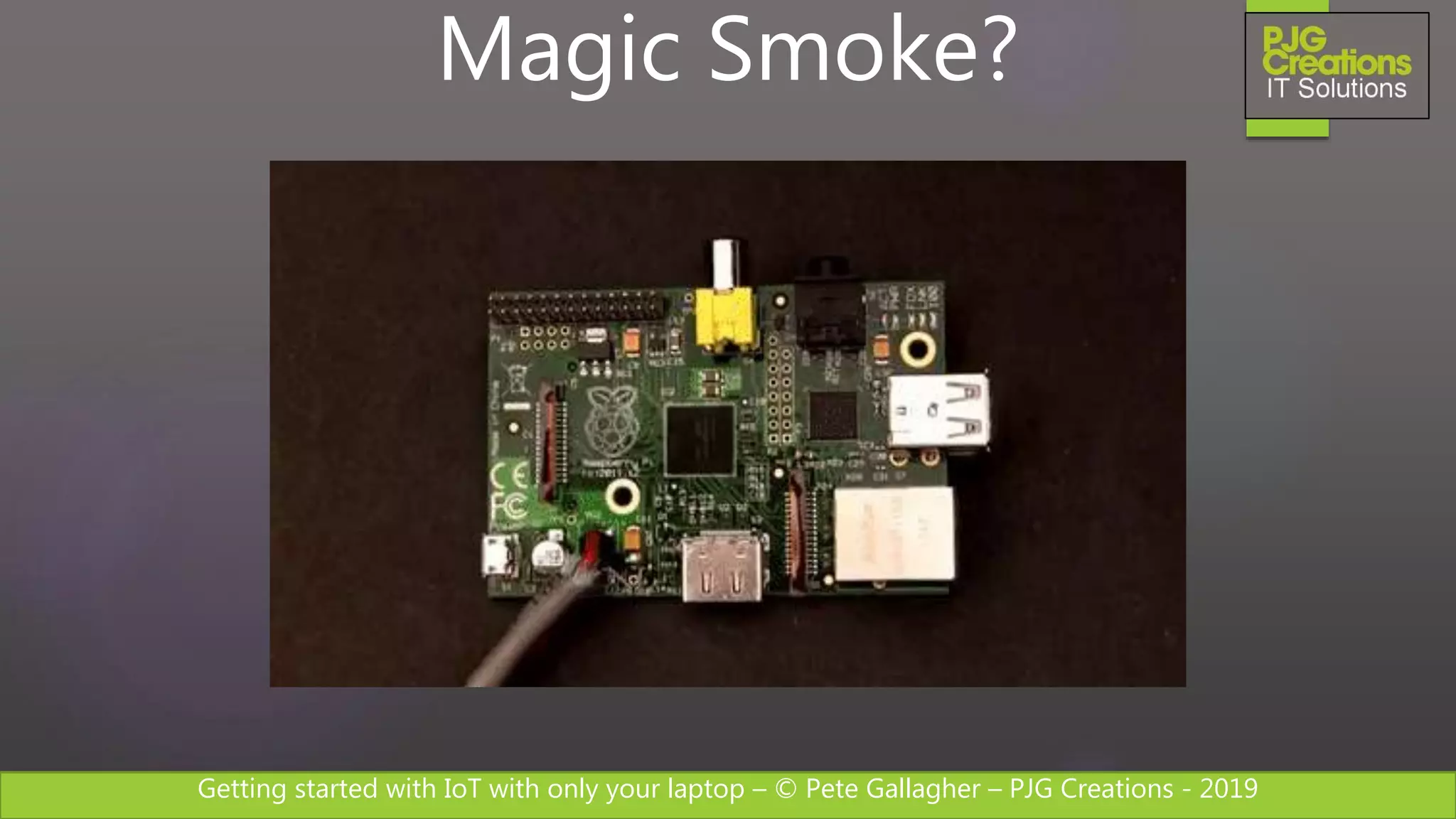

Magic Smoke?

46. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Later Maybe?

47. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
The Software…

48. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

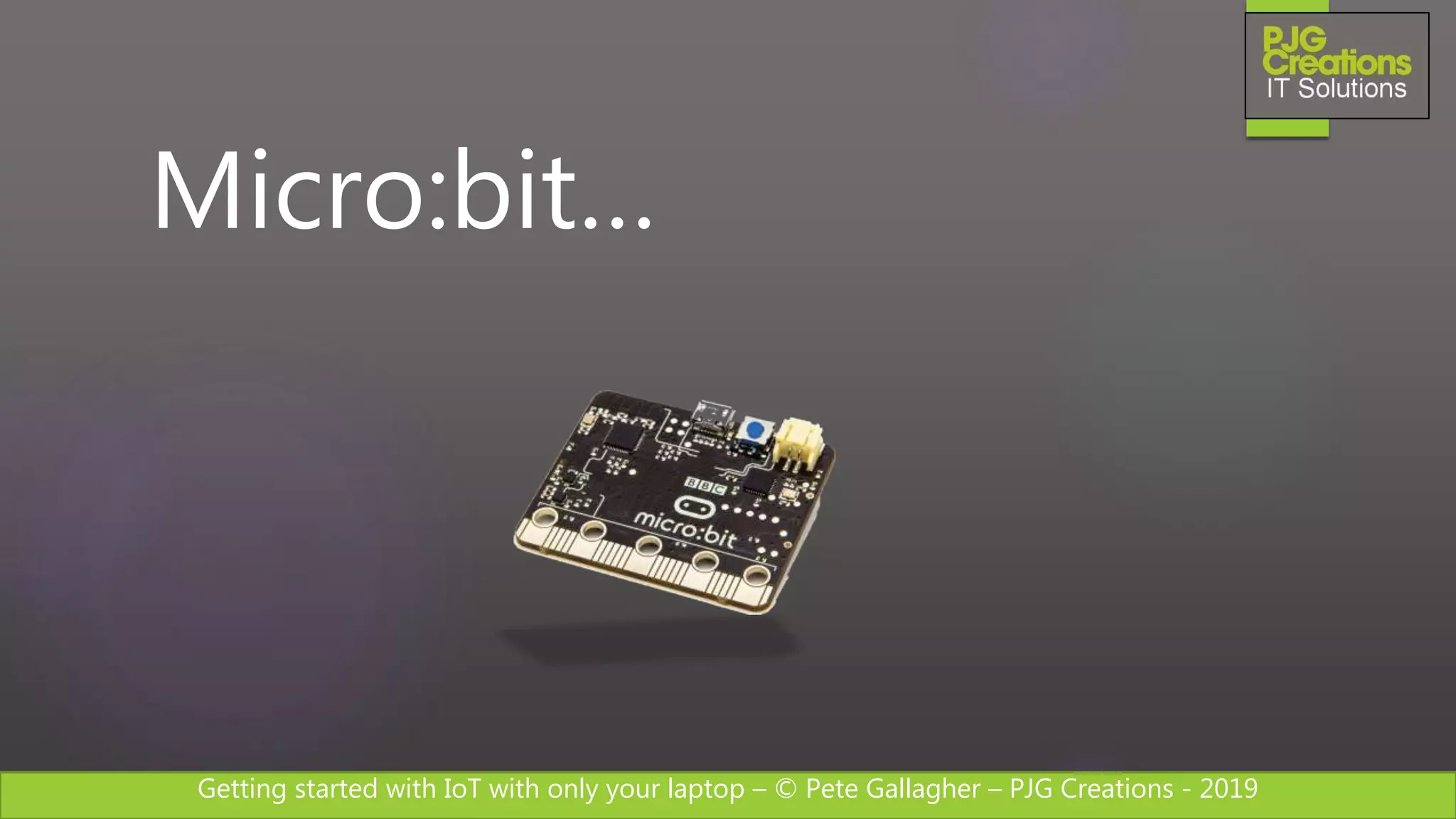

Micro:bit…

49. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Micro:bit

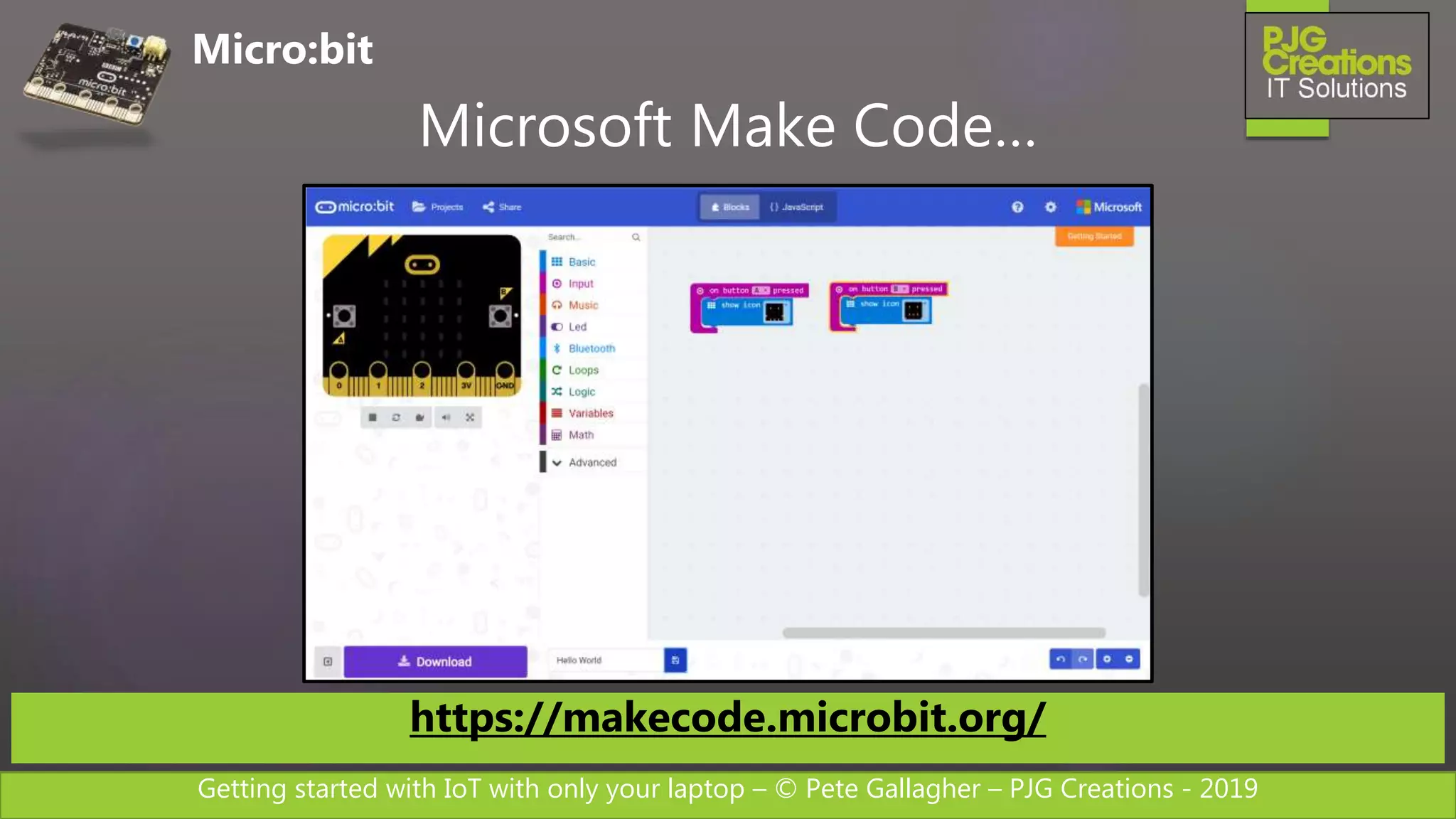

Microsoft Make Code…
https://makecode.microbit.org/

50. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

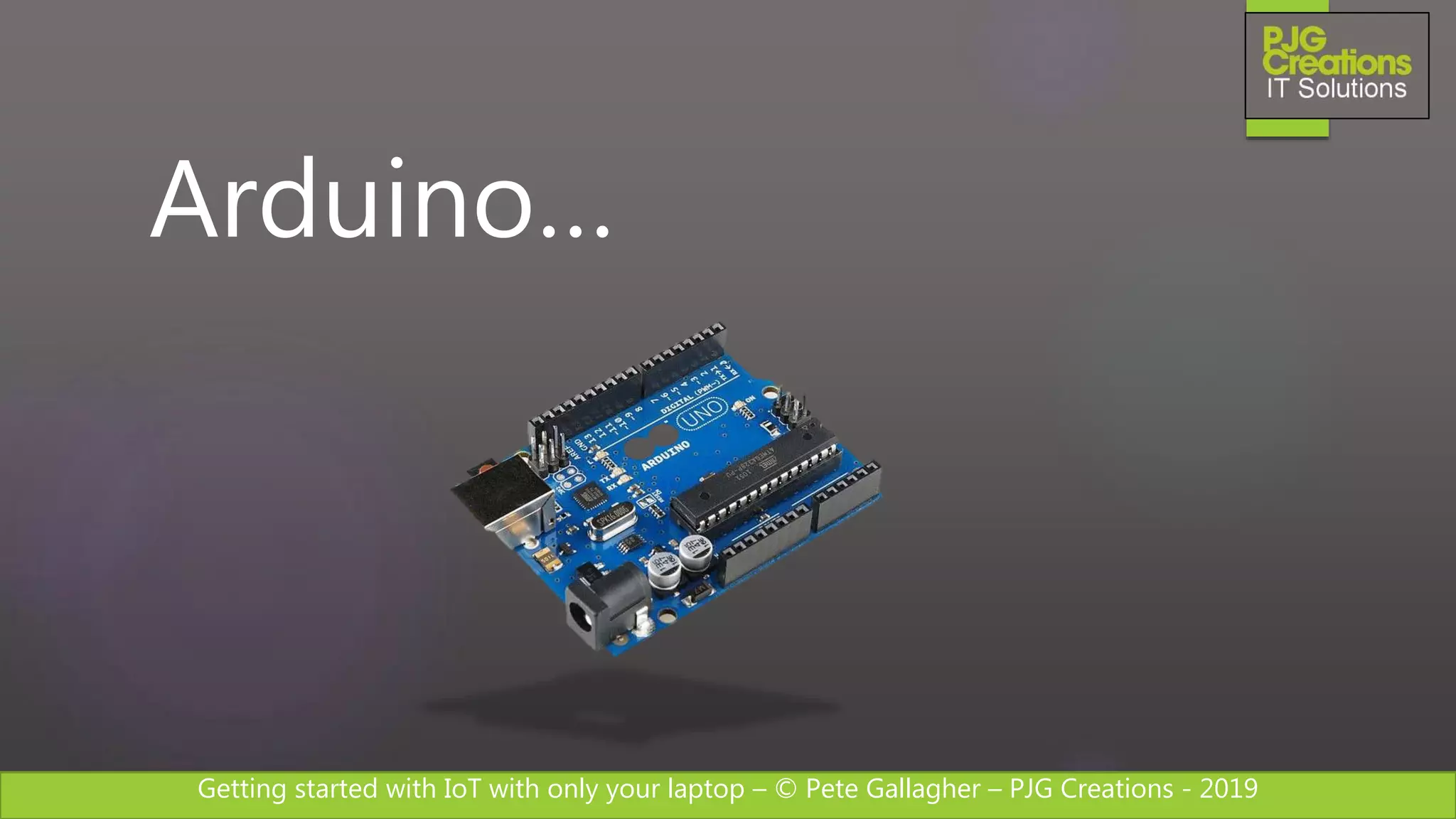

Arduino…

51. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Arduino Uno

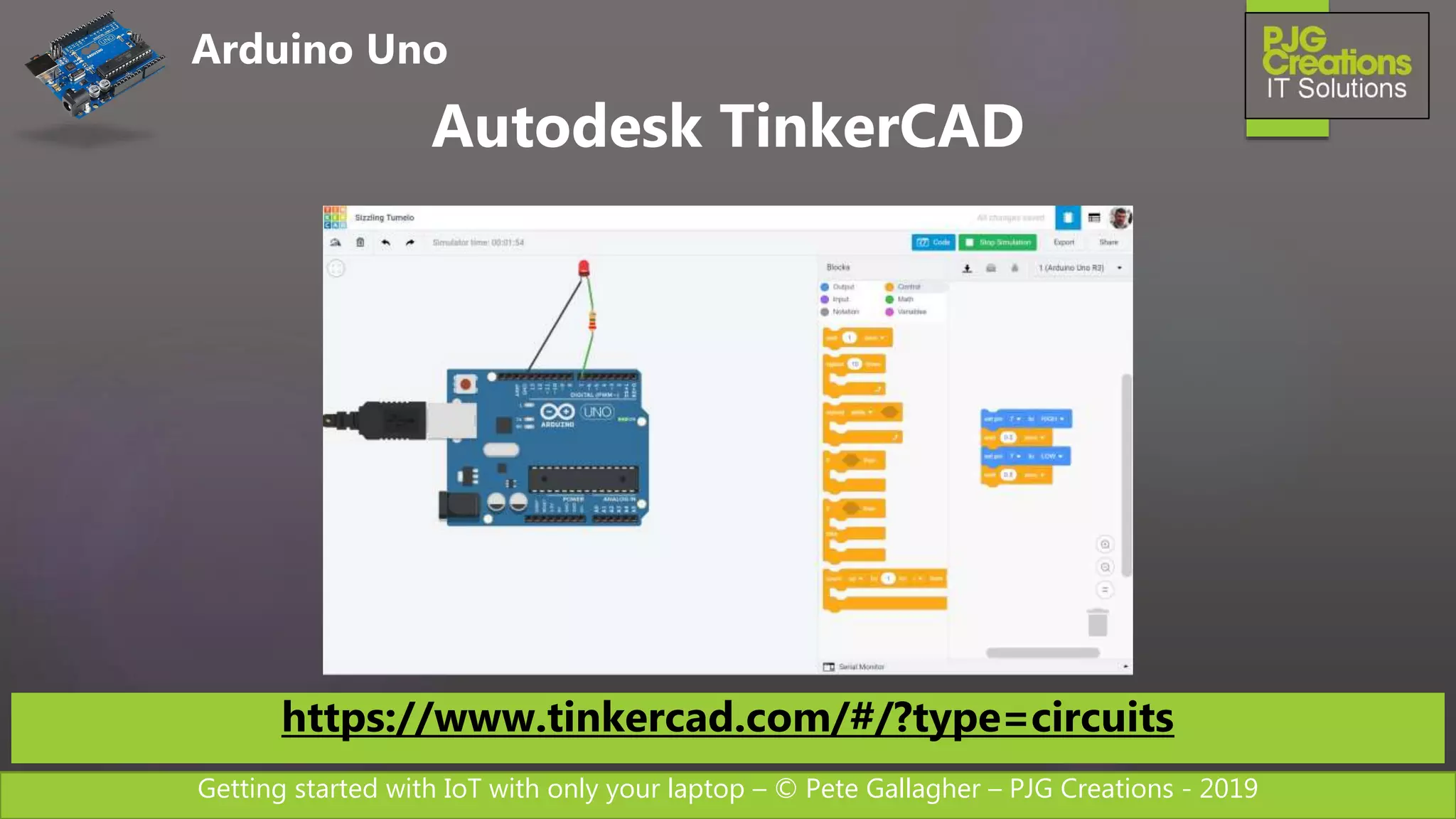

Autodesk TinkerCAD
https://www.tinkercad.com/#/?type=circuits

52. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

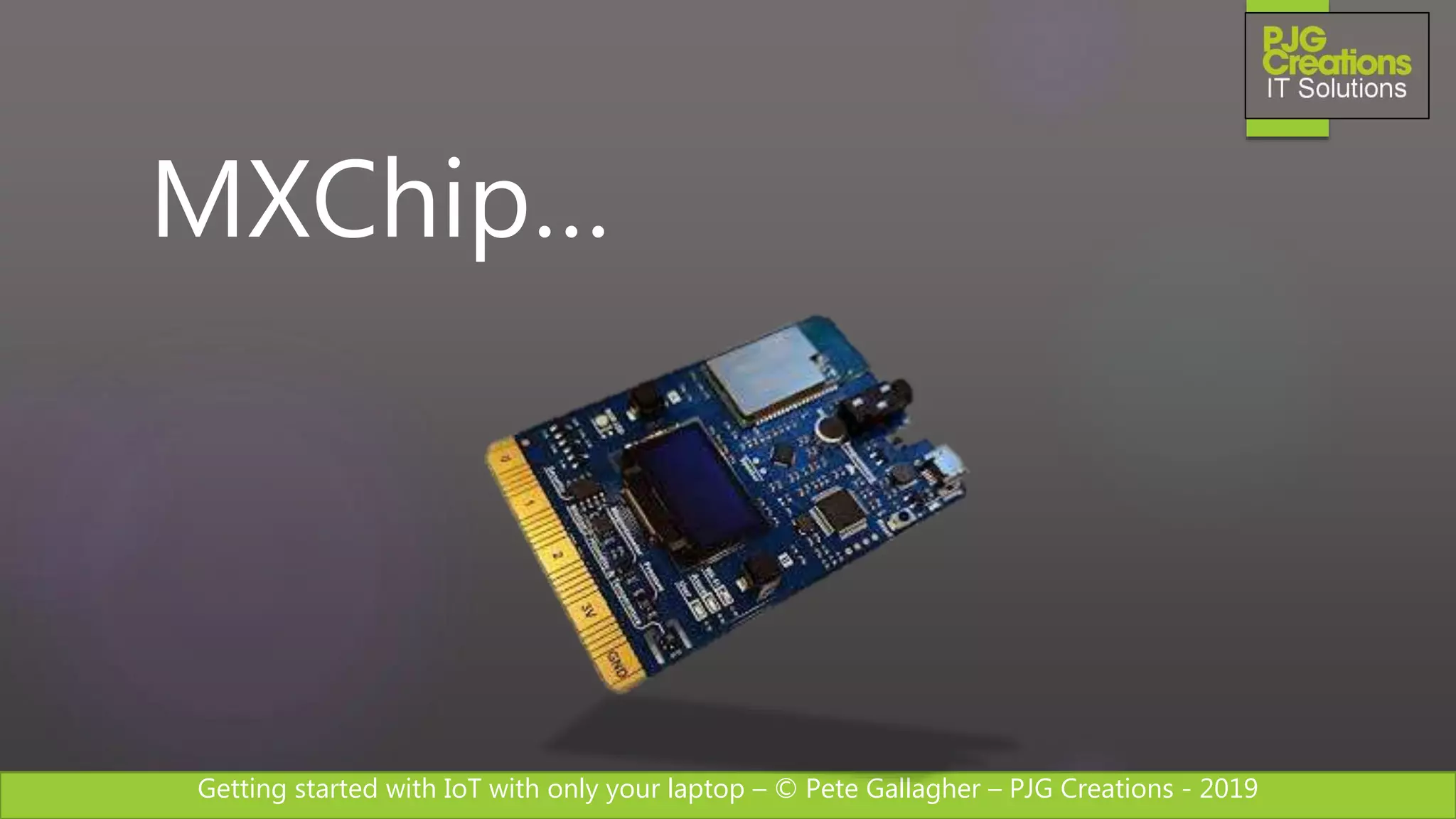

MXChip…

53. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

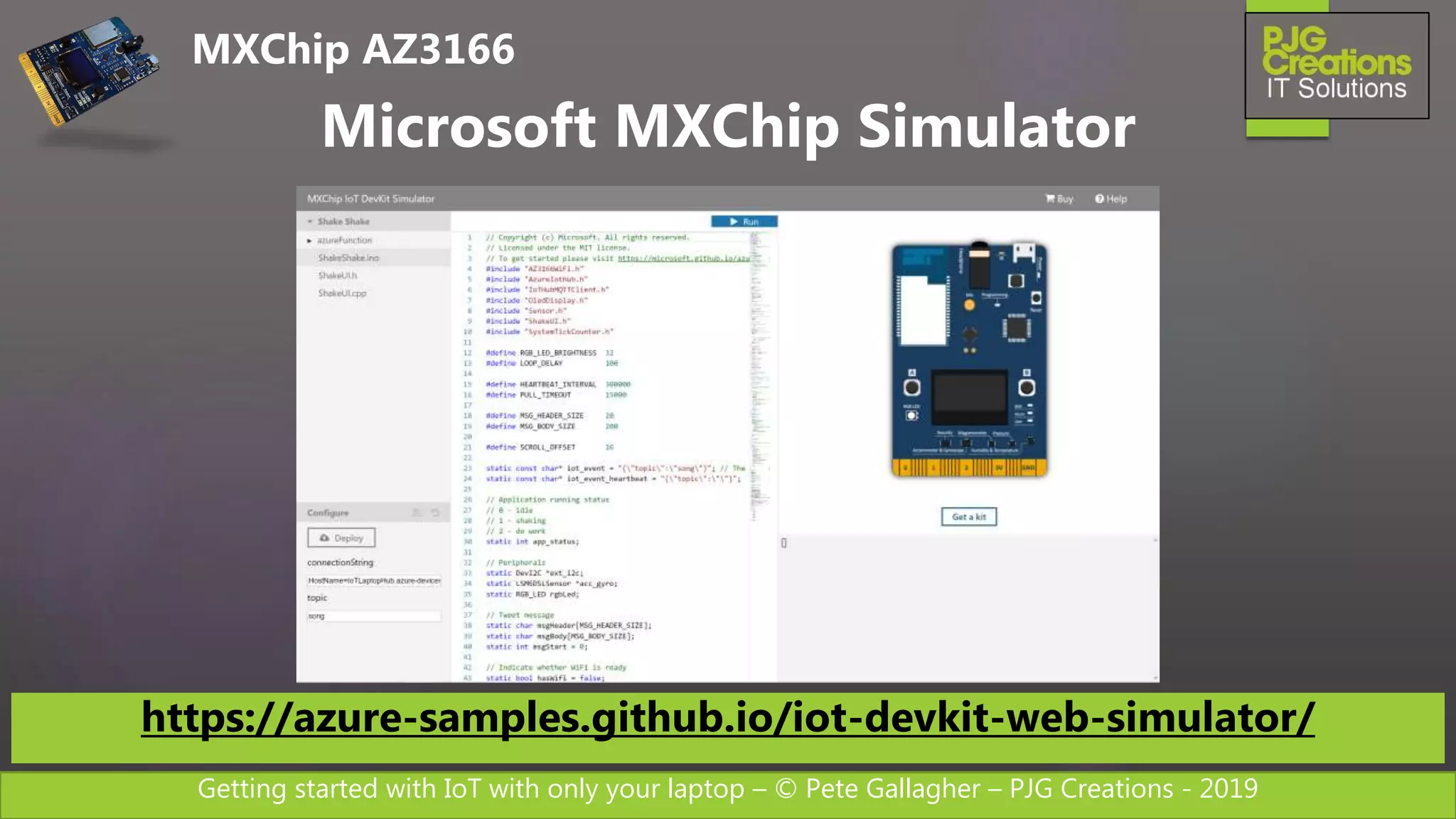

Microsoft MXChip Simulator
https://azure-samples.github.io/iot-devkit-web-simulator/
MXChip AZ3166

54. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

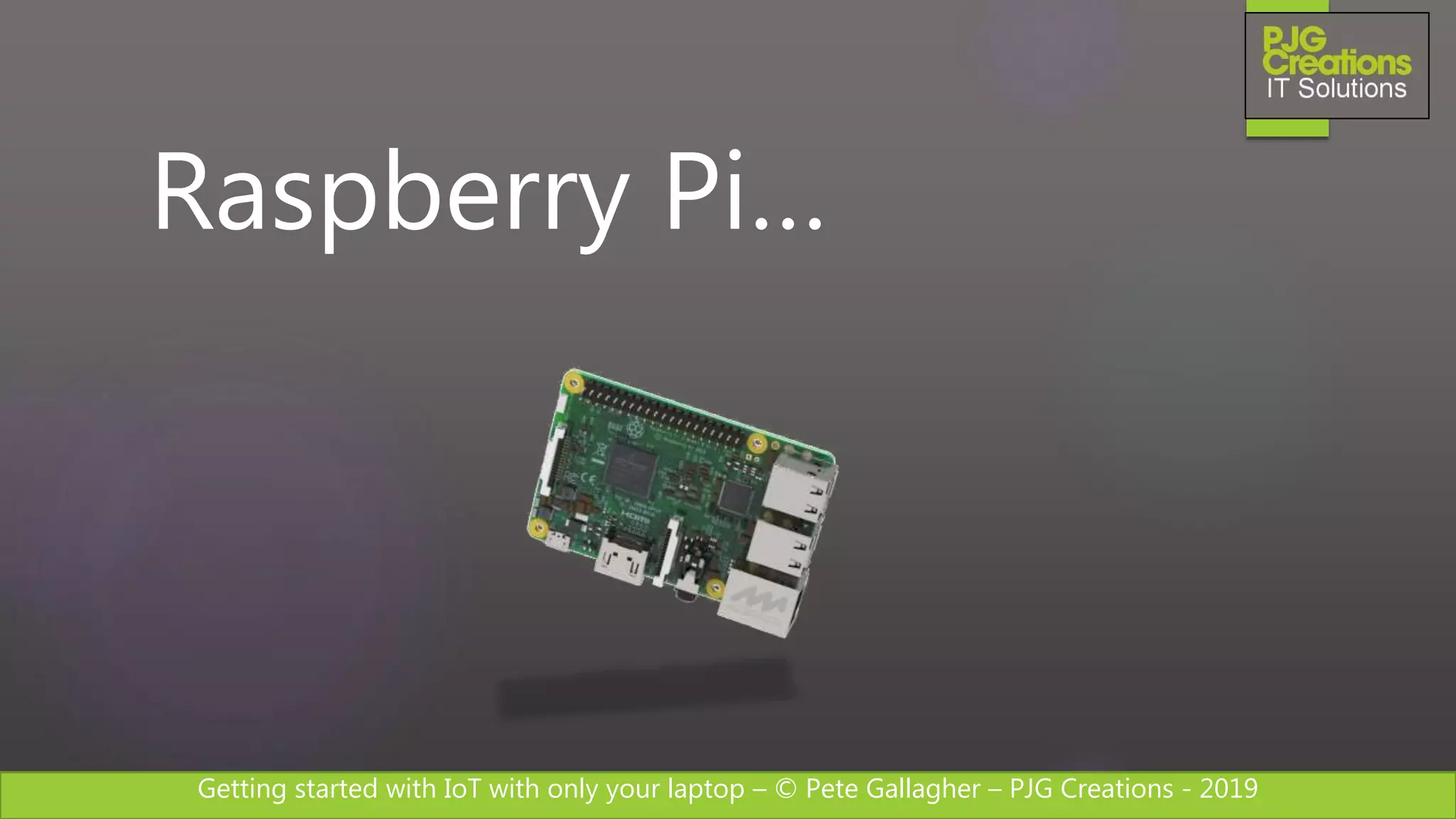

Raspberry Pi…

55. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

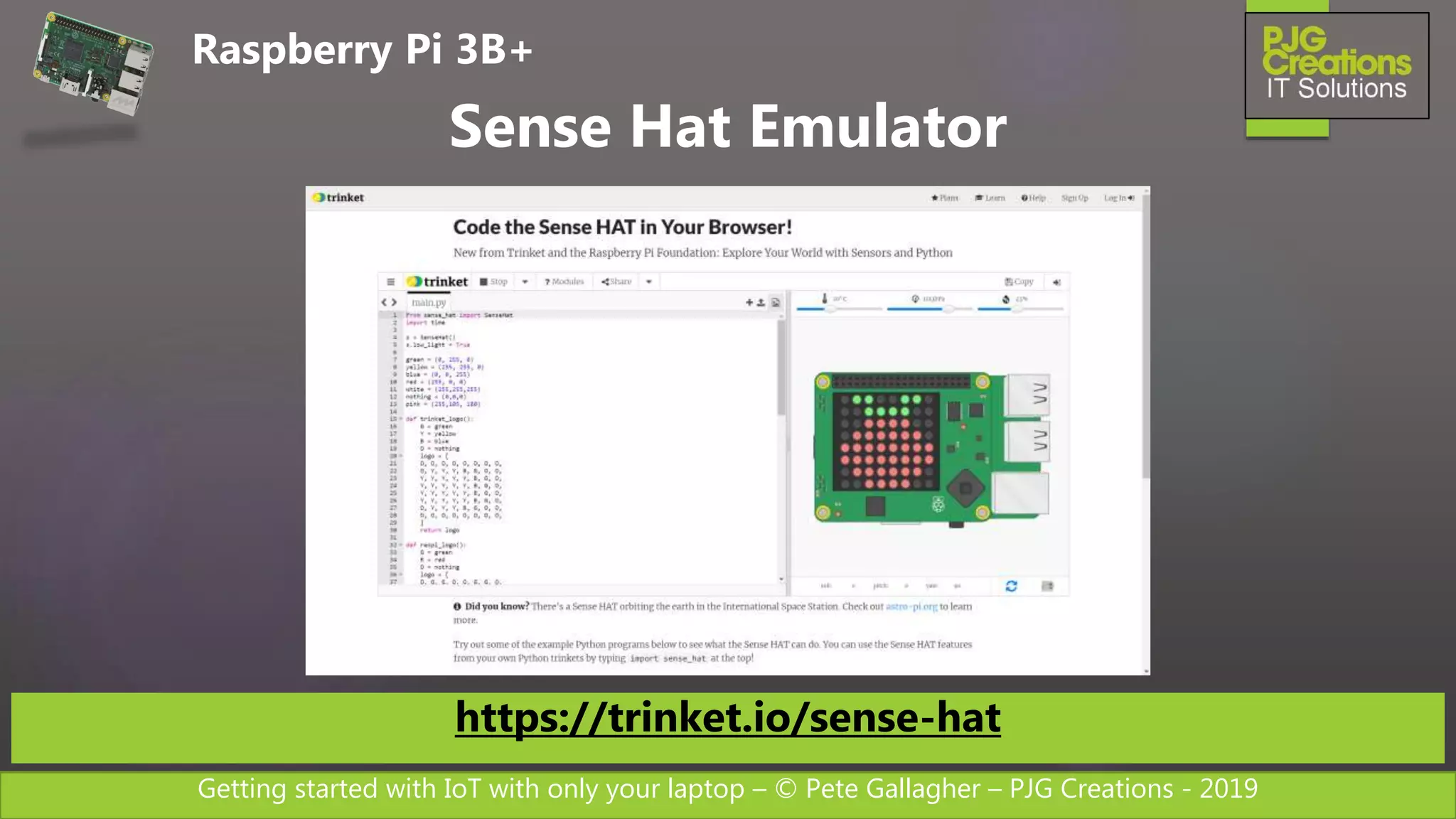

Sense Hat Emulator
https://trinket.io/sense-hat
Raspberry Pi 3B+

56. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Raspberry Pi 3B+

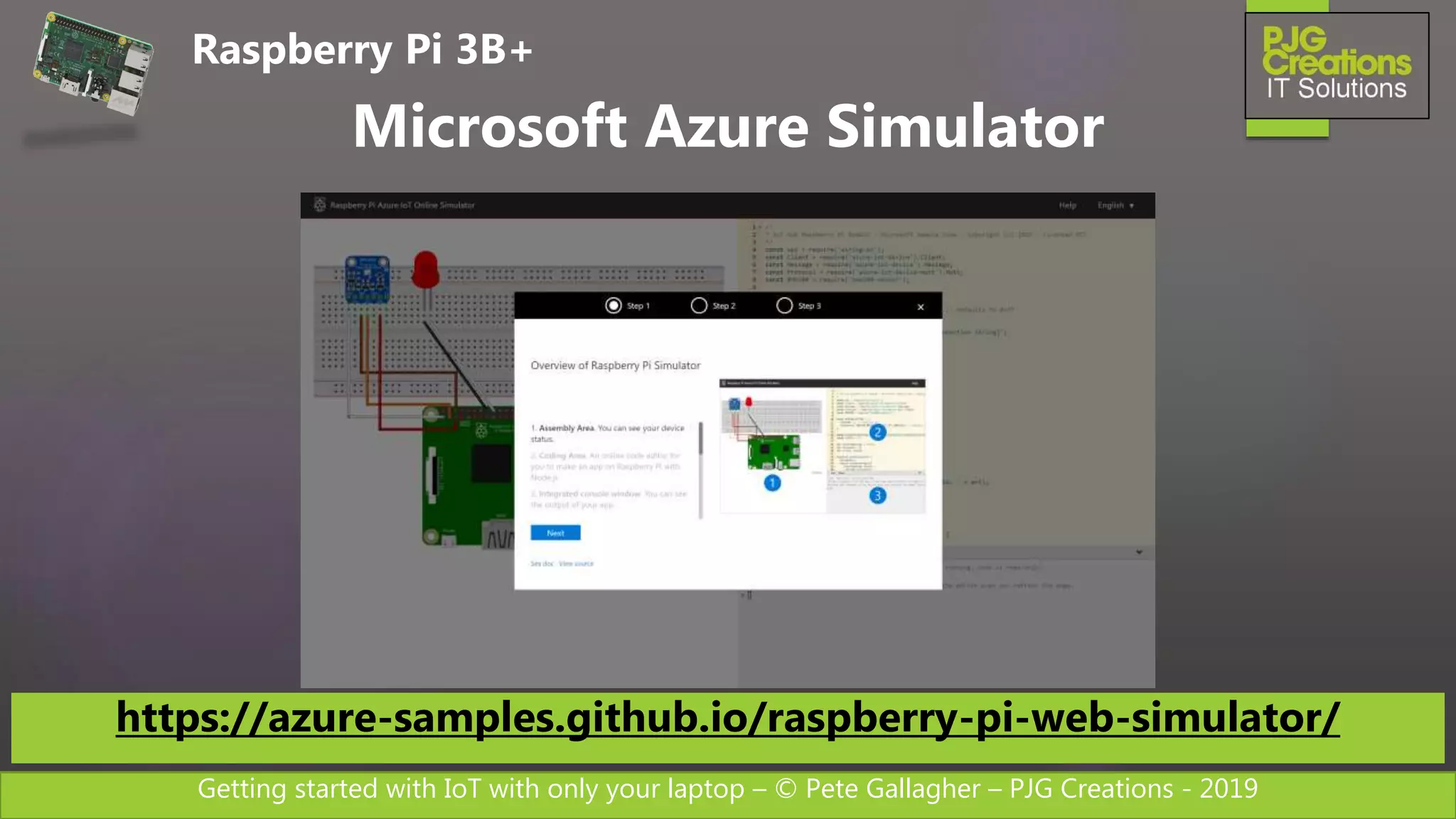

Microsoft Azure Simulator
https://azure-samples.github.io/raspberry-pi-web-simulator/

57. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

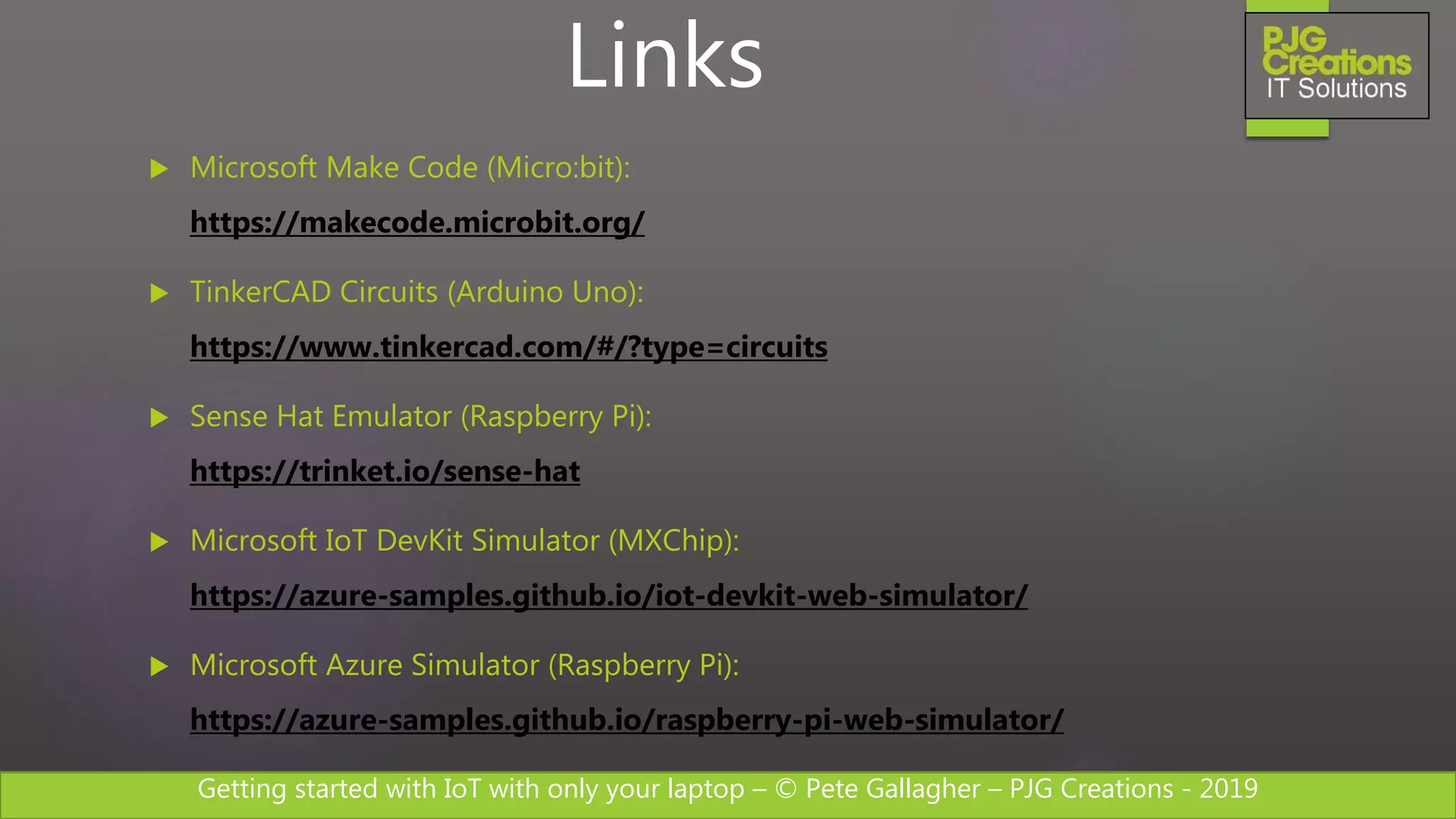

 Microsoft Make Code (Micro:bit):
https://makecode.microbit.org/
 TinkerCAD Circuits (Arduino Uno):
https://www.tinkercad.com/#/?type=circuits
 Sense Hat Emulator (Raspberry Pi):
https://trinket.io/sense-hat
 Microsoft IoT DevKit Simulator (MXChip):
https://azure-samples.github.io/iot-devkit-web-simulator/
 Microsoft Azure Simulator (Raspberry Pi):
https://azure-samples.github.io/raspberry-pi-web-simulator/
Links

58. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
 IBM BlueMix:
http://bit.ly/TOTIBMCloud
 Visual Studio Code + Azure IoT hub (Blog Post):
http://bit.ly/TOTVSCodeAzure
 Amazon Alexa Device Simulator
https://developer.amazon.com/alexa

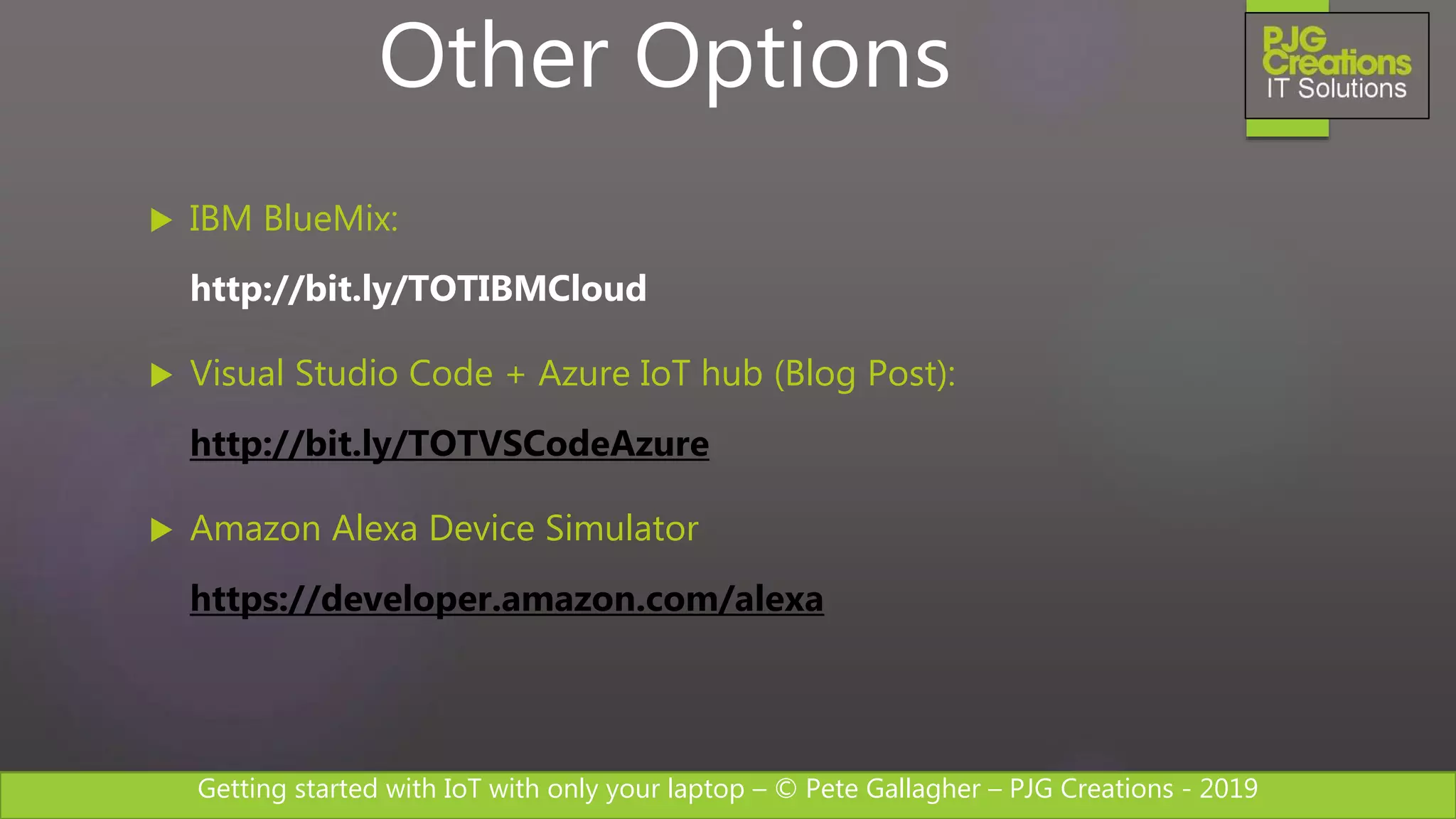

Other Options

59. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
I’m excited…
… What next?

60. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

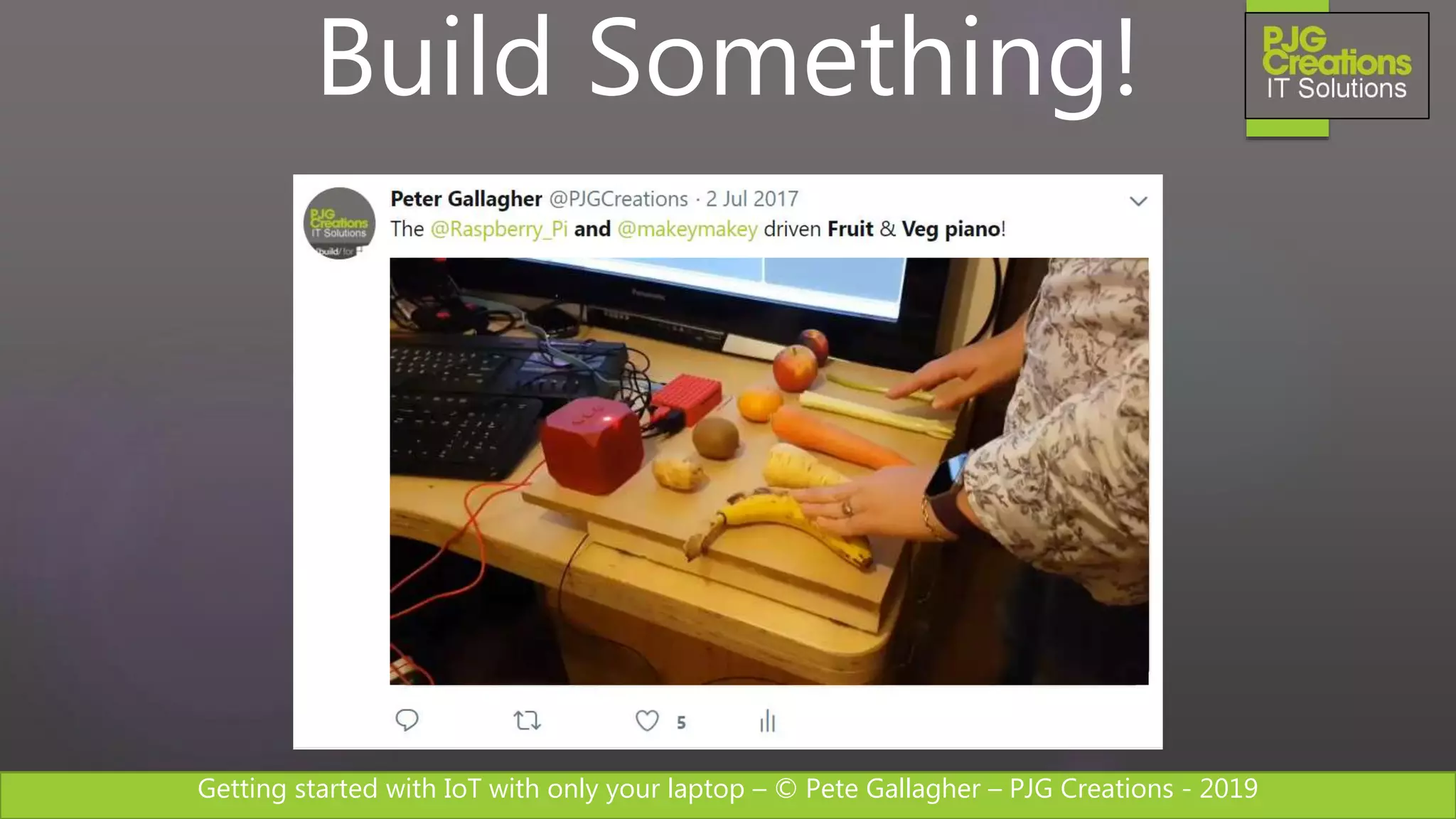

Build Something!

61. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Build Something!

62. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Build Something!

63. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Build Something!

64. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
 Microsoft Make Code (Micro:bit):
http://bit.ly/pjg-makecode-web
 Windows 10 Microsoft Make Code (Micro:bit):
http://bit.ly/pjg-makecode-win10

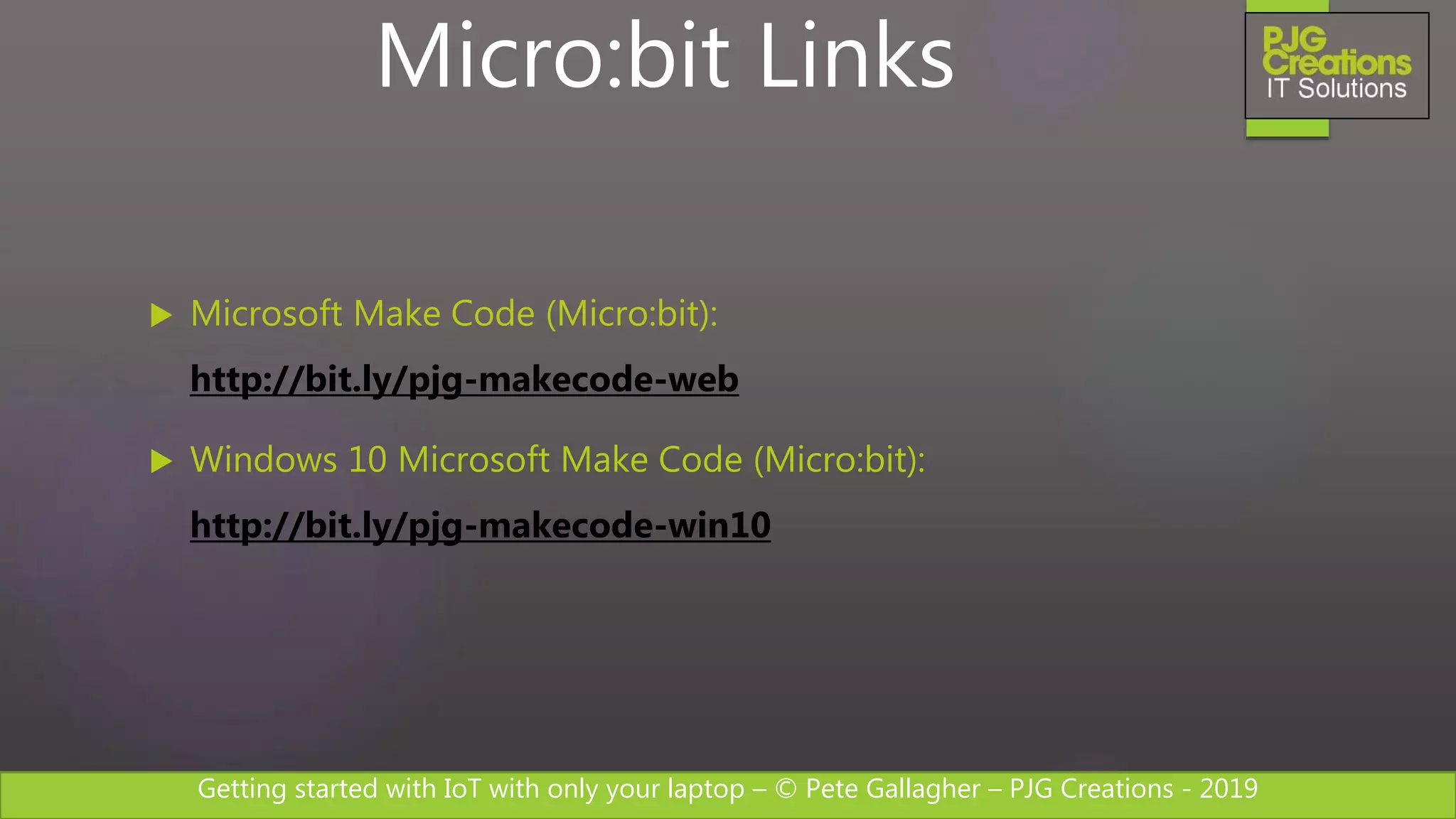

Micro:bit Links

65. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

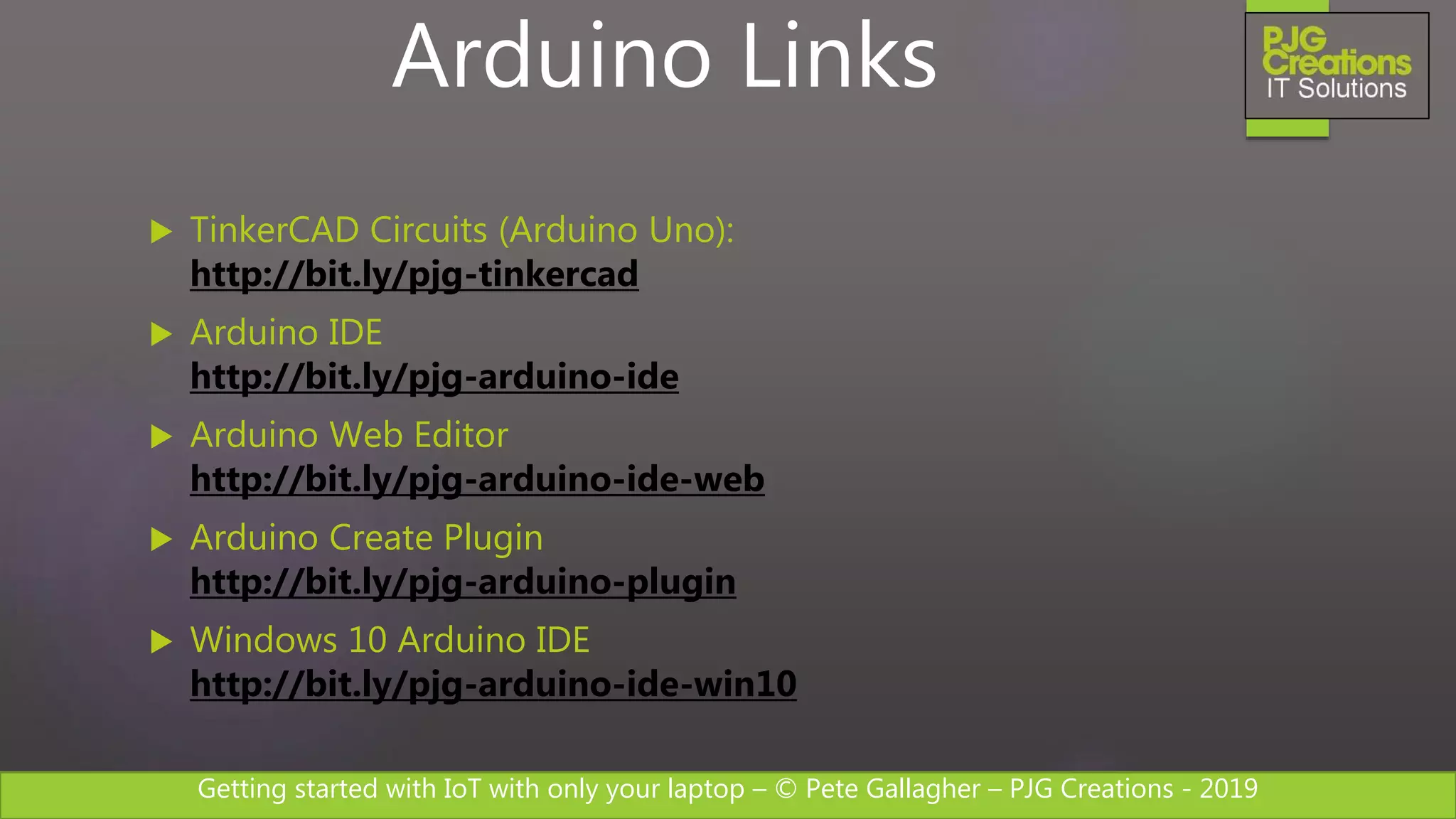

 TinkerCAD Circuits (Arduino Uno):
http://bit.ly/pjg-tinkercad
 Arduino IDE
http://bit.ly/pjg-arduino-ide
 Arduino Web Editor
http://bit.ly/pjg-arduino-ide-web
 Arduino Create Plugin
http://bit.ly/pjg-arduino-plugin
 Windows 10 Arduino IDE
http://bit.ly/pjg-arduino-ide-win10
Arduino Links

66. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

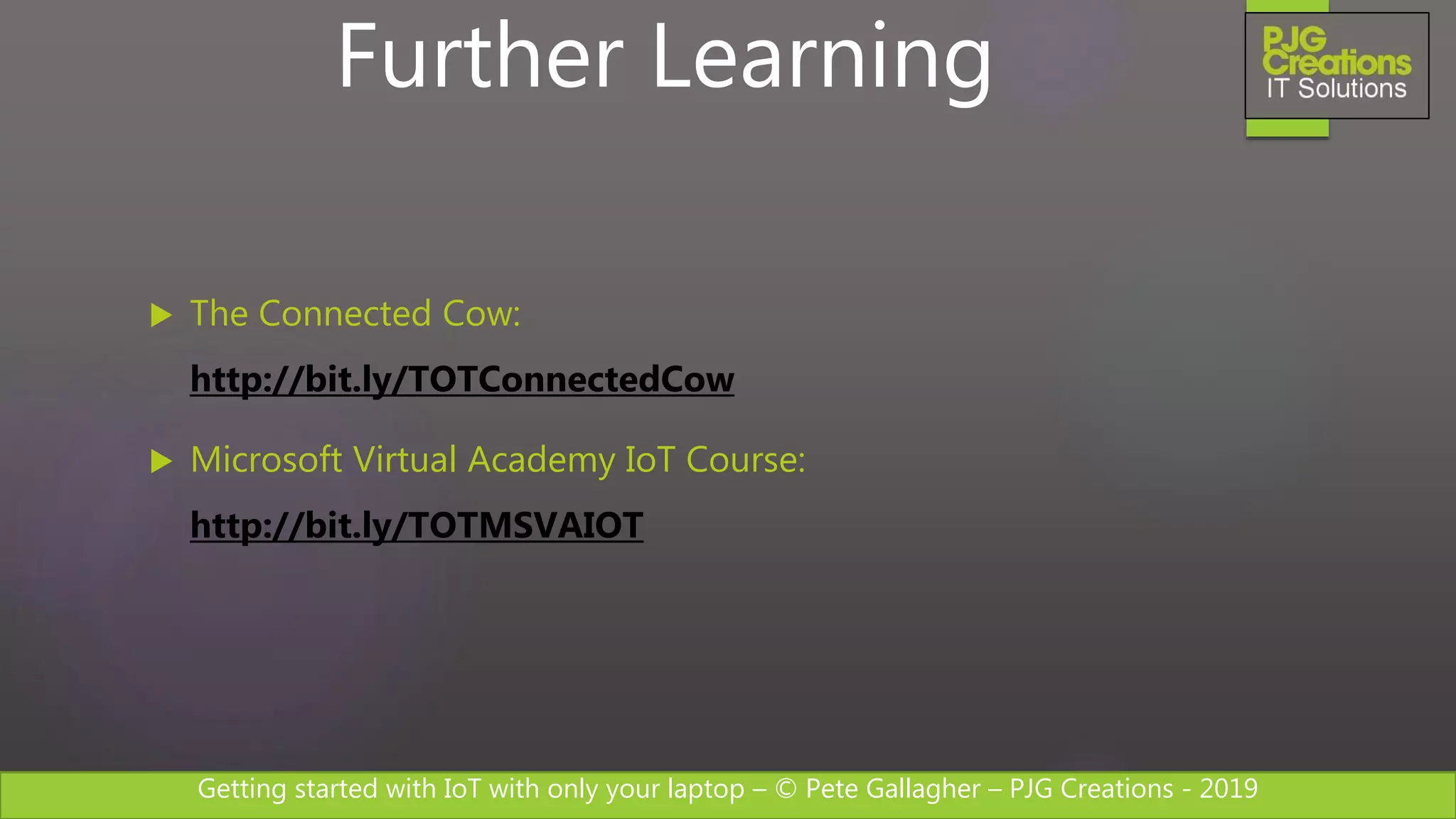

 The Connected Cow:
http://bit.ly/TOTConnectedCow
 Microsoft Virtual Academy IoT Course:
http://bit.ly/TOTMSVAIOT
Further Learning

67. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019

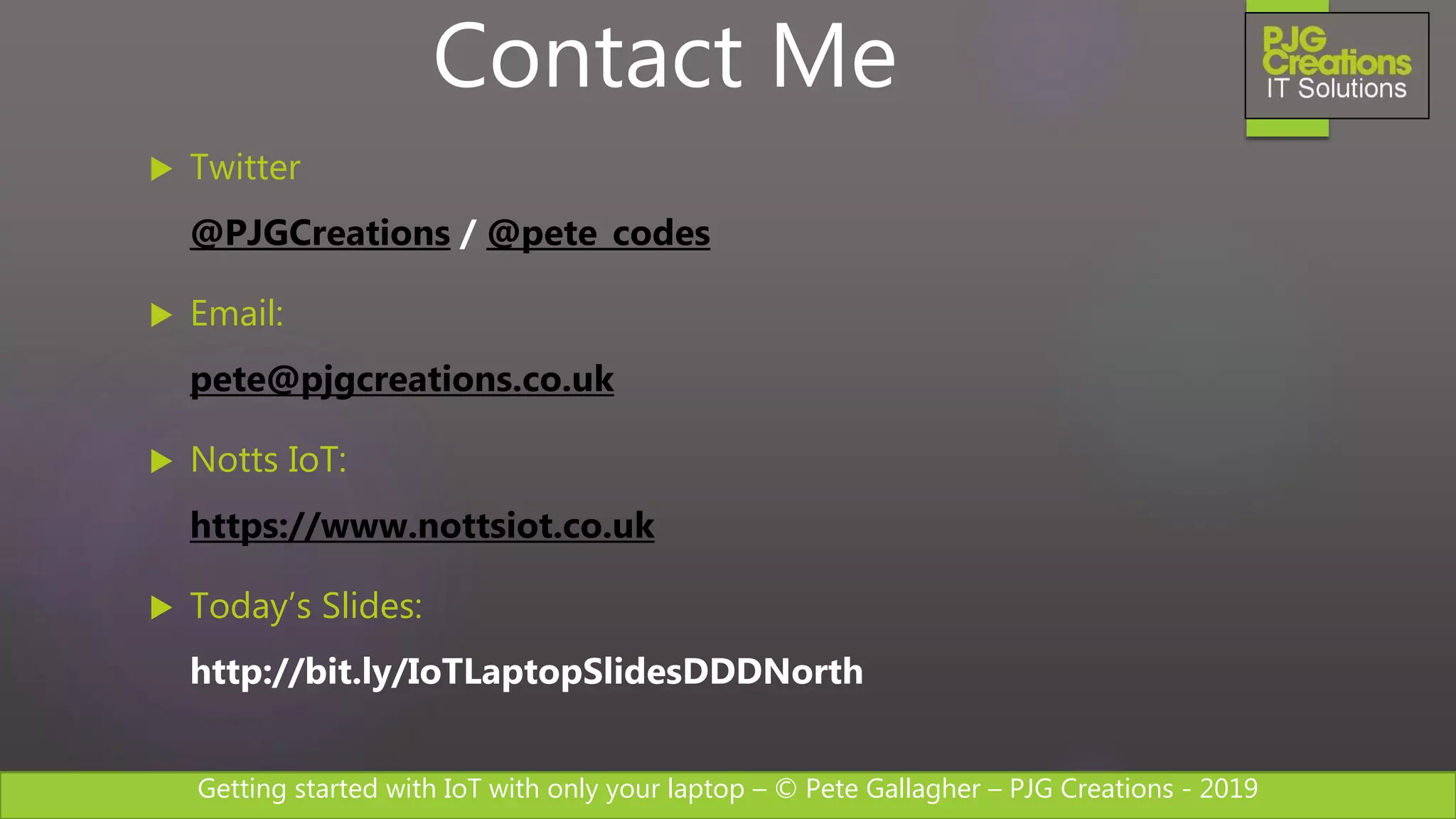

 Twitter
@PJGCreations / @pete_codes
 Email:
pete@pjgcreations.co.uk
 Notts IoT:
https://www.nottsiot.co.uk
 Today’s Slides:
http://bit.ly/IoTLaptopSlidesDDDNorth
Contact Me

68. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
Confused… Just Ask!

69. Getting started with IoT with only your laptop – © Pete Gallagher – PJG Creations - 2019
