1. DOCKER SANDBOXES FOR MARIADB
IVAN ZLATOUSTOV
Senior Engineer
MariaDB Corporation

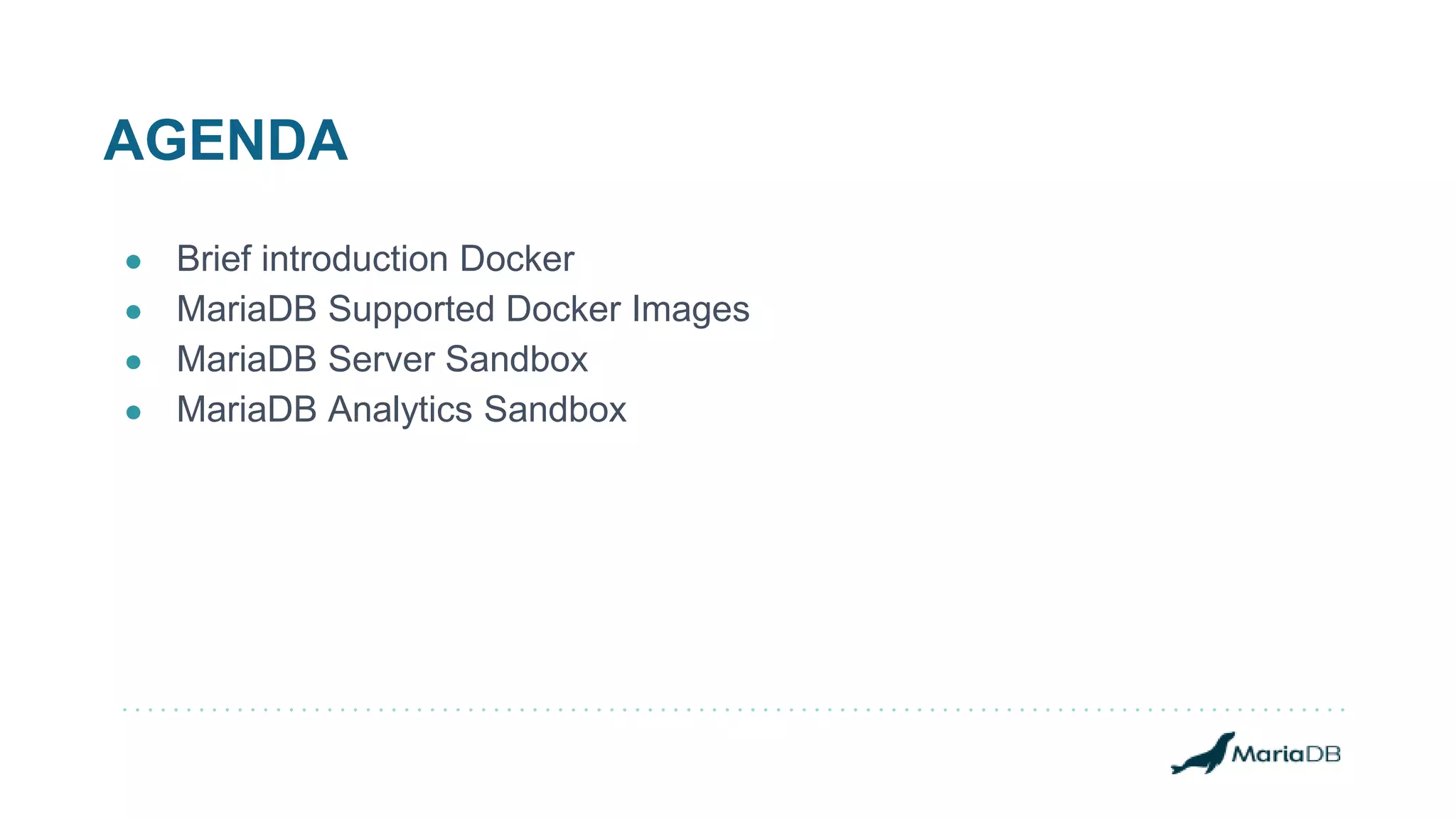

2. AGENDA
● Brief introduction Docker
● MariaDB Supported Docker Images
● MariaDB Server Sandbox
● MariaDB Analytics Sandbox

3. DOCKER
Docker performs operating-system-level virtualization
also known as "containerization".
Makes it easier to create, deploy, and run applications by using containers.
It allows a developer to package up an application with all of the parts it
needs.

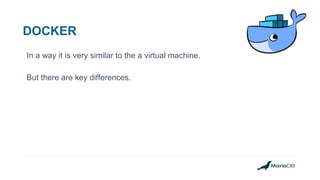

4. DOCKER
In a way it is very similar to the a virtual machine.
But there are key differences.

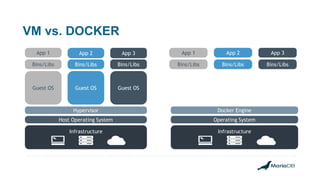

5. VM vs. DOCKER
App 1 App 2 App 3
Bins/Libs Bins/Libs Bins/Libs
Guest OS Guest OS Guest OS
Hypervisor
Host Operating System
Infrastructure
Docker Engine
Operating System
Infrastructure
App 1 App 2 App 3
Bins/Libs Bins/Libs Bins/Libs

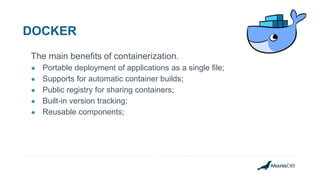

6. DOCKER
The main benefits of containerization.
● Portable deployment of applications as a single file;
● Supports for automatic container builds;
● Public registry for sharing containers;
● Built-in version tracking;
● Reusable components;

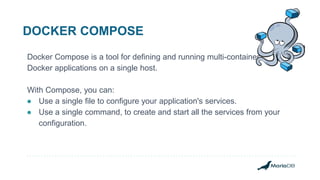

7. DOCKER COMPOSE
Docker Compose is a tool for defining and running multi-container
Docker applications on a single host.
With Compose, you can:
● Use a single file to configure your application's services.
● Use a single command, to create and start all the services from your
configuration.

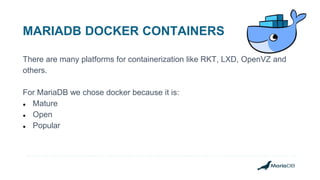

8. MARIADB DOCKER CONTAINERS
There are many platforms for containerization like RKT, LXD, OpenVZ and
others.
For MariaDB we chose docker because it is:
● Mature
● Open
● Popular

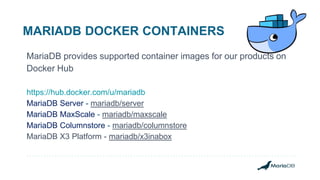

9. MARIADB DOCKER CONTAINERS
MariaDB provides supported container images for our products on
Docker Hub
https://hub.docker.com/u/mariadb
MariaDB Server - mariadb/server
MariaDB MaxScale - mariadb/maxscale
MariaDB Columnstore - mariadb/columnstore
MariaDB X3 Platform - mariadb/x3inabox

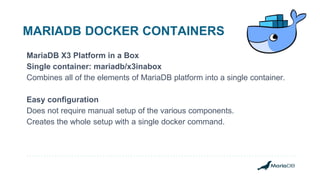

10. MARIADB DOCKER CONTAINERS
MariaDB X3 Platform in a Box
Single container: mariadb/x3inabox
Combines all of the elements of MariaDB platform into a single container.
Easy configuration
Does not require manual setup of the various components.
Creates the whole setup with a single docker command.

11. Place Image Here
MARIADB SANDBOX
Easy way to try MariaDB.
Easy to deploy.
Publicly available.

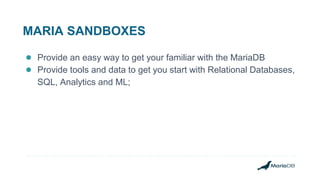

12. MARIA SANDBOXES
● Provide an easy way to get your familiar with the MariaDB
● Provide tools and data to get you start with Relational Databases,
SQL, Analytics and ML;

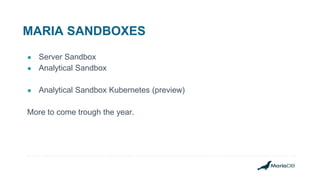

13. MARIA SANDBOXES
● Server Sandbox
● Analytical Sandbox
● Analytical Sandbox Kubernetes (preview)
More to come trough the year.

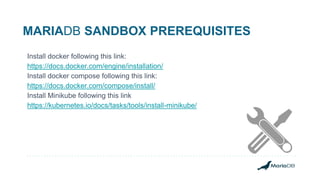

14. MARIADB SANDBOX PREREQUISITES
Install docker following this link:
https://docs.docker.com/engine/installation/
Install docker compose following this link:
https://docs.docker.com/compose/install/
Install Minikube following this link
https://kubernetes.io/docs/tasks/tools/install-minikube/

15. MariaDB Server
Sandbox

16. MARIADB SERVER SANDBOX

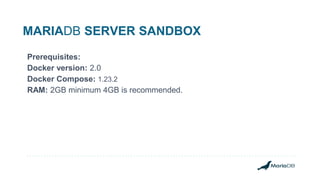

17. MARIADB SERVER SANDBOX
Prerequisites:
Docker version: 2.0
Docker Compose: 1.23.2
RAM: 2GB minimum 4GB is recommended.

18. Place Image HereHANDS-ON SESSION
MARIADB SERVER SANDBOX

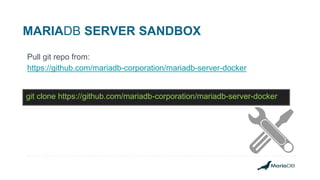

19. MARIADB SERVER SANDBOX
Pull git repo from:
https://github.com/mariadb-corporation/mariadb-server-docker
git clone https://github.com/mariadb-corporation/mariadb-server-docker

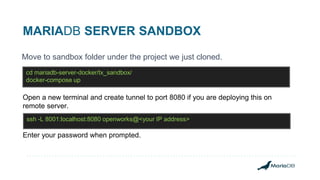

20. MARIADB SERVER SANDBOX
Move to sandbox folder under the project we just cloned.
cd mariadb-server-docker/tx_sandbox/
docker-compose up
Open a new terminal and create tunnel to port 8080 if you are deploying this on
remote server.
ssh -L 8001:localhost:8080 openworks@<your IP address>
Enter your password when prompted.

21. MARIADB SERVER SANDBOX
Navigate to http://127.0.0.1:8080
Username: sandbox
DB name: bookstore
Password: highlyillogical

22. MARIADB SERVER SANDBOX
Or we can use the command line client on the same container:
docker container ls --filter "name=sandbox"
docker exec -it tx_sandbox_server_1 mysql -hlocalhost -usandbox -
phighlyillogical -D bookstore

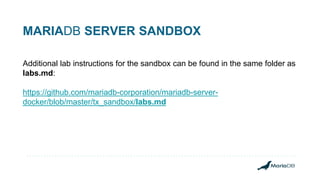

23. MARIADB SERVER SANDBOX
Additional lab instructions for the sandbox can be found in the same folder as
labs.md:
https://github.com/mariadb-corporation/mariadb-server-
docker/blob/master/tx_sandbox/labs.md

24. MARIADB SERVER SANDBOX
Clean up
Bring down the cluster and remove all volumes
docker network prune
docker-compose down –v
p

25. MariaDB Analytics
Sandbox

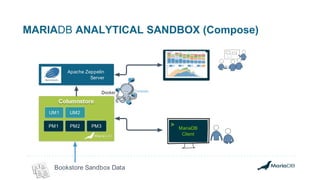

26. MARIADB ANALYTICAL SANDBOX (Compose)
MariaDB
Client
>
Bookstore Sandbox Data
UM1 UM2
PM1 PM2
Columnstore
PM3
Apache Zeppelin
Server

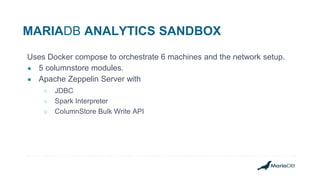

27. MARIADB ANALYTICS SANDBOX
Uses Docker compose to orchestrate 6 machines and the network setup.
● 5 columnstore modules.
● Apache Zeppelin Server with
○ JDBC
○ Spark Interpreter
○ ColumnStore Bulk Write API

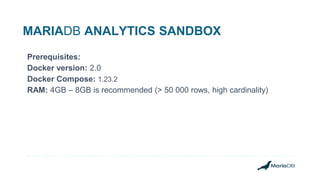

28. MARIADB ANALYTICS SANDBOX
Prerequisites:
Docker version: 2.0
Docker Compose: 1.23.2
RAM: 4GB – 8GB is recommended (> 50 000 rows, high cardinality)

29. MARIADB ANALYTICS SANDBOX
Based on MariaDB Columnstore setup. (2UM 3PM)
Apache Zeppelin Server with sandbox notebooks.
Preloaded with data to play with.
transactions: 11,279,171
addresses: 2,666,749
emails: 2,566,571
phones: 2,427,033
customers: 2,005,397
cards: 1,604,661
loyaltypoints: 923008
books: 5001

30. Place Image HereHANDS ON SESSION
MARIADB ANALYTICAL SANDBOX

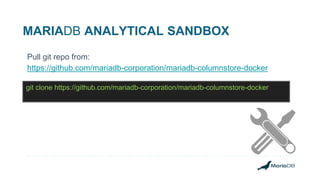

31. MARIADB ANALYTICAL SANDBOX
Pull git repo from:
https://github.com/mariadb-corporation/mariadb-columnstore-docker
git clone https://github.com/mariadb-corporation/mariadb-columnstore-docker

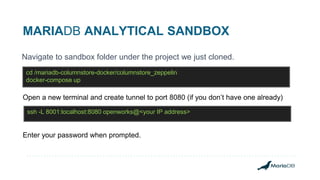

32. MARIADB ANALYTICAL SANDBOX
Navigate to sandbox folder under the project we just cloned.
cd /mariadb-columnstore-docker/columnstore_zeppelin
docker-compose up
Open a new terminal and create tunnel to port 8080 (if you don’t have one already)
ssh -L 8001:localhost:8080 openworks@<your IP address>
Enter your password when prompted.

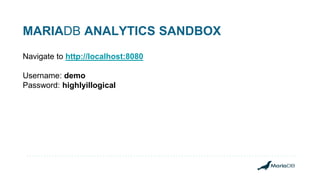

33. MARIADB ANALYTICS SANDBOX
Navigate to http://localhost:8080
Username: demo
Password: highlyillogical

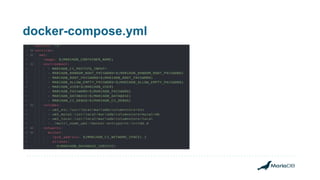

34. docker-compose.yml

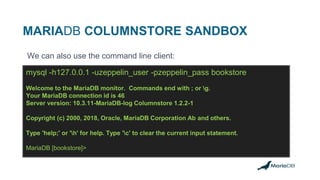

35. MARIADB COLUMNSTORE SANDBOX
We can also use the command line client:
mysql -h127.0.0.1 -uzeppelin_user -pzeppelin_pass bookstore
Welcome to the MariaDB monitor. Commands end with ; or g.
Your MariaDB connection id is 46
Server version: 10.3.11-MariaDB-log Columnstore 1.2.2-1
Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.
Type 'help;' or 'h' for help. Type 'c' to clear the current input statement.
MariaDB [bookstore]>

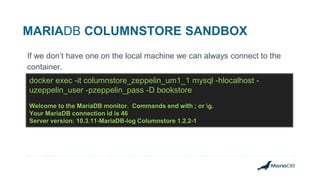

36. MARIADB COLUMNSTORE SANDBOX
If we don’t have one on the local machine we can always connect to the
container.
docker exec -it columnstore_zeppelin_um1_1 mysql -hlocalhost -
uzeppelin_user -pzeppelin_pass -D bookstore
Welcome to the MariaDB monitor. Commands end with ; or g.
Your MariaDB connection id is 46
Server version: 10.3.11-MariaDB-log Columnstore 1.2.2-1

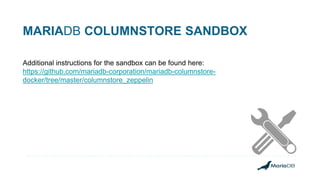

37. MARIADB COLUMNSTORE SANDBOX
Additional instructions for the sandbox can be found here:
https://github.com/mariadb-corporation/mariadb-columnstore-
docker/tree/master/columnstore_zeppelin

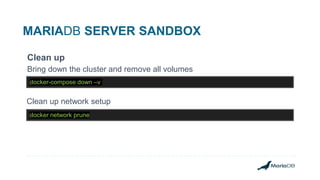

38. MARIADB SERVER SANDBOX
Clean up
Bring down the cluster and remove all volumes
docker network prune
docker-compose down –v
Clean up network setup

39. MariaDB Analytics
Sandbox in Kubernetes

40. MARIADB COLUMNSTORE SANDBOX (Kubernetes)
Database Management Tool
MariaDB
Client
>
Bookstore Sandbox Data
UM1 UM2
PM1 PM2
Columnstore
PM3
Apache Zeppelin
Server

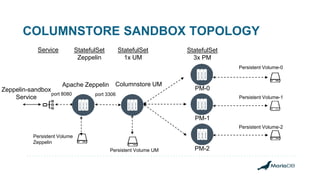

41. COLUMNSTORE SANDBOX TOPOLOGY
port 3306
Zeppelin-sandbox
Service
Columnstore UM
PM-0
Persistent Volume-0
PM-1
PM-2
Service StatefulSet
1x UM
StatefulSet
3x PM
Persistent Volume-1
Persistent Volume-2
Persistent Volume UM
Apache Zeppelin
StatefulSet
Zeppelin
Persistent Volume
Zeppelin
port 8080

42. MARIADB SANDBOX GitHub Repos
sudo git clone https://github.com/mariadb-corporation/mariadb-server-
docker.git
sudo git clone https://github.com/mariadb-corporation/mariadb-
columnstore-docker.git
sudo git clone --single-branch --branch zeppelin_openworks_demo_k8s
https://github.com/mariadb-corporation/mariadb-kubernetes.git
