1. Boards für das IoT-Prototyping
Lars Gregori / SAP Hybris

2. Agenda
Microcontroller (MCU)
Microprocessor (MPU)
System on a Chip (SoC)

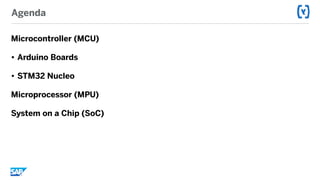

3. Agenda
Microcontroller (MCU)
• Arduino Boards
• STM32 Nucleo
Microprocessor (MPU)
System on a Chip (SoC)

4. Arduino / Genuino
http://www.arduino.cc/en/Main/Products

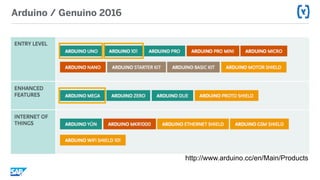

5. Arduino / Genuino 2016
http://www.arduino.cc/en/Main/Products

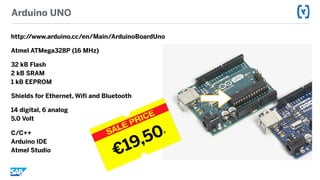

6. Arduino UNO
http://www.arduino.cc/en/Main/ArduinoBoardUno
Atmel ATMega328P (16 MHz)
32 kB Flash
2 kB SRAM
1 kB EEPROM
Shields for Ethernet, Wifi and Bluetooth
14 digital, 6 analog
5.0 Volt
C/C++
Arduino IDE
Atmel Studio
€19,50R

7. DEMO

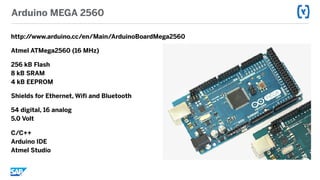

8. Arduino MEGA 2560
http://www.arduino.cc/en/Main/ArduinoBoardMega2560
Atmel ATMega2560 (16 MHz)
256 kB Flash
8 kB SRAM
4 kB EEPROM
Shields for Ethernet, Wifi and Bluetooth
54 digital, 16 analog
5.0 Volt
C/C++
Arduino IDE
Atmel Studio

9. Arduino MEGA 2560
http://www.arduino.cc/en/Main/ArduinoBoardMega2560
Atmel ATMega2560 (16 MHz)
256 kB Flash
8 kB SRAM
4 kB EEPROM
Shields for Ethernet, Wifi and Bluetooth
54 digital, 16 analog
5.0 Volt
C/C++
Arduino IDE
Atmel Studio
€34,90R

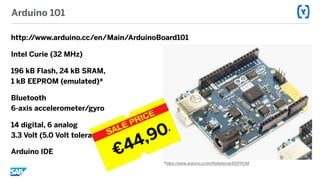

10. Arduino 101
http://www.arduino.cc/en/Main/ArduinoBoard101
Intel Curie (32 MHz)
196 kB Flash, 24 kB SRAM,
1 kB EEPROM (emulated)*
Bluetooth
6-axis accelerometer/gyro
14 digital, 6 analog
3.3 Volt (5.0 Volt tolerant)
Arduino IDE
*https://www.arduino.cc/en/Reference/EEPROM
€44,90R

11. DEMO

12. STMicroelectronics

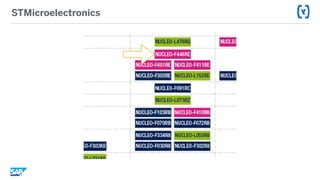

13. STMicroelectronics

14. STM32 Nucleo-F446RE
http://www.st.com/web/catalog/tools/FM116/SC959/SS1532/LN1847
STM32 STM32F446RET6
ARM Cortex-M4 32-bit (180 MHz)
512 kB Flash
128 kB SRAM
configurable /w CubeMX
3.3 Volt
C/C++
IAR EWARM, Keil MDK-ARM,
mbed and GCC/LLVM-based IDEs€13,93D

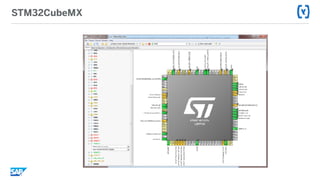

15. STM32CubeMX

16. DEMO

17. Agenda
Microcontroller (MCU)
Microprocessor (MPU)
• Raspberry Pi 3
• 96 Boards — Bubblegum 96
System on a Chip (SoC)

18. Microcontroller (MCU) vs Microprocessor (MPU)
Microprocessor (MPU) or Microcontroller (MCU)?
What factors should you consider when selecting the
right processing device for your next design
http://www.atmel.com/Images/MCU_vs_MPU_Article.pdf

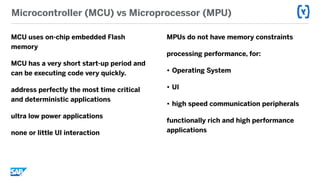

19. Microcontroller (MCU) vs Microprocessor (MPU)
MCU uses on-chip embedded Flash
memory
MCU has a very short start-up period and
can be executing code very quickly.
address perfectly the most time critical
and deterministic applications
ultra low power applications
none or little UI interaction
MPUs do not have memory constraints
processing performance, for:
• Operating System
• UI
• high speed communication peripherals
functionally rich and high performance
applications

20. Raspberry Pi 3
https://www.raspberrypi.org/
Quad-core ARM Cortex-A53 1.2 GHz
1 GB RAM, SD-Card
Ethernet, Wifi and Bluetooth
40 GPIO Pins (3.3 Volt)
Audio and Video (HDMI)
Linux (Debian, Ubuntu)
Windows 10 IoT Core
Android Things
FreeBSD €37,50R

21. DEMO

22. 96 Boards — Bubblegum 96
http://www.96boards.org/product/bubblegum-96/
Quad-core ARM Cortex-A53 1.8 GHz
2 GB RAM, 8 GB eMMC, SD-Card
Wifi and Bluetooth
40 + 60 Pins
HDMI Ultra 4K
Linux (Debian)
Android 5.1
Remix OS
$89.00U

23. Agenda
Microcontroller (MCU)
Microprocessor (MPU)
System on a Chip (SoC)
• Intel Edison
• ESP8266
• LightBlue Bean

24. System on a Chip (SoC)
Single chip integrates:
• Integrated Circuit (IC)
• components of a computer

25. Intel Edison
http://www.intel.com/content/www/us/en/do-it-yourself/edison.html
Intel Atom 2-Core 500 MHz
Intel Quark 100 MHz
4 GB eMMC
1 GB RAM
Wifi and Bluetooth
20 digital (6 analog)
Yocto Linux, Android Things
C, C++, Python, NodeJS, Wolfram Language
Arduino IDE, Eclipse, Intel XDK, Wolfram$72.50S

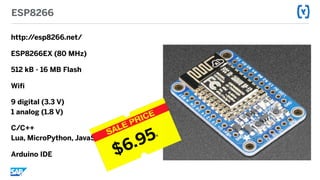

26. ESP8266
http://esp8266.net/
ESP8266EX (80 MHz)
512 kB - 16 MB Flash
Wifi
9 digital (3.3 V)
1 analog (1.8 V)
C/C++
Lua, MicroPython, JavaScript
Arduino IDE $6.95A

27. DEMO

28. LightBlue Bean
https://punchthrough.com/bean/
ATMega328p (8 MHz)
CC2540 Bluetooth SoC
32KB Flash
2KB SRAM
6 digital
2 analog
C/C++
Arduino IDE $30.00P

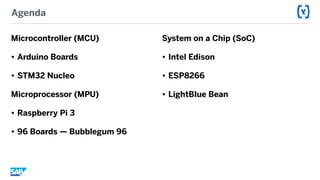

29. Agenda
Microcontroller (MCU)
• Arduino Boards
• STM32 Nucleo
Microprocessor (MPU)
• Raspberry Pi 3
• 96 Boards — Bubblegum 96
System on a Chip (SoC)
• Intel Edison
• ESP8266
• LightBlue Bean

30. Thank you!
Lars Gregori / SAP Hybris
