The Compute Module 3 is a Raspberry Pi 3 in a more flexible form factor, intended for industrial application
Learn about 10 popular products developed using Raspberry Pi compute module and bonus, four low-cost development board for the compute module.
If you are looking for Practical Embedded System Design Tips, read some of the articles here: https://pallavaggarwal.in/learn-embedded-system/
2. 1. Revolution Pi Industrial PC
Product Page Link
Learn Practical Tips for Embedded System Design

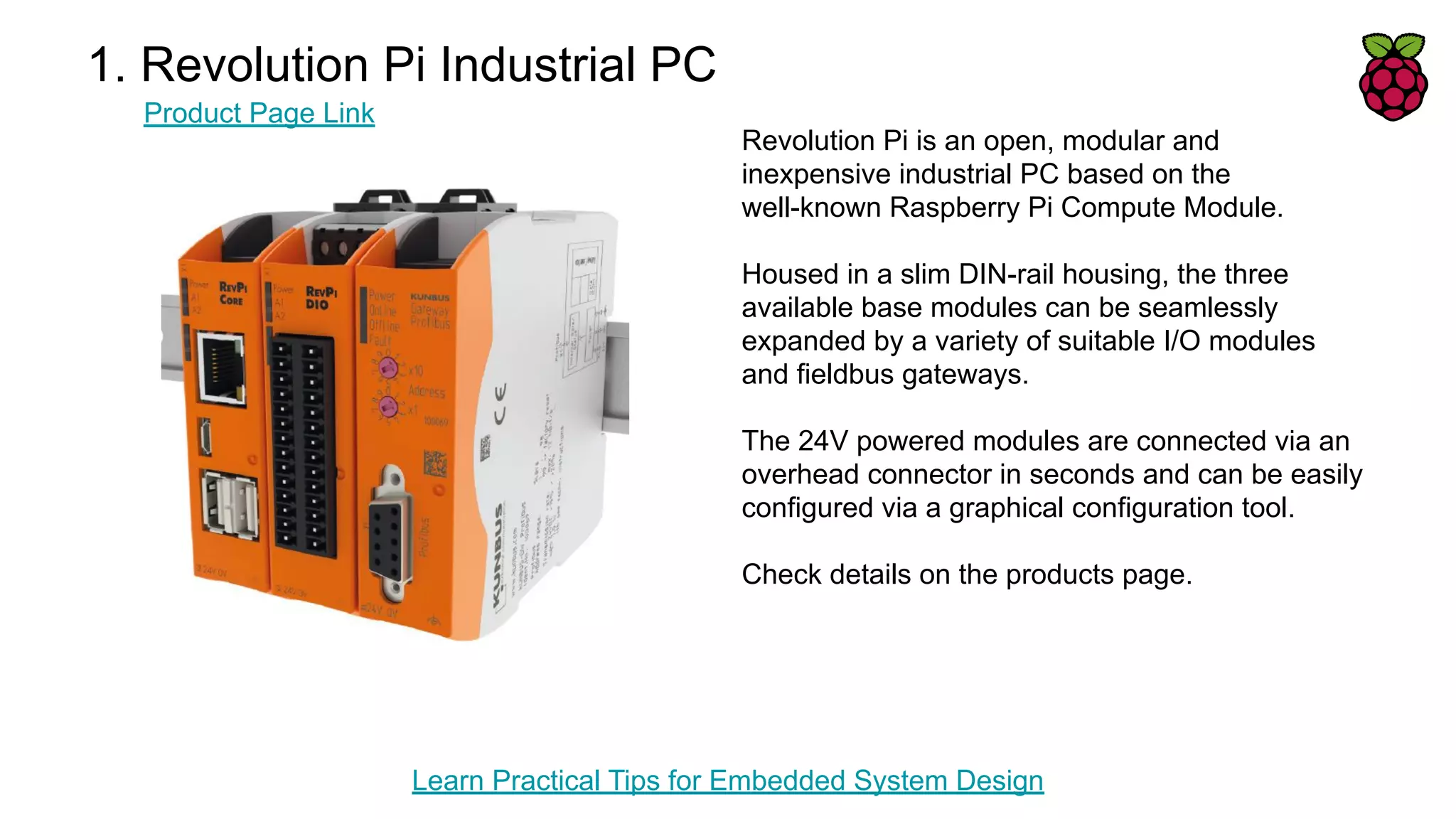

Revolution Pi is an open, modular and
inexpensive industrial PC based on the
well-known Raspberry Pi Compute Module.
Housed in a slim DIN-rail housing, the three
available base modules can be seamlessly
expanded by a variety of suitable I/O modules
and fieldbus gateways.
The 24V powered modules are connected via an
overhead connector in seconds and can be easily
configured via a graphical configuration tool.
Check details on the products page.
3. 2. Strato Pi CM Server / Industrial Controller
Product Page Link
Learn Practical Tips for Embedded System Design
Strato Pi enhances the Raspberry Pi computer
with several hardware features to make it suitable
for use in professional and industrial applications
where reliability and service continuity are key
requirements
● Power Supply
● UPS
● Real Time Clock
● RS-232/RS-485/CAN bus
● Relay
● Hardware Watchdog
● DIN-Rail Case
● CE/FCC/ICES/CISPR Compliant
● RoHS Compliant
Check different models with different features on
the products page.
4. 3. ModBerry 500 - Industrial computer
Product Page Link
● Energy efficiency achieved with use of
Raspberry Pi Compute Module, which
allows to use power saving modes to lower
power consumption and therefore lower the
costs
● High performance reached with Broadcom
700 MHz processor, powered by Raspberry
Pi SO-DIMM, allows using ModBerry 500
device for specific application, like smart
grid remote control
● Powered by Raspberry Pi Foundation and
Community Support, for wider range of
software/application support - using
Raspberry Pi module gives a huge kick start
of software development, thanks to wide
Raspberry Pi Community
● Economic solution for industrial automation
systems
Learn Practical Tips for Embedded System Design
5. 4. Telegea Smart Hub
Product Page Link
Learn Practical Tips for Embedded System Design
The Telegea Smart Hub is designed to be a
gateway between the real world and the
communication network targeted mainly at IoT
applications. It is a custom hardware built around
the Raspberry Pi Compute Module and therefore
compatible with the software from the vast
Raspberry Pi ecosystem
● Ethernet port (100BASE-TX)
● RS485 serial port (Modbus, BACnet)
● RS232 serial debug port
● Wifi 802.11 b/g/n a 2.4 GHz (optional)
● 6 digital inputs via screw terminals (for dry
contacts or S0 interface)
● 4 analog inputs (0-5V) via screw terminals
● Dallas 1-wire bus via screw terminals
● 5VDC via micro USB connector (on
request)
● 9-30VAC/VDC via screw terminals
Check more details on the product page
6. 5. Compulab IOT-GATE-RPi - Raspberry Pi IoT Computer
Product Page Link
Learn Practical Tips for Embedded System Design
● Powered by Raspberry Pi 3 Compute
Module
● Broadcom BCM2837 CPU, quad-core
Cortex-A53
● 1GB LPDDR2 and up-to 64GB eMMC
● 3G/LTE modem and WiFi b/g/n
● 2x Ethernet, 4x USB2, RS485, RS232, CAN
● Miniature size – 112 x 84 x 25 mm
● Custom I/O expansions with RPi HAT
add-ons
7. 6. Kontron KBox A-330-RPI Industrial Box PC
Product Page Link
Learn Practical Tips for Embedded System Design
Compact Industrial Box PC based ON Raspberry
Pi Compute Module for the TOP RAIL - for
Control and Gateway Applications.
● Based on BROADCOM BCM2837B0 Quad
Core Arm® A53 processor / Raspberry Pi
Module CM3+
● Supported by huge community based open
source software pool
● Fanless compact design for DIN rail, ideal
for control cabinet applications
● Industrial grade, 8+ years availability
8. 7. CM3-Home - Home Automation board
Product Page Link
CM3-Home is a Raspberry Pi Compute Module 3
motherboard designed to provide a reliable Home
Automation hardware equipped with a wide range
of electrical interfaces
● Power-in @ 12 to 24VDC
● 2 USB 2.0 host port
● 1 Ethernet port at 10/100Mbit
● 1 Stereo audio out on 3.5 mm jack
● 1 Camera connector
● 1 Debug serial console port
● 1 Generic serial port
● 2 Low voltage relay
● 1 One-Wire bus
● 2 Opto-isolated dry contact inputs
● 2 Opto-isolated RS-485 bus
● 1 Seeedstudio Grove connector (I2C or
GPIO)
Learn Practical Tips for Embedded System Design
9. 8. Panel PC using Raspberry Compute Module 3 lite
Product Page Link
● 800 x 480 pixel 7 inch TFT panel with 10
points capacitive touch
● MIPI connector for Raspberry Pi Camera
● Provision for an USB WiFi module @ 2.4
GHz OR for an USB host connector
● Provision for a Yarm radio module
● Up to 24 GPIO lines available for
extensions or
● Lcd backlight control (-1 GPIO)
● Camera led and camera shutdown control
(-2 GPIO)
● SPI bus (-5 GPIO)
● Hardware PWM lines (-2 GPIO)
● Serial line (-2 GPIO)
● PCM line (-4 GPIO)
● I2C bus (-2 GPIO)
● Operating temperature: -20° - +70°
Learn Practical Tips for Embedded System Design
10. 9. The balenaFin is a professional carrier board
Product Page Link
● Built around the Compute Module 3/3+ Lite,
a tried-and-true processor with a robust
developer ecosystem.
● On-board 8/16/32/64 GB industrial eMMC is
more reliable than SD cards
● 6 to 24V range (5V @2.5A via HAT) with
barrel jack and phoenix connector. PoE
compatible via HAT.
● Dual-band WiFi, Bluetooth, mini PCIe for
cellular modems and peripherals, and a SIM
card slot
● Embedded 32-bit ARM M4 co-processor
allows maximum power efficiency and
real-time computing
● Multiple interfaces to fit any use case:
Raspberry Pi HAT compatible, HDMI, MIPI,
I2C, SPI, UART and GPIO
● Professional Cloud Platform
Learn Practical Tips for Embedded System Design
11. 10. MyPi Industrial IoT Integrator Board
Product Page Link
Learn Practical Tips for Embedded System Design
● Raspberry Pi Compute Module 1 & 3/3+
compatible
● HDMI, 10/100 Ethernet,2 x USB 2.0 HOST
● Mini PCI-e Interface + SIM connector For
use with cellular modems
● Ruggedised High Speed USB based µSD
Card interface, providing additional storage
separate from the OS file system.
● Integrated USB RS232 UART using RJ45
● Integrated battery backed (RTC)
● 1.6s hardware watchdog
● 8 Way 2 part 3.5mm Phoenix industrial
connector for use with Modular IO Card
Outputs or HAT board
● Wide 7-24V (poly-fused and filtered) DC
power input range
● Core PCB Size : 125 x 142mm
Check the product page for more details
12. Learn Practical Tips for Embedded System Design
BONUS!
4 Low Cost
Development Boards
for Raspberry Pi
Compute Module
13. 1. Waveshare Electronics Computer Module IO Board
Product Page Link
The Compute Module IO Board Plus is a
development board which you can plug a
Raspberry Pi Compute Module into, and make
use of the resources of Pi more flexibly
● Raspberry Pi GPIO header, for connecting
sorts of Raspberry Pi HATs
● Arduino connectivity, also supports Arduino
shields
● 1-WIRE interface, 4x keys, 4x LEDs, 1x
Buzzer, for I/O testing
● Onboard USB HUB, allows connecting
more USB devices, Onboard USB TO
UART, for serial debugging
● IR receiver, IR remote control is available
● 10-bit ADC, 38KSPS, 11-ch (6-ch for
Arduino interface, 5-ch for sensors), 16-bit
DAC, 2-ch
● Onboard RTC, one of the most common
and useful functions
Learn Practical Tips for Embedded System Design
14. 2. Gumstix Pi Compute Dev Board
Product Page Link
Learn Practical Tips for Embedded System Design
Gumstix Pi Compute Dev Board is a complete
multimedia expansion board for the Raspberry
Pi Compute Module featuring DSI display and
CSI2 camera connectors. This board is ideal if
you are looking to prototype portable devices
and IoT boards with camera and HDMI
capabilities
● CSI2 connector to connect the board to a
Raspberry Pi Camera using an appropriate
ribbon cable
● HDMI type A port
● DSI connector to connect the board to a
Raspberry Pi Display using an appropriate
ribbon cable
● Dual PWM header
● Micro B USB Plug
● USB 2.0 type A Jack
● 20-pin Header with 16 GPIOs.
Check the product page for more details
15. 3. Ivport Stereo CM Breakout Board
Product Page Link
Ivport Stereo CM is breakout board that you can
plug a Raspberry Pi Compute Modules into.
It comes with two Camera ports, 10/100M
Ethernet, dual USB 2.0 ports, Classic Raspberry
Pi GPIO header, HDMI output, microSD slot and
PoE.
Learn Practical Tips for Embedded System Design
16. 4. Raspberry Pi CM3+/CM3/CM3L IO Expansion Board
Product Page Link
● Raspberry Pi IO expansion board
● Support CM3+, CM3 (build in 4GB NAND
Flash), support CM3L (TF card slot has a
place to use)
● Support power the board via battery, can
read battery capacity by programing
● Support RTC (need to power the board via
PH2.0 battery port)
● Support CSI/DSI
● Support OTG interface (via Micro USB Port
for data)
Learn Practical Tips for Embedded System Design
