For ASA, we need one more angle or side correspondence. For SAS, we need the included angle correspondence. For AAS, we need one more side correspondence.

1. Proving Triangles
Congruent
Free powerpoints at http://www.worldofteaching.com

2. The Idea of a Congruence
Two geometric figures with
exactly the same size and
shape.
F
B
A C E D

3. How much do you
need to know. . .
. . . about two triangles
to prove that they
are congruent?

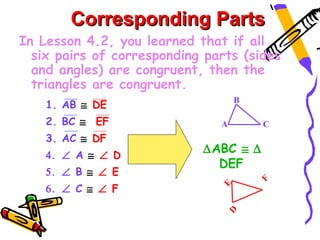

4. Corresponding Parts
In Lesson 4.2, you learned that if all
six pairs of corresponding parts (sides
and angles) are congruent, then the
triangles are congruent.
B
1. AB ≅ DE
2. BC ≅ EF A C
3. AC ≅ DF
4. ∠ A ≅ ∠ D
∆ABC ≅ ∆
DEF
5. ∠ B ≅ ∠ E
F
6. ∠ C ≅ ∠ F
E
D

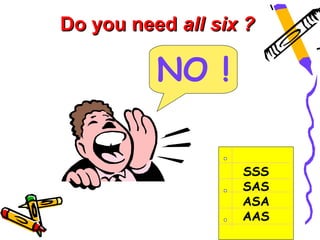

5. Do you need all six ?
NO !
SSS
SAS
ASA
AAS

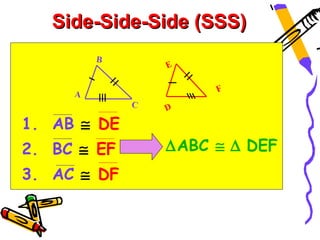

6. Side-Side-Side (SSS)
B
E
A F
C D
1. AB ≅ DE
2. BC ≅ EF ∆ABC ≅ ∆ DEF
3. AC ≅ DF

7. Side-Angle-Side (SAS)
B
E
A F
C D
1. AB ≅ DE
2. ∠A ≅ ∠ D ∆ABC ≅ ∆ DEF
3. AC ≅ DF
included
angle

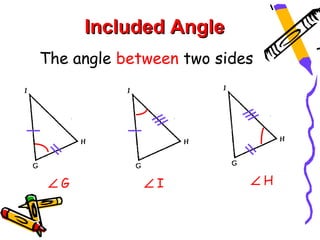

8. Included Angle
The angle between two sides
∠G ∠I ∠H

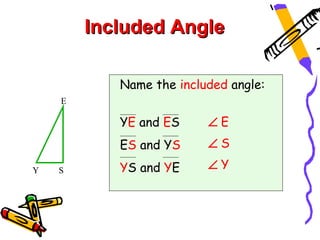

9. Included Angle
Name the included angle:
E
YE and ES ∠E
ES and YS ∠S
Y S YS and YE ∠Y

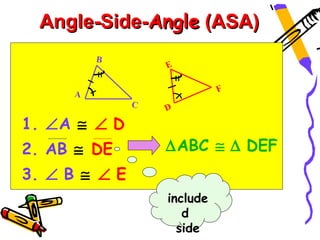

10. Angle-Side-Angle (ASA)
B
E
A F
C D
1. ∠A ≅ ∠ D
2. AB ≅ DE ∆ABC ≅ ∆ DEF
3. ∠ B ≅ ∠ E
include
d
side

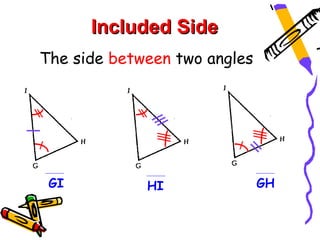

11. Included Side
The side between two angles
GI HI GH

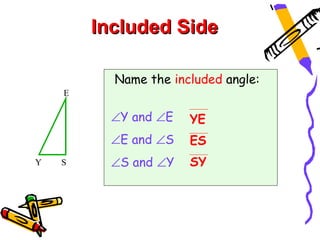

12. Included Side
Name the included angle:
E
∠Y and ∠E YE
∠E and ∠S ES
Y S ∠S and ∠Y SY

13. Angle-Angle-Side (AAS)
B
E
A F
C D
1. ∠A ≅ ∠ D
2. ∠ B ≅ ∠ E ∆ABC ≅ ∆ DEF
3. BC ≅ EF
Non-included
side

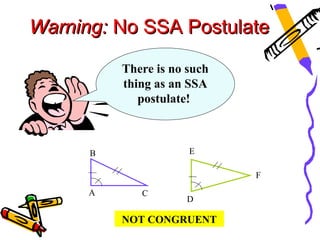

14. Warning: No SSA Postulate
There is no such
thing as an SSA
postulate!
B E
F
A C
D
NOT CONGRUENT

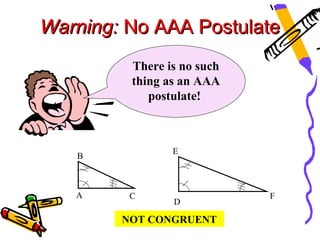

15. Warning: No AAA Postulate
There is no such
thing as an AAA
postulate!
E
B
A C F
D
NOT CONGRUENT

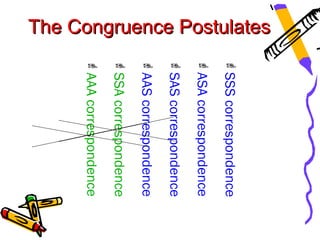

16. The Congruence Postulates
 SSS correspondence
 ASA correspondence
 SAS correspondence
 AAS correspondence
 SSA correspondence
 AAA correspondence

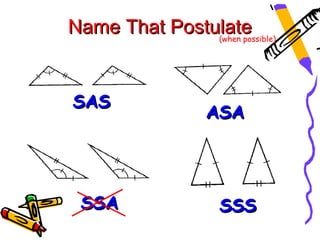

17. Name That Postulate
(when possible)
SAS
ASA
SSA SSS

18. Name That Postulate
(when possible)
AAA
ASA
SAS SSA

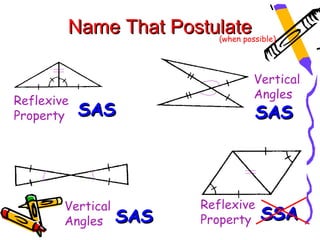

19. Name That Postulate
(when possible)
Vertical
Angles
Reflexive
Property SAS SAS
Vertical Reflexive
Angles SAS Property SSA

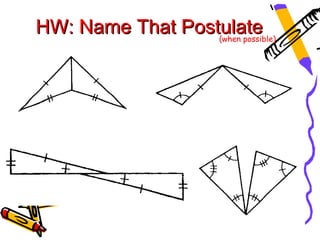

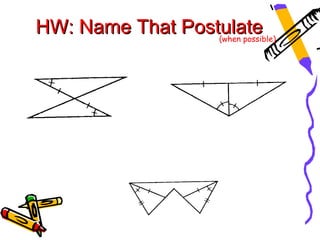

20. HW: Name That Postulate
(when possible)

21. HW: Name That Postulate
(when possible)

22. Let’s Practice
Indicate the additional information needed
to enable us to apply the specified
congruence postulate.
For ASA: ∠B ≅ ∠D
For SAS: AC ≅ FE
For AAS: ∠A ≅ ∠F

23. HW
Indicate the additional information needed
to enable us to apply the specified
congruence postulate.
For ASA:
For SAS:
For AAS:
