1. GEO ANALYTICS CANADA
Demonstration Platform Overview
April 2020

2. THE PROBLEM
• Satellite EO data is now too
big to analyze using
traditional desktop analytic
tools
• Impossible to analyze
satellite EO data over wide
areas and deep timeseries
using traditional tools

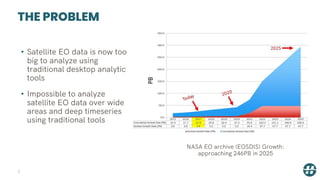

NASA EO archive (EOSDIS) Growth:
approaching 246PB in 2025
2

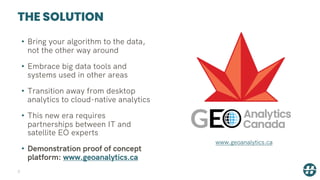

3. THE SOLUTION
• Bring your algorithm to the data,
not the other way around
• Embrace big data tools and
systems used in other areas
• Transition away from desktop
analytics to cloud-native analytics
• This new era requires
partnerships between IT and
satellite EO experts
• Demonstration proof of concept
platform: www.geoanalytics.ca
3
www.geoanalytics.ca

4. DEMONSTRATION PLATFORM ARCHITECTURE
4
• Based on Hatfield’s direct experience with
ESA big data analytic platforms:
• TEPs, DIAS, Oil and Gas Platform,
Energy Corridor monitoring platform,
etc.
• Informed by competitive analysis of other
internationally known platforms:
• OpenDataCube, Google Earth Engine,
Hexagon's M.appX, CS-SI’s GeoStorm,
FAO’s Sepal, EarthServer’s Rasdaman,
Terradue’s Ellip, EOS’s Platform,
DigitalGlobe’s GBDX, and
Radiant.Earth’s platform

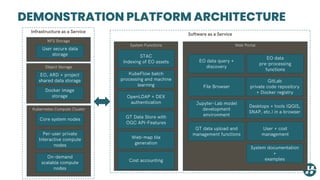

5. DEMONSTRATION PLATFORM ARCHITECTURE
Object Storage
EO, ARD + project
shared data storage
Kubernetes
On-Demand
Compute
Docker image
storage
System Functions
STAC
Indexing of EO assets
GT Data Store with
OGC API-Features
OpenLDAP + DEX
authentication
KubeFlow batch
processing and machine
learning
Kubernetes Compute Cluster
Core system nodes
Per-user private
Interactive compute
nodes
On-demand
scalable compute
nodes
Web Portal
GitLab
private code repository
+ Docker registry
Jupyter-Lab model
development
environment
System documentation
+
examples
Desktops + tools (QGIS,
SNAP, etc.) in a browser
GT data upload and
management functions
EO data query +
discovery
User + cost
management
Infrastructure as a Service
Software as a Service
Web-map tile
generation
EO data
pre-processing
functions
File Browser
NFS Storage
User secure data
storage
Cost accounting

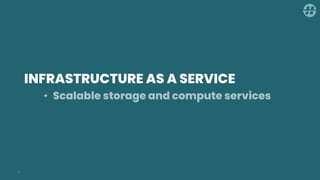

6. INFRASTRUCTURE AS A SERVICE
• Scalable storage and compute services
6

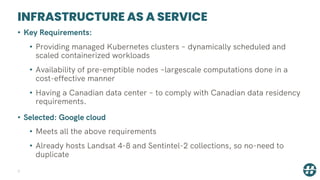

7. INFRASTRUCTURE AS A SERVICE
7
• Key Requirements:
• Providing managed Kubernetes clusters – dynamically scheduled and
scaled containerized workloads
• Availability of pre-emptible nodes –largescale computations done in a
cost-effective manner
• Having a Canadian data center – to comply with Canadian data residency
requirements.
• Selected: Google cloud
• Meets all the above requirements
• Already hosts Landsat 4-8 and Sentintel-2 collections, so no-need to
duplicate

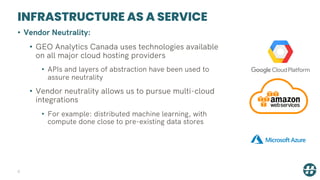

8. INFRASTRUCTURE AS A SERVICE
8
• Vendor Neutrality:
• GEO Analytics Canada uses technologies available
on all major cloud hosting providers
• APIs and layers of abstraction have been used to
assure neutrality
• Vendor neutrality allows us to pursue multi-cloud
integrations
• For example: distributed machine learning, with
compute done close to pre-existing data stores

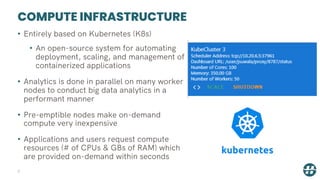

9. COMPUTE INFRASTRUCTURE
• Entirely based on Kubernetes (K8s)
• An open-source system for automating
deployment, scaling, and management of
containerized applications
• Analytics is done in parallel on many worker
nodes to conduct big data analytics in a
performant manner
• Pre-emptible nodes make on-demand
compute very inexpensive
• Applications and users request compute
resources (# of CPUs & GBs of RAM) which
are provided on-demand within seconds
9

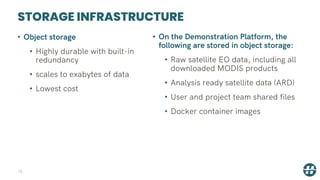

10. STORAGE INFRASTRUCTURE
10
• Object storage
• Highly durable with built-in
redundancy
• scales to exabytes of data
• Lowest cost
• On the Demonstration Platform, the
following are stored in object storage:
• Raw satellite EO data, including all
downloaded MODIS products
• Analysis ready satellite data (ARD)
• User and project team shared files
• Docker container images

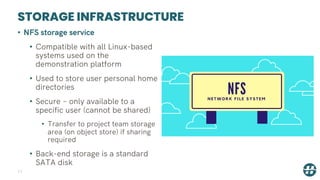

11. STORAGE INFRASTRUCTURE
11
• NFS storage service
• Compatible with all Linux-based
systems used on the
demonstration platform
• Used to store user personal home
directories
• Secure – only available to a
specific user (cannot be shared)
• Transfer to project team storage
area (on object store) if sharing
required
• Back-end storage is a standard
SATA disk

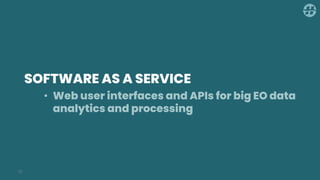

12. SOFTWARE AS A SERVICE
12
• Web user interfaces and APIs for big EO data
analytics and processing

13. Public website – www.geoanalytics.ca Demonstration Platform Landing Page
13

14. AUTHENTICATION, SECURITY AND USER
MANAGEMENT
• All applications and APIs require
users to be authenticated
• User management and profiles
through LDAP
• Single-Sign-On
• Uses industry standard OAuth 2
protocol
• Users only need to log in once to
gain access to all applications
• APIs require token to
authenticate

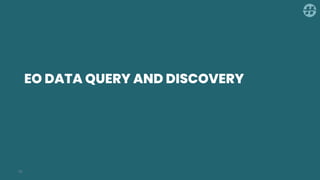

15. EO DATA QUERY AND DISCOVERY
15

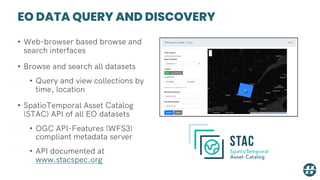

16. EO DATA QUERY AND DISCOVERY
• Web-browser based browse and
search interfaces
• Browse and search all datasets
• Query and view collections by
time, location
• SpatioTemporal Asset Catalog
(STAC) API of all EO datasets
• OGC API-Features (WFS3)
compliant metadata server
• API documented at
www.stacspec.org

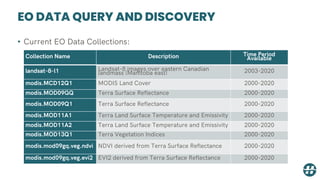

17. EO DATA QUERY AND DISCOVERY
• Current EO Data Collections:
Collection Name Description Time Period
Available
landsat-8-l1 Landsat-8 images over eastern Canadian
landmass (Manitoba east) 2003-2020
modis.MCD12Q1 MODIS Land Cover 2000-2020
modis.MOD09GQ Terra Surface Reflectance 2000-2020
modis.MOD09Q1 Terra Surface Reflectance 2000-2020
modis.MOD11A1 Terra Land Surface Temperature and Emissivity 2000-2020
modis.MOD11A2 Terra Land Surface Temperature and Emissivity 2000-2020
modis.MOD13Q1 Terra Vegetation Indices 2000-2020
modis.mod09gq.veg.ndvi NDVI derived from Terra Surface Reflectance 2000-2020
modis.mod09gq.veg.evi2 EVI2 derived from Terra Surface Reflectance 2000-2020

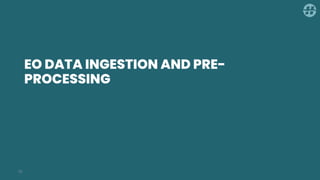

18. EO DATA INGESTION AND PRE-
PROCESSING
18

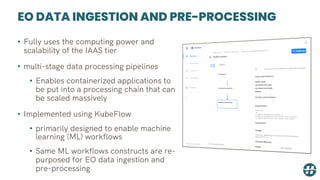

19. EO DATA INGESTION AND PRE-PROCESSING
• Fully uses the computing power and
scalability of the IAAS tier
• multi-stage data processing pipelines
• Enables containerized applications to
be put into a processing chain that can
be scaled massively
• Implemented using KubeFlow
• primarily designed to enable machine
learning (ML) workflows
• Same ML workflows constructs are re-
purposed for EO data ingestion and
pre-processing

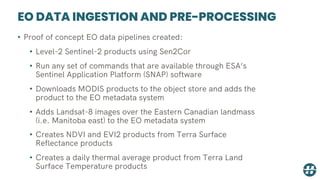

20. EO DATA INGESTION AND PRE-PROCESSING
• Proof of concept EO data pipelines created:
• Level-2 Sentinel-2 products using Sen2Cor
• Run any set of commands that are available through ESA’s
Sentinel Application Platform (SNAP) software
• Downloads MODIS products to the object store and adds the
product to the EO metadata system
• Adds Landsat-8 images over the Eastern Canadian landmass
(i.e. Manitoba east) to the EO metadata system
• Creates NDVI and EVI2 products from Terra Surface
Reflectance products
• Creates a daily thermal average product from Terra Land
Surface Temperature products

21. EO DATA INGESTION AND PRE-PROCESSING
• NDVI and EVI2 derived from Terra Surface
Reflectance Pipeline:
• Processing completed for all products available
between 2000-2020
• Results stored in object storage and indexed in
EO data query system
• Results available through all platform systems,
including EO data query and discovery system,
File Browser, desktop in a browser, etc.
• Runtime Example:
• 3 years of data (3 TB) processed in 13 hours
• 36 processing pods (1 per month), Each pod
is allocated 1vCPU, 5GB RAM
• Total cluster resources: 36vCPU, 180GB
RAM Viewing NDVI product using QGIS through the
‘desktop in a browser’ system

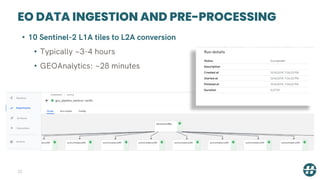

22. EO DATA INGESTION AND PRE-PROCESSING
22
• 10 Sentinel-2 L1A tiles to L2A conversion
• Typically ~3-4 hours
• GEOAnalytics: ~28 minutes

23. JUPYTER-LAB ANALYTIC ENVIRONMENT
23

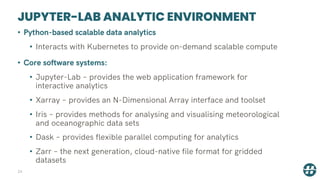

24. JUPYTER-LAB ANALYTIC ENVIRONMENT
24
• Python-based scalable data analytics
• Interacts with Kubernetes to provide on-demand scalable compute
• Core software systems:
• Jupyter-Lab – provides the web application framework for
interactive analytics
• Xarray – provides an N-Dimensional Array interface and toolset
• Iris – provides methods for analysing and visualising meteorological
and oceanographic data sets
• Dask – provides flexible parallel computing for analytics
• Zarr – the next generation, cloud-native file format for gridded
datasets

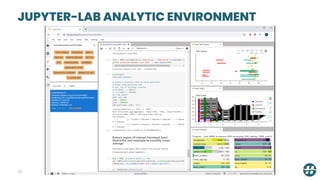

25. JUPYTER-LAB ANALYTIC ENVIRONMENT
25

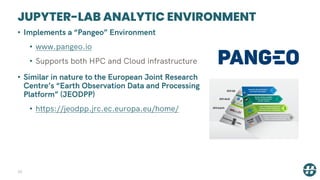

26. JUPYTER-LAB ANALYTIC ENVIRONMENT
26
• Implements a “Pangeo” Environment
• www.pangeo.io
• Supports both HPC and Cloud infrastructure
• Similar in nature to the European Joint Research
Centre’s “Earth Observation Data and Processing
Platform” (JEODPP)
• https://jeodpp.jrc.ec.europa.eu/home/

27. JUPYTER-LAB ANALYTIC ENVIRONMENT
27
• Hatfield has started a library
of example notebooks on how
to use the Jupyter-Lab
Environment
• Access Landsat data
through STAC API and
process/analyze it to
create an NDVI timeseries
• Query EO data hosted on
GEOAnalytics.ca using
OwsLib
https://github.com/geoanalytics-ca/example-notebooks

28. JUPYTER-LAB ANALYTIC ENVIRONMENT
28
• NDVI Landsat-8 Example Notebook:
• 30 nodes, 210GB RAM, 60 CPUs
• Random location close to Saint
Hyacinthe, QC
NDVI of 2018 acquisitions
mean NDVI

29. GITLAB PRIVATE CODE REPOSITORY AND
DOCKER REGISTRY
29

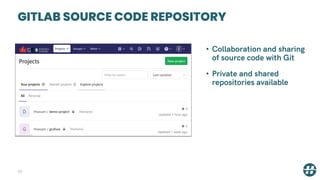

30. GITLAB SOURCE CODE REPOSITORY
30
• Collaboration and sharing
of source code with Git
• Private and shared
repositories available

31. DOCKER IMAGE STORE / CONTAINER REGISTRY
31
• The container registry is
backed by the object
store system
• Cost effective storage of
large container images
• Images in registry can be used
in scalable workflows in the
platform’s EO data ingestion
and pre-processing systems

32. ON-DEMAND PERSONAL UBUNTU
DESKTOPS IN A BROWSER
32

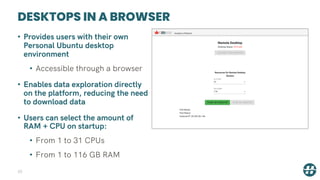

33. DESKTOPS IN A BROWSER
33
• Provides users with their own
Personal Ubuntu desktop
environment
• Accessible through a browser
• Enables data exploration directly
on the platform, reducing the need
to download data
• Users can select the amount of
RAM + CPU on startup:
• From 1 to 31 CPUs
• From 1 to 116 GB RAM

34. DESKTOPS IN A BROWSER
34
• Pre-installed software (SNAP,
QGIS, Firefox, etc)
• Users can install their own
software and customize the
desktop environment to be
their own
• EO data stores are mounted in
desktop environment for easy
access:
• All Sentinel-2 data
• All Landsat 4-8 data

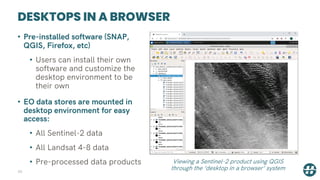

• Pre-processed data products Viewing a Sentinel-2 product using QGIS
through the ‘desktop in a browser’ system

35. FILE BROWSER
35

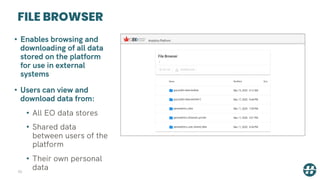

36. FILE BROWSER
36
• Enables browsing and
downloading of all data
stored on the platform
for use in external
systems
• Users can view and
download data from:
• All EO data stores
• Shared data
between users of the
platform
• Their own personal
data

37. GROUND TRUTH DATA MANAGEMENT
37

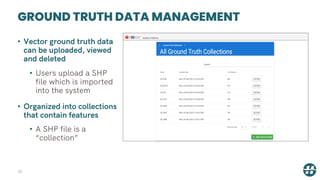

38. GROUND TRUTH DATA MANAGEMENT
38
• Vector ground truth data
can be uploaded, viewed
and deleted
• Users upload a SHP
file which is imported
into the system
• Organized into collections
that contain features
• A SHP file is a
“collection”

39. GROUND TRUTH DATA MANAGEMENT
39
• Features can be
browsed/searched
interactively
• Features can be
searched
• Webmap displays
features
• API endpoints implement
OGC API-Features
specification (previously
referred to as WFS3)
• Implemented using
PyGEOApi

40. CONCLUSION
40

41. CONCLUSION
41
• The proof of concept platform demonstrates how [1]:
• Existing stores of satellite EO data can be
analyzed in-place using cloud-computing
resources, rather than requiring download
• New modular and user friendly metadata
protocols, particularly Spatio Temporal Asset
Catalogs (STAC), can be used to provide search
interface for satellite EO dataset discovery

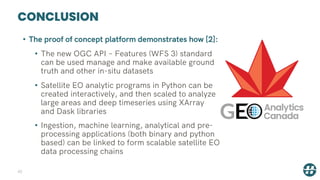

42. CONCLUSION
42
• The proof of concept platform demonstrates how [2]:
• The new OGC API – Features (WFS 3) standard
can be used manage and make available ground
truth and other in-situ datasets
• Satellite EO analytic programs in Python can be
created interactively, and then scaled to analyze
large areas and deep timeseries using XArray
and Dask libraries
• Ingestion, machine learning, analytical and pre-
processing applications (both binary and python
based) can be linked to form scalable satellite EO
data processing chains

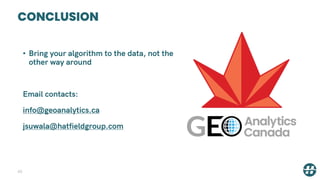

43. CONCLUSION
43
• Bring your algorithm to the data, not the
other way around
Email contacts:
info@geoanalytics.ca
jsuwala@hatfieldgroup.com
