1. renewable energy and heating installations
Bristol, Somerset and the South West
Solar PV Info
and Battery Storage

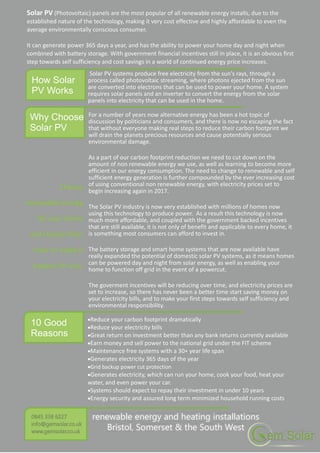

2. 10 Good
Reasons
Why Choose
Solar PV
For a number of years now alternative energy has been a hot topic of
discussion by politicians and consumers, and there is now no escaping the fact
that without everyone making real steps to reduce their carbon footprint we
will drain the planets precious resources and cause potentially serious
environmental damage.
As a part of our carbon footprint reduction we need to cut down on the
amount of non renewable energy we use, as well as learning to become more
efficient in our energy consumption. The need to change to renewable and self
sufficient energy generation is further compounded by the ever increasing cost
of using conventional non renewable energy, with electricity prices set to
begin increasing again in 2017.
The Solar PV industry is now very established with millions of homes now
using this technology to produce power. As a result this technology is now
much more affordable, and coupled with the government backed incentives
that are still available, it is not only of benefit and applicable to every home, it
is something most consumers can afford to invest in.
The battery storage and smart home systems that are now available have
really expanded the potential of domestic solar PV systems, as it means homes
can be powered day and night from solar energy, as well as enabling your
home to function off grid in the event of a powercut.
The goverment incentives will be reducing over time, and electricity prices are
set to increase, so there has never been a better time start saving money on
your electricity bills, and to make your first steps towards self sufficiency and
environmental responsibility.
Reduce your carbon footprint dramatically
Reduce your electricity bills
Great return on investment better than any bank returns currently available
Earn money and sell power to the national grid under the FIT scheme
Maintenance free systems with a 30+ year life span
Generates electricity 365 days of the year
Grid backup power cut protection
Generates electricity, which can run your home, cook your food, heat your
water, and even power your car.
Systems should expect to repay their investment in under 10 years
Energy security and assured long term minimized household running costs
How Solar
PV Works
Solar PV (Photovoltaic) panels are the most popular of all renewable energy installs, due to the
established nature of the technology, making it very cost effective and highly affordable to even the
average environmentally conscious consumer.
It can generate power 365 days a year, and has the ability to power your home day and night when
combined with battery storage. With government financial incentives still in place, it is an obvious first
step towards self sufficiency and cost savings in a world of continued energy price increases.
Solar PV systems produce free electricity from the sun's rays, through a
process called photovoltaic streaming, where photons ejected from the sun
are converted into electrons that can be used to power your home. A system
requires solar panels and an inverter to convert the energy from the solar
panels into electricity that can be used in the home.
renewable energy and heating installations
Bristol, Somerset & the South West

3. Solar PV Panel Choices
We are happy to install any system of your choice, if you have a particular brand of
panel you specifically want to have as part of your system, however to make things
easier for you we have selected what we consider the best panels available for a
variety of budgets and system needs. We have made this selection based upon:
 Quality (the feedback from our fitters as to the robustness of the panels, as well as the
manufacturers reputations and warranty lengths.)
 Value (the highest ratios of performance related to price)
 Aesthetics (how the panel look on your home is a major consideration for many clients and we
make sure our panels are as discrete and stylish looking as possible)
 (the long term stability and financial security of the manufacturer)Company
renewable energy and heating installations
Bristol, Somerset & the South West
Value &
Optimized
JA Solar 280W Mono Black Smart Module
JA Solar is one of the largest solar panel manufacturers in the world, and is a
very reputable brand internationally.
Compared to traditional modules, the JA Percium panels have lower initial
degradation and higher performance under both high temperature and low
irradiation conditions.
Technological innovation is essential to JA Solar’s position as a global leader in
solar energy — it’s key to the quality and value of their products and as an
innovative industry frontrunner.
The JA Solar 280-295W’s range’s excellent high wattage means you can use
less panels and achieve a high output - ideal for domestic systems where roof
space is limited and the highest output possible is needed, whilst at a great
value price.
Available as smart modules, with integrated SolarEdge panel optimizers, they
make a high performance SolarEdge system very affordable.

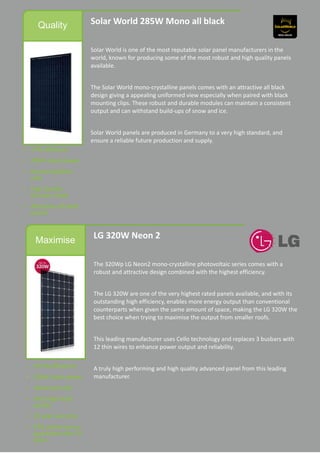

4. Quality Solar World 285W Mono all black
Solar World is one of the most reputable solar panel manufacturers in the
world, known for producing some of the most robust and high quality panels
available.
The Solar World mono-crystalline panels comes with an attractive all black
design giving a appealing uniformed view especially when paired with black
mounting clips. These robust and durable modules can maintain a consistent
output and can withstand build-ups of snow and ice.
Solar World panels are produced in Germany to a very high standard, and
ensure a reliable future production and supply.
Maximise
LG 320W Neon 2
The 320Wp LG Neon2 mono-crystalline photovoltaic series comes with a
robust and attractive design combined with the highest efficiency.
The LG 320W are one of the very highest rated panels available, and with its
outstanding high efficiency, enables more energy output than conventional
counterparts when given the same amount of space, making the LG 320W the
best choice when trying to maximise the output from smaller roofs.
This leading manufacturer uses Cello technology and replaces 3 busbars with
12 thin wires to enhance power output and reliability.
A truly high performing and high quality advanced panel from this leading
manufacturer.

5. Aesthetic
LG 300W Mono Neon 2 Black
In the pursuit of greater aesthetics black panels have become very popular
with many clients. LG has now taken the all black to the next level with the
Neon 2 Black panel, which is perhaps the best looking panel on the market.
The 300W Neon 2 Black Monocrystalline module is designed recognising the
importance of aesthetics as well as high performance in construction.
Marking another step forward for LG’s range of modules, already know to have
excellent build quality, performance, reliability and appearance. When
installed in arrays, the Neon 2 Black offers a more uniform appearance,
enabling PV modules to integrate into new and existing buildings without
necessarily making the array the focal point of the building.
This module continues the trend from LG of state of the art, high performing,
well made, good looking products.
Optimise
SolarEdge P300 Solar Panel Optimiser
SolarEdge power optimisers maximise energy from each panel through
constant tracking of Maximum Power Point per panel. Optimal efficiency is
achieved by automatically maintaining a fixed string voltage and performance
can be monitored via the SolarEdge monitoring portal.
Module mismatch occurs when modules in an array do not exhibit fully
identical electrical properties or when exposed to different environmental
conditions. Module mismatch leads to a different maximum power point
(MPP) per module.
Sources of module-mismatch:
· Partial shading & uneven soiling causes different irradiance levels on
different modules
· Temperature gradient – heat convection across the solar array causes
different temperature levels on different modules
· Manufacturing tolerance & uneven aging rate cause the modules to
perform at different MPP parameters
String systems lower the string's output to the level of the lowest performing
module. SolarEdge power optimizers perform MPP tracking for each module
individually and therefore extract the maximum energy from each module,
regardless of other modules in the string.

6. Quality
SMA Sunny Boy
Packed full of innovative technology, the Sunny Boy HF series provides one of
the highest yields for transformer-based inverters in this performance class.
With its modern graphic display and wireless Bluetooth communication system
make the devices highly user-friendly. With unrivalled build quality it is the
Rolls Royce of inverters.
It comes with a standard 5 year warranty, that can be extended to a massive
25 years.
Higher financial benefits through maximum yields with an efficiency rating of
96%; one of the highest in it's class
Up to 1.5% higher energy output due to SMA's OptiTrac system which enables
the inverter to react quickly and accurately to changes in conditions e.g.
shading
Clear, user friendly, graphic display providing relevant performance values in
an easy to understand format. Bluetooth interface means no unnecessary
wiring for a neat and tidy installation.
Inverters
The inverter for your system is a critical component, and as with the solar panels we
are happy to install any suitably sized inverter you request. However to make your life
easier the following is our recommended selection of inverters, chosen for reliability,
value, warranty, and quality. Please remember that during the lifetime of your solar
panels the inverter will probably need to be replaced, so quality and warranty and
service levels are critical factors to consider.
Value
Solis 2G Inverters
Solis Inverters have been manufacturing Solar Inverters for over 20 years and
they have earned the reputation as highest quality value inverter on the
market. Solis prides itself on offering world class design and quality, while
retaining competitive pricing. The Solis inverters represent a well-respected,
value priced brand of inverters and come with a five-year warranty as standard
with an optional 10 year upgrade.
The Solis inverters have a maximum efficiency rating of over 97% and features
an ultra wide input voltage range, dual MPPT design with precise MPPT
algorithm, and controlled inverter technology. Solis inverters are compact and
light for easy installation and include numerous protection functions to give
the end user peace of mind. We install the units with a WiFi connection to
enable you to benefit from Solis’s free monitoring system, and giving the Solis
the full functionality of a much more expensive inverter.

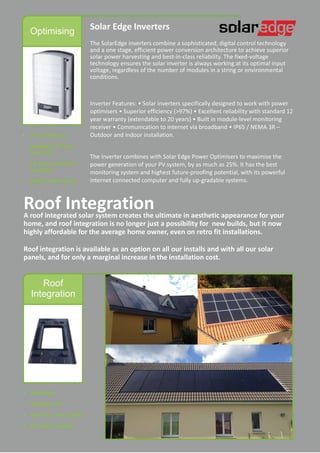

7. Optimising
Solar Edge Inverters
The SolarEdge inverters combine a sophisticated, digital control technology
and a one stage, efficient power conversion architecture to achieve superior
solar power harvesting and best-in-class reliability. The fixed-voltage
technology ensures the solar inverter is always working at its optimal input
voltage, regardless of the number of modules in a string or environmental
conditions.
Inverter Features: • Solar inverters specifically designed to work with power
optimisers • Superior efficiency (>97%) • Excellent reliability with standard 12
year warranty (extendable to 20 years) • Built in module-level monitoring
receiver • Communication to internet via broadband • IP65 / NEMA 3R –
Outdoor and indoor installation.
The inverter combines with Solar Edge Power Optimisers to maximise the
power generation of your PV system, by as much as 25%. It has the best
monitoring system and highest future-proofing potential, with its powerful
internet connected computer and fully up-gradable systems.
Roof
Integration
Roof IntegrationA roof integrated solar system creates the ultimate in aesthetic appearance for your
home, and roof integration is no longer just a possibility for new builds, but it now
highly affordable for the average home owner, even on retro fit installations.
Roof integration is available as an option on all our installs and with all our solar
panels, and for only a marginal increase in the installation cost.

8. Tesla
Powerwall 1
Tesla Powerwall 1 Home Energy Storage System
The Tesla Powerwall is an outdoor rated, and wall mounted home battery
system designed for self consumption of solar, load shifting (storage from
Economy 7 rates) and backup applications.
The Powerwall contains an integrated thermal control system, battery
management system and DC-DC device,making it the safest and most
advanced Lithium battery on the market.
The Powerwall contains 6.4kWh of energy storage which makes it perfectly
sized to suit the average home.
Battery Storage
Battery Storage has been growing in popularity as consumers seek greater self-
sufficiency and independence from grid electricity. It enables you to make the most of
the electricity you produce through your solar pv array, allowing you to capture and
use of almost 100% of your production. This means not only great electricity savings,
but it also means that free electricity is there whenever you want it and not just when
the sun is shining.
Tesla
Powerwall 2
Tesla Powerwall 2 Home Battery System
Tesla continue to push further forward with Lithium Battery technology, and
their new Powerwall 2 offers a level of value and funtionality far above any
other product.
Aimed at the higher consumption household and electric vehicle owner, the
Powerwall 2 has a massive 13.5kW of storage and is capable of up to 7kW
discharge rates.
The system records all your households
electrical consumption data, and is
monitorable through the SolarEdge
monitoring portal, both online and via
mobile phone app.
The Powerwall is the ultimate home battery
storage system and set to continue to lead
the way in maximising renewable energy
domestic self-consumption.
Retro-fittable to any solar pv system to
produce the ultimate self-consumption
system.

9. LG Resu LG Resu Home Battery
The LG Resu battery range includes a variety of battery sizes to suit every
property.
Built to the high LG quality standards, and including LG’s advanced battery
management system, the LG batteries have a performance and anticipated life
span to rival the Powerwall.
The Resu range are highly compact and suitable for indoor as well as outdoor
positioning.
The LG Resu range is flexible in its compatibility, and it can even be used on
off-grid systems.
Available in 3.3kW, 6.5kW, and 10kW cross connectable battery sizes.
Monitoring
Portals
Monitoring (Included with all systems)
Whilst previously separate monitoring systems have been required, all of our
suggested systems and inverters come with their own effective monitoring portals that
can be accessed via computer or mobile phone app. No separate monitoring device is
required, just available onsite wifi.
Part of the selection criteria for the systems
we recommend is their proven, relaible and
intuative and easy to use monitoring
systems. Solar Edge has the ultimate
monitoring portal, with even panel level
monitoring capabilities, and both SMA and
Solis have very user friendly systems.

10. Free Hot
Water
Solar iBoost Immersion Heater Controller
The Solar iBoost automatically converts energy generated by PV panels into
hot water by diverting excess solar power to the immersion heater before it’s
exported to the national grid.
Simple to use and maintenance free, the iBoost is self contained and can save
you hundreds of pounds off your heating bills, and can provide all your
domestic hot water needs for most of the year.
An immersion controller is a very inexpensive way to maximise your solar self
consumption, and provides a simple answer to summertime domestic hot
water heating for solid fuel heated homes.
Immersion ControlAn immersion controller is a very cost effective addition to your solar pv system to help
you maximise your self consumption and bill savings. It diverts any unused power you
generate to your immersion element rather than to the grid. A great companion to any
boiler system, and it is capable of providing all your hot water for a significant portion
of the year.
Smart Home
Systems
SMA and SolarEdge Smart Home Systems
We are currently seeing a very rapid advancement of smart homes technology,
and the integrated smart solar home systems now taking shape.
SMA and SolarEdge are both leading the way with their smart home systems,
and promise the greatest level of system future proofing and ability to develop
the system as there are further technology developments.
renewable energy and heating installations
Bristol, Somerset & the South West
We have selected their systems
as they are the systems that
offer the greatest present and
future compatability with
smart sockets and appliances,
as well as EV charging, heat
pumps and other emerging
technologies.
