Gearpump akka streams

Implementing an akka-streams
materializer for big data
The Gearpump Materializer
Kam Kasravi

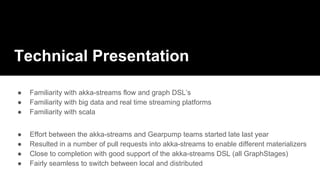

Technical Presentation
● Familiarity with akka-streams flow and graph DSL’s
● Familiarity with big data and real time streaming platforms
● Familiarity with scala
● Effort between the akka-streams and Gearpump teams started late last year
● Resulted in a number of pull requests into akka-streams to enable different materializers
● Close to completion with good support of the akka-streams DSL (all GraphStages)
● Fairly seamless to switch between local and distributed

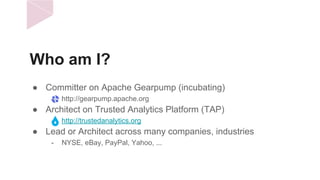

Who am I?
● Committer on Apache Gearpump (incubating)
- http://gearpump.apache.org
● Architect on Trusted Analytics Platform (TAP)
- http://trustedanalytics.org
● Lead or Architect across many companies, industries
- NYSE, eBay, PayPal, Yahoo, ...
Title Goes Here
There are many variations of passages
of lorem ipsum available, but the
majority suffered alteration
some form.

What is Apache Gearpump?
● Accepted into Apache incubator last March
● Similar to Apache Beam and Apache Flink (real-time message delivery)
● Heavily leverages the actor model and akka (more so than others)
● Unique features like dynamic DAG
● Excellent runtime visualization tooling of cluster and application DAGs
● One of the best big data performance profiles (both throughput, latency)

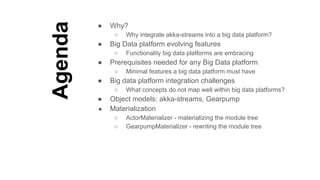

Agenda
● Why?
○ Why integrate akka-streams into a big data platform?
● Big Data platform evolving features
○ Functionality big data platforms are embracing
● Prerequisites needed for any Big Data platform
○ Minimal features a big data platform must have
● Big data platform integration challenges
○ What concepts do not map well within big data platforms?
● Object models: akka-streams, Gearpump
● Materialization
○ ActorMaterializer - materializing the module tree
○ GearpumpMaterializer - rewriting the module tree

Why?
● Akka-streams has limitations inherent within a single JVM
○ Throughput and latency are key big data features that require scaling beyond single JVM’s
● Akka-streams DSL is a superset of other big data platform DSLs
○ Has a logical plan (declarative) that can be transformed to an execution plan (runtime)
● Akka-streams programming paradigm is declarative, composable,
extensible*, stackable* and reusable*
* Provides a level of extensibility and functionality beyond most big data platform DSLs

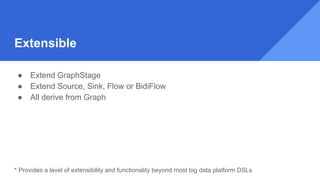

Extensible
● Extend GraphStage
● Extend Source, Sink, Flow or BidiFlow
● All derive from Graph

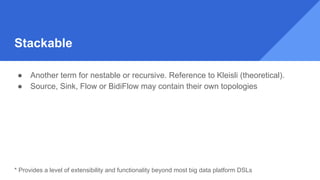

Stackable
● Another term for nestable or recursive. Reference to Kleisli (theoretical).
● Source, Sink, Flow or BidiFlow may contain their own topologies

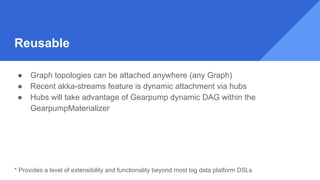

Reusable
● Graph topologies can be attached anywhere (any Graph)
● Recent akka-streams feature is dynamic attachment via hubs
● Hubs will take advantage of Gearpump dynamic DAG within the
GearpumpMaterializer

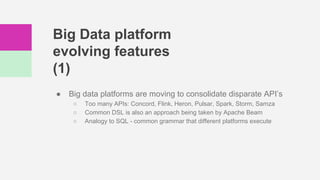

Big Data platform
evolving features
(1)
● Big data platforms are moving to consolidate disparate API’s
○ Too many APIs: Concord, Flink, Heron, Pulsar, Spark, Storm, Samza
○ Common DSL is also an approach being taken by Apache Beam
○ Analogy to SQL - common grammar that different platforms execute

Big Data platform
evolving features
(2)
● Big data platforms will increasingly require dynamic
pipelines that are compositional and reusable
● Examples include:
○ Machine learning
○ IoT sensors

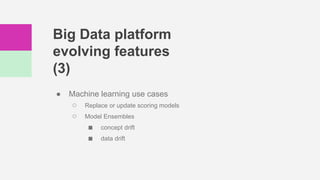

Big Data platform
evolving features
(3)
● Machine learning use cases
○ Replace or update scoring models
○ Model Ensembles
■ concept drift
■ data drift

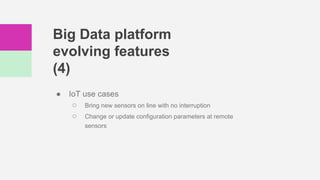

Big Data platform
evolving features
(4)
● IoT use cases
○ Bring new sensors on line with no interruption
○ Change or update configuration parameters at remote
sensors

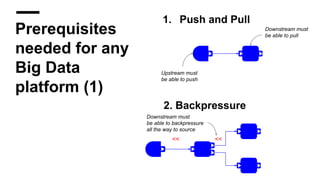

Prerequisites
needed for any
Big Data
platform (1)
Downstream must
be able to pull
Upstream must
be able to push
1. Push and Pull
Downstream must
be able to backpressure
all the way to source
2. Backpressure
<< <<

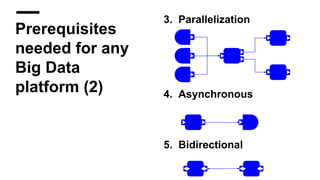

Prerequisites
needed for any
Big Data
platform (2)
3. Parallelization
4. Asynchronous
5. Bidirectional

Big data
platform
integration
challenges (1)
A number of
GraphStages have
completion or
cancellation
semantics. Big data
pipelines are often
infinite streams and
do not complete.
Cancel is often
viewed as a failure.
● Balance[T]
● Completion[T]
● Merge[T]
● Split[T]

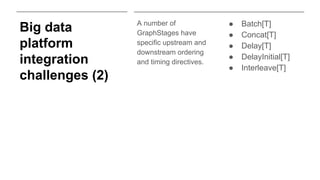

Big data
platform
integration
challenges (2)
A number of
GraphStages have
specific upstream and
downstream ordering
and timing directives.
● Batch[T]
● Concat[T]
● Delay[T]
● DelayInitial[T]
● Interleave[T]

Big data
platform
integration
challenges (3)
The async attribute as
well as fusing do not
map cleanly when
distributing GraphStage
functionality across
machines.
● Graph.async
● Fusing

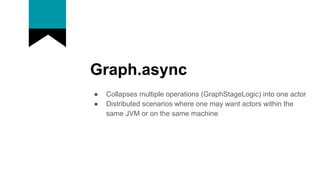

Graph.async
● Collapses multiple operations (GraphStageLogic) into one actor
● Distributed scenarios where one may want actors within the
same JVM or on the same machine

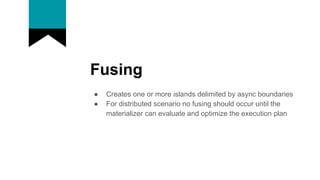

Fusing
● Creates one or more islands delimited by async boundaries
● For distributed scenario no fusing should occur until the
materializer can evaluate and optimize the execution plan

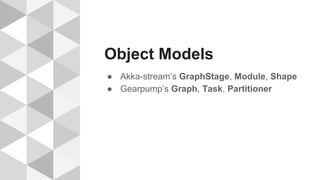

Object Models
● Akka-stream’s GraphStage, Module, Shape
● Gearpump’s Graph, Task, Partitioner

Akka-streams Object Model
↪ Base type is a Graph. Common base type is a GraphStage
↪ Graph contains a
↳ Module contains a
↳ Shape
↪ Only a RunnableGraph can be materialized
↪ A RunnableGraph needs at least one Source and one Sink

Akka-streams Graph[S, M]
● Graph is parameterized by
○ Shape
○ Materialized Value
● Graph contains a Module contains a Shape
○ Module is where the runtime is constructed and manipulated
● Graph’s first level subtypes provide basic functionality
○ Source
○ Sink
○ Flow
○ BidiFlow
S M
Graph
Source
Sink
Flow
BidiFlow
Module
Shape

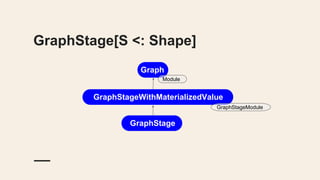

GraphStage[S <: Shape]
Graph
GraphStageWithMaterializedValue
GraphStage
GraphStageModule
Module

GraphStage[S <: Shape]
subtypes (incomplete)
↳ Balance[T]
↳ Batch[In, Out]
↳ Broadcast[T]
↳ Collect[In, Out]
↳ Concat[T]
↳ DelayInitial[T]
↳ DropWhile[T]
↳ Expand[In, Out]
↳ FlattenMerge[T, M]
↳ Fold[In, Out]
↳ FoldAsync[T]
↳ FutureSource[T]
↳ GroupBy[T, K]
↳ Grouped[T]
↳ GroupedWithin[T]
↳ Interleave[T]
↳ Intersperse[T]
↳ LimitWeighted[T]
↳ Map[In, Out]
↳ MapAsync[In, Out]
↳ Merge[T]
↳ MergePreferred[T]
↳ MergeSorted[T]
↳ OrElse[T]
↳ Partition[T]
↳ PrefixAndTail[T]
↳ Recover[T]
↳ Scan[In, Out]
↳ SimpleLinearGraph[T]
↳ Sliding[T]

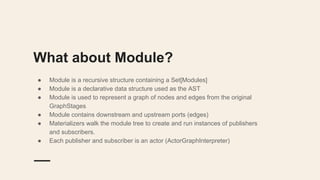

What about Module?
● Module is a recursive structure containing a Set[Modules]
● Module is a declarative data structure used as the AST
● Module is used to represent a graph of nodes and edges from the original
GraphStages
● Module contains downstream and upstream ports (edges)
● Materializers walk the module tree to create and run instances of publishers
and subscribers.
● Each publisher and subscriber is an actor (ActorGraphInterpreter)

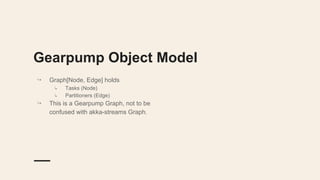

Gearpump Object Model
↪ Graph[Node, Edge] holds
↳ Tasks (Node)
↳ Partitioners (Edge)
↪ This is a Gearpump Graph, not to be
confused with akka-streams Graph.

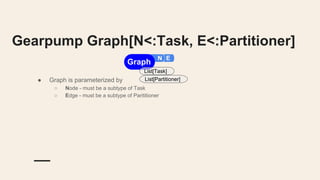

Gearpump Graph[N<:Task, E<:Partitioner]
● Graph is parameterized by
○ Node - must be a subtype of Task
○ Edge - must be a subtype of Parititioner
N E
Graph
List[Task]
List[Partitioner]

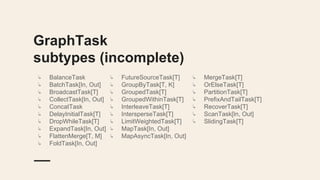

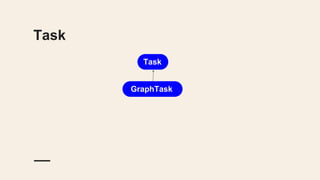

GraphTask
subtypes (incomplete)
↳ BalanceTask
↳ BatchTask[In, Out]
↳ BroadcastTask[T]
↳ CollectTask[In, Out]
↳ ConcatTask
↳ DelayInitialTask[T]
↳ DropWhileTask[T]
↳ ExpandTask[In, Out]
↳ FlattenMerge[T, M]
↳ FoldTask[In, Out]
↳ FutureSourceTask[T]
↳ GroupByTask[T, K]
↳ GroupedTask[T]
↳ GroupedWithinTask[T]
↳ InterleaveTask[T]
↳ IntersperseTask[T]
↳ LimitWeightedTask[T]
↳ MapTask[In, Out]
↳ MapAsyncTask[In, Out]
↳ MergeTask[T]
↳ OrElseTask[T]
↳ PartitionTask[T]
↳ PrefixAndTailTask[T]
↳ RecoverTask[T]
↳ ScanTask[In, Out]
↳ SlidingTask[T]

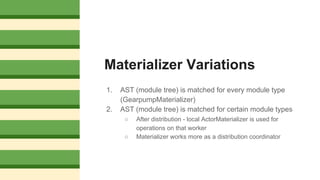

Materializer Variations
1. AST (module tree) is matched for every module type
(GearpumpMaterializer)
2. AST (module tree) is matched for certain module types
○ After distribution - local ActorMaterializer is used for
operations on that worker
○ Materializer works more as a distribution coordinator

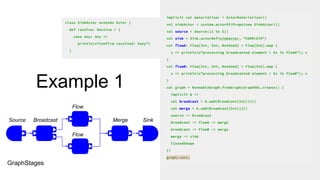

Example 1
Source
Broadcast
Flow
Merge
Sink
implicit val materializer = ActorMaterializer()
val sinkActor = system.actorOf(Props(new SinkActor())
val source = Source((1 to 5))
val sink = Sink.actorRef(sinkActor, "COMPLETE")
val flowA: Flow[Int, Int, NotUsed] = Flow[Int].map {
x => println(s"processing broadcasted element : $x in flowA"); x
}
val flowB: Flow[Int, Int, NotUsed] = Flow[Int].map {
x => println(s"processing broadcasted element : $x in flowB"); x
}
val graph = RunnableGraph.fromGraph(GraphDSL.create() {
implicit b =>
val broadcast = b.add(Broadcast[Int](2))
val merge = b.add(Broadcast[Int](2))
source ~> broadcast
broadcast ~> flowA ~> merge
broadcast ~> flowB ~> merge
merge ~> sink
ClosedShape
})
graph.run()

Example 1
}
}
implicit b =>
source ~> broadcast
merge ~> sink
ClosedShape
})
graph.run()
Source Broadcast
Flow
Flow
Merge
GraphStages
Sink
class SinkActor extends Actor {
def receive: Receive = {
case any: Any =>
println(s“Confirm received: $any”)
}

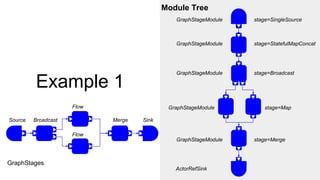

Example 1
Source Broadcast
Flow
Flow
Merge
GraphStages
Sink
Module Tree
GraphStageModule
GraphStageModule
stage=SingleSource
stage=StatefulMapConcat
ActorRefSink
stage=Broadcast
stage=Map
stage=Merge
GraphStageModule
GraphStageModule
GraphStageModule

Example 1
}
}
implicit b =>
source ~> broadcast
merge ~> sink
ClosedShape
})
graph.run()
source broadcast
flowA
flowB
merge
GraphStages
sink

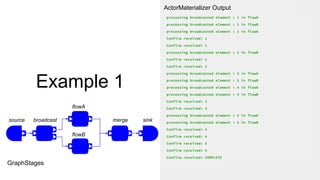

Example 1
processing broadcasted element : 1 in flowA
processing broadcasted element : 1 in flowB
Confirm received: 1
Confirm received: 1
Confirm received: 2
Confirm received: 2
Confirm received: 3
Confirm received: 3
Confirm received: 4
Confirm received: 4
Confirm received: 5
Confirm received: 5
Confirm received: COMPLETE
source broadcast
flowA
flowB
merge
GraphStages
sink
ActorMaterializer Output

Example 1
implicit val materializer = GearpumpMaterializer()
}
}
implicit b =>
source ~> broadcast
merge ~> sink
ClosedShape
})
graph.run()
source broadcast
flowA
flowB
merge
GraphStages
sink

Example 1
Confirm received: 1
Confirm received: 1
Confirm received: 2
Confirm received: 2
Confirm received: 3
Confirm received: 3
Confirm received: 4
Confirm received: 4
Confirm received: 5
Confirm received: 5
source broadcast
flowA
flowB
merge
GraphStages
sink
GearpumpMaterializer Output

Demo
GraphStageModule(
stage=SingleSource)
ActorRefSinkGraphStageModule(
stage=StatefulMapConcat)
GraphStageModule(
stage=Broadcast)
GraphStageModule(
stage=Map)
GraphStageModule(
stage=Merge)

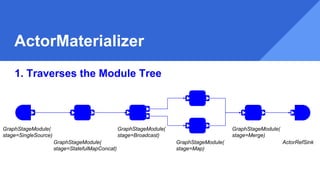

ActorMaterializer
GraphStageModule(
stage=SingleSource)
ActorRefSinkGraphStageModule(
GraphStageModule(
stage=Broadcast)
GraphStageModule(
stage=Map)
GraphStageModule(
stage=Merge)
1. Traverses the Module Tree

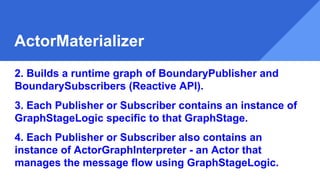

ActorMaterializer
2. Builds a runtime graph of BoundaryPublisher and
BoundarySubscribers (Reactive API).
3. Each Publisher or Subscriber contains an instance of
GraphStageLogic specific to that GraphStage.
4. Each Publisher or Subscriber also contains an
instance of ActorGraphInterpreter - an Actor that
manages the message flow using GraphStageLogic.

GraphStageModule(
stage=SingleSource)
ActorRefSink
GraphStageModule(
stage=Broadcast)
GraphStageModule(
stage=Map)
GraphStageModule(
stage=Merge)

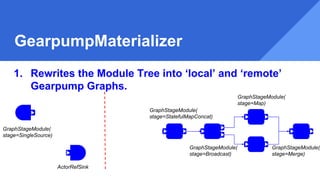

1. Rewrites the Module Tree into ‘local’ and ‘remote’
Gearpump Graphs.
GraphStageModule(

GraphStageModule(
stage=SingleSource)
ActorRefSink
GraphStageModule(
stage=Broadcast)
GraphStageModule(
stage=Map)
GraphStageModule(
stage=Merge)
2. Choice of ‘local’ and ‘remote’ is determined by a
‘Strategy’. The default Strategy is to put Source and Sink
types in local
GraphStageModule(

ActorRefSink
3. Inserts BridgeModules into both Graphs
SourceBridgeModule
SinkBridgeModule
SinkBridgeModule
GraphStageModule(
stage=Broadcast)
GraphStageModule(
stage=Map)
GraphStageModule(
stage=Merge)GraphStageModule(
GraphStageModule(
stage=SingleSource)
SourceBridgeModule

ActorRefSink

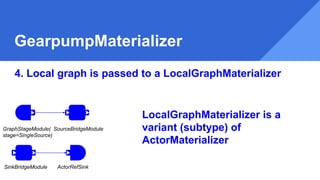

4. Local graph is passed to a LocalGraphMaterializer
SinkBridgeModule
GraphStageModule(
stage=SingleSource)
SourceBridgeModule
LocalGraphMaterializer is a
variant (subtype) of
ActorMaterializer

5. Converts the remote graph’s Modules into Tasks
SourceBridgeTask SinkBridgeTaskBroadcastTask
TransformTask
MergeTaskStatefulMapConcatTask

6. Sends this Graph to the Gearpump master
TransformTask

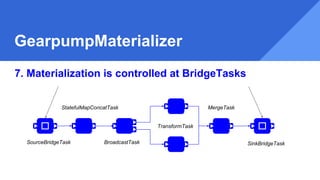

7. Materialization is controlled at BridgeTasks
TransformTask

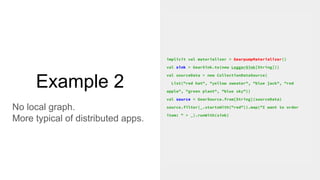

Example 2
No local graph.
More typical of distributed apps.
val sink = GearSink.to(new LoggerSink[String]))
val sourceData = new CollectionDataSource(
List("red hat", "yellow sweater", "blue jack", "red
apple", "green plant", "blue sky"))
val source = GearSource.from[String](sourceData)
source.filter(_.startsWith("red")).map("I want to order
item: " + _).runWith(sink)

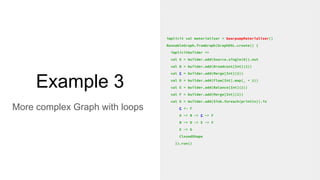

Example 3
More complex Graph with loops
RunnableGraph.fromGraph(GraphDSL.create() {
implicitbuilder =>
val A = builder.add(Source.single(0)).out
val B = builder.add(Broadcast[Int](2))
val C = builder.add(Merge[Int](2))
val D = builder.add(Flow[Int].map(_ + 1))
val E = builder.add(Balance[Int](2))
val F = builder.add(Merge[Int](2))
val G = builder.add(Sink.foreach(println)).in
C <~ F
A ~> B ~> C ~> F
B ~> D ~> E ~> F
E ~> G
ClosedShape
}).run()

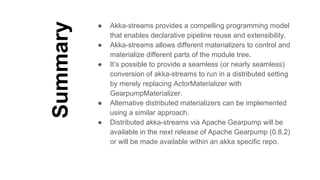

Summary
● Akka-streams provides a compelling programming model
that enables declarative pipeline reuse and extensibility.
● Akka-streams allows different materializers to control and
materialize different parts of the module tree.
● It’s possible to provide a seamless (or nearly seamless)
conversion of akka-streams to run in a distributed setting
by merely replacing ActorMaterializer with
GearpumpMaterializer.
● Alternative distributed materializers can be implemented
using a similar approach.
● Distributed akka-streams via Apache Gearpump will be
available in the next release of Apache Gearpump (0.8.2)
or will be made available within an akka specific repo.

Thank you
twitter:
@ApacheGearpump
@kkasravi

Gearpump akka streams

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to Gearpump akka streams

Similar to Gearpump akka streams (20)

Recently uploaded

Recently uploaded (20)

Gearpump akka streams
