The document discusses different garbage collection algorithms used in programming languages. It describes reference counting, mark-sweep collection, copying collection, mark-compact collection, and generational collection. Generational collection divides the heap into generations and uses different algorithms like copying collection for younger objects and mark-compact collection for older objects to more efficiently perform garbage collection.

1. Garbage Collection AlgorithmsBy Achinth Anand Gurkhi

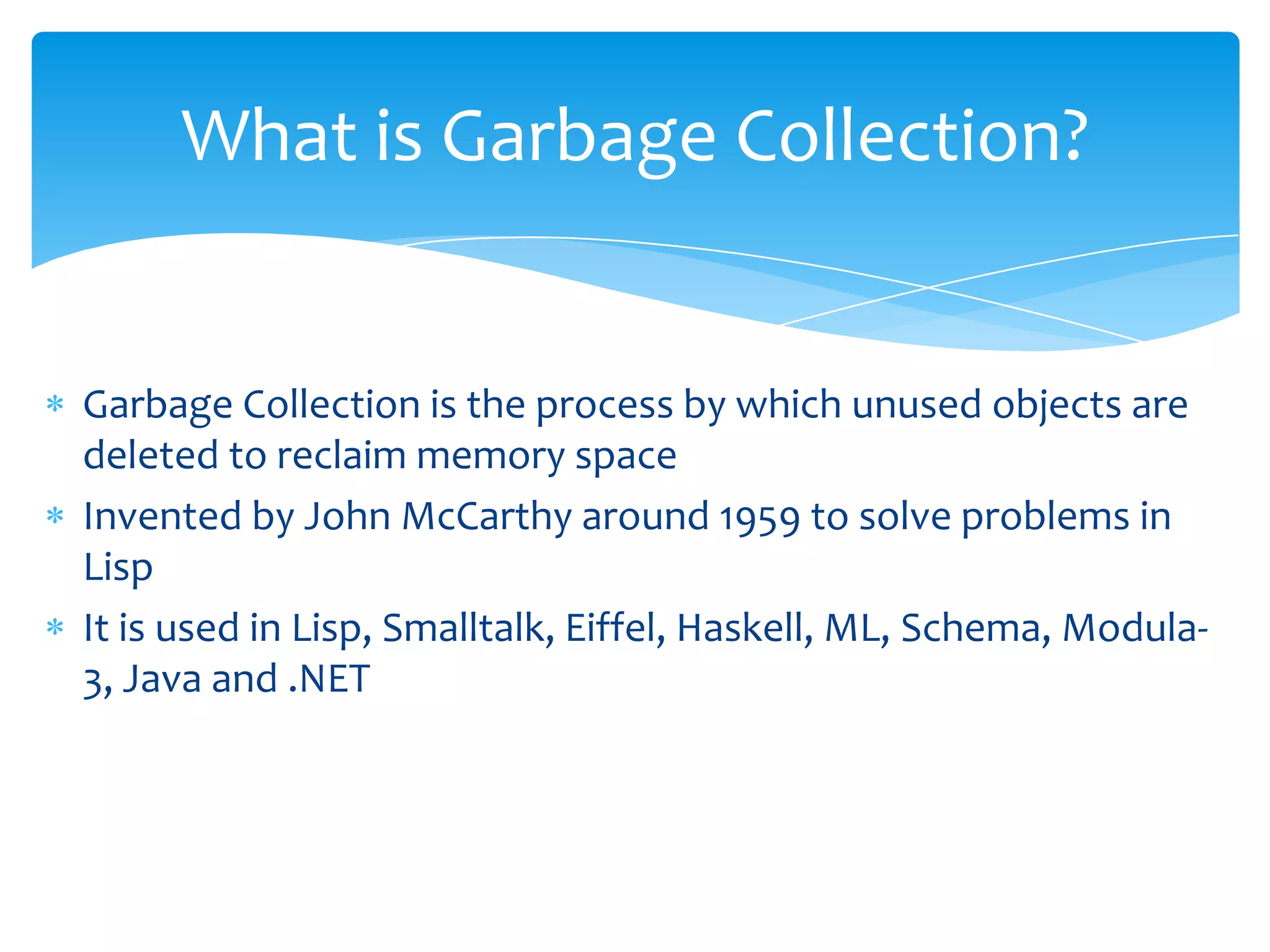

2. What is Garbage Collection?Garbage Collection is the process by which unused objects are deleted to reclaim memory spaceInvented by John McCarthy around 1959 to solve problems in LispIt is used in Lisp, Smalltalk, Eiffel, Haskell, ML, Schema, Modula-3, Java and .NET

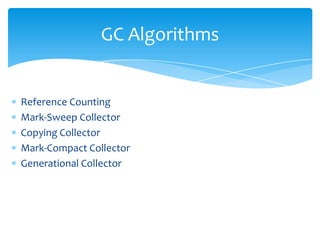

3. GC AlgorithmsReference CountingMark-Sweep CollectorCopying CollectorMark-Compact CollectorGenerational Collector

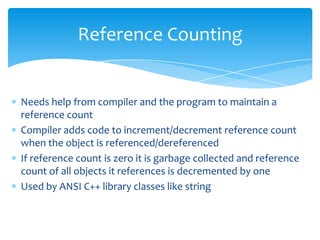

4. Reference CountingNeeds help from compiler and the program to maintain a reference countCompiler adds code to increment/decrement reference count when the object is referenced/dereferencedIf reference count is zero it is garbage collected and reference count of all objects it references is decremented by oneUsed by ANSI C++ library classes like string

5. Reference CountingAdvantages: Garbage collection can be immediateDisadvantages:Cannot handle cyclic references Need extra memory for the reference counterIncrementing and decrementing reference counts every time a reference is created or destroyed can significantly impede performance. Example: array processing

6. Mark-Sweep CollectorAll application threads are stoppedMark: from the roots (objects referenced directly) every referenced object is visited and markedSweep: entire heap is scanned and all unmarked objects are collected. Next all marked objects are reset

7. Mark-Sweep CollectorAdvantages:Can handle cyclic referencesNo burden on the compiler or the applicationDisadvantagesAs entire heap is scanned, pauses would be longerIf heap is paged can have performance issuesCauses heap fragmentation which could lead of out of memory errors

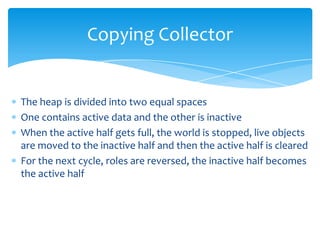

8. Copying CollectorThe heap is divided into two equal spacesOne contains active data and the other is inactiveWhen the active half gets full, the world is stopped, live objects are moved to the inactive half and then the active half is clearedFor the next cycle, roles are reversed, the inactive half becomes the active half

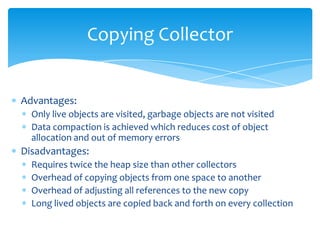

9. Copying CollectorAdvantages:Only live objects are visited, garbage objects are not visitedData compaction is achieved which reduces cost of object allocation and out of memory errorsDisadvantages:Requires twice the heap size than other collectorsOverhead of copying objects from one space to anotherOverhead of adjusting all references to the new copyLong lived objects are copied back and forth on every collection

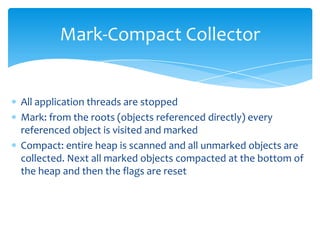

10. Mark-Compact CollectorAll application threads are stoppedMark: from the roots (objects referenced directly) every referenced object is visited and markedCompact: entire heap is scanned and all unmarked objects are collected. Next all marked objects compacted at the bottom of the heap and then the flags are reset

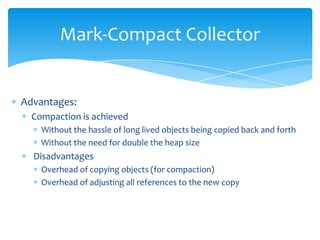

11. Mark-Compact CollectorAdvantages:Compaction is achieved Without the hassle of long lived objects being copied back and forthWithout the need for double the heap size DisadvantagesOverhead of copying objects (for compaction)Overhead of adjusting all references to the new copy

12. Generational Collector98% of the objects die young Copying Collectors perform well with short-lived objectsMark-Compact Collectors perform well with long-lived objectsCan we use different GC algorithms based on object’s age?

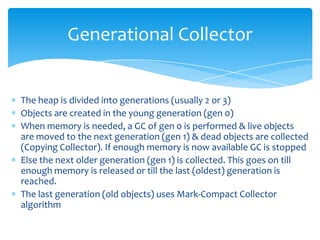

13. Generational CollectorThe heap is divided into generations (usually 2 or 3)Objects are created in the young generation (gen 0)When memory is needed, a GC of gen 0 is performed & live objects are moved to the next generation (gen 1) & dead objects are collected (Copying Collector). If enough memory is now available GC is stoppedElse the next older generation (gen 1) is collected. This goes on till enough memory is released or till the last (oldest) generation is reached. The last generation (old objects) uses Mark-Compact Collector algorithm

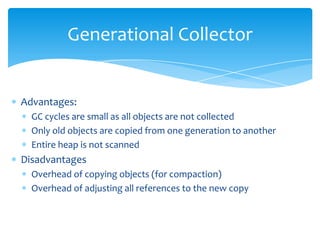

14. Generational CollectorAdvantages:GC cycles are small as all objects are not collectedOnly old objects are copied from one generation to anotherEntire heap is not scannedDisadvantagesOverhead of copying objects (for compaction)Overhead of adjusting all references to the new copy
