This document provides an overview of garbage collection, including: - The first language to use garbage collection was LISP in 1959. - Garbage collection automatically manages memory allocation and deallocation. - Key garbage collection methods are reference counting and tracing. - Implementations include mark-and-sweep and copying collection. - Modern garbage collectors use generational collection to more efficiently handle short-lived and long-lived objects.

1. Garbage Collection
Introduction, Methods
& Java implementations

2. POP QUIZ #1
What is the first language runtime with Garbage
Collection?

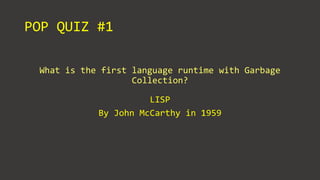

3. POP QUIZ #1
What is the first language runtime with Garbage
Collection?
LISP
By John McCarthy in 1959

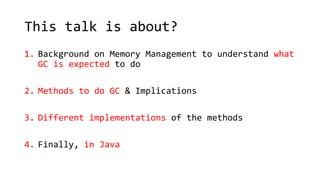

4. This talk is about?
1. Background on Memory Management to understand what
GC is expected to do
2. Methods to do GC & Implications
3. Different implementations of the methods
4. Finally, in Java

5. Thought experiment
Imagine there is no GC (think of C)

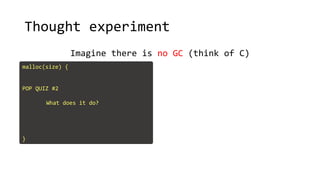

6. Thought experiment
Imagine there is no GC (think of C)
malloc(size) {
POP QUIZ #2
What does it do?
}

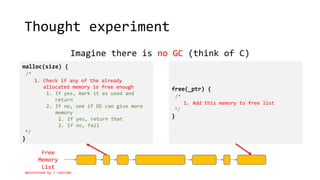

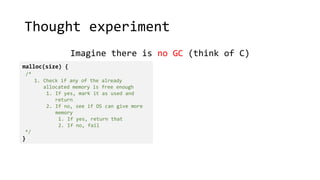

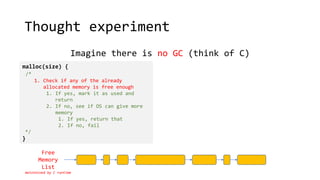

7. Thought experiment
Imagine there is no GC (think of C)
malloc(size) {
/*
1. Check if any of the already
allocated memory is free enough
1. If yes, mark it as used and
return
2. If no, see if OS can give more
memory
1. If yes, return that
2. If no, fail
*/
}

8. Thought experiment
Imagine there is no GC (think of C)
malloc(size) {
/*
1. Check if any of the already
allocated memory is free enough
1. If yes, mark it as used and
return
2. If no, see if OS can give more
memory
1. If yes, return that
2. If no, fail
*/
}
Free
Memory
List
maintained by C runtime

9. Thought experiment
Imagine there is no GC (think of C)
malloc(size) {
/*
1. Check if any of the already
allocated memory is free enough
1. If yes, mark it as used and
return
2. If no, see if OS can give more
memory
1. If yes, return that
2. If no, fail
*/
}
Free
Memory
List
maintained by C runtime
free(_ptr) {
/*
1. Add this memory to free list
*/
}

10. POP QUIZ #3
What usually happens if malloc() and free() just do
what’s described here?

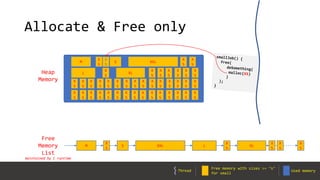

11. Allocate & Free only
Free
Memory
List
M
X
S
S XXL L
X
S
XL
maintained by C runtime
M
X
S
S XXL
L
X
S
XL
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
Heap
Memory
X
S
Free memory with sizes >= ‘s’
for small
Used memoryThread

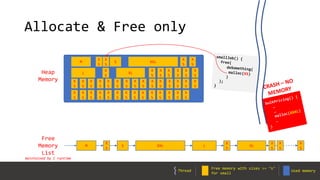

12. Allocate & Free only
Free
Memory
List
M
X
S
S XXL L
X
S
XL
maintained by C runtime
M
X
S
S XXL
L
X
S
XL
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
Heap
Memory
X
S
X
S
Free memory with sizes >= ‘s’
for small
Used memory
Free memory with sizes >= ‘s’
for small
Used memoryThread

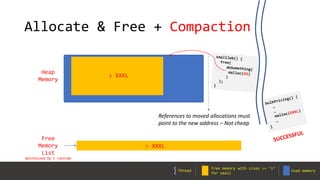

13. Allocate & Free + Compaction
Free
Memory
List
M
X
S
S XXL L
X
S
XL
maintained by C runtime
M
X
S
S XXL
L
X
S
XL
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
X
S
Heap
Memory
> XXXL
> XXXL
References to moved allocations must
point to the new address – Not cheap
Free memory with sizes >= ‘s’
for small
Used memoryThread

14. Garbage Collection – Defined
An automatic memory management system that efficiently
allocates memory at the point of need without requiring
applications to free-up the memory explicitly. To do so,
it should:
1. Should allocate memory when application needs
2. It should free up unused memory when necessary
3. It should keep memory in a good shape to avoid fragmentation

15. Garbage Collection - Methods
REFERENCE COUNTING
 Every object maintains the count of
number of references to itself
 This counter is incremented whenever a
new reference is created for an object
(e.g. Object o = x;)
 This counter is decremented whenever a
reference for an object goes out of
‘scope’
 All objects with count = 0 can be freed
 Cyclic references must be detected
and dealt with OR will not be
collected (developers’ headache)
TRACING
 When there is need for memory,
 Find all the objects that are not
usable by the application
 Free them
 The process of figuring out what is
not useable (or useable) is called
‘tracing’

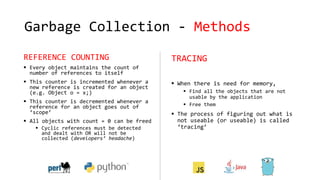

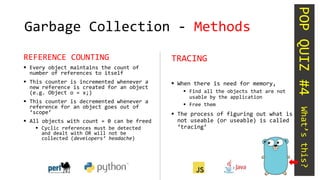

16. Garbage Collection - Methods
REFERENCE COUNTING
 Every object maintains the count of
number of references to itself
 This counter is incremented whenever a
new reference is created for an object
(e.g. Object o = x;)
 This counter is decremented whenever a
reference for an object goes out of
‘scope’
 All objects with count = 0 can be freed
 Cyclic references must be detected
and dealt with OR will not be
collected (developers’ headache)
TRACING
 When there is need for memory,
 Find all the objects that are not
usable by the application
 Free them
 The process of figuring out what is
not useable (or useable) is called
‘tracing’
POPQUIZ#4What’sthis?

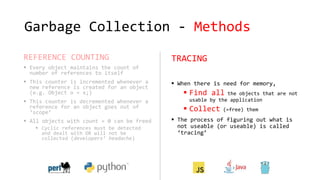

17. Garbage Collection - Methods
REFERENCE COUNTING
 Every object maintains the count of
number of references to itself
 This counter is incremented whenever a
new reference is created for an object
(e.g. Object o = x;)
 This counter is decremented whenever a
reference for an object goes out of
‘scope’
 All objects with count = 0 can be freed
 Cyclic references must be detected
and dealt with OR will not be
collected (developers’ headache)
TRACING
 When there is need for memory,
 Find all the objects that are not
usable by the application
 Collect (=free) them
 The process of figuring out what is
not useable (or useable) is called
‘tracing’

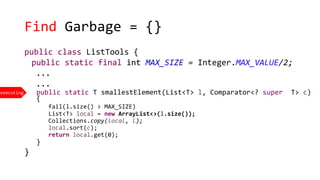

18. Find Garbage = {}
public class ListTools {
public static final int MAX_SIZE = Integer.MAX_VALUE/2;
...
...
public static T smallestElement(List<T> l, Comparator<? super T> c)
{
fail(l.size() > MAX_SIZE)
List<T> local = new ArrayList<>(l.size());
Collections.copy(local, l);
local.sort(c);
return local.get(0);
}
}
executing

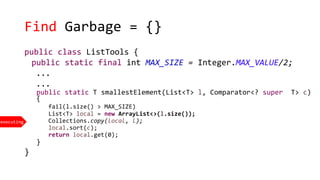

19. Find Garbage = {}
executing
public class ListTools {
public static final int MAX_SIZE = Integer.MAX_VALUE/2;
...
...
public static T smallestElement(List<T> l, Comparator<? super T> c)
{
fail(l.size() > MAX_SIZE)
List<T> local = new ArrayList<>(l.size());
Collections.copy(local, l);
local.sort(c);
return local.get(0);
}
}

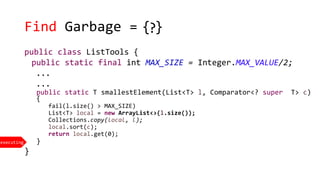

20. Find Garbage =
executing
{ }?
public class ListTools {
public static final int MAX_SIZE = Integer.MAX_VALUE/2;
...
...
public static T smallestElement(List<T> l, Comparator<? super T> c)
{
fail(l.size() > MAX_SIZE)
List<T> local = new ArrayList<>(l.size());
Collections.copy(local, l);
local.sort(c);
return local.get(0);
}
}

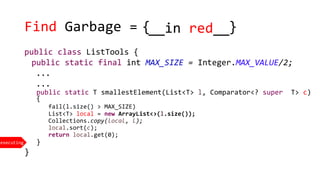

21. Find Garbage =
executing
{ }__in red__
public class ListTools {
public static final int MAX_SIZE = Integer.MAX_VALUE/2;
...
...
public static T smallestElement(List<T> l, Comparator<? super T> c)
{
fail(l.size() > MAX_SIZE)
List<T> local = new ArrayList<>(l.size());
Collections.copy(local, l);
local.sort(c);
return local.get(0);
}
}

22. Garbage defined!
{Root Set}
All objects reachable from current thread ‘stacks’
All objects reachable from current threads (= ThreadLocals)
Global references (= static, registers)
JNI references (= let’s not bother about this!)
{Reachable Set} aka {Live Set}
{Root Set} + All objects reachable from {Root Set}
{Garbage}
{Allocated Objects} – {Reachable Set}

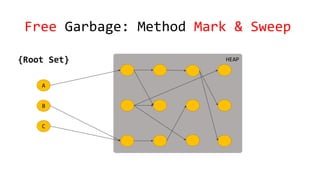

23. HEAP
Free Garbage: Method Mark & Sweep
{Root Set}
A
B
C

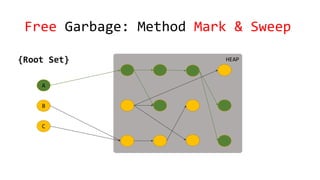

24. HEAP
Free Garbage: Method Mark & Sweep
{Root Set}
A
B
C

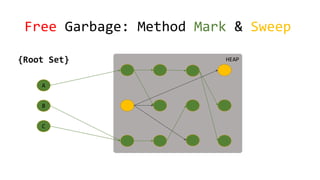

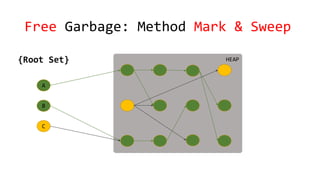

25. HEAP
Free Garbage: Method Mark & Sweep
{Root Set}
A
B
C

26. HEAP
Free Garbage: Method Mark & Sweep
{Root Set}
A
B
C

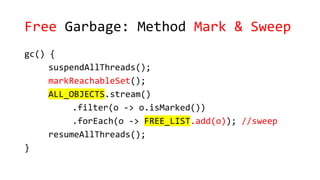

27. Free Garbage: Method Mark & Sweep
gc() {
suspendAllThreads();
markReachableSet();
ALL_OBJECTS.stream()
.filter(o -> o.isMarked())
.forEach(o -> FREE_LIST.add(o)); //sweep
resumeAllThreads();
}

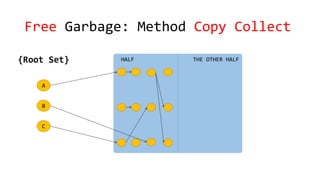

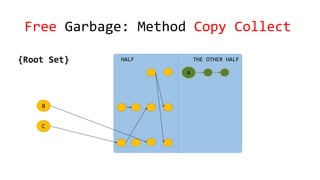

28. Free Garbage: Method Copy Collect
HALF THE OTHER HALF{Root Set}
A
B
C

29. Free Garbage: Method Copy Collect
HALF THE OTHER HALF{Root Set}
A
B
C

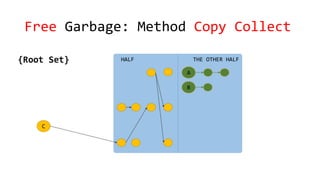

30. Free Garbage: Method Copy Collect
HALF THE OTHER HALF{Root Set}
A
C
B

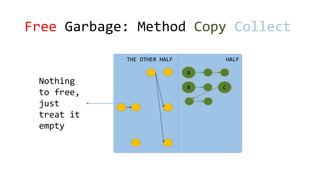

31. Free Garbage: Method Copy Collect
THE OTHER HALF HALF
A
B C
Nothing
to free,
just
treat it
empty

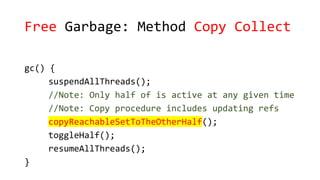

32. Free Garbage: Method Copy Collect
gc() {
suspendAllThreads();
//Note: Only half of is active at any given time
//Note: Copy procedure includes updating refs
copyReachableSetToTheOtherHalf();
toggleHalf();
resumeAllThreads();
}

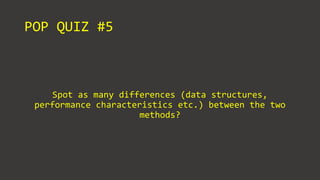

33. POP QUIZ #5
Spot as many differences (data structures,
performance characteristics etc.) between the two
methods?

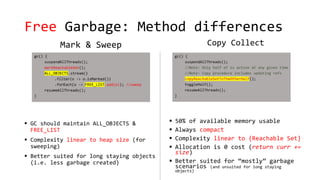

34. Free Garbage: Method differences
Mark & Sweep
 GC should maintain ALL_OBJECTS &
FREE_LIST
 Complexity linear to heap size (for
sweeping)
 Better suited for long staying objects
(i.e. less garbage created)
Copy Collect
 50% of available memory usable
 Always compact
 Complexity linear to {Reachable Set}
 Allocation is 0 cost (return curr +=
size)
 Better suited for “mostly” garbage
scenarios (and unsuited for long staying
objects)

35. POP QUIZ #6
‘concurrent’ vs ‘parallel’ GC?

36. Free Garbage: Method Implementations
Stop The World
Time
Parallel Concurrent
Thread GC
Incremental
Most of these techniques are orthogonal and so can be
combined together (which is normally the case in standard implementations)

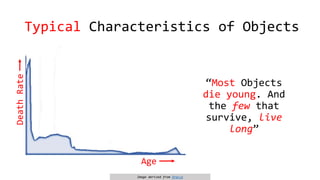

37. Typical Characteristics of Objects
“Most Objects
die young. And
the few that
survive, live
long”
Age
DeathRate
Image derived from Oracle

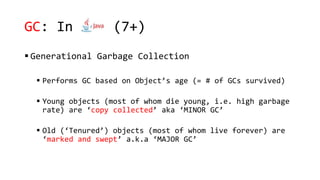

38. GC: In java(7+)
 Generational Garbage Collection
 Performs GC based on Object’s age (= # of GCs survived)
 Young objects (most of whom die young, i.e. high garbage
rate) are ‘copy collected’ aka ‘MINOR GC’
 Old (‘Tenured’) objects (most of whom live forever) are
‘marked and swept’ a.k.a ‘MAJOR GC’

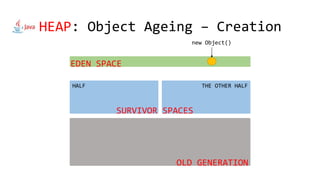

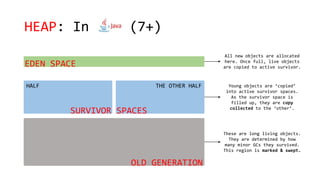

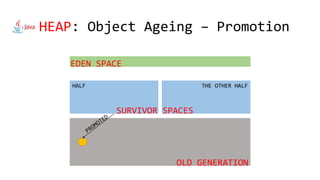

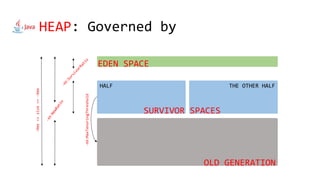

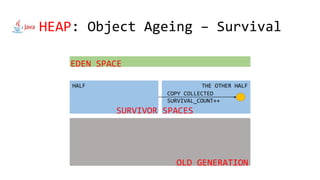

39. HEAP: In java(7+)
EDEN SPACE
All new objects are allocated
here. Once full, live objects
are copied to active survivor.
HALF THE OTHER HALF
SURVIVOR SPACES
Young objects are ‘copied’
into active survivor spaces.
As the survivor space is
filled up, they are copy
collected to the ‘other’.
These are long living objects.
They are determined by how
many minor GCs they survived.
This region is marked & swept.
OLD GENERATION

40. HEAP: Object Ageing – Creation
EDEN SPACE
HALF THE OTHER HALF
SURVIVOR SPACES
OLD GENERATION
new Object()

41. HEAP: Object Ageing – Survival
HALF THE OTHER HALF
EDEN IS GCd
EDEN SPACE
SURVIVOR SPACES
OLD GENERATION

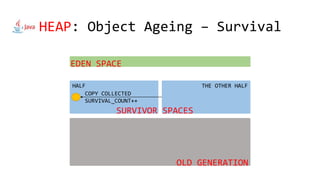

42. HEAP: Object Ageing – Survival
HALF THE OTHER HALF
COPY COLLECTED
SURVIVAL_COUNT++
EDEN SPACE
SURVIVOR SPACES
OLD GENERATION

43. HEAP: Object Ageing – Survival
HALF THE OTHER HALF
COPY COLLECTED
SURVIVAL_COUNT++
EDEN SPACE
SURVIVOR SPACES
OLD GENERATION

44. HEAP: Object Ageing – Promotion
HALF THE OTHER HALF
EDEN SPACE
SURVIVOR SPACES
OLD GENERATION

45. HEAP: Governed by
HALF THE OTHER HALF
EDEN SPACE
SURVIVOR SPACES
OLD GENERATION
-Xms<=size<=-Xmx
-XX:MaxTenuringThreshold

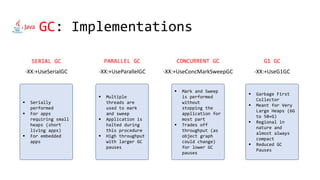

46. GC: Implementations
-XX:+UseSerialGC
SERIAL GC
-XX:+UseParallelGC
PARALLEL GC
-XX:+UseConcMarkSweepGC
CONCURRENT GC
-XX:+UseG1GC
G1 GC
 Serially
performed
 For apps
requiring small
heaps (short
living apps)
 For embedded
apps
 Multiple
threads are
used to mark
and sweep
 Application is
halted during
this procedure
 High throughput
with larger GC
pauses
 Mark and Sweep
is performed
without
stopping the
application for
most part
 Trades off
throughput (as
object graph
could change)
for lower GC
pauses
 Garbage First
Collector
 Meant for Very
Large Heaps (6G
to 50+G)
 Regional in
nature and
almost always
compact
 Reduced GC
Pauses

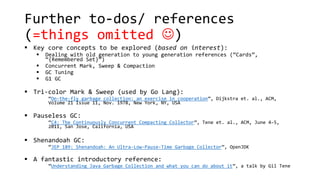

47. Further to-dos/ references
(=things omitted )
 Key core concepts to be explored (based on interest):
 Dealing with old generation to young generation references (“Cards”,
“{Remembered Set}”)
 Concurrent Mark, Sweep & Compaction
 GC Tuning
 G1 GC
 Tri-color Mark & Sweep (used by Go Lang):
“On-the-fly garbage collection: an exercise in cooperation”, Dijkstra et. al., ACM,
Volume 21 Issue 11, Nov. 1978, New York, NY, USA
 Pauseless GC:
“C4: The Continuously Concurrent Compacting Collector”, Tene et. al., ACM, June 4–5,
2011, San Jose, California, USA
 Shenandoah GC:
“JEP 189: Shenandoah: An Ultra-Low-Pause-Time Garbage Collector”, OpenJDK
 A fantastic introductory reference:
“Understanding Java Garbage Collection and what you can do about it”, a talk by Gil Tene
