Garbage collection Overview

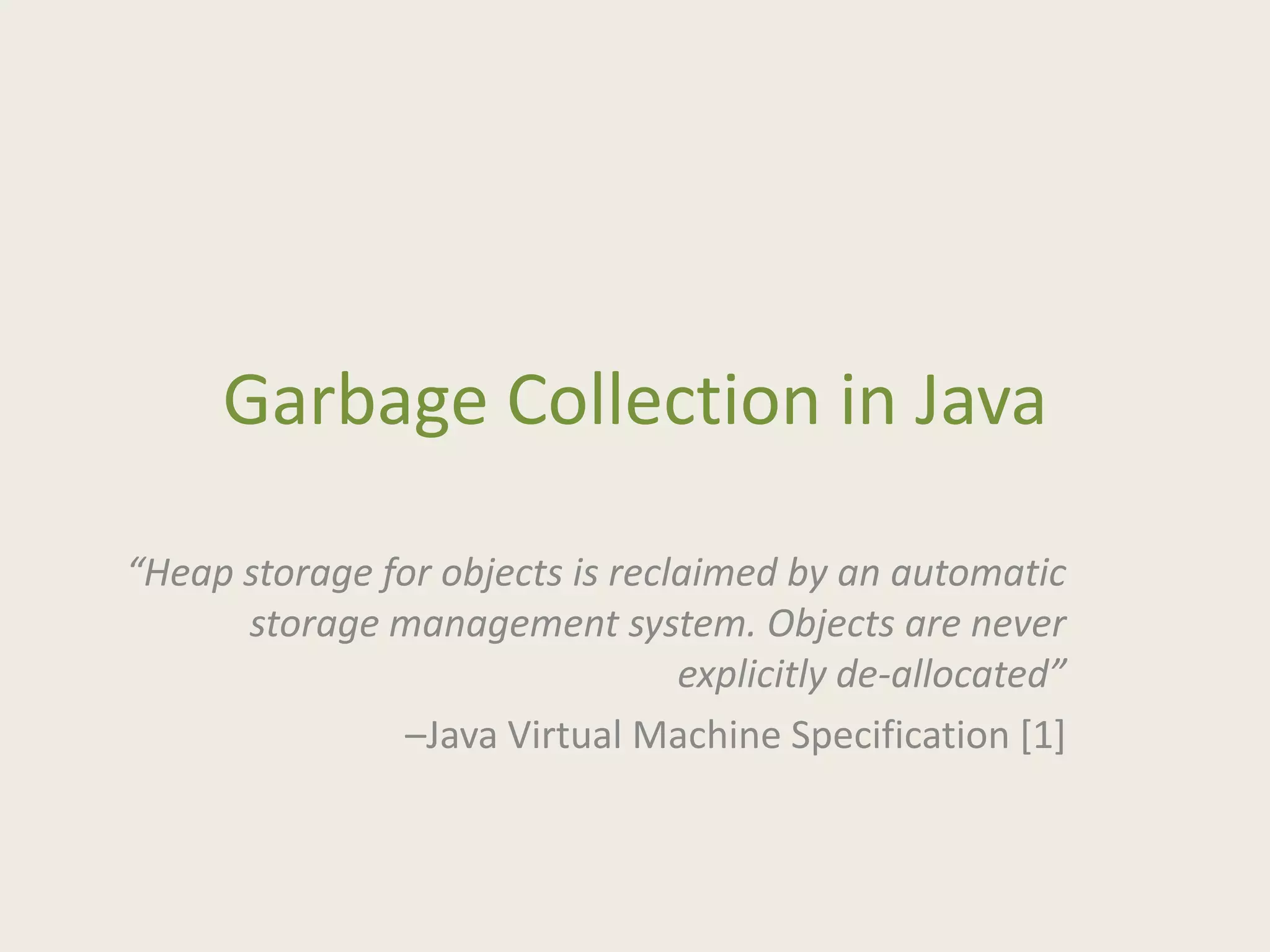

1. Garbage Collection in Java
“Heap storage for objects is reclaimed by an automatic
storage management system. Objects are never
explicitly de-allocated”
–Java Virtual Machine Specification [1]

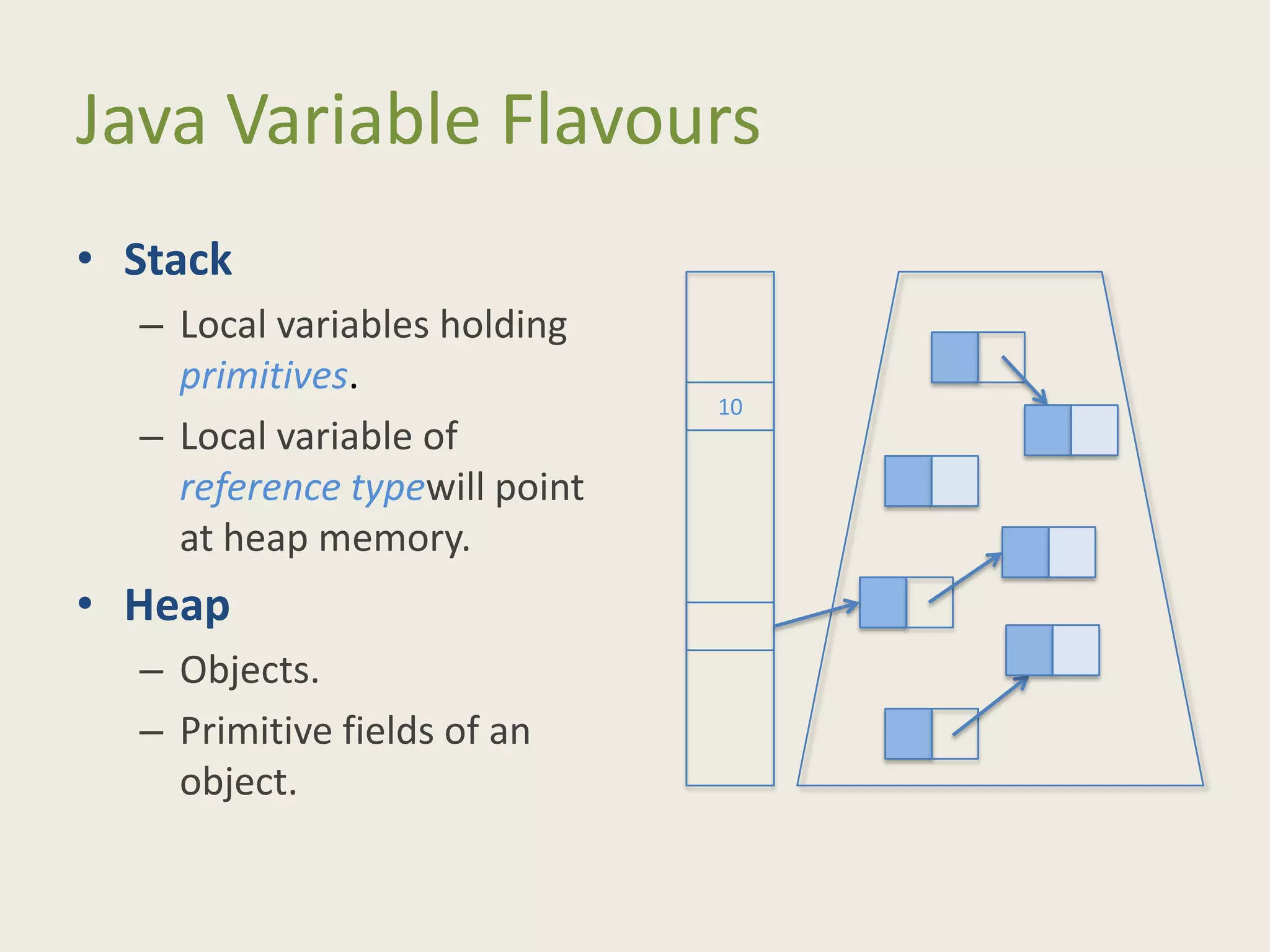

2. Java Variable Flavours
• Stack
– Local variables holding
primitives.
10
– Local variable of
reference typewill point
at heap memory.
• Heap
– Objects.
– Primitive fields of an
object.
3. Mark and Sweep Approach
• Simplest. Garbage collector algorithm.
• Recover and reuse.Heap memoryno longer in use.
• Algorithm.
– Stop-the-world.Non-deterministicpauses stop allthe
running threads.
– Start.From live objectswalks through the tree of
references.
– Mark.As liveany object on the route.
– Sweep.Everything left is garbage and can be collected.
4. Generational Garbage Collector
• Mark-and-sweep. Improved.
• Weak generational hypothesis [2].
– Mostobjectsbecome unreachable
quickly.
– Fewreferencesfrom older to young Eden
Young Generation
objects exist.
• Areas of memory. Survivor
– Eden.Most new objects (very large From To
objects directly to old generation).
Generation
– Survivor.Survived, one holds
Old
Tenured
object, the other empty.
– Tenured.Promoted longer-lived
objects. PermGen
– PermGen.Not strictly in heap, internal
structures (i.e. class definitions).
5. Escape Analysis
• Recent change.Java 6u23.
• Local variables.Onlyused
inside the method.
– No passedinto other
methods.
– No returned.
• No heap.Object created on
the method stack frame
– Reduce objects of young 10
collections.
– Memory used freed when
method returns.
6. Concurrent Mark-Sweep in Action
• Two short pauses.Per GC cycle, initial mark and
remark.
Marking/Pre-cleaning Sweeping
• Initial Mark.Identifies set of objectsimmediately
reachable outside old generation.
• Concurrent marking phase.Marks all live
objectstransitively reachable from this set.
• Object graph can change.Not alllive objects are
guaranteed to be marked.
• Pre-cleaning.Revisitingobjects modified concurrently
with the marking phase.
Initial Mark Remark
• Second Pause (Remark).Revisits objects modified
during concurrent marking phase. Running application thread
• Concurrent sweep phase.Deallocates garbage Running GC thread
objects without relocatingthe live ones.
7. CMS Pros/Cons
• Advantages.
– Two pauses. No one single pause.
– Concurrency. App and GC run in parallel.
• Disadvantages. Start sweeping
– Extra overhead.
– Freelists. Free space not contiguous.
– Large Java heap req.Marking cycle lasts
morethan stop-the-world, spacereclaimed at End sweeping
the end.
– App runs concurrently.Old
generationpotentially increases during
marking phase.
– Floating garbage. Not guaranteed all
garbage objects.
– Fragmentation issue.Lack of
compaction, possible not efficient use of free
space [3].
8. Garbage-First GC (G1) in Action
• Features.
Parallel, concurrent, incrementally
compacting low-pause.
• Heap layout.Split into regions.
• Region.Equal-sized chunks.
• Pause goal.How long app can pause for
GC while running (20 ms every 5 min).
• Pause.Objects evacuatedfrom one or Marking
more regions to a single region.
• Statistics.Average a region takes to
collect.
• G1?. Knows mostly empty regions.
– Collects.Inthis regions first.
– Concentrates.Collect on areas likely
GC GC GC
to be full of garbage.
Running application thread
Running GC thread
9. G1 Pros/Cons
• Advantages.
– High performance.
– Pause time goals. Prevent interruption proportional to heap or live-data size.
– Compact and free up memory.Continuously work to reduce fragmentation.
– Concurrent global marking phase. Determine liveness of the objects.
– Pause prediction model.
• Meet user-defined pause time target with high probability.
• Selects number of regions to collect based on the time target.
• Disadvantages.
– Target. Multi-processor machines with large memories.
10. Comparison
• G1. • CMS.
– Compacting collector. – No compaction.
– Avoid free list, rely on regions. – No control.
– More predictable pauses. • ParallelOld.
– User can specify pause targets. – Whole-heap compaction, long
• Switch to G1. pauses.
– More than 50% heap occupied – No control.
with live data.
– Allocation and promotion rate
varies significantly.
– Undesired long collection and
compaction pauses (0.5s to 1s)
11. References
[1] Lindholm, Tim, and Frank Yellin. Java Virtual Machine Specification, Second Edition.
Addison-Wesley, Reading, MA, 1999.
[2] Charlie Hunt, Binu John. Java Performance, First Edition. Pearson, 2011.
[3] Jones, Richard, and Rafael Lins. Garbage Collection. John Wiley &
Sons, Ltd.,WestSussex, PO19 IUD, England, 1996.
[4] Memory Management in the Java HotSpot Virtual Machine. Sun
Mircrosystem, April 2006.
[5] B.J. Evans, M. Verburg. Well-Grounded Java Developer. Manning, 2012.
