The document describes Galil's RIO, a compact and low-cost programmable logic controller (PLC) for handling analog and digital I/O over Ethernet. Key features include 32 digital I/O, 16 analog I/O, a RISC processor, and support for relay ladder logic programming through Galil's conversion software. The RIO can operate as a standalone controller or be integrated with other Galil controllers and I/O devices using Modbus communication protocols.

1. Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com 1
www.servo2go.com

2. • Smart – RISC processor, memory, pulse
counters, PID process loops, web
interface, email capability, PoE, Ethernet,
Ladder Interface Software
• Compact – just 3.88” x 4.26” x 1.30”
• Low Cost – only $295 in single quantity
• Lots of I/O – 32 digital I/O & 16 analog I/O
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com 2
www.servo2go.com

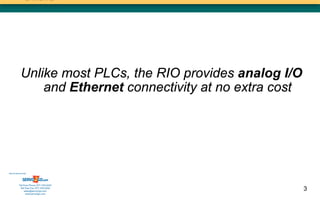

3. Unlike most PLCs, the RIO provides analog I/O
and Ethernet connectivity at no extra cost
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com 3
www.servo2go.com

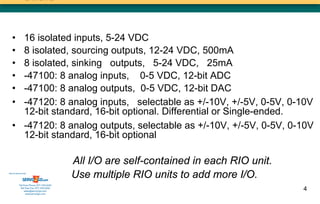

4. • 16 isolated inputs, 5-24 VDC
• 8 isolated, sourcing outputs, 12-24 VDC, 500mA
• 8 isolated, sinking outputs, 5-24 VDC, 25mA
• -47100: 8 analog inputs, 0-5 VDC, 12-bit ADC
• -47100: 8 analog outputs, 0-5 VDC, 12-bit DAC
• -47120: 8 analog inputs, selectable as +/-10V, +/-5V, 0-5V, 0-10V
12-bit standard, 16-bit optional. Differential or Single-ended.
• -47120: 8 analog outputs, selectable as +/-10V, +/-5V, 0-5V, 0-10V
12-bit standard, 16-bit optional
All I/O are self-contained in each RIO unit.
Sold & Serviced By:
Use multiple RIO units to add more I/O.
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com 4
www.servo2go.com

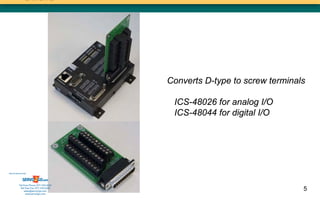

5. Converts D-type to screw terminals
ICS-48026 for analog I/O
ICS-48044 for digital I/O
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com 5
www.servo2go.com

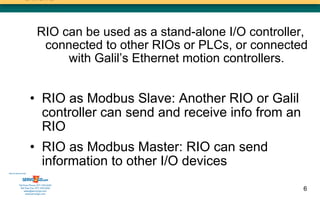

6. RIO can be used as a stand-alone I/O controller,
connected to other RIOs or PLCs, or connected
with Galil’s Ethernet motion controllers.
• RIO as Modbus Slave: Another RIO or Galil
controller can send and receive info from an
RIO
• RIO as Modbus Master: RIO can send
information to other I/O devices
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com 6
www.servo2go.com

7. RIO can accept:
1. Galil’s standard two-letter commands
2. Code from Galil’s Ladder Interface Software
which converts Relay Ladder Logic into two-
letter code.
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com 7
www.servo2go.com

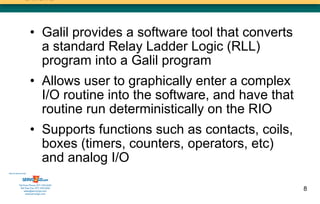

8. • Galil provides a software tool that converts
a standard Relay Ladder Logic (RLL)
program into a Galil program
• Allows user to graphically enter a complex
I/O routine into the software, and have that
routine run deterministically on the RIO
• Supports functions such as contacts, coils,
boxes (timers, counters, operators, etc)
and analog I/O
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com 8
www.servo2go.com

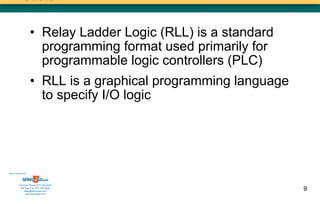

9. • Relay Ladder Logic (RLL) is a standard
programming format used primarily for
programmable logic controllers (PLC)
• RLL is a graphical programming language
to specify I/O logic
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com 9
www.servo2go.com

10. Galil’s Ladder Interface Software converts a
Relay Ladder Logic program into deterministic
code for input into Galil’s RIO I/O Controller
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com 10
www.servo2go.com

11. • Contacts
• Coils
• Control Relays
• Boxes (timers, counters, data manipulation)
• Mathematical and Logical Operators
• Galil Command box
• Analog I/O
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com 11
www.servo2go.com

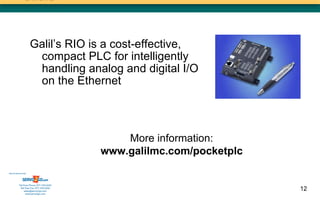

12. Galil’s RIO is a cost-effective,
compact PLC for intelligently
handling analog and digital I/O
on the Ethernet
More information:
www.galilmc.com/pocketplc
