The document describes the BLu Servo Amplifiers product line. It provides details on the amplifier models, control modes, hardware features, software functionality, compatible motors and accessories. The amplifiers offer position, velocity and torque control modes and include programming software to configure the amplifiers for different motion control applications. Typical system examples are also presented with pricing.

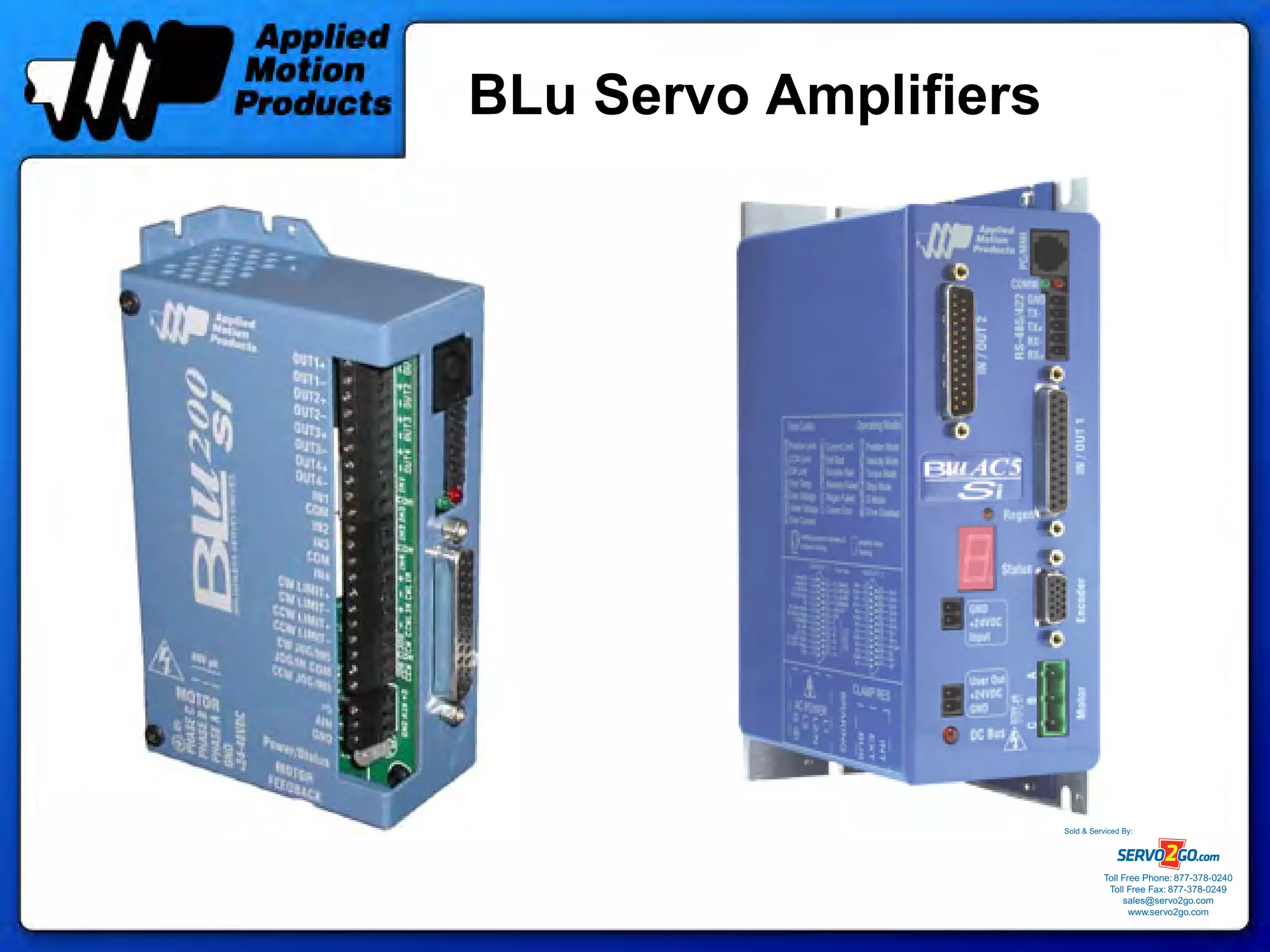

1. BLu Servo Amplifiers
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com
www.servo2go.com

2. BLu Servo Amplifiers
Amplifier operational modes
Position
Velocity
Torque
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com
www.servo2go.com

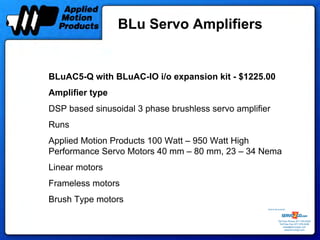

3. BLu Servo Amplifiers
BLuAC5-Q with BLuAC-IO i/o expansion kit - $1225.00
Amplifier type
DSP based sinusoidal 3 phase brushless servo amplifier
Runs
Applied Motion Products 100 Watt – 950 Watt High
Performance Servo Motors 40 mm – 80 mm, 23 – 34 Nema
Linear motors
Frameless motors
Brush Type motors
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com
www.servo2go.com

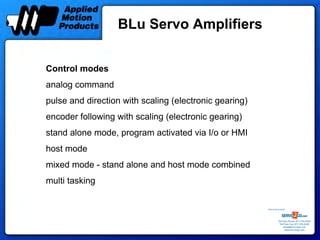

4. BLu Servo Amplifiers
Control modes
analog command
pulse and direction with scaling (electronic gearing)
encoder following with scaling (electronic gearing)
stand alone mode, program activated via I/o or HMI
host mode
mixed mode - stand alone and host mode combined
multi tasking
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com
www.servo2go.com

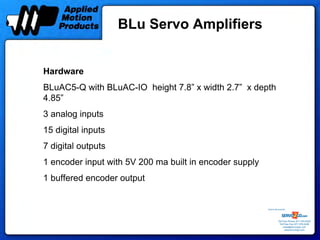

5. BLu Servo Amplifiers
Hardware
BLuAC5-Q with BLuAC-IO height 7.8” x width 2.7” x depth
4.85”
3 analog inputs
15 digital inputs
7 digital outputs
1 encoder input with 5V 200 ma built in encoder supply
1 buffered encoder output
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com
www.servo2go.com

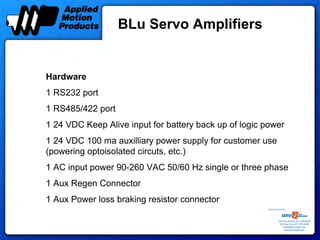

6. BLu Servo Amplifiers
Hardware
1 RS232 port
1 RS485/422 port
1 24 VDC Keep Alive input for battery back up of logic power
1 24 VDC 100 ma auxilliary power supply for customer use
(powering optoisolated circuts, etc.)
1 AC input power 90-260 VAC 50/60 Hz single or three phase
1 Aux Regen Connector
1 Aux Power loss braking resistor connector
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com
www.servo2go.com

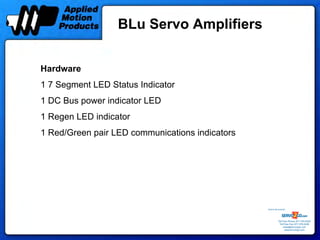

7. BLu Servo Amplifiers
Hardware
1 7 Segment LED Status Indicator
1 DC Bus power indicator LED
1 Regen LED indicator
1 Red/Green pair LED communications indicators
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com
www.servo2go.com

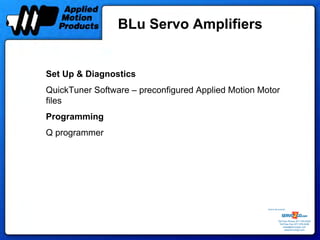

8. BLu Servo Amplifiers
Set Up & Diagnostics
QuickTuner Software – preconfigured Applied Motion Motor
files
Programming
Q programmer
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com
www.servo2go.com

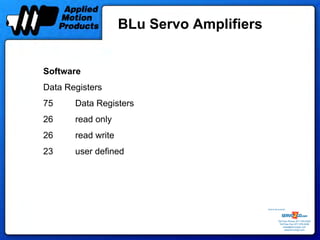

9. BLu Servo Amplifiers
Software
Data Registers
75 Data Registers
26 read only
26 read write
23 user defined
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com
www.servo2go.com

10. BLu Servo Amplifiers
Q Commands
146 Q Commands
29 Global commands
29 Motion commands
11 Servo parameter commands
19 Immediate commands
17 I/O commands
6 Analog commands
9 Q function commands
15 Data register commands
Sold & Serviced By:
20 Status commands Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com
www.servo2go.com

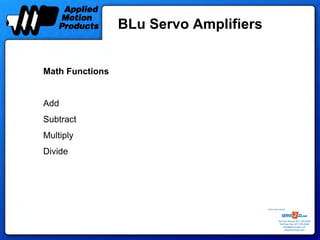

11. BLu Servo Amplifiers
Math Functions
Add
Subtract
Multiply
Divide
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com
www.servo2go.com

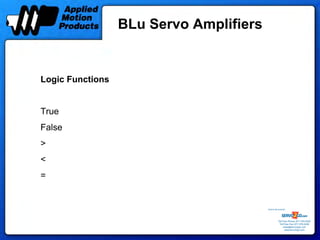

12. BLu Servo Amplifiers
Logic Functions
True
False
>
<
=
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com
www.servo2go.com

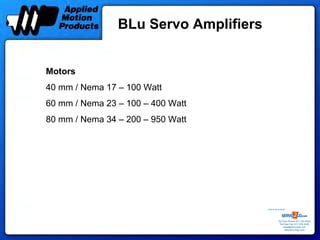

13. BLu Servo Amplifiers
Motors
40 mm / Nema 17 – 100 Watt
60 mm / Nema 23 – 100 – 400 Watt
80 mm / Nema 34 – 200 – 950 Watt
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com
www.servo2go.com

14. BLu Servo Amplifiers
Accessories
Motor cables
Encoder Cables
Break Out Boards with Cables
Braking Resistors
Sold & Serviced By:
Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com
www.servo2go.com

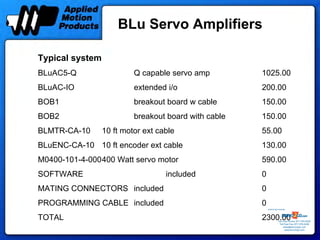

15. BLu Servo Amplifiers
Typical system
BLuAC5-Q Q capable servo amp 1025.00
BLuAC-IO extended i/o 200.00
BOB1 breakout board w cable 150.00
BOB2 breakout board with cable 150.00
BLMTR-CA-10 10 ft motor ext cable 55.00
BLuENC-CA-10 10 ft encoder ext cable 130.00
M0400-101-4-000400 Watt servo motor 590.00
SOFTWARE included 0
MATING CONNECTORS included 0
PROGRAMMING CABLE included 0
Sold & Serviced By:
TOTAL 2300.00 Toll Free Phone: 877-378-0240
Toll Free Fax: 877-378-0249
sales@servo2go.com
www.servo2go.com

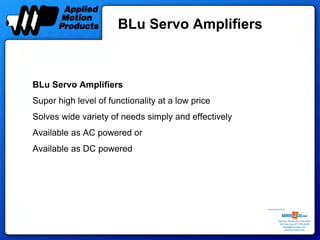

16. BLu Servo Amplifiers
BLu Servo Amplifiers
Super high level of functionality at a low price
Solves wide variety of needs simply and effectively
Available as AC powered or
Available as DC powered
