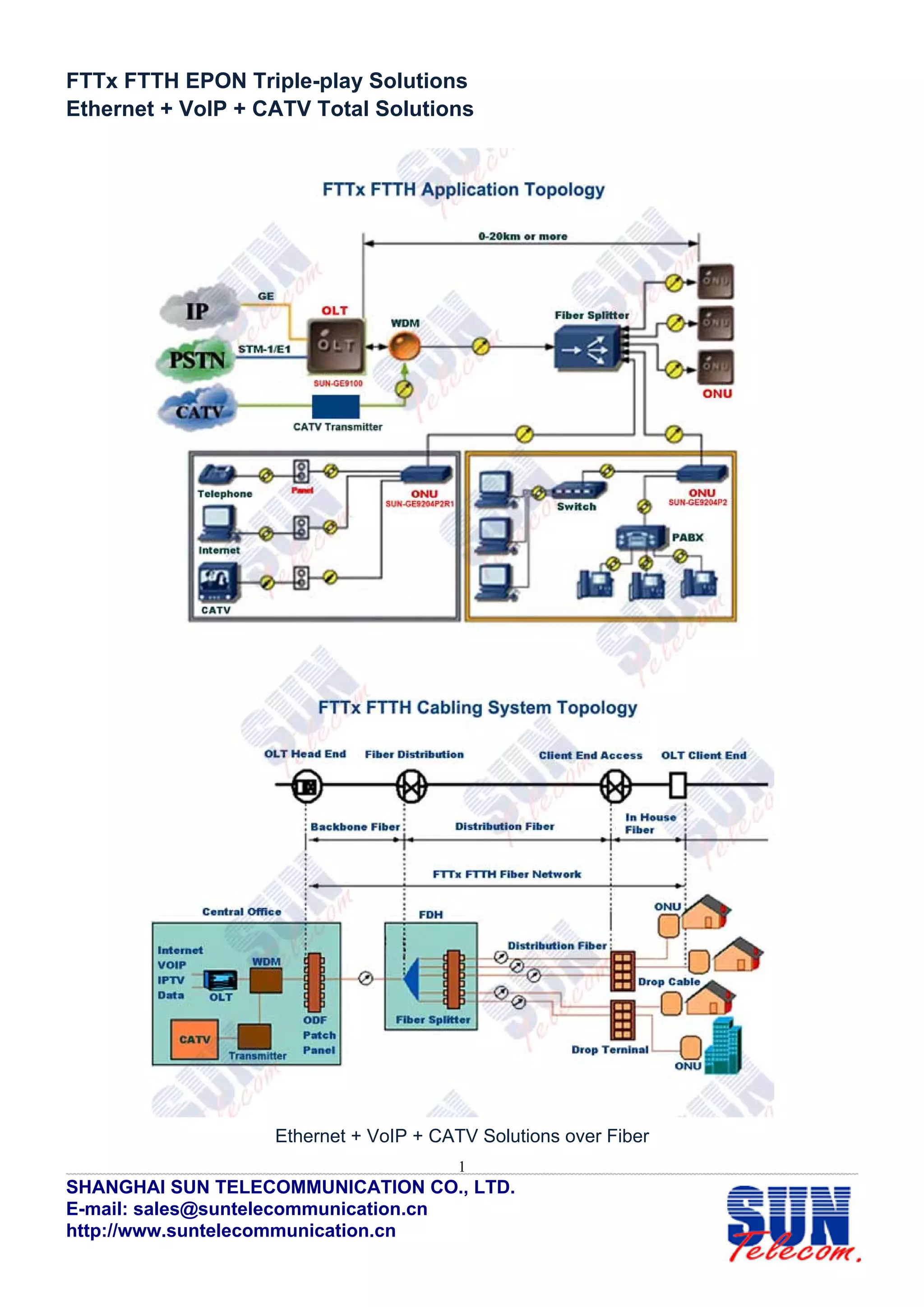

1. FTTx FTTH EPON Triple-play Solutions
Ethernet + VoIP + CATV Total Solutions
Ethernet + VoIP + CATV Solutions over Fiber
1
SHANGHAI SUN TELECOMMUNICATION CO., LTD.
E-mail: sales@suntelecommunication.cn
http://www.suntelecommunication.cn

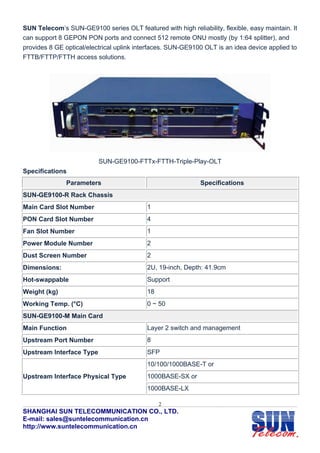

2. SUN Telecom’s SUN-GE9100 series OLT featured with high reliability, flexible, easy maintain. It
can support 8 GEPON PON ports and connect 512 remote ONU mostly (by 1:64 splitter), and
provides 8 GE optical/electrical uplink interfaces. SUN-GE9100 OLT is an idea device applied to
FTTB/FTTP/FTTH access solutions.
SUN-GE9100-FTTx-FTTH-Triple-Play-OLT
Specifications
Parameters Specifications
SUN-GE9100-R Rack Chassis
Main Card Slot Number 1
PON Card Slot Number 4
Fan Slot Number 1
Power Module Number 2
Dust Screen Number 2
Dimensions: 2U, 19-inch, Depth: 41.9cm
Hot-swappable Support
Weight (kg) 18
Working Temp. (°C) 0 ~ 50
SUN-GE9100-M Main Card
Main Function Layer 2 switch and management
Upstream Port Number 8
Upstream Interface Type SFP
10/100/1000BASE-T or
Upstream Interface Physical Type 1000BASE-SX or
1000BASE-LX
2
SHANGHAI SUN TELECOMMUNICATION CO., LTD.
E-mail: sales@suntelecommunication.cn
http://www.suntelecommunication.cn

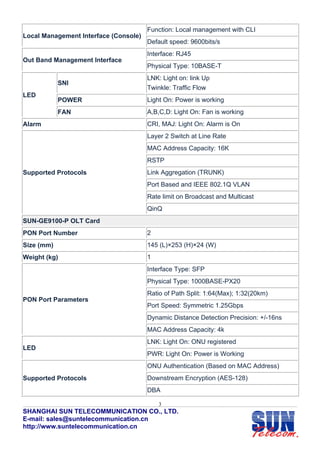

3. Function: Local management with CLI
Local Management Interface (Console)
Default speed: 9600bits/s
Interface: RJ45
Out Band Management Interface
Physical Type: 10BASE-T
LNK: Light on: link Up
SNI
Twinkle: Traffic Flow
LED
POWER Light On: Power is working
FAN A,B,C,D: Light On: Fan is working
Alarm CRI, MAJ: Light On: Alarm is On
Layer 2 Switch at Line Rate
MAC Address Capacity: 16K
RSTP
Supported Protocols Link Aggregation (TRUNK)
Port Based and IEEE 802.1Q VLAN
Rate limit on Broadcast and Multicast
QinQ
SUN-GE9100-P OLT Card
PON Port Number 2
Size (mm) 145 (L)×253 (H)×24 (W)
Weight (kg) 1
Interface Type: SFP
Physical Type: 1000BASE-PX20
Ratio of Path Split: 1:64(Max); 1:32(20km)
PON Port Parameters
Port Speed: Symmetric 1.25Gbps
Dynamic Distance Detection Precision: +/-16ns
MAC Address Capacity: 4k
LNK: Light On: ONU registered
LED
PWR: Light On: Power is Working
ONU Authentication (Based on MAC Address)
Supported Protocols Downstream Encryption (AES-128)
DBA
3
SHANGHAI SUN TELECOMMUNICATION CO., LTD.
E-mail: sales@suntelecommunication.cn
http://www.suntelecommunication.cn

4. IGMP Proxy (IGMP v1/v2)
ACL
Related ONU:
SUN-GE9201 ONU SUN-GE9204 ONU SUN-GE9208 ONU
SUN-GE9204R1 SUN-GE9204P2 SUN-GE9204P2R1
Ordering Information:
Part No. Description Remark
OLT
Two 220VAC power supply, swappable fan,
SUN-GE9100-R OLT Rack Chassis interchangeable dust screen, Max. support 4
SUN-GE9100-P OLT PON Panels
SUN-GE9100-M Main-board Support 8 Uplink port
SUN-GE9100-P OLT PON Panel PON Card with 2 ports, without SFP Module
SUN-GE9100-GS20D OLT SFP Module 1000Base-PX20, SC, 20KM
SUN-GE9100-GE Uplink SFP Module 10/100/1000, RJ45
SUN-GE9100-GS15U Uplink SFP Module 1000M, SC, 15KM
SUN-GE9100-EMS Management App. Telnet, SNMP
ONU
SUN-GE9201 1FE 100M
SUN-GE9201G 1GE 1000M
SUN-GE9204 4FE 4 100M Ports
SUN-GE9208 8FE 8 100M Ports
SUN-GE9201-FG 1FE+1GE 1 100M Port + 1 1000M Port
4
SHANGHAI SUN TELECOMMUNICATION CO., LTD.
E-mail: sales@suntelecommunication.cn
http://www.suntelecommunication.cn

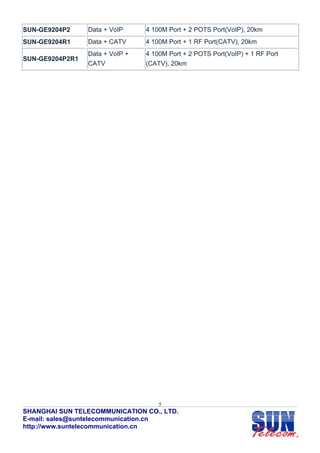

5. SUN-GE9204P2 Data + VoIP 4 100M Port + 2 POTS Port(VoIP), 20km
SUN-GE9204R1 Data + CATV 4 100M Port + 1 RF Port(CATV), 20km
Data + VoIP + 4 100M Port + 2 POTS Port(VoIP) + 1 RF Port
SUN-GE9204P2R1
CATV (CATV), 20km
