Introducing Freedom KM Switches by Black Box, the ultimate solution for seamless keyboard and mouse control across multiple computers. With Freedom KM Switches, you can effortlessly switch between many types of computers (Windows®, Apple®, Linux™) by simply sliding your mouse cursor from screen to screen, enhancing productivity and streamlining workflows. One of the key advantages of Freedom KM Switches is their simplicity. No additional software is required, making installation quick and hassle-free. By connecting only USB peripherals to the switch, you can maintain the individual connections of screens with each computer, ensuring uninterrupted performance and eliminating the need for complex configurations. Freedom KM Switches provide flexibility and scalability, allowing you to connect up to 8 computers. This makes them an ideal choice for various industries, including 911 operation centers, broadcast facilities, process control environments, and command rooms. Whether you need to manage multiple systems or workstations, Freedom KM Switches offer the convenience and efficiency you need. These switches are designed to meet the demands of mission-critical operations. With their robust construction and reliable performance, Freedom KM Switches ensure secure and stable connections, minimizing downtime and data loss. You can rely on the switches to deliver consistent and uninterrupted keyboard and mouse control, even in high-pressure environments. Freedom KM Switches are a cost-effective solution that maximizes efficiency. By centralizing control and reducing the number of peripherals needed, you can save valuable workspace and resources. With their plug-and-play functionality, you can quickly set up and start benefiting from the productivity-enhancing features of Freedom KM Switches. Experience the freedom and convenience of keyboard and mouse control with Freedom KM Switches by Black Box. Simplify your workflow, enhance productivity, and streamline your operations with the innovative features of Freedom KM Switches.

1. Freedom Keyboard/Mouse
Switches

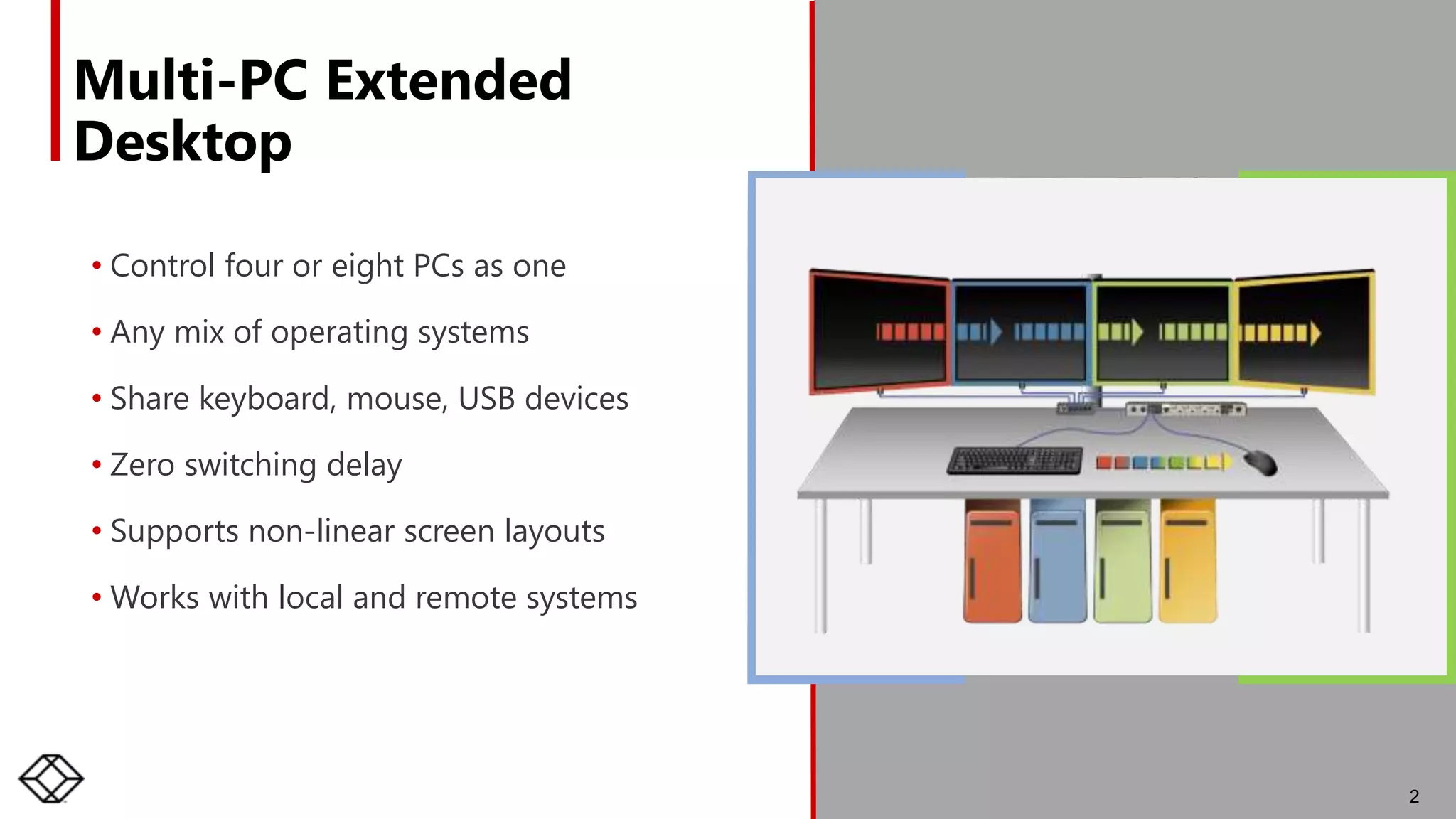

2. Multi-PC Extended
Desktop
• Control four or eight PCs as one
• Any mix of operating systems
• Share keyboard, mouse, USB devices
• Zero switching delay
• Supports non-linear screen layouts
• Works with local and remote systems
2

3. Multi-PC Extended Desktop
3

4. System Components
• Dual-Power
• Shared Peripherals
• External Control
• Rackmount Support
• Identify the active monitors
via LEDs
• Drive up to 10 LEDs per unit
4
Freedom 4-Port Switch (KV0004A-R2)
Freedom 8-Port Switch (KV0008A-R2)
LED Monitor Identifier Hub

5. Layout Design Tool
5
Create layouts on a PC
Arrange monitors
for any geometry
1A 2A 3A 4A
1A 2A
4A
1A
2A 3A 4A

6. Multi-Monitor Support
Connect up to 8 displays per PC
6
Single-keyboard and
mouse control
3A
3H
1A
1H
2A
2H
4A
4H

7. Hot-Key Switching & Selective Peripherals
7
Separately select video, audio,
keyboard, and USB ports
CTRL-ALT-1 Select PC 1
CTRL-ALT-2 Select PC 2
CTRL-ALT-3 Select PC 3
CTRL-ALT-4 Select PC 4
CTRL-ALT-A Switch all peripherals
CTRL-ALT-K Switch only keyboard/mouse
CTRL-ALT-S Switch only the audio
CTRL-ALT-U Switch only USB2 and USB2

8. Freedom with KVM Switching/Extension
8

9. Thank You
To learn more visit:
blackbox.com/freedom
