Data driven transportation analytics

2. © 2010 IBM Corporation
IBM Research - Ireland
© 2014 IBM Corporation

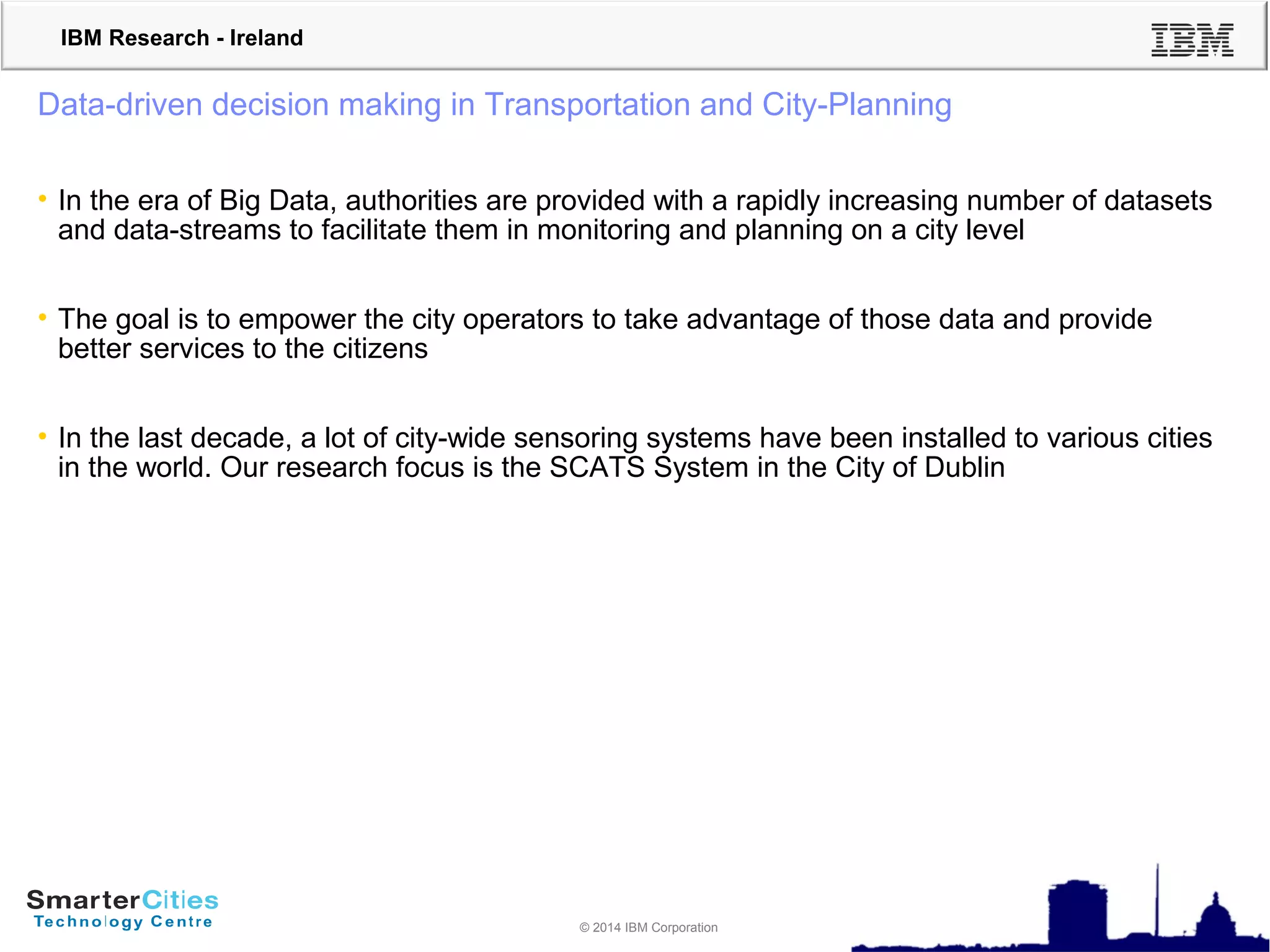

Data-driven decision making in Transportation and City-Planning
• In the era of Big Data, authorities are provided with a rapidly increasing number of datasets
and data-streams to facilitate them in monitoring and planning on a city level
• The goal is to empower the city operators to take advantage of those data and provide
better services to the citizens
• In the last decade, a lot of city-wide sensoring systems have been installed to various cities
in the world. Our research focus is the SCATS System in the City of Dublin

3. © 2010 IBM Corporation
IBM Research - Ireland
© 2014 IBM Corporation
SCATS System in Dublin
• Intelligent Transportation System which involves installation of sensors on the
intersections of the City which monitor and report various KPIs related to traffic flow
(saturation, flow, green time, etc)
• The Dublin system is deployed across 550 intersections
with 3300 sensors in total and generating 150MB/hour
• Historical data are publicly available in the Dublinked
website:
• http://dublinked.com/datastore/datasets/dataset-289.php
• http://dublinked.com/datastore/datasets/dataset-305.php
• http://dublinked.com/datastore/datasets/dataset-274.php
time

4. © 2010 IBM Corporation
IBM Research - Ireland
© 2014 IBM Corporation

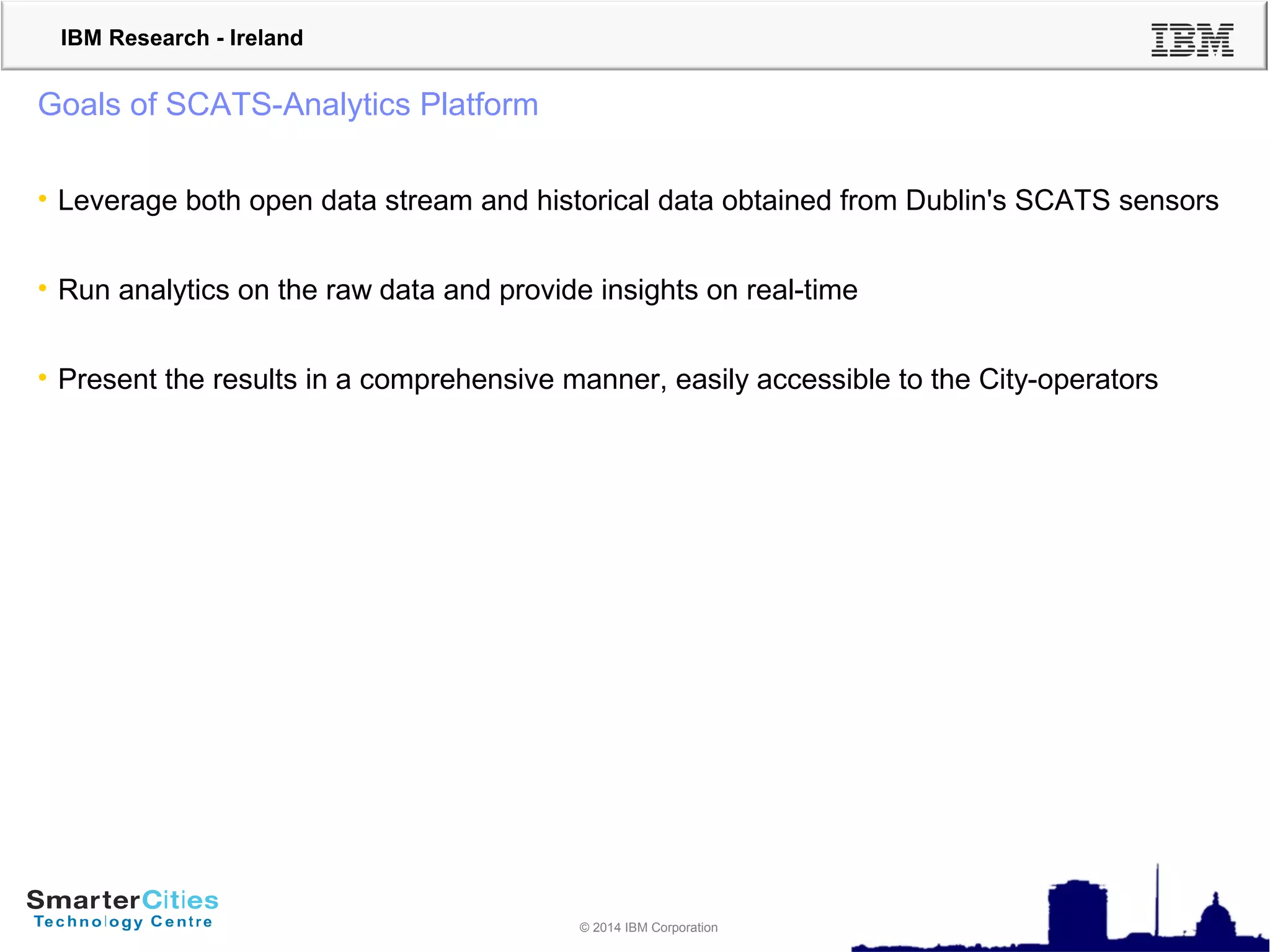

Goals of SCATS-Analytics Platform
• Leverage both open data stream and historical data obtained from Dublin's SCATS sensors
• Run analytics on the raw data and provide insights on real-time
• Present the results in a comprehensive manner, easily accessible to the City-operators

5. © 2010 IBM Corporation
IBM Research - Ireland
© 2014 IBM Corporation

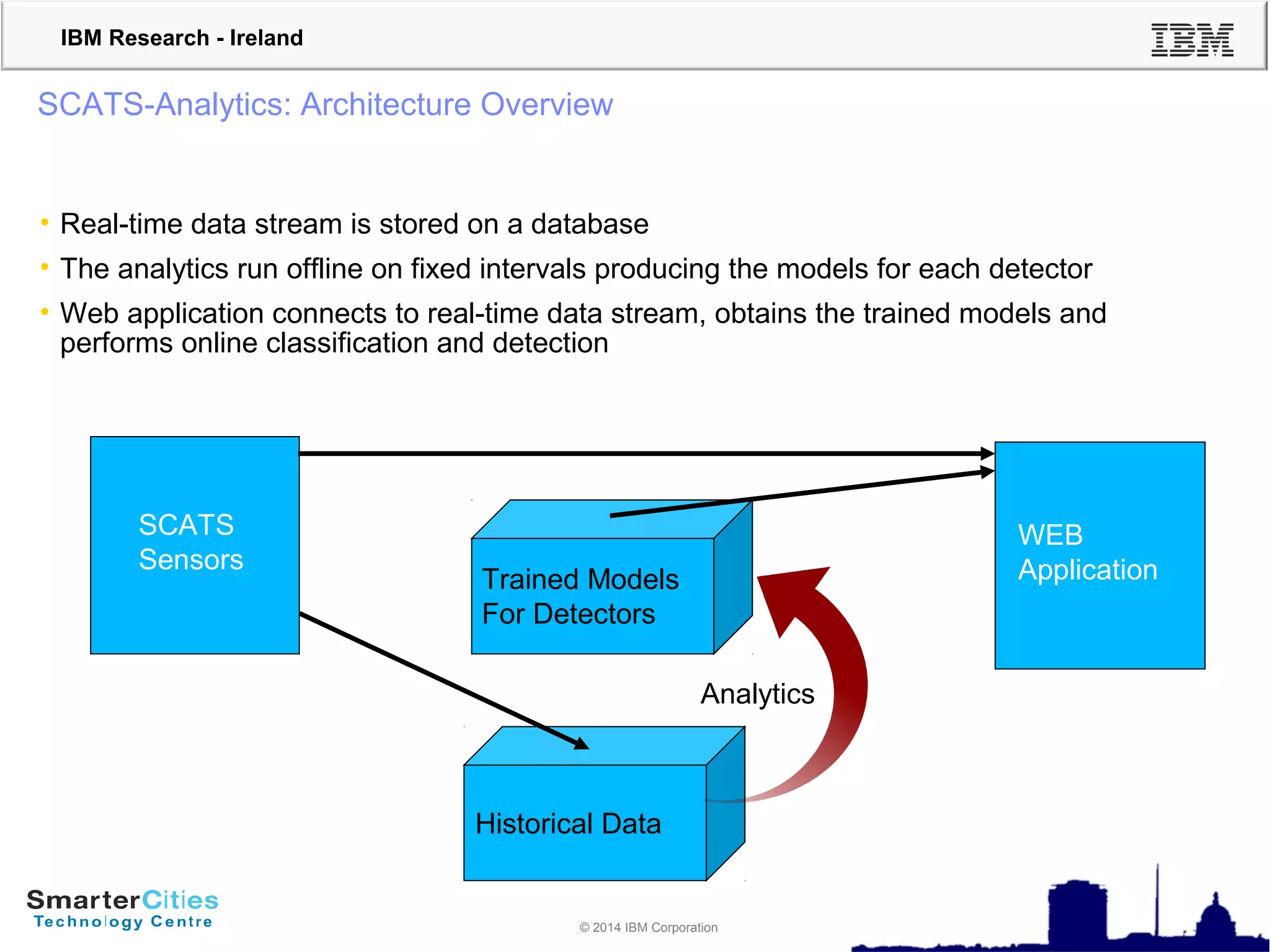

SCATS-Analytics: Architecture Overview
• Real-time data stream is stored on a database
• The analytics run offline on fixed intervals producing the models for each detector
• Web application connects to real-time data stream, obtains the trained models and
performs online classification and detection
Historical Data
SCATS
Sensors
Trained Models
For Detectors
Analytics
WEB
Application

6. © 2010 IBM Corporation
IBM Research - Ireland
© 2014 IBM Corporation

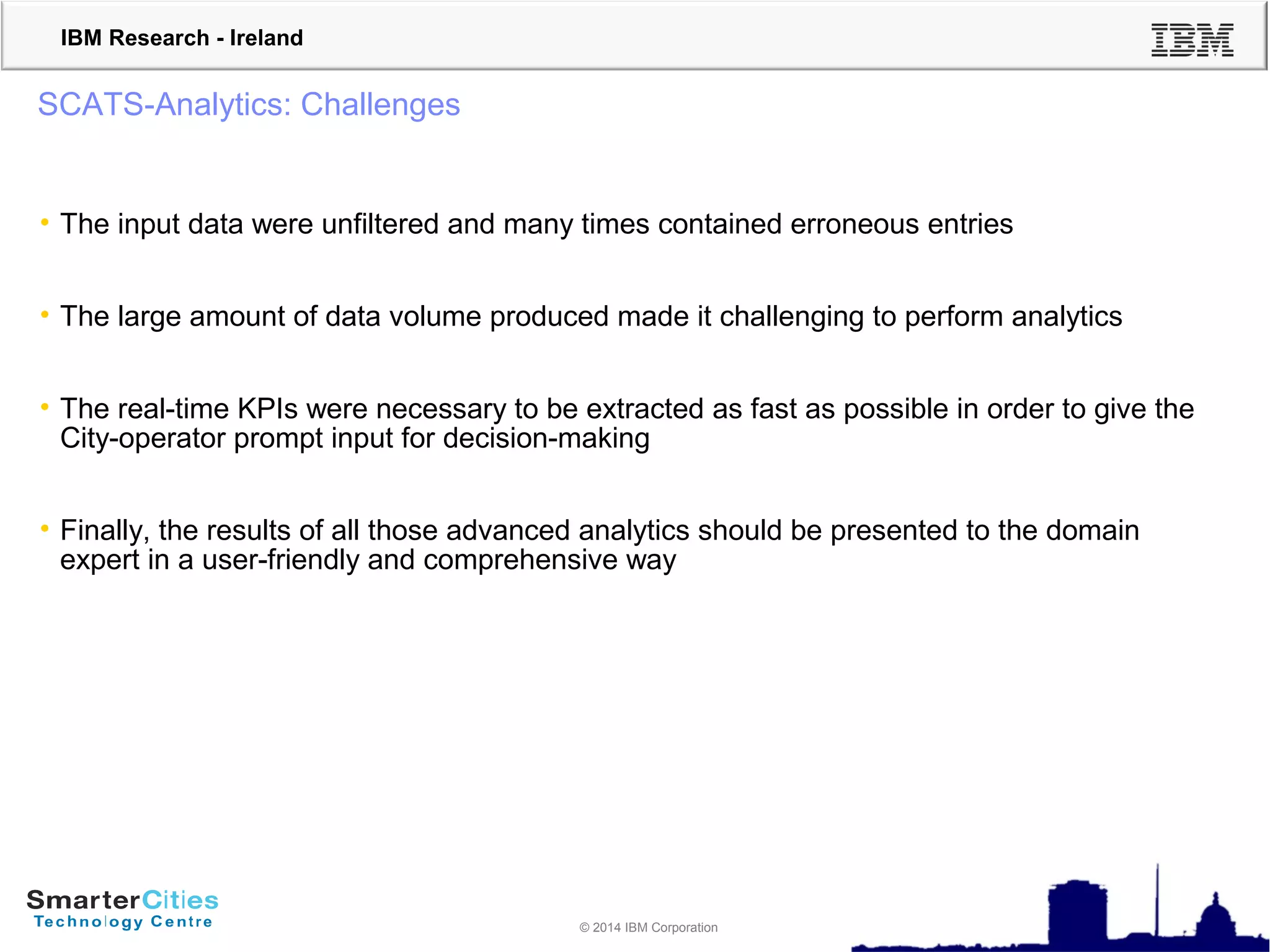

SCATS-Analytics: Challenges
• The input data were unfiltered and many times contained erroneous entries
• The large amount of data volume produced made it challenging to perform analytics
• The real-time KPIs were necessary to be extracted as fast as possible in order to give the
City-operator prompt input for decision-making
• Finally, the results of all those advanced analytics should be presented to the domain
expert in a user-friendly and comprehensive way

7. © 2010 IBM Corporation
IBM Research - Ireland
© 2014 IBM Corporation

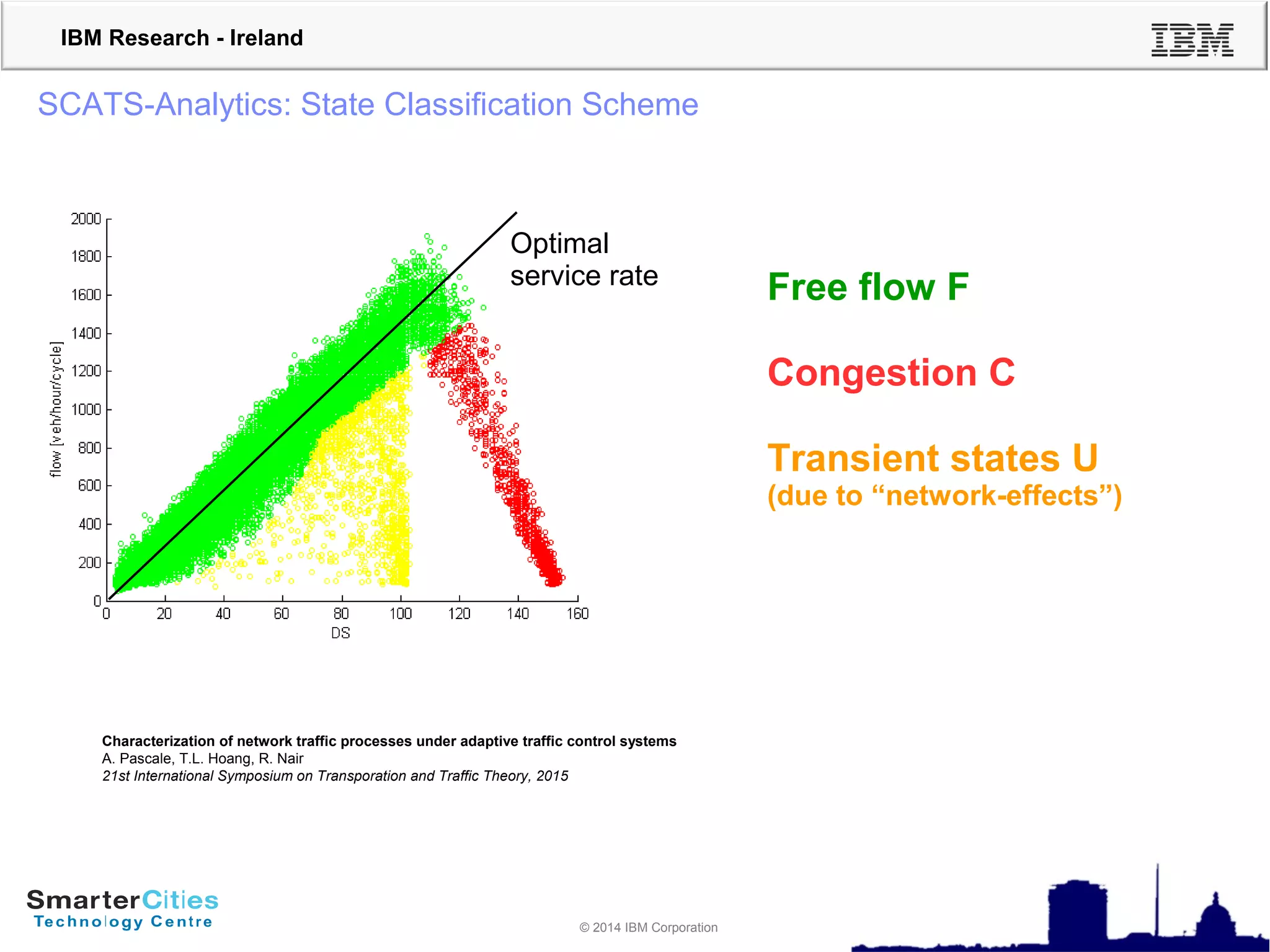

SCATS-Analytics: State Classification Scheme
Free flow F
Congestion C
Transient states U
(due to “network-effects”)
Optimal
service rate
Characterization of network traffic processes under adaptive traffic control systems
A. Pascale, T.L. Hoang, R. Nair
21st International Symposium on Transporation and Traffic Theory, 2015

8. © 2010 IBM Corporation
IBM Research - Ireland
© 2014 IBM Corporation8

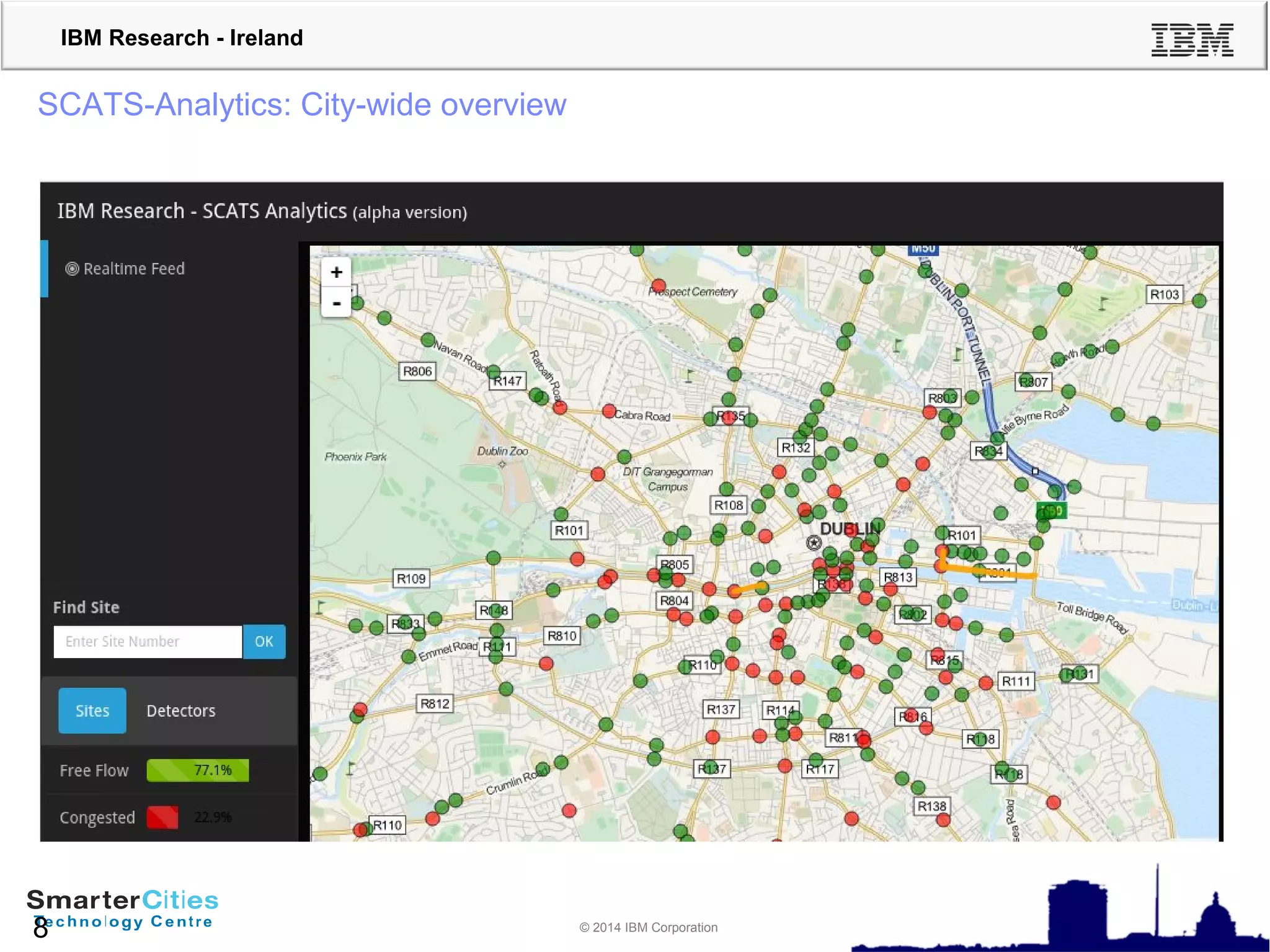

SCATS-Analytics: City-wide overview

9. © 2010 IBM Corporation
IBM Research - Ireland
© 2014 IBM Corporation9

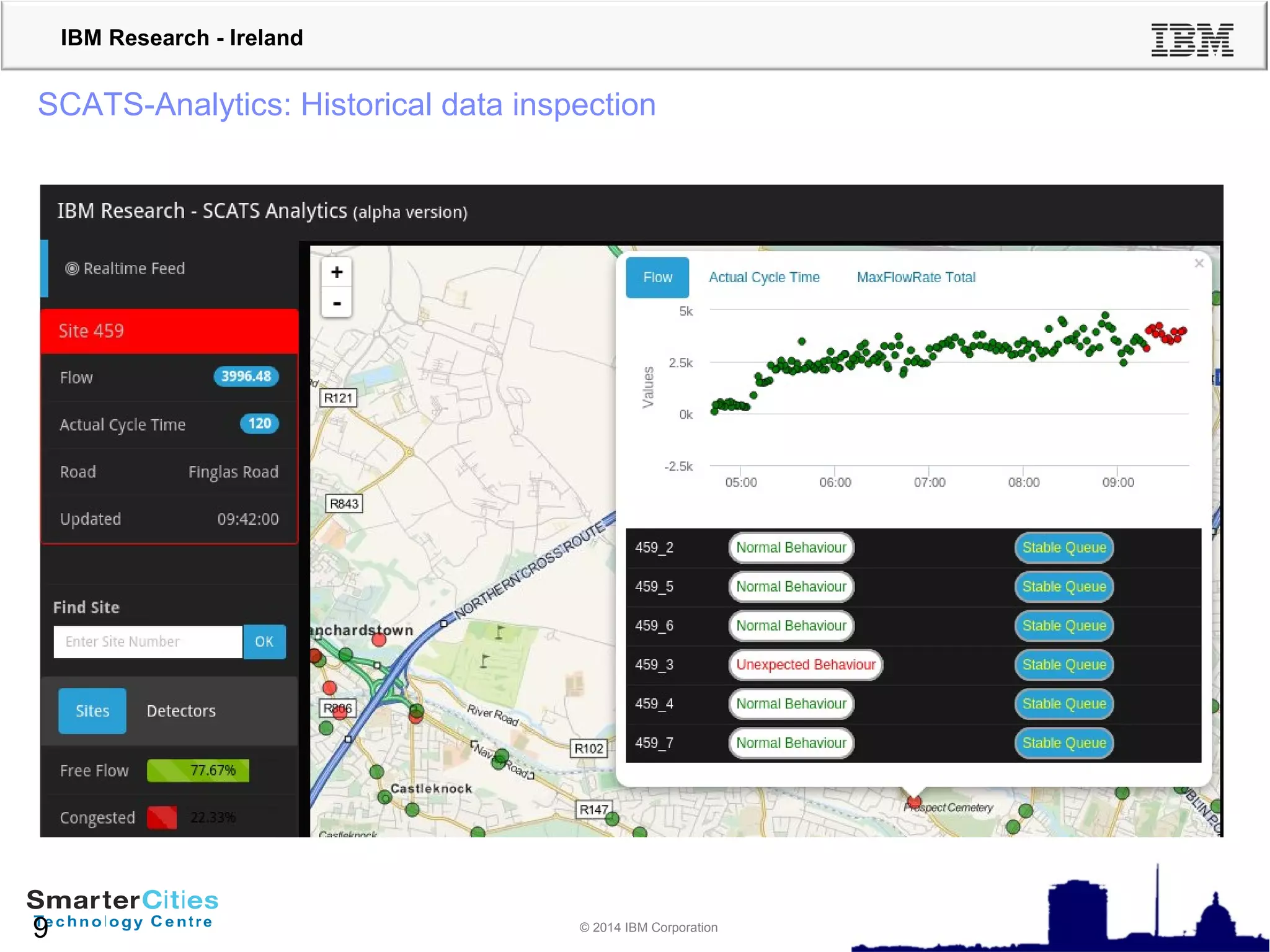

SCATS-Analytics: Historical data inspection

10. © 2010 IBM Corporation
IBM Research - Ireland
© 2014 IBM Corporation

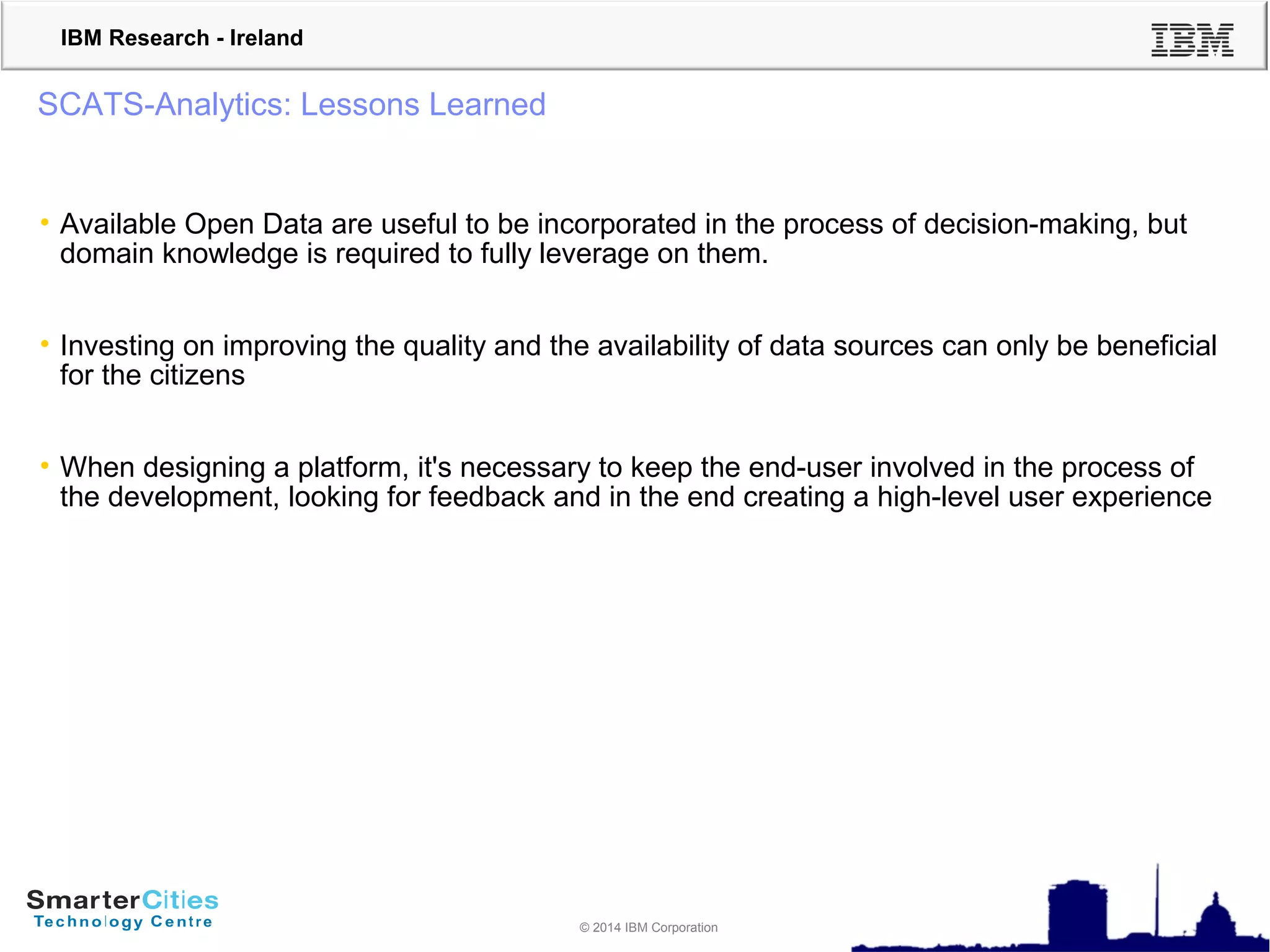

SCATS-Analytics: Lessons Learned
• Available Open Data are useful to be incorporated in the process of decision-making, but
domain knowledge is required to fully leverage on them.
• Investing on improving the quality and the availability of data sources can only be beneficial
for the citizens
• When designing a platform, it's necessary to keep the end-user involved in the process of
the development, looking for feedback and in the end creating a high-level user experience

11. © 2010 IBM Corporation
IBM Research - Ireland
© 2014 IBM Corporation

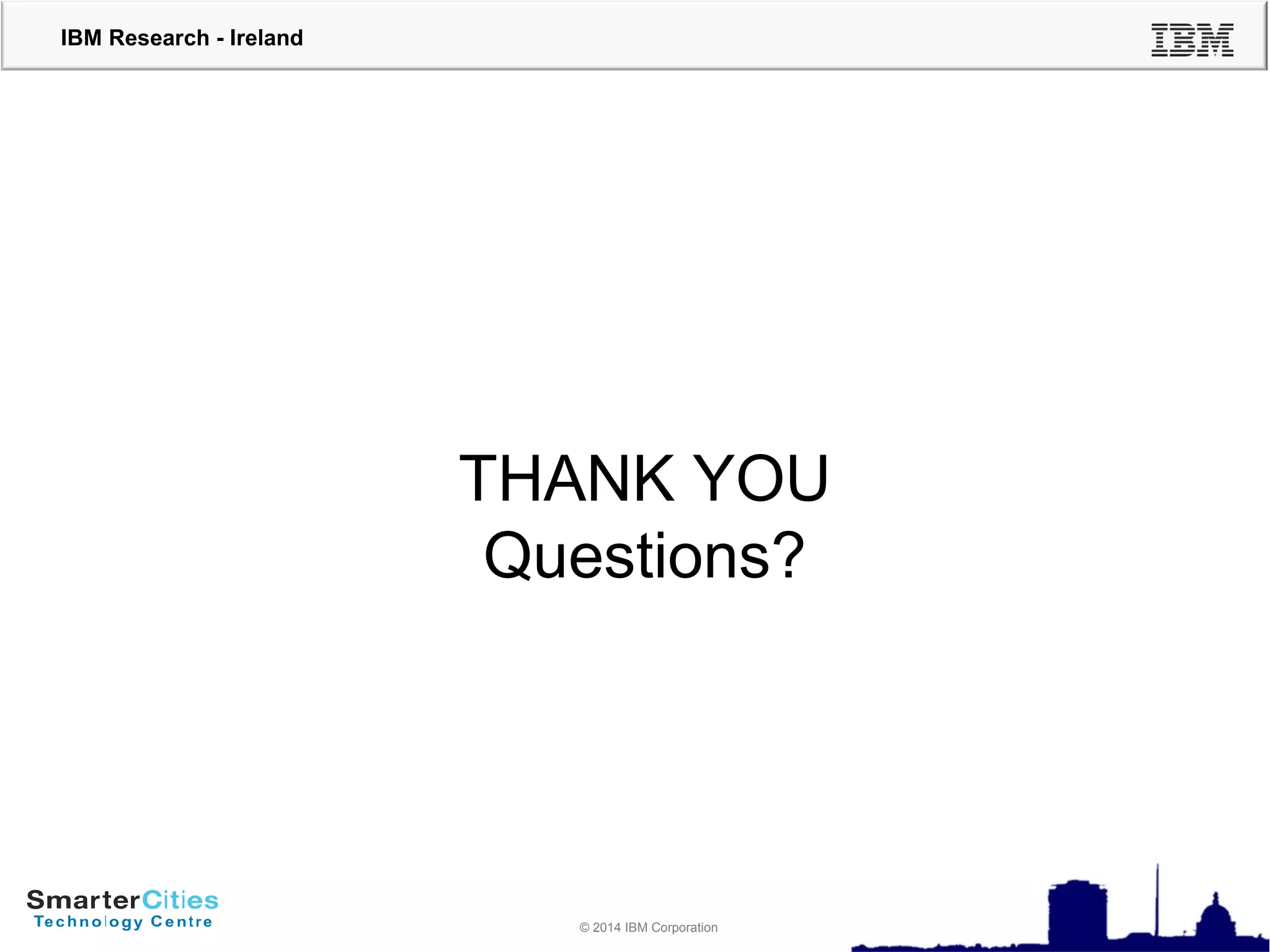

THANK YOU
