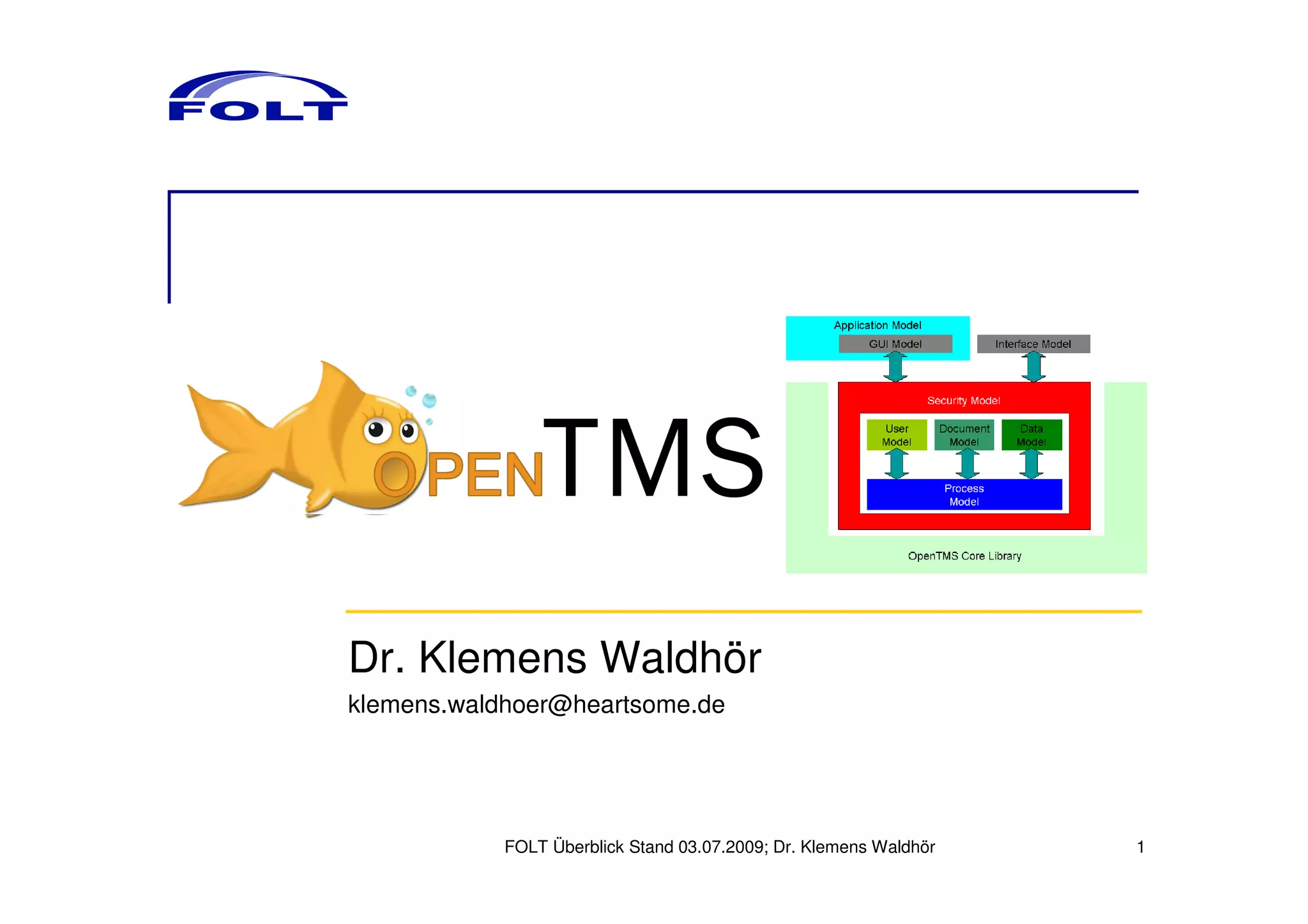

Folt - Open TMS - A presentation for universities

Dr. Klemens Waldhör
klemens.waldhoer@heartsome.de

FOLT Überblick Stand 03.07.2009; Dr. Klemens Waldhör 1

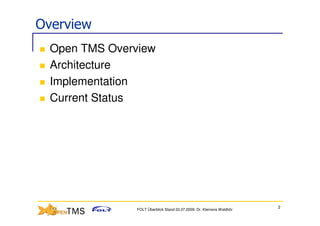

Overview
Open TMS Overview
Architecture
Implementation
Current Status

2
FOLT Überblick Stand 03.07.2009; Dr. Klemens Waldhör

Overview

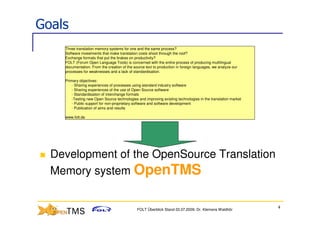

Goals
Three translation memory systems for one and the same process?
Software investments that make translation costs shoot through the roof?
Exchange formats that put the brakes on productivity?
FOLT (Forum Open Language Tools) is concerned with the entire process of producing multilingual
documentation. From the creation of the source text to production in foreign languages, we analyze our
processes for weaknesses and a lack of standardisation.

Primary objectives:
- Sharing experiences of processes using standard industry software
- Sharing experiences of the use of Open Source software
- Standardisation of interchange formats
-Testing new Open Source technologies and improving existing technologies in the translation market
- Public support for non-proprietary software and software development
- Publication of aims and results

www.folt.de

Development of the OpenSource Translation
Memory system OpenTMS

4

OpenTMS Requirements
Software
Web based application
Server / Client Architecture
Thin client
No installation
No proprietary run time components
Preferred open source software
Modular software approach
OS independent operating system
Windows, Linux, Mac …
Standard hardware
Interfaces
Integration into CMS
Workflow management should be supported
Open source database
Basically all SQL da-tabases should be supported
Scalability
Single and multi user requirement

5

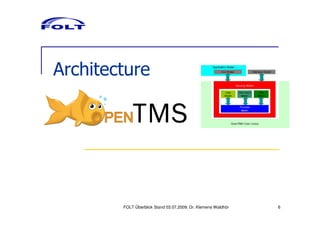

Architecture

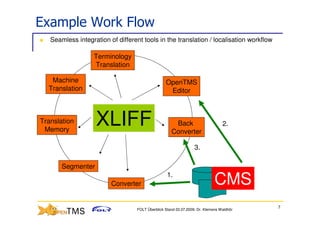

Example Work Flow
Seamless integration of different tools in the translation / localisation workflow

Terminology
Translation

Machine OpenTMS
Translation Editor

Translation
Memory
XLIFF Back
Converter
2.

3.

Segmenter

Converter
1.
CMS
7

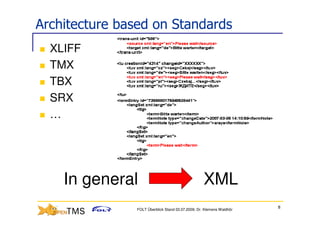

Architecture based on Standards
XLIFF
TMX
TBX
SRX
…

In general XML
8

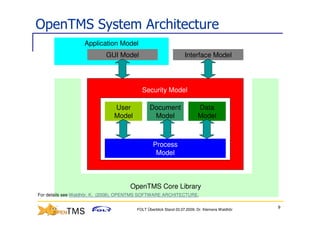

OpenTMS System Architecture
Application Model
GUI Model Interface Model

Security Model

User Document Data
Model Model Model

Process
Model

OpenTMS Core Library
For details see Waldhör, K. (2008). OPENTMS SOFTWARE ARCHITECTURE.

9

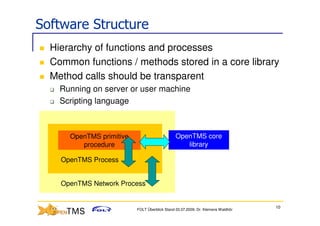

Software Structure
Hierarchy of functions and processes
Common functions / methods stored in a core library
Method calls should be transparent
Running on server or user machine
Scripting language

OpenTMS primitive OpenTMS core
procedure library

OpenTMS Process

OpenTMS Network Process

10

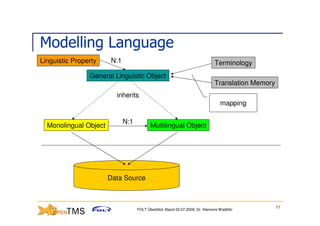

Modelling Language
Linguistic Property N:1 Terminology
General Linguistic Object
Translation Memory
inherits
mapping

N:1
Monolingual Object Multilingual Object

Data Source

11

OpenTMS Processes
Human Initiated Interactions
Data Source

OpenTMS Initiated Interactions Interactive Interactive
Terminology Translation
Translation Memory

Pre OpenTMS
Back
Converter Segmenter Translation Translation
Converter
Memory Editor

12

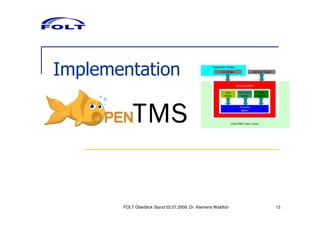

Implementation

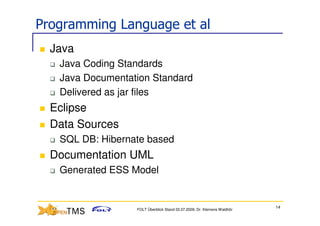

Programming Language et al
Java
Java Coding Standards
Java Documentation Standard
Delivered as jar files
Eclipse
Data Sources
SQL DB: Hibernate based
Documentation UML
Generated ESS Model

14

Data Sources
Language related data are represented as “data sources”
Idea
Make the data access interface independent from the data itself
Not being restricted to SQL databases only
Also flat data or xml files
TMX, XLIFF files as a data source
…
Machine translation (MT) as data source
Spread sheets
E.g. Excel as terminology lists
Object Oriented Databases
DMS systems
“Web Sites” (http based interfaces)
Define a common interface for all access functions
Allows adaption to individual data source properties
e.g. read only data sources like MT

15

Data Sources
Access to data
sources through
standardised interface
O
P
E
N Open
T TMS Data type
M specific
S Data access
Source functions
S
O
Layer
F
T Maps the OpenTMS
W access functions to the
specific data component
A
R Various data
components like files
E etc.

16

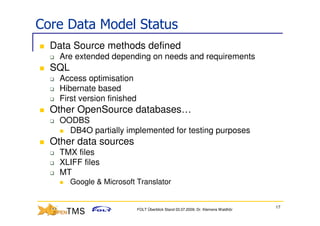

Core Data Model Status
Data Source methods defined
Are extended depending on needs and requirements
SQL
Access optimisation
Hibernate based
First version finished
Other OpenSource databases…
OODBS
DB4O partially implemented for testing purposes
Other data sources
TMX files
XLIFF files
MT
Google & Microsoft Translator

17

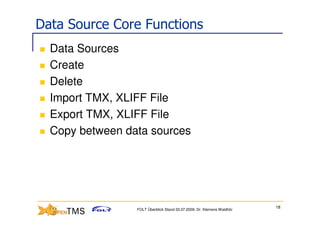

Data Source Core Functions
Data Sources
Create
Delete
Import TMX, XLIFF File
Export TMX, XLIFF File
Copy between data sources

18

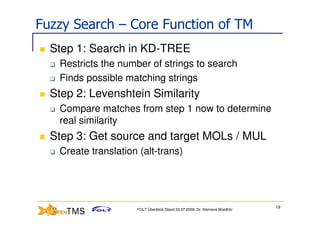

Fuzzy Search – Core Function of TM
Step 1: Search in KD-TREE
Restricts the number of strings to search
Finds possible matching strings
Step 2: Levenshtein Similarity
Compare matches from step 1 now to determine
real similarity
Step 3: Get source and target MOLs / MUL
Create translation (alt-trans)

19

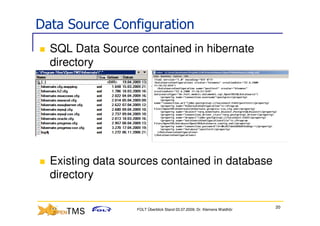

Data Source Configuration
SQL Data Source contained in hibernate
directory

Existing data sources contained in database
directory

20

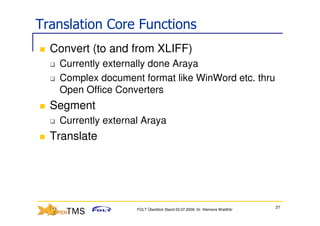

Translation Core Functions
Convert (to and from XLIFF)
Currently externally done Araya
Complex document format like WinWord etc. thru
Open Office Converters
Segment
Currently external Araya
Translate

21

Current Data Source Interface

22

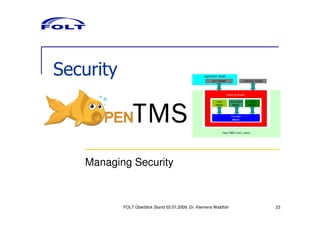

Security

Managing Security

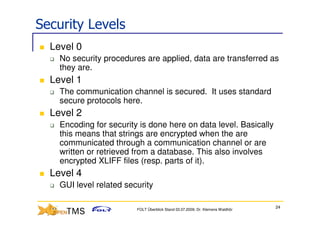

Security Levels
Level 0
No security procedures are applied, data are transferred as
they are.
Level 1
The communication channel is secured. It uses standard
secure protocols here.
Level 2
Encoding for security is done here on data level. Basically
this means that strings are encrypted when the are
communicated through a communication channel or are
written or retrieved from a database. This also involves
encrypted XLIFF files (resp. parts of it).
Level 4
GUI level related security

24

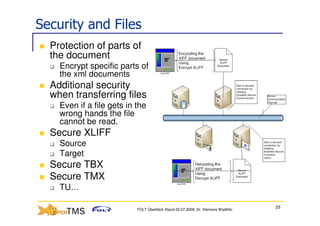

Security and Files
Protection of parts of
the document
Encrypt specific parts of
the xml documents
Additional security
when transferring files
Even if a file gets in the
wrong hands the file
cannot be read.
Secure XLIFF
Source
Target
Secure TBX
Secure TMX
TU…

25

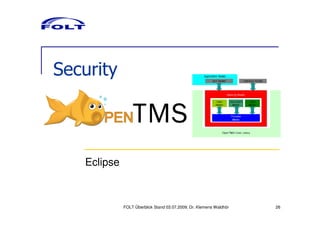

Security

Eclipse

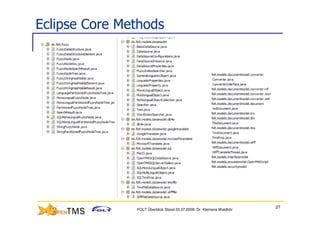

Eclipse Core Methods

27

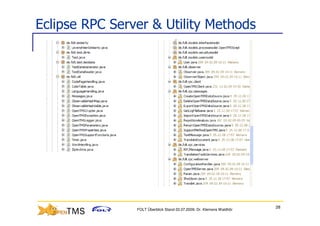

Eclipse RPC Server & Utility Methods

28

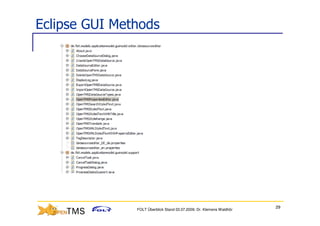

Eclipse GUI Methods

29

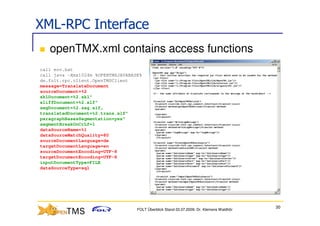

XML-RPC Interface
openTMX.xml contains access functions
call env.bat
call java -Xmx1024m %OPENTMSJAVABASE%
de.folt.rpc.client.OpenTMSClient
message=TranslateDocument
sourceDocument=%2
sklDocument=%2.skl"
xliffDocument=%2.xlf"
segDocument=%2.seg.xlf„
translatedDocument=%2.trans.xlf"
paragraphBasesSegmentation=yes"
segmentBreakOnCrLf=1
dataSourceName=%1
dataSourceMatchQuality=80
sourceDocumentLanguage=de
targetDocumentLanguage=en
sourceDocumentEncoding=UTF-8
targetDocumentEncoding=UTF-8
inputDocumentType=FILE
dataSourceType=sql

30

Current Implementation
openTMS.jar
Contains compiled classes and source code
arayaserver-opentms.jar
Conversion functions
Compiled classes
External.jar
External classes for Araya (parser etc.)
Hibernate directory
Hibernate jar files
Database jdbc driver
Database driver jar files

31

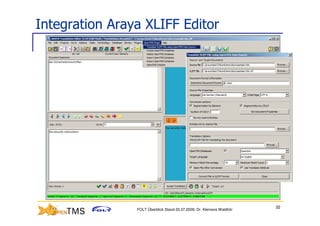

Integration Araya XLIFF Editor

32

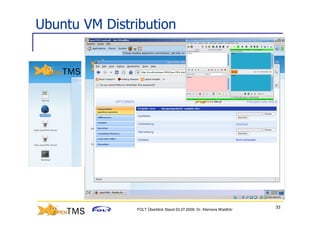

Ubuntu VM Distribution

33

Data Source Editor
Edit MOL/MOL
Properties

Language Specific Segments

Delete & Save Functions
Search Functions

34

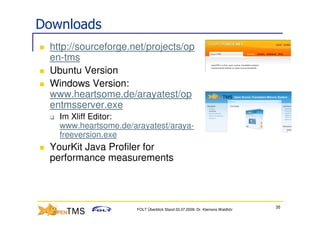

Downloads
http://sourceforge.net/projects/op
en-tms
Ubuntu Version
Windows Version:
www.heartsome.de/arayatest/op
entmsserver.exe
Im Xliff Editor:
www.heartsome.de/arayatest/araya-
freeversion.exe
YourKit Java Profiler for
performance measurements

35

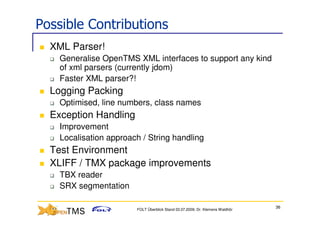

Possible Contributions
XML Parser!
Generalise OpenTMS XML interfaces to support any kind
of xml parsers (currently jdom)
Faster XML parser?!
Logging Packing
Optimised, line numbers, class names
Exception Handling
Improvement
Localisation approach / String handling
Test Environment
XLIFF / TMX package improvements
TBX reader
SRX segmentation

36

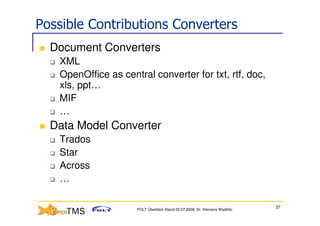

Possible Contributions Converters
Document Converters
XML
OpenOffice as central converter for txt, rtf, doc,
xls, ppt…
MIF
…
Data Model Converter
Trados
Star
Across
…

37

Contact
Heartsome Europe GmbH
Friedrichstr. 17
D-90574 Roßtal

www.heartsome.de

Dr. Klemens Waldhör

T: +49 9127 579001
F: +49 9127 951178
klemens.waldhoer@heartsome.de

38
