Bilingual TMX EditorTool (in German)

User Manual Araya
Bilingual TMX
Editor

Description how to use the Araya
Bilingual TMX Editor

© Dr. Klemens Waldhör, Heartsome Europe GmbH, 2006, 2007

Heartsome Europe GmbH
www.heartsome.de

Bilingual TMX Editor
The bilingual TMX Editor is a simple to use, but
efficient tool to view and edit TMX files for two
languages
A language pair consists of a source and target segment
In contrast to the TMX Editor it works just for two
languages.
It contains a project tool supporting the fast
checking of many TMX files.
It is mainly intended for checking and editing TMX
files from alignment tools.
Not recommended for huge TMX files resulting from TMX
database exports.

29.06.2007 (c) 2006, 2007, Heartsome Europe GmbH 2

www.heartsome.de

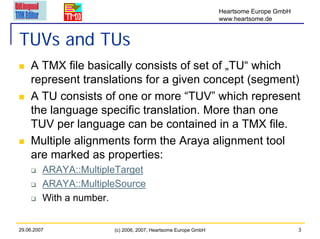

TUVs and TUs
A TMX file basically consists of set of „TU“ which
represent translations for a given concept (segment)
A TU consists of one or more “TUV” which represent
the language specific translation. More than one
TUV per language can be contained in a TMX file.
Multiple alignments form the Araya alignment tool
are marked as properties:
ARAYA::MultipleTarget
ARAYA::MultipleSource
With a number.


www.heartsome.de

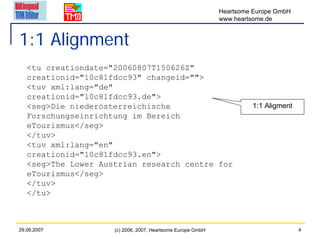

1:1 Alignment
<tu creationdate="20060807T150626Z"
creationid="10c81fdcc93" changeid="">
<tuv xml:lang="de"
creationid="10c81fdcc93.de">
<seg>Die niederösterreichische 1:1 Aligment
Forschungseinrichtung im Bereich
eTourismus</seg>
</tuv>
<tuv xml:lang="en"
creationid="10c81fdcc93.en">
<seg>The Lower Austrian research centre for
eTourismus</seg>
</tuv>
</tu>


www.heartsome.de

2:1 Alignment
<tuv xml:lang="de" creationid="10c81fdcc93.de">
<seg>Die niederösterreichische Forschungseinrichtung
im Bereich eTourismus</seg>
</tuv> 2:1 Aligment
<tuv xml:lang="en" creationid="10c81fdcc93.en">
<prop type="EDITOR::MultipleSource">1</prop>
eTourismus</seg>
</tuv>
<prop type="EDITOR::MultipleSource">2</prop>
<seg>The Lower LO research centre for
eTourismus</seg>
</tuv>
</tu>


www.heartsome.de

1:2 Alignment
<tuv xml:lang="de" creationid="10c81fdcc93.de">
<seg>Die niederösterreichische Forschungseinrichtung
im Bereich eTourismus</seg>
</tuv> 1:2 Aligment
<prop type="ARAYA::MultipleTarget">1</prop>
eTourismus</seg>
</tuv>
<prop type="ARAYA::MultipleTarget">2</prop>
<seg>The Lower LO research centre for
eTourismus</seg>
</tuv>
</tu>


www.heartsome.de

Bilingual TMX Editor Versions
It is available as
Single user version of Araya.
It is part of the Araya Server translation tools.


www.heartsome.de

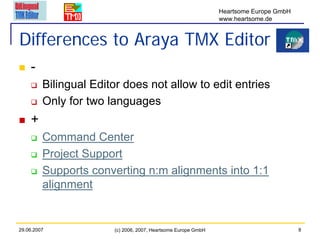

Differences to Araya TMX Editor
-
Bilingual Editor does not allow to edit entries
Only for two languages
+
Command Center
Project Support
Supports converting n:m alignments into 1:1
alignment


www.heartsome.de

Installation

It is installed with the Araya Software package
Installation goes into directory c:/Program Files/Araya. It is
recommended not to change this as all initialization files map
towards this directory.


www.heartsome.de

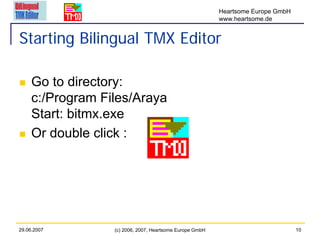

Starting Bilingual TMX Editor

Go to directory:
c:/Program Files/Araya
Start: bitmx.exe
Or double click :


www.heartsome.de

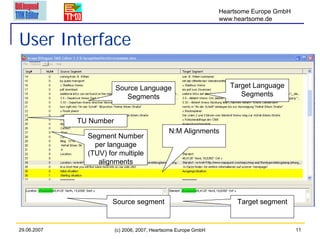

User Interface

Source Language Target Language
Segments Segments

TU Number
N:M Alignments
Segment Number
per language
(TUV) for multiple
alignments

Source segment Target segment


www.heartsome.de

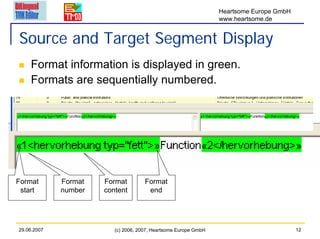

Source and Target Segment Display
Format information is displayed in green.
Formats are sequentially numbered.

Format Format Format Format
start number content end


www.heartsome.de

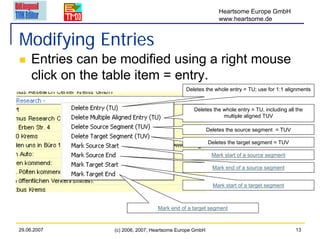

Modifying Entries
Entries can be modified using a right mouse
click on the table item = entry.
Deletes the whole entry = TU; use for 1:1 alignments

Deletes the whole entry = TU, including all the
multiple aligned TUV

Deletes the source segment = TUV

Deletes the target segment = TUV

Mark start of a source segment

Mark end of a source segment

Mark start of a target segment

Mark end of a target segment


www.heartsome.de

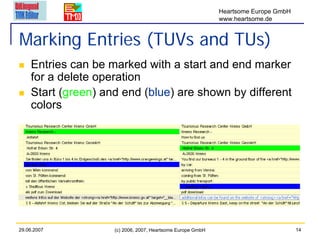

Marking Entries (TUVs and TUs)
Entries can be marked with a start and end marker
for a delete operation
Start (green) and end (blue) are shown by different
colors


www.heartsome.de

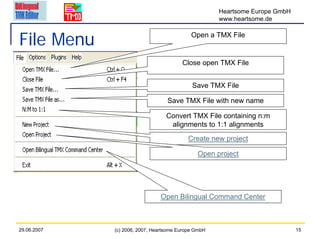

File Menu Open a TMX File

Close open TMX File

Save TMX File

Save TMX File with new name

Convert TMX File containing n:m
alignments to 1:1 alignments
Create new project

Open project

Open Bilingual Command Center


www.heartsome.de

The Options Menu

Character set for the
extraction table

User Interface
Language


www.heartsome.de

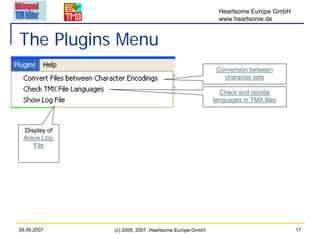

The Plugins Menu
Conversion between
character sets

Check and recode
languages in TMX files

Display of
Araya Log-
File


www.heartsome.de

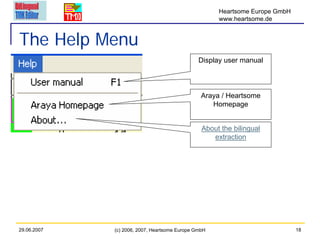

The Help Menu
Display user manual

Araya / Heartsome
Homepage

About the bilingual
extraction


www.heartsome.de

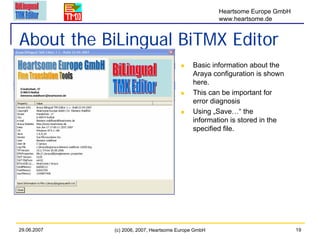

About the BiLingual BiTMX Editor
Basic information about the
Araya configuration is shown
here.
This can be important for
error diagnosis
Using „Save…“ the
information is stored in the
specified file.


www.heartsome.de

Converting Files between different
Character Encodings Source file name

Target file; will be created based
on source file name and as
extension the target encoding
character set

Source encoding character set

Target encoding character set

This function supports converting files between different character sets. Depending on the target character
up to two files are written. If the target file is a UTF-8, 16, 32 or UCS file, two files are written. The second file
with the extension „.nobom“ is a copy of the first target file, the only difference is that the BOM (Byte Order
Marks) are removed from this file. This file should be used for importing, esp. when an import of an UTF-8
file is done in Araya, as the Java reading functions for UTF-8 does not over read the BOM characters. This
could lead to problems when reading normal strings from those file as the BOMs are read as normal
characters resulting in invalid entries.
(This is a known bug in Java UTF-8 file reading, but will not be corrected by SUN!).


www.heartsome.de

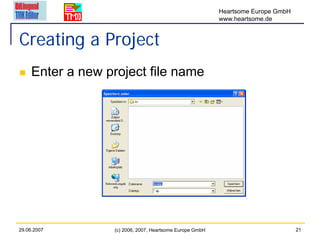

Creating a Project
Enter a new project file name


www.heartsome.de

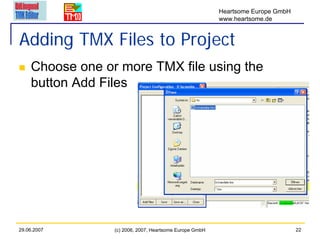

Adding TMX Files to Project
Choose one or more TMX file using the
button Add Files


www.heartsome.de

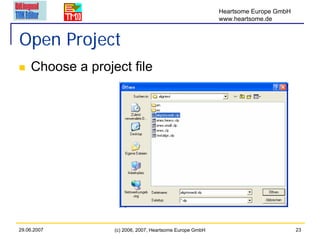

Open Project
Choose a project file


www.heartsome.de

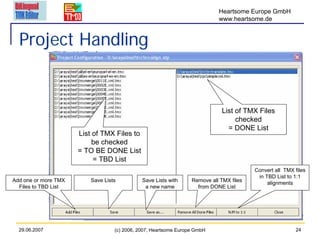

Project Handling

List of TMX Files
checked
= DONE List
List of TMX Files to
be checked
= TO BE DONE List
= TBD List
Convert all TMX files
in TBD List to 1:1
Add one or more TMX Save Lists Save Lists with Remove all TMX files
alignments
Files to TBD List a new name from DONE List


www.heartsome.de

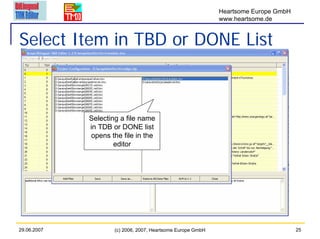

Select Item in TBD or DONE List

Selecting a file name
in TDB or DONE list
opens the file in the
editor


www.heartsome.de

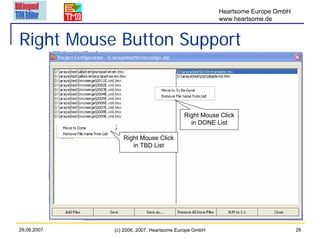

Right Mouse Button Support

Right Mouse Click
in DONE List

Right Mouse Click
in TBD List


www.heartsome.de

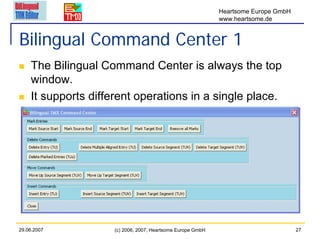

Bilingual Command Center 1
The Bilingual Command Center is always the top
window.
It supports different operations in a single place.


www.heartsome.de

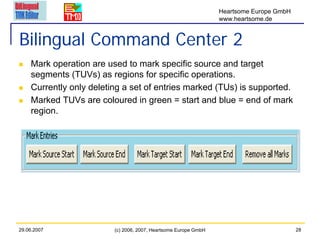

Mark operation are used to mark specific source and target
segments (TUVs) as regions for specific operations.
Currently only deleting a set of entries marked (TUs) is supported.
Marked TUVs are coloured in green = start and blue = end of mark
region.


www.heartsome.de

Delete Entry (TU) deletes either a TU entry if it is a 1:1 aligned
segment or deletes the corresponding TUV pair in a TU.
Delete Multiple Aligned Entry (TU) deletes a TU entry in any case
including all n:m alignments contained.


www.heartsome.de

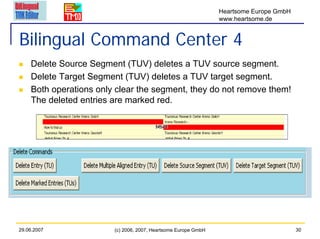

Delete Source Segment (TUV) deletes a TUV source segment.
Delete Target Segment (TUV) deletes a TUV target segment.
Both operations only clear the segment, they do not remove them!
The deleted entries are marked red.


www.heartsome.de

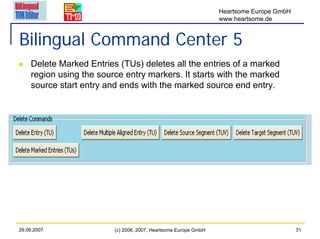

Delete Marked Entries (TUs) deletes all the entries of a marked
region using the source entry markers. It starts with the marked
source start entry and ends with the marked source end entry.


www.heartsome.de

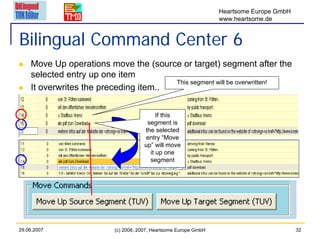

Move Up operations move the (source or target) segment after the
selected entry up one item
This segment will be overwritten!
It overwrites the preceding item..

If this
segment is
the selected
entry “Move
up” will move
it up one
segment


www.heartsome.de

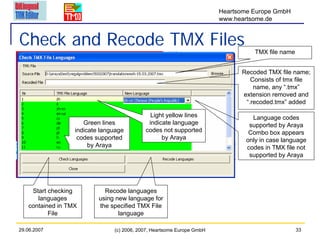

Check and Recode TMX Files TMX file name

Recoded TMX file name;
Consists of tmx file
name, any “.tmx”
extension removed and
“.recoded.tmx” added

Light yellow lines Language codes
Green lines indicate language supported by Araya
indicate language codes not supported Combo box appears
codes supported by Araya only in case language
by Araya codes in TMX file not
supported by Araya

Start checking Recode languages
languages using new language for
contained in TMX the specified TMX File
File language


www.heartsome.de

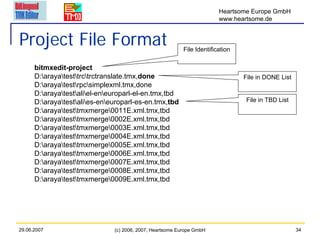

Project File Format File Identification

bitmxedit-project
D:arayatesttrctrctranslate.tmx,done File in DONE List
D:arayatestrpcsimplexml.tmx,done
D:arayatestaliel-eneuroparl-el-en.tmx,tbd
D:arayatestalies-eneuroparl-es-en.tmx,tbd File in TBD List
D:arayatesttmxmerge0011E.xml.tmx,tbd


www.heartsome.de

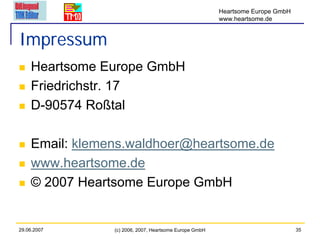

Impressum
Friedrichstr. 17
D-90574 Roßtal

Email: klemens.waldhoer@heartsome.de
www.heartsome.de
© 2007 Heartsome Europe GmbH
