1. Equipment
Packages
High-quality video communication
that is flexible, easy and affordable.
Get it done at the speed of sight.℠
Appia’s video communication solutions bridge the gap between
high-end telepresence systems and lower-end desktop products.
With Appia, you enjoy high-quality video, voice, and desktop sharing,
whenever and wherever you need it, for about the price of a
conference call.
Best of all, Appia’s video communication solutions are customized to
fit the exact needs and budget of your organization, making them easy
to afford, deploy and use.
• Multiparty conferencing and broadcasting
• Multiple simultaneous resolutions, including high definition
• Use Appia’s hosted video service — no network components or IT
expertise needed to manage and maintain
• End-to-end, FIPS 140-2 certified encryption
• Collaboration tools that include a media player, desktop sharing,
chat, recording/playback, and audio dial-in/dial-out
• Expand your deployment anywhere with free PC software
• Interoperability with H.323 systems (new for 2010)
Appia’s conference room packages are plug-and-play and professional
grade for group settings. All packages can be customized to suit your
specific needs, including:
• Appia Video Communicator software
• Vstation video engine with wireless keyboard and mouse
• Sony LCD HDTVs (46", 55" or 60")
• Sony SD or HD cameras with PTZ and wireless remote
• Professional conference microphones
• Optional wireless microphones
• Optional pedestals and mobile carts (shown)
Appia Video Communication
877-277-4297
info@appiaservices.com
www.appiavideo.com

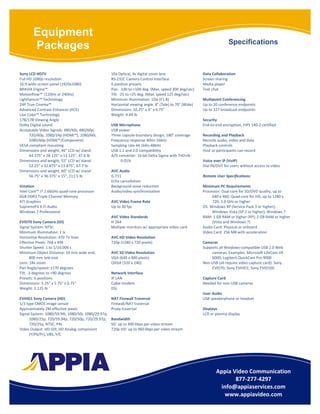

2. Equipment
Specifications
Packages
Sony LCD HDTV 10x Optical, 4x digital zoom lens Data Collaboration
Full HD 1080p resolution RS-232C Camera Control Interface Screen sharing
16:9 wide-screen panel (1920x1080) 6 position presets Media player
BRAVIA Engine™ Pan: -100 to +100 deg. (Max. speed 300 deg/sec) Text chat
Motionflow™ (120Hz or 240Hz) Tilt: -25 to +25 deg. (Max. speed 125 deg/sec)
LightSensor™ Technology Minimum Illumination: 15lx (F1.8) Multipoint Conferencing
24P True Cinema™ Horizontal viewing angle: 8° (Tele) to 70° (Wide) Up to 20 conference endpoints
Advanced Contrast Enhancer (ACE) Dimensions: 10.25" x 6" x 6.75" Up to 127 broadcast endpoints
Live Color™ Technology Weight: 4.44 lb
178/178 Viewing Angle Security
Dolby Digital sound USB Microphone End-to-end encryption, FIPS 140-2 certified
Acceptable Video Signals: 480/60i, 480/60p, USB power
720/60p, 1080/24p (HDMI™), 1080/60i, Three capsule boundary design, 180° coverage Recording and Playback
1080/60p (HDMI™/Component) Frequency response 40Hz-16kHz Records audio, video and data
VESA compliant mounting Sampling rate 44.1kHz-48kHz Playback controls
Dimensions and weight, 46" LCD w/ stand: USB 1.1 and 2.0 compatibility Host or participants can record
44.375" x 28.125" x 11.125", 47.6 lb A/D converter: 16-bit Delta Sigma with THD+N -
Dimensions and weight, 55" LCD w/ stand: 0.01% Voice over IP (VoIP)
52.25" x 32.875" x 13.875", 67.7 lb Dial IN/OUT for users without access to video
Dimensions and weight, 60" LCD w/ stand: AVC Audio
56.75" x 36.375" x 15", 111.5 lb G.711 Remote User Specifications:
Echo cancellation
Vstation Background noise reduction Minimum PC Requirements
Intel Core™ i7 2.66GHz quad-core processor Audio/video synchronization Processor: Dual core for SD/DVD quality, up to
6GB DDR3 Triple Channel Memory 640 x 480; Quad core for HD, up to 1280 x
ATI Graphics AVC Video Frame Rate 720; 2.0 GHz or higher
SupremeFX X-Fi Audio Up to 30 fps OS: Windows XP (Service Pack 3 or higher);
Windows 7 Professional Windows Vista (SP 2 or higher); Windows 7
AVC Video Standards RAM: 1 GB RAM or higher (XP); 2 GB RAM or higher
EVID70 Sony Camera (SD) H.264 (Vista and Windows 7)
Signal System: NTSC Multiple monitors w/ appropriate video card Audio Card: Physical or onboard
Minimum Illumination: 1 lx Video Card: 256 MB with acceleration
Horizontal Resolution: 470 TV lines AVC HD Video Resolution
Effective Pixels: 768 x 494 720p (1280 x 720 pixels) Cameras
Shutter Speed: 1 to 1/10,000 s Supports all Windows-compatible USB 2.0 Web
Minimum Object Distance: 10 mm wide end, AVC SD Video Resolution cameras. Examples: Microsoft LifeCam VX
800 mm tele end VGA (640 x 480 pixels) 6000; Logitech QuickCam Pro 9000
Lens: 18x zoom QVGA (320 x 240) Non-USB (all require video capture card): Sony
Pan Angle/speed: ±170 degrees EVID70; Sony EVIHD1; Sony EVID100
Tilt: -3 degrees to +90 degrees Network Interface
Presets: 6 positions IP LAN Capture Card
Dimensions: 5.25" x 5.75" x 0.75" Cable modem Needed for non-USB cameras
Weight: 2.125 lb DSL
User Audio
EVIHD1 Sony Camera (HD) NAT Firewall Traversal USB speakerphone or headset
1/3 type CMOS image sensor Firewall/NAT traversal
Approximately 2M effective pixels Proxy traversal Displays
Signal System: 1080/59.94i, 1080/50i, 1080/29.97p, LCD or plasma display
1080/25p, 720/59.94p, 720/50p, 720/29.97p, Bandwidth
720/25p, NTSC, PAL SD: up to 400 kbps per video stream
Video Output: HD-SDI, HD Analog component 720p HD: up to 960 kbps per video stream
(Y/Pb/Pr), VBS, Y/C
