The document discusses core concepts in Flamingo including the Flamingo bootstrap process, the flamingo.App, Dingo dependency injection, configuration, routing, and the core.Cmd package. It provides an overview of how these concepts work and fit together in Flamingo.

1. Core Concepts

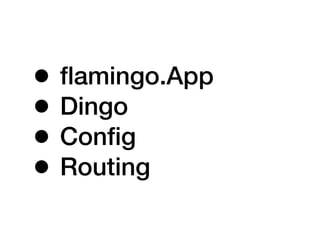

2. • flamingo.App
• Dingo
• Config
• Routing

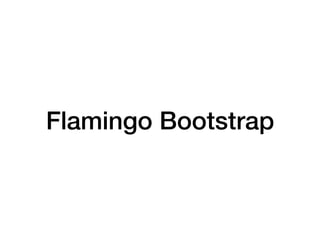

3. Flamingo Bootstrap

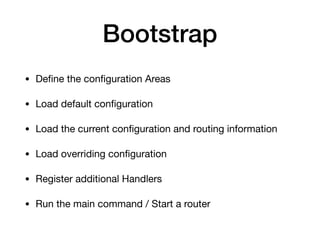

4. Bootstrap
• Define the configuration Areas
• Load default configuration
• Load the current configuration and routing information
• Load overriding configuration
• Register additional Handlers
• Run the main command / Start a router

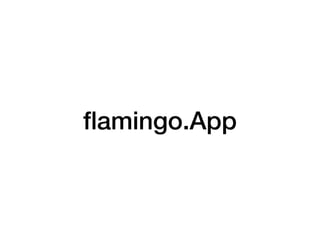

5. flamingo.App

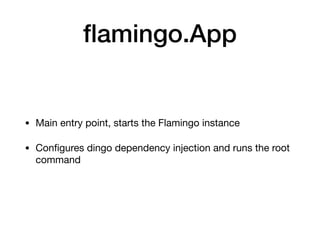

6. flamingo.App
• Main entry point, starts the Flamingo instance
• Configures dingo dependency injection and runs the root
command

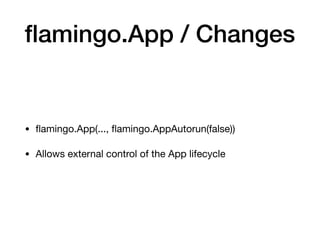

7. flamingo.App / Changes
• flamingo.App(..., flamingo.AppAutorun(false))
• Allows external control of the App lifecycle

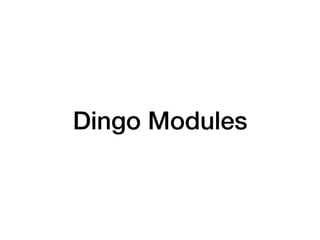

8. Dingo Modules

9. Dingo
• Flamingo Dependency Injection
• Interface similar to Guice
• Supports Singleton, Multi-/Mapbindings

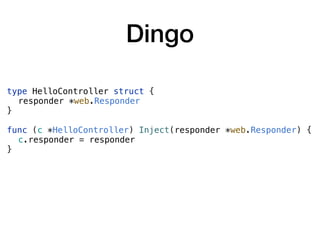

10. Dingo
type HelloController struct {
responder *web.Responder
}
func (c *HelloController) Inject(responder *web.Responder) {
c.responder = responder
}

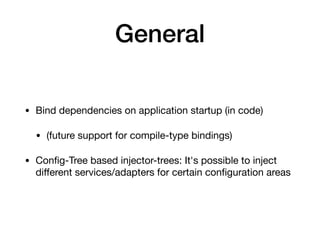

11. General
• Bind dependencies on application startup (in code)
• (future support for compile-type bindings)
• Config-Tree based injector-trees: It's possible to inject
different services/adapters for certain configuration areas

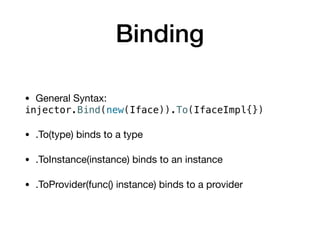

12. Binding
• General Syntax:
injector.Bind(new(Iface)).To(IfaceImpl{})
• .To(type) binds to a type
• .ToInstance(instance) binds to an instance
• .ToProvider(func() instance) binds to a provider

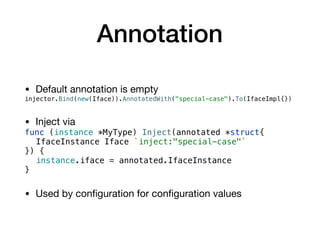

13. Annotation
• Default annotation is empty
injector.Bind(new(Iface)).AnnotatedWith("special-case").To(IfaceImpl{})
• Inject via
func (instance *MyType) Inject(annotated *struct{
IfaceInstance Iface `inject:"special-case"`
}) {
instance.iface = annotated.IfaceInstance
}
• Used by configuration for configuration values

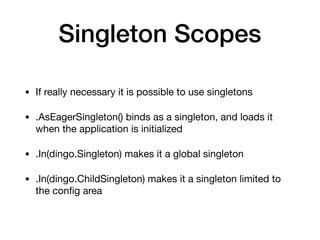

14. Singleton Scopes
• If really necessary it is possible to use singletons
• .AsEagerSingleton() binds as a singleton, and loads it
when the application is initialized
• .In(dingo.Singleton) makes it a global singleton
• .In(dingo.ChildSingleton) makes it a singleton limited to
the config area

15. MultiBindings
• Allows to bind multiple instances/providers/types for one
type
func (*Module) Configure(injector *dingo.Injector) {
injector.BindMulti(new(Iface)).To(IfaceImpl1{})
injector.BindMulti(new(Iface)).To(IfaceImpl2{})
}
func (*MyService) Inject(ifaces []Iface) {}

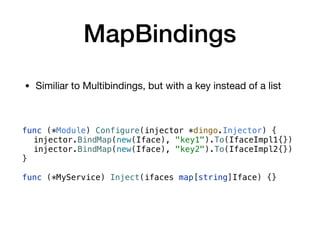

16. MapBindings
• Similiar to Multibindings, but with a key instead of a list
func (*Module) Configure(injector *dingo.Injector) {
injector.BindMap(new(Iface), "key1").To(IfaceImpl1{})
injector.BindMap(new(Iface), "key2").To(IfaceImpl2{})
}
func (*MyService) Inject(ifaces map[string]Iface) {}

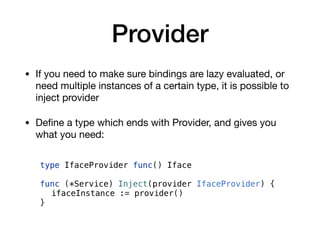

17. Provider
• If you need to make sure bindings are lazy evaluated, or
need multiple instances of a certain type, it is possible to
inject provider
• Define a type which ends with Provider, and gives you
what you need:
type IfaceProvider func() Iface
func (*Service) Inject(provider IfaceProvider) {
ifaceInstance := provider()
}

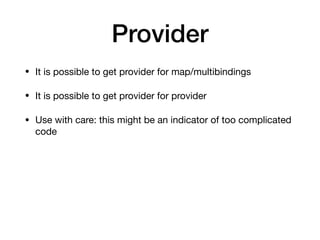

18. Provider
• It is possible to get provider for map/multibindings
• It is possible to get provider for provider
• Use with care: this might be an indicator of too complicated
code

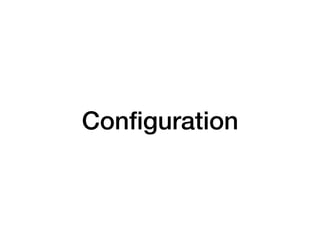

19. Configuration

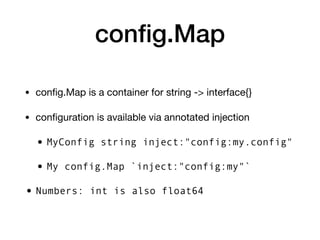

20. config.Map
• config.Map is a container for string -> interface{}
• configuration is available via annotated injection
• MyConfig string inject:"config:my.config"
• My config.Map `inject:"config:my"`
• Numbers: int is also float64

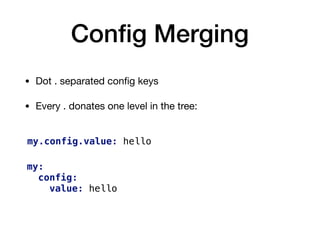

21. Config Merging
• Dot . separated config keys
• Every . donates one level in the tree:
my.config.value: hello
my:
config:
value: hello

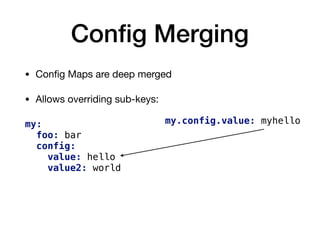

22. Config Merging
• Config Maps are deep merged
• Allows overriding sub-keys:
my:
foo: bar
config:
value: hello
value2: world
my.config.value: myhello

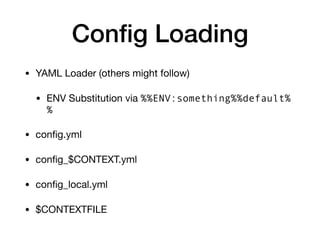

23. Config Loading
• YAML Loader (others might follow)
• ENV Substitution via %%ENV:something%%default%
%
• config.yml
• config_$CONTEXT.yml
• config_local.yml
• $CONTEXTFILE

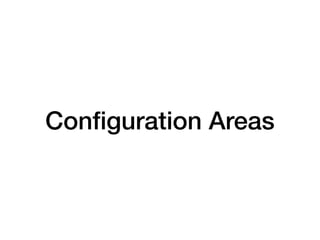

24. Configuration Areas

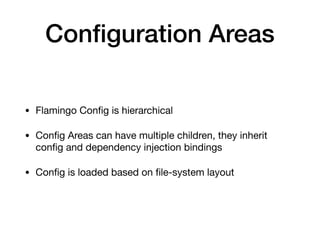

25. Configuration Areas
• Flamingo Config is hierarchical
• Config Areas can have multiple children, they inherit
config and dependency injection bindings
• Config is loaded based on file-system layout

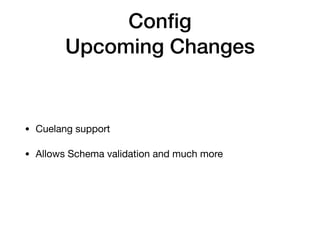

26. Config
Upcoming Changes
• Cuelang support
• Allows Schema validation and much more

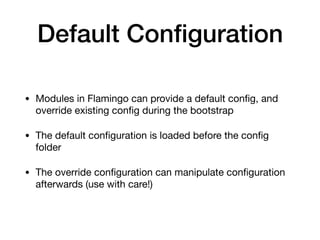

27. Default Configuration
• Modules in Flamingo can provide a default config, and
override existing config during the bootstrap
• The default configuration is loaded before the config
folder
• The override configuration can manipulate configuration
afterwards (use with care!)

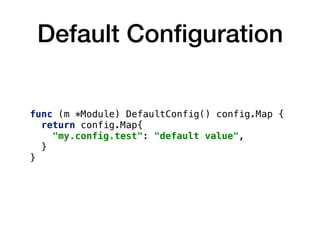

28. Default Configuration
func (m *Module) DefaultConfig() config.Map {
return config.Map{
"my.config.test": "default value",
}
}

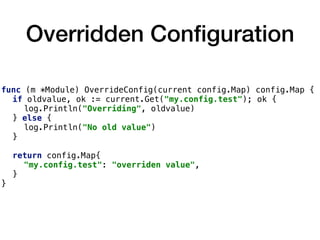

29. Overridden Configuration
func (m *Module) OverrideConfig(current config.Map) config.Map {
if oldvalue, ok := current.Get("my.config.test"); ok {
log.Println("Overriding", oldvalue)
} else {
log.Println("No old value")
}
return config.Map{
"my.config.test": "overriden value",
}
}

30. Routing

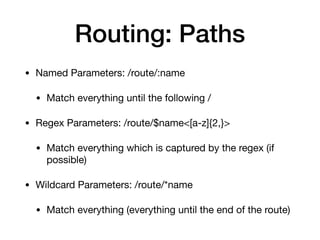

31. Routing: Paths
• Named Parameters: /route/:name
• Match everything until the following /
• Regex Parameters: /route/$name<[a-z]{2,}>
• Match everything which is captured by the regex (if
possible)
• Wildcard Parameters: /route/*name
• Match everything (everything until the end of the route)

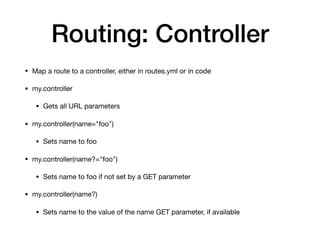

32. Routing: Controller
• Map a route to a controller, either in routes.yml or in code
• my.controller
• Gets all URL parameters
• my.controller(name="foo")
• Sets name to foo
• my.controller(name?="foo")
• Sets name to foo if not set by a GET parameter
• my.controller(name?)
• Sets name to the value of the name GET parameter, if available

33. Routing: Reverse
• Reverse URLs are build based on available routes
• web.ReverseRouter
• Newest routes take precendence
• Router parameters are taken into account, meaning:
• /home -> cms.view(page="home")
• url("cms.view", router.P{"page": "home"}) -> /home

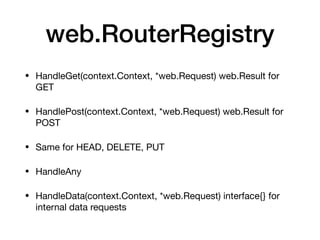

34. web.RouterRegistry
• HandleGet(context.Context, *web.Request) web.Result for
GET
• HandlePost(context.Context, *web.Request) web.Result for
POST
• Same for HEAD, DELETE, PUT
• HandleAny
• HandleData(context.Context, *web.Request) interface{} for
internal data requests

35. web.RouterRegistry
type routes struct {
controller *controller
}
func (r *routes) Inject(controller *controller) {
r.controller = controller
}
func (r *routes) Routes(registry *web.RouterRegistry) {
registry.Route("/", "home")
registry.HandleAny("home", r.controller.action)
}

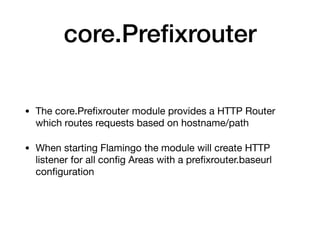

36. core.Prefixrouter
• The core.Prefixrouter module provides a HTTP Router
which routes requests based on hostname/path
• When starting Flamingo the module will create HTTP
listener for all config Areas with a prefixrouter.baseurl
configuration

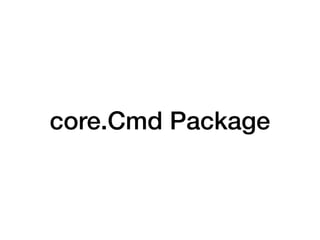

37. core.Cmd Package

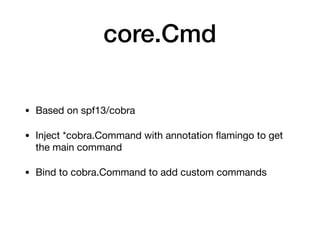

38. core.Cmd
• Based on spf13/cobra
• Inject *cobra.Command with annotation flamingo to get
the main command
• Bind to cobra.Command to add custom commands
