This document introduces Phorms, a library for pattern matching in Pharo. Pattern matching was originally introduced in functional programming to define functions inductively and is now used in languages like Newspeak and Scala to decompose object data. The existing rewrite engine in Pharo uses abstract syntax trees for pattern matching but has limitations like being confusing, non-composable patterns, and lacking user-friendly debugging. Phorms addresses these by representing patterns as objects, allowing composition and conversion of patterns. It provides examples of matching and rewriting code using Phorms patterns.

1. Phorms: Pattern Matching
Library for Pharo
Markiyan Rizun Camille Teruel, Gustavo Santos, Stéphane Ducasse1
Markiyan Rizun e-mail: mrizun@gmail.com download: http://smalltalkhub.com/#!/~CamilleTeruel/Patterns/

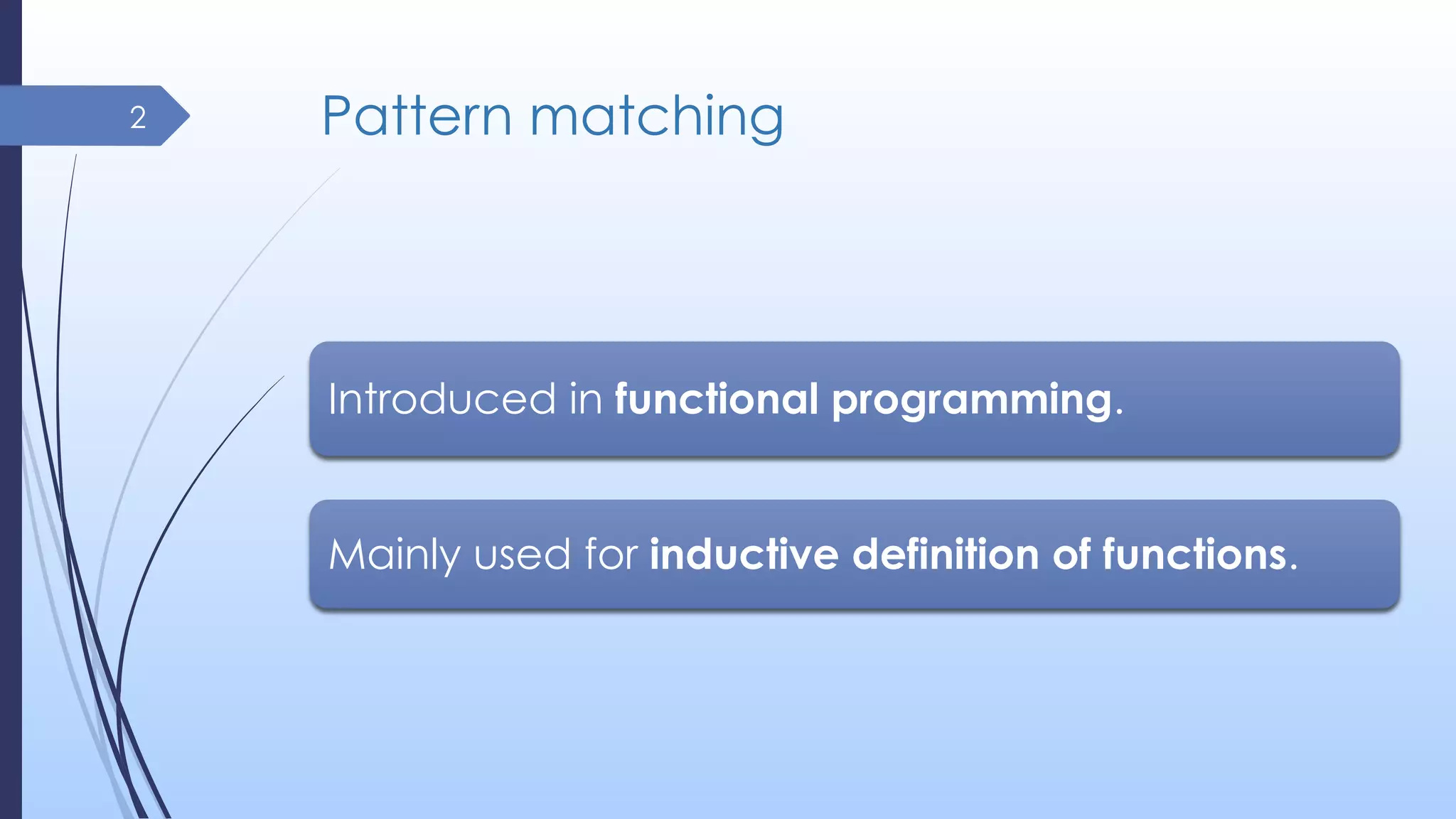

2. Pattern matching
Introduced in functional programming.
Mainly used for inductive definition of functions.
2

3. Pattern matching.
Example
3
fib n
| n == 0 = 1
| n == 1 = 1
| n >= 2 = fib (n-1) + fib (n-2)

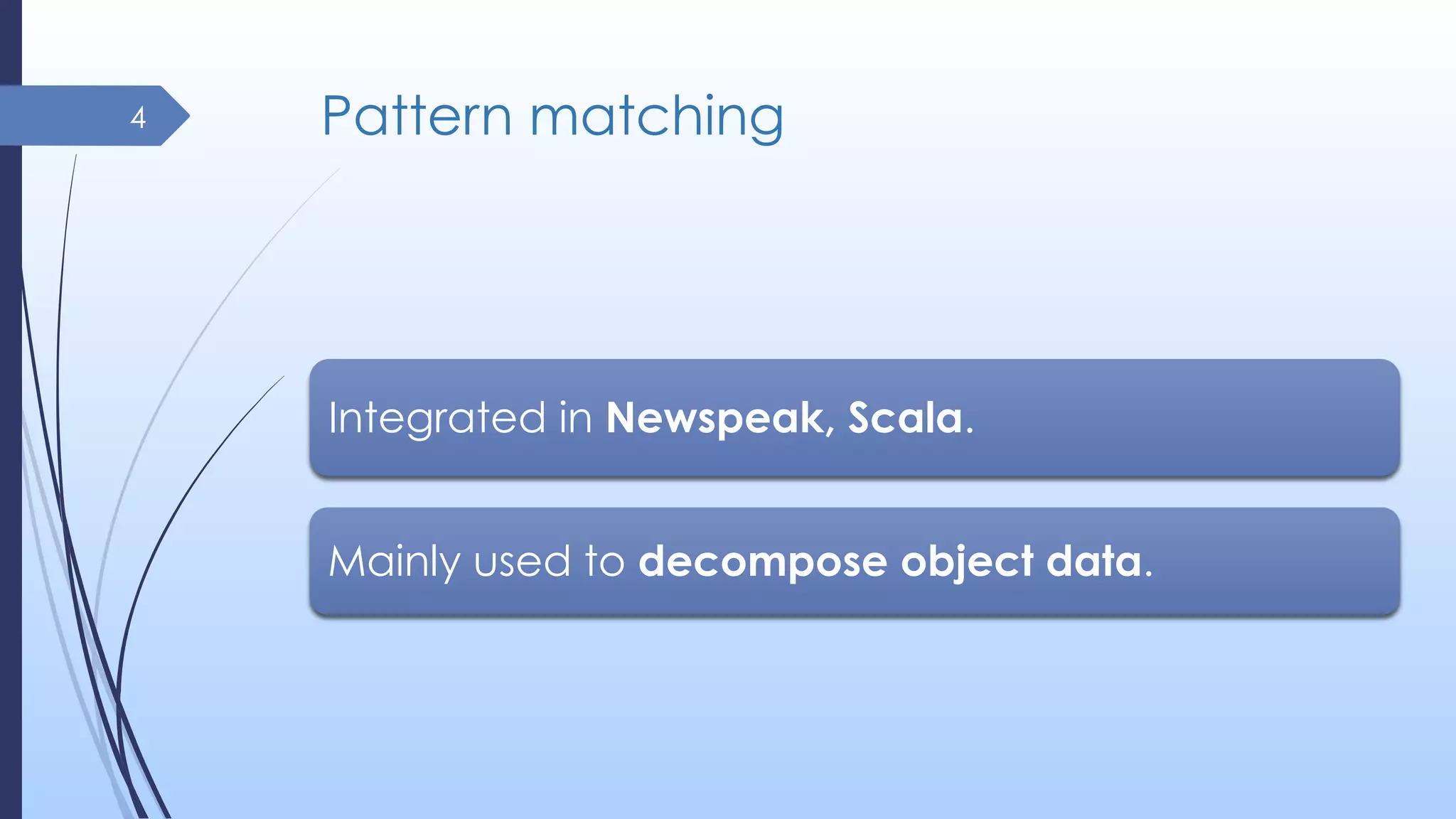

4. Pattern matching4
Integrated in Newspeak, Scala.
Mainly used to decompose object data.

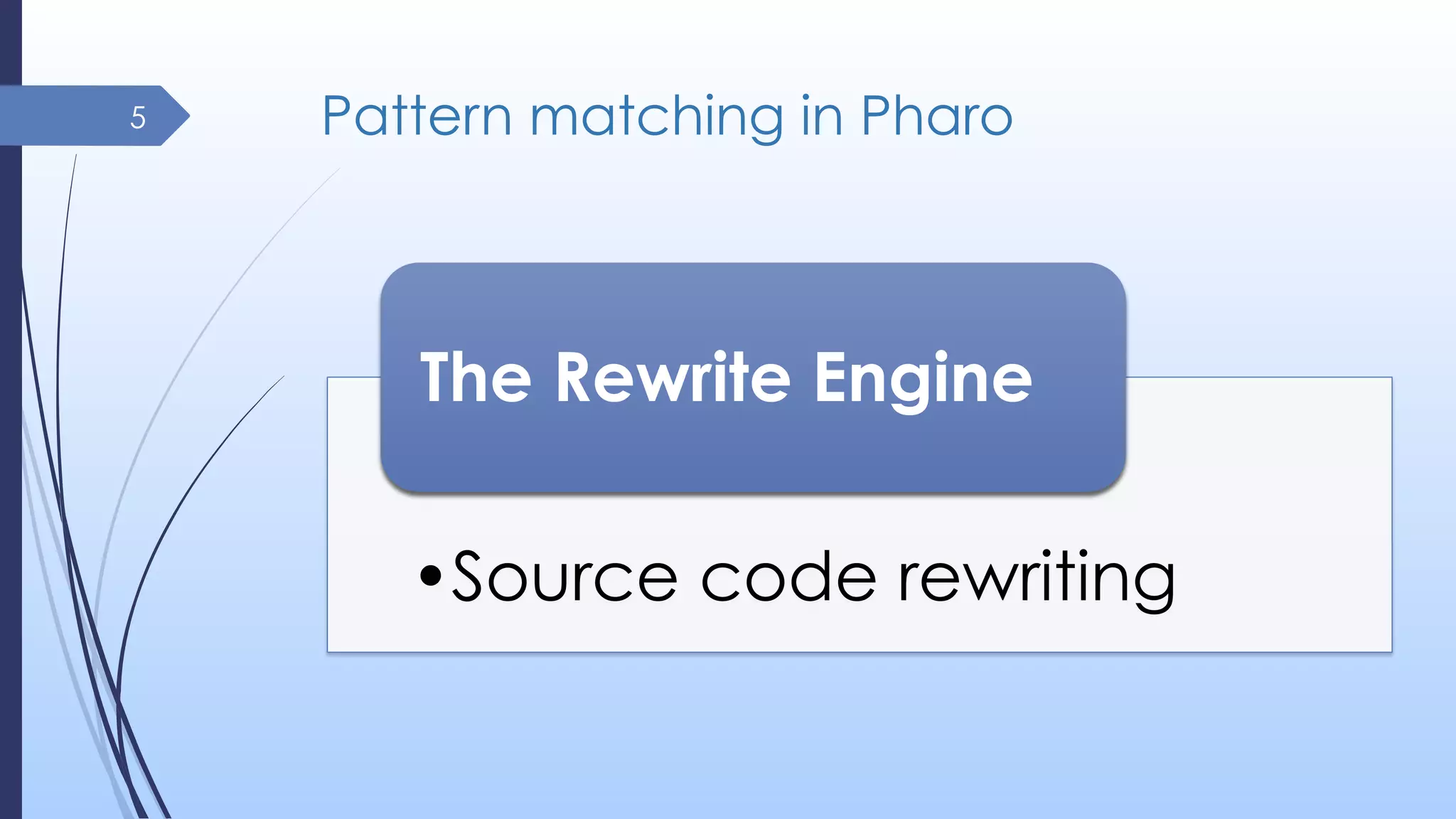

5. Pattern matching in Pharo5
• Source code rewriting
The Rewrite Engine

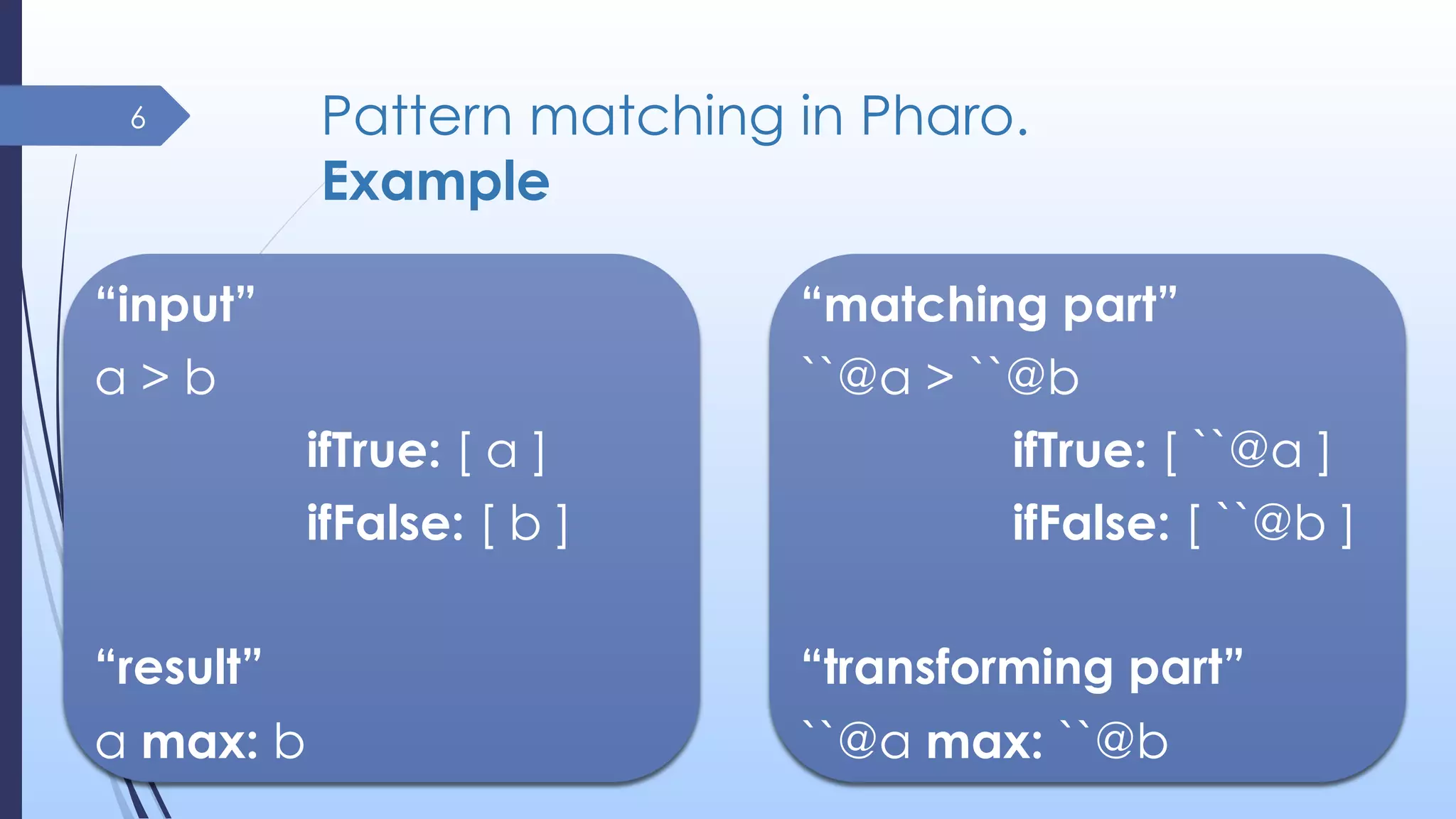

6. Pattern matching in Pharo.
Example
6
“matching part”
``@a > ``@b
ifTrue: [ ``@a ]
ifFalse: [ ``@b ]
“transforming part”
``@a max: ``@b
“input”
a > b
ifTrue: [ a ]
ifFalse: [ b ]
“result”
a max: b

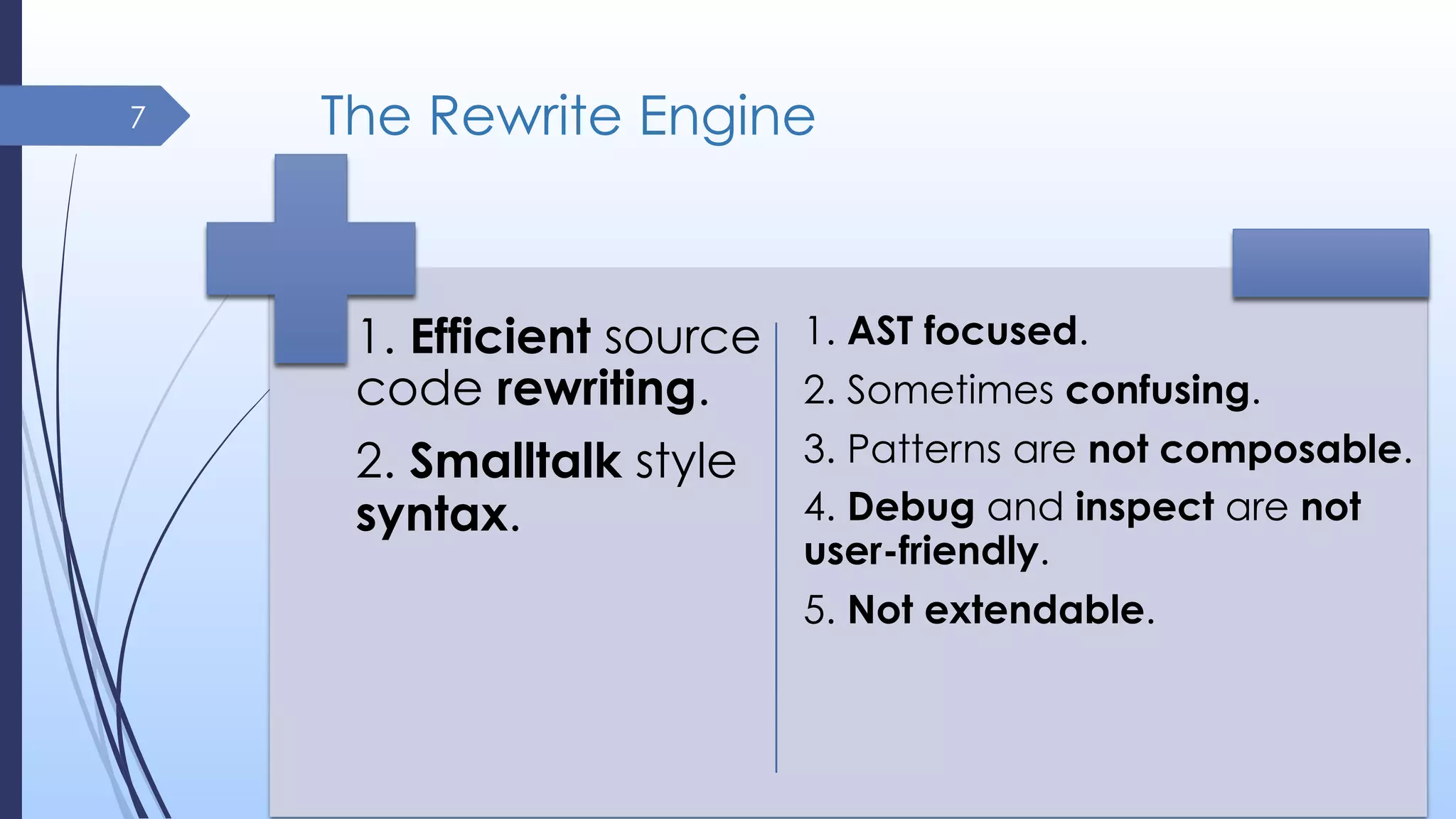

7. The Rewrite Engine7
1. AST focused.
2. Sometimes confusing.
3. Patterns are not composable.
4. Debug and inspect are not
user-friendly.
5. Not extendable.
1. Efficient source
code rewriting.
2. Smalltalk style
syntax.

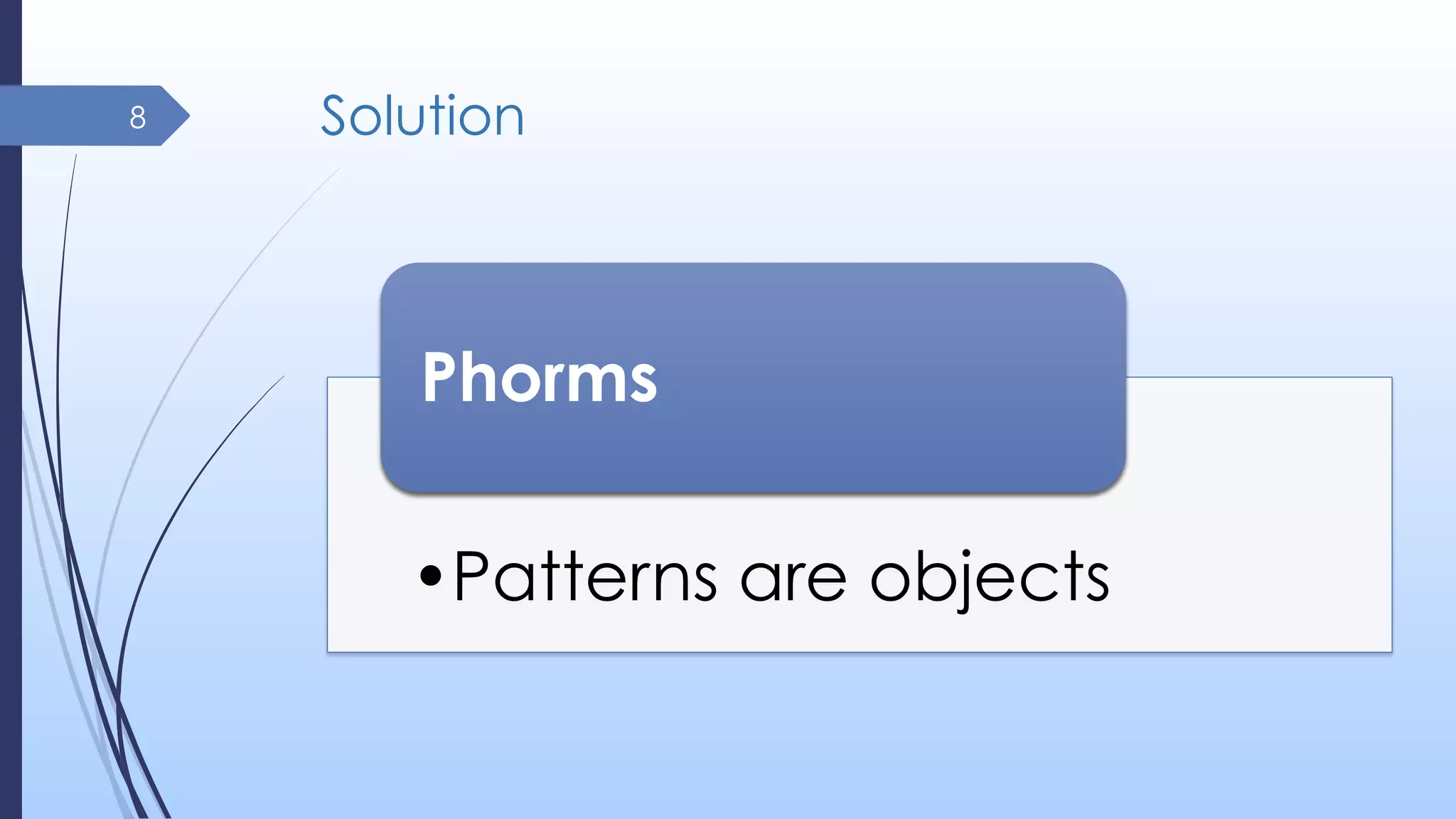

8. Solution8
• Patterns are objects
Phorms

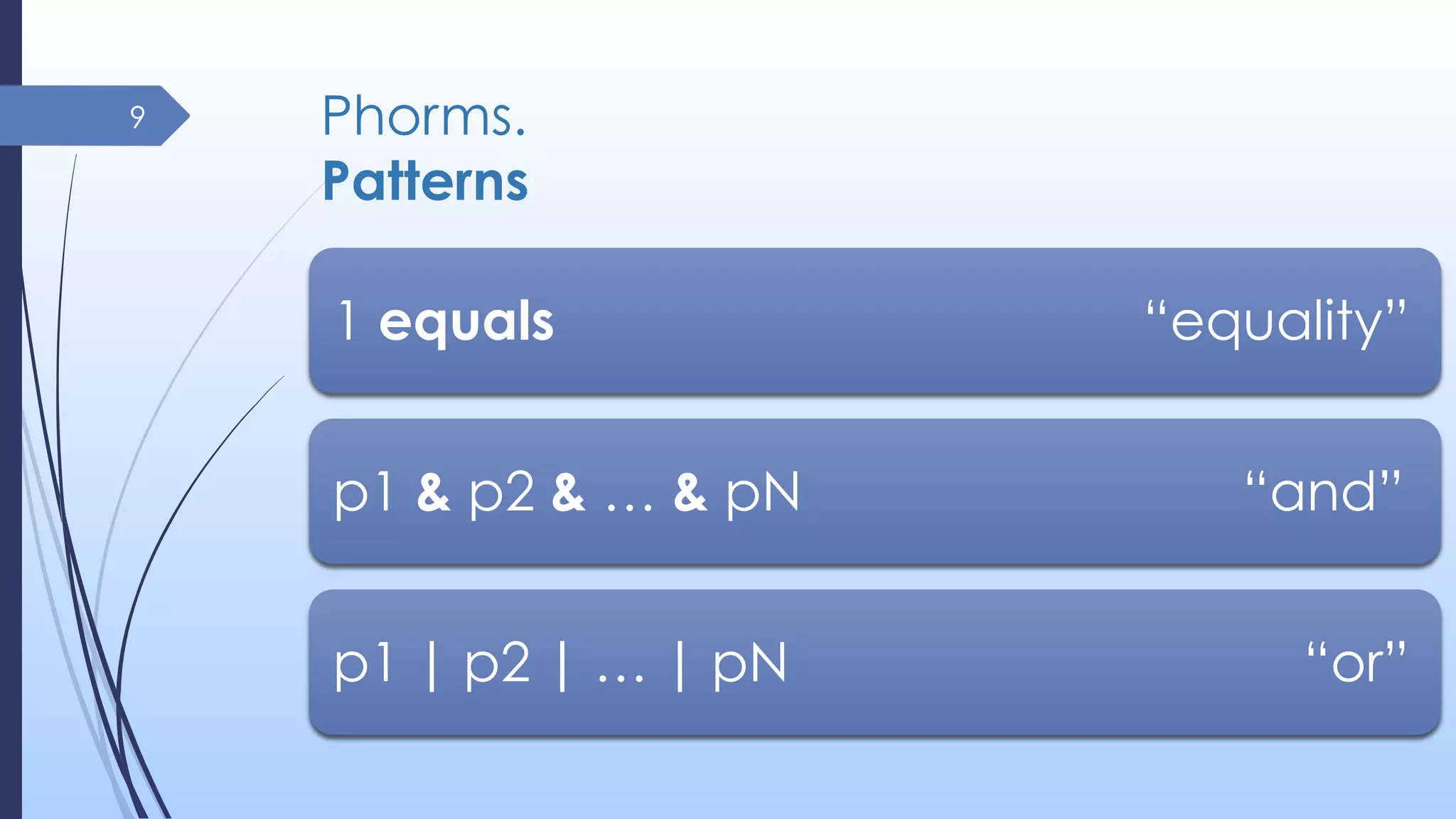

9. Phorms.
Patterns
9
1 equals “equality”
p1 & p2 & … & pN “and”
p1 | p2 | … | pN “or”

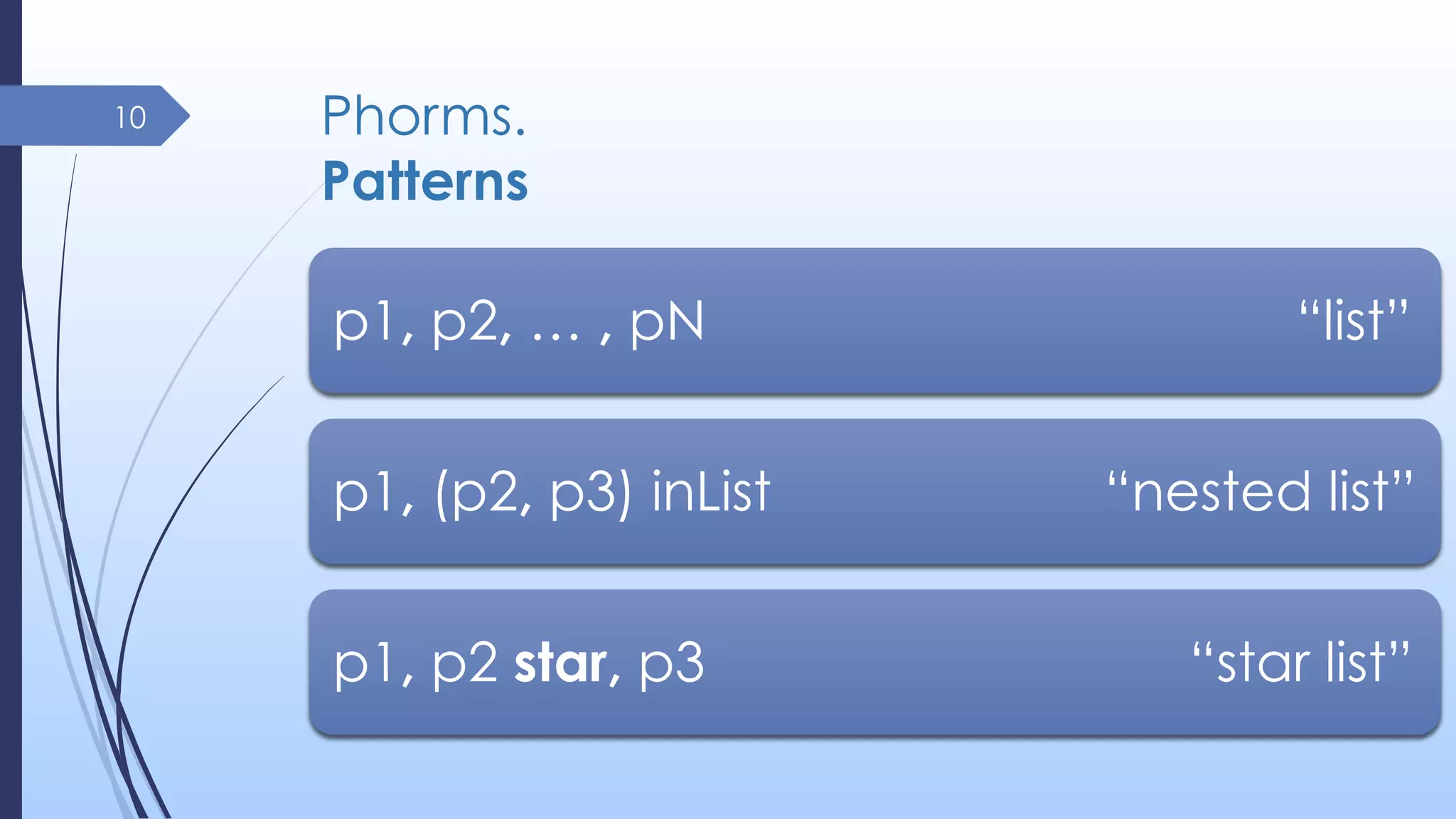

10. Phorms.
Patterns
10
p1, p2, … , pN “list”
p1, (p2, p3) inList “nested list”
p1, p2 star, p3 “star list”

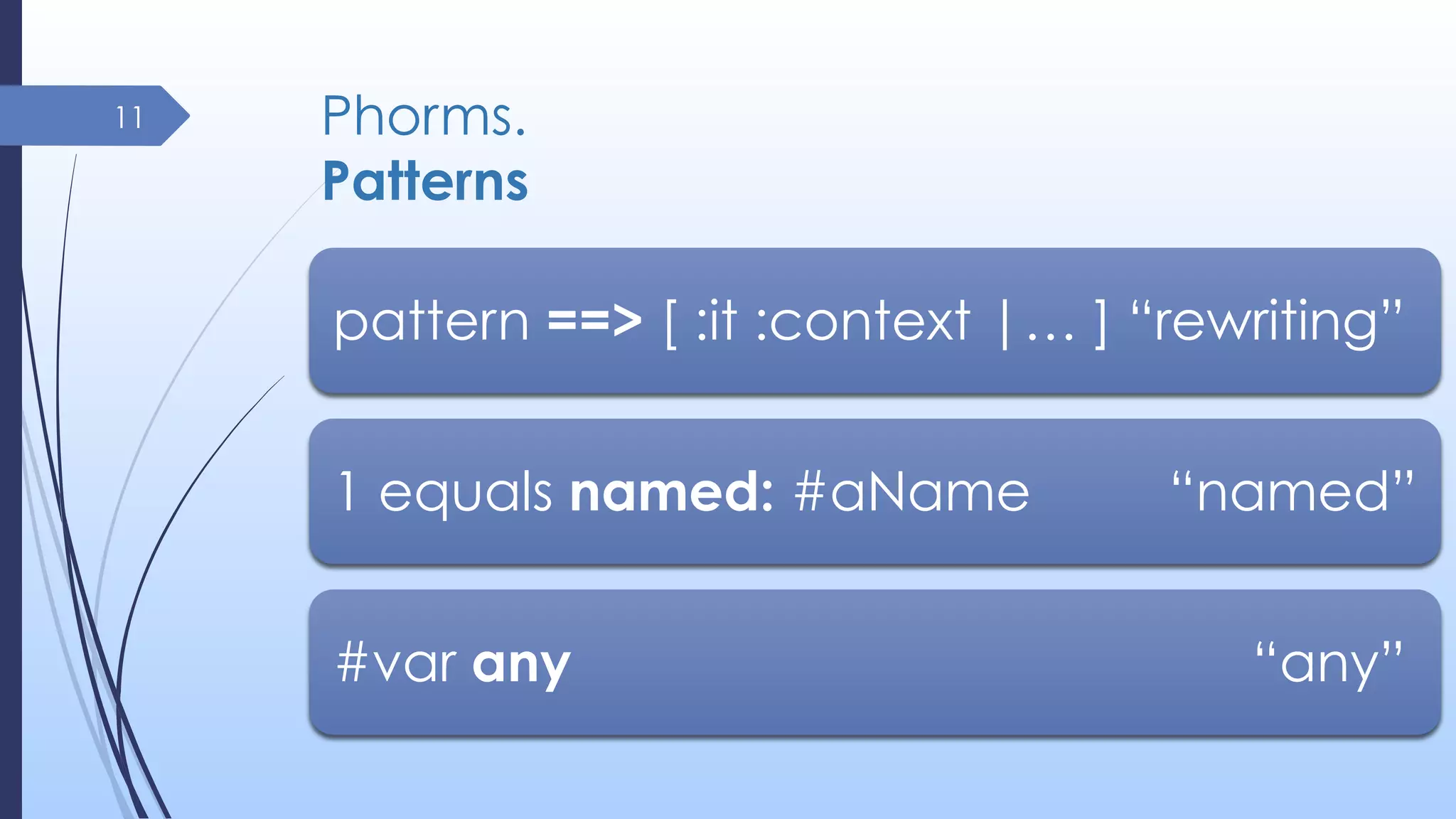

11. Phorms.
Patterns
11
pattern ==> [ :it :context |… ] “rewriting”
1 equals named: #aName “named”
#var any “any”

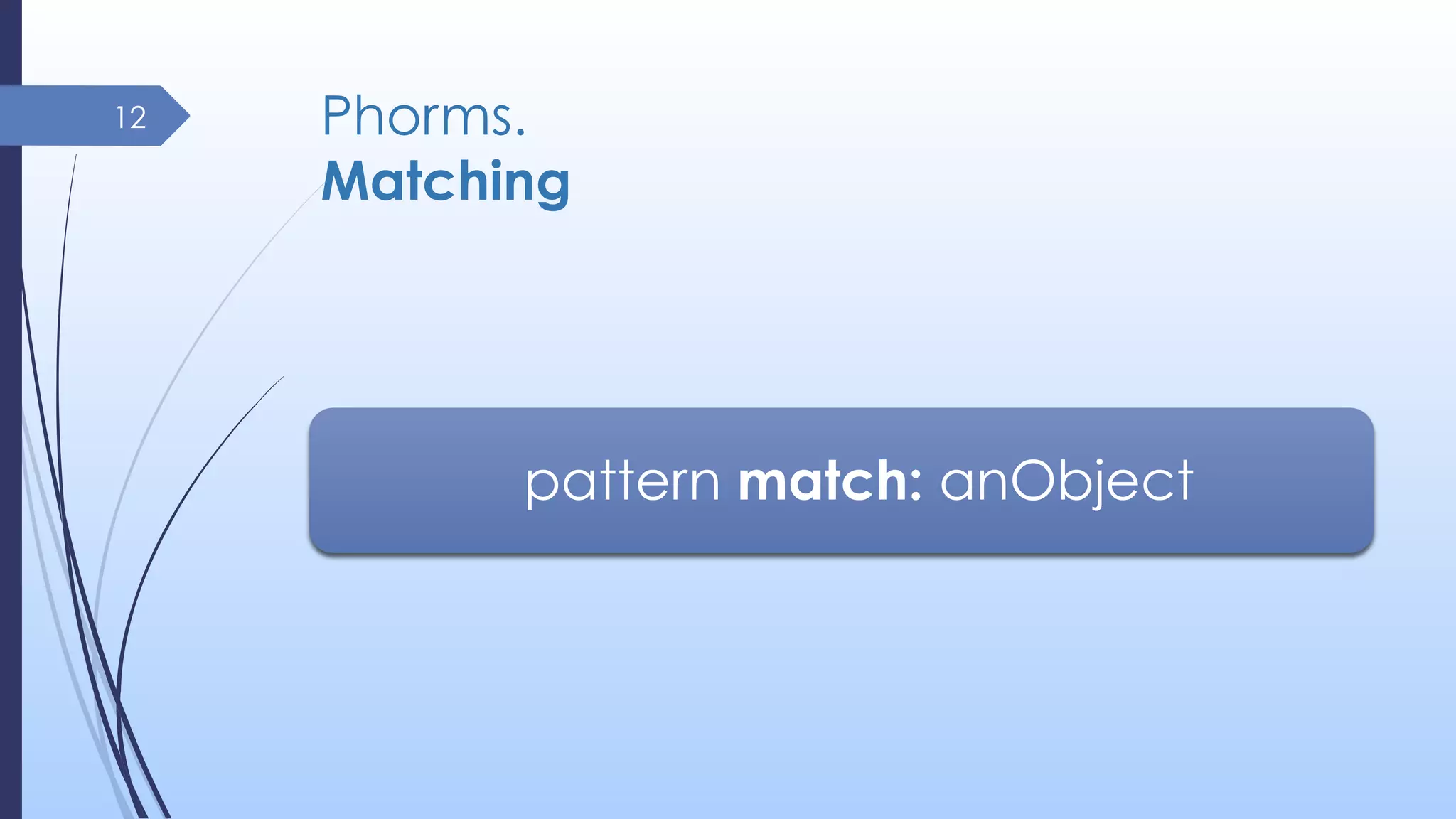

12. Phorms.
Matching
12
pattern match: anObject

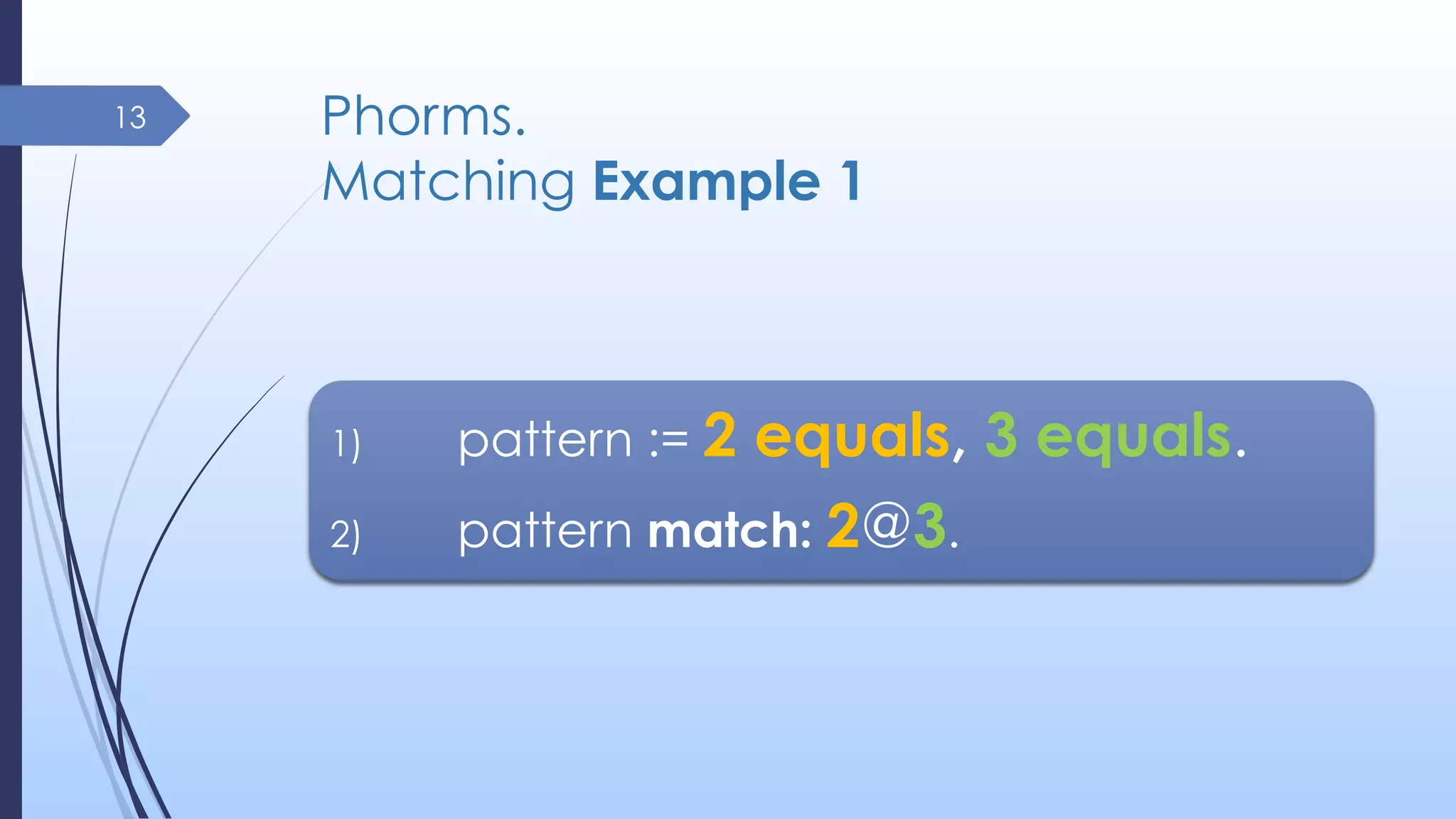

13. Phorms.
Matching Example 1
13
1) pattern := 2 equals, 3 equals.
2) pattern match: 2@3.

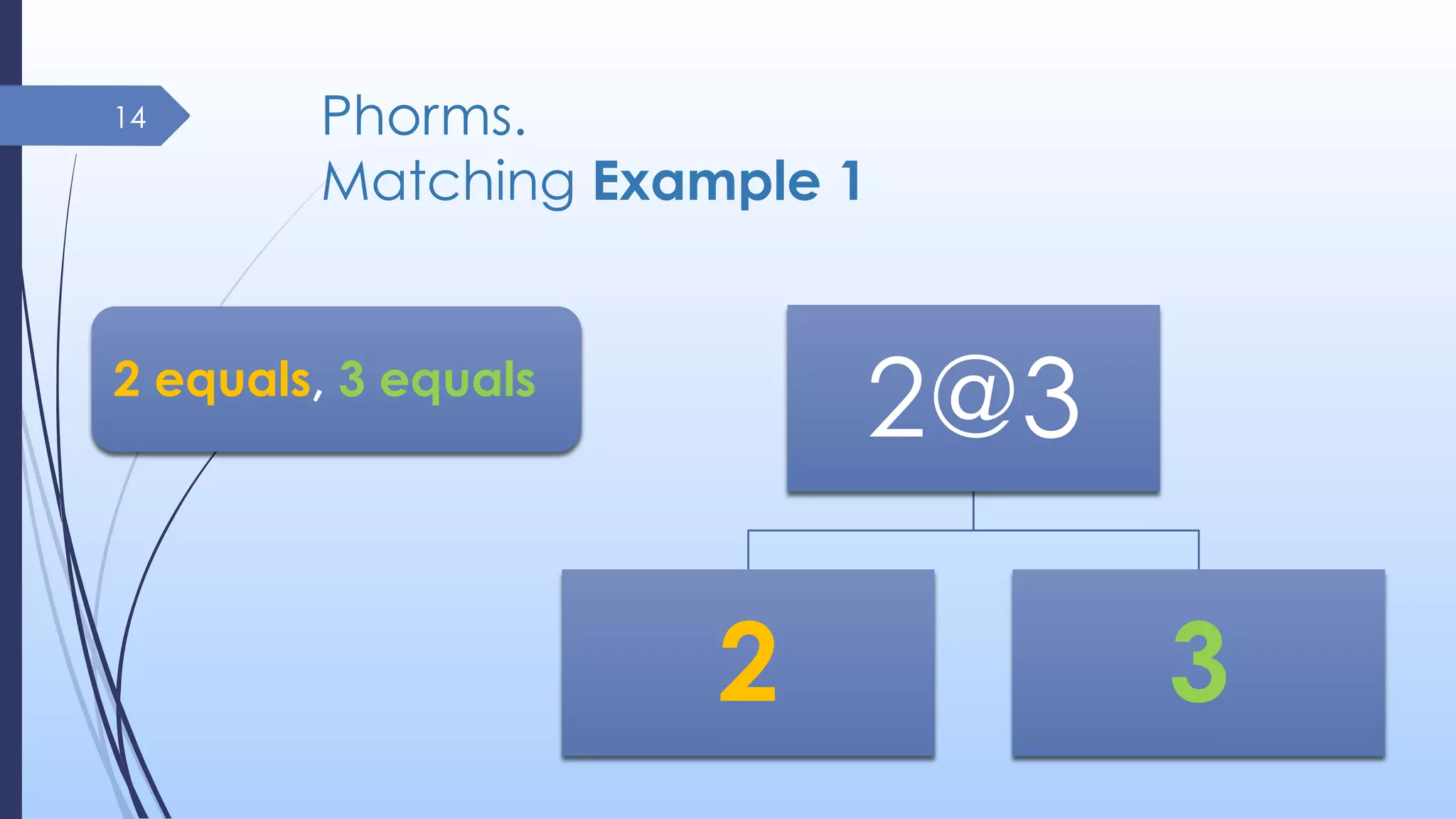

14. Phorms.
Matching Example 1
14
2@3
2 3
2 equals, 3 equals

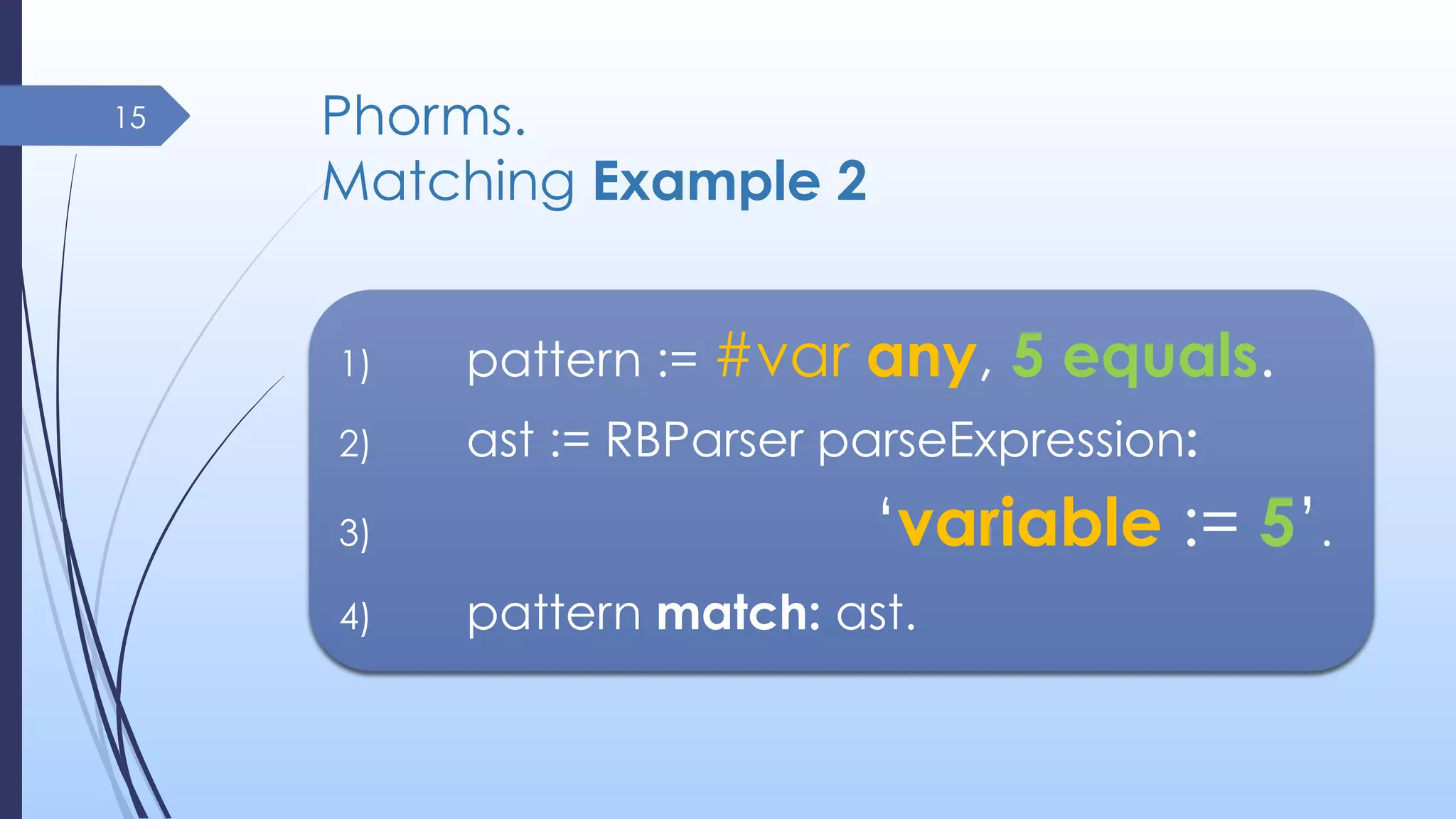

15. Phorms.
Matching Example 2
15
1) pattern := #var any, 5 equals.
2) ast := RBParser parseExpression:
3) ‘variable := 5’.
4) pattern match: ast.

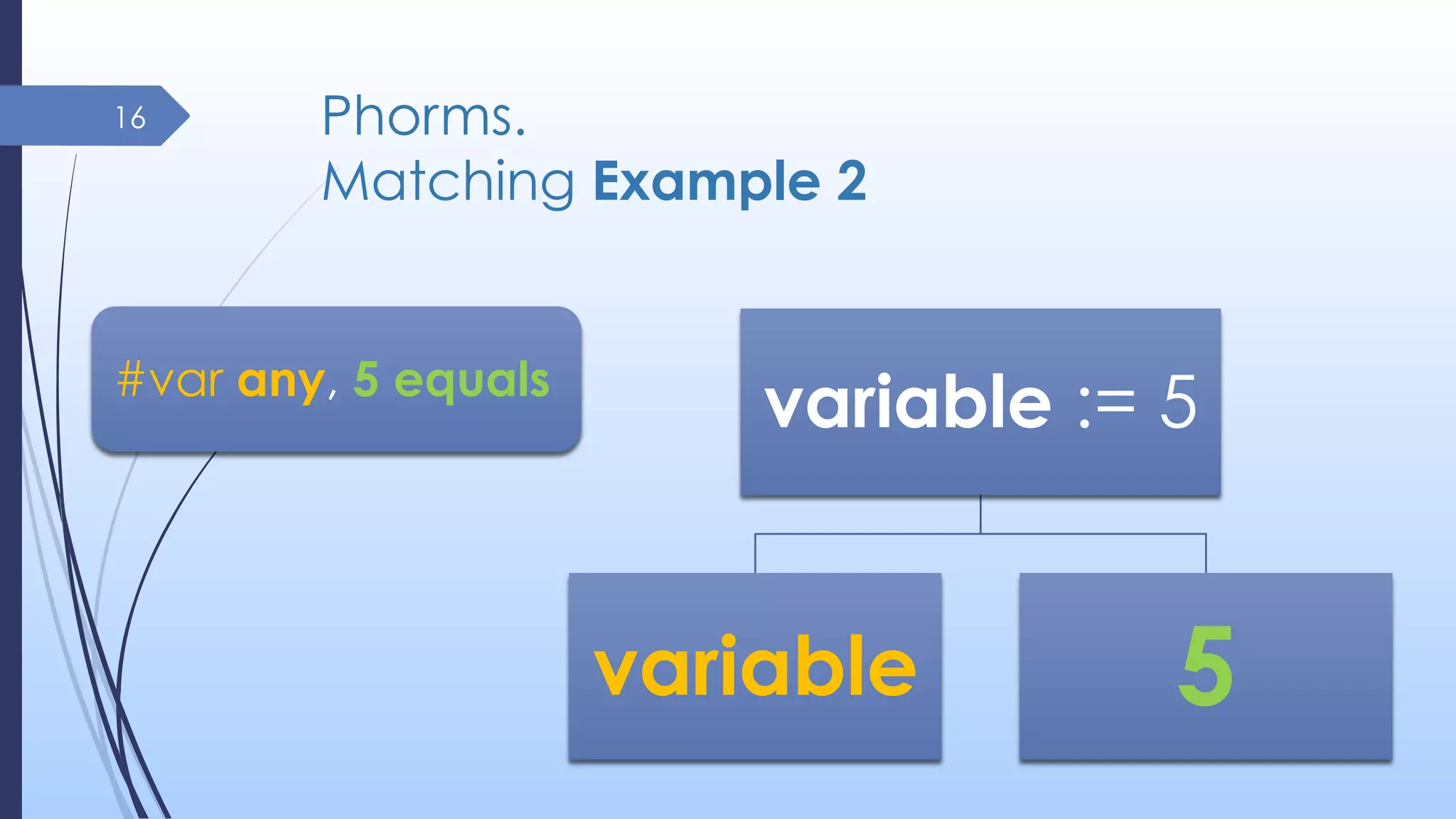

16. Phorms.
Matching Example 2
16
variable := 5
variable 5
#var any, 5 equals

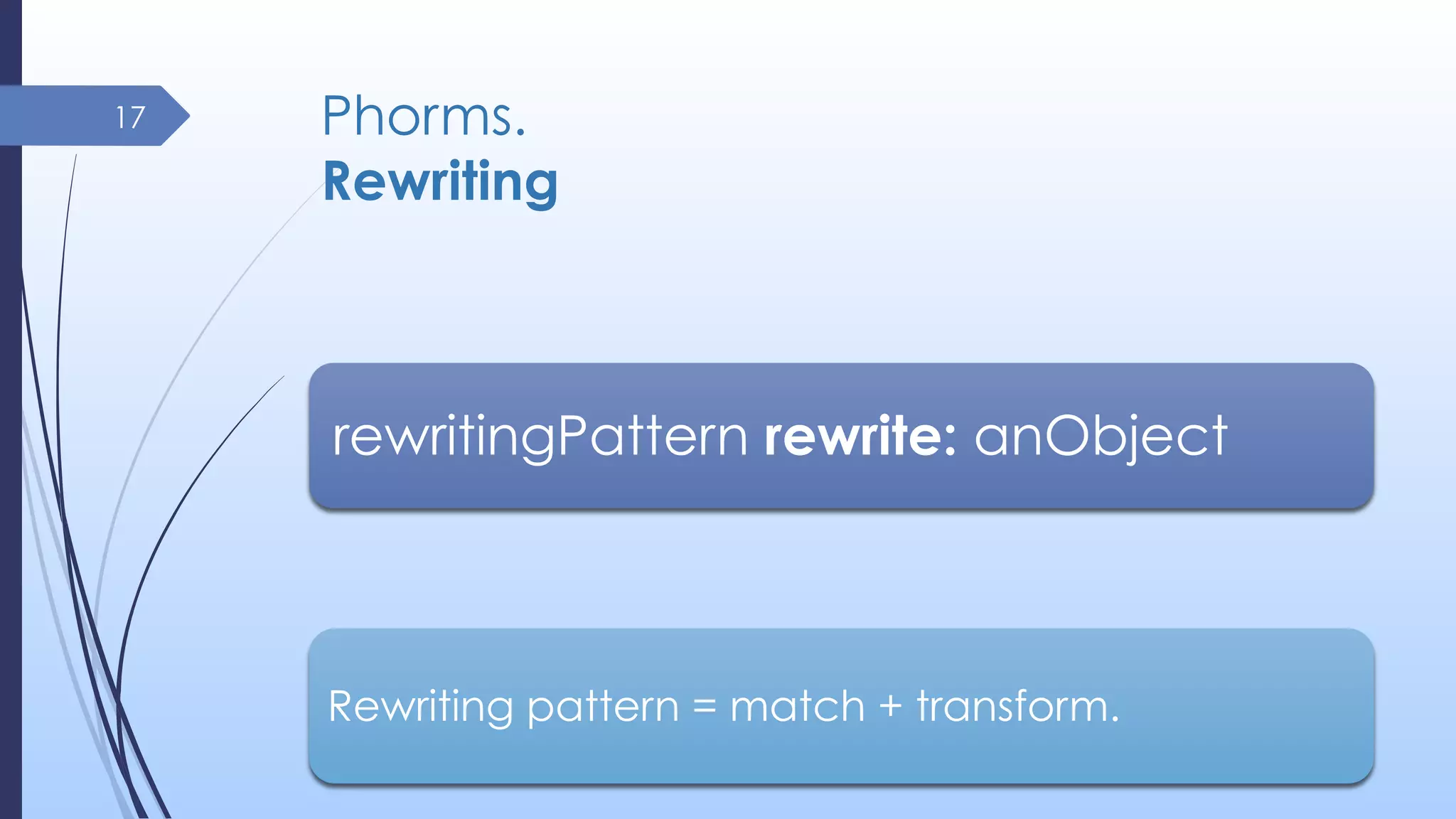

17. Phorms.
Rewriting
17
rewritingPattern rewrite: anObject
Rewriting pattern = match + transform.

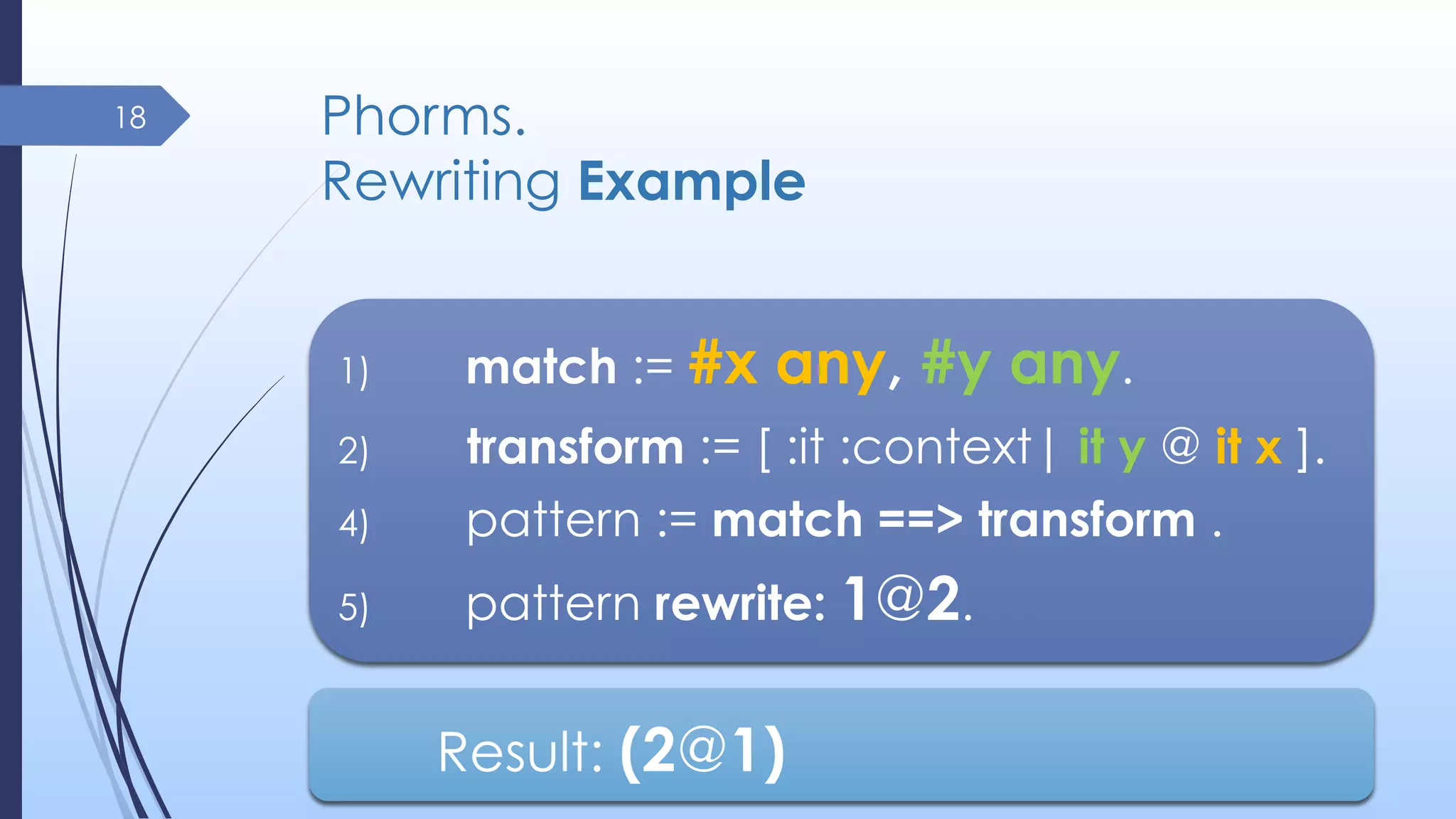

18. Phorms.
Rewriting Example
18
1) match := #x any, #y any.
2) transform := [ :it :context| it y @ it x ].
4) pattern := match ==> transform .
5) pattern rewrite: 1@2.
Result: (2@1)

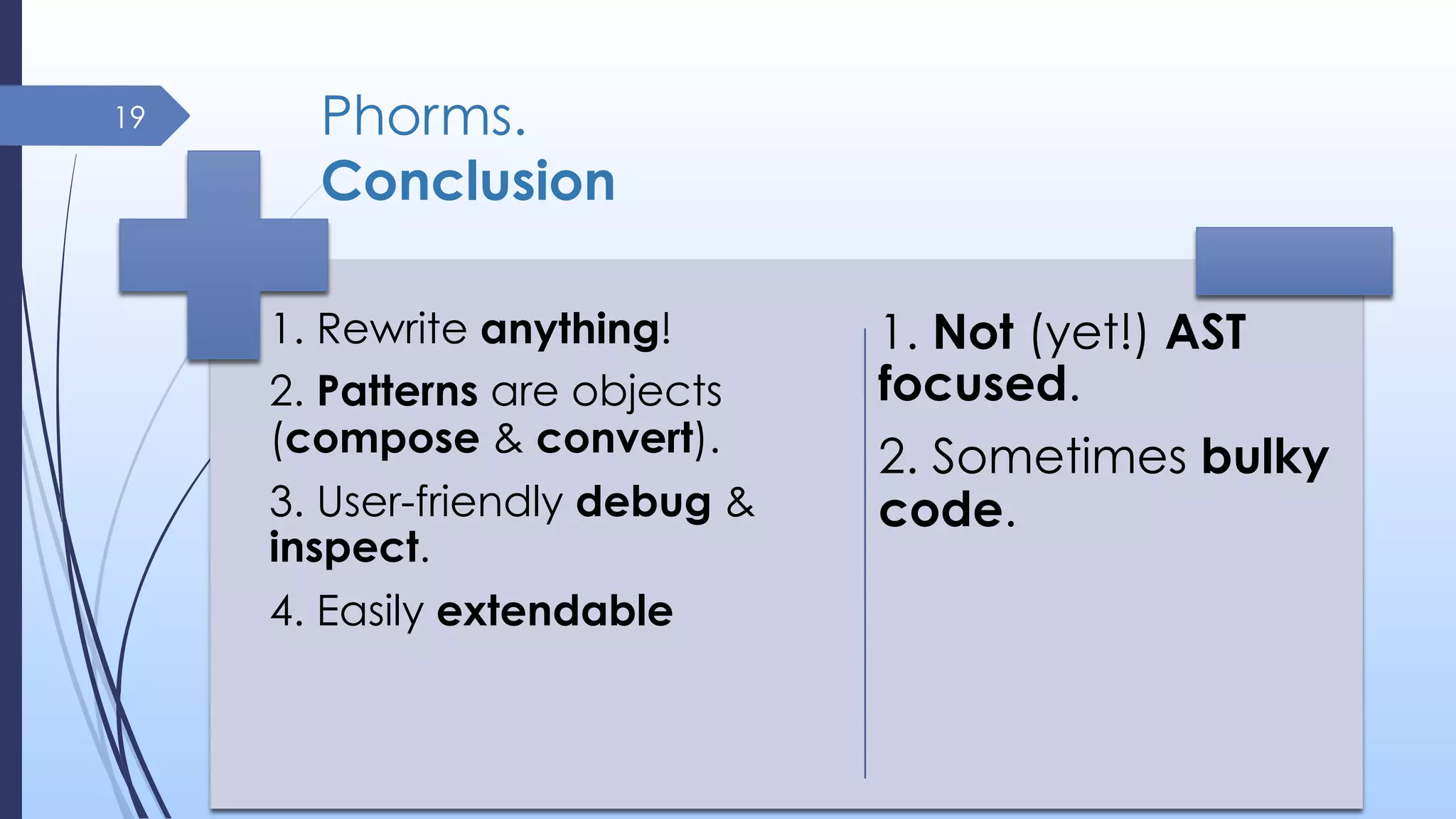

19. Phorms.
Conclusion
19
1. Rewrite anything!
2. Patterns are objects
(compose & convert).
3. User-friendly debug &
inspect.
4. Easily extendable
1. Not (yet!) AST
focused.
2. Sometimes bulky
code.

20. Markiyan Rizun e-mail: mrizun@gmail.com download: http://smalltalkhub.com/#!/~CamilleTeruel/Patterns/
