FineVu CR-300HD User Manual

Vehicle HD Video Recorder

CR-300HD User Manual

1

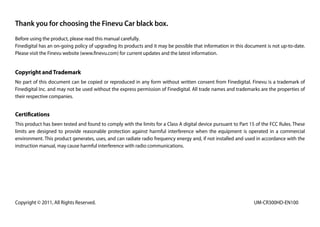

Thank you for choosing the Finevu Car black box.
Before using the product, please read this manual carefully.
Finedigital has an on-going policy of upgrading its products and it may be possible that information in this document is not up-to-date.
Please visit the Finevu website (www.finevu.com) for current updates and the latest information.

Copyright and Trademark
No part of this document can be copied or reproduced in any form without written consent from Finedigital. Finevu is a trademark of
Finedigital Inc. and may not be used without the express permission of Finedigital. All trade names and trademarks are the properties of
their respective companies.

Certifications
This product has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference with radio communications.

Copyright © 2011, All Rights Reserved. UM-CR300HD-EN100

2

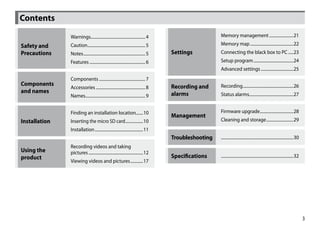

Contents

Warnings.................................................... 4 Memory management........................21

Safety and Caution........................................................ 5 Memory map..........................................22
Precautions Notes............................................................ 5 Settings Connecting the black box to PC......23
Features...................................................... 6 Setup program.......................................24
Advanced settings................................25
Components............................................. 7
Components Recording and Recording.................................................26
Accessories................................................ 8
and names alarms Status alarms...........................................27
Names.......................................................... 9

Finding an installation location.......10 Firmware upgrade.................................28
Management
Installation Inserting the micro SD card..................10 Cleaning and storage...........................29
Installation...............................................11
Troubleshooting .....................................................................30
Recording videos and taking
Using the pictures.....................................................12
product Specifications .....................................................................32
Viewing videos and pictures.............17

3

Safety and Precautions

WARNING Breachingpersonal injuryprecautions may result
in serious
the following
or even death.

•• Plug the USB and video cables in properly. Failure to do so
Power may result in fire or product failure.
•• Do not use a damaged or modified power cable. Doing so may
cause explosion or fire, and may result in personal injury or Use
damage to the vehicle.
•• Do not allow the product to come into contact with
•• Only use this product within the rated voltage. Failing to do
flammable and explosive liquids or gases. Doing so may
so may cause explosion or fire, and result in personal injury
or damage to the vehicle. result in explosion or fire.

•• Do not connect the power cable arbitrarily. Doing so may •• Do not allow metal or flammable substances to get into the
result in fire or product failure. memory card slot or cord outlet of your black box. This may
result in electric shock or fire.
Installation •• Do not operate the product with wet hands. This may result
in electric shock.
•• Do not use this product in a place where there is a danger
•• Do not leave the product or its accessories within reach of
of exposure to high humidity or flammable liquids or gases.
children, since they may swallow small components. Doing
Doing so may result in explosion or fire.
so may result in serious personal injury or death.
•• Do not leave the black box in a place with a high
temperature, such as in the closed vehicle or in direct •• Do not cover the black box with a cloth or a blanket while in
sunlight. Doing so may result in fire or product failure. use. Continuous heating may cause fire or product failure.
•• Ensure that you install the product in a position where •• Do not operate the black box while driving. It could cause
it won't obstruct your view. Doing so could cause a car a car accident.
accident.

4

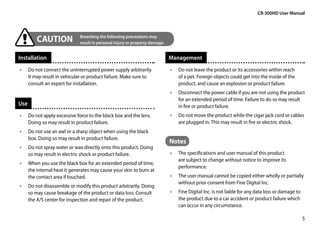

CAUTION Breaching the following or property damage.
result in personal injury
precautions may

Installation Management
•• Do not connect the uninterrupted power supply arbitrarily. •• Do not leave the product or its accessories within reach
It may result in vehicular or product failure. Make sure to of a pet. Foreign objects could get into the inside of the
consult an expert for installation. product, and cause an explosion or product failure.
•• Disconnect the power cable if you are not using the product
for an extended period of time. Failure to do so may result
Use in fire or product failure.
•• Do not apply excessive force to the black box and the lens. •• Do not move the product while the cigar jack cord or cables
Doing so may result in product failure. are plugged in. This may result in fire or electric shock.
•• Do not use an awl or a sharp object when using the black
box. Doing so may result in product failure.
Notes
•• Do not spray water or wax directly onto this product. Doing
so may result in electric shock or product failure. •• The specifications and user manual of this product
are subject to change without notice to improve its
•• When you use the black box for an extended period of time,
performance.
the internal heat it generates may cause your skin to burn at
the contact area if touched. •• The user manual cannot be copied either wholly or partially
without prior consent from Fine Digital Inc.
•• Do not disassemble or modify this product arbitrarily. Doing
so may cause breakage of the product or data loss. Consult •• Fine Digital Inc. is not liable for any data loss or damage to
the A/S center for inspection and repair of the product. the product due to a car accident or product failure which
can occur in any circumstance.

5

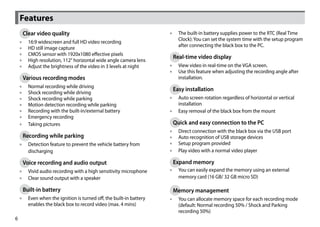

Features
Clear video quality •• The built-in battery supplies power to the RTC (Real Time
Clock): You can set the system time with the setup program
•• 16:9 widescreen and full HD video recording
after connecting the black box to the PC.
•• HD still image capture
•• CMOS sensor with 1920x1080 effective pixels
Real-time video display
•• High resolution, 112° horizontal wide angle camera lens
•• Adjust the brightness of the video in 3 levels at night •• View video in real-time on the VGA screen.
•• Use this feature when adjusting the recording angle after
Various recording modes installation.
•• Normal recording while driving
Easy installation
•• Shock recording while driving
•• Shock recording while parking •• Auto screen rotation regardless of horizontal or vertical
•• Motion detection recording while parking installation
•• Recording with the built-in/external battery •• Easy removal of the black box from the mount
•• Emergency recording
•• Taking pictures Quick and easy connection to the PC
•• Direct connection with the black box via the USB port
Recording while parking •• Auto recognition of USB storage devices
•• Detection feature to prevent the vehicle battery from •• Setup program provided
discharging •• Play video with a normal video player

Voice recording and audio output Expand memory
•• Vivid audio recording with a high sensitivity microphone •• You can easily expand the memory using an external
•• Clear sound output with a speaker memory card (16 GB/ 32 GB micro SD)

Built-in battery Memory management
•• Even when the ignition is turned off, the built-in battery •• You can allocate memory space for each recording mode
enables the black box to record video (max. 4 mins) (default: Normal recording 50% / Shock and Parking
recording 50%)
6

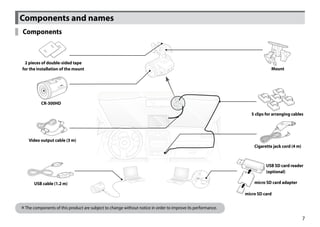

Components and names
Components

2 pieces of double-sided tape
for the installation of the mount Mount

CR-300HD

5 clips for arranging cables

Video output cable (3 m)
Cigarette jack cord (4 m)

USB SD card reader
(optional)

USB cable (1.2 m) micro SD card adapter

micro SD card

 The components of this product are subject to change without notice in order to improve its performance.

7

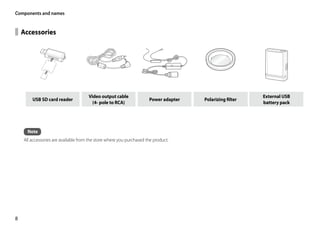

Components and names

Accessories

Video output cable External USB
USB SD card reader Power adapter Polarizing filter
(4- pole to RCA) battery pack

Note
All accessories are available from the store where you purchased the product.

8

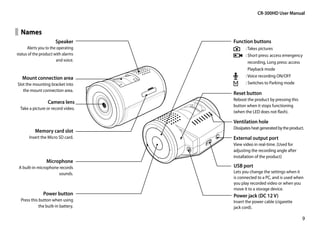

Names
Speaker Function buttons
Alerts you to the operating : Takes pictures
status of the product with alarms : hort press: access emergency
S
and voice. recording, Long press: access
Playback mode
Mount connection area : oice recording ON/OFF
V
Slot the mounting bracket into : Switches to Parking mode
the mount connection area.
Reset button
Reboot the product by pressing this
Camera lens
button when it stops functioning
Take a picture or record video.
(when the LED does not flash).

Ventilation hole
Dissipates heat generated by the product.
Memory card slot
Insert the Micro SD card. External output port
View video in real-time. (Used for
adjusting the recording angle after
installation of the product)
Microphone
A built-in microphone records USB port
sounds. Lets you change the settings when it
is connected to a PC, and is used when
you play recorded video or when you
move it to a storage device.
Power button Power jack (DC 12 V)
Press this button when using Insert the power cable (cigarette
the built-in battery. jack cord).

9

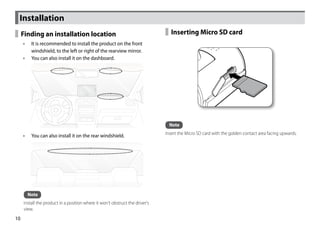

Installation
Finding an installation location Inserting Micro SD card
•• It is recommended to install the product on the front
windshield, to the left or right of the rearview mirror.
•• You can also install it on the dashboard.

Note
Insert the Micro SD card with the golden contact area facing upwards.
•• You can also install it on the rear windshield.

Note
Install the product in a position where it won't obstruct the driver's
view.
10

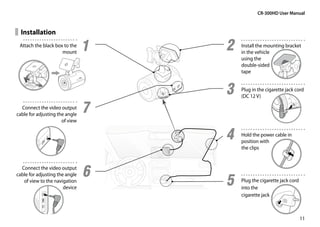

Installation
Attach the black box to the
mount
1 2 Install the mounting bracket
in the vehicle
using the
double-sided
tape

3 Plug in the cigarette jack cord
(DC 12 V)

Connect the video output
cable for adjusting the angle
7
of view

4 Hold the power cable in
position with
the clips

Connect the video output
6
5
cable for adjusting the angle
of view to the navigation Plug the cigarette jack cord
device into the
cigarette jack

11

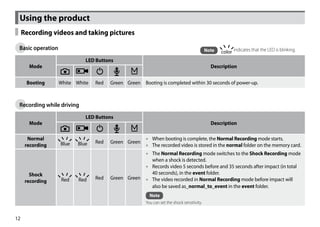

Using the product
Recording videos and taking pictures

Basic operation Note color indicates that the LED is blinking.
LED Buttons
Mode Description

Booting White White Red Green Green Booting is completed within 30 seconds of power-up.

Recording while driving
LED Buttons
Mode Description

Normal •• When booting is complete, the Normal Recording mode starts.
Blue Blue Red Green Green
recording •• The recorded video is stored in the normal folder on the memory card.
•• The Normal Recording mode switches to the Shock Recording mode
when a shock is detected.
•• Records video 5 seconds before and 35 seconds after impact (in total
Shock 40 seconds), in the event folder.
Red Red Red Green Green •• The video recorded in Normal Recording mode before impact will
recording
also be saved as_normal_to_event in the event folder.
Note
You can set the shock sensitivity.

12

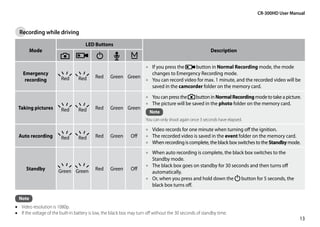

Recording while driving
LED Buttons
Mode Description

•• If you press the button in Normal Recording mode, the mode
Emergency changes to Emergency Recording mode.
Red Red Red Green Green
recording •• You can record video for max. 1 minute, and the recorded video will be
saved in the camcorder folder on the memory card.
•• You can press the button in Normal Recording mode to take a picture.
•• The picture will be saved in the photo folder on the memory card.
Taking pictures Red Red Red Green Green
Note
You can only shoot again once 3 seconds have elapsed.

•• Video records for one minute when turning off the ignition.
Auto recording Red Red Red Green Off •• The recorded video is saved in the event folder on the memory card.
•• When recording is complete, the black box switches to the Standby mode.
•• When auto recording is complete, the black box switches to the
Standby mode.
•• The black box goes on standby for 30 seconds and then turns off
Standby Green Green Red Green Off
automatically.
•• Or, when you press and hold down the button for 5 seconds, the
black box turns off.

Note
•• Video resolution is 1080p.
•• If the voltage of the built-in battery is low, the black box may turn off without the 30 seconds of standby time.
13

Using the product

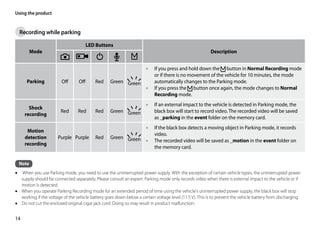

Recording while parking

LED Buttons
Mode Description

•• If you press and hold down the button in Normal Recording mode
or if there is no movement of the vehicle for 10 minutes, the mode
Parking Off Off Red Green Green automatically changes to the Parking mode.
•• If you press the button once again, the mode changes to Normal
Recording mode.
•• If an external impact to the vehicle is detected in Parking mode, the
Shock
Red Red Red Green Green black box will start to record video. The recorded video will be saved
recording
as _parking in the event folder on the memory card.
•• If the black box detects a moving object in Parking mode, it records
Motion
video.
detection Purple Purple Red Green Green
•• The recorded video will be saved as _motion in the event folder on
recording
the memory card.

Note
•• When you use Parking mode, you need to use the uninterrupted power supply. With the exception of certain vehicle types, the uninterrupted power
supply should be connected separately. Please consult an expert. Parking mode only records video when there is external impact to the vehicle or if
motion is detected.
•• When you operate Parking Recording mode for an extended period of time using the vehicle's uninterrupted power supply, the black box will stop
working if the voltage of the vehicle battery goes down below a certain voltage level (11.5 V). This is to prevent the vehicle battery from discharging.
•• Do not cut the enclosed original cigar jack cord. Doing so may result in product malfunction.

14

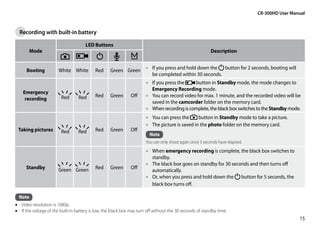

Recording with built-in battery

LED Buttons
Mode Description

Booting White White Red Green Green •• If you press and hold down the button for 2 seconds, booting will
be completed within 30 seconds.
•• If you press the button in Standby mode, the mode changes to
Emergency Recording mode.
Emergency
Red Red Red Green Off •• You can record video for max. 1 minute, and the recorded video will be
recording
saved in the camcorder folder on the memory card.
•• When recording is complete, the black box switches to the Standby mode.
•• You can press the button in Standby mode to take a picture.
•• The picture is saved in the photo folder on the memory card.
Taking pictures Red Red Red Green Off
Note
•• When emergency recording is complete, the black box switches to
standby.
•• The black box goes on standby for 30 seconds and then turns off
Standby Green Green Red Green Off
automatically.
•• Or, when you press and hold down the button for 5 seconds, the
black box turns off.

Note
•• Video resolution is 1080p.
•• If the voltage of the built-in battery is low, the black box may turn off without the 30 seconds of standby time.
15

Using the product

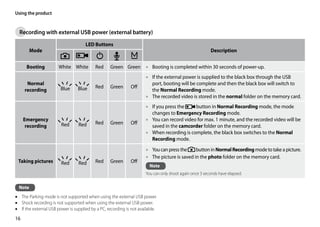

Recording with external USB power (external battery)
LED Buttons
Mode Description

Booting White White Red Green Green •• Booting is completed within 30 seconds of power-up.
•• If the external power is supplied to the black box through the USB
Normal port, booting will be complete and then the black box will switch to
Blue Blue Red Green Off
recording the Normal Recording mode.
•• The recorded video is stored in the normal folder on the memory card.
•• If you press the button in Normal Recording mode, the mode
changes to Emergency Recording mode.
Emergency •• You can record video for max. 1 minute, and the recorded video will be
Red Red Red Green Off
recording saved in the camcorder folder on the memory card.
•• When recording is complete, the black box switches to the Normal
Recording mode.
•• You can press the button in Normal Recording mode to take a picture.
•• The picture is saved in the photo folder on the memory card.
Taking pictures Red Red Red Green Off
Note

Note
•• The Parking mode is not supported when using the external USB power.
•• Shock recording is not supported when using the external USB power.
•• If the external USB power is supplied by a PC, recording is not available.
16


Viewing videos and pictures
Viewing on PC (connecting the black box)

1 Connect the black box to the PC with the USB cable.
3 When you click “Open folder to view files using Windows
Explorer”, the folders containing videos and pictures will
appear.

2 After booting is complete, the black box switches to USB
mode and is executed as a removable disk.

4 You can play the recorded videos and view the pictures
saved in each folder.
Note
•• Each folder contains:
camcorder = Emergency recording,
event = Shock recording,
normal = Normal recording,
photo = Pictures
•• Please make sure that you back up important videos and pictures on
your PC or other storage devices.
17

Using the product

Viewing on PC (memory card)

1 Remove the Micro SD card from the black box and place it
in the micro SD adapter. Use the memory card reader for
3 When you click “Open folder to view files using Windows
Explorer”, the folders containing videos and pictures will
connection with a PC. appear.

2 When you connect the micro SDHC card to the PC, it is
executed as a removable disk.

4 You can play the recorded videos and view the pictures
saved in each folder.
Note
•• Each folder contains:
camcorder = Emergency recording,
event = Shock recording,
normal = Normal recording,
photo = Pictures
•• Please make sure that you back up important videos and pictures on
your PC or other storage devices.
18

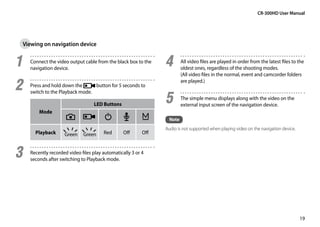

Viewing on navigation device

1 Connect the video output cable from the black box to the
navigation device.
4 All video files are played in order from the latest files to the
oldest ones, regardless of the shooting modes.
(All video files in the normal, event and camcorder folders

2 Press and hold down the button for 5 seconds to
are played.)

5
switch to the Playback mode.
The simple menu displays along with the video on the
LED Buttons external input screen of the navigation device.
Mode
Note
Audio is not supported when playing video on the navigation device.
Playback Green Green Red Off Off

3 Recently recorded video files play automatically 3 or 4
seconds after switching to Playback mode.

19

Using the product

6 Playback screen
You can play the recorded video on the navigation device as below.

Previous file Repeat the current file
If you press the button If you press the button
quickly while playing a quickly, the current video will
recorded video, the previous replay from the beginning.
file will play automatically.
Next file Exit
If you press the button If you press and hold down the
quickly while playing a button for 3 seconds, the
recorded video, the next file Playback mode will stop. The
will play automatically. black box then reboots and
switches to Normal Recording
Built-in battery voltage mode.

Vehicle voltage Settings information

Acceleration sensor value Recorded date/time

20

Settings
Before configuring the settings, find out about the video range of each recording mode and the number of files to be saved in the
memory.

Memory management
The start and end recording times differ for each recording mode, depending on the resolution of the video.

Mode Storage time for each recording mode Folder name

Resolution 1080 P 720 P

Normal recording 3 minutes in total 3 minutes in total normal

Shock recording
5 seconds before and 35 seconds 10 seconds before and 30 seconds
Shock recording after impact or motion detection after impact or motion detection
Recording
(40 seconds in total) (40 seconds in total) event
while parking Motion detection
recording

Auto recording when the ignition is off 5 seconds before and 55 seconds 10 seconds before and 50 seconds
after turning the ignition off (1 after turning the ignition off (1
Emergency recording minute in total) minute in total) camcorder

Note
•• In Shock Recording mode, the black box records video for up to 2 minutes for a series of events.
21

Settings

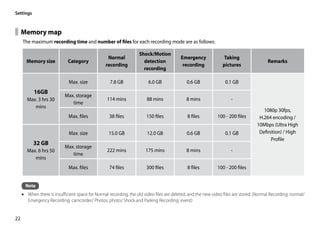

Memory map
The maximum recording time and number of files for each recording mode are as follows:

Shock/Motion
Normal Emergency Taking
Memory size Category detection Remarks
recording recording pictures
recording

Max. size 7.8 GB 6.0 GB 0.6 GB 0.1 GB
16GB
Max. storage
Max. 3 hrs 30 114 mins 88 mins 8 mins -
time
mins
1080p 30fps,
Max. files 38 files 150 files 8 files 100 - 200 files H.264 encoding /
10Mbps (Ultra High
Max. size 15.0 GB 12.0 GB 0.6 GB 0.1 GB Definition) / High
Profile
32 GB
Max. storage
Max. 6 hrs 50 222 mins 175 mins 8 mins -
time
mins
Max. files 74 files 300 files 8 files 100 - 200 files

Note
•• When there is insufficient space for Normal recording, the old video files are deleted, and the new video files are stored. (Normal Recording: normal/
Emergency Recording: camcorder/ Photos: photo/ Shock and Parking Recording: event)

22

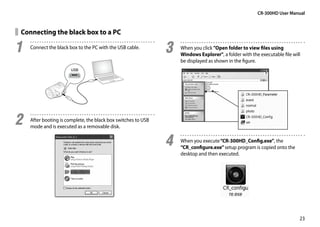

Connecting the black box to a PC

1 Connect the black box to the PC with the USB cable.
3 When you click Open folder to view files using
Windows Explorer, a folder with the executable file will
be displayed as shown in the figure.

2 After booting is complete, the black box switches to USB
mode and is executed as a removable disk.

4 When you execute “CR-300HD_Config.exe”, the
“CR_configure.exe” setup program is copied onto the
desktop and then executed.

23

Settings

Setup program

Information display
Displays the model name and the
firmware version.
Recording Mode
Allows you to set a recording mode.

Shock sensitivity
Adjust the shock sensitivity in Driving
and Parking modes. Into Parking Mode
Set the method for accessing Parking
mode to Manual or Auto (auto accessing
10 minutes after parking).
Motion detection in Parking mode
Set the motion detection value in
Parking mode. Brightness at night
Adjust the brightness of the video at
night in low lighting conditions.
Speaker volume
Set the speaker volume and enable/ Setting time
disable the voice recording feature. Displays the system time of the PC.

OK
Initialize Changed values are applied to the black
Initializes the set values. box. (Make sure to reboot the product to
apply the changes.)
24


Advanced settings

Video resolution
Set the video resolution (Ultra HD/ HD/
Normal).
Recording frames
Set the recording frames per second.

Parking/Motion detection recording
frame
Set the frames per second for video in
Parking/Motion Detection Recording
Auto conversion to black and white mode.
at night
Switches video to black and white at
night in Parking mode. Rotate video output
Rotates the video output. It is
recommended to use this feature when
you install the black box at the back of
the vehicle.
Memory allocation for each recording
mode
Set the memory allocation ratio for
recording while driving, and Parking/
Motion Detection recording.

25

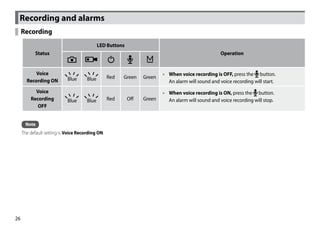

Recording and alarms
Recording
LED Buttons
Status Operation

Voice •• When voice recording is OFF, press the button.
Blue Blue Red Green Green
Recording ON An alarm will sound and voice recording will start.
Voice •• When voice recording is ON, press the button.
Recording Blue Blue Red Off Green An alarm will sound and voice recording will stop.
OFF

Note
The default setting is Voice Recording ON.

26

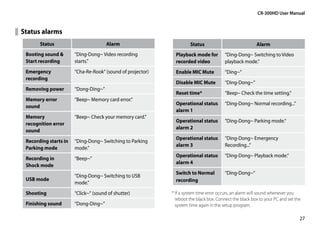

Status alarms
Status Alarm Status Alarm
Booting sound “Ding-Dong~ Video recording Playback mode for “Ding-Dong~ Switching to Video
Start recording starts.” recorded video playback mode.”
Emergency “Cha-Re-Rook“ (sound of projector) Enable MIC Mute “Ding~“
recording
Disable MIC Mute “Ding-Dong~”
Removing power “Dong-Ding~”
Reset time* “Beep~ Check the time setting.“
Memory error “Beep~ Memory card error.”
Operational status “Ding-Dong~ Normal recording...“
sound
alarm 1
Memory “Beep~ Check your memory card.”
Operational status “Ding-Dong~ Parking mode.“
recognition error
alarm 2
sound
Operational status “Ding-Dong~ Emergency
Recording starts in “Ding-Dong~ Switching to Parking
alarm 3 Recording...“
Parking mode mode.”
Operational status “Ding-Dong~ Playback mode.“
Recording in “Beep~”
alarm 4
Shock mode
Switch to Normal “Ding-Dong~“
“Ding-Dong~ Switching to USB
USB mode recording
mode.”
Shooting “Click~“ (sound of shutter) * f a system time error occurs, an alarm will sound whenever you
I
reboot the black box. Connect the black box to your PC and set the
Finishing sound “Dong-Ding~” system time again in the setup program.

27

Management

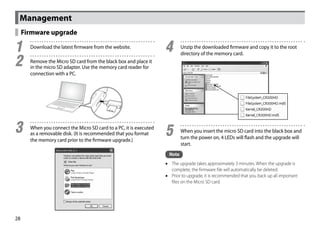

Firmware upgrade

1 Download the latest firmware from the website.
4 Unzip the downloaded firmware and copy it to the root
directory of the memory card.

2 Remove the Micro SD card from the black box and place it
in the micro SD adapter. Use the memory card reader for
connection with a PC.

3 When you connect the Micro SD card to a PC, it is executed
as a removable disk. (It is recommended that you format 5 When you insert the micro SD card into the black box and
turn the power on, 4 LEDs will flash and the upgrade will
the memory card prior to the firmware upgrade.)
start.
Note
•• The upgrade takes approximately 3 minutes. When the upgrade is
complete, the firmware file will automatically be deleted.
•• Prior to upgrade, it is recommended that you back up all important
files on the Micro SD card.

28

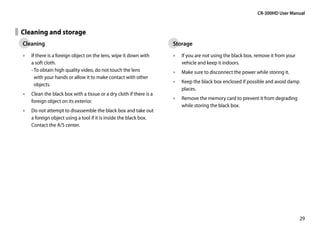

Cleaning and storage
Cleaning Storage
•• If there is a foreign object on the lens, wipe it down with •• If you are not using the black box, remove it from your
a soft cloth. vehicle and keep it indoors.
- o obtain high quality video, do not touch the lens
T •• Make sure to disconnect the power while storing it.
with your hands or allow it to make contact with other
•• Keep the black box enclosed if possible and avoid damp
objects.
places.
•• Clean the black box with a tissue or a dry cloth if there is a
•• Remove the memory card to prevent it from degrading
foreign object on its exterior.
while storing the black box.
•• Do not attempt to disassemble the black box and take out
a foreign object using a tool if it is inside the black box.
Contact the A/S center.

29

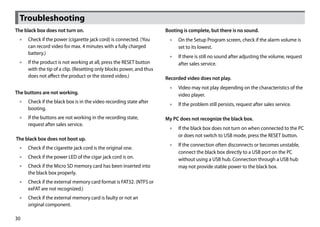

Troubleshooting
The black box does not turn on. Booting is complete, but there is no sound.
•• Check if the power (cigarette jack cord) is connected. (You •• On the Setup Program screen, check if the alarm volume is
can record video for max. 4 minutes with a fully charged set to its lowest.
battery.)
•• If there is still no sound after adjusting the volume, request
•• If the product is not working at all, press the RESET button after sales service.
with the tip of a clip. (Resetting only blocks power, and thus
does not affect the product or the stored video.) Recorded video does not play.
•• Video may not play depending on the characteristics of the
The buttons are not working. video player.
•• Check if the black box is in the video recording state after
•• If the problem still persists, request after sales service.
booting.
•• If the buttons are not working in the recording state, My PC does not recognize the black box.
request after sales service.
•• If the black box does not turn on when connected to the PC
or does not switch to USB mode, press the RESET button.
The black box does not boot up.
•• If the connection often disconnects or becomes unstable,
•• Check if the cigarette jack cord is the original one.
connect the black box directly to a USB port on the PC
•• Check if the power LED of the cigar jack cord is on. without using a USB hub. Connection through a USB hub
•• Check if the Micro SD memory card has been inserted into may not provide stable power to the black box.
the black box properly.
•• Check if the external memory card format is FAT32. (NTFS or
exFAT are not recognized.)
•• Check if the external memory card is faulty or not an
original component.

30

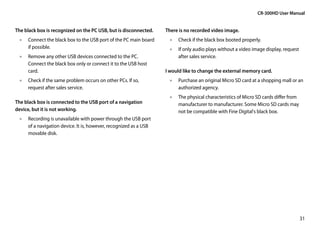

The black box is recognized on the PC USB, but is disconnected. There is no recorded video image.
•• Connect the black box to the USB port of the PC main board •• Check if the black box booted properly.
if possible. •• If only audio plays without a video image display, request
•• Remove any other USB devices connected to the PC. after sales service.
Connect the black box only or connect it to the USB host
card. I would like to change the external memory card.
•• Check if the same problem occurs on other PCs. If so, •• Purchase an original Micro SD card at a shopping mall or an
request after sales service. authorized agency.
•• The physical characteristics of Micro SD cards differ from
The black box is connected to the USB port of a navigation manufacturer to manufacturer. Some Micro SD cards may
device, but it is not working. not be compatible with Fine Digital's black box.
•• Recording is unavailable with power through the USB port
of a navigation device. It is, however, recognized as a USB
movable disk.

31

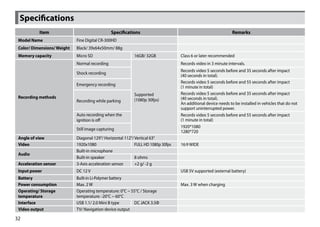

Specifications
Item Specifications Remarks
Model Name Fine Digital CR-300HD
Color/ Dimensions/ Weight Black/ 39x64x50mm/ 88g
Memory capacity Micro SD 16GB/ 32GB Class 6 or later recommended
Normal recording Records video in 3 minute intervals.
Records video 5 seconds before and 35 seconds after impact
Shock recording
(40 seconds in total).
Records video 5 seconds before and 55 seconds after impact
Emergency recording
(1 minute in total)
Supported Records video 5 seconds before and 35 seconds after impact
Recording methods (40 seconds in total).
Recording while parking (1080p 30fps)
An additional device needs to be installed in vehicles that do not
support uninterrupted power.
Auto recording when the Records video 5 seconds before and 55 seconds after impact
ignition is off (1 minute in total)
1920*1080
Still image capturing
1280*720
Angle of view Diagonal 129°/ Horizontal 112°/ Vertical 63°
Video 1920x1080 FULL HD 1080p 30fps 16:9 WIDE
Built-in microphone
Audio
Built-in speaker 8 ohms
Acceleration sensor 3-Axis acceleration sensor +2 g/ -2 g
Input power DC 12 V USB 5V supported (external battery)
Battery Built-in Li-Polymer battery
Power consumption Max. 2 W Max. 3 W when charging
Operating/ Storage Operating temperature: 0°C ~ 55°C / Storage
temperature temperature: -20°C ~ 60°C
Interface USB 1.1/ 2.0 Mini B type DC JACK 3.5Φ
Video output TV/ Navigation device output

32

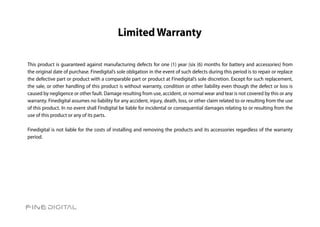

Limited Warranty

This product is guaranteed against manufacturing defects for one (1) year (six (6) months for battery and accessories) from
the original date of purchase. Finedigital’s sole obligation in the event of such defects during this period is to repair or replace
the defective part or product with a comparable part or product at Finedigital’s sole discretion. Except for such replacement,
the sale, or other handling of this product is without warranty, condition or other liability even though the defect or loss is
caused by negligence or other fault. Damage resulting from use, accident, or normal wear and tear is not covered by this or any
warranty. Finedigital assumes no liability for any accident, injury, death, loss, or other claim related to or resulting from the use
of this product. In no event shall Findigital be liable for incidental or consequential damages relating to or resulting from the
use of this product or any of its parts.

Finedigital is not liable for the costs of installing and removing the products and its accessories regardless of the warranty
period.

FineVu CR-300HD User Manual

More Related Content

Viewers also liked

Similar to FineVu CR-300HD User Manual

Recently uploaded

FineVu CR-300HD User Manual
