Final op ex power point 30thnov
The document provides an overview of the OilSim simulation game. Players take on the role of an exploration team tasked with finding and drilling for new oil reserves. The simulation involves 3 challenges: 1) locating sedimentary basins using surveys, 2) bidding on exploration licenses, and 3) partnering and drilling exploratory wells. It explains gameplay mechanics like available finances, knowledge points that reward correct decisions, and calculating return on investment. The goal is for players to learn about the oil and gas industry through practical experience in the simulation.
Final op ex power point 30thnov
- 1.

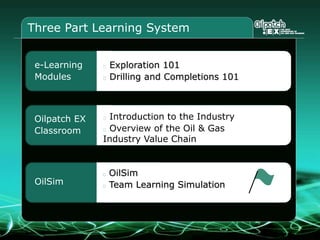

- 2. 2 Three Part LearningSystem Introduction to the Industry Overview of the Oil & Gas Industry Value Chain Oilpatch EX Classroom Exploration 101 Drilling and Completions 101 e-Learning Modules OilSim OilSim Team Learning Simulation

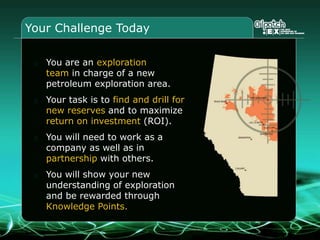

- 4. Your Challenge Today Youare an exploration team in charge of a new petroleum exploration area. Your task is to find and drill for new reserves and to maximize return on investment (ROI). You will need to work as a company as well as in partnership with others. You will show your new understanding of exploration and be rewarded through Knowledge Points.

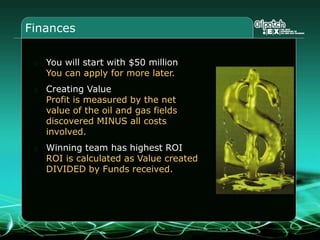

- 5. Finances You will startwith $50 million You can apply for more later. Creating Value Profit is measured by the net value of the oil and gas fields discovered MINUS all costs involved. Winning team has highest ROI ROI is calculated as Value created DIVIDED by Funds received.

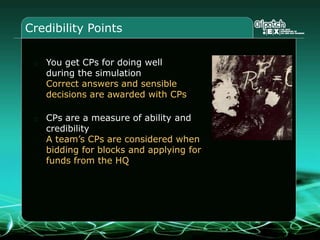

- 6. Credibility Points You getCPs for doing well during the simulation Correct answers and sensible decisions are awarded with CPs CPs are a measure of ability and credibility A team’s CPs are considered when bidding for blocks and applying for funds from the HQ

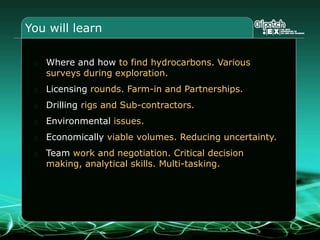

- 7. You will learn Whereand how to find hydrocarbons. Various surveys during exploration. Licensing rounds. Farm-in and Partnerships. Drilling rigs and Sub-contractors. Environmental issues. Economically viable volumes. Reducing uncertainty. Team work and negotiation. Critical decision making, analytical skills. Multi-tasking.
- 8.

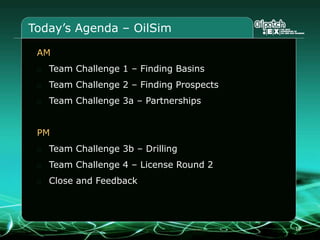

- 9. 1010 Today’s Agenda –OilSim AM Team Challenge 1 – Finding Basins Team Challenge 2 – Finding Prospects Team Challenge 3a – Partnerships PM Team Challenge 3b – Drilling Team Challenge 4 – License Round 2 Close and Feedback
- 10.

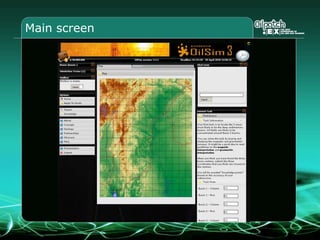

- 11.

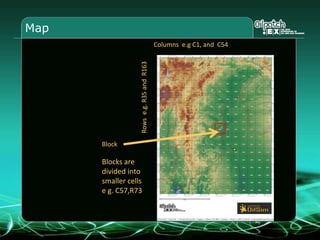

- 12. Map Columns e.g C1,and C54 Rowse.g.R35andR163Block Blocks are divided into smaller cells e g. C57,R73

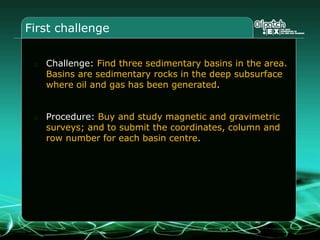

- 13. First challenge Challenge: Findthree sedimentary basins in the area. Basins are sedimentary rocks in the deep subsurface where oil and gas has been generated. Procedure: Buy and study magnetic and gravimetric surveys; and to submit the coordinates, column and row number for each basin centre.

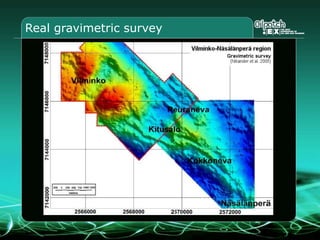

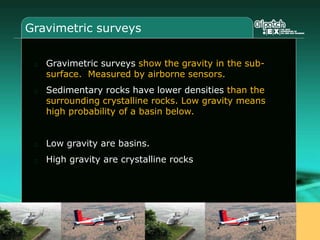

- 14. Gravimetric surveys Gravimetric surveysshow the gravity in the sub- surface. Measured by airborne sensors. Sedimentary rocks have lower densities than the surrounding crystalline rocks. Low gravity means high probability of a basin below. Low gravity are basins. High gravity are crystalline rocks

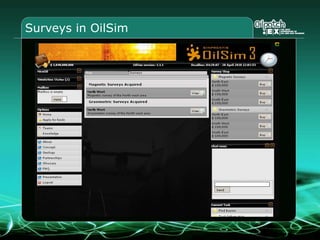

- 15.
- 16.
- 17. Survey in Oilsim Gravimetricsurvey: South-east quadrant

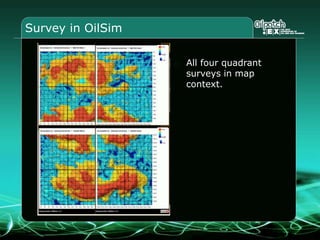

- 18. Survey in OilSim Allfour quadrant surveys in map context.

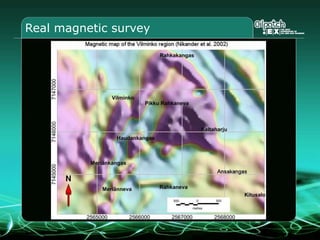

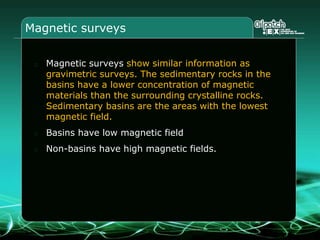

- 19. Magnetic surveys Magnetic surveysshow similar information as gravimetric surveys. The sedimentary rocks in the basins have a lower concentration of magnetic materials than the surrounding crystalline rocks. Sedimentary basins are the areas with the lowest magnetic field. Basins have low magnetic field Non-basins have high magnetic fields.
- 20.

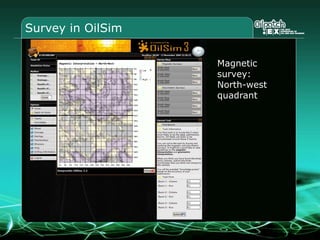

- 21.

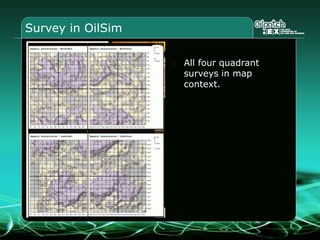

- 22. Survey in OilSim Allfour quadrant surveys in map context.

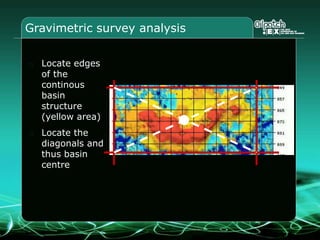

- 23. Gravimetric survey analysis Locateedges of the continous basin structure (yellow area) Locate the diagonals and thus basin centre

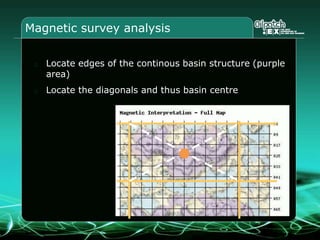

- 24. Magnetic survey analysis Locateedges of the continous basin structure (purple area) Locate the diagonals and thus basin centre
- 25.

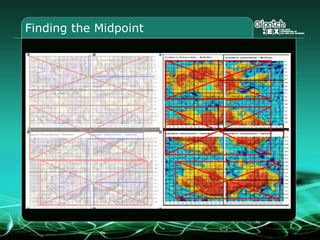

- 26. Centre may notbe the same Example: Top basin on both maps Calculate the midpoint between the gravimetric and magnetic centres found = C55 and R105 C50 R100 C60 R110
- 27.

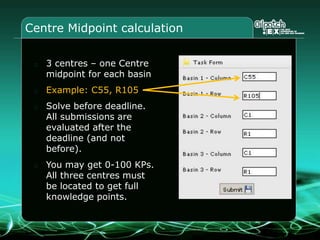

- 28. Centre Midpoint calculation 3centres – one Centre midpoint for each basin Example: C55, R105 Solve before deadline. All submissions are evaluated after the deadline (and not before). You may get 0-100 KPs. All three centres must be located to get full knowledge points.
- 29.

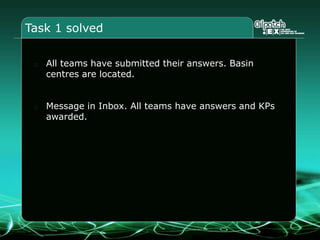

- 30. Task 1 solved Allteams have submitted their answers. Basin centres are located. Message in Inbox. All teams have answers and KPs awarded.
- 31. Challenge 2 :license round Sedimentary basins may contain oil and gas. The government has decided to put the blocks around one of the basins on offer. Challenge: Identify the 3 most promising blocks and offer an amount for each of them.

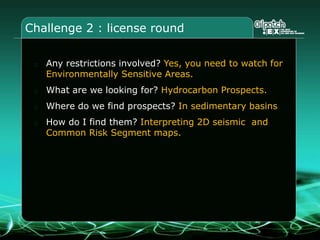

- 32. Challenge 2 :license round Any restrictions involved? Yes, you need to watch for Environmentally Sensitive Areas. What are we looking for? Hydrocarbon Prospects. Where do we find prospects? In sedimentary basins How do I find them? Interpreting 2D seismic and Common Risk Segment maps.

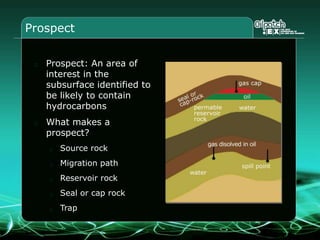

- 33. Prospect Prospect: An areaof interest in the subsurface identified to be likely to contain hydrocarbons What makes a prospect? Source rock Migration path Reservoir rock Seal or cap rock Trap

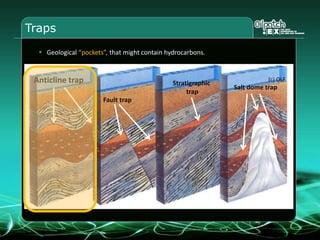

- 34. Traps  Geological “pockets”,that might contain hydrocarbons. (c) OLFAnticline trap Fault trap Stratigraphic trap Salt dome trap
- 35.

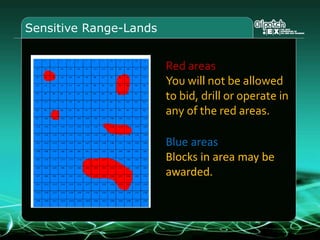

- 36. Red areas You willnot be allowed to bid, drill or operate in any of the red areas. Blue areas Blocks in area may be awarded. Sensitive Range-Lands

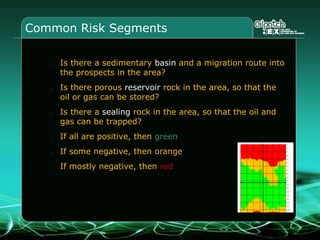

- 37. Common Risk Segments Isthere a sedimentary basin and a migration route into the prospects in the area? Is there porous reservoir rock in the area, so that the oil or gas can be stored? Is there a sealing rock in the area, so that the oil and gas can be trapped? If all are positive, then green If some negative, then orange If mostly negative, then red
- 38. Common Risk Segment Layer3 Eocene 1500m below the surface Layer 2 Paleocene 2500m below the surface Layer 1 Cretaceous 3500m below the surface CRS. Common Risk Segment surveys tell you about the probability of a structure in the block/cell containing oil or gas Surface

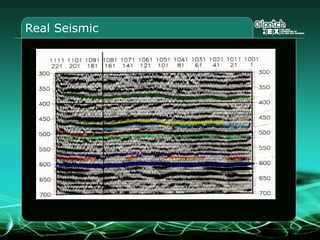

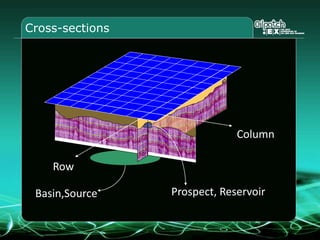

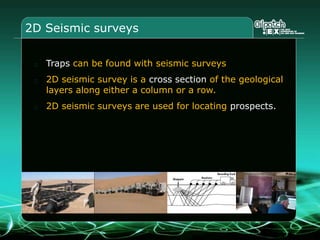

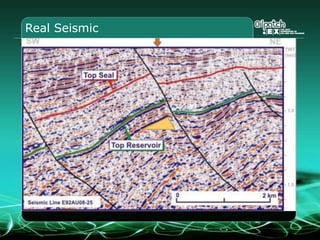

- 39. 2D Seismic surveys Trapscan be found with seismic surveys 2D seismic survey is a cross section of the geological layers along either a column or a row. 2D seismic surveys are used for locating prospects.
- 40.
- 41.

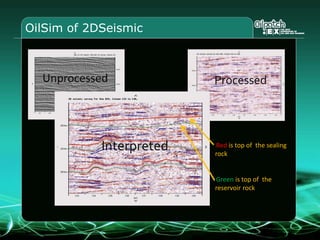

- 42. OilSim of 2DSeismic UnprocessedProcessed Interpreted Red is top of the sealing rock Green is top of the reservoir rock

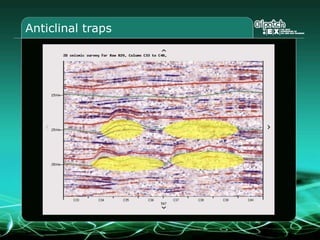

- 43.

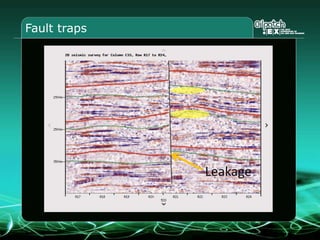

- 44.
- 45. Order Seismic What typeof data do you want? Columns or Rows Unprocessed or processed data Interpreted or not

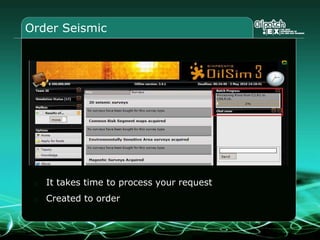

- 46. Order Seismic It takestime to process your request Created to order

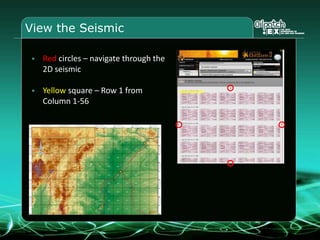

- 47. View the Seismic Red circles – navigate through the 2D seismic  Yellow square – Row 1 from Column 1-56
- 48.

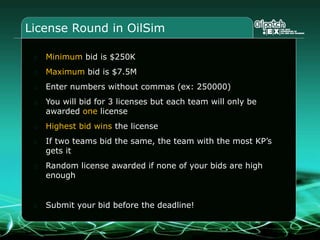

- 49. License Round inOilSim Minimum bid is $250K Maximum bid is $7.5M Enter numbers without commas (ex: 250000) You will bid for 3 licenses but each team will only be awarded one license Highest bid wins the license If two teams bid the same, the team with the most KP’s gets it Random license awarded if none of your bids are high enough Submit your bid before the deadline!

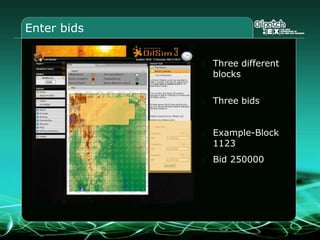

- 50. Enter bids Three different blocks Threebids Example-Block 1123 Bid 250000

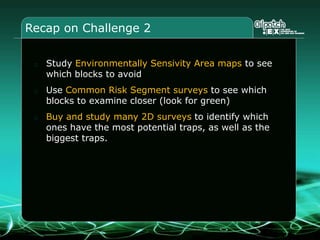

- 51. Recap on Challenge2 Study Environmentally Sensivity Area maps to see which blocks to avoid Use Common Risk Segment surveys to see which blocks to examine closer (look for green) Buy and study many 2D surveys to identify which ones have the most potential traps, as well as the biggest traps.
- 52.

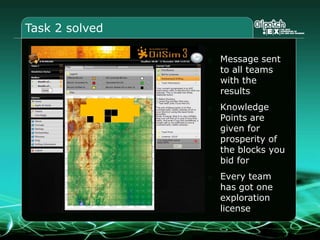

- 53. Task 2 solved Messagesent to all teams with the results Knowledge Points are given for prosperity of the blocks you bid for Every team has got one exploration license
- 54. Challenge 3 :Exploration Drilling Company management has reviewed the licence that you were awarded and the potential cost to drill a well. Although the possibility of finding oil is fair, the costs involved are large. They have asked you to spread the risk. Challenge: Farm-out a minimum of 20% on your license and farm-in as much as you can on other good licences.

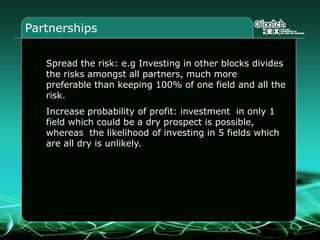

- 55. Partnerships Spread the risk:e.g Investing in other blocks divides the risks amongst all partners, much more preferable than keeping 100% of one field and all the risk. Increase probability of profit: investment in only 1 field which could be a dry prospect is possible, whereas the likelihood of investing in 5 fields which are all dry is unlikely.

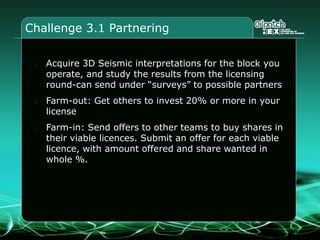

- 56. Challenge 3.1 Partnering Acquire3D Seismic interpretations for the block you operate, and study the results from the licensing round-can send under “surveys” to possible partners Farm-out: Get others to invest 20% or more in your license Farm-in: Send offers to other teams to buy shares in their viable licences. Submit an offer for each viable licence, with amount offered and share wanted in whole %.

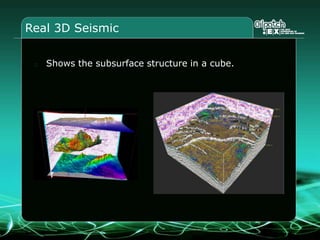

- 57. Real 3D Seismic Showsthe subsurface structure in a cube.

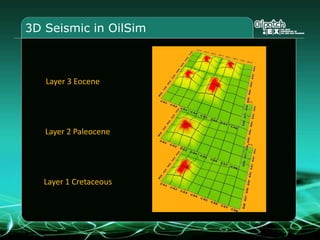

- 58. 3D Seismic inOilSim Layer 1 Cretaceous Layer 2 Paleocene Layer 3 Eocene

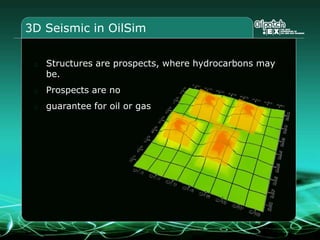

- 59. 3D Seismic inOilSim Structures are prospects, where hydrocarbons may be. Prospects are no guarantee for oil or gas

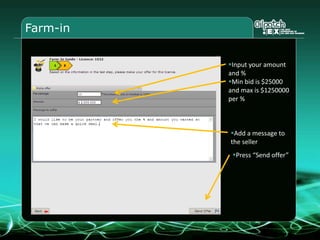

- 60. Farm-in Input your amount and% Min bid is $25000 and max is $1250000 per % Add a message to the seller Press “Send offer”
- 61. Financing When a teamreceives a Farm-In offer it appears under Financing. This is where a team can receive finance or money for a % of their own blocks
- 62. Farm-in license OWNER decides whether toACCEPT or REJECT the offer Partnerships established every time a license owner accepts an offer.

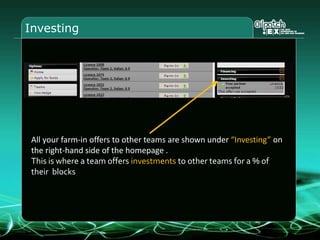

- 63. Investing All your farm-inoffers to other teams are shown under “Investing” on the right-hand side of the homepage . This is where a team offers investments to other teams for a % of their blocks
- 64. Partnerships Partners pay aproportional share of all future costs incurred by the partnership Partners receive a proportional share of the net proceedings from any oil or gas found on the license. The operator team makes all decisions regarding acquiring 3D seismic, drilling of wells and testing of wells. Information: partners in a block can access info about drilled wells and discovered oil and gas fields.

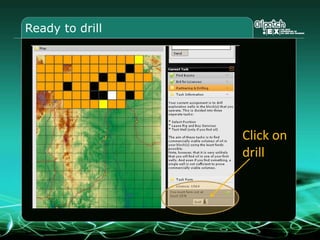

- 65. Ready to drill Clickon drill

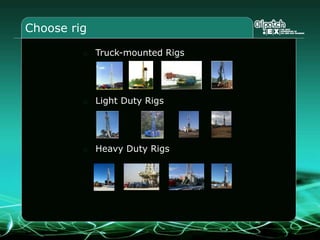

- 66. Choose rig Truck-mounted Rigs LightDuty Rigs Heavy Duty Rigs

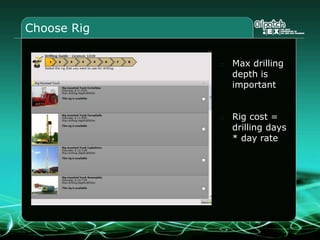

- 67. Choose Rig Max drilling depthis important Rig cost = drilling days * day rate

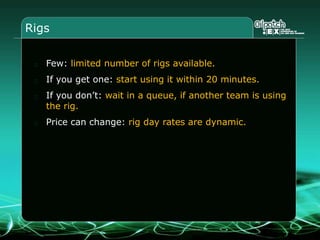

- 68. Rigs Few: limited numberof rigs available. If you get one: start using it within 20 minutes. If you don’t: wait in a queue, if another team is using the rig. Price can change: rig day rates are dynamic.

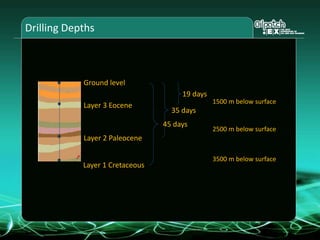

- 69. Drilling Depths Ground level 3500m below surface Layer 3 Eocene Layer 2 Paleocene Layer 1 Cretaceous 19 days 35 days 45 days 1500 m below surface 2500 m below surface
- 70. Service providers 9 Starquality: Good- costs more Bad: - cheaper, but reliability is low 5 types of providers- Construction and Maintenance , Logistics, Well Services, Camp Services and Analysis

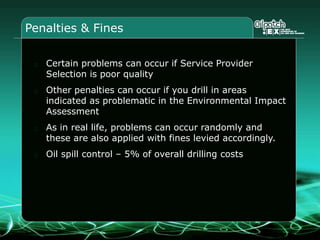

- 71. Penalties & Fines Certainproblems can occur if Service Provider Selection is poor quality Other penalties can occur if you drill in areas indicated as problematic in the Environmental Impact Assessment As in real life, problems can occur randomly and these are also applied with fines levied accordingly. Oil spill control – 5% of overall drilling costs

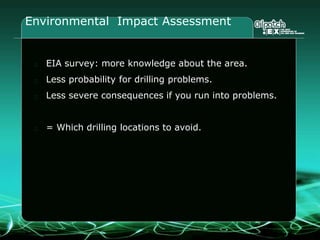

- 72. Environmental Impact Assessment EIAsurvey: more knowledge about the area. Less probability for drilling problems. Less severe consequences if you run into problems. = Which drilling locations to avoid.

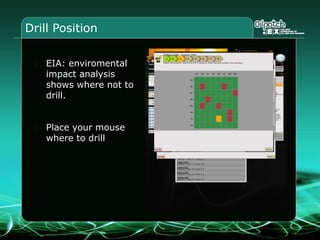

- 73. Drill Position EIA: enviromental impactanalysis shows where not to drill. Place your mouse where to drill

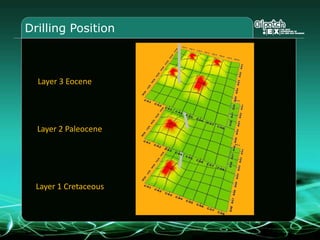

- 74. Drilling Position Layer 1Cretaceous Layer 2 Paleocene Layer 3 Eocene
- 75. Drill Position Too deepfor the chosen rig.
- 76.
- 77.

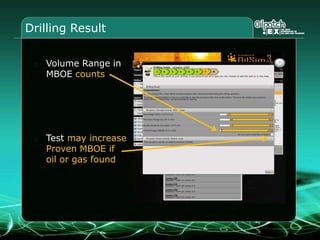

- 78. Drilling Result Volume Rangein MBOE counts Test may increase Proven MBOE if oil or gas found
- 79. Testing Only if youdiscover a field – find Oil or Gas You decide whether you want more information about that field More information by doing a production test (and other tests) Tests costs. Tests take 10 days per field. Tests have the same day-rate as the drilling if you use the same providers.

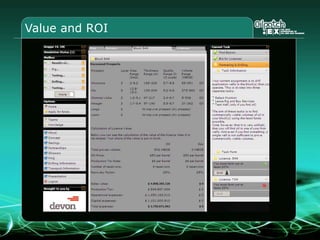

- 80.
- 81.
- 82.

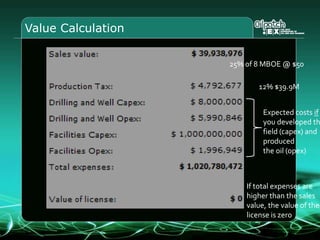

- 83. 25% of 8MBOE @ $50 12% $39.9M Expected costs if you developed th field (capex) and produced the oil (opex) If total expenses are higher than the sales value, the value of the license is zero Value Calculation
- 84.

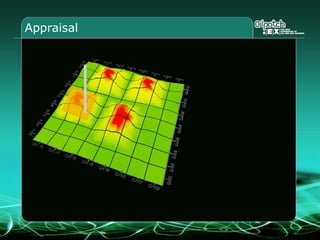

- 85. Appraisal From Probable volumeto proven reserves

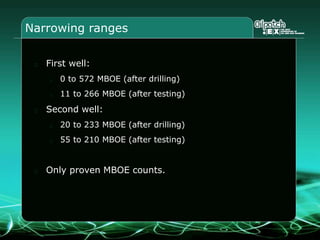

- 86. Narrowing ranges First well: 0to 572 MBOE (after drilling) 11 to 266 MBOE (after testing) Second well: 20 to 233 MBOE (after drilling) 55 to 210 MBOE (after testing) Only proven MBOE counts.
- 87.
- 88. Apply For MoreFunds Click on Apply for More Funds Tab. 1 KP for each $100,000 applied for. Answer the questions: All correct gives cash and you can keep CPs. One wrong gives cash and you keep ½ of your CPs. Two wrong gives ½ cash and you lose all CPs. All wrong, you get no cash and lose all CPs. <10 knowledge points: Apply for cash and be fined $5million for each $20million requested.
- 89. Continue... Narrow uncertainty: Drillappraisal wells to get proven volumes Drill into other prospects to find more proven volumes. Farm-in and -out: Get into other good blocks. Two additional licensing rounds: Repeat the processes. Money: Apply for more money, if you run out of cash.

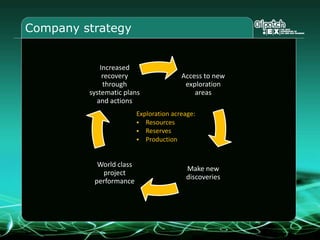

- 90. Company strategy Access tonew exploration areas Make new discoveries World class project performance Increased recovery through systematic plans and actions Exploration acreage:  Resources  Reserves  Production

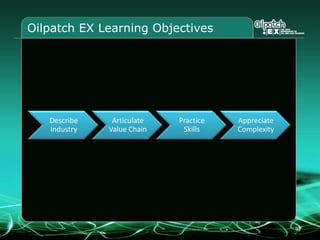

- 91. 92929292 Oilpatch EX LearningObjectives Describe Industry Articulate Value Chain Practice Skills Appreciate Complexity
- 92.
- 93.
- 94.
Editor's Notes
- #3 8:10 Explanation of Oilpatch EXMake a brief and relevant transition from the video.Brief review of the 3 components and how they fit together – highlight flag – you are here (today).Brief check on elearning experience. How was it? What did you learn? What stuck? Any surprises?Reinforce that you will be doing some review from the elearning, but mostly picking up on where it left off...Participant IntroductionsPoint out the diversity of this group – provide some examples of representation based on what you know about them.Quickly go around the room and get people to introduce themselves, who they represent, how they are connected to the industry... Transition to the learning objectives... “We have good representation in the room today and will try to leverage our collective experience to achieve our learning objectives over the next two days.”...
- #5Â The long and bumpy road for oil from the underground to your tank, is called the oil and gas industry value chain.The value chain is divided further into these parts:Upstream is about getting the hydrocarbons up from the ground, and comprises of activities related to exploration, field development, construction, production and abandonment. By its nature, the exploration phase is common for both oil and gas, but soon afterwards, the oil and gas value chain will segregate into two parallel value chains.Midstream is about transportation and storage, as well as oil refining and gas processing.Downstream is about distribution and retail sales of gas, fuels and lubricants, plastics and other hydrocarbon derivatives to industrial and consumer markets.OilSim Exploration is all about the exploration part of the oil and gas industry. Exploration is about finding the hydrocarbons and proving that they are in sufficient quantities to start producing. OilSim Field development and Production is about actually taking the oil or gas out of the subsurface.
- #35Â A prospect is a subsurface structure that is likely to contain hydrocarbons, whereThere is a source rock , where the original oil or gas was generated.Porous migration rock allowing the hydrocarbons to move into the prospectA porous reservoir rock in which the oil and gas is held and An impermeable cap rock that traps the oil and gas in placeThere are many types of r
- #40Â Since the CRS show the probabilities of prospects in only one particular horizon or layer, it is necessary to purchase the CRS for all 3 layers so that you can determine which area within the licensing area contains the highest probability of containing oil and gas. So on the CRS maps shown here the area circled in black on the OilSim map and each of the CRS shows that the area in question is within the licensing area and is green on all three CRS layers, indicating high probability of oil and gas on all 3 layers within the same area or blocks. Potentially an area that requires further investigation for individual prospects.
- #42Â Seismic surveys are made from sound waves that are sent into the subsurface, reflected, and measured when they get back to the surface.This slide shows an example of a real seismic line. It shows a cross-section of the subsurface with the blue and red lines indicating changes in velocity of the wave and therefore changes in the rock properties, whereas the changes in the time of the reflection echo indicate the structures (because seismic is recorded in time, not in depth)The black, red, and green lines are lines added as interpretation of the data by geophysicists.black lines are so-called faults, which have happened for instance after earth quakes or other dramatic geological events.green lines are where geophysicists think the reservoir rock beginsred lines are where the geophysicists think the sealing rock begins In this particular case there is a prospect indicated under the orange arrow, within the orange triangle.
- #43Â Seismic surveys are made from sound waves that are sent into the subsurface, reflected, and measured when they get back to the surface.This slide shows an example of a real seismic line. It shows a cross-section of the subsurface with the blue and red lines indicating changes in velocity of the wave and therefore changes in geological structures in the subsurface.The black, red, and green lines are lines added as interpretation of the data by geologists.black lines are so-called faults, which have happened for instance after earth quakes or other dramatic geological events.green lines are where geophysicists think the reservoir rock beginsred lines are where the geophysicists think the sealing rock begins In this particular case there is a prospect indicated under the orange arrow, within the grey triangle.
- #60Â As this figure illustrates, you can drill through all three horizons in one well.You can even drill a deviated well, so that the position is not exactly the same in all horizons.The deviation can be one cell per horizon.
- #63 Overview: On the main page, you can see all licenses. 1) licenses you operate, 2) licenses you have invested in, and other licenses.Financing – Is where a team is able to accept offers, and therefore receive money or “finance” for a % of their own blocks When a team receives a Farm-In offer it appears under financing on the right hand side of the homepage
- #65 All your farm-in offers to other teams are shown under “Investing” on the right-hand side of the homepage . This is where a team offers investments to other teams for a % of their blocksRemember you must have farmed-out 20% of your own block before you can drill.
- #69Â The next task is to choose which rig to use to drill the exploration well.There are three types of rigs: drillships for the deepest waters, semi-submersible rigs for middle waters, and jack-up rigs for shallow waters.The rigs have different costs per day, and the drilling days depend on how deep you drill into the subsurface and which service providers you choose
- #70Â In most cases there are fewer rigs than teams, so you need to be fast to get good and cheap rigs for your wells.When you order a rig you need to start using it within 20 minutes.If you do not use it within the 20 minutes, you will pay for 20 days of use.You can release a rig by going back steps and changing your choice.The rig rates are dynamic, so that popular rigs tend to have increasing prices, while less popular rigs become cheaper.
- #71 This figure illustrates the different “depths” we are working with in OilSimThe water depth is the distance from the water line to the seabed.Layer 3 is approximately 1500 meters below the seabed, layer 2 is 1000 meters further down, and layer 1 is 3500 meters below seabed.
- #74Â Before you choose where to drill you should buy an Environmental Impact Assessment (EIA) survey to get more knowledge about the area. The benefit of an EIA survey is that you will be prepared for any environmental challenges you might encounter when drilling. With an EIA survey you will have lesser probability for drilling problems, and the extra costs will be less. Also, in the EIA survey you can see which drilling locations you should avoid. Some areas in your block are challenging to drill in. This can be because of marshy areas, ponds, adverse weather conditions on the surface. When you drill in those locations your costs go up 20%. You can see these locations in the EIA survey. You only have to buy one EIA survey for each licence that you operate. You can find the EIA surveys under Surveys.
- #76Â As this figure illustrates, you can drill through all three horizons in one well.You can even drill a deviated well, so that the position is not exactly the same in all horizons.The deviation can be 1 cell for each horizon.

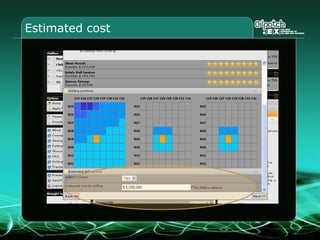

- #78Â Inputting estimated cost of drilling gives you knowledge points. You need to add all the costs of the rig and the service providers together and multiply this by the number of days you think it will take you to drill. The oil spill control is voluntary but costs 5% of the drilling amount per day but will earn you more knowledge points and cost you less to clear an oil spill if it happens.

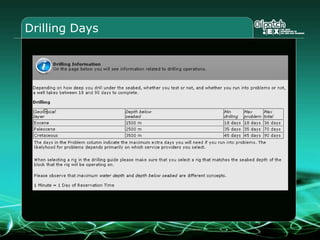

- #79 To determine how long it will probably take to complete drilling, check out the “drilling Information” tab.
- #81Â When you have discovered a field the first decision you need to make is whether you want more information about that field right away and BEFORE you drill another exploration well.You can get more information by doing a production test, which is a process in which you try to produce oil or gas from the field.In OilSim production tests take 10 days per oil and gas field and you use the same providers as before.
- #87 When you have drilled the first well, you only have a small sample of the new-found oil or gas field. This is evident by the wide ranges of the area, thickness, quality, and volume variables. These wide ranges tell you that you actually do not know much about the field.After drilling and testing, your next step therefore is to drill another well – and test it. This is called an appraisal well.Normally it takes at least three or four wells into a field before the license block becomes economically viable.Sometimes it takes much more, and therefore you should not give up if the first wells into a field do not give any license value.However, you should give up if the upper boundaries of the field become so low that there is no chance that it becomes economically viable. This is often the case in deep-water blocks, where the CAPEX are very high.
- #93 8:20: Learning Objectives Explain the objectives for the overall program.Reinforce that today’s session reinforces the elearning and creates an opportunity for good discussion about the industry.Also mention that today’s session will prepare them for participation in Oilsim tomorrow.Remind people that the topic is broad, deep and complex. It is not possible to address any of the elements in detail, but you will be in a better position to…Description of ObjectivesDescribe how the industry impacts and is affected by global, regional, and local dynamicsArticulate the industry value chain and its various people, process, and technological componentsPractice skills and new knowledge by interpreting exploration data to create drillable prospectsAppreciate the complexity and critical integration of the upstream, midstream, and downstream sectorsTransition to high level agenda
- #94 Summary Ask “Are you breathless yet?” While we can’t possibly cover everything in detail we can use the value chain as a roadmap to dissecting and understanding each of the industry sector and the component parts. Let’s begin at the beginning…with the upstream sector and Exploration.
- #95 8:30 Lenses – Context for the DayRefer to today’s paper and find an example to illustrate that rarely a day goes by without some mention and/or controversy about the O&G industry.Today we will investigate the industry through many lenses. Refer to slide.Each viewpoint can be very different on many issues. To create your own informed viewpoint, you need to have some basic knowledge of the industry and how it works, how it creates value, and the impacts (both good and bad) that it has on society. That’s one of the goals of this course – for you to be able to increase your own knowledge and confidence level in learning more about issues such that you can have a great conversation with your boss, your colleague, or a friend at the cocktail party.Engage the group by asking, What are the different lenses through which the O&G industry is viewed? What is the diverse group of stakeholders? What are their respective points of view? What are the “rub points”? What are the conflicting points of view? To be informed and able to get more information because you know where to look is a very powerful tool as an employee, a partner, a citizen and a consumer. Transition to ground rules…I look forward to having a great discussion with all you today from as many angles as possible.
