The document describes the 3-tier architecture of Finacle, a banking software. It discusses key principles of interoperability, availability, flexibility, scalability, and security. It provides examples of how Finacle achieves these principles through techniques like clustering, workflow modeling, scripting, reporting, and a rules engine. Upcoming releases will expand Finacle to new hardware platforms and add features like dashboards and document management.

1. Deepak Hoshing
AVP & Head, FinacleArchitecture
Finacle 3 Tier Architecture

2. A basic premise
Technologies change
but Fundamentals
don’t.

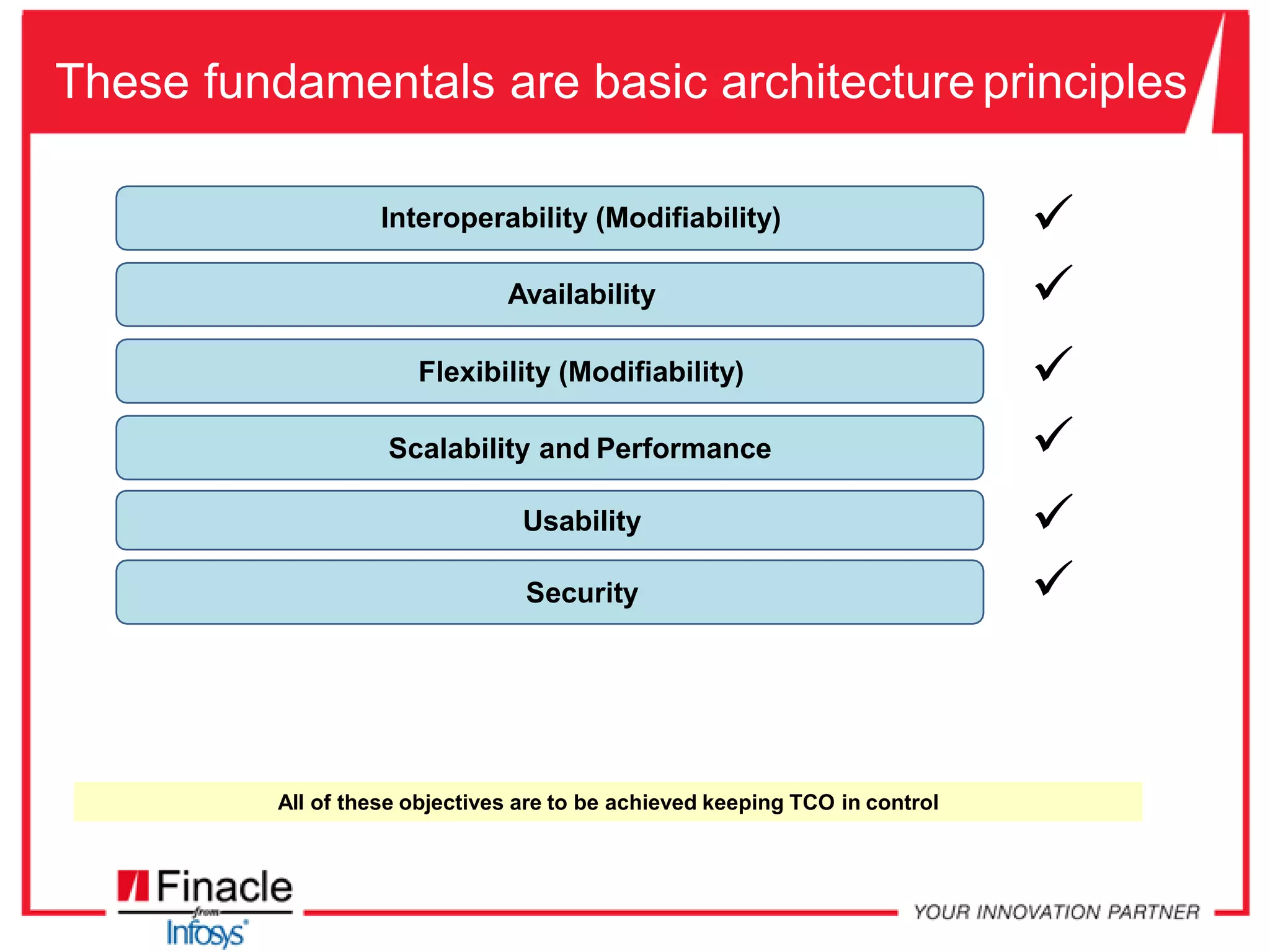

3. These fundamentals are basic architecture principles
Interoperability (Modifiability)
Availability
Flexibility (Modifiability)
Scalability and Performance
Usability
Security






All of these objectives are to be achieved keeping TCO in control

4. Overview of Finacle 10 architecture
Service Delivery
Unix + J2EE
Service Orchestration & Integration
Unix + J2EE (Finacle Integrator)
Core Transactional
Business Services
Unix + C/C++
Common
Business services
(CIF, SVS, SSO)
Unix + J2EE
Database
UNIX + ORACLE

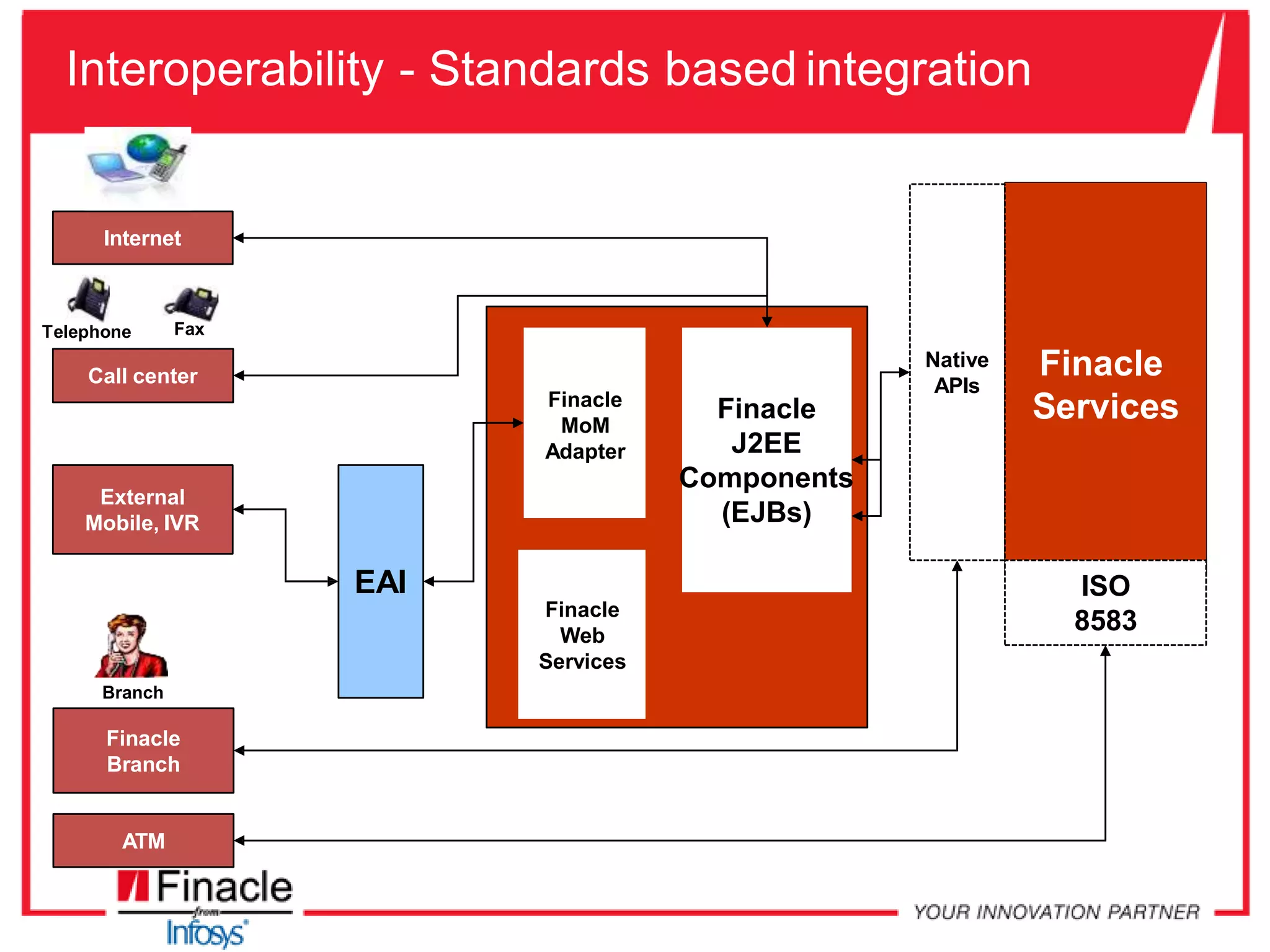

5. Interoperability - Standards based integration
Finacle
Services
ISO
8583
Finacle
J2EE
Components
(EJBs)
Call center
Internet
ATM
EAI
External
Mobile, IVR
Telephone Fax
Finacle
Branch
Branch
Native
APIs
Finacle
MoM
Adapter
Finacle
Web
Services

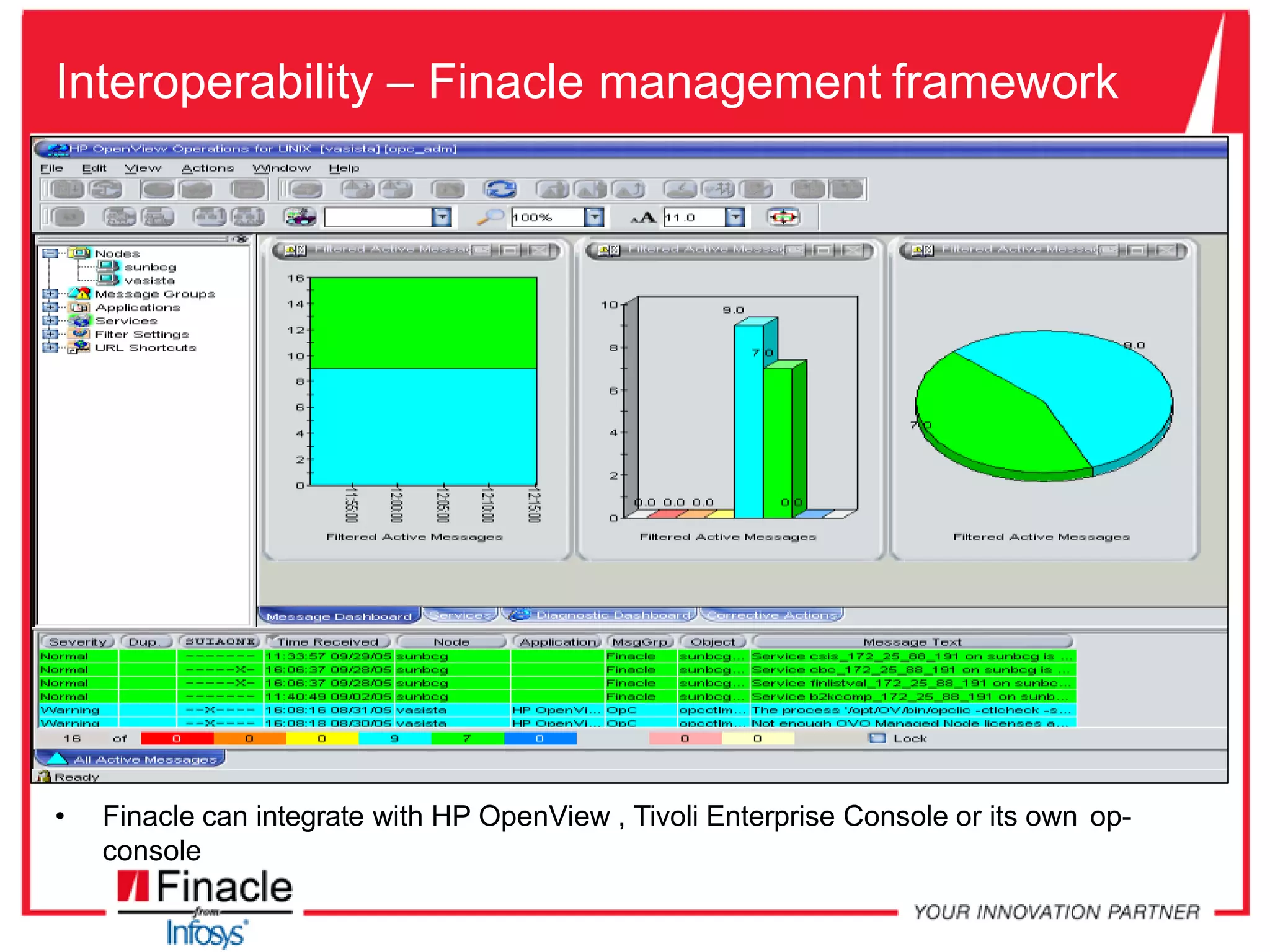

6. Interoperability – Finacle management framework
• Finacle can integrate with HP OpenView , Tivoli Enterprise Console or its own op-
console

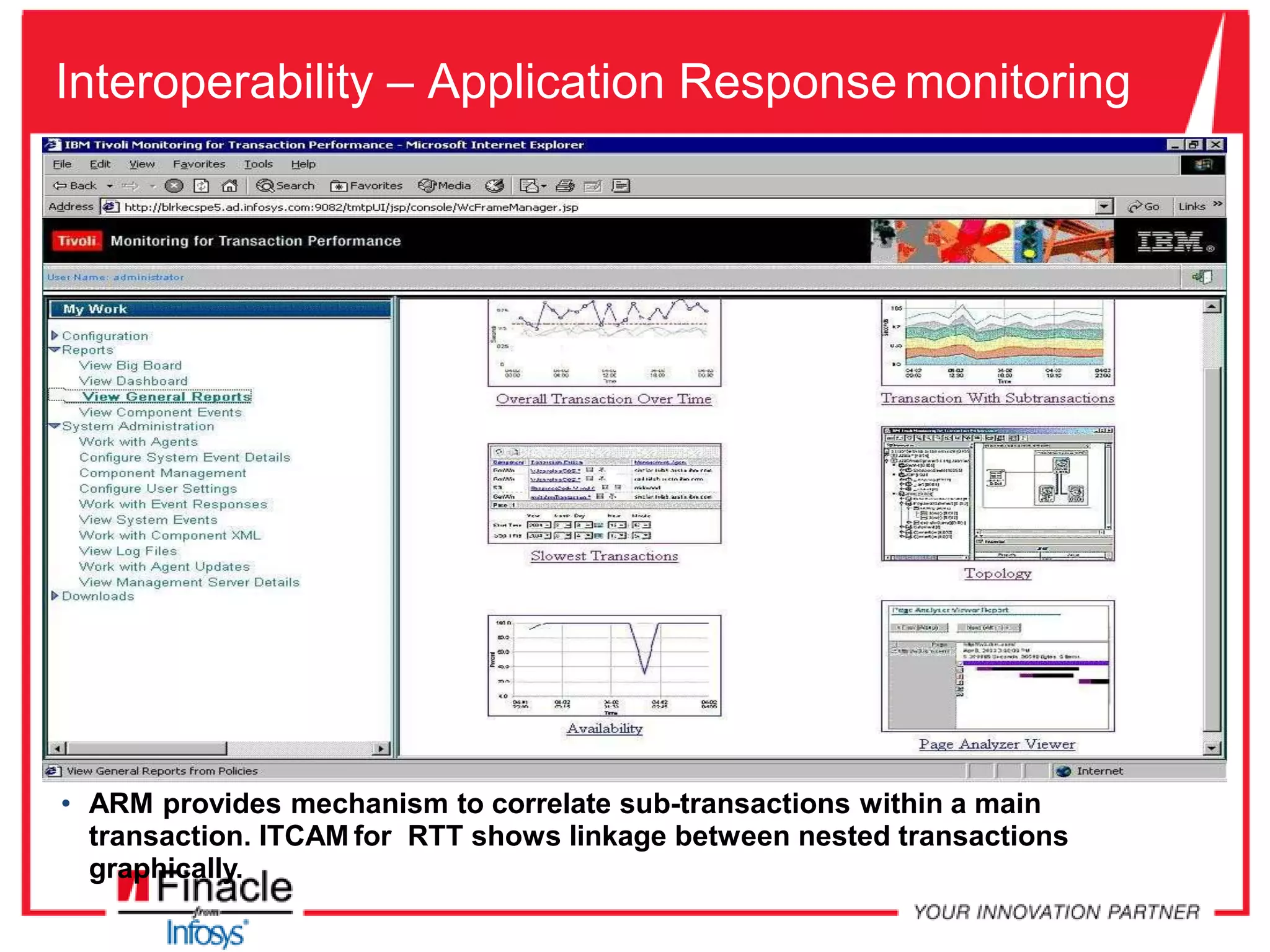

7. Interoperability – Application Response monitoring
• ARM provides mechanism to correlate sub-transactions within a main
transaction. ITCAM for RTT shows linkage between nested transactions
graphically.

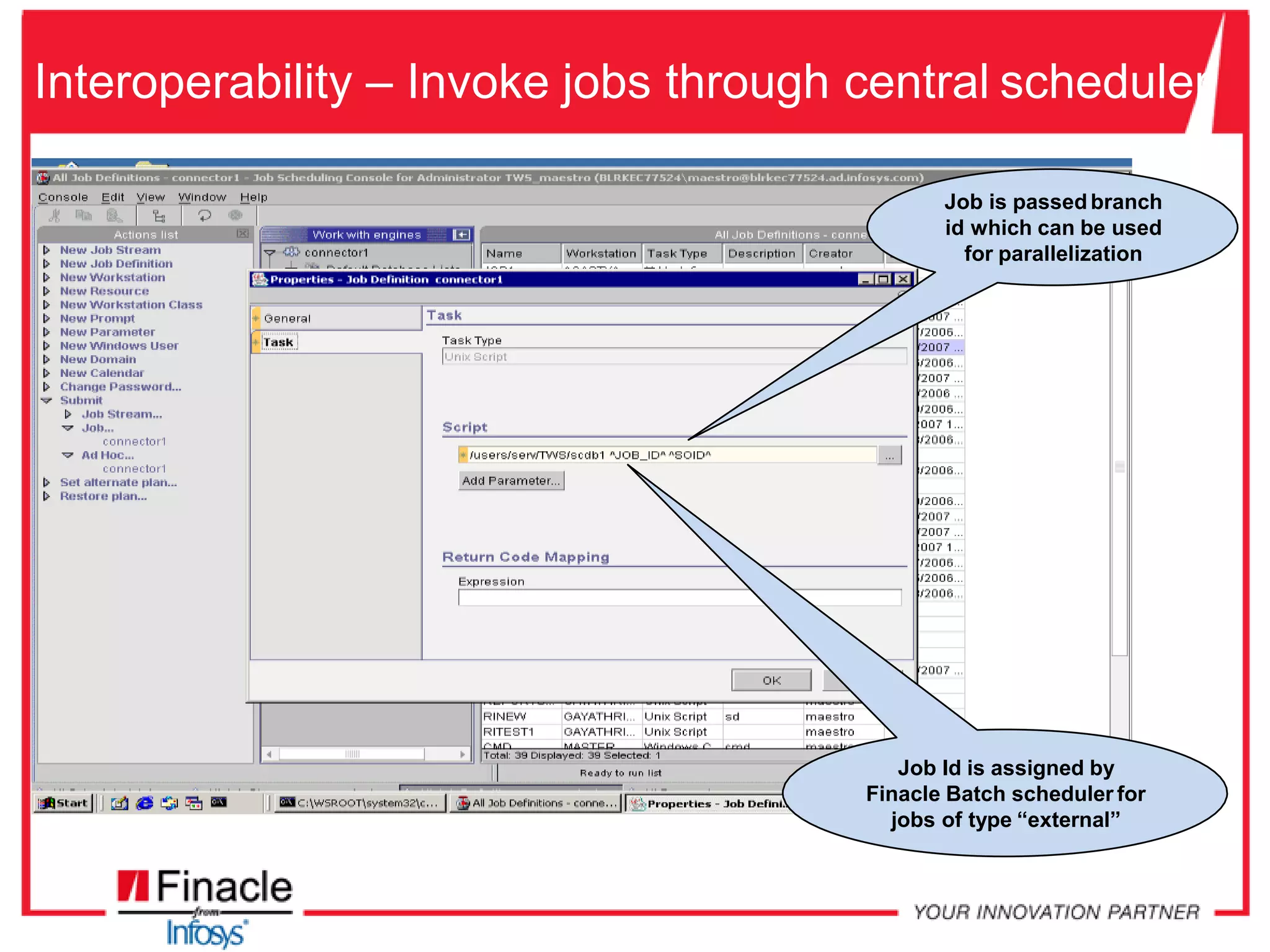

8. Interoperability – Invoke jobs through central scheduler
Job Id is assigned by
Finacle Batch scheduler for
jobs of type “external”
Job is passed branch
id which can be used
for parallelization

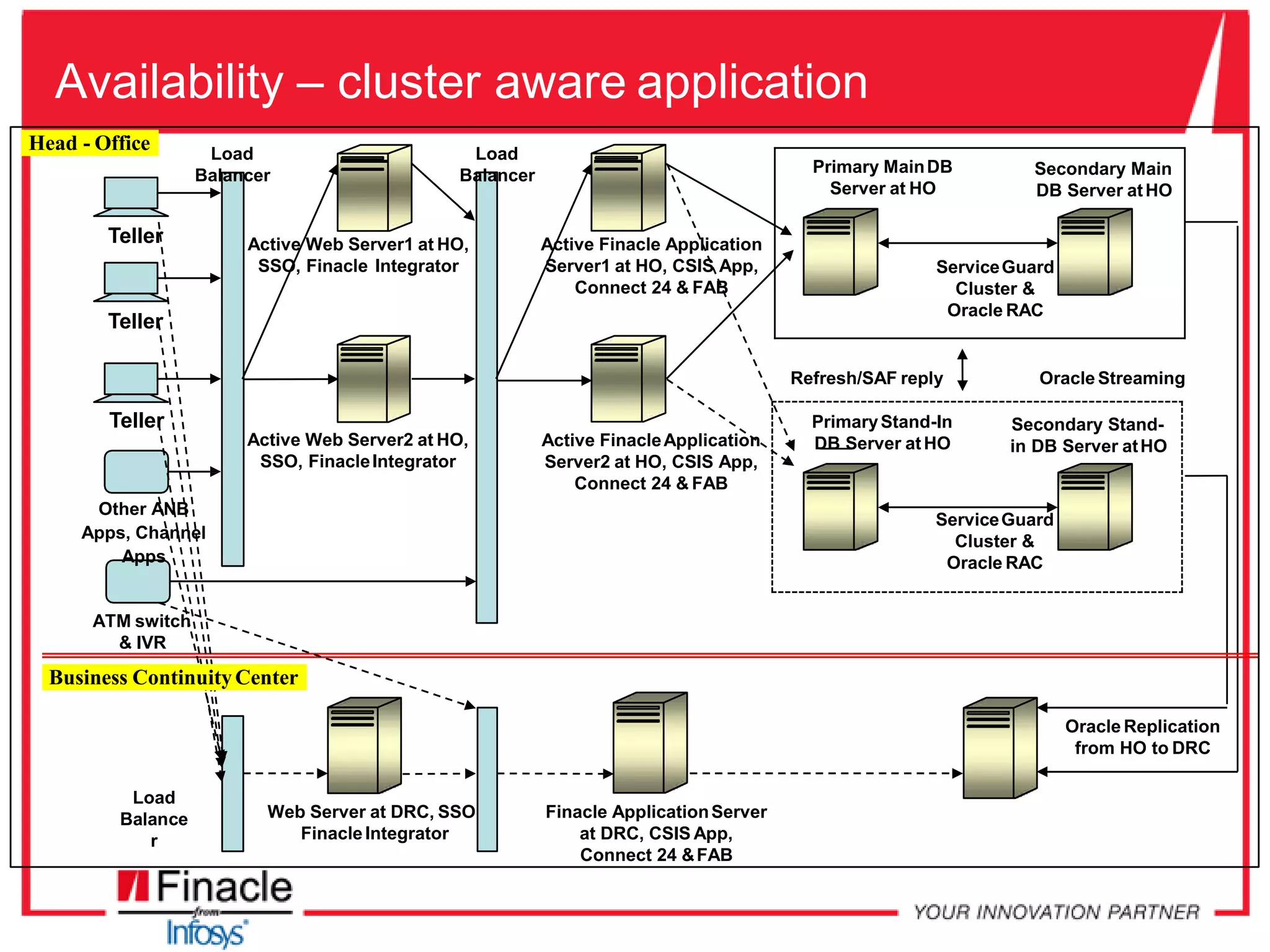

9. Availability – cluster aware application
Active Web Server1 at HO,
SSO, Finacle Integrator
Active Finacle Application
Server1 at HO, CSIS App,
Connect 24 & FAB
Teller
Teller
ATM switch
& IVR
Other ANB
Apps, Channel
Apps
Web Server at DRC, SSO ,
FinacleIntegrator
Active Web Server2 at HO,
SSO, FinacleIntegrator
Finacle ApplicationServer
at DRC, CSIS App,
Connect 24 &FAB
Active FinacleApplication
Server2 at HO, CSIS App,
Connect 24 & FAB
ServiceGuard
Cluster &
Oracle RAC
Primary MainDB
Server at HO
Secondary Main
DB Server atHO
ServiceGuard
Cluster &
Oracle RAC
PrimaryStand-In
DB Server atHO
Secondary Stand-
in DB Server atHO
Refresh/SAF reply Oracle Streaming
Oracle Replication
from HO to DRC
Load
Balance
r
Teller
Load Load
Balancer Balancer
Head - Office
Business ContinuityCenter

10. 22 Oct 23 Oct
# 8:30 am# 11:30
pm
4 am
Channel TXN for 22nd GLdate Channel TXN for 23rd GL date
ChannelBranch
TXN for22 Branch TXN for 23
Transactions
Branch
cutover
# 7:30 pm
Book Closure
22nd
Notes:
# The operation hours might change depends on the bank’srequirement

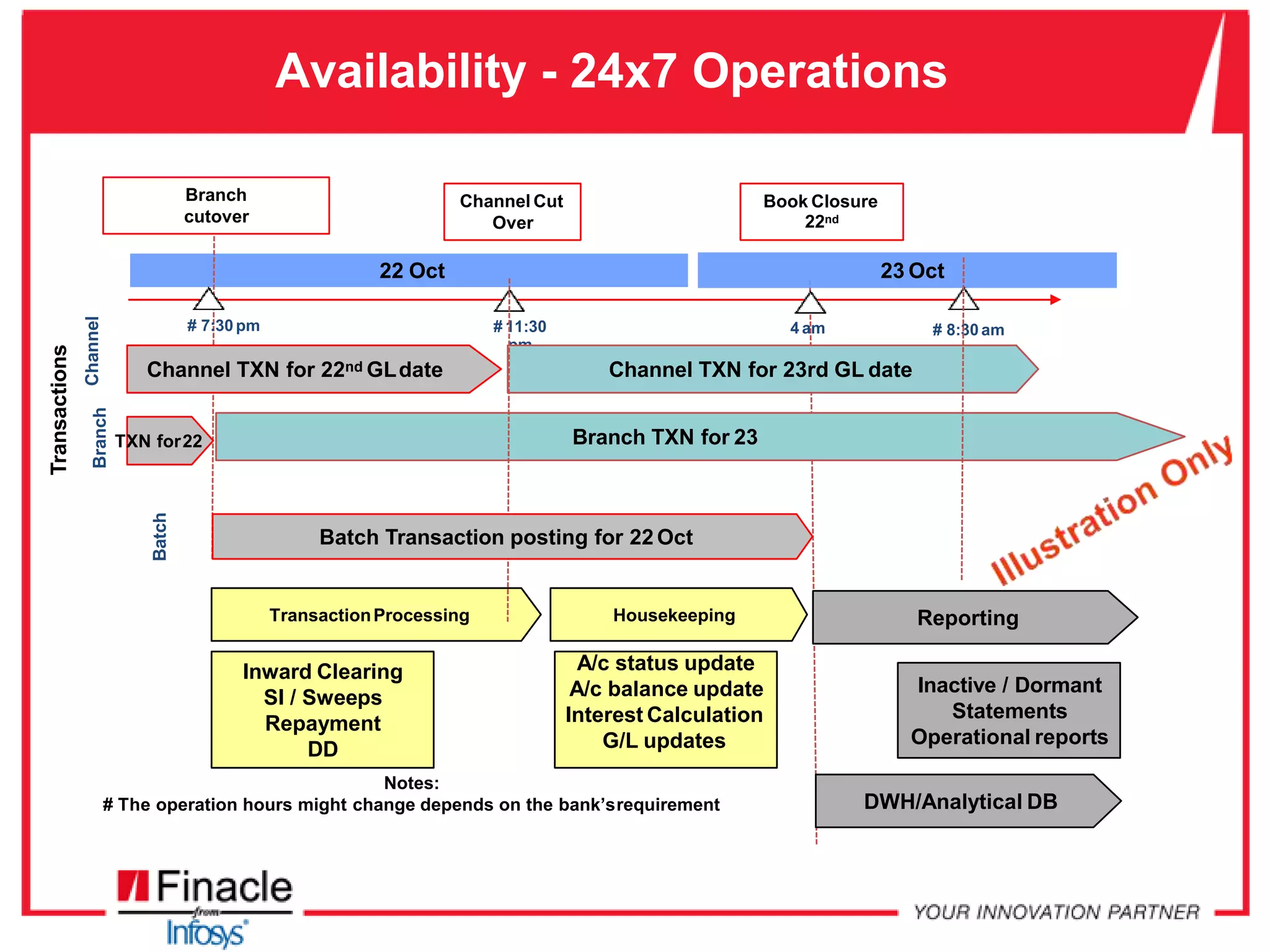

Availability - 24x7 Operations
TransactionProcessing
Inward Clearing
SI / Sweeps
Repayment
DD
A/c status update
A/c balance update
Interest Calculation
G/L updates
Housekeeping
Inactive / Dormant
Statements
Operational reports
Reporting
DWH/Analytical DB
Channel Cut
Over
Batch
Batch Transaction posting for 22 Oct

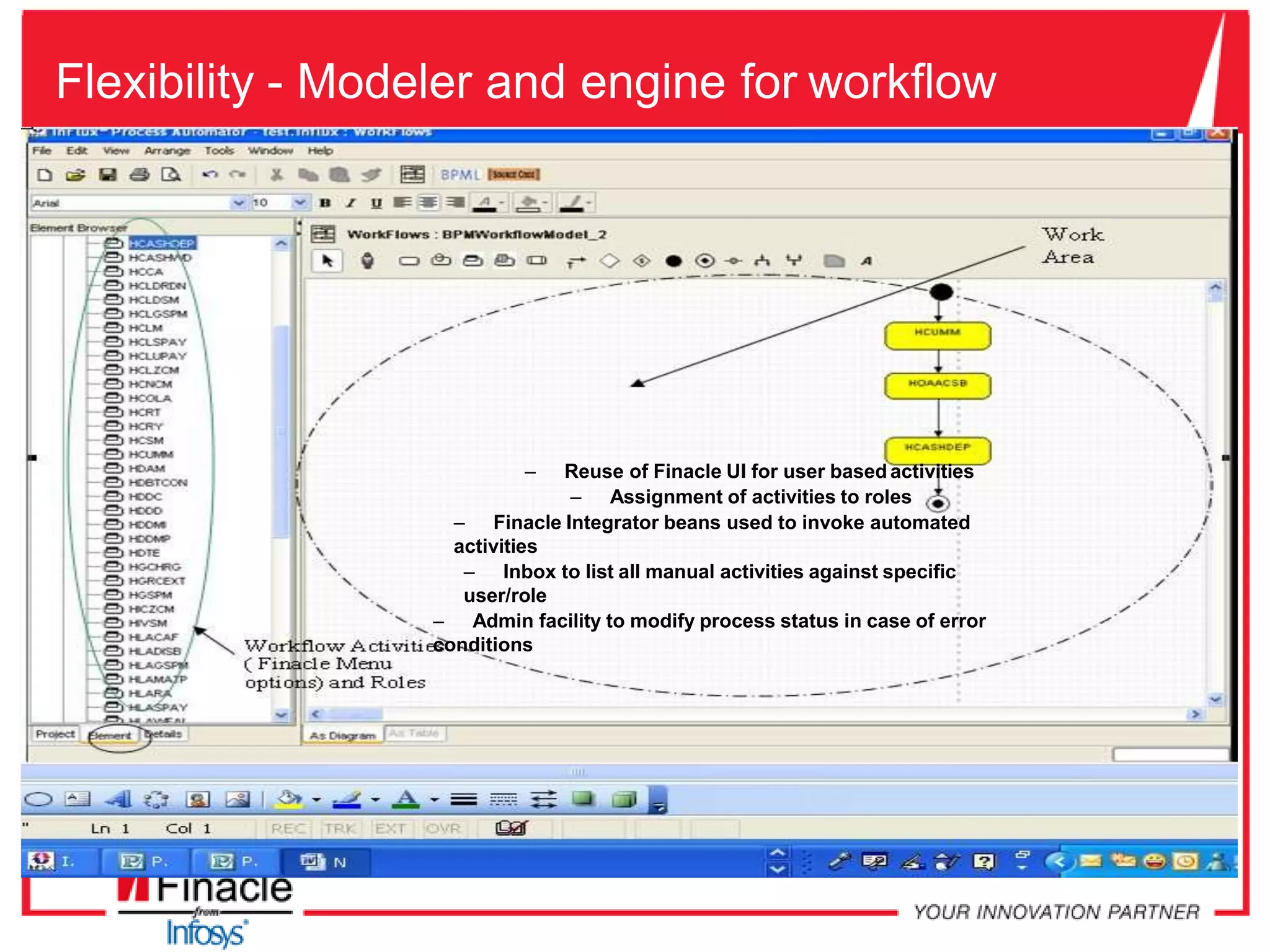

11. Flexibility - Modeler and engine for workflow
– Reuse of Finacle UI for user based activities
– Assignment of activities to roles
– Finacle Integrator beans used to invoke automated
activities
– Inbox to list all manual activities against specific
user/role
– Admin facility to modify process status in case of error
conditions

12. Flexibility - Finacle Scripting Studio
Eclipse based tool providing features like content assist to help development of
scripts

13. Flexibility - Custom studio to modify screens
•Customize product JSPs,
providing necessary
defaults
•Capturing additional fields
which can be stored in
custom tables
•Creating a front-end for a
custom script or a custom
Java class

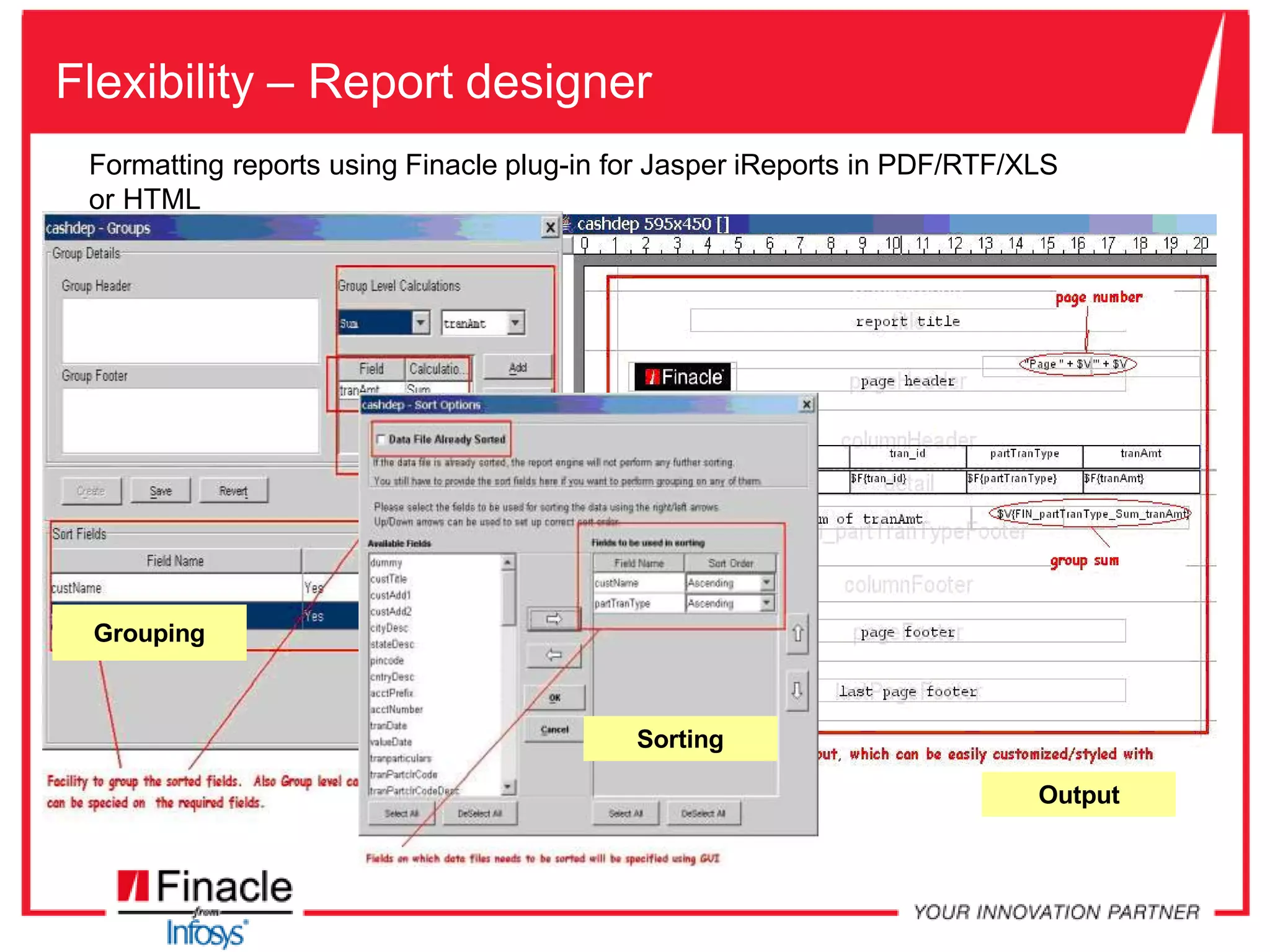

14. Flexibility – Report designer
Formatting reports using Finacle plug-in for Jasper iReports in PDF/RTF/XLS
or HTML
Grouping
Sorting
Output

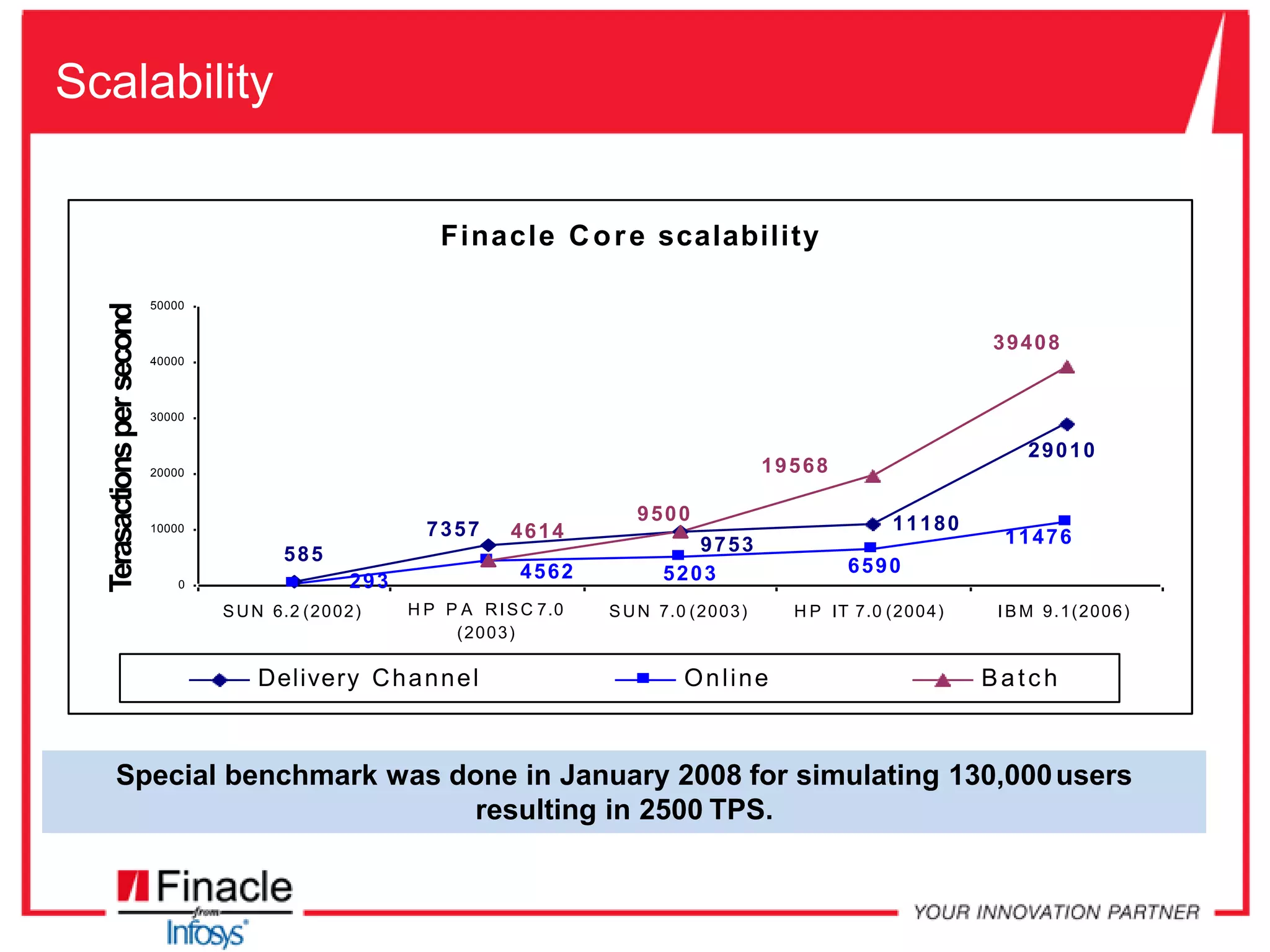

15. Scalability
Finacle Core scalability
11180
29010
9753585
7357
4562 5203 6590
11476
293
4614
9500
19568
39408
0
10000
20000
30000
40000
50000
SUN 6.2 (2002) H P P A RISC 7.0
(2003)
SUN 7.0 (2003) H P IT 7.0 (2004) I B M 9.1(2006)
B e n c h m a rk s on h a r d w a r e platforms
Terasactionspersecond
Delivery Channel Online Batch
Special benchmark was done in January 2008 for simulating 130,000users
resulting in 2500 TPS.

16. Glimpse of coming releases

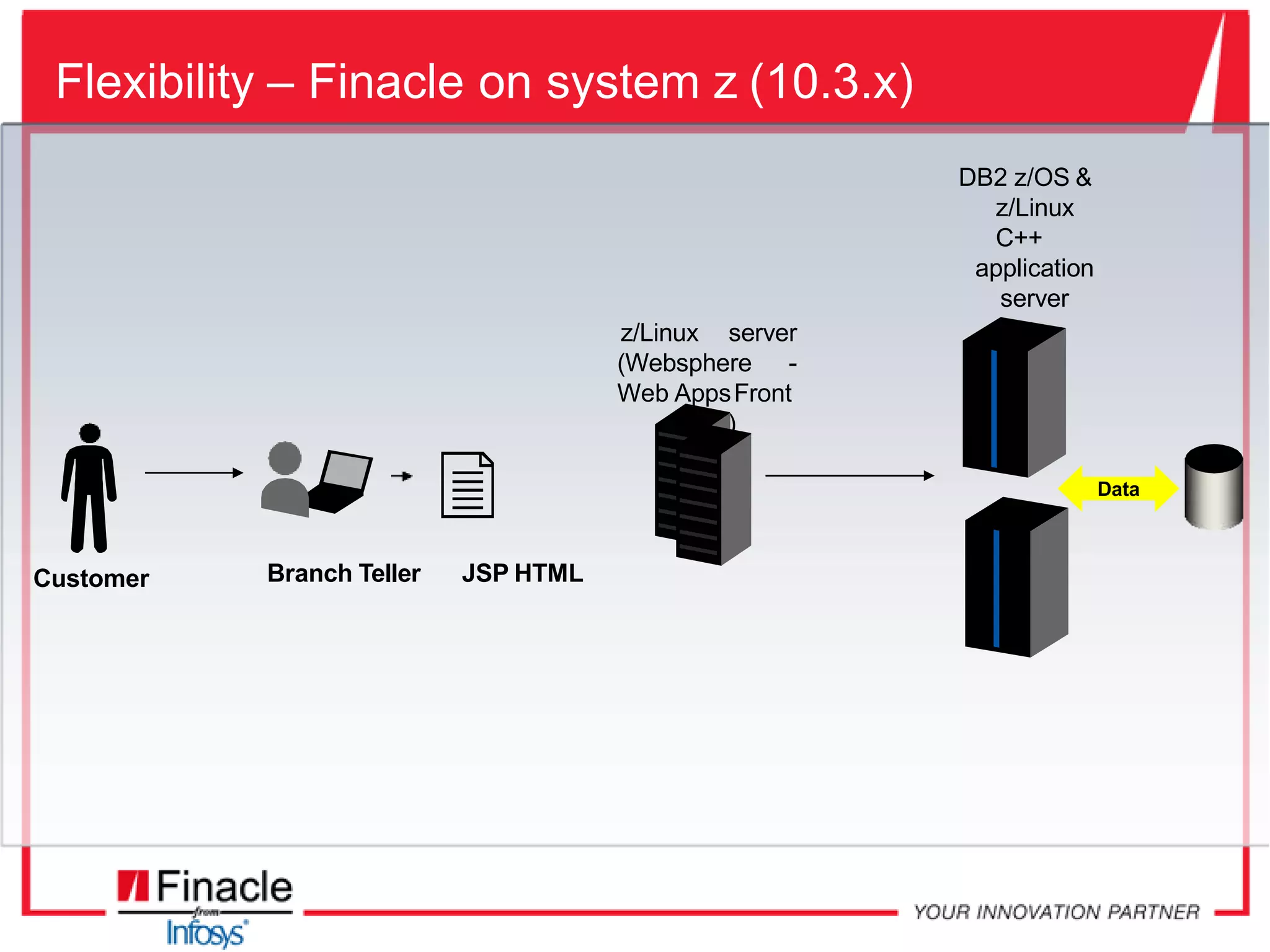

17. Flexibility – Finacle on system z (10.3.x)
Data
z/Linux server
(Websphere -
Web AppsFront
End )
Customer Branch Teller JSP HTML
DB2 z/OS &
z/Linux
C++
application
server

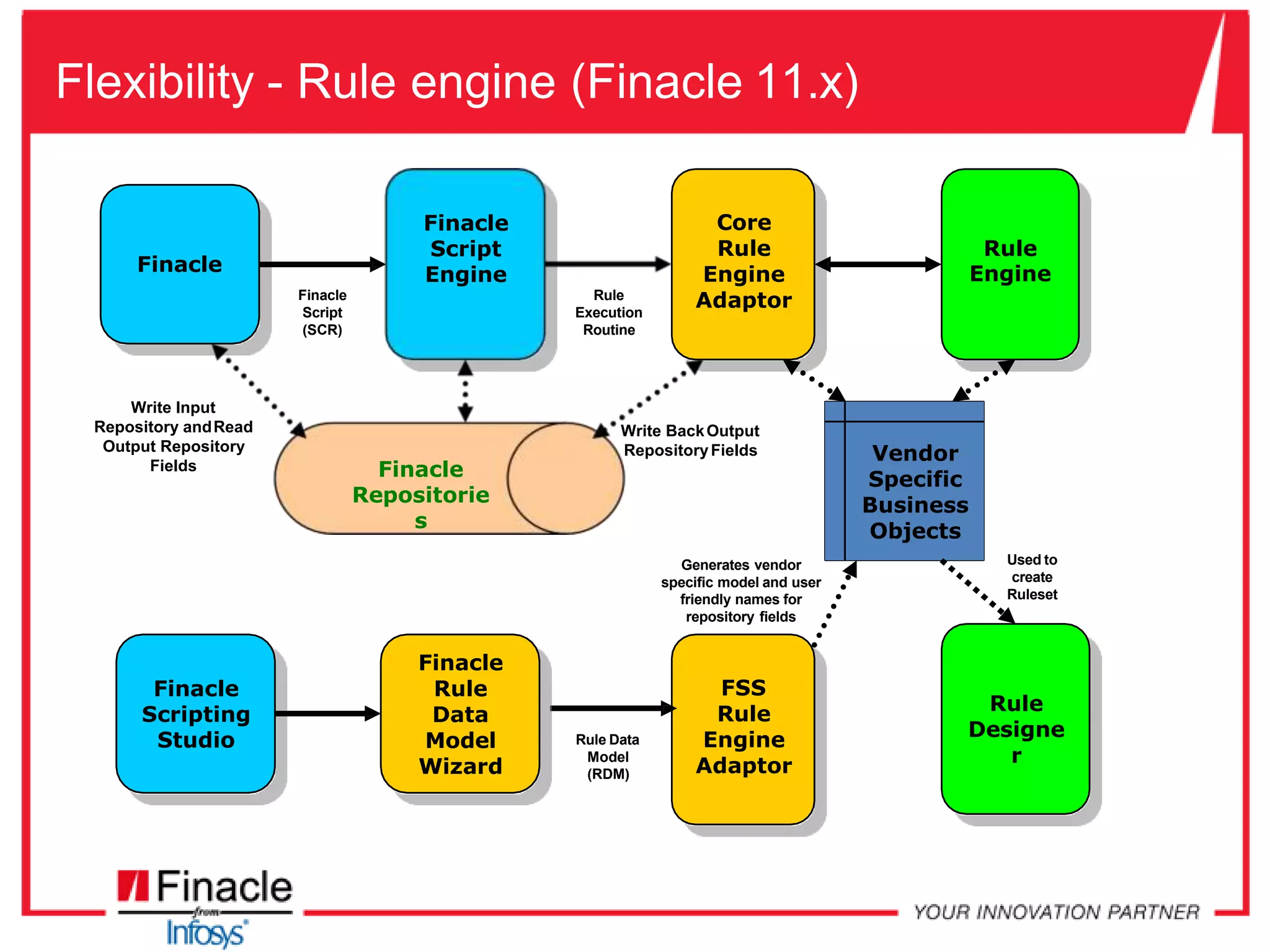

18. Flexibility - Rule engine (Finacle 11.x)
Finacle
Core
Rule
Engine
Adaptor
Finacle
Script
Engine
Finacle
Script
(SCR)
Rule
Execution
Routine
Finacle
Repositorie
s
Rule
Engine
Vendor
Specific
Business
Objects
Write Input
Repository andRead
Output Repository
Fields
Write BackOutput
RepositoryFields
Finacle
Scripting
Studio
FSS
Rule
Engine
Adaptor
Rule
Designe
r
Rule Data
Model
(RDM)
Generates vendor
specific model and user
friendly names for
repository fields
Used to
create
Ruleset
Finacle
Rule
Data
Model
Wizard

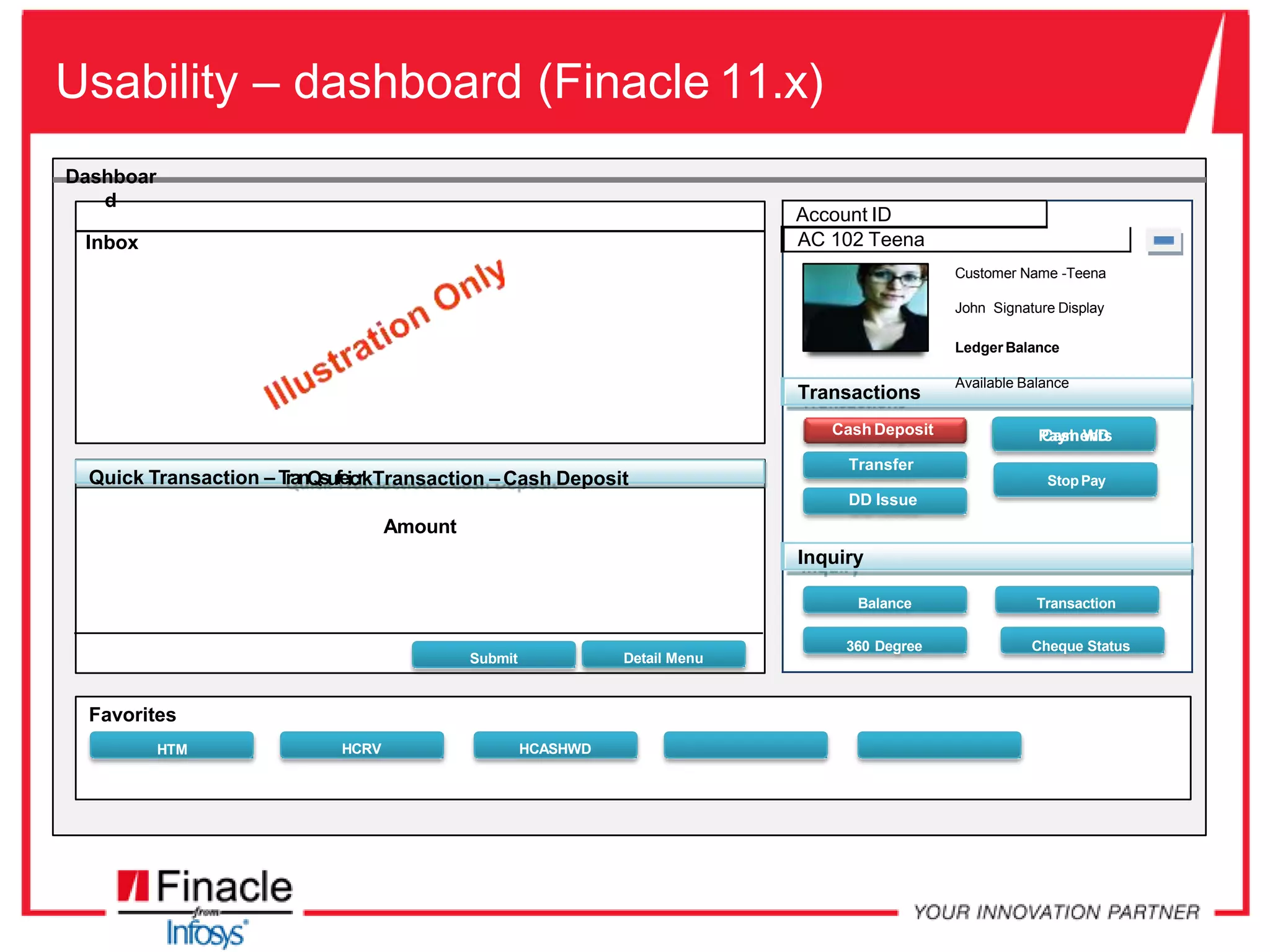

19. Usability – dashboard (Finacle 11.x)
111 102
Detail Menu
Dashboar
d
Inbox
Favorites
HTM HCRV HCASHWD
Detail MenuSubmit
Quick Transaction – TranQsufeicrkTransaction – Cash Deposit
Amount
Account ID
AC 102 Teena
Customer Name -Teena
John Signature Display
Ledger Balance
Transactions
Available Balance
CashDeposit
Transfer
DD Issue
PCaaysmheWnDts
Stop Pay
Inquiry
Balance Transaction
360 Degree Cheque Status

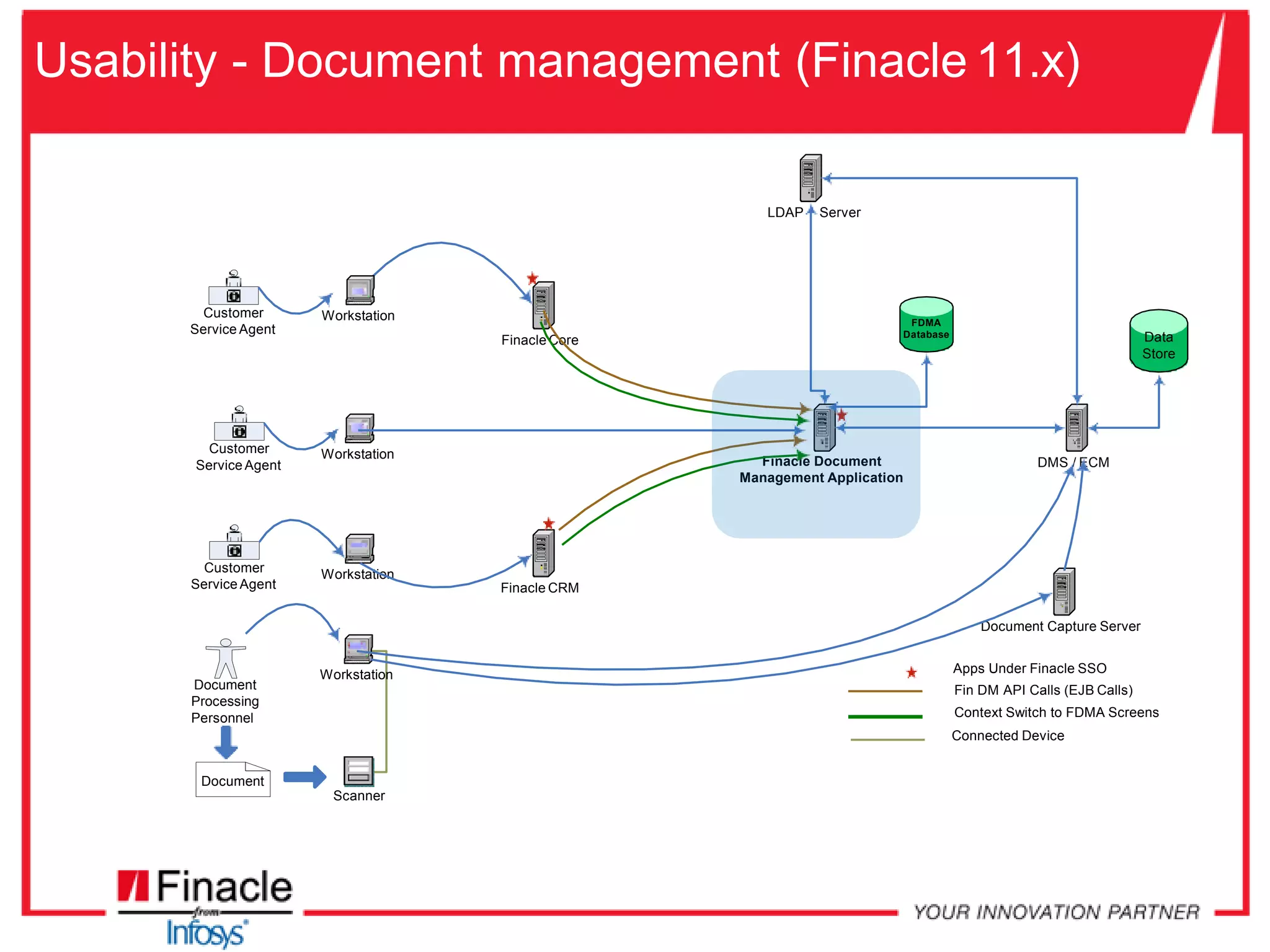

20. Finacle CRM
Finacle Core
Finacle Document
Management Application
LDAP Server
Workstation
Workstation
DMS / ECM
Workstation
Data
Store
Document
Scanner
Customer
Service Agent
Customer
Service Agent
Document Capture Server
Document
Processing
Personnel
FDMA
Database
Apps Under Finacle SSO
Fin DM API Calls (EJB Calls)
Context Switch to FDMA Screens
Connected Device
WorkstationCustomer
Service Agent
Usability - Document management (Finacle 11.x)
