Usher into true digital transformation for field devices and systems with the platform-agnostic FDT 3.0 standard. FDT3.0 focuses on integrating intelligent devices with OPC UA and web technologies as part of an overall IIoT/ Industrie 4.0 strategy. FDT Group and Utthunga co-hosted the webinar “FDT 3.0 and OPC UA - Key to Interoperability” on 30th September 2020 at 5:00 - 6 PM IST. The webinar was presented by Mr. Glenn Schulz, Managing Director of FDT Group and Ms. Smitha Rao, Co-founder of Utthunga. Some key points that were covered in the webinar: 1. The FDT open integration advantage for IT/OT Integration for real-time data access, standardized enterprise interoperability and secure data access 2. How to leverage the generic OPC UA information model for a fully deployable, plug-and-play FDT 3.0 server and #DTM solutions 3. How generic OPC UA clients can access field data, diagnostic information, device health status, etc. using FDT technology 4. Understand the benefits of FDT 3.0 and OPC Pub/Sub integration for end-users and device suppliers Asset Health Monitoring demo based on FDT3.0 and OPC Pub/Sub You can view the webinar recording by clicking on the link https://www.youtube.com/c/Utthunga Please feel free to share these links with your colleagues who may be interested. If you have any queries or require more information regarding the topic or wish to know more about Utthunga you can mail us at contact@utthunga.com or visit our website https://utthunga.com/ © 2020 Utthunga Technologies

1. Click to edit Master title style
FDT 3.0 and OPC UA – Key to Interoperability
Webinar | 30 September 2020
SPEAKERS
Glenn Schulz - FDT Group
Smitha Rao - Utthunga Technologies

2. Click to edit Master title styleToday’s Speakers
2
Glenn SchulzSmitha Rao

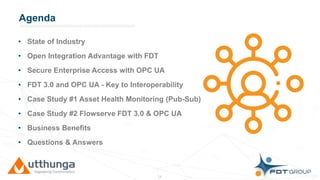

3. Click to edit Master title styleAgenda
• State of Industry
• Open Integration Advantage with FDT
• Secure Enterprise Access with OPC UA
• FDT 3.0 and OPC UA - Key to Interoperability
• Case Study #1 Asset Health Monitoring (Pub-Sub)
• Case Study #2 Flowserve FDT 3.0 & OPC UA
• Business Benefits
• Questions & Answers
3

4. Click to edit Master title style
STATE OF THE INDUSTRY
4

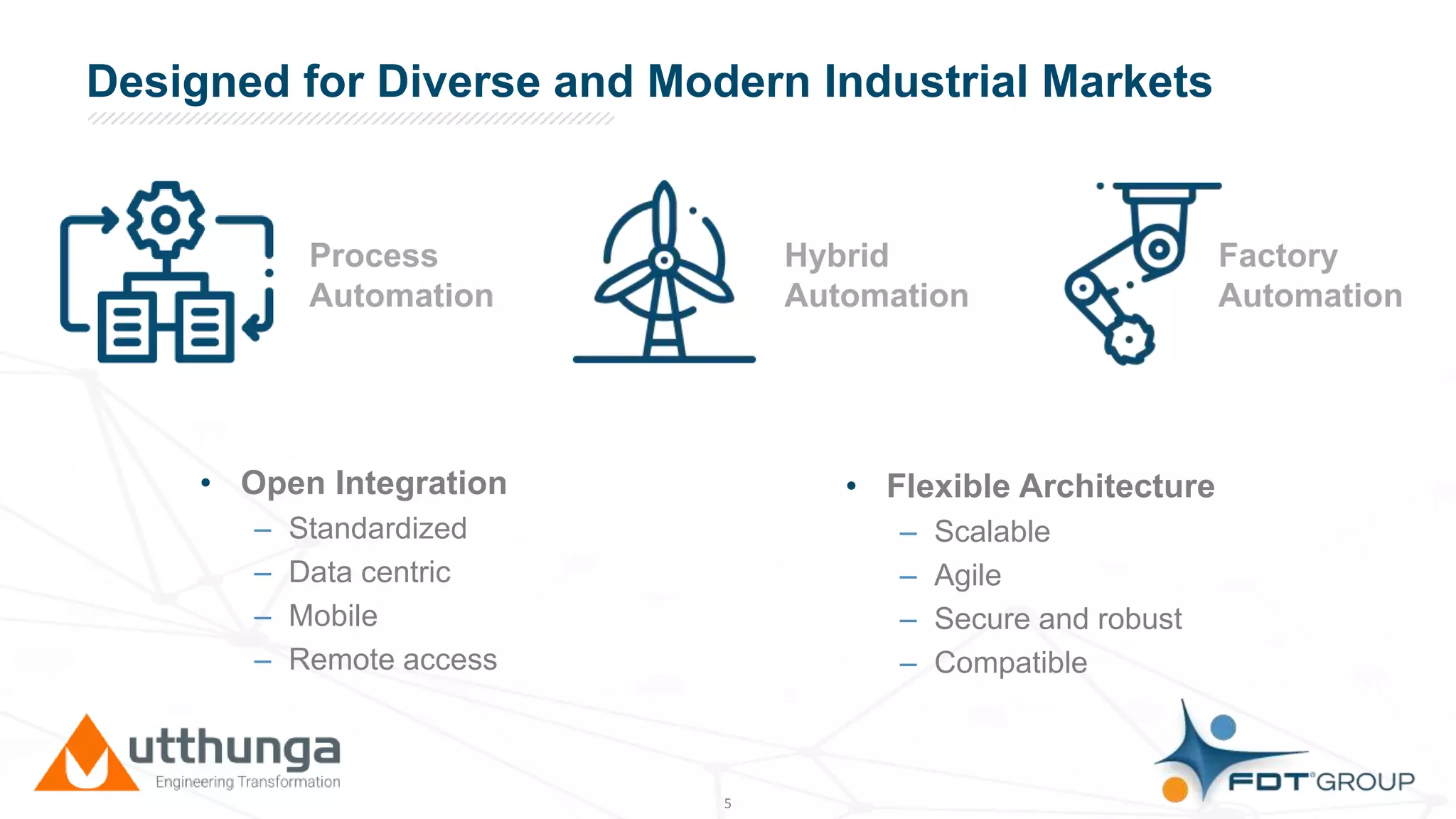

5. Click to edit Master title styleDesigned for Diverse and Modern Industrial Markets
5
Process
Automation
Factory
Automation
Hybrid
Automation
• Open Integration
– Standardized
– Data centric
– Mobile
– Remote access
• Flexible Architecture
– Scalable
– Agile
– Secure and robust
– Compatible

6. Click to edit Master title style
• Secure
• Standardized
• Platform independent
• Interoperable
• Web and OPC UA client-based
• Information driven
• Service oriented
Meets Market Demands
6

7. Click to edit Master title style
OPEN INTEGRATION ADVANTAGE WITH FDT
7

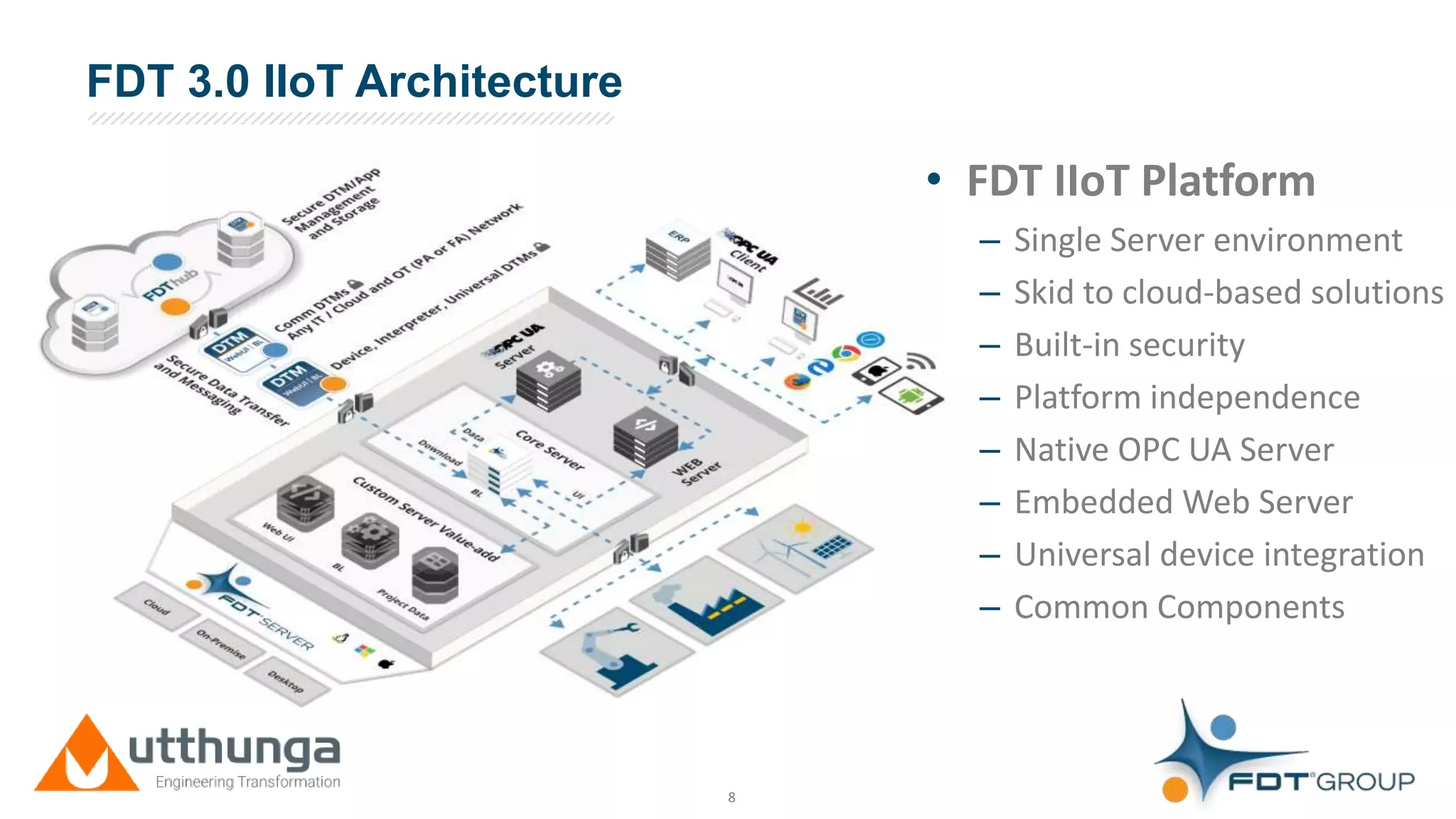

8. Click to edit Master title styleFDT 3.0 IIoT Architecture
8
• FDT IIoT Platform
– Single Server environment
– Skid to cloud-based solutions
– Built-in security
– Platform independence
– Native OPC UA Server
– Embedded Web Server
– Universal device integration
– Common Components

9. Click to edit Master title styleKey Features of the FDT Server™
• Integrated Web Server
– Leverages a browser-based environment
– Modernizes field device management
– Transforms OT access for remote asset management
9
TL
• Embedded OPC UA Server
– Leverages a standard OPC client-based environment
– Enables IT/OT integration of real-time data
– Supports ERP/MES for enterprise connectivity
– Supports OPC UA Pub-Sub
• End-to-End Security
– TLS encrypted communications with 509v3
certificates for authentication
– Role-based access control
– On-the-wire security for enabled protocols

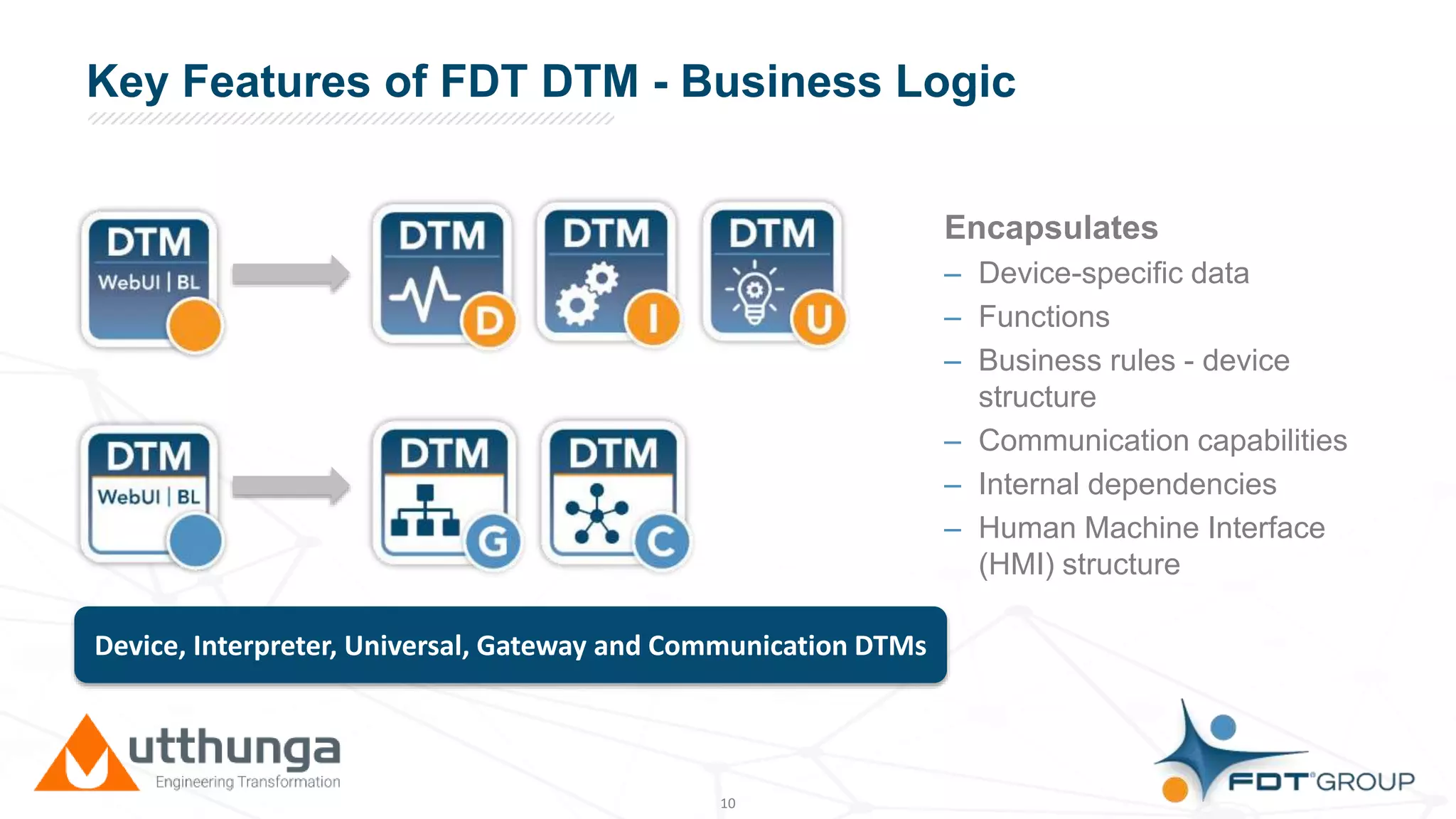

10. Click to edit Master title styleKey Features of FDT DTM - Business Logic
10
Device, Interpreter, Universal, Gateway and Communication DTMs
Encapsulates
– Device-specific data
– Functions
– Business rules - device
structure
– Communication capabilities
– Internal dependencies
– Human Machine Interface
(HMI) structure

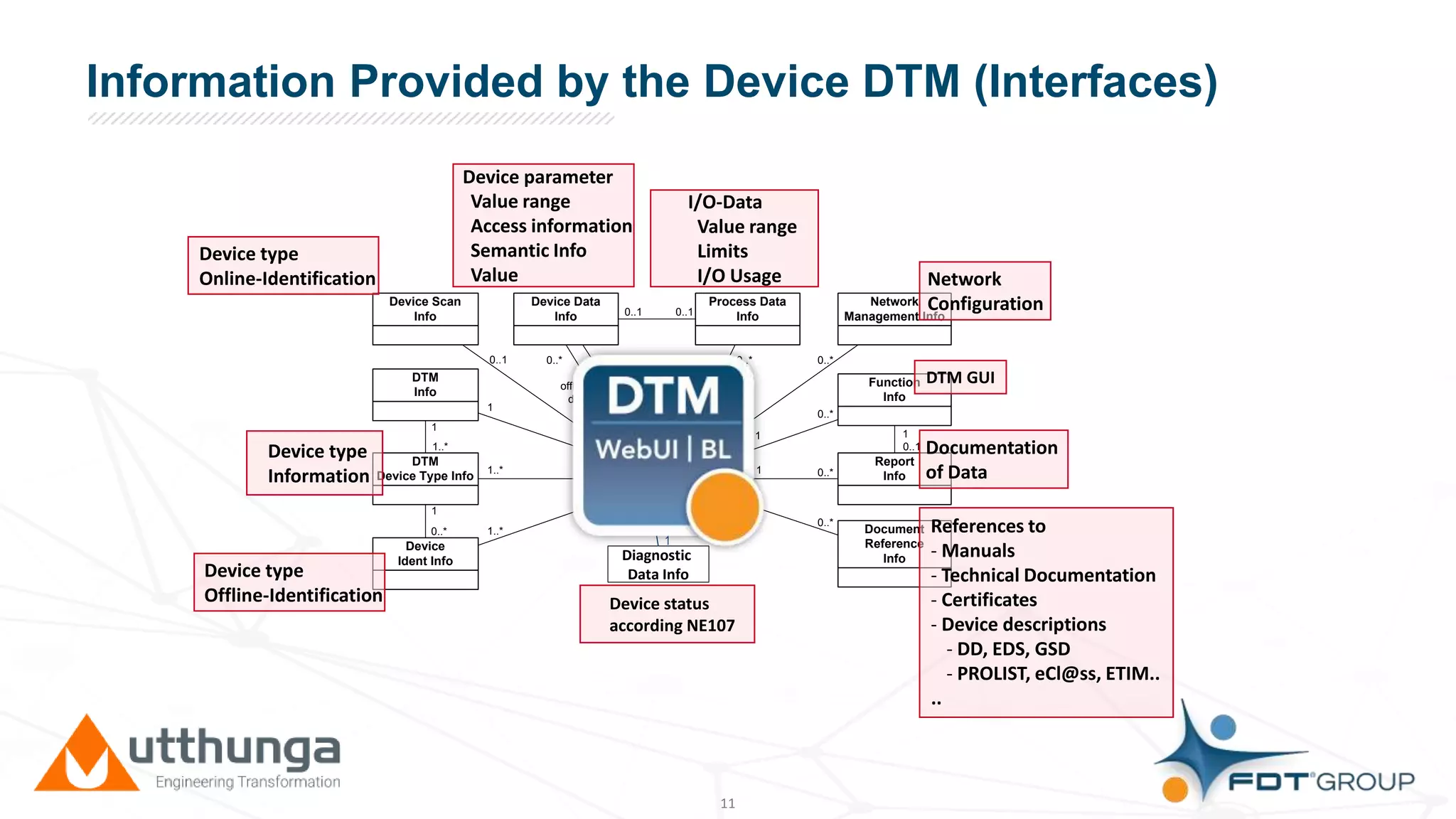

11. Click to edit Master title styleInformation Provided by the Device DTM (Interfaces)
11
DTM
Info
Function
Info
DTM
Device Type Info
Device
Ident Info
Device Data
Info
Report
Info
Process Data
Info
1
1
1
0..1
0..*
0..1
1..*
0..*
Network
Management Info
1
1
1
1
1 11
1
1..*
0..*
0..*
0..*
0..*
online
data
offline
data
1..*
0..*
1
0..1
DTM
Business Logic
Document
Reference
Info
0..*
1
1
Device Scan
Info
1
0..1
I/O-Data
Value range
Limits
I/O Usage
Device parameter
Value range
Access information
Semantic Info
Value
Device type
Information
Device type
Offline-Identification
Device type
Online-Identification Network
Configuration
DTM GUI
Documentation
of Data
References to
- Manuals
- Technical Documentation
- Certificates
- Device descriptions
- DD, EDS, GSD
- PROLIST, eCl@ss, ETIM..
..
Device status
according NE107
Diagnostic
Data Info
0..1
1

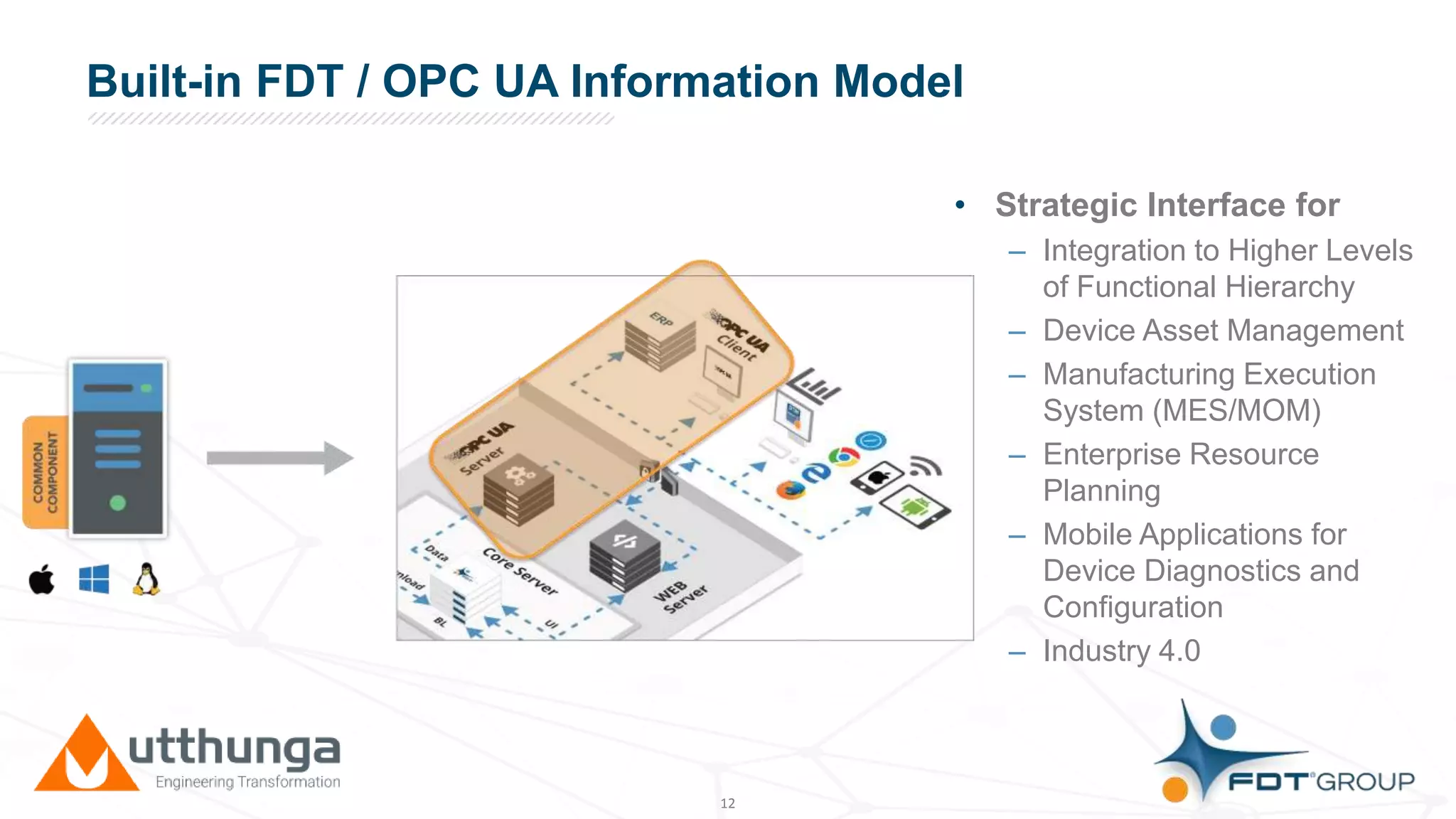

12. Click to edit Master title styleBuilt-in FDT / OPC UA Information Model
• Strategic Interface for
– Integration to Higher Levels
of Functional Hierarchy
– Device Asset Management
– Manufacturing Execution
System (MES/MOM)
– Enterprise Resource
Planning
– Mobile Applications for
Device Diagnostics and
Configuration
– Industry 4.0
12

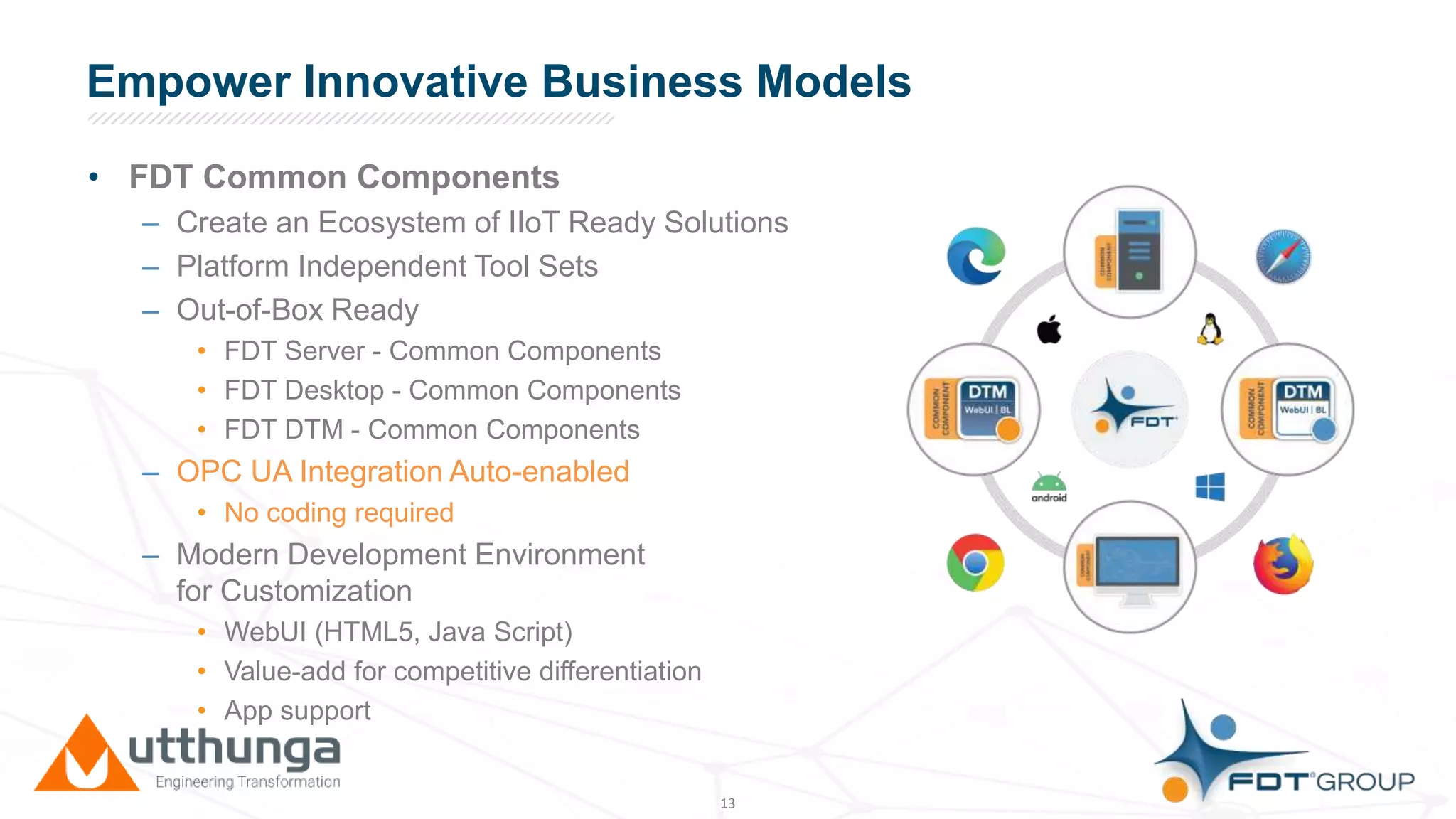

13. Click to edit Master title styleEmpower Innovative Business Models
• FDT Common Components
– Create an Ecosystem of IIoT Ready Solutions
– Platform Independent Tool Sets
– Out-of-Box Ready
• FDT Server - Common Components
• FDT Desktop - Common Components
• FDT DTM - Common Components
– OPC UA Integration Auto-enabled
• No coding required
– Modern Development Environment
for Customization
• WebUI (HTML5, Java Script)
• Value-add for competitive differentiation
• App support
13

14. Click to edit Master title style
SECURE ENTERPRISE ACCESS WITH OPC UA
14

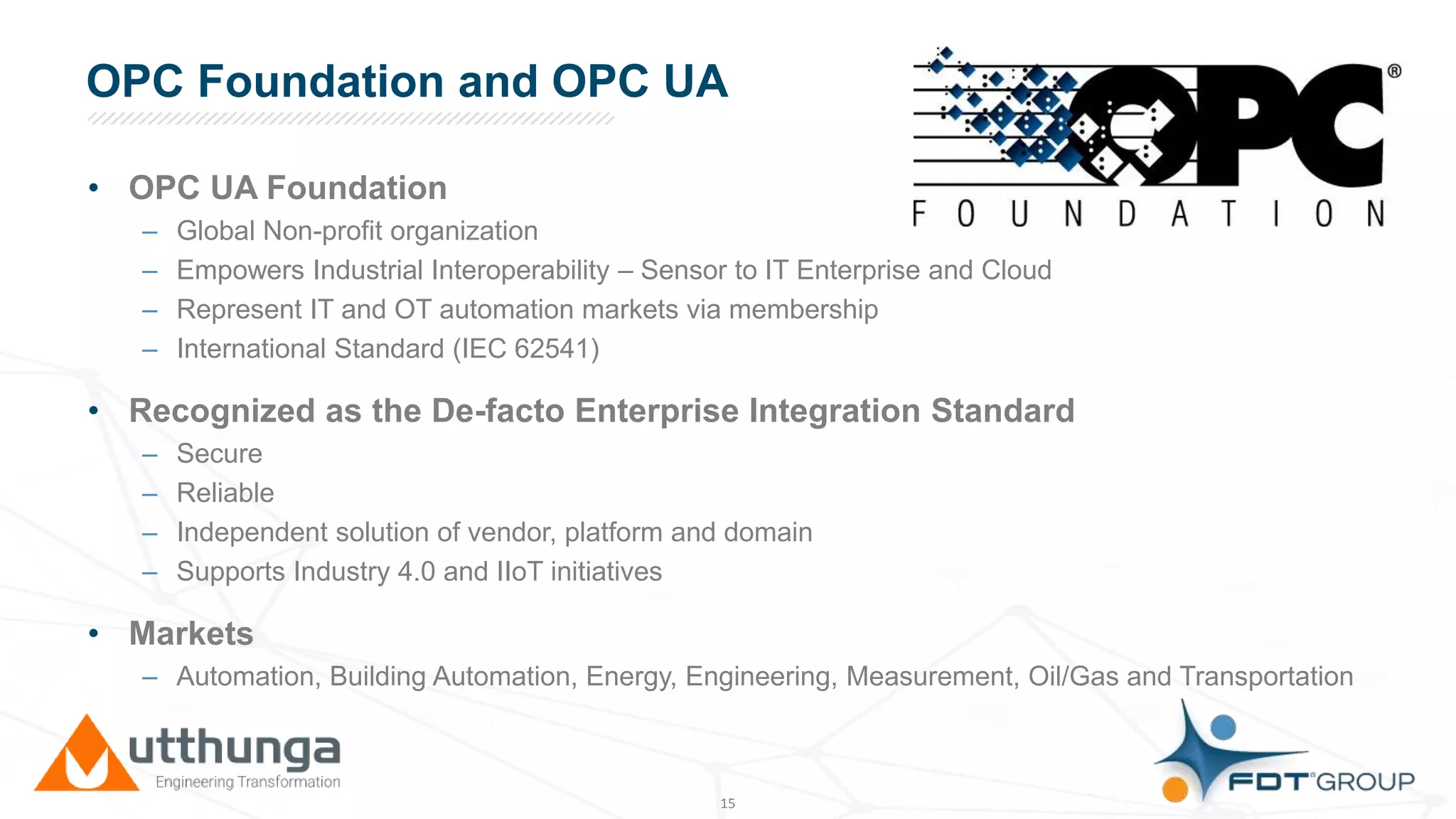

15. Click to edit Master title styleOPC Foundation and OPC UA
• OPC UA Foundation
– Global Non-profit organization
– Empowers Industrial Interoperability – Sensor to IT Enterprise and Cloud
– Represent IT and OT automation markets via membership
– International Standard (IEC 62541)
• Recognized as the De-facto Enterprise Integration Standard
– Secure
– Reliable
– Independent solution of vendor, platform and domain
– Supports Industry 4.0 and IIoT initiatives
• Markets
– Automation, Building Automation, Energy, Engineering, Measurement, Oil/Gas and Transportation
15

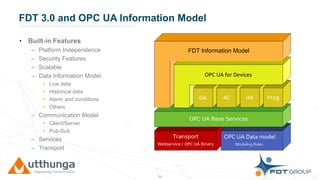

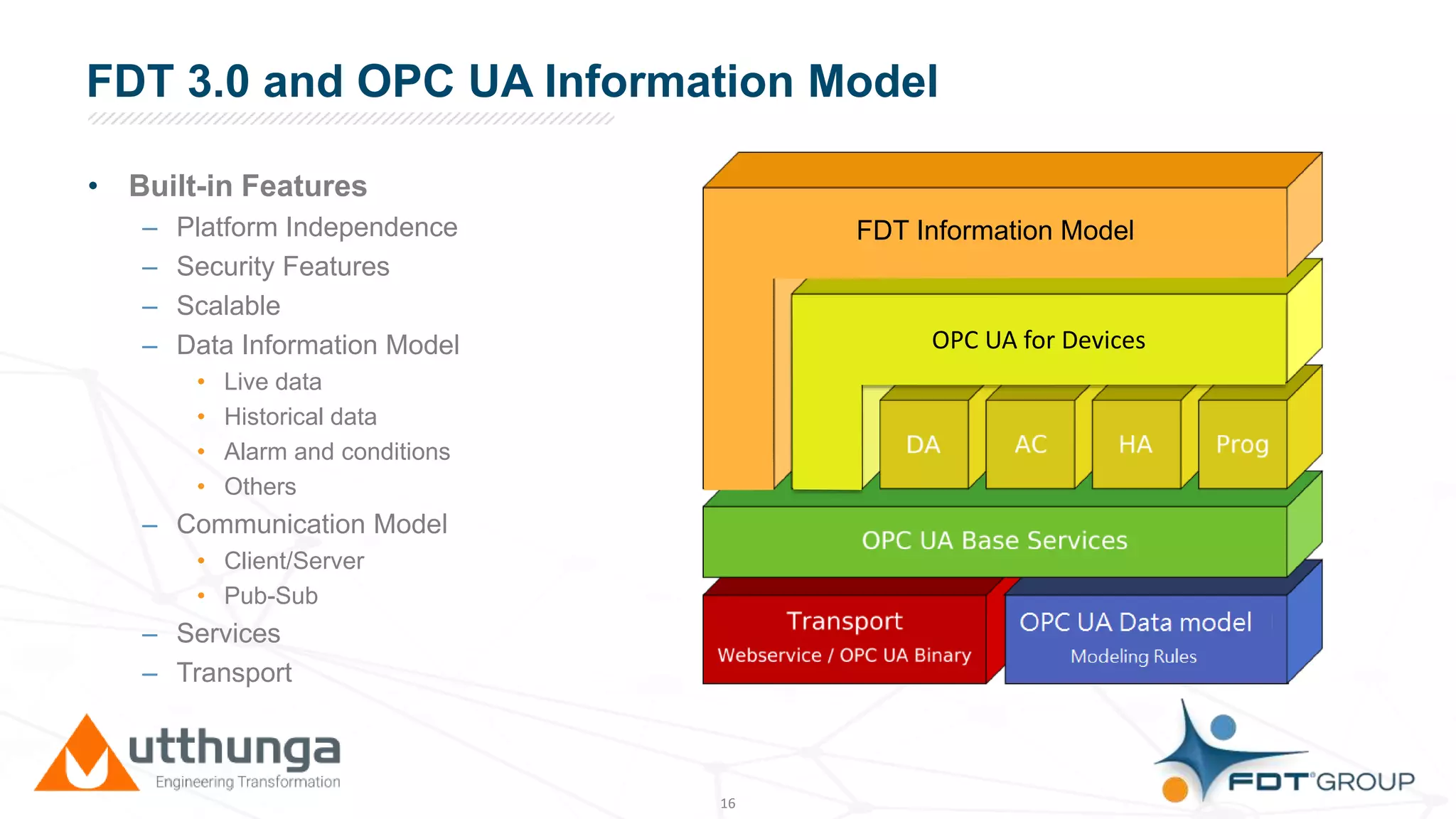

16. Click to edit Master title styleFDT 3.0 and OPC UA Information Model
• Built-in Features
– Platform Independence
– Security Features
– Scalable
– Data Information Model
• Live data
• Historical data
• Alarm and conditions
• Others
– Communication Model
• Client/Server
• Pub-Sub
– Services
– Transport
16
FDT Information Model
OPC UA for Devices

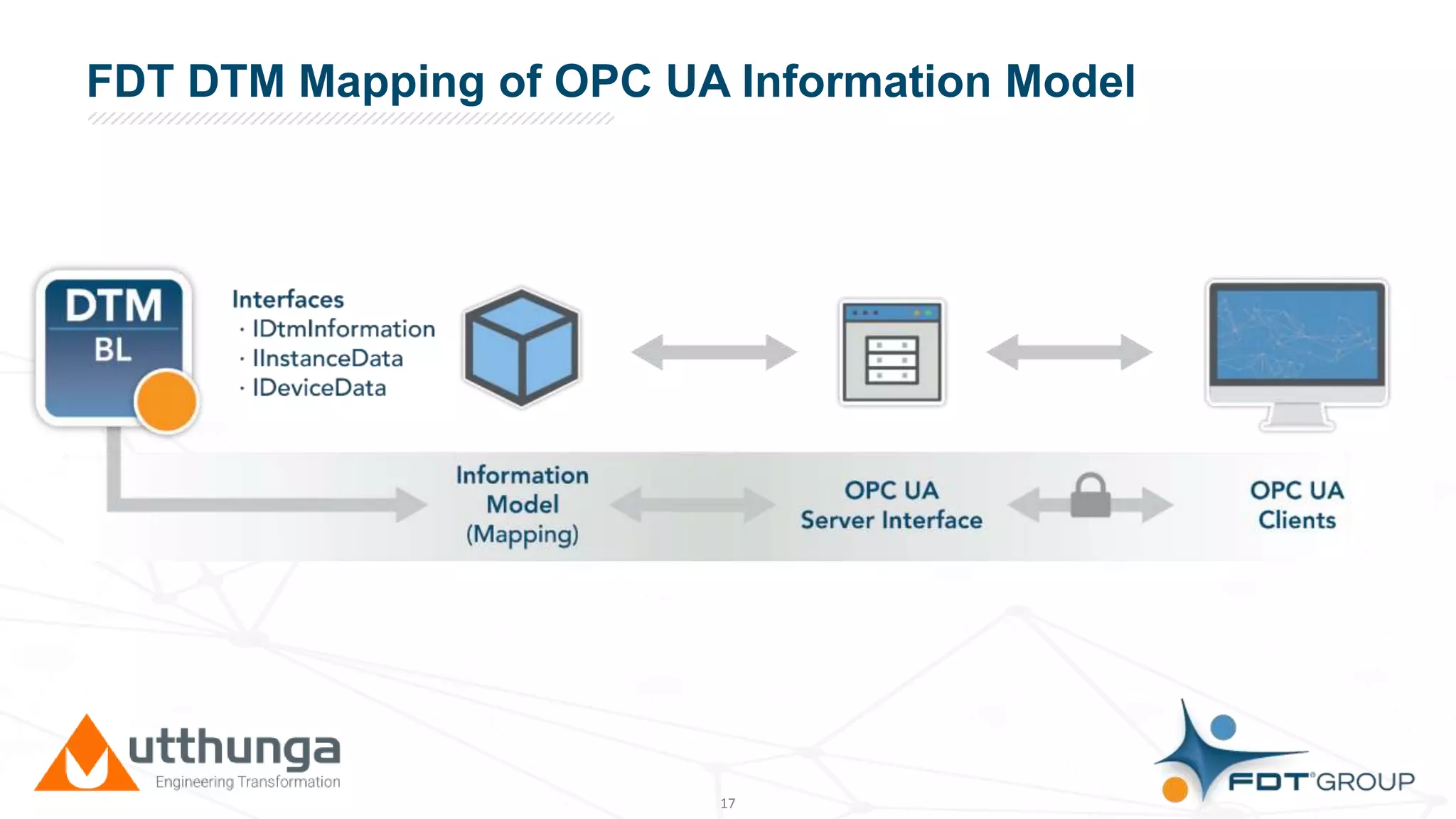

17. Click to edit Master title styleFDT DTM Mapping of OPC UA Information Model
17

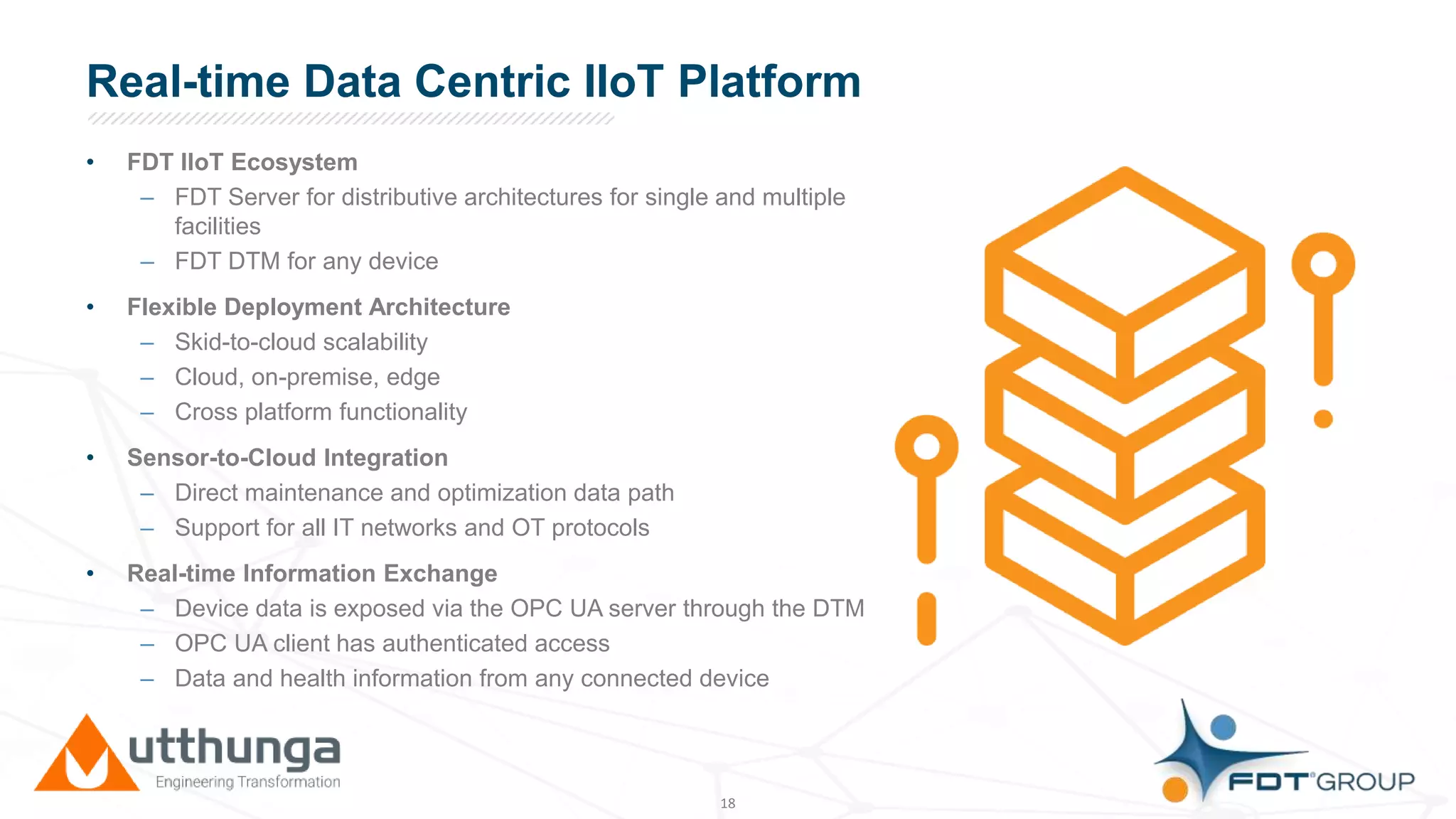

18. Click to edit Master title styleReal-time Data Centric IIoT Platform
• FDT IIoT Ecosystem
– FDT Server for distributive architectures for single and multiple
facilities
– FDT DTM for any device
• Flexible Deployment Architecture
– Skid-to-cloud scalability
– Cloud, on-premise, edge
– Cross platform functionality
• Sensor-to-Cloud Integration
– Direct maintenance and optimization data path
– Support for all IT networks and OT protocols
• Real-time Information Exchange
– Device data is exposed via the OPC UA server through the DTM
– OPC UA client has authenticated access
– Data and health information from any connected device
18

19. Click to edit Master title style
FDT 3.0 AND OPC UA - KEY TO INTEROPERABILITY
19

20. Click to edit Master title style
20
 Unified Device Model
 Enterprise Wide Integration
 Simplified Communication
 Remote Monitoring of Assets
 Universal Device Integration
 Protocol Agnostic
 Nested Communication
 Vendor Agnostic
 Multiple Platform
 Built-in Security
 Information Exchange
 System Independent
 Reliable Connectivity
 Multiple Platform
 Built-in Security

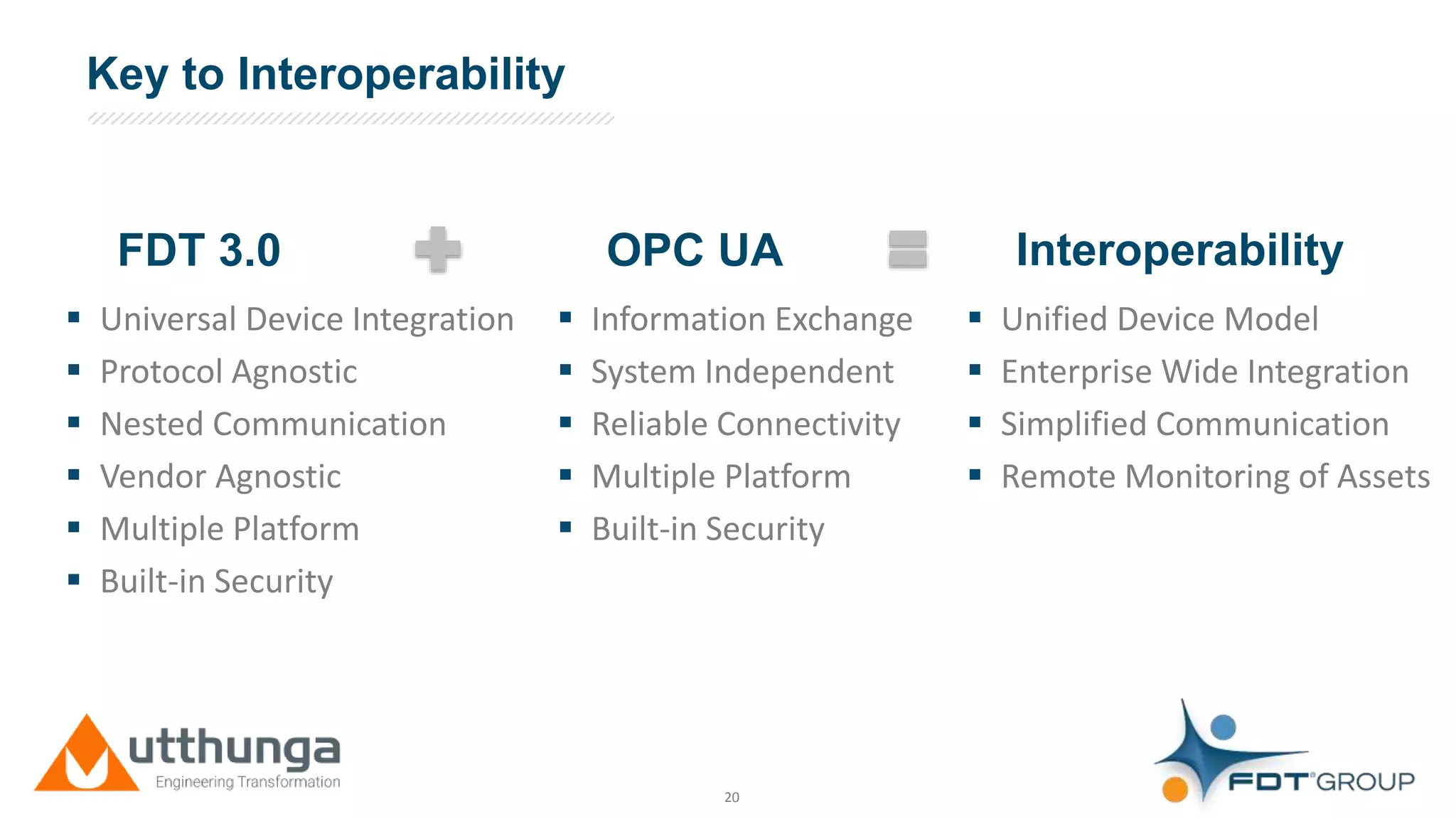

Key to Interoperability
FDT 3.0 OPC UA Interoperability

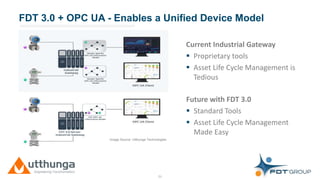

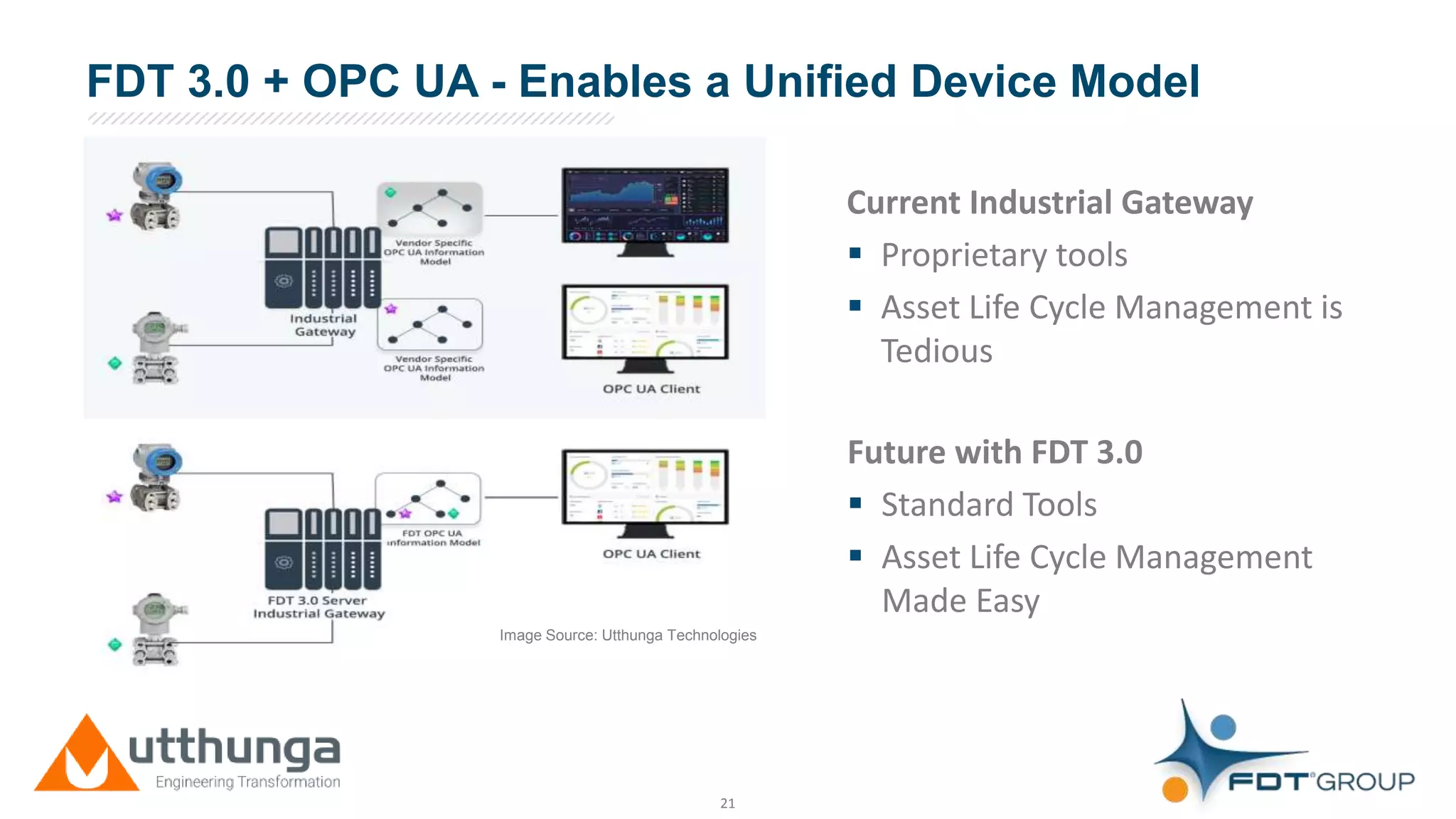

21. Click to edit Master title styleFDT 3.0 + OPC UA - Enables a Unified Device Model
21
Current Industrial Gateway
 Proprietary tools
 Asset Life Cycle Management is
Tedious
Future with FDT 3.0
 Standard Tools
 Asset Life Cycle Management
Made Easy
Image Source: Utthunga TechnologiesImage Source: Utthunga Technologies

22. Click to edit Master title style
22

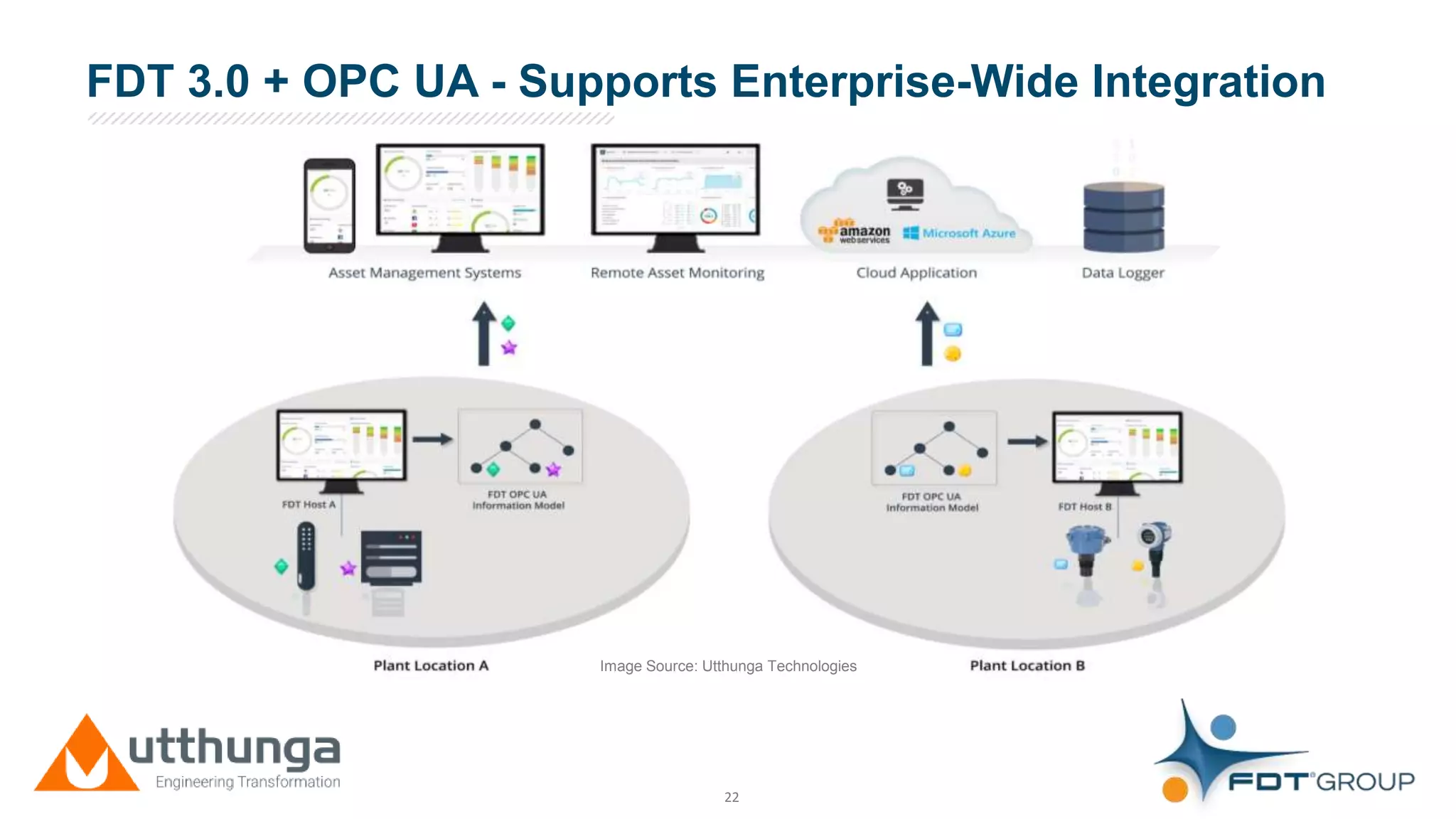

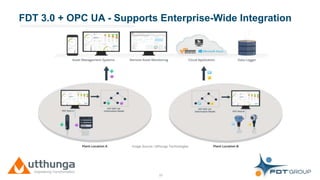

FDT 3.0 + OPC UA - Supports Enterprise-Wide Integration
Image Source: Utthunga Technologies

23. Click to edit Master title style
23

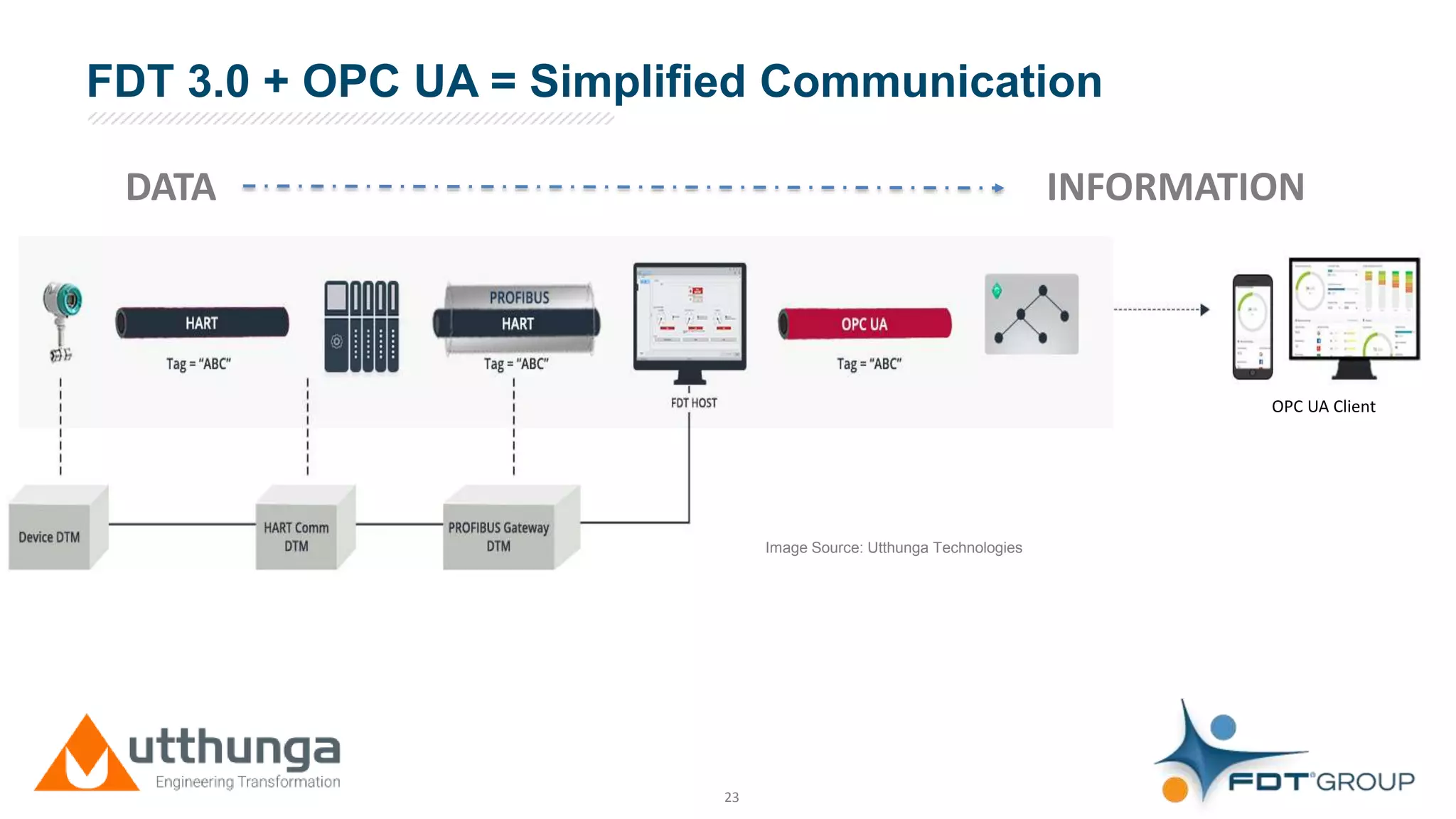

FDT 3.0 + OPC UA = Simplified Communication
OPC UA Client
DATA INFORMATION
Image Source: Utthunga Technologies
OPC UA Client

24. Click to edit Master title style
CASE STUDY #1:
UTTHUNGA - ASSET HEALTH MONITORING
USING FDT 3.0 AND OPC PUB-SUB
24

25. Click to edit Master title style
25
Multiple
communication
channel
Multiple vendors,
device types
OPC UA
Server

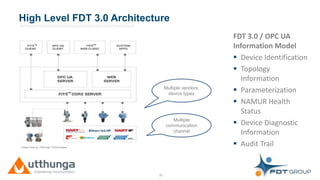

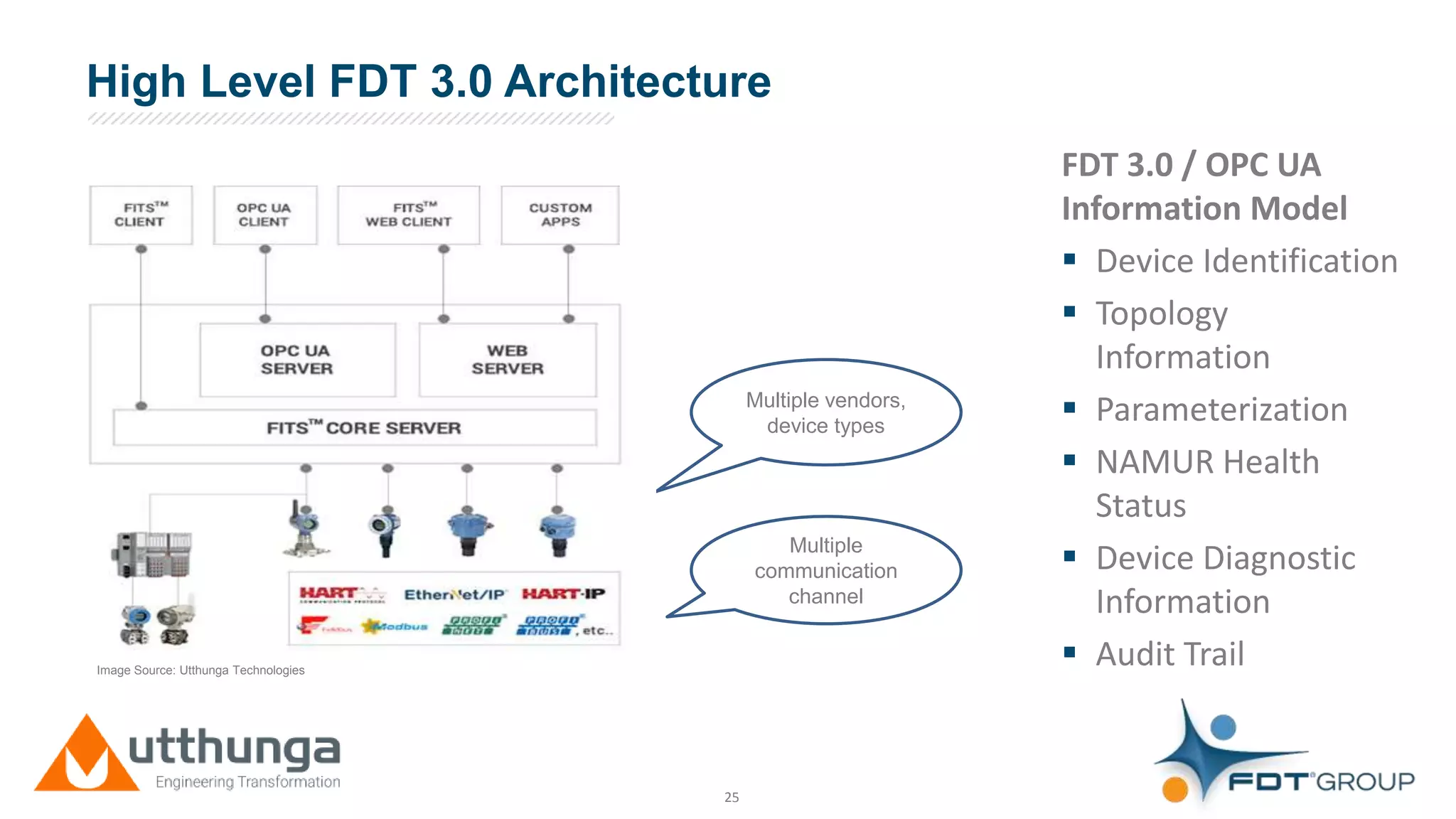

High Level FDT 3.0 Architecture
Image Source: Utthunga Technologies
FDT 3.0 / OPC UA
Information Model
 Device Identification
 Topology
Information
 Parameterization
 NAMUR Health
Status
 Device Diagnostic
Information
 Audit Trail

26. Click to edit Master title style
26

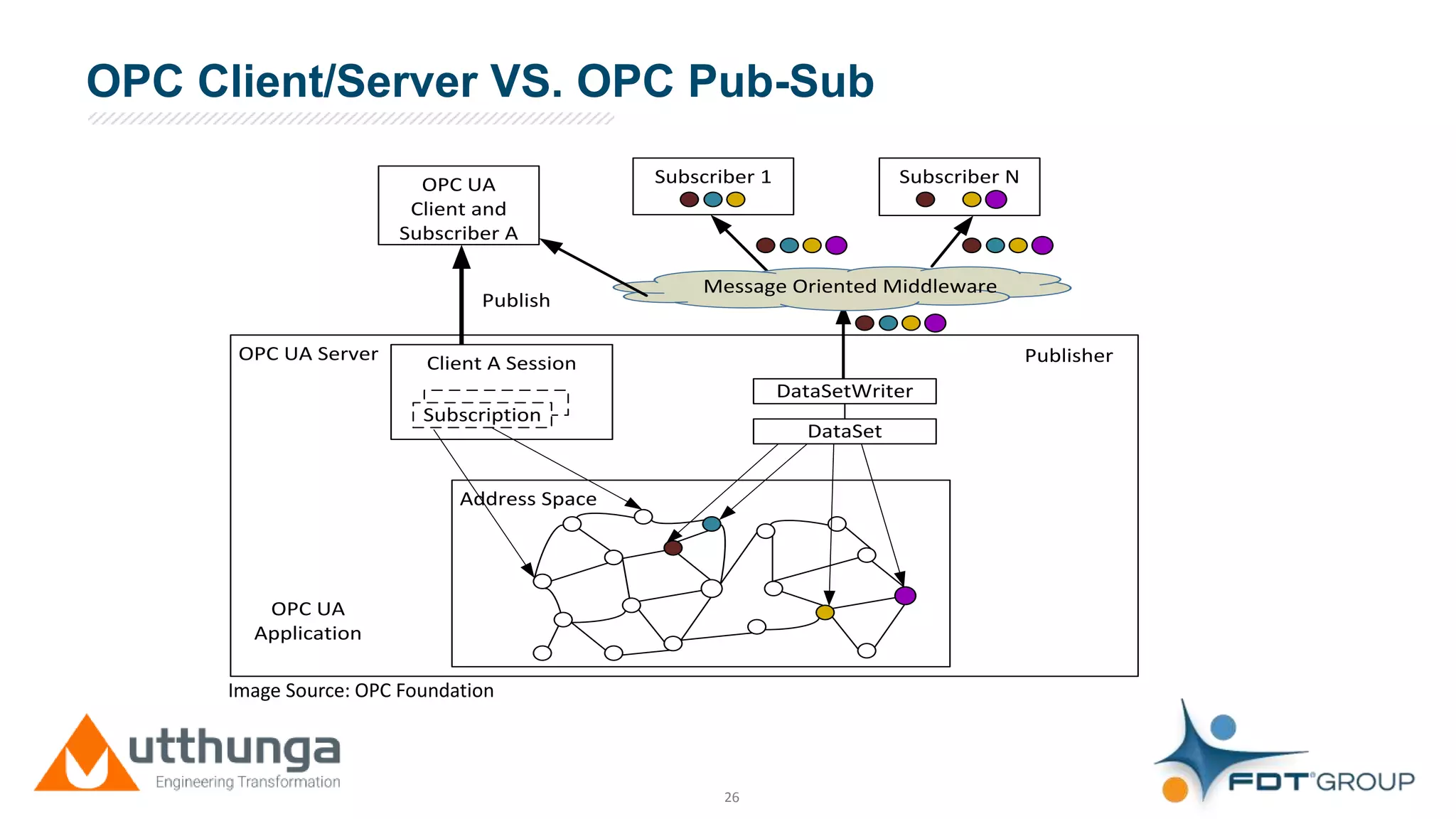

OPC UA Server
Address Space
Subscriber NSubscriber 1OPC UA
Client and
Subscriber A
Client A Session
Publish
Message Oriented Middleware
Subscription
DataSetWriter
DataSet
Publisher
OPC UA
Application
Image Source: OPC Foundation

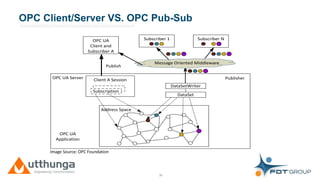

OPC Client/Server VS. OPC Pub-Sub

27. Click to edit Master title style
27

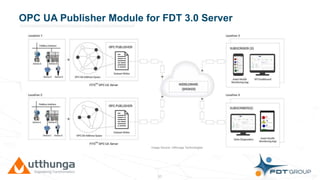

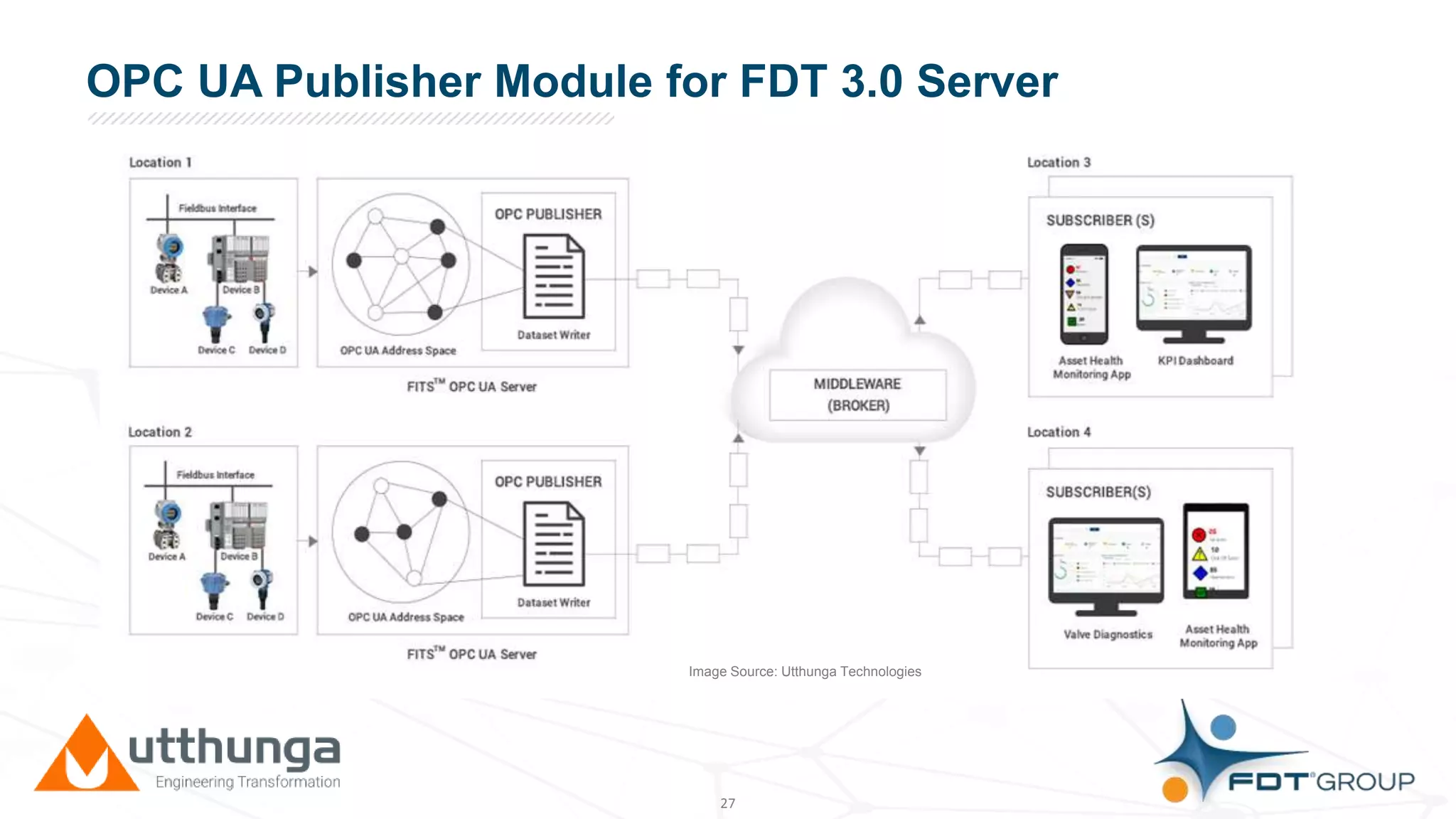

OPC UA Publisher Module for FDT 3.0 Server
Image Source: Utthunga Technologies

28. Click to edit Master title style
28

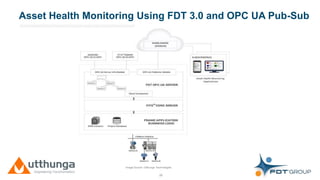

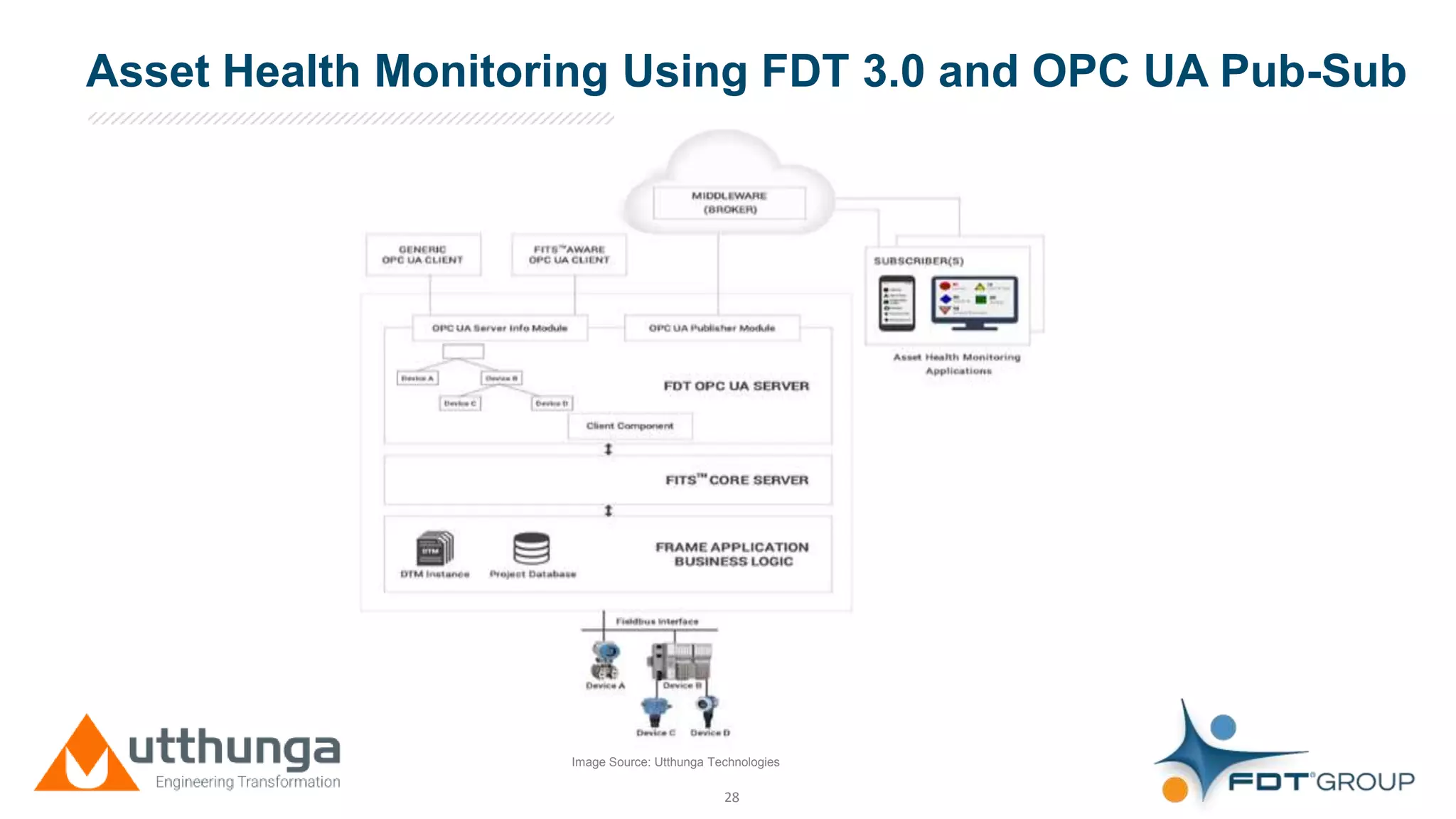

Asset Health Monitoring Using FDT 3.0 and OPC UA Pub-Sub
Image Source: Utthunga Technologies

29. Click to edit Master title style
CASE STUDY #2
FLOWSERVE
FDT 3.0 OPC UA CASE STUDY
29

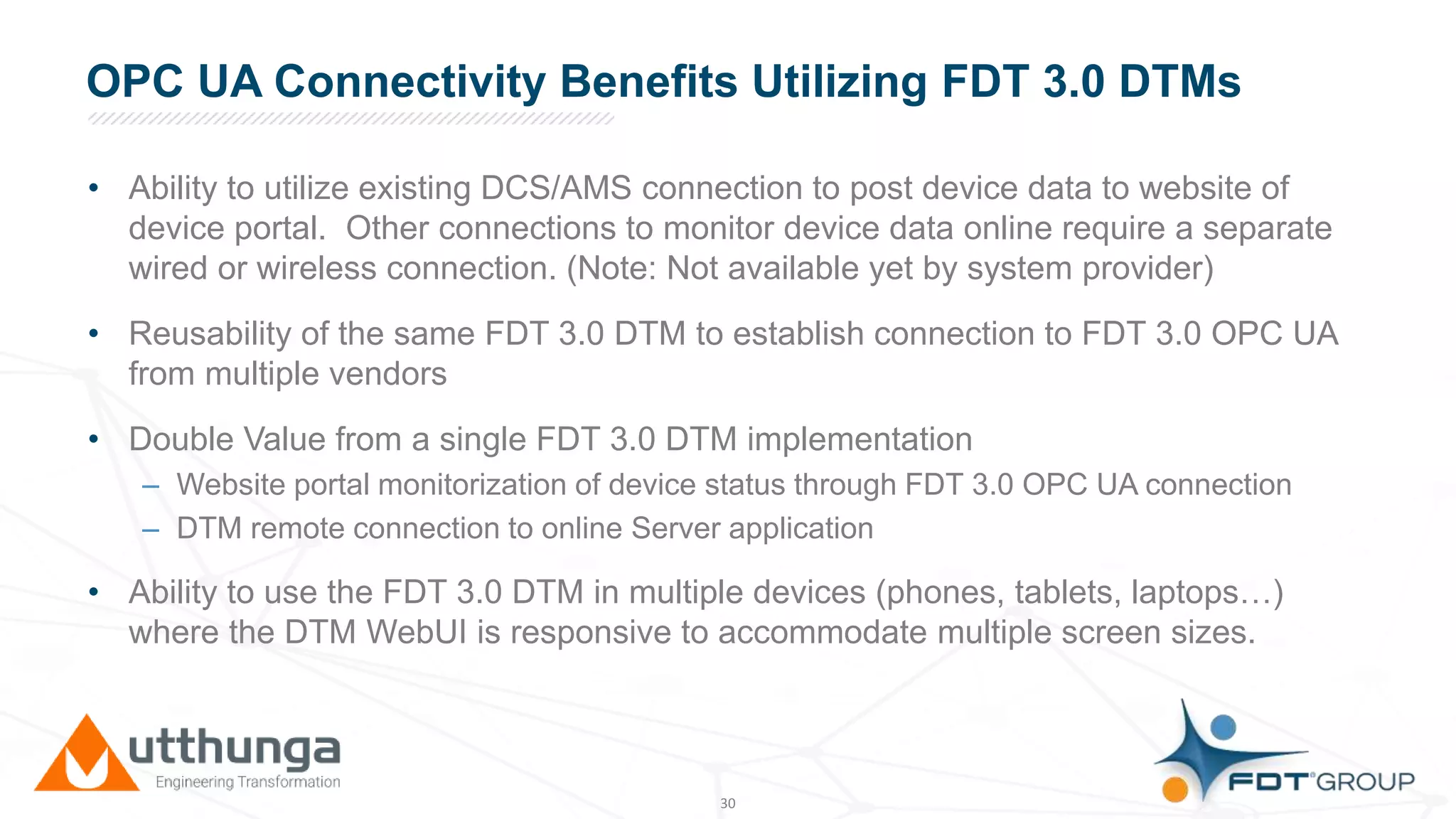

30. Click to edit Master title styleOPC UA Connectivity Benefits Utilizing FDT 3.0 DTMs
• Ability to utilize existing DCS/AMS connection to post device data to website of
device portal. Other connections to monitor device data online require a separate
wired or wireless connection. (Note: Not available yet by system provider)
• Reusability of the same FDT 3.0 DTM to establish connection to FDT 3.0 OPC UA
from multiple vendors
• Double Value from a single FDT 3.0 DTM implementation
– Website portal monitorization of device status through FDT 3.0 OPC UA connection
– DTM remote connection to online Server application
• Ability to use the FDT 3.0 DTM in multiple devices (phones, tablets, laptops…)
where the DTM WebUI is responsive to accommodate multiple screen sizes.
30

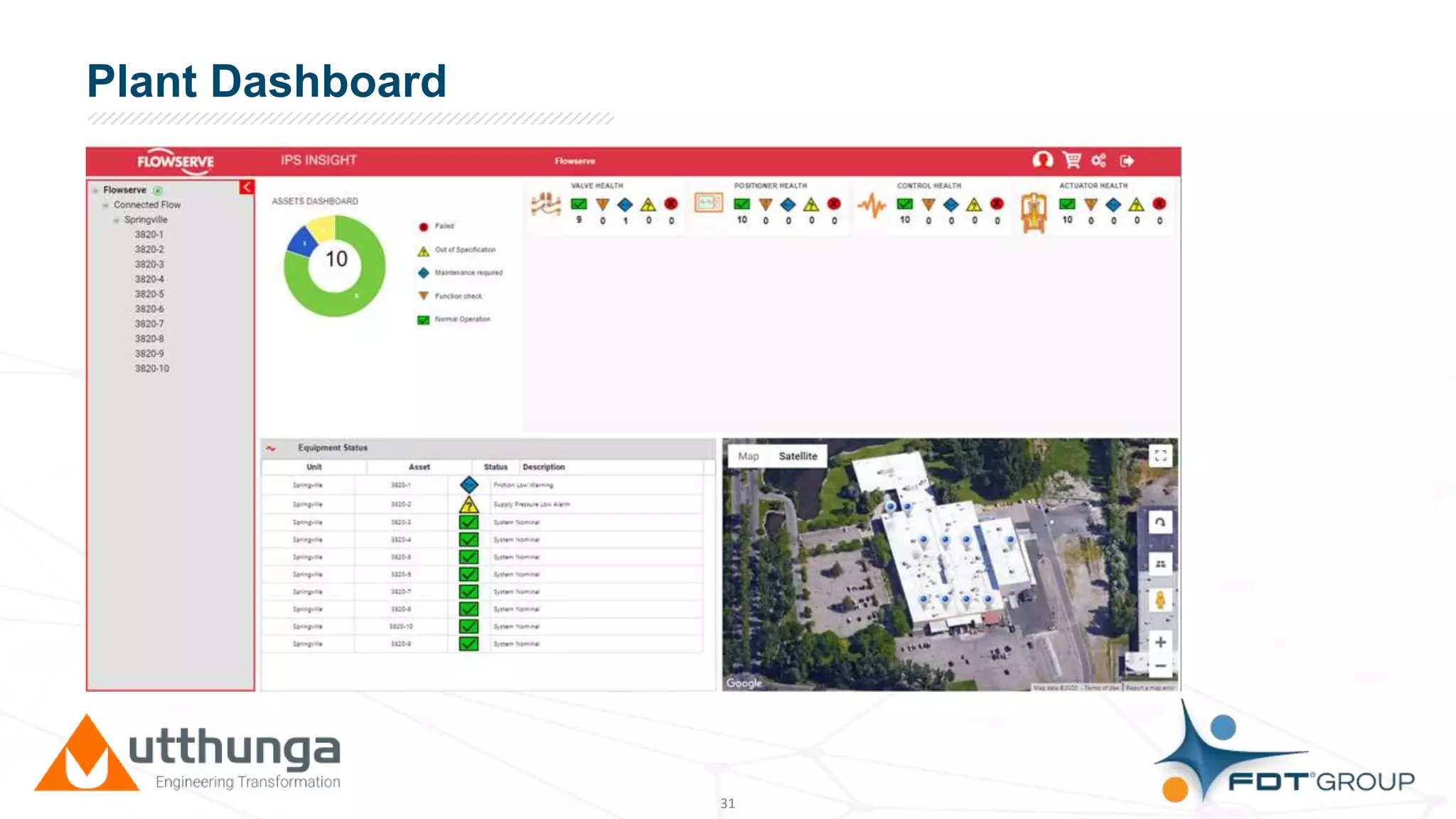

31. Click to edit Master title stylePlant Dashboard
31

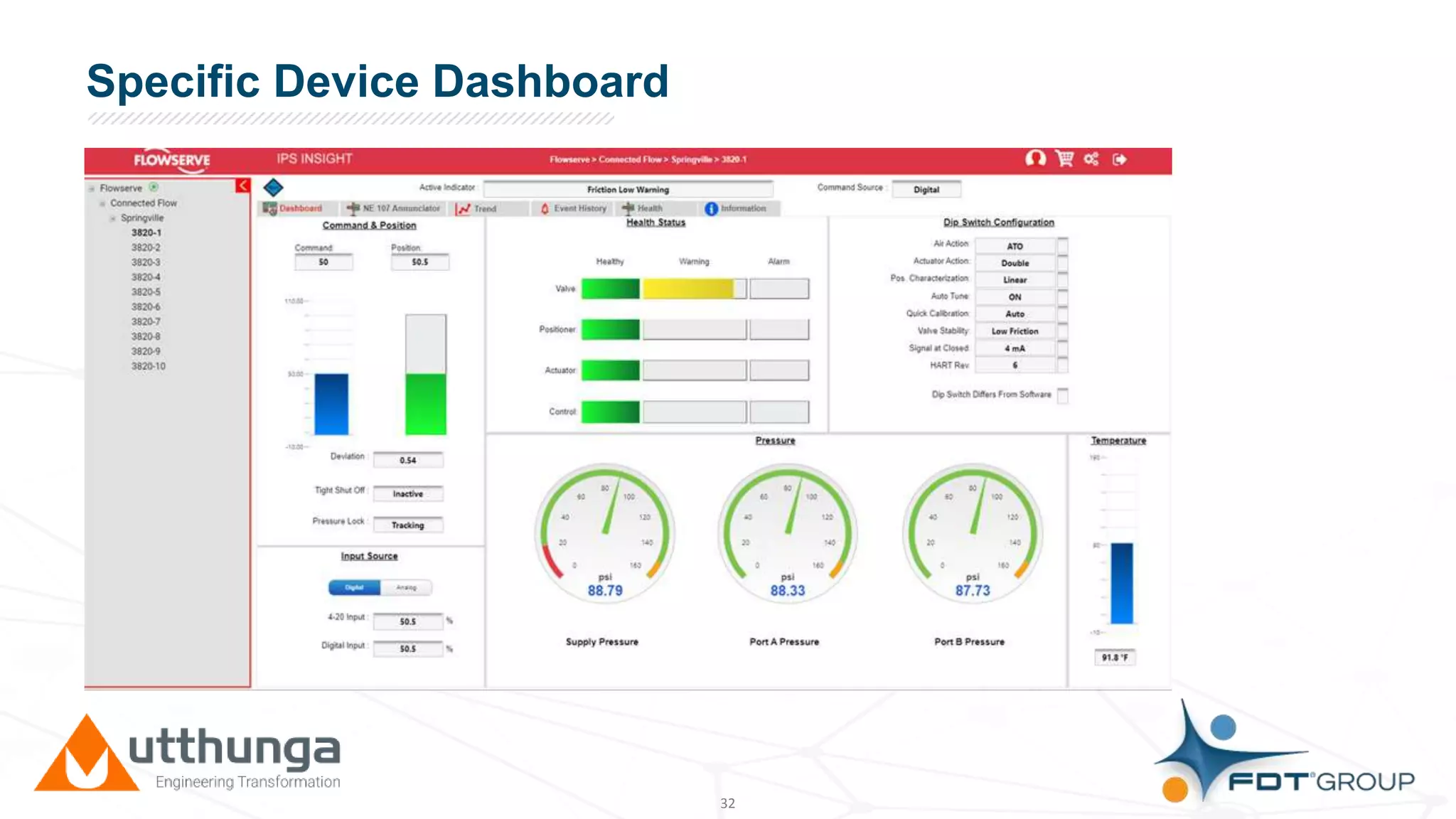

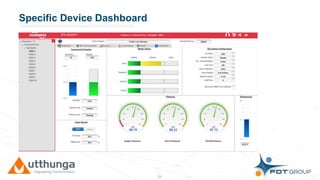

32. Click to edit Master title styleSpecific Device Dashboard
32

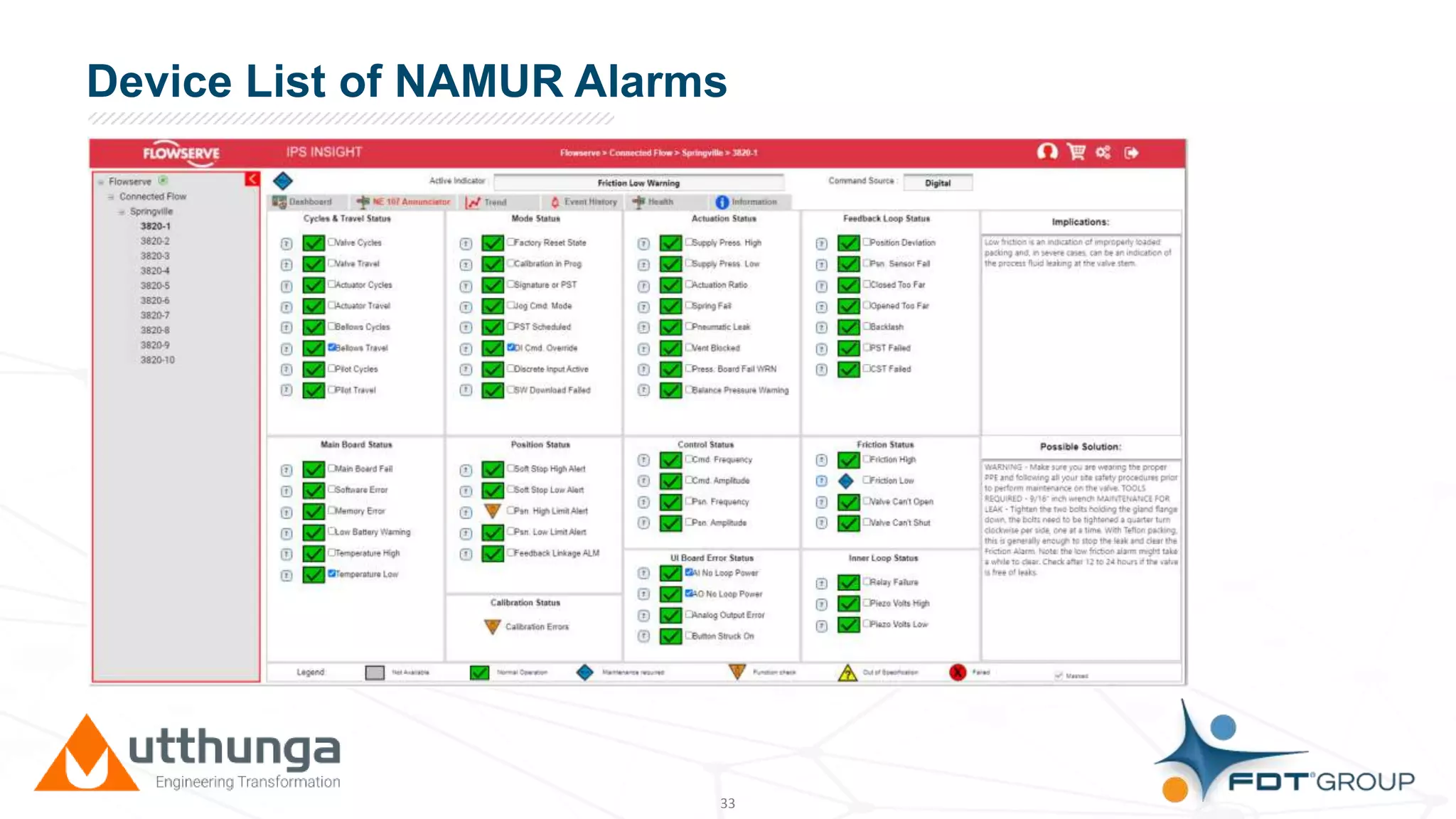

33. Click to edit Master title styleDevice List of NAMUR Alarms
33

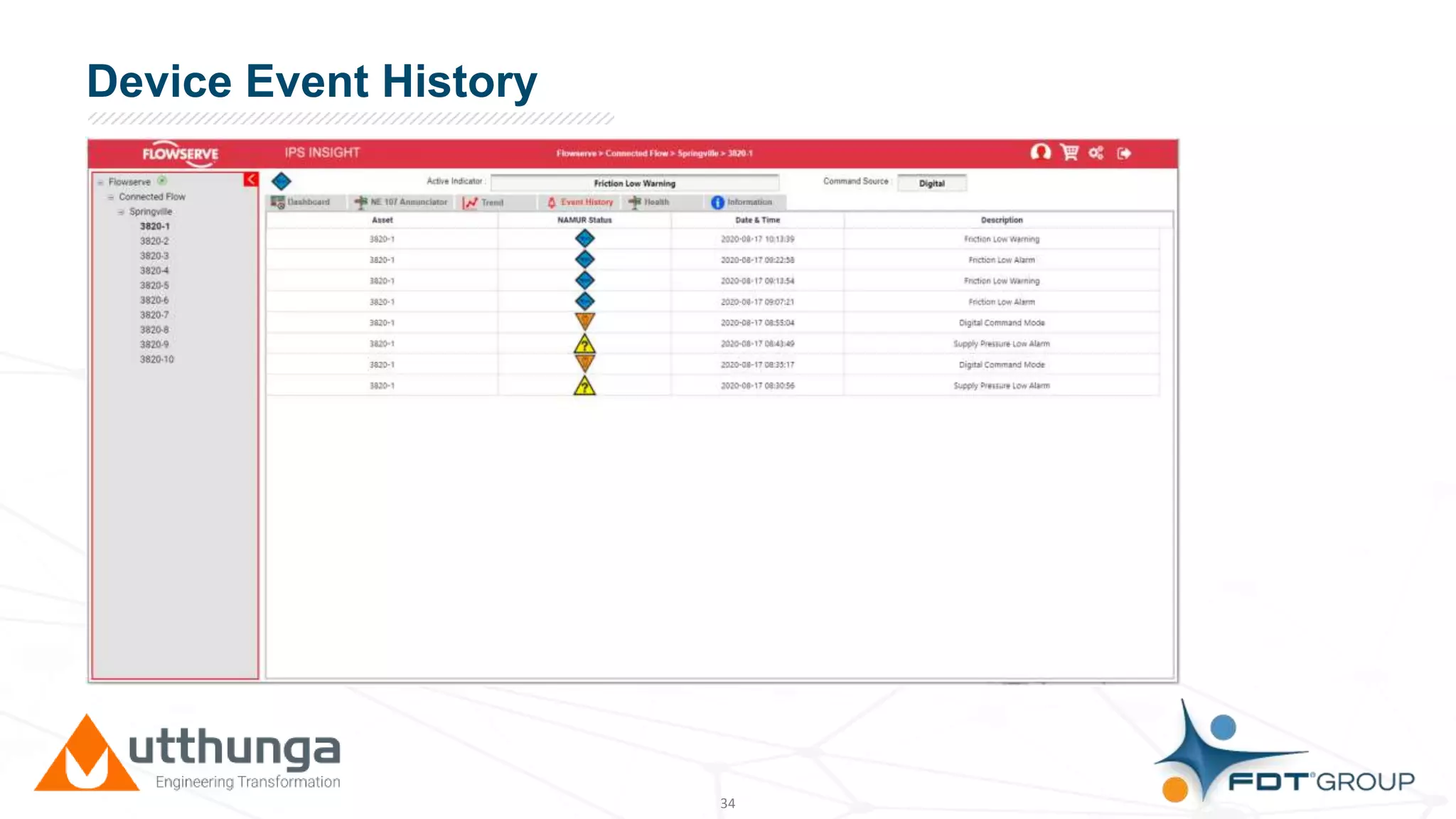

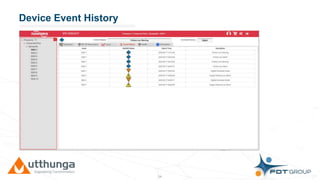

34. Click to edit Master title styleDevice Event History
34

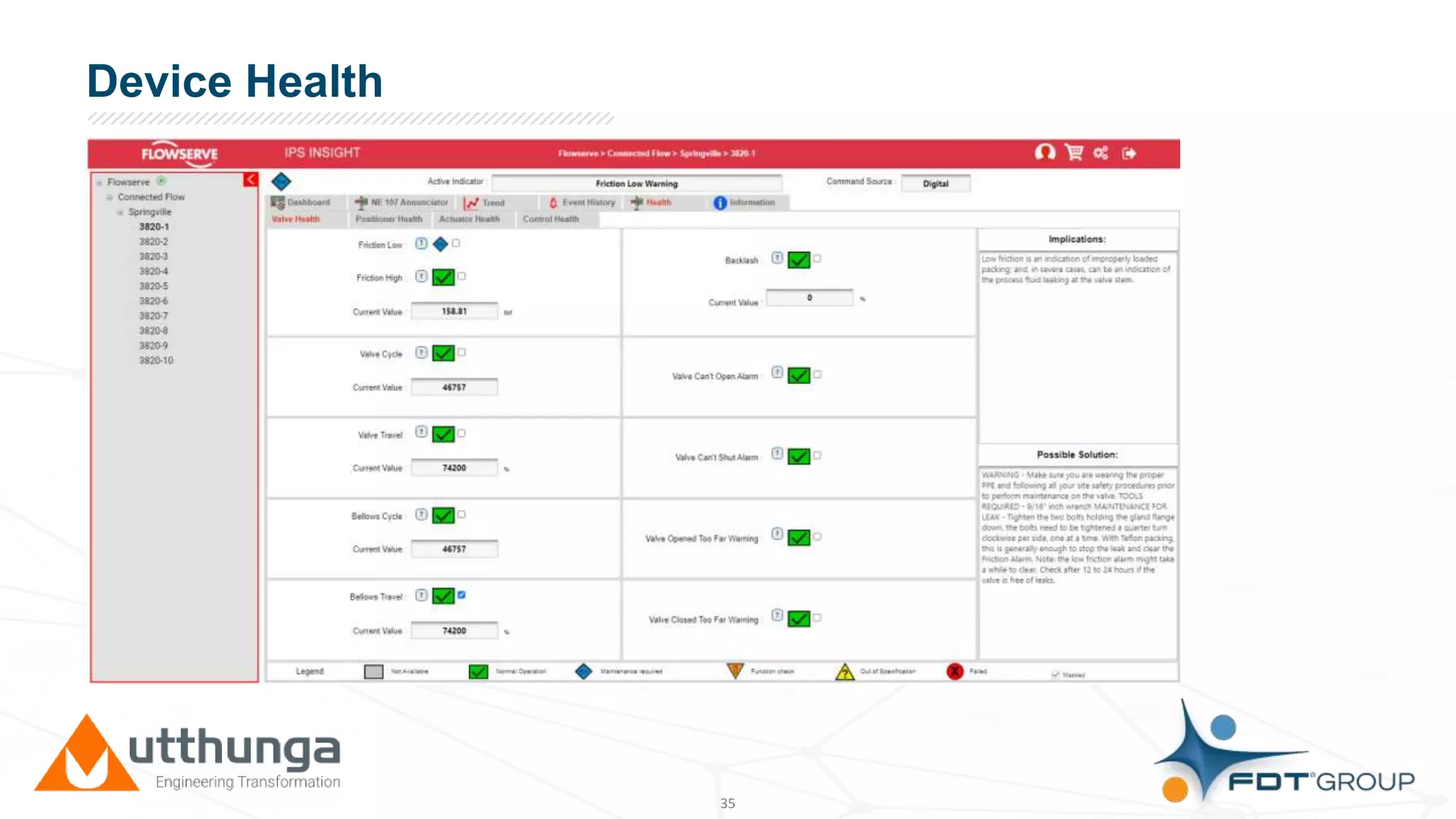

35. Click to edit Master title styleDevice Health
35

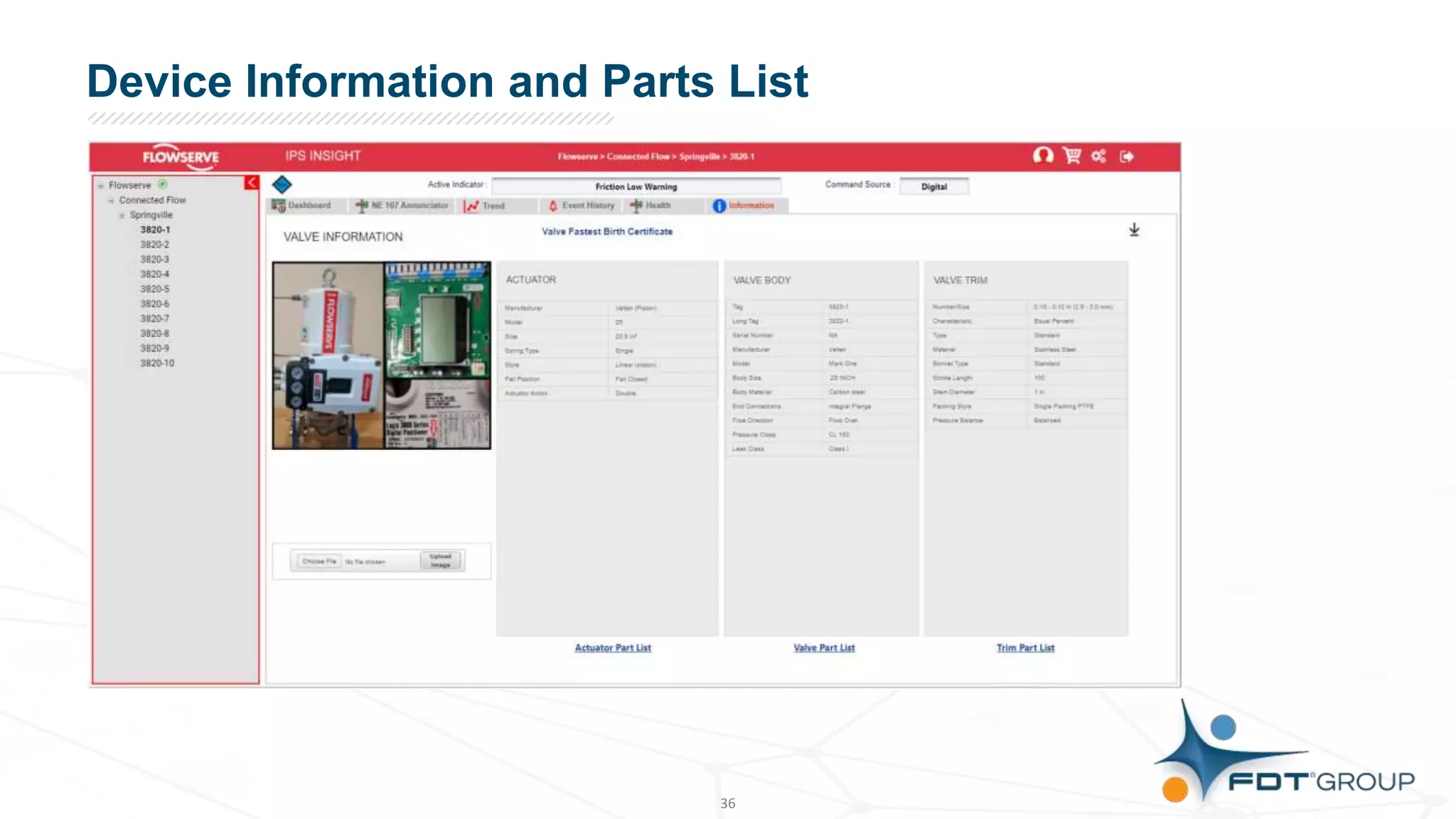

36. Click to edit Master title styleDevice Information and Parts List
36

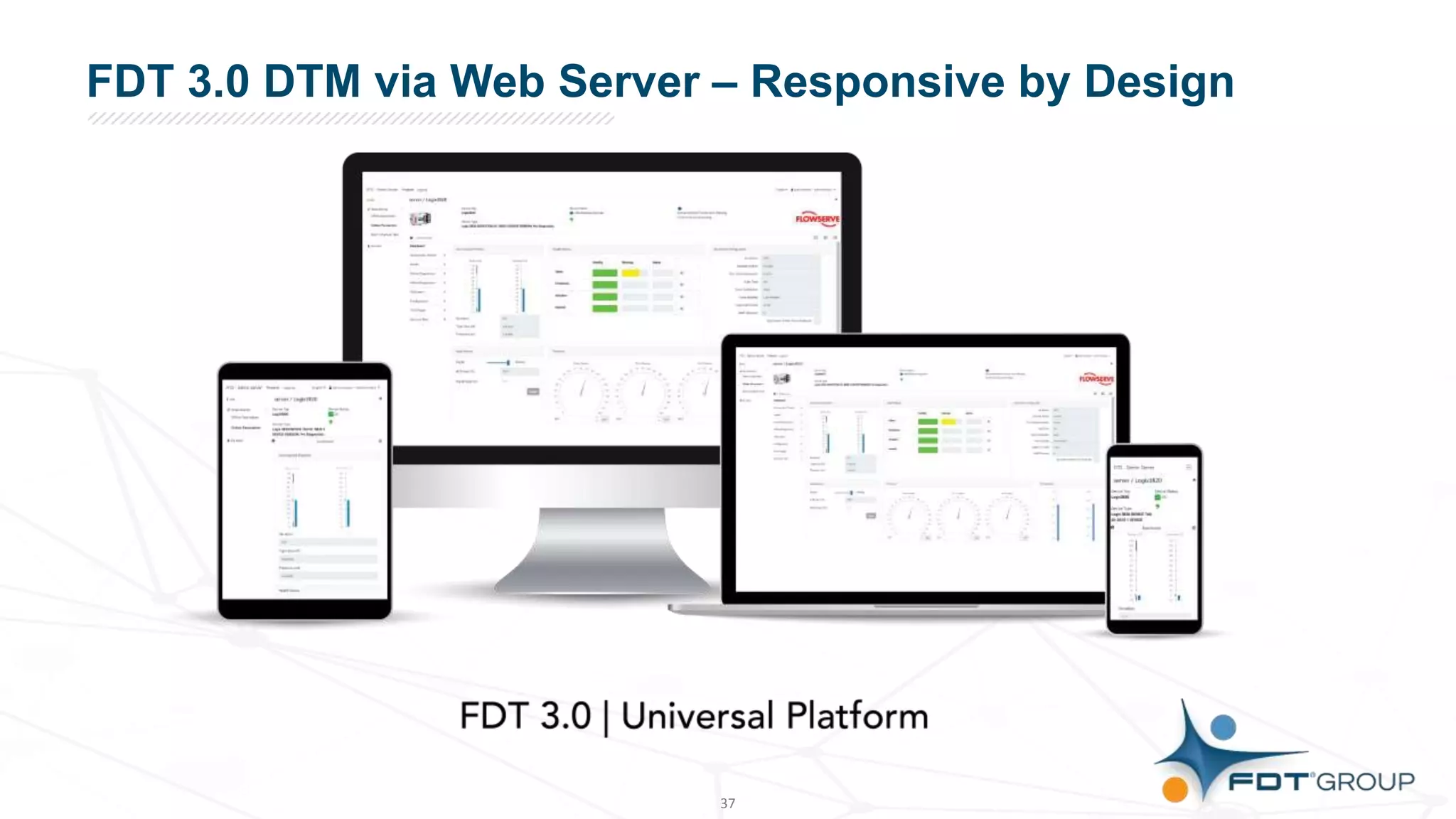

37. Click to edit Master title styleFDT 3.0 DTM via Web Server – Responsive by Design
37

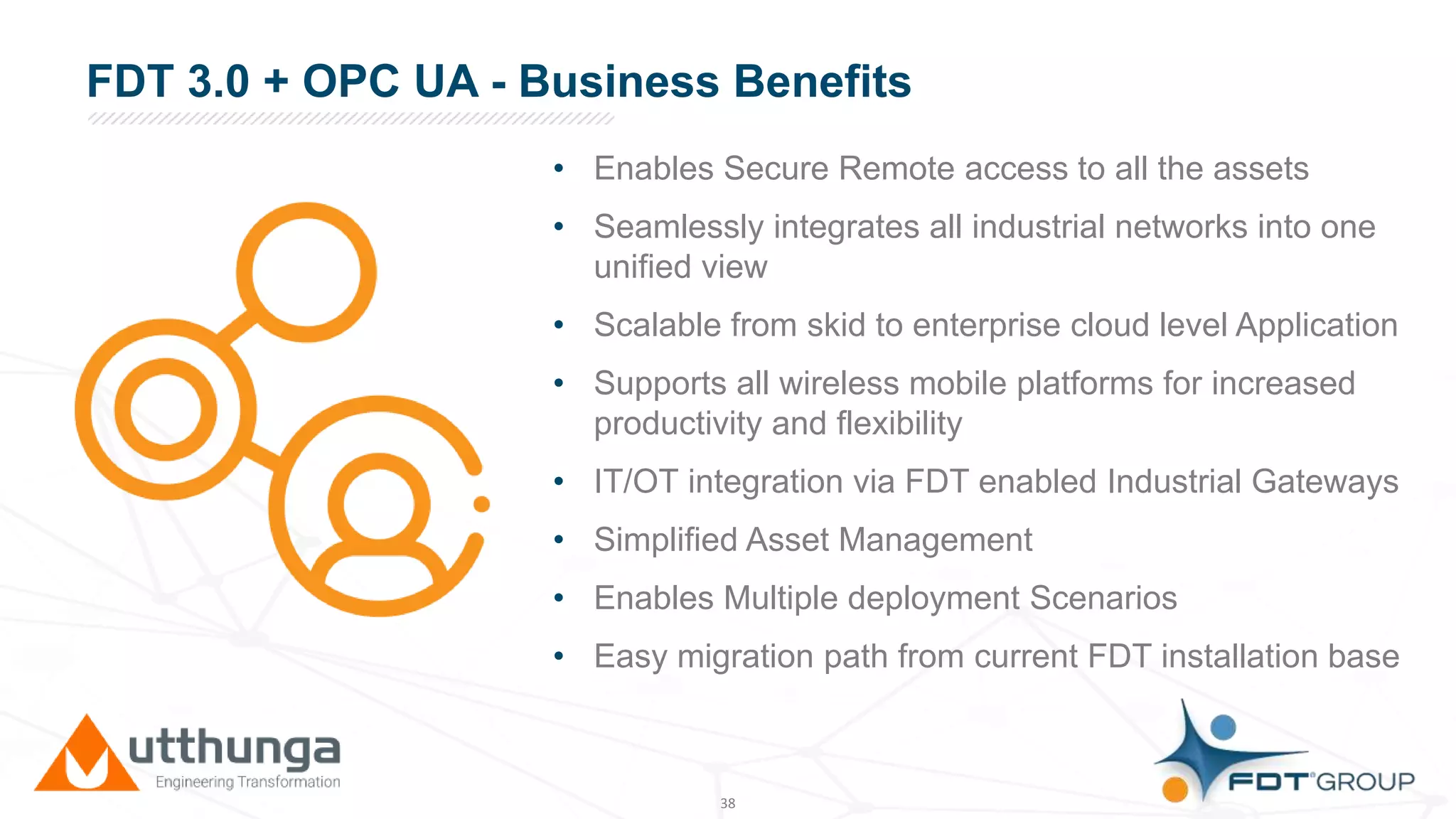

38. Click to edit Master title styleFDT 3.0 + OPC UA - Business Benefits
• Enables Secure Remote access to all the assets
• Seamlessly integrates all industrial networks into one
unified view
• Scalable from skid to enterprise cloud level Application
• Supports all wireless mobile platforms for increased
productivity and flexibility
• IT/OT integration via FDT enabled Industrial Gateways
• Simplified Asset Management
• Enables Multiple deployment Scenarios
• Easy migration path from current FDT installation base
38

39. Click to edit Master title style
QUESTIONS & ANSWERS
39

40. Click to edit Master title style
Thank You for Your Attention
© 2020 FDT Group AISBL; All Rights Reserved
All other product brands or product names are trademarks
of their respective owners.
