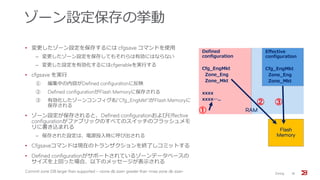

18. ゾーン設定保存の挙動
• 変更したゾーン設定を保存するには cfgsave コマンドを使用
‒ 変更したゾーン設定を保存してもそれらは有効にはならない
‒ 変更した設定を有効化するにはcfgenableを実行する
• cfgsave を実行
① 編集中の内容がDefined configurationに反映
② Defined configurationがFlash Memoryに保存される
③ 有効化したゾーンコンフィグ名(“Cfg_EngMkt”)がFlash Memoryに
保存される
• ゾーン設定が保存されると、Defined configurationおよびEffective
configurationがファブリックのすべてのスイッチのフラッシュメモ
リに書き込まれる
‒ 保存された設定は、電源投入時に呼び出される
• Cfgsaveコマンドは現在のトランザクションを終了しコミットする
• Defined configurationがサポートされているゾーンデータベースの
サイズを上回った場合、以下のメッセージが表示される
Commit zone DB larger than supported - <zone db size> greater than <max zone db size> Zoning 18
Defined
configuration
Cfg_EngMkt
Zone_Eng
Zone_Mkt
xxxx
xxxx…..
Effective
configuration
Cfg_EngMkt
Zone_Eng
Zone_Mkt
①
Flash
Memory
② ③
RAM
26. Default Zoning 設定例
Zoning 26
B6510-01:FID128:admin> defzone --show
Default Zone Access Mode
committed - All Access
transaction - No Transaction
B6510-01:FID128:admin> defzone --noaccess
You are about to set the Default Zone access mode to No Access
Do you want to set the Default Zone access mode to No Access ? (yes, y, no, n): [no] y
B6510-01:FID128:admin> defzone --show
Default Zone Access Mode
committed - All Access
transaction - No Access
B6510-01:FID128:admin> cfgsave
You are about to save the Defined zoning configuration. This
action will only save the changes on Defined configuration.
Do you want to save the Defined zoning configuration only? (yes, y, no, n): [no] y
Updating flash ...
B6510-01:FID128:admin> defzone --show
Default Zone Access Mode
committed - No Access
transaction - No Transaction
現在の設定を表示
アクセス禁止(no access)に変更
設定の保存

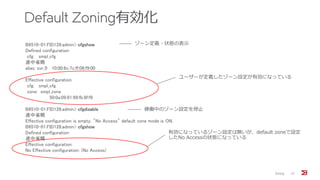

27. Default Zoning有効化
Zoning 27
B6510-01:FID128:admin> cfgshow
Defined configuration:
cfg: smpl_cfg
途中省略
alias: svr_0 10:00:8c:7c:ff:08:f9:00
Effective configuration:
cfg: smpl_cfg
zone: smpl_zone
50:0a:09:81:99:fb:8f:f9
B6510-01:FID128:admin> cfgdisable
途中省略
Effective configuration is empty. "No Access" default zone mode is ON.
B6510-01:FID128:admin> cfgshow
Defined configuration:
途中省略
Effective configuration:
No Effective configuration: (No Access)
ゾーン定義・状態の表示
稼働中のゾーン設定を停止
ユーザーが定義したゾーン設定が有効になっている
有効になっているゾーン設定は無いが、default zoneで設定
したNo Accessの状態になっている
28. Default Zone “noaccess”時のゾーンマージ
Zoning 28
SW1 (既存側) SW2(追加側) FOS7.0以前
の挙動
FOS7.0以降
の挙動
備 考
Defzone状態 Zone設定 Defzone状態 Zone設定
No Access Zone Config No Access Empty Zone conflict Fabric 形成 Zone ConfigがSW2へマージ
No Access Empty No Access Zone config Zone conflict Fabric 形成 Zone ConfigがSW1へマージ
All Access Zone Config No Access Empty Zone conflict Zone conflict
無停止でコンフリクトを解決す
るためにはDefzone を変更する
• SW1でNo Access (もしくは)
• SW2でAll Access
No Access Empty All Access Zone config Zone conflict Zone conflict
無停止でコンフリクトを解決す
るためにはDefzone を変更する
• SW1でAll Access (もしくは)
• SW2でNo Access
スイッチ同士のDefault Zoneの設定が異なった場合、FOS7.0以前と以降ではファブリックマージの挙動が異なる
47. ゾーン表示関連のコマンド
• nsaliasshow
‒ スイッチのネームサーバの表示情報(nsshow)にエイリアスの
情報を付加して表示
• nodefind <WWN | PID | Alias>
‒ WWN,PID,Aliasで指定したノードの情報を表示
• nszonemember –a
‒ オンラインのデバイスでゾーンのメンバーになっているデバ
イスのPIDとエイリアスを表示
• nszonemember –u
‒ オンラインのデバイスでゾーンのメンバーになっていないデ
バイスのPIDとエイリアスを表示
Zoning 47
admin> nsaliasshow
{
Type Pid COS PortName NodeName
TTL(sec)
N 011c00;
3;10:00:8c:7c:ff:07:d4:00;20:00:8c:7c:ff:07:d4:00; na
途中省略
LSAN: No
Aliases:
N 011d00; 3;10:00:8c:7c:ff:08:f9:00;20:00:8c:7c:ff:08:f9:00;
na
途中省略
LSAN: No
Aliases: svr_0
The Local Name Server has 4 entries }

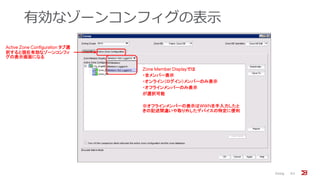

63. 有効なゾーンコンフィグの表示
Zoning 63
Active Zone Configuration タブ選
択すると現在有効なゾーンコンフィ
グの表示画面になる
Zone Member Displayでは
・全メンバー表示
・オンライン(ログイン)メンバーのみ表示
・オフラインメンバーのみ表示
が選択可能
※オフラインメンバーの表示はWWNを手入力したと
きの記述間違いや取り外したデバイスの特定に便利
