The document describes the features and specifications of the new PID 2 Falco gas detector from Ion Science Ltd. It features patented fence electrode and Typhoon technologies to minimize humidity effects and features an intuitive user interface with magnetic switches and a bright OLED display. It is available as a pumped or diffused model and offers gas detection from ppb to ppm levels with EXD and IS certification.

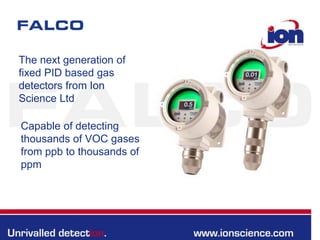

2. The next generation of
fixed PID based gas
detectors from Ion
Science Ltd
Capable of detecting
thousands of VOC gases
from ppb to thousands of
ppm

3. features
The New PID 2
Falco uses the new
MiniPID 2 which not only
boasts patented fence
electrode technology, it
also has Typhoon
technology that
minimizes the effects of
even condensing
humidity.

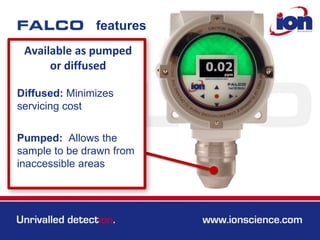

4. features
Available as pumped
or diffused
Diffused: Minimizes
servicing cost
Pumped: Allows the
sample to be drawn from
inaccessible areas

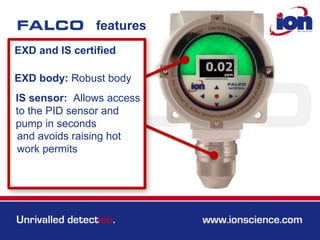

5. features
EXD and IS certified
EXD body: Robust body
IS sensor: Allows access
to the PID sensor and
pump in seconds
and avoids raising hot
work permits

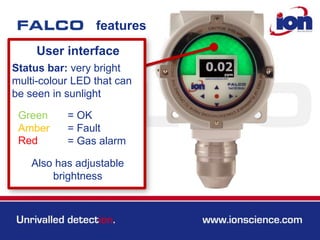

6. features
User interface
Status bar: very bright
multi-colour LED that can
be seen in sunlight
Green
Amber
Red
= OK
= Fault
= Gas alarm
Also has adjustable
brightness

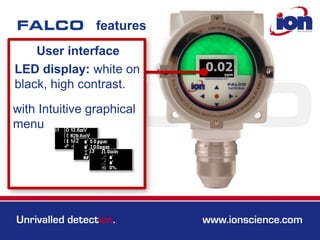

7. features
User interface
LED display: white on
black, high contrast.
with Intuitive graphical
menu

8. features
User interface
5 x magnetic switches:
UP
DOWN
LEFT RIGHT
ENTER
Offers quick and easy
setup and adjustment

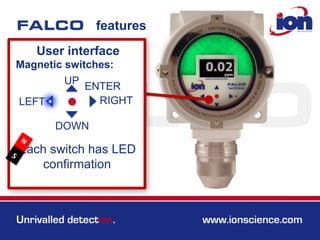

9. features
User interface
Magnetic switches:
UP
DOWN
LEFT RIGHT
ENTER
Each switch has LED
confirmation

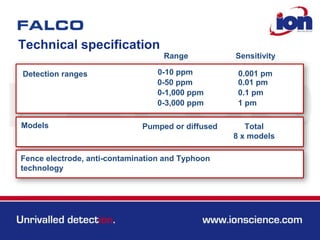

10. Technical specification
Detection ranges 0-10 ppm 0.001 pm
Sensitivity
0-50 ppm 0.01 pm
0-1,000 ppm 0.1 pm
0-3,000 ppm 1 pm
Range
Models Pumped or diffused
Fence electrode, anti-contamination and Typhoon
technology
Total
8 x models

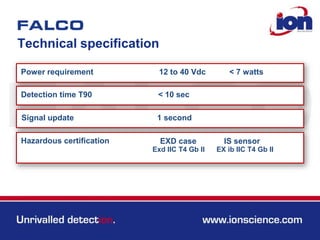

11. Technical specification
Power requirement
Detection time T90
12 to 40 Vdc
< 10 sec
Signal update 1 second
< 7 watts
Hazardous certification EXD case IS sensor
Exd IIC T4 Gb II EX ib IIC T4 Gb II

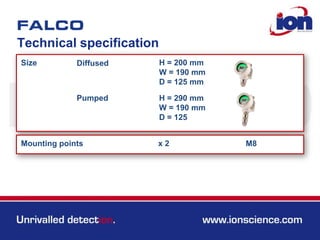

12. Technical specification
Size
Mounting points
Diffused
x 2 M8
Pumped
H = 200 mm
W = 190 mm
D = 125 mm
H = 290 mm
W = 190 mm
D = 125

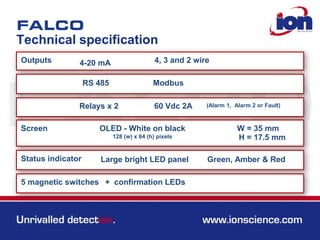

13. Technical specification
Outputs 4-20 mA 4, 3 and 2 wire
RS 485 Modbus
Relays x 2 60 Vdc 2A (Alarm 1, Alarm 2 or Fault)
Screen OLED - White on black
128 (w) x 64 (h) pixels
W = 35 mm
Large bright LED panel
5 magnetic switches
H = 17.5 mm
Status indicator Green, Amber & Red
+ confirmation LEDs

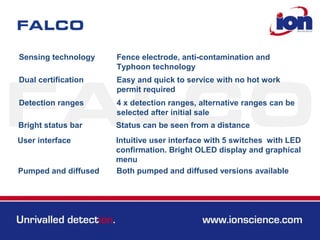

14. Sensing technology Fence electrode, anti-contamination and
Typhoon technology
Detection ranges 4 x detection ranges, alternative ranges can be
selected after initial sale
Dual certification Easy and quick to service with no hot work
permit required
Bright status bar Status can be seen from a distance
User interface Intuitive user interface with 5 switches with LED
confirmation. Bright OLED display and graphical
menu
Pumped and diffused Both pumped and diffused versions available
