1. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

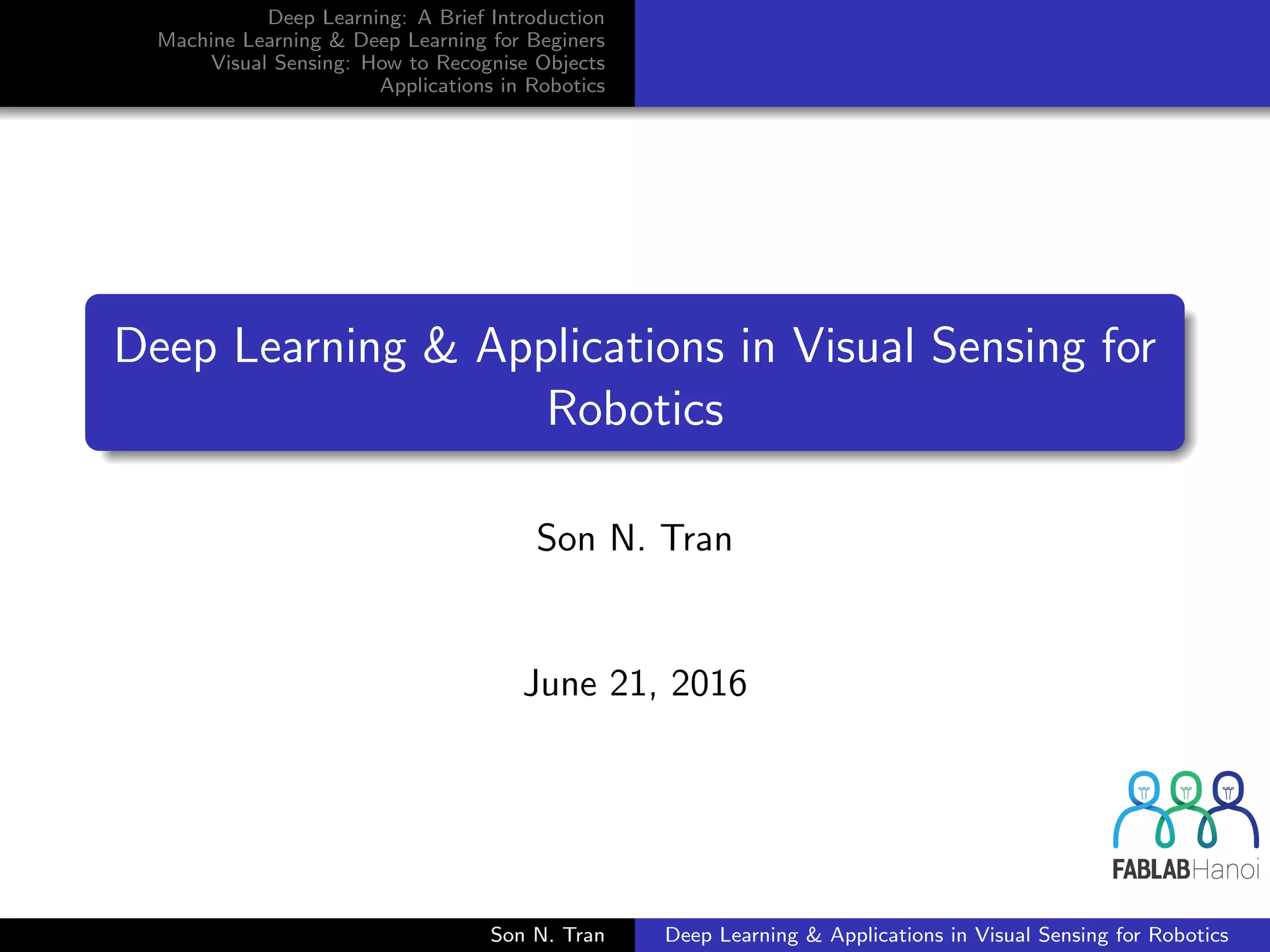

Deep Learning & Applications in Visual Sensing for
Robotics
Son N. Tran
June 21, 2016
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

2. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

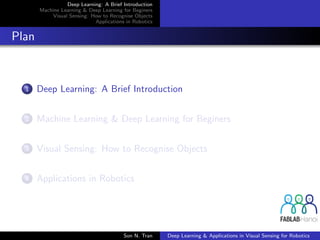

Plan
1 Deep Learning: A Brief Introduction
2 Machine Learning & Deep Learning for Beginers
3 Visual Sensing: How to Recognise Objects
4 Applications in Robotics
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

3. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

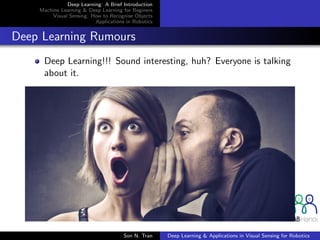

Deep Learning Rumours
Deep Learning!!! Sound interesting, huh? Everyone is talking
about it.
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

4. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

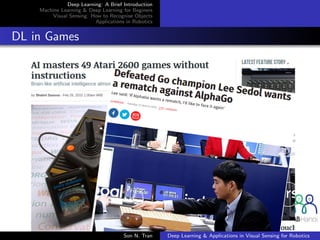

DL in Games
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

5. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

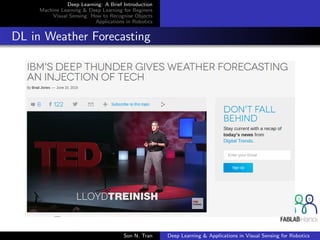

DL in Weather Forecasting
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

6. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

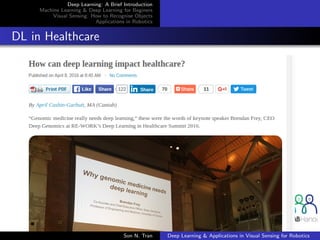

DL in Healthcare
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

7. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
DL in Beauty Industry
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

8. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

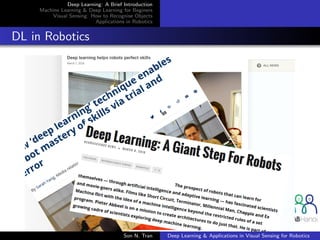

DL in Robotics
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

9. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

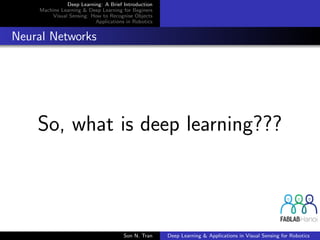

Neural Networks
So, what is deep learning???
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

10. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

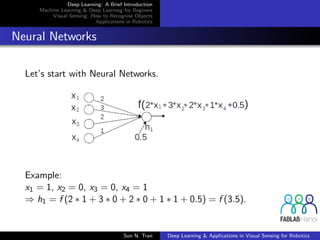

Neural Networks
Let’s start with Neural Networks.
Example:
x1 = 1, x2 = 0, x3 = 0, x4 = 1
⇒ h1 = f (2 ∗ 1 + 3 ∗ 0 + 2 ∗ 0 + 1 ∗ 1 + 0.5) = f (3.5).
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

11. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

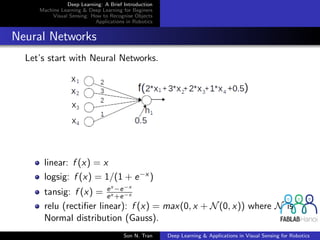

Neural Networks
Let’s start with Neural Networks.
linear: f (x) = x
logsig: f (x) = 1/(1 + e−x )
tansig: f (x) = ex −e−x
ex +e−x
relu (rectifier linear): f (x) = max(0, x + N(0, x)) where N is
Normal distribution (Gauss).
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

12. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

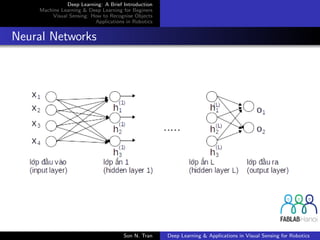

Neural Networks
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

13. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

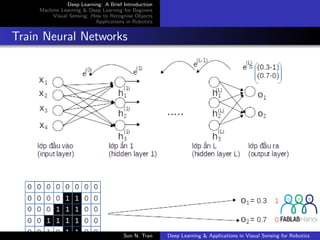

Train Neural Networks
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

14. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

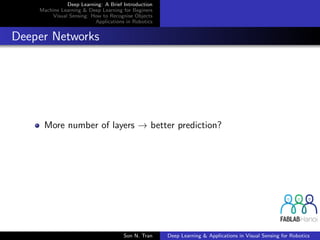

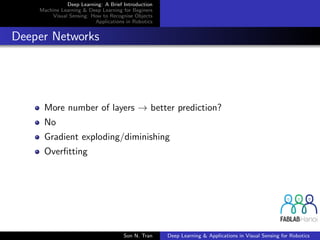

Deeper Networks
More number of layers → better prediction?
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

15. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

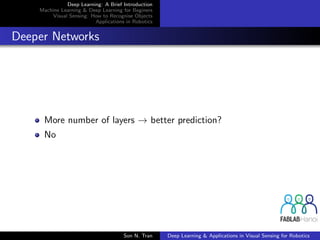

Deeper Networks
More number of layers → better prediction?
No
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

16. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
Deeper Networks
More number of layers → better prediction?
No
Gradient exploding/diminishing
Overfitting
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

17. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
Unsupervised Learning
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

18. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
Unsupervised Learning
Autoencoder
Restricted Boltzmann
Machines
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

19. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

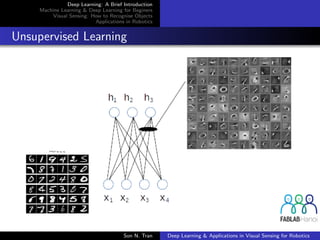

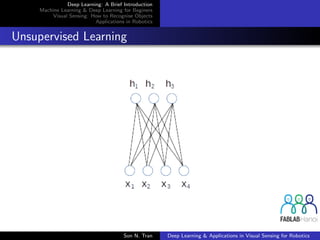

Unsupervised Learning
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

20. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

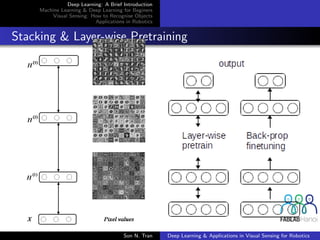

Stacking & Layer-wise Pretraining
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

21. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

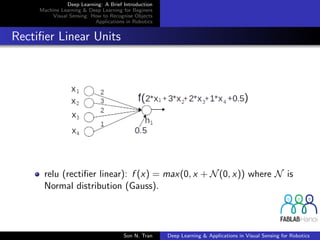

Rectifier Linear Units
relu (rectifier linear): f (x) = max(0, x + N(0, x)) where N is
Normal distribution (Gauss).
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

22. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
Dropout
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

23. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

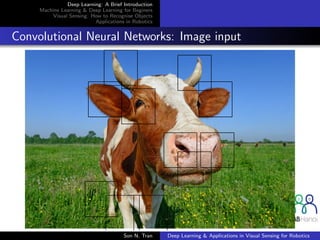

Convolutional Neural Networks: Image input
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

24. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

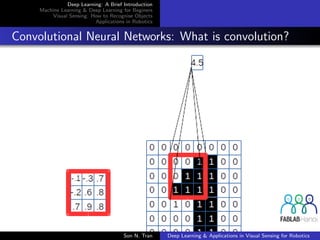

Convolutional Neural Networks: What is convolution?
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

25. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

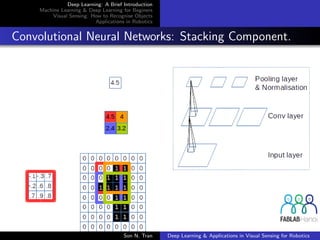

Convolutional Neural Networks: Stacking Component.
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

26. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

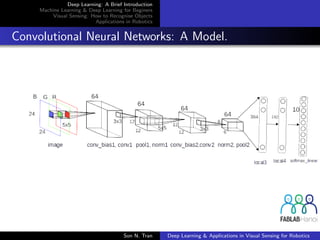

Convolutional Neural Networks: A Model.
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

27. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

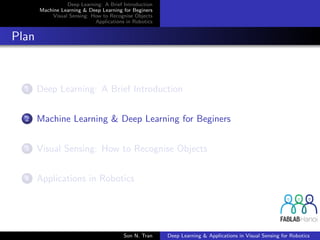

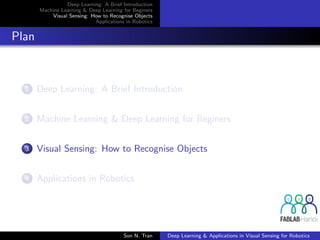

Plan
1 Deep Learning: A Brief Introduction
2 Machine Learning & Deep Learning for Beginers
3 Visual Sensing: How to Recognise Objects
4 Applications in Robotics
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

28. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

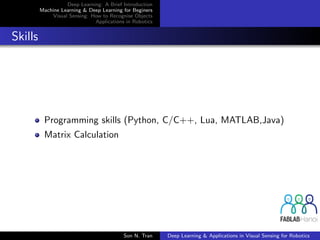

Skills
Programming skills (Python, C/C++, Lua, MATLAB,Java)
Matrix Calculation
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

29. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

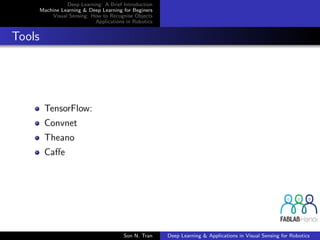

Tools
TensorFlow:
Convnet
Theano
Caffe
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

30. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

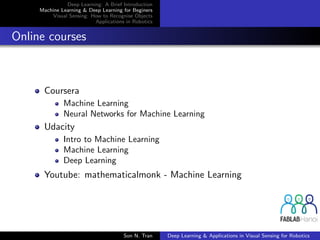

Online courses
Coursera
Machine Learning
Neural Networks for Machine Learning
Udacity
Intro to Machine Learning
Machine Learning
Deep Learning
Youtube: mathematicalmonk - Machine Learning
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

31. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

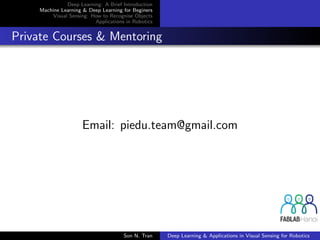

Private Courses & Mentoring
Email: piedu.team@gmail.com
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

32. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

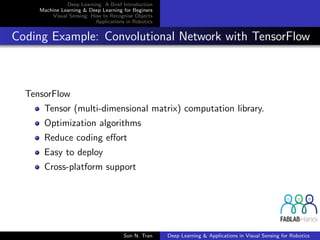

Coding Example: Convolutional Network with TensorFlow
TensorFlow
Tensor (multi-dimensional matrix) computation library.
Optimization algorithms
Reduce coding effort
Easy to deploy
Cross-platform support
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

33. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

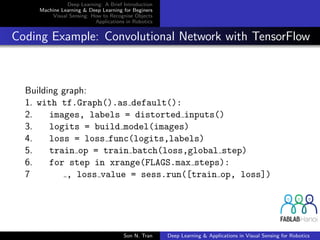

Coding Example: Convolutional Network with TensorFlow
Building graph:
1. with tf.Graph().as default():
2. images, labels = distorted inputs()
3. logits = build model(images)
4. loss = loss func(logits,labels)
5. train op = train batch(loss,global step)
6. for step in xrange(FLAGS.max steps):
7 , loss value = sess.run([train op, loss])
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

34. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

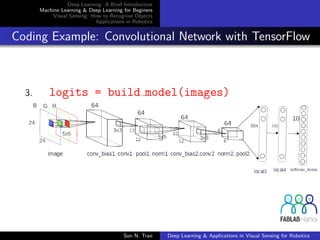

Coding Example: Convolutional Network with TensorFlow
3. logits = build model(images)
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

35. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

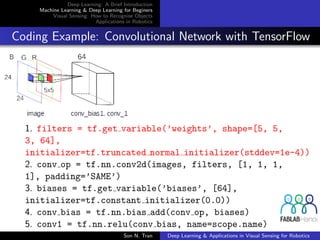

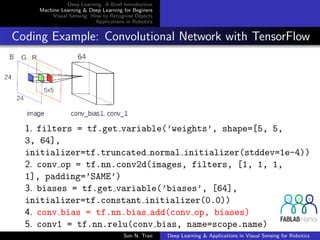

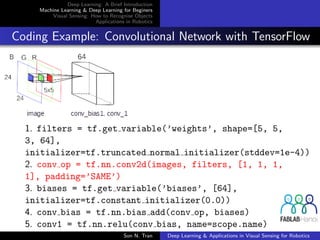

Coding Example: Convolutional Network with TensorFlow
1. filters = tf.get variable(’weights’, shape=[5, 5,
3, 64],
initializer=tf.truncated normal initializer(stddev=1e-4))
2. conv op = tf.nn.conv2d(images, filters, [1, 1, 1,
1], padding=’SAME’)
3. biases = tf.get variable(’biases’, [64],
initializer=tf.constant initializer(0.0))
4. conv bias = tf.nn.bias add(conv op, biases)
5. conv1 = tf.nn.relu(conv bias, name=scope.name)
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

36. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
Coding Example: Convolutional Network with TensorFlow
1. filters = tf.get variable(’weights’, shape=[5, 5,
3, 64],
initializer=tf.truncated normal initializer(stddev=1e-4))
2. conv op = tf.nn.conv2d(images, filters, [1, 1, 1,
1], padding=’SAME’)
3. biases = tf.get variable(’biases’, [64],
initializer=tf.constant initializer(0.0))
4. conv bias = tf.nn.bias add(conv op, biases)
5. conv1 = tf.nn.relu(conv bias, name=scope.name)
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

37. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
Coding Example: Convolutional Network with TensorFlow
1. filters = tf.get variable(’weights’, shape=[5, 5,
3, 64],
initializer=tf.truncated normal initializer(stddev=1e-4))
2. conv op = tf.nn.conv2d(images, filters, [1, 1, 1,
1], padding=’SAME’)
3. biases = tf.get variable(’biases’, [64],
initializer=tf.constant initializer(0.0))
4. conv bias = tf.nn.bias add(conv op, biases)
5. conv1 = tf.nn.relu(conv bias, name=scope.name)
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

38. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
Coding Example: Convolutional Network with TensorFlow
1. filters = tf.get variable(’weights’, shape=[5, 5,
3, 64],
initializer=tf.truncated normal initializer(stddev=1e-4))
2. conv op = tf.nn.conv2d(images, filters, [1, 1, 1,
1], padding=’SAME’)
3. biases = tf.get variable(’biases’, [64],
initializer=tf.constant initializer(0.0))
4. conv bias = tf.nn.bias add(conv op, biases)
5. conv1 = tf.nn.relu(conv bias, name=scope.name)
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

39. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
Coding Example: Convolutional Network with TensorFlow
1. filters = tf.get variable(’weights’, shape=[5, 5,
3, 64],
initializer=tf.truncated normal initializer(stddev=1e-4))
2. conv op = tf.nn.conv2d(images, filters, [1, 1, 1,
1], padding=’SAME’)
3. biases = tf.get variable(’biases’, [64],
initializer=tf.constant initializer(0.0))
4. conv bias = tf.nn.bias add(conv op, biases)
5. conv1 = tf.nn.relu(conv bias, name=scope.name)
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

40. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

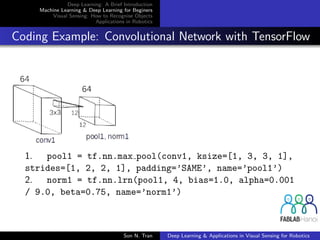

Coding Example: Convolutional Network with TensorFlow
1. pool1 = tf.nn.max pool(conv1, ksize=[1, 3, 3, 1],
strides=[1, 2, 2, 1], padding=’SAME’, name=’pool1’)
2. norm1 = tf.nn.lrn(pool1, 4, bias=1.0, alpha=0.001
/ 9.0, beta=0.75, name=’norm1’)
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

41. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
Coding Example: Convolutional Network with TensorFlow
3. logits = build model(images)
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

42. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
Plan
1 Deep Learning: A Brief Introduction
2 Machine Learning & Deep Learning for Beginers
3 Visual Sensing: How to Recognise Objects
4 Applications in Robotics
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

43. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
Object Localisation
Selective search: Demo
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

44. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

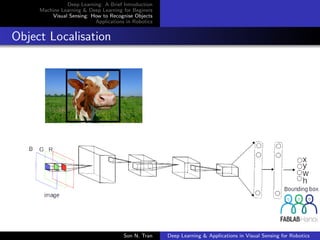

Object Localisation
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

45. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

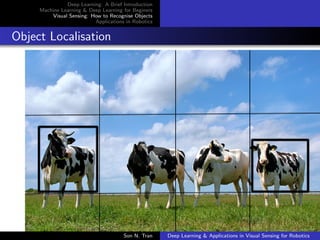

Object Localisation
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

46. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
Recognition model
Use Object Localisation techniques to generate candidate
objects.
Extract the bounding-boxes and use them to train another
Deep CNN for prediction
or
Train a single deep CNN for both localisation and recognition.
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

47. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

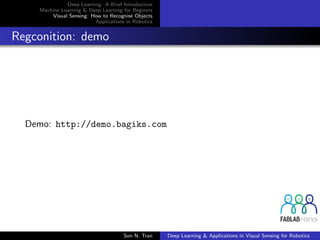

Regconition: demo
Demo: http://demo.bagiks.com
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

48. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
Bagiks Team
Bagiks team: http://www.bagiks.com/
Interested in using/helping to improve the solutions? contact
team@bagiks.com
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

49. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
Plan
1 Deep Learning: A Brief Introduction
2 Machine Learning & Deep Learning for Beginers
3 Visual Sensing: How to Recognise Objects
4 Applications in Robotics
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

50. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
Camera Sensor
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

51. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

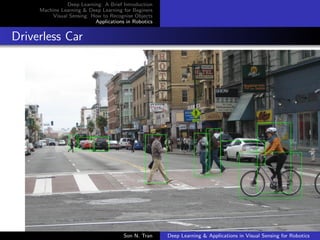

Driverless Car
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

52. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

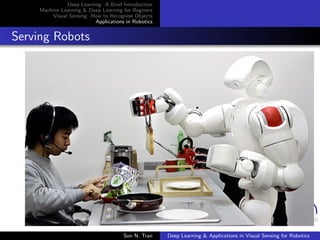

Serving Robots
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

53. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics

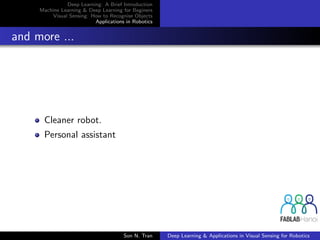

and more ...
Cleaner robot.
Personal assistant
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics

54. Deep Learning: A Brief Introduction
Machine Learning & Deep Learning for Beginers
Visual Sensing: How to Recognise Objects
Applications in Robotics
THANKS!
PiEdu
Bagiks
Thank you.
Contact Presenter: sontn.fz@gmail.com
Son N. Tran Deep Learning & Applications in Visual Sensing for Robotics
