1. Eye Tracking the User Experience of
Mobile: What You Need to Know
Jennifer Romano Bergstrom
April 30, 2014
RUX| Richmond, VA
@romanocog @richmondux

2. 2
http://www.pewinternet.org/three-technology-revolutions/
http://www.pewinternet.org/fact-sheets/mobile-technology-fact-sheet/
@romanocog @richmondux
Technology Revolutions
%ofAmericanadults
90% of American adults have a cell phone
58% have a smartphone
42% have an tablet
32% have an e-reader

3. 3
http://www.pewinternet.org/2013/09/19/cell-phone-activities-2013/
@romanocog @richmondux
The % of cell phone owners who use their cell phone to…

4. 4
http://www.pewinternet.org/2013/09/19/cell-phone-activities-2013/
@romanocog @richmondux
%ofAmericanadults%ofAmericanadults
Cell Phone Activities

5. 5
Nielsen: The Cross-Platform Report, Quarter 2, 2012-US
@romanocog @richmondux

6. 6
Krug, S. (2000) Don’t Make Me Think. Pearson Education *NEW 3rd Edition (2014)*
@romanocog @richmondux
What we design for…and reality

7. 7
He, Siu, Strohl, & Chaparro (2014). Mobile. In Romano Bergstrom & Schall (Eds). Eye Tracking in User Experience Design.
Morgan Kaufmann.
@romanocog @richmondux
Users read what they need to read

8. 8
Placement of Instructions

9. 9
Placement of Instructions

10. 10
Placement of Instructions

11. 11
Placement of Instructions

12. Usability = “the extent
to which a product can
be used by specified
users to achieve
specified goals with
effectiveness,
efficiency, and
satisfaction in a
specified context of
use.” ISO 9241-11
@romanocog @richmondux
+ emotions and
perceptions = UX

13. 13 User Experience Design (P. Morville): http://semanticstudios.com/publications/semantics/000029.php
@romanocog @richmondux
User Experience

14. 14
@romanocog @richmondux
When to test

15. 15
https://www.youtube.com/watch?v=GrV2SZuRPv0
@romanocog @richmondux
Low-Fi Paper Prototypes

16. 16 https://uxmag.com/articles/eight-lessons-in-mobile-usability-testing
@romanocog @richmondux
Mobile Low-Fi Paper Prototypes

17. 17
OBSERVATIONAL
+ Ethnography
+ Time to complete task
+ Reaction time
+ Selection/click behavior
+ Ability to complete tasks
+ Accuracy
IMPLICIT
+ Facial expression analysis
+ Eye tracking
+ Electrodermal activity (EDA)
+ Behavioral analysis
+ Linguistic analysis of verbalizations
+ Implicit associations
+ Pupil dilation
EXPLICIT
+ Post-task satisfaction
questionnaires
+ In-session difficulty ratings
+ Verbal responses
+ Moderator follow up
+ Real-time +/- dial
@romanocog @richmondux
UX Data

18. Traditional UX research is
good at explaining what
people say and do, not
what they think and feel.
@romanocog @richmondux
Why should we measure implicit?

19. Explicit data
19
*Satisfaction Questionnaire: Please rate how difficult it was to log in on this device. 1= not difficult at all to 5= extremely difficult.
“Love the picture in the middle of it.”
“It looks very clean and very simple.”
“It looks pretty organized, it's a nice design.”
When asked how they would save information,
four of six participants said they would
bookmark the page or take a screenshot of
the information. Only two mentioned that
they would use the site functionality to save
for later use.
83%
9%
9%
Percentage of Difficulty Ratings*
1 & 2
3
>=4
@romanocog @richmondux
Explicit Data
0
3
6
9
Participant Ratings
Likelihood to Recommend
Not likely at all or
Slightly likely
Moderately Likely
Very Likely
0
3
6
9
Participant Ratings
Likelihood to Use
Not likely at all or
Slightly likely
Moderately Likely
Very Likely
*Satisfaction Questionnaire: How likely would you be to use this site in the future?
How likely would you be to recommend this site to a friend?

20. Observational data
20
Details page about Military
Physician Assistant career, only
accessible through Military section.
Details page about Civilian
Physician Assistant career.
Six participants clicked on Salary &
Wages when looking for states with the
most jobs before looking under Job
Growth.
• Five participants thought they had
completed the task once they found the
Salary & Wages map on the wrong page.
0
5
10
15
20
Time on Page
Seconds
Average time on landing page
@romanocog @richmondux
Observational Data
First click data

21. 2121
Implicit data
21
6
6.5
7
7.5
8
8.5
9
00:00.00 00:07.50 00:15.00 00:22.50 00:30.00 00:37.50 00:45.00 00:52.50
Begin date and
time selection.
End date and
time selection.
Trouble with scrolling.
More trouble with scrolling.
@romanocog @richmondux
Implicit Data

22. 2222
Trouble with scrolling.
22
@romanocog @richmondux
Implicit Data
Djamasbi & Hall-Phillips (2014). Visual Search. In Romano Bergstrom & Schall (Eds). Eye Tracking in User Experience Design.
Morgan Kaufmann.

23. 23
Modern eye trackingModern Eye Tracking
@romanocog @richmondux

24. 24
Modern eye tracking
Mobile Eye Tracking

25. 25

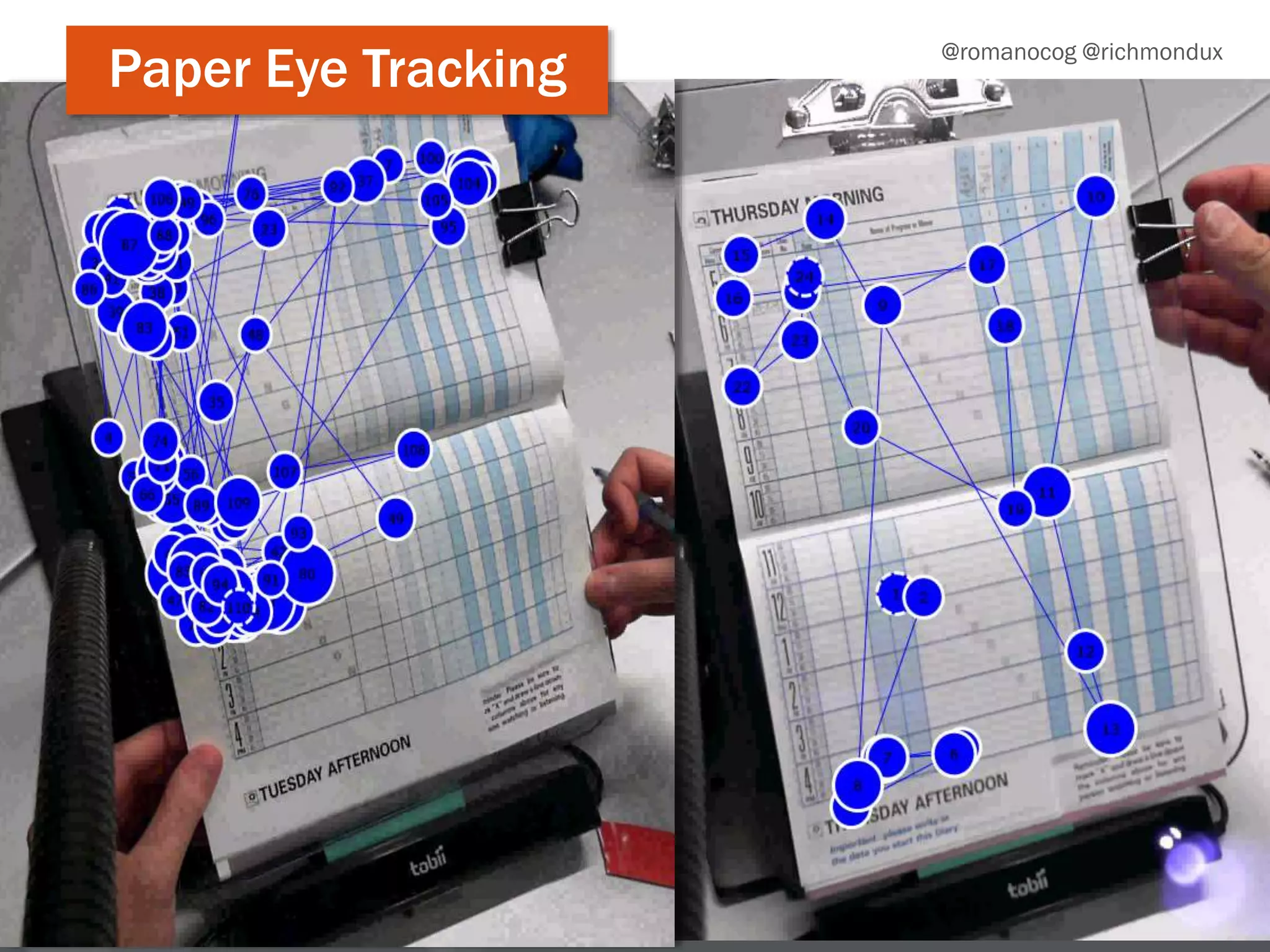

Eye tracking paper
@romanocog @richmondux
Paper Eye Tracking

26. Issue: Error messages are not useful.
26
UX Best Practice: Specifically explain the error, and place the messages near where the error
occurs so the user can quickly fix the error and move on.
• “How do I advance to the next screen?”
• “It seems like it's stuck on the screen.”
M
Gaze Plot: After getting an error message, the
participant had to search all over the screen to
find the missing field.
@romanocog @richmondux

27. Error Messages Across Devices
27
@romanocog @richmondux

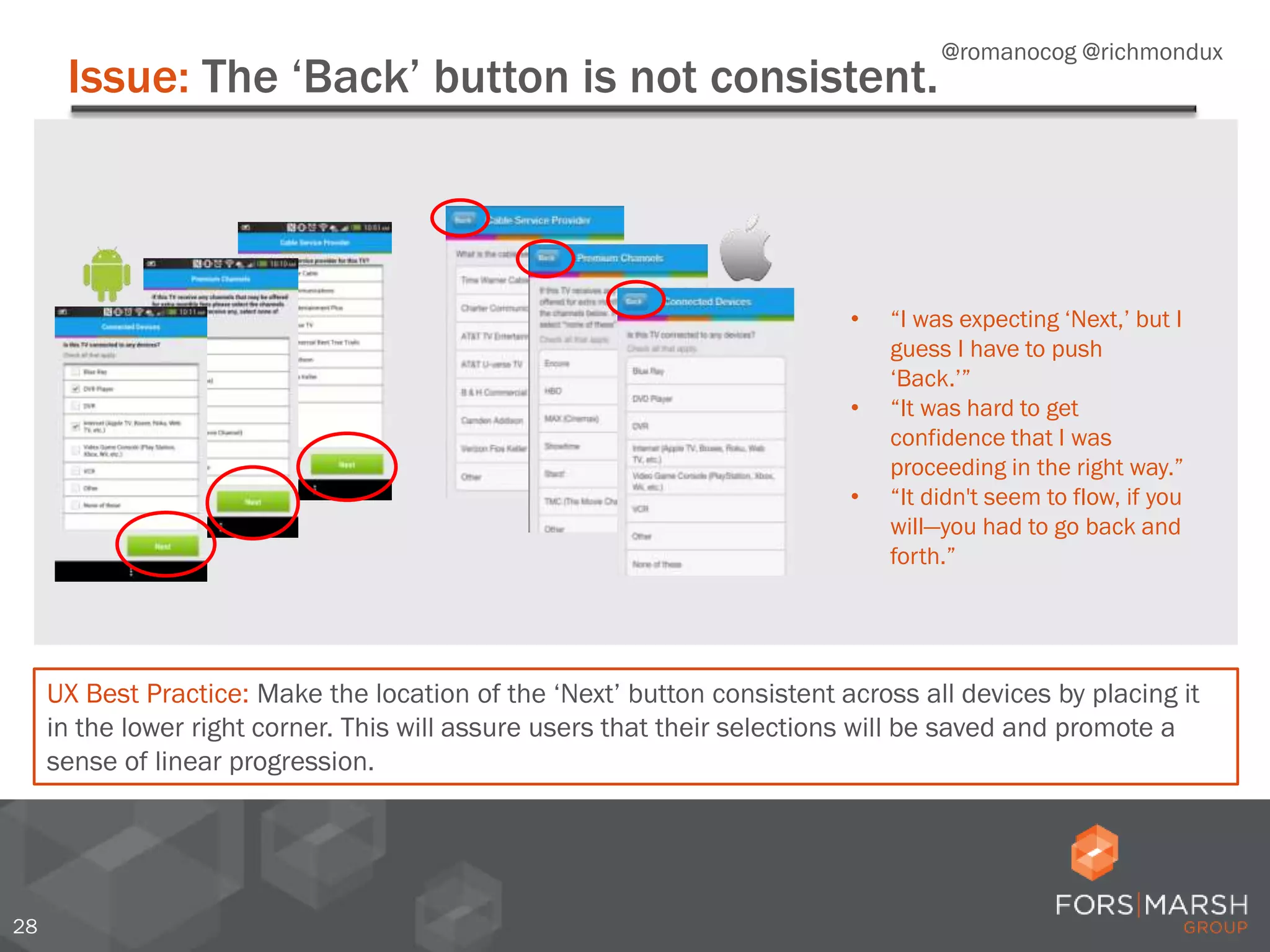

28. Issue: The ‘Back’ button is not consistent.
28
UX Best Practice: Make the location of the ‘Next’ button consistent across all devices by placing it
in the lower right corner. This will assure users that their selections will be saved and promote a
sense of linear progression.
• “I was expecting ‘Next,’ but I
guess I have to push
‘Back.’”
• “It was hard to get
confidence that I was
proceeding in the right way.”
• “It didn't seem to flow, if you
will—you had to go back and
forth.”
@romanocog @richmondux

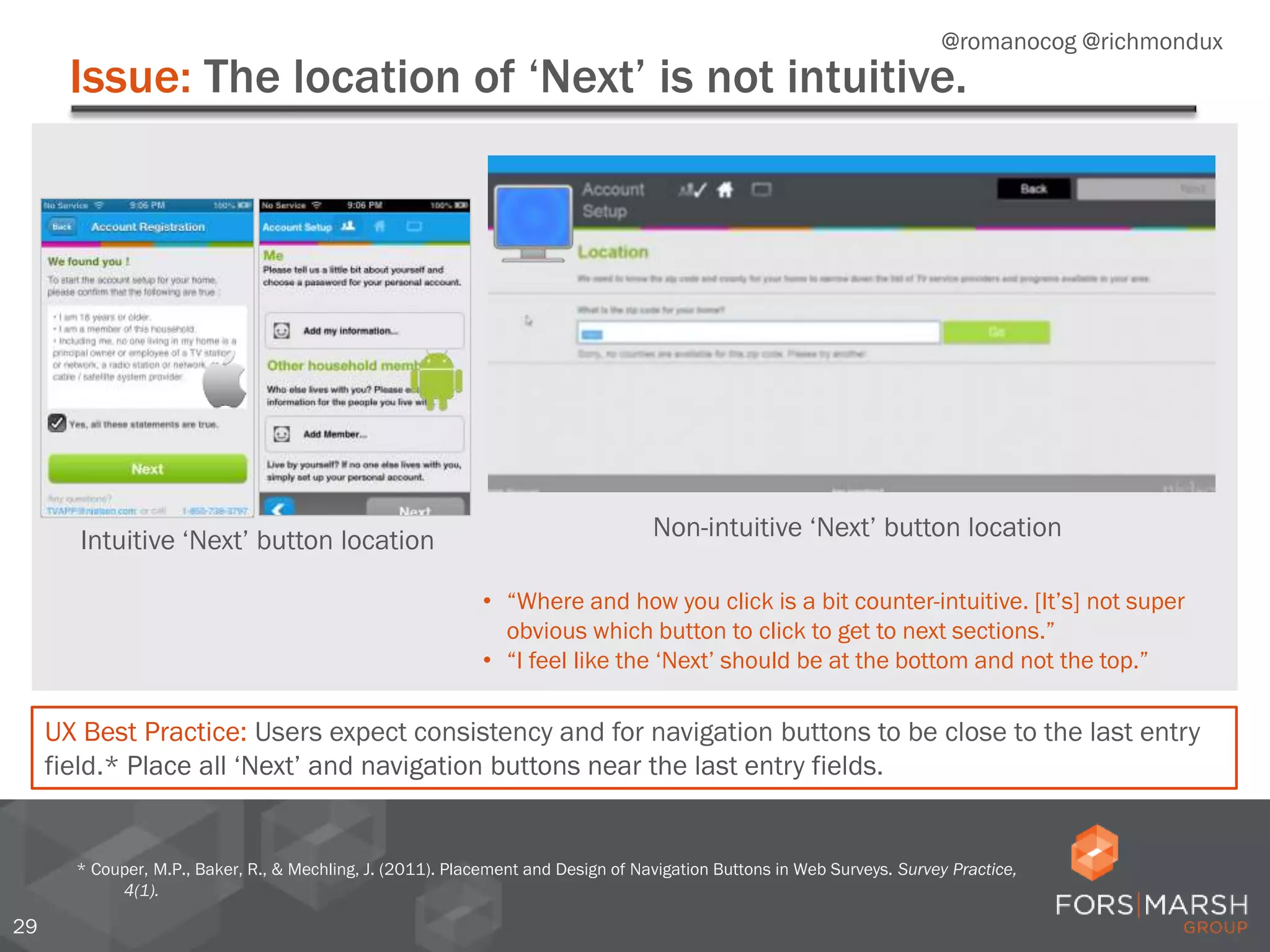

29. Issue: The location of ‘Next’ is not intuitive.
29
* Couper, M.P., Baker, R., & Mechling, J. (2011). Placement and Design of Navigation Buttons in Web Surveys. Survey Practice,
4(1).
• “Where and how you click is a bit counter-intuitive. [It’s] not super
obvious which button to click to get to next sections.”
• “I feel like the ‘Next’ should be at the bottom and not the top.”
UX Best Practice: Users expect consistency and for navigation buttons to be close to the last entry
field.* Place all ‘Next’ and navigation buttons near the last entry fields.
Intuitive ‘Next’ button location Non-intuitive ‘Next’ button location
@romanocog @richmondux

30. Issue: The iPad website keyboard blocks the screen.
30
UX Best Practice: Design the layout of the page such that important functions are always visible
while the keyboard is open.
0
1
2
3
4
5
6
7
8
9
10
Tablet PC Smart Phone
NumberofiPadWebParticipants
Tablet Web Users: Least Favorite Device
@romanocog @richmondux

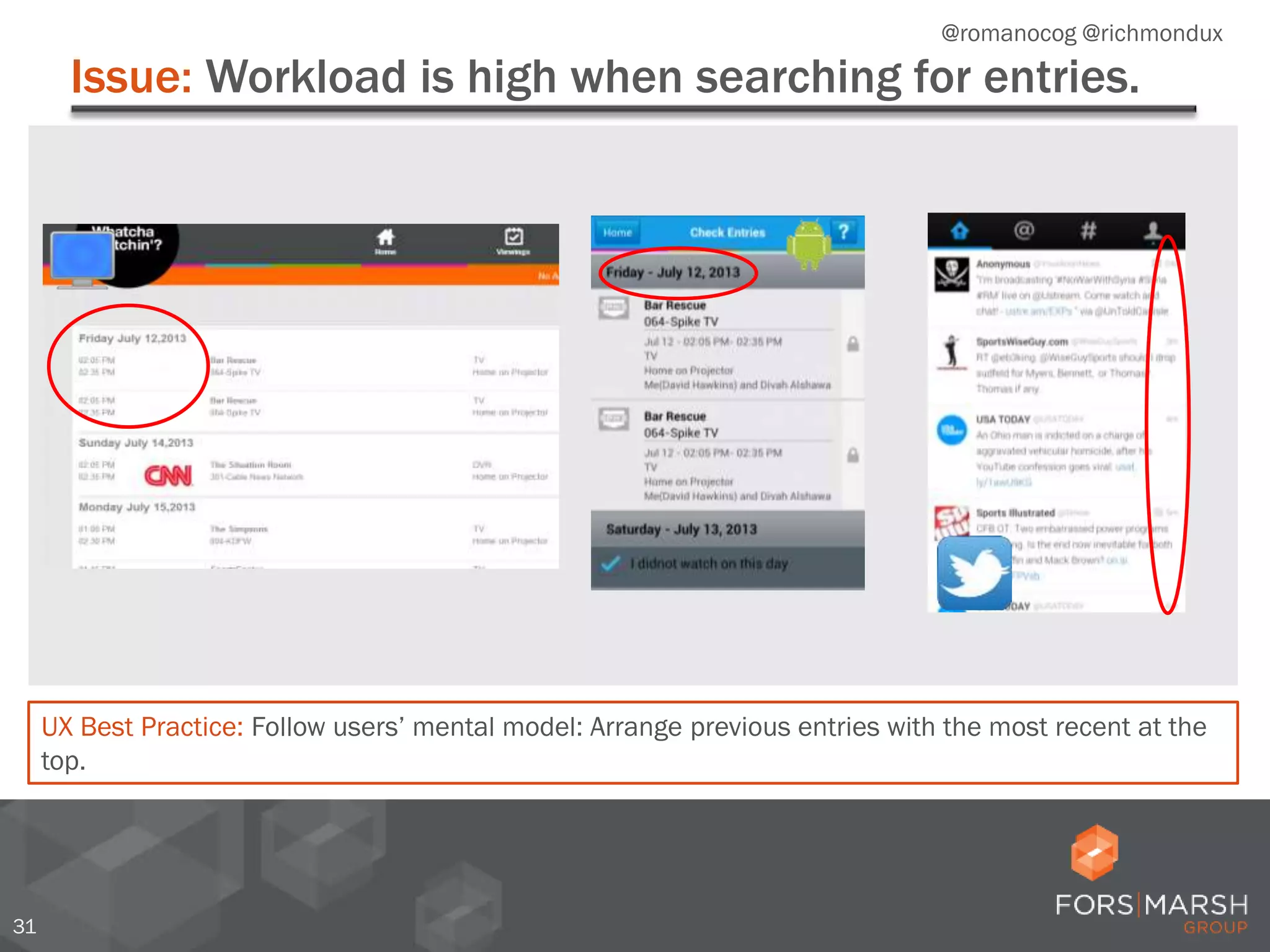

31. Issue: Workload is high when searching for entries.
31
UX Best Practice: Follow users’ mental model: Arrange previous entries with the most recent at the
top.
@romanocog @richmondux

32. Issue: Icons are not clickable and do not match user expectations.
32
• “I’m going to click on it, but it's not doing anything.
That is annoying.”
• “Do these not work?”
UX Best Practice: Reduce the amount of non-clickable real estate on the homepage. Focus on
making icons and images clickable. This will help the homepage feel more intuitive as users expect
icons and images to function as active links.
Logo should link to the homepage, similar to the way
logos work on websites.
Clicks along the bottom of the PC homepage showing that participants expected the icons to be working links.
Homepage on the iPad
website does not display
the clickable links below
each icon.
@romanocog @richmondux

33. 33

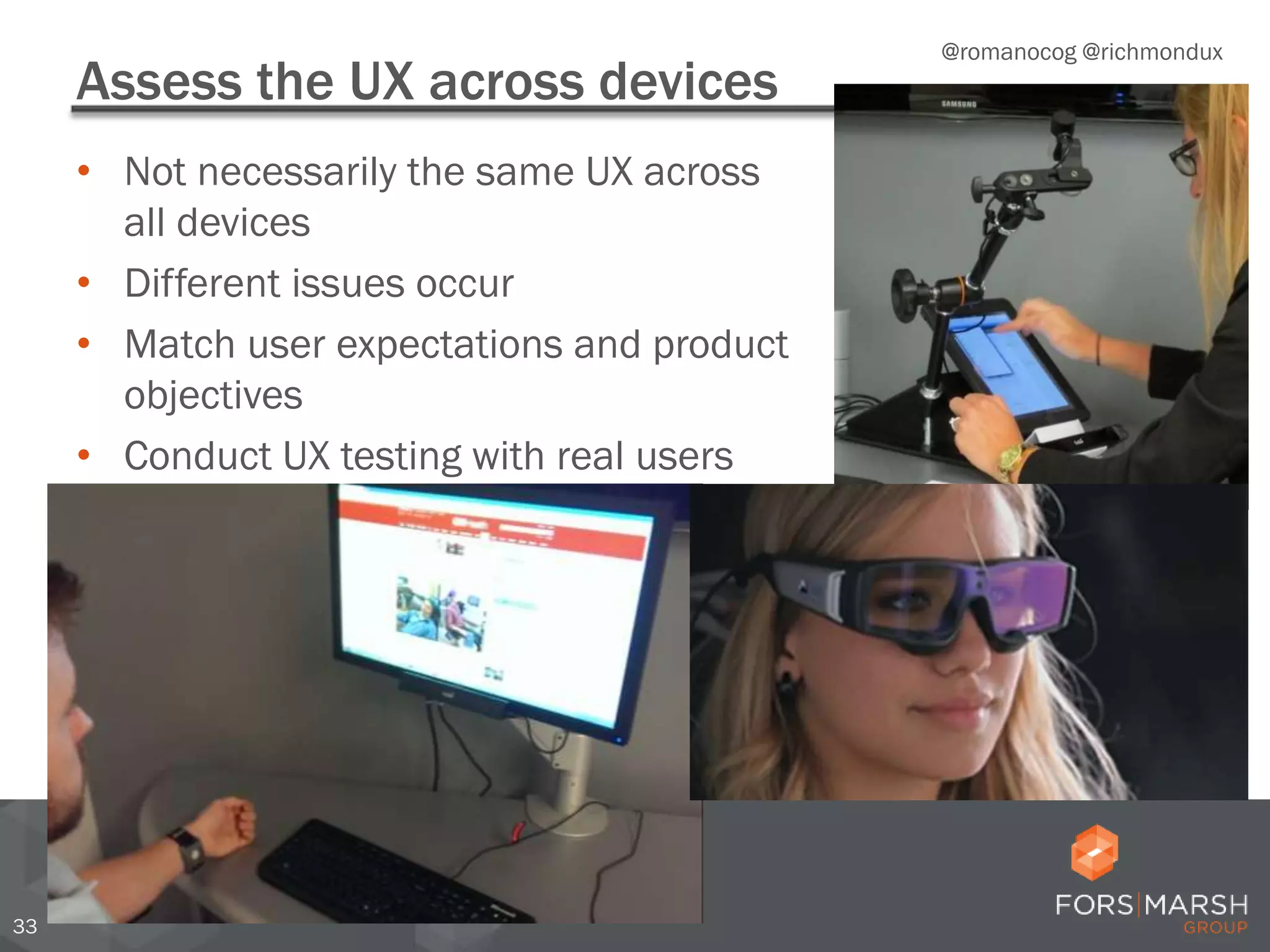

Assess the UX across devices
• Not necessarily the same UX across
all devices
• Different issues occur
• Match user expectations and product
objectives
• Conduct UX testing with real users
@romanocog @richmondux

34. Thank you!
• Twitter: @forsmarshgroup
• LinkedIn: http://www.linkedin.com/company/fors-marsh-group
• Blog: www.forsmarshgroup.com/index.php/blog
Jennifer Romano Bergstrom
@romanocog
jbergstrom@forsmarshgroup.com
RUX | Richmond, VA
