This document provides examples and descriptions of different tools used for automated testing. It describes tools that can run test scripts in any order and test multiple components simultaneously. The tools discussed integrate simulators, store all messages in a database, generate reports, and support various protocols like SWIFT and FIX. They enable automated testing, multi-threaded testing, analysis of activity, and help simplify test implementation and reporting.

3. ● Each test scenario is independent;
● You can run test scripts in any sequence;
● One scenario can cover Order Entry, Market
Data and Post Trade connections;
● Simulation of multiple user connections;

4. This is an example of an automated matrix
with actions from AML

5. ● AML - special language;
● Server, proxy simulators (integrated);
● All messages are stored into Data Base.

6. This is an example of a report generated by
an automated matrix

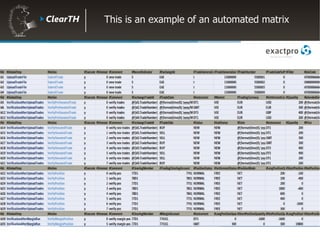

8. This is an example of an automated matrix

9. ● Includes an integrated schedule;
● A certain structure to create automated matrices;
● An ability to create multiple days scenarios;
● Multiple tests running;
● Integrated simulators;
● Supports the SWIFT ISO protocol.

11. This is an example of a SQL script

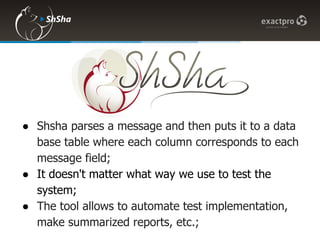

12. ● Shsha parses a message and then puts it to a data
base table where each column corresponds to each
message field;
● It doesn't matter what way we use to test the
system;
● The tool allows to automate test implementation,
make summarized reports, etc.;

13. ● Shsha analyzes clients' activity and forecasts the
system response;
● The GUI is clear;
● Parses and displays logs in a user-friendly way;
● Shsha is a post-transactional tool.

14. This is an example of a report
generated by a SQL script

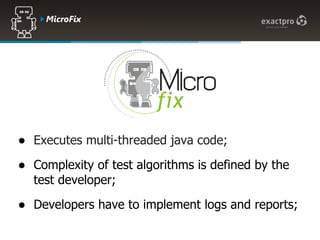

16. Microfix
● Executes multi-threaded java code;
● Complexity of test algorithms is defined by the
test developer;
● Developers have to implement logs and reports;

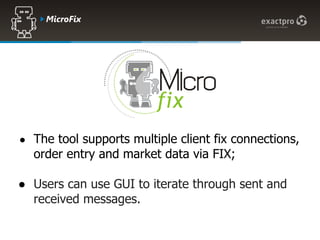

17. Microfix
● The tool supports multiple client fix connections,
order entry and market data via FIX;
● Users can use GUI to iterate through sent and
received messages.

18. This is an example of
Microfix
an automated script
