1. Extending the lifecycle of your
Storage Area Network
Chris Gruber, D-Link Systems
Dane Jasinski, Luce Forward

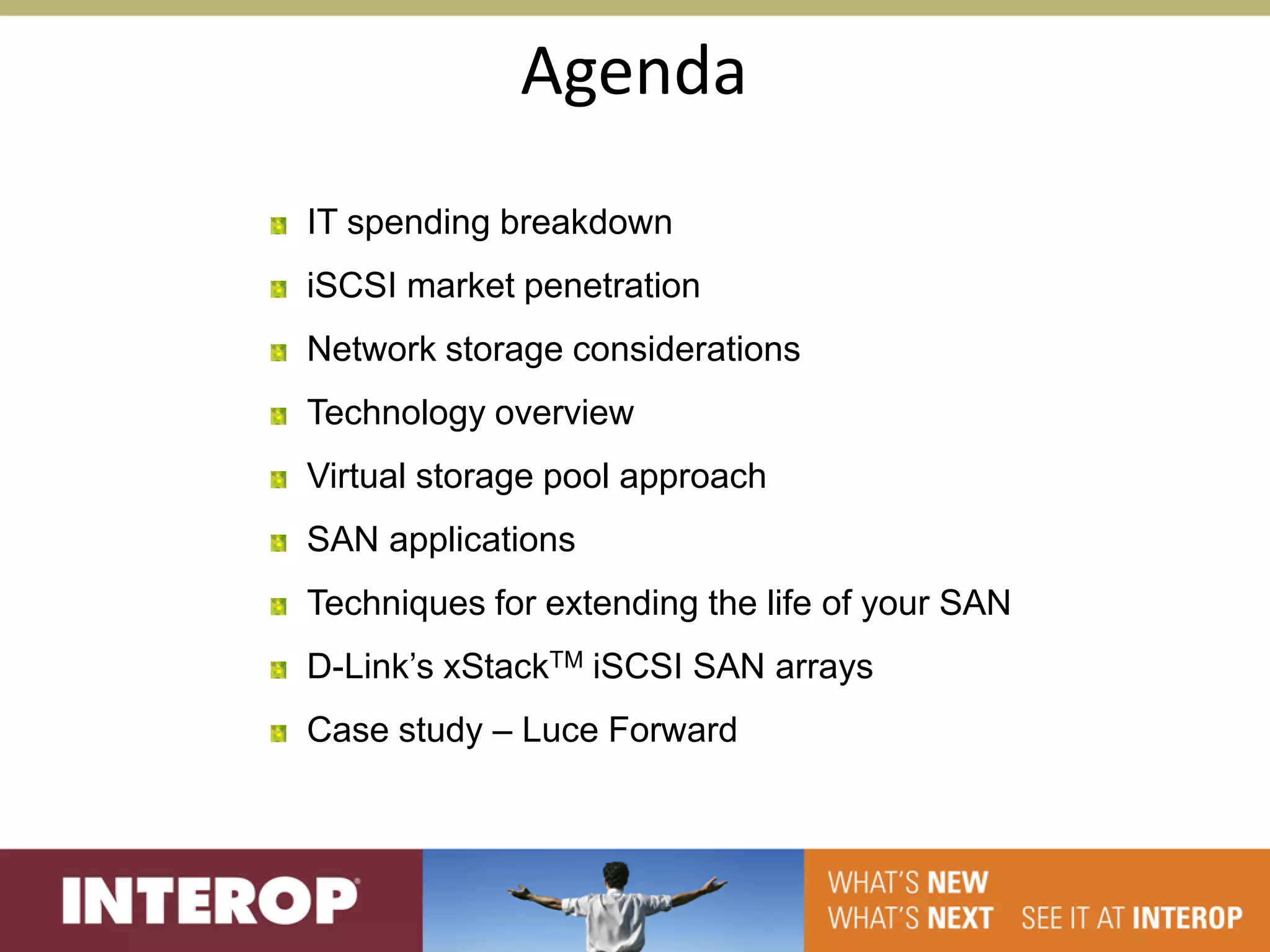

2. Agenda
IT spending breakdown
iSCSI market penetration
Network storage considerations
Technology overview
Virtual storage pool approach
SAN applications
Techniques for extending the life of your SAN
D-Link’s xStackTM iSCSI SAN arrays
Case study – Luce Forward

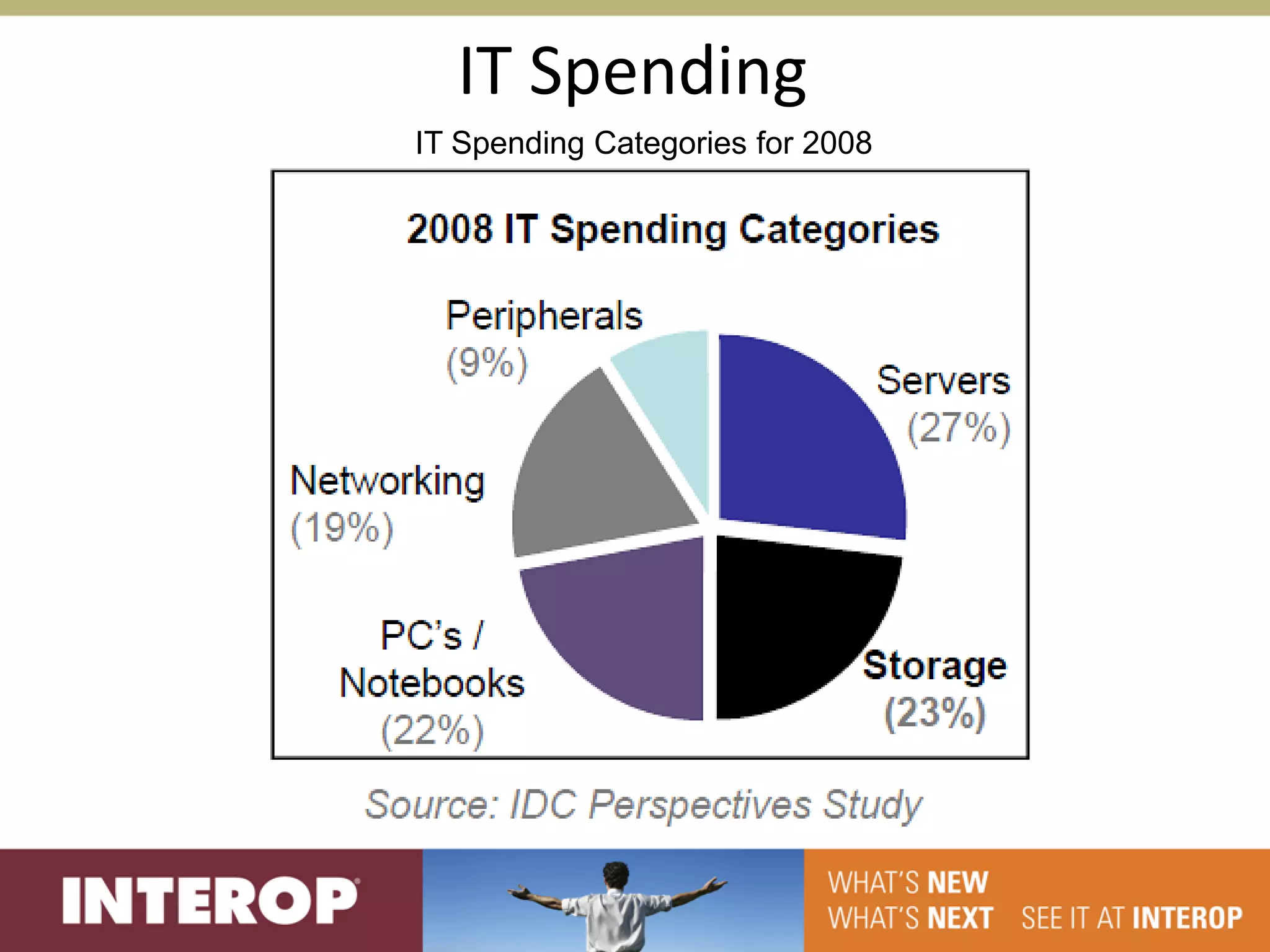

3. IT Spending
IT Spending Categories for 2008

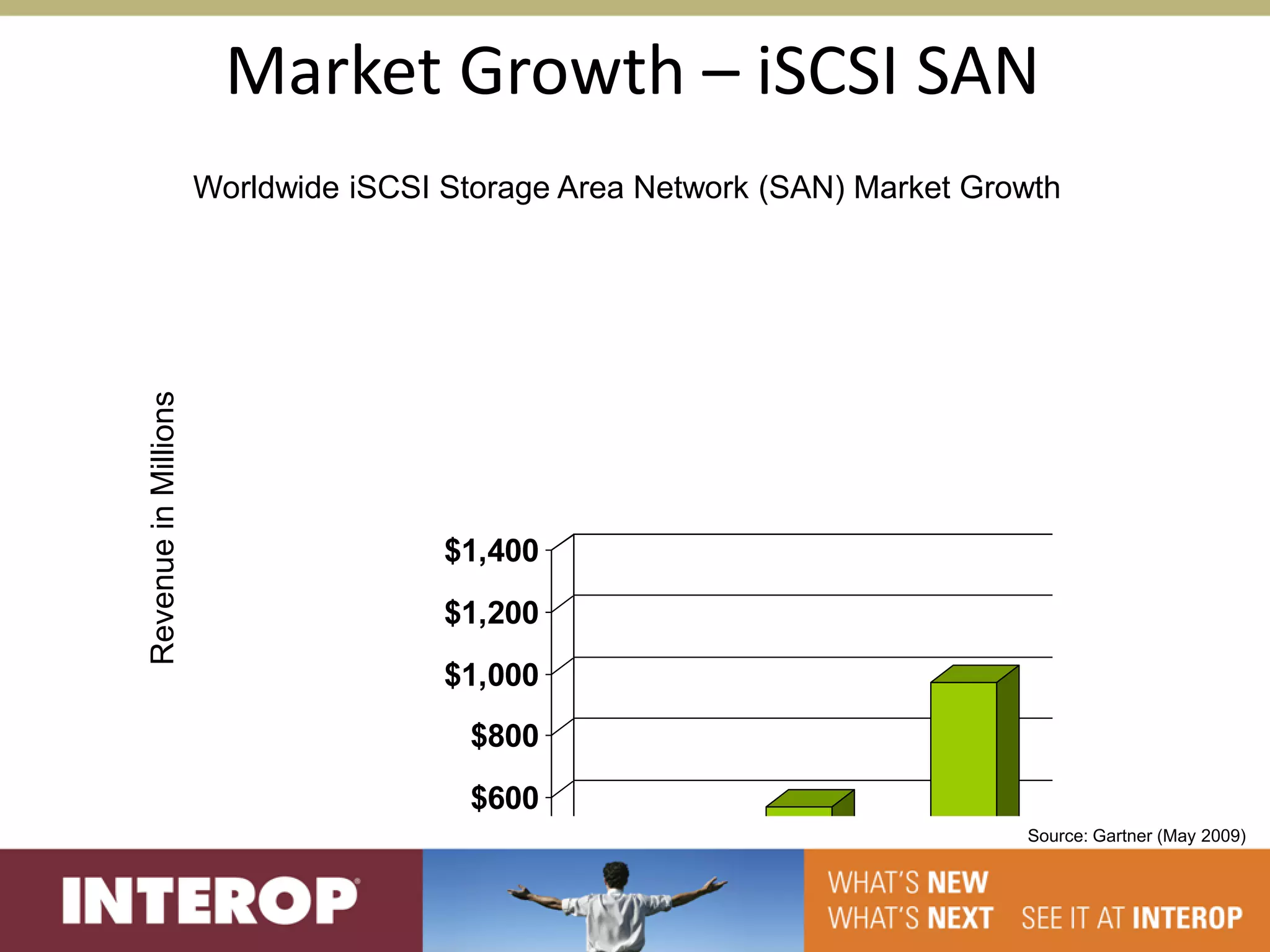

4. Market Growth – iSCSI SAN
Worldwide iSCSI Storage Area Network (SAN) Market Growth
Revenue in Millions
$1,400
$1,200
$1,000
$800
$600
Source: Gartner (May 2009)
$400
$200

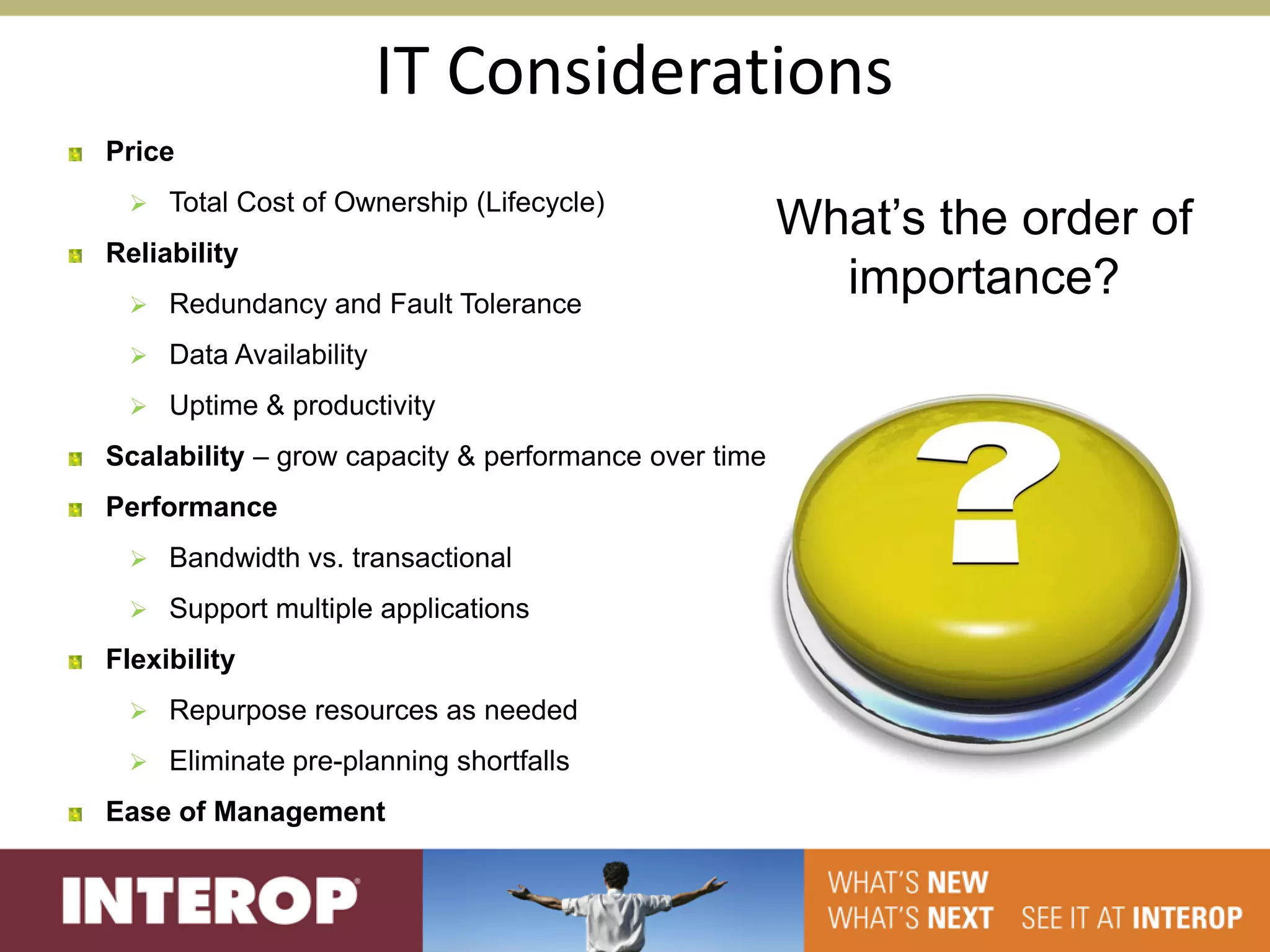

5. IT Considerations
Price
 Total Cost of Ownership (Lifecycle)
What’s the order of
Reliability
 Redundancy and Fault Tolerance
importance?
 Data Availability
 Uptime & productivity
Scalability – grow capacity & performance over time
Performance
 Bandwidth vs. transactional
 Support multiple applications
Flexibility
 Repurpose resources as needed
 Eliminate pre-planning shortfalls
Ease of Management

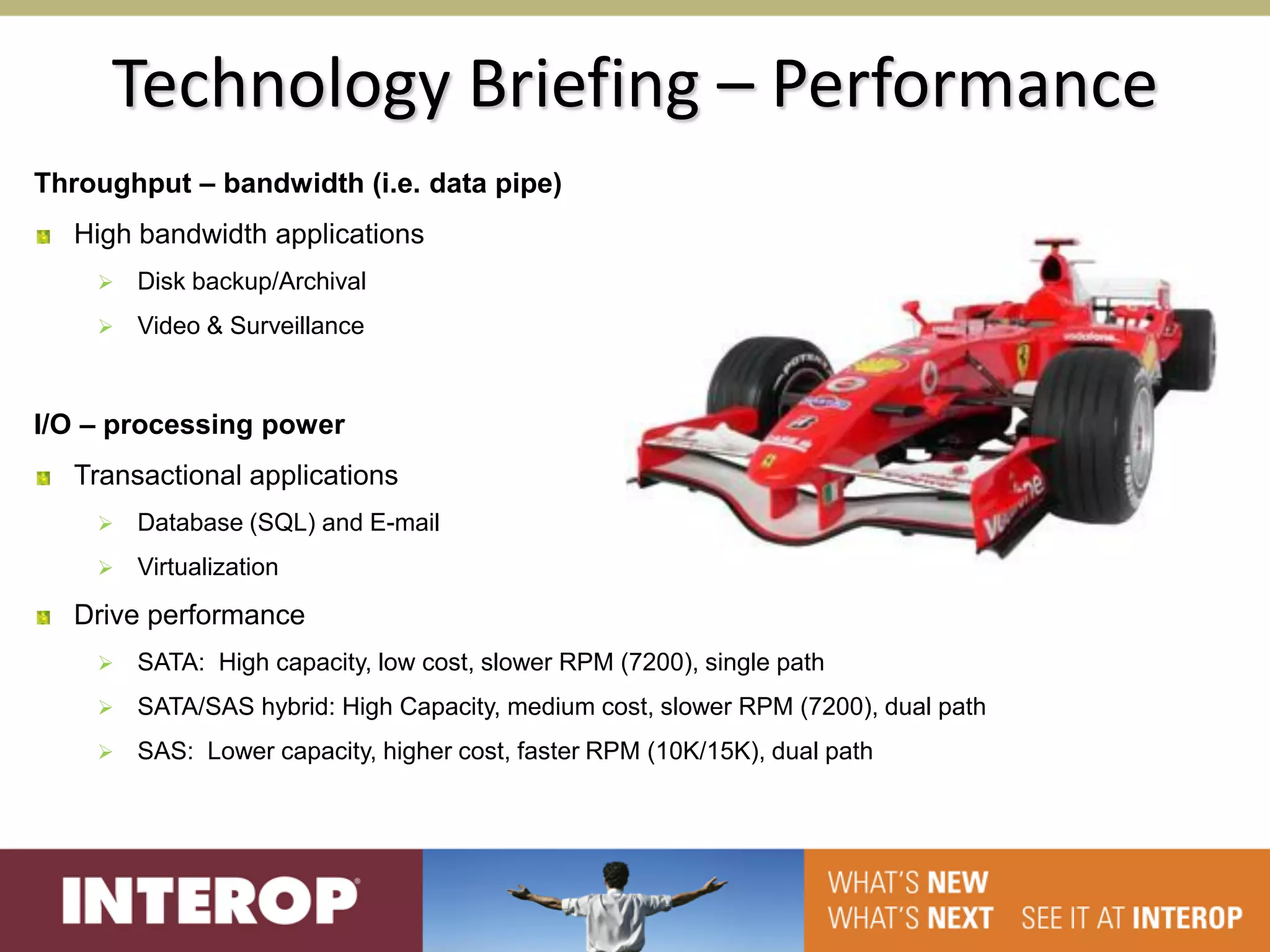

6. Technology Briefing – Performance
Throughput – bandwidth (i.e. data pipe)
High bandwidth applications
 Disk backup/Archival
 Video & Surveillance
I/O – processing power
Transactional applications
 Database (SQL) and E-mail
 Virtualization
Drive performance
 SATA: High capacity, low cost, slower RPM (7200), single path
 SATA/SAS hybrid: High Capacity, medium cost, slower RPM (7200), dual path
 SAS: Lower capacity, higher cost, faster RPM (10K/15K), dual path

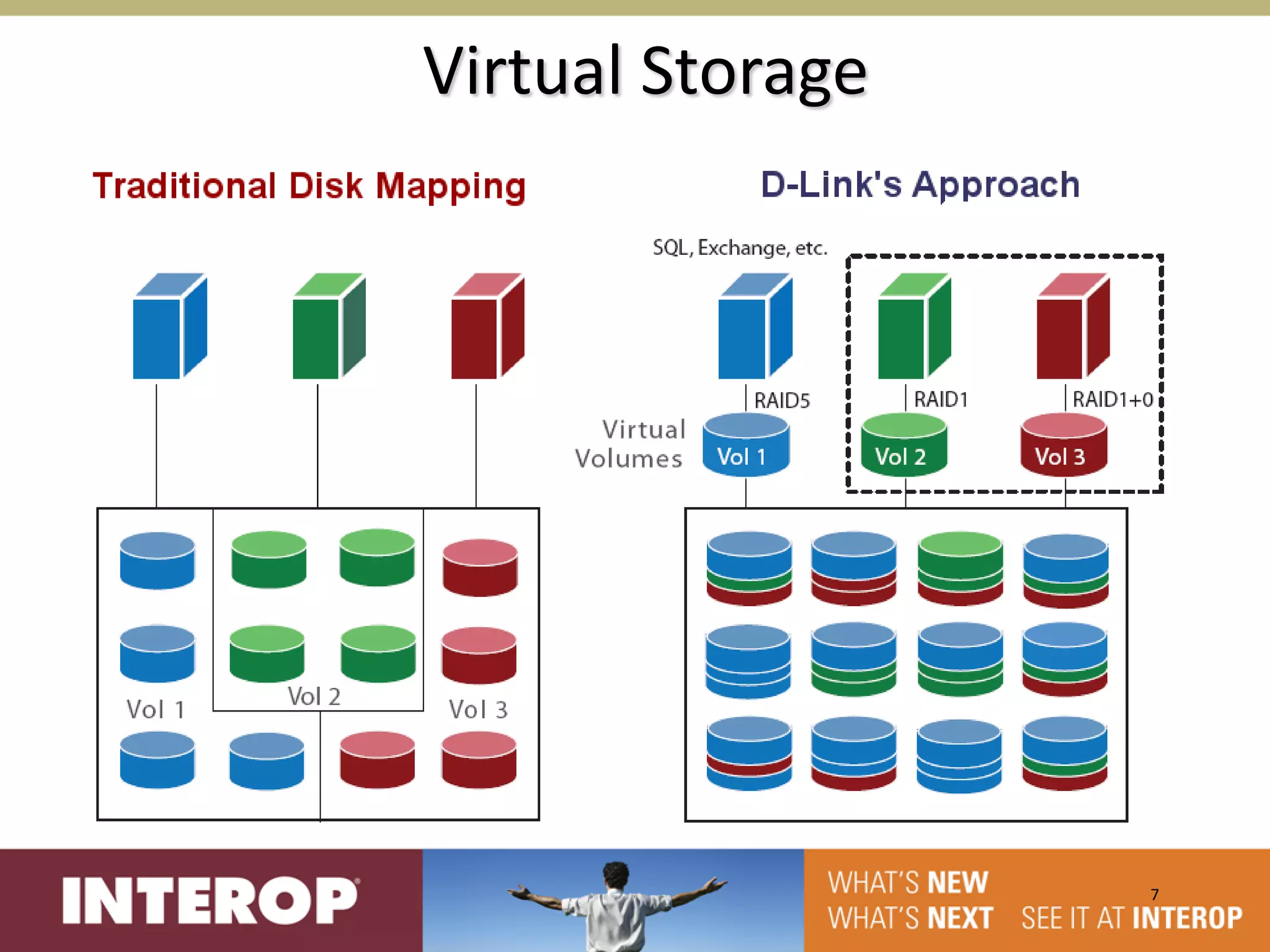

7. Virtual Storage
7

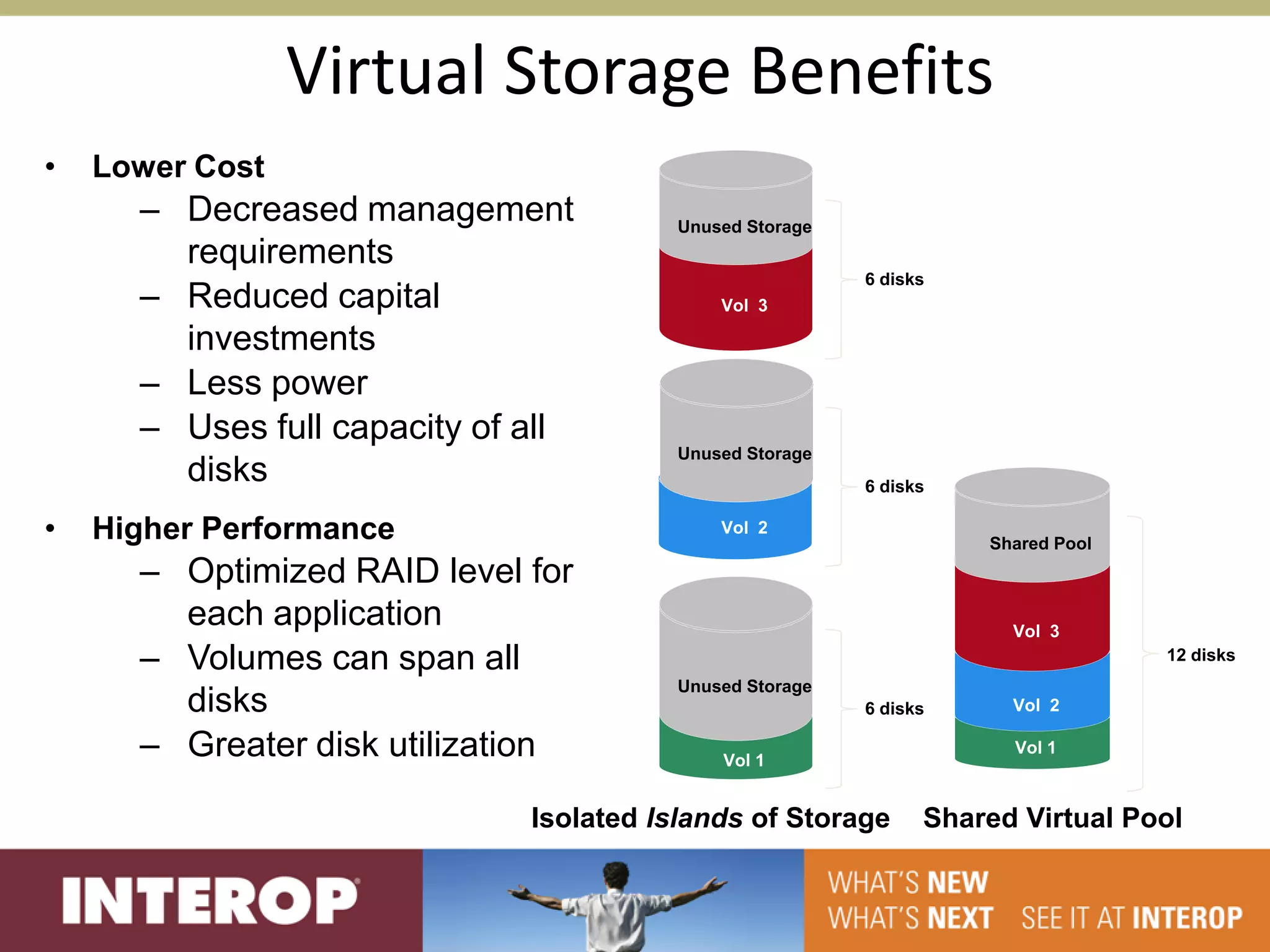

8. Virtual Storage Benefits
• Lower Cost
– Decreased management Unused Storage
requirements
6 disks
– Reduced capital Vol 3
investments
– Less power
– Uses full capacity of all
Unused Storage
disks 6 disks
• Higher Performance Vol 2
Shared Pool
– Optimized RAID level for
each application Vol 3
– Volumes can span all 12 disks
Unused Storage
disks 6 disks Vol 2
– Greater disk utilization Vol 1
Vol 1
Isolated Islands of Storage Shared Virtual Pool

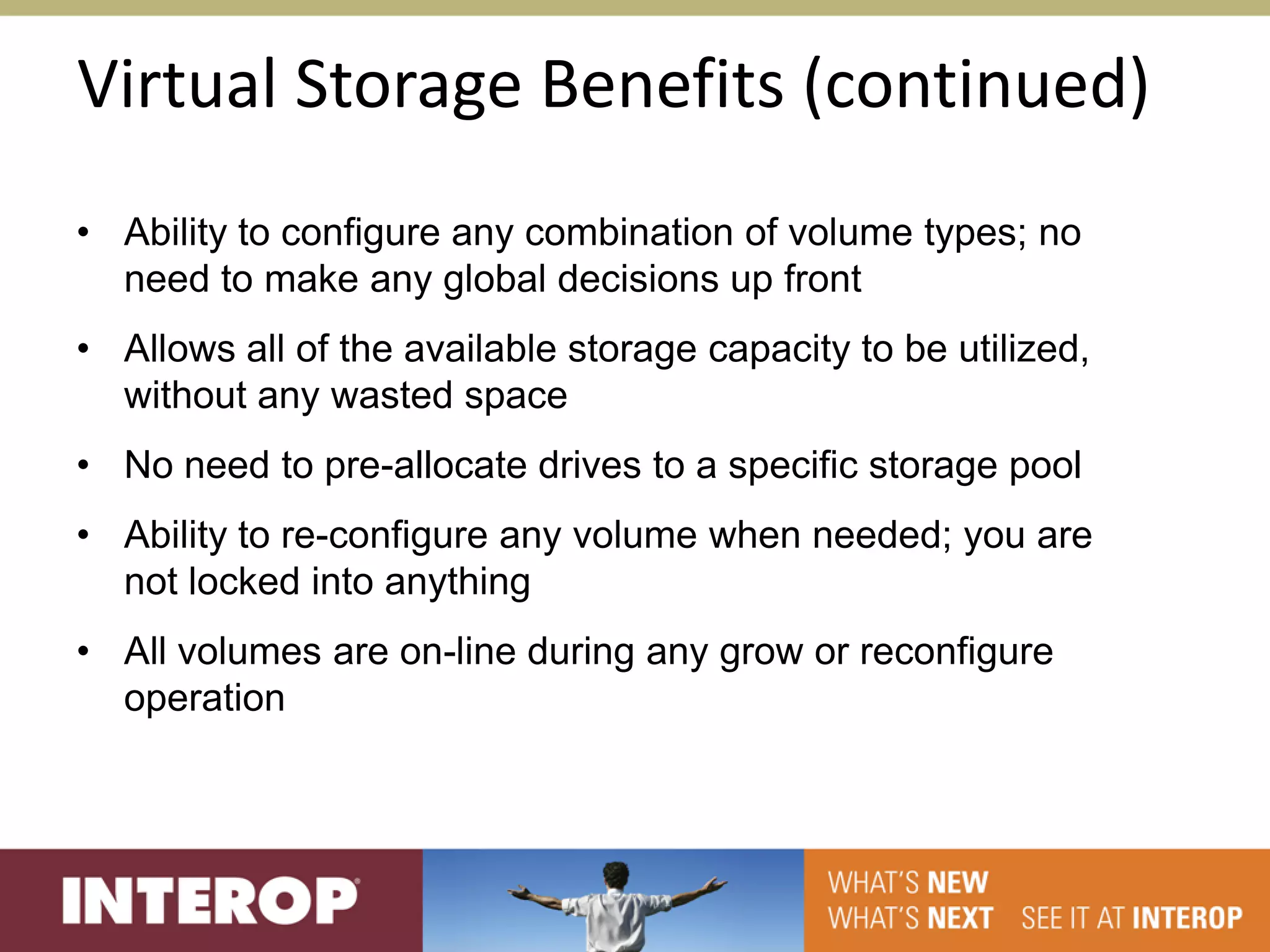

9. Virtual Storage Benefits (continued)
• Ability to configure any combination of volume types; no
need to make any global decisions up front
• Allows all of the available storage capacity to be utilized,
without any wasted space
• No need to pre-allocate drives to a specific storage pool
• Ability to re-configure any volume when needed; you are
not locked into anything
• All volumes are on-line during any grow or reconfigure
operation

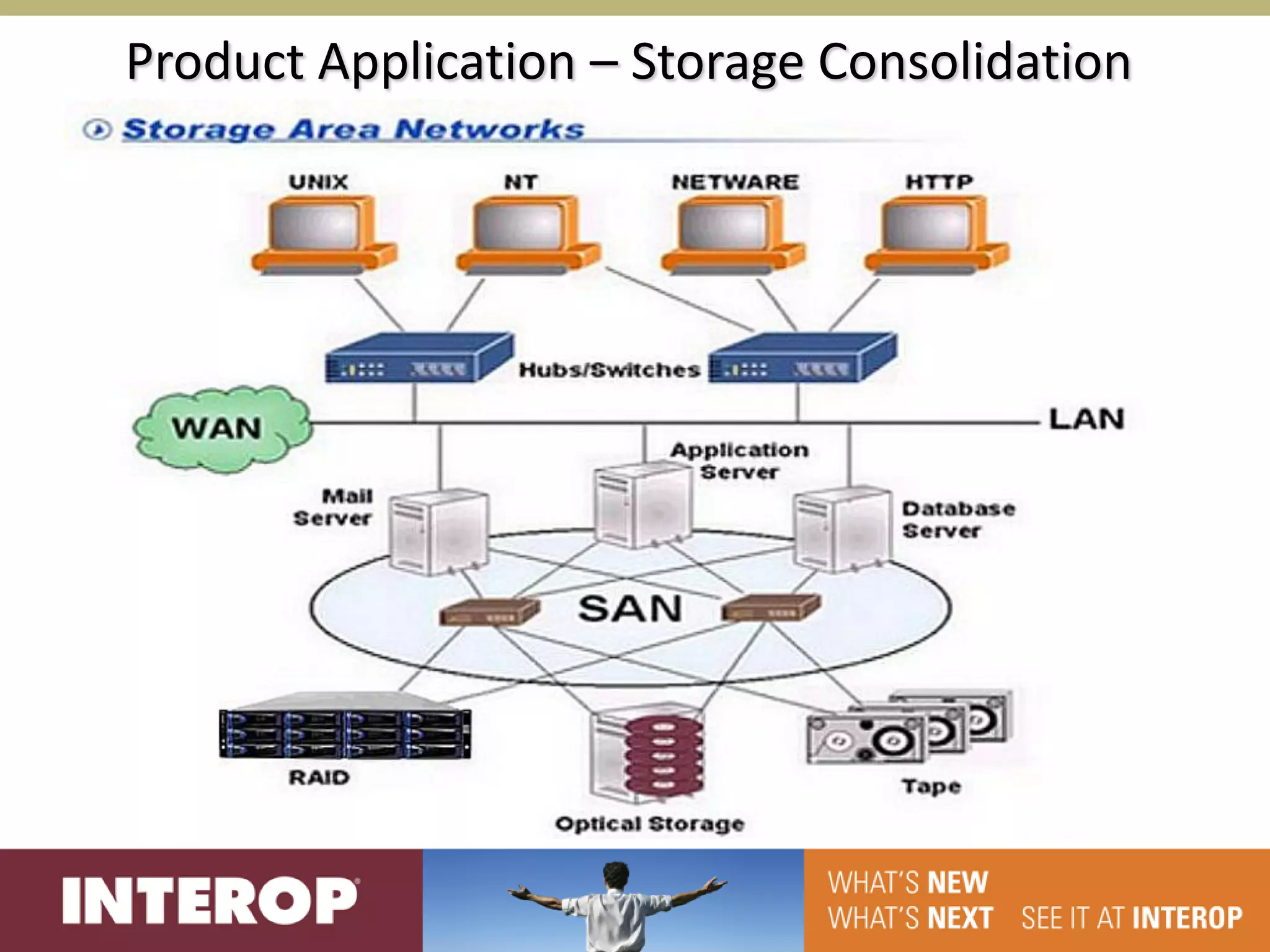

10. Product Application – Storage Consolidation

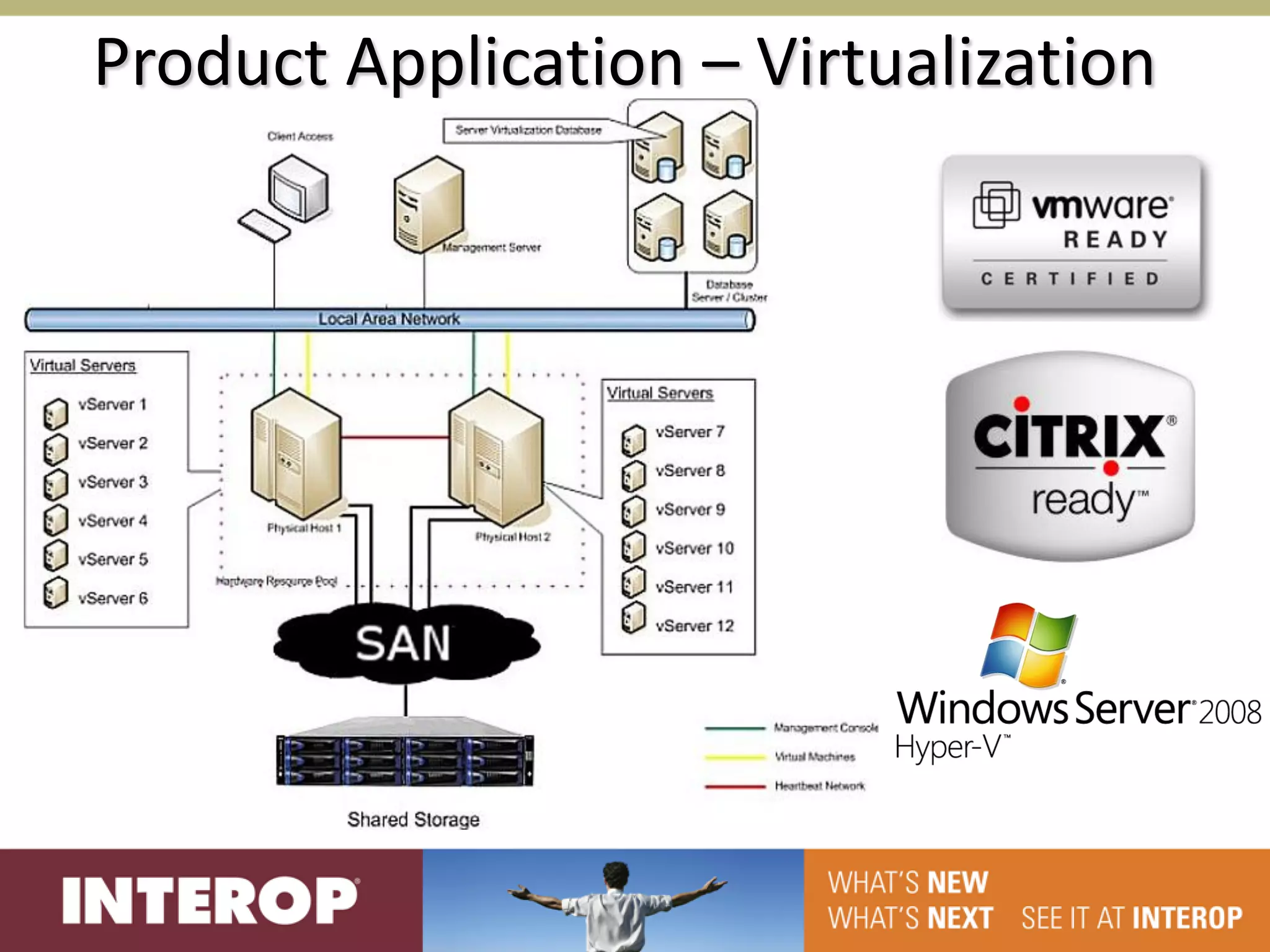

11. Product Application – Virtualization

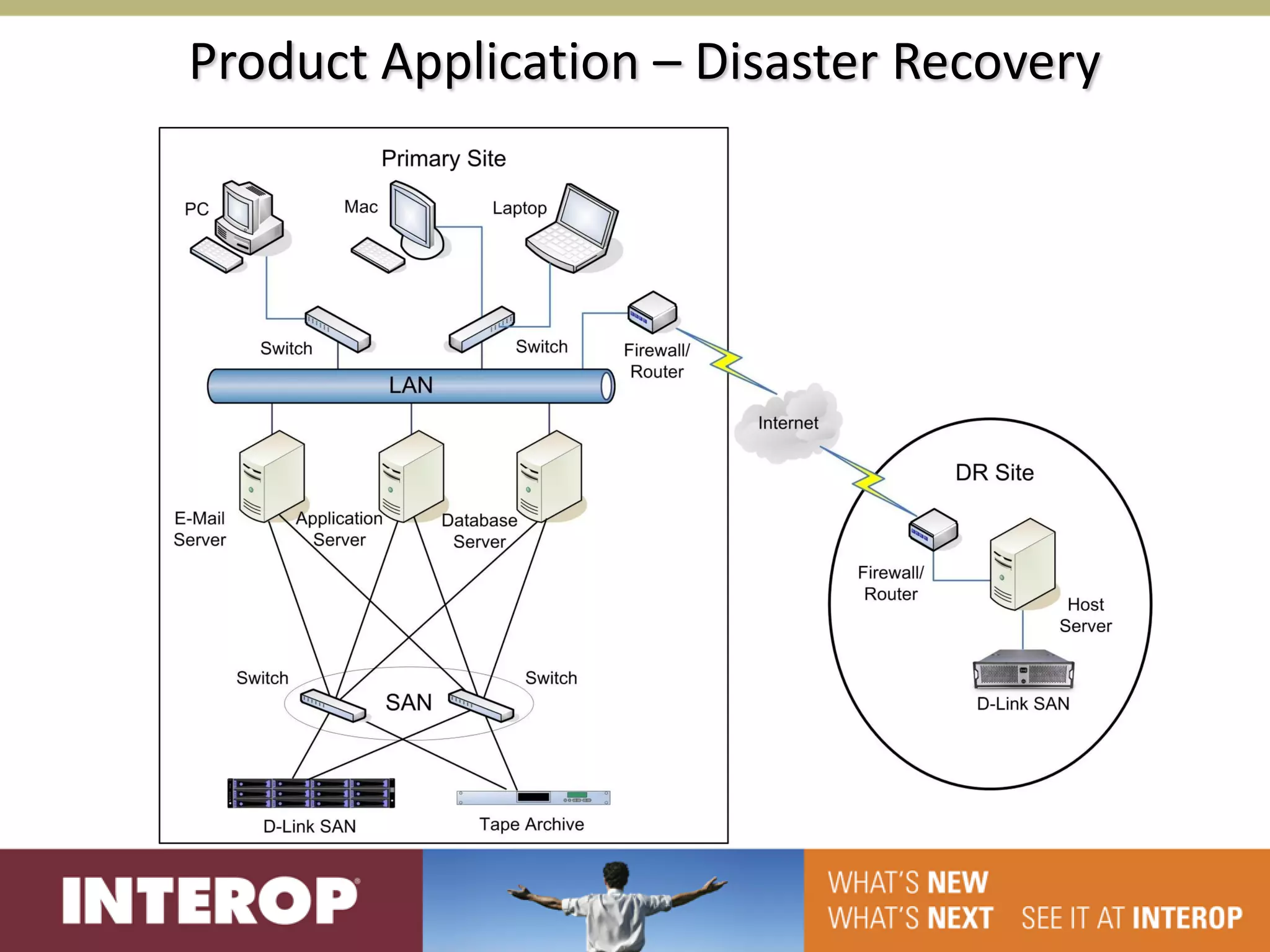

12. Product Application – Disaster Recovery

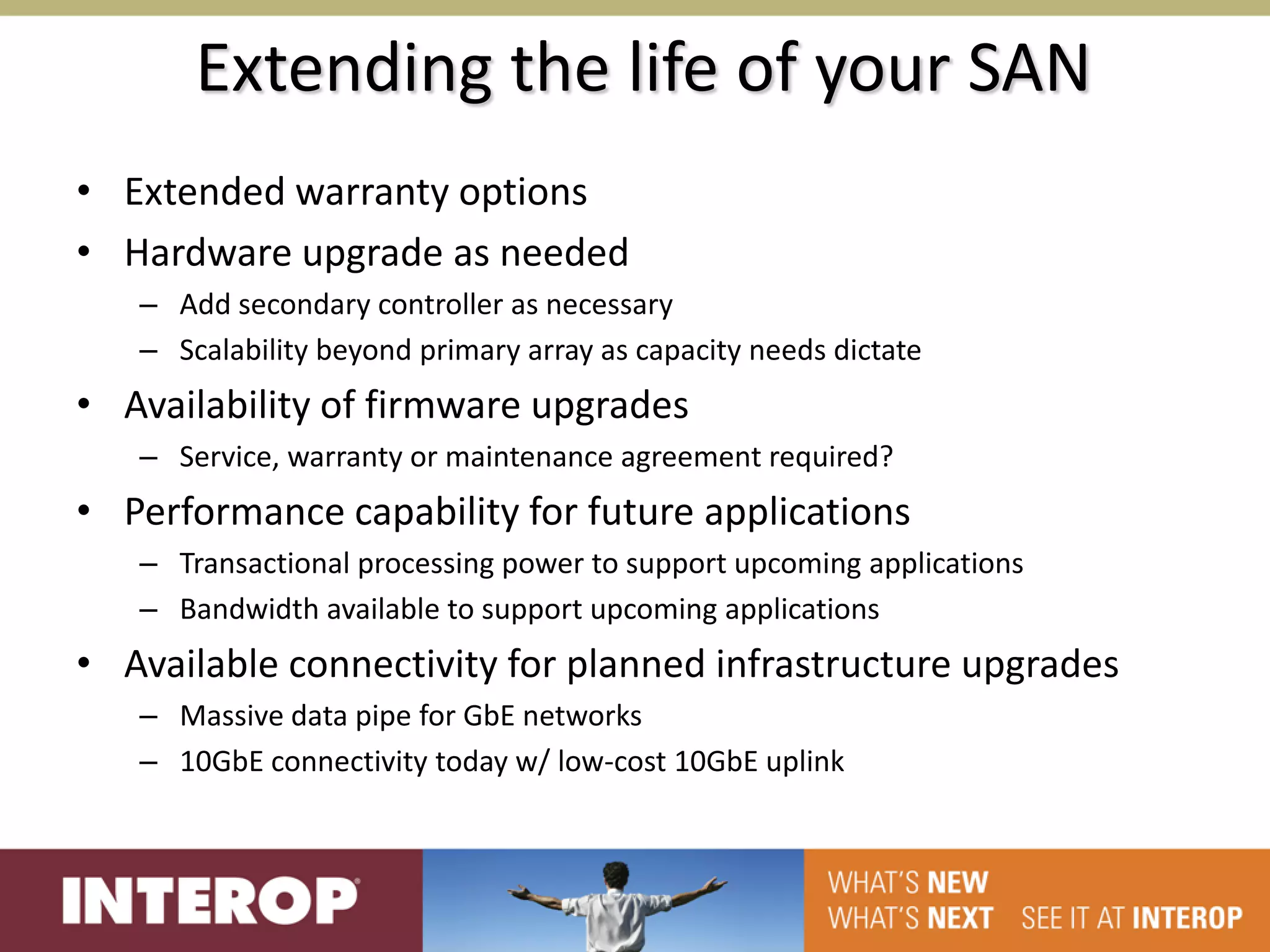

13. Extending the life of your SAN
• Extended warranty options
• Hardware upgrade as needed
– Add secondary controller as necessary
– Scalability beyond primary array as capacity needs dictate
• Availability of firmware upgrades
– Service, warranty or maintenance agreement required?
• Performance capability for future applications
– Transactional processing power to support upcoming applications
– Bandwidth available to support upcoming applications
• Available connectivity for planned infrastructure upgrades
– Massive data pipe for GbE networks
– 10GbE connectivity today w/ low-cost 10GbE uplink

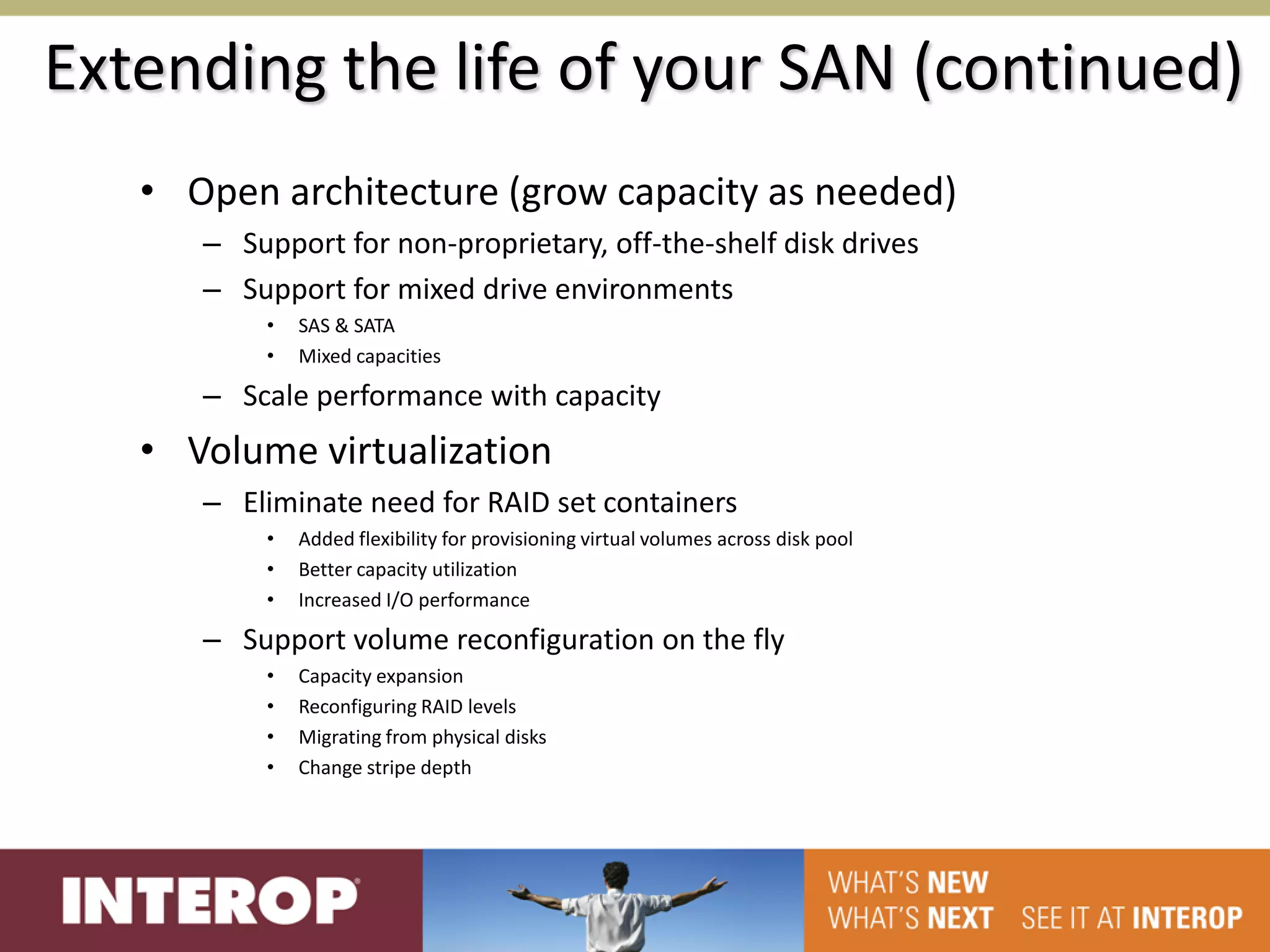

14. Extending the life of your SAN (continued)
• Open architecture (grow capacity as needed)
– Support for non-proprietary, off-the-shelf disk drives
– Support for mixed drive environments
• SAS & SATA
• Mixed capacities
– Scale performance with capacity
• Volume virtualization
– Eliminate need for RAID set containers
• Added flexibility for provisioning virtual volumes across disk pool
• Better capacity utilization
• Increased I/O performance
– Support volume reconfiguration on the fly
• Capacity expansion
• Reconfiguring RAID levels
• Migrating from physical disks
• Change stripe depth

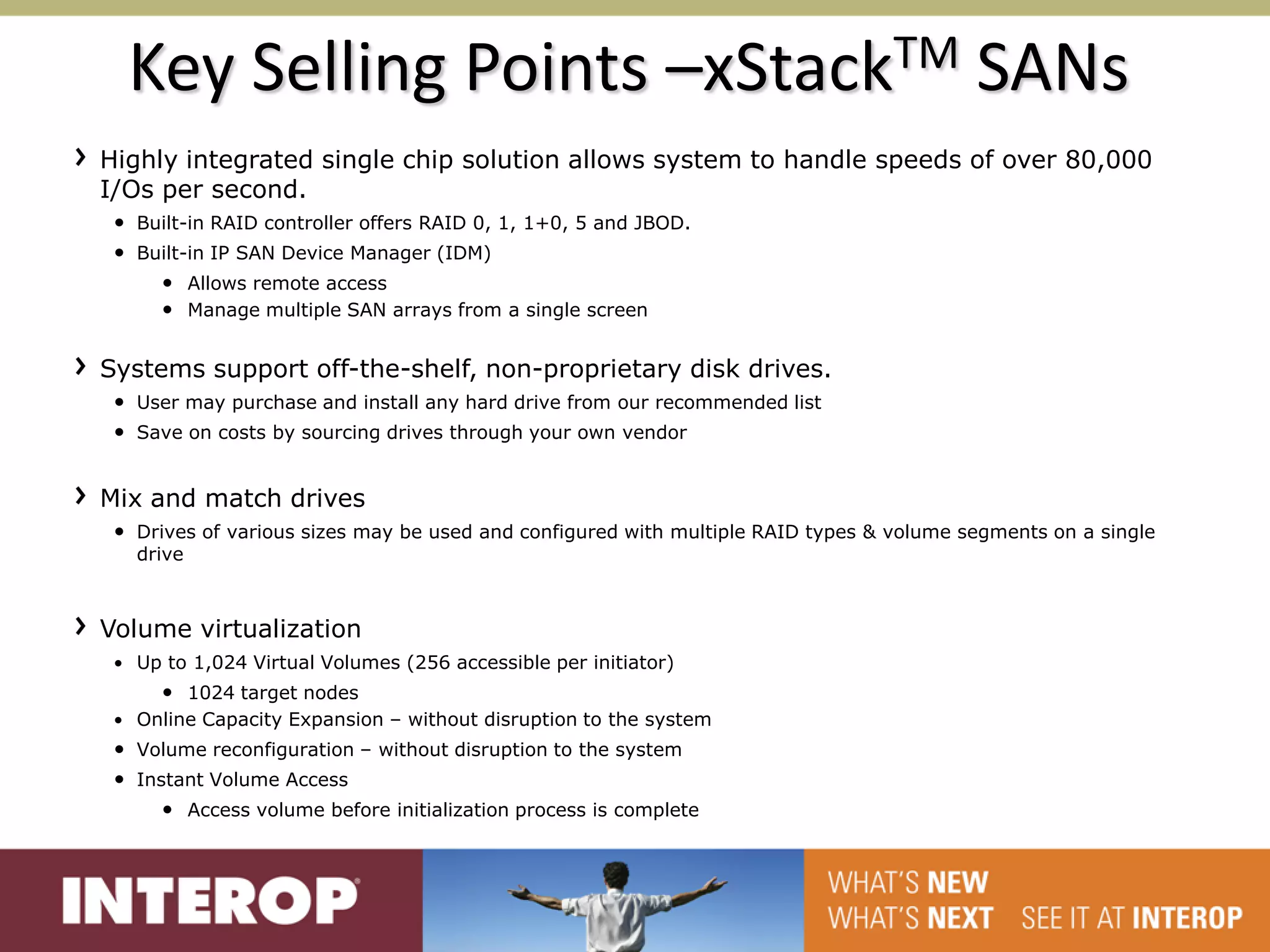

15. Key Selling Points –xStackTM SANs
Highly integrated single chip solution allows system to handle speeds of over 80,000
I/Os per second.
• Built-in RAID controller offers RAID 0, 1, 1+0, 5 and JBOD.
• Built-in IP SAN Device Manager (IDM)
• Allows remote access
• Manage multiple SAN arrays from a single screen
Systems support off-the-shelf, non-proprietary disk drives.
• User may purchase and install any hard drive from our recommended list
• Save on costs by sourcing drives through your own vendor
Mix and match drives
• Drives of various sizes may be used and configured with multiple RAID types & volume segments on a single
drive
Volume virtualization
• Up to 1,024 Virtual Volumes (256 accessible per initiator)
• 1024 target nodes
• Online Capacity Expansion – without disruption to the system
• Volume reconfiguration – without disruption to the system
• Instant Volume Access
• Access volume before initialization process is complete

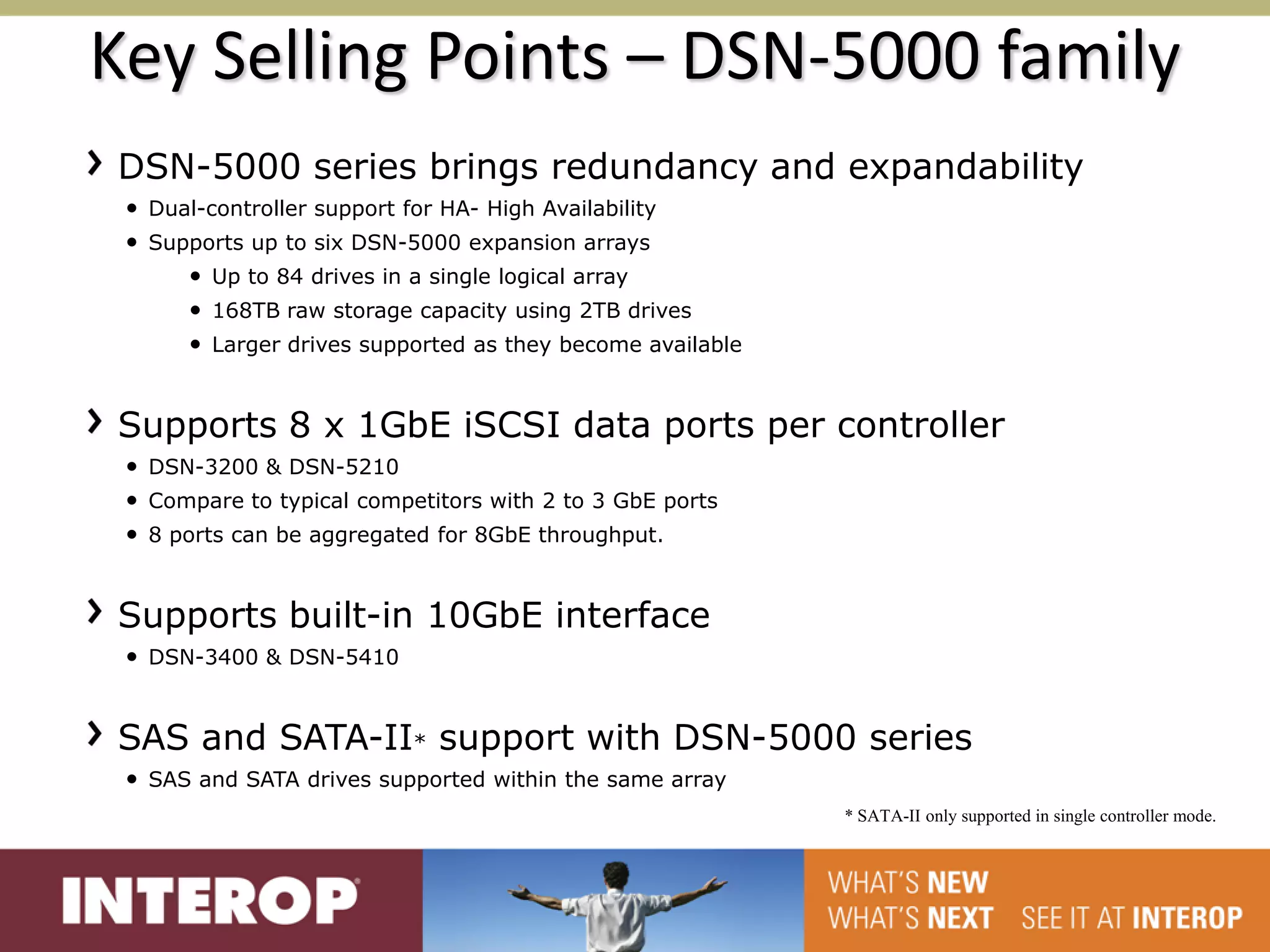

16. Key Selling Points – DSN-5000 family
DSN-5000 series brings redundancy and expandability
• Dual-controller support for HA- High Availability
• Supports up to six DSN-5000 expansion arrays
• Up to 84 drives in a single logical array
• 168TB raw storage capacity using 2TB drives
• Larger drives supported as they become available
Supports 8 x 1GbE iSCSI data ports per controller
• DSN-3200 & DSN-5210
• Compare to typical competitors with 2 to 3 GbE ports
• 8 ports can be aggregated for 8GbE throughput.
Supports built-in 10GbE interface
• DSN-3400 & DSN-5410
SAS and SATA-II* support with DSN-5000 series
• SAS and SATA drives supported within the same array
* SATA-II only supported in single controller mode.

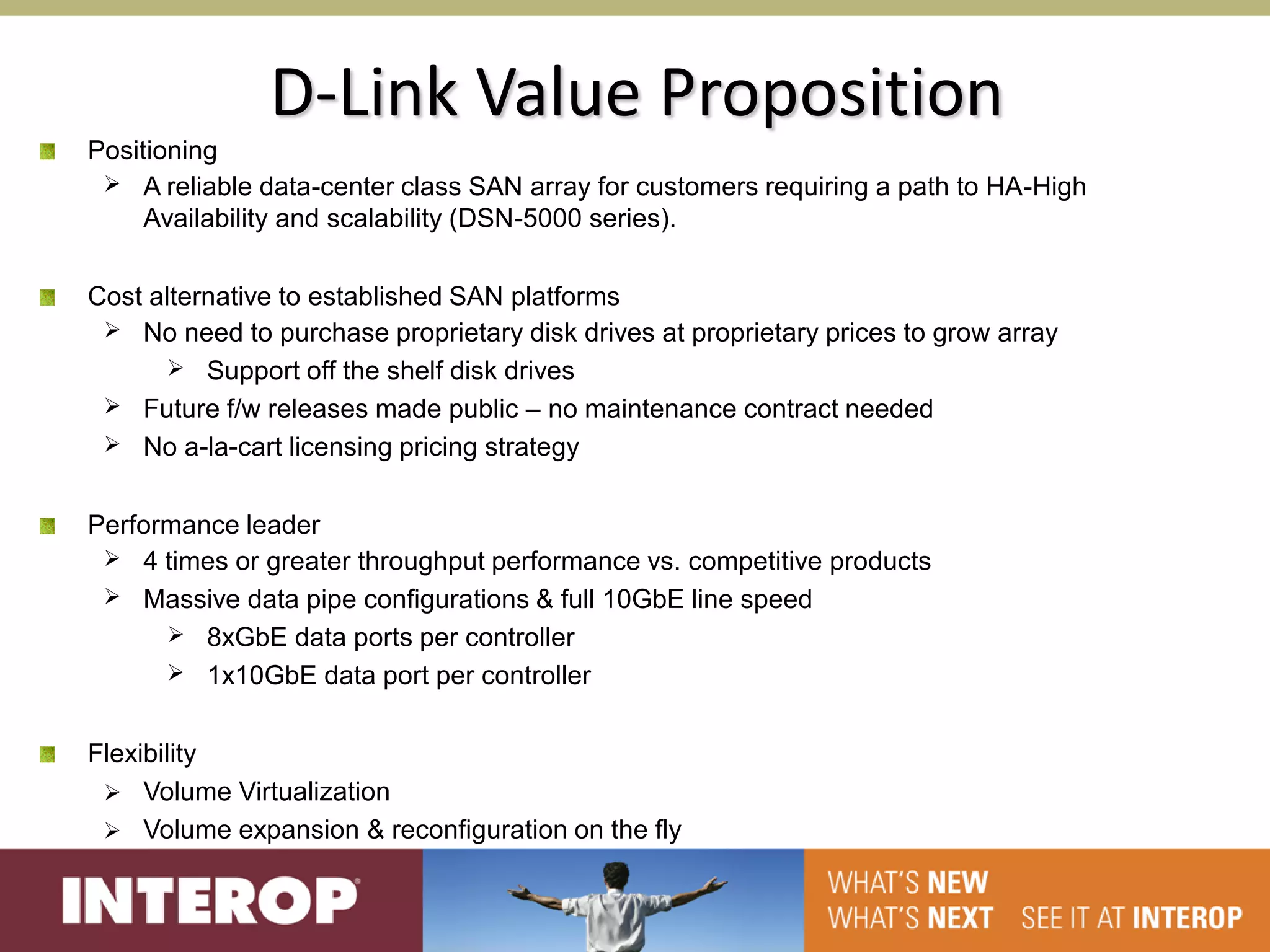

17. D-Link Value Proposition
Positioning
 A reliable data-center class SAN array for customers requiring a path to HA-High
Availability and scalability (DSN-5000 series).
Cost alternative to established SAN platforms
 No need to purchase proprietary disk drives at proprietary prices to grow array
 Support off the shelf disk drives
 Future f/w releases made public – no maintenance contract needed
 No a-la-cart licensing pricing strategy
Performance leader
 4 times or greater throughput performance vs. competitive products
 Massive data pipe configurations & full 10GbE line speed
 8xGbE data ports per controller
 1x10GbE data port per controller
Flexibility
 Volume Virtualization
 Volume expansion & reconfiguration on the fly

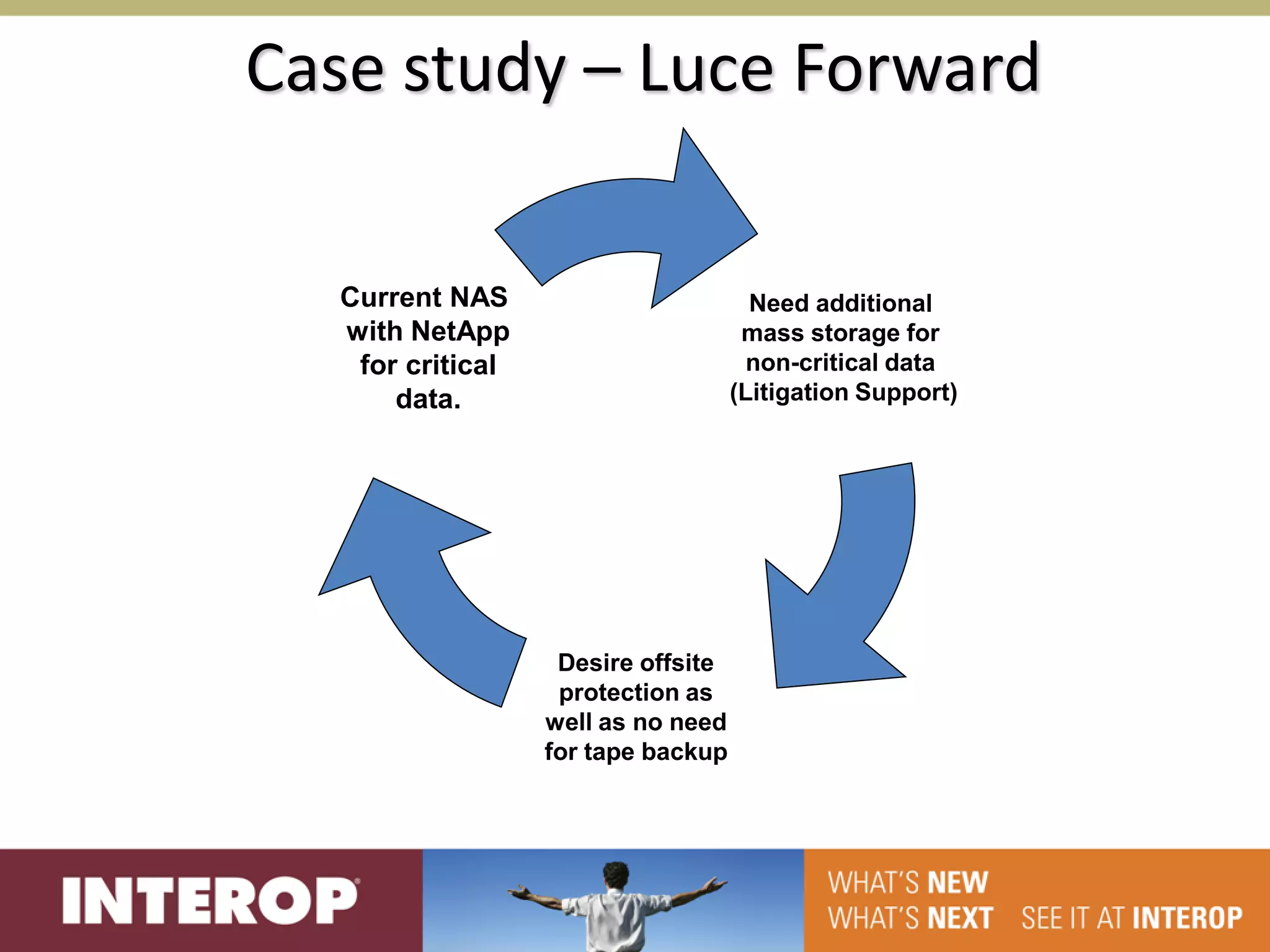

18. Case study – Luce Forward
Current NAS Need additional
with NetApp mass storage for
for critical non-critical data
data. (Litigation Support)
Desire offsite
protection as
well as no need
for tape backup

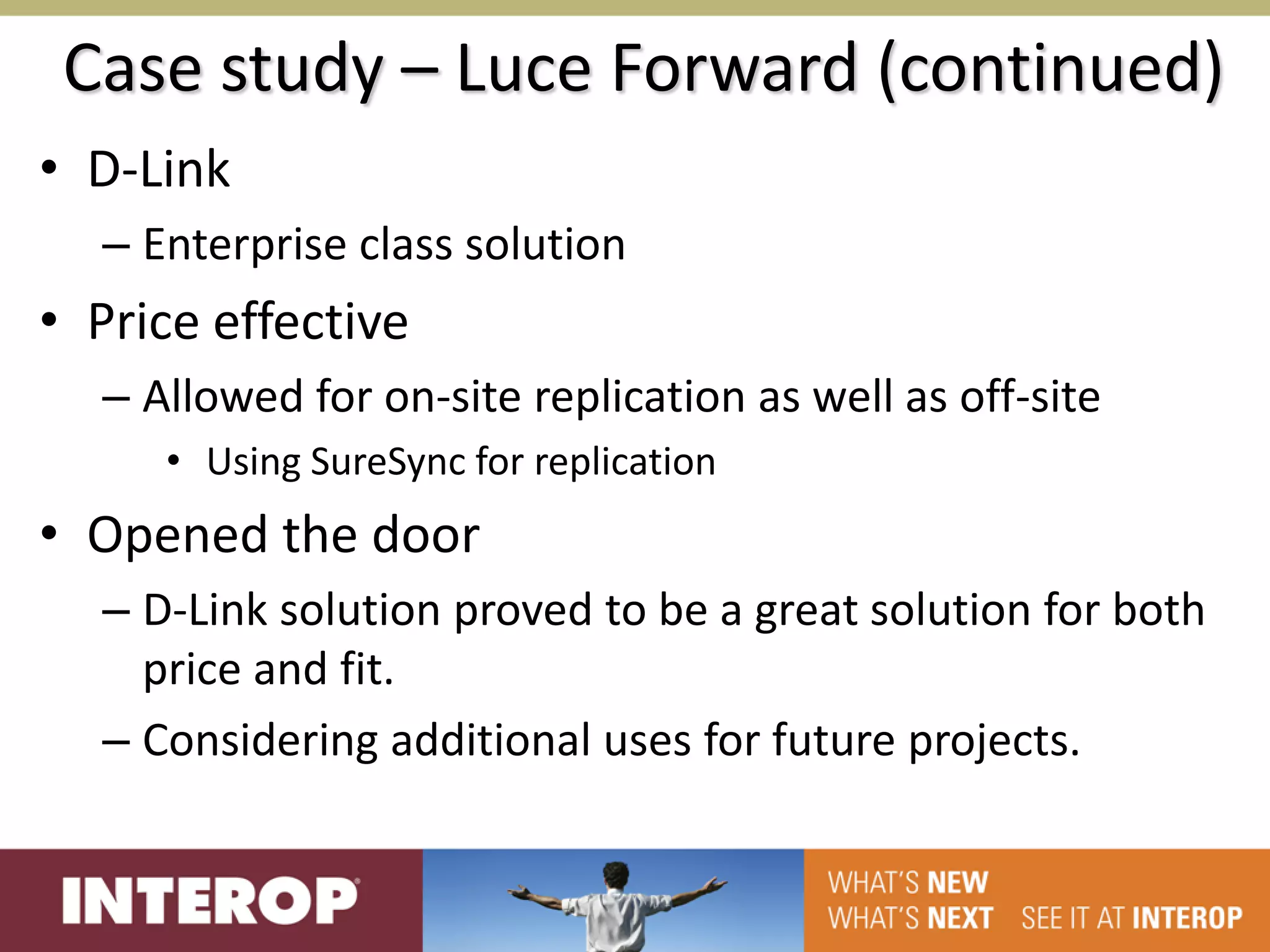

19. Case study – Luce Forward (continued)
• D-Link
– Enterprise class solution
• Price effective
– Allowed for on-site replication as well as off-site
• Using SureSync for replication
• Opened the door
– D-Link solution proved to be a great solution for both
price and fit.
– Considering additional uses for future projects.

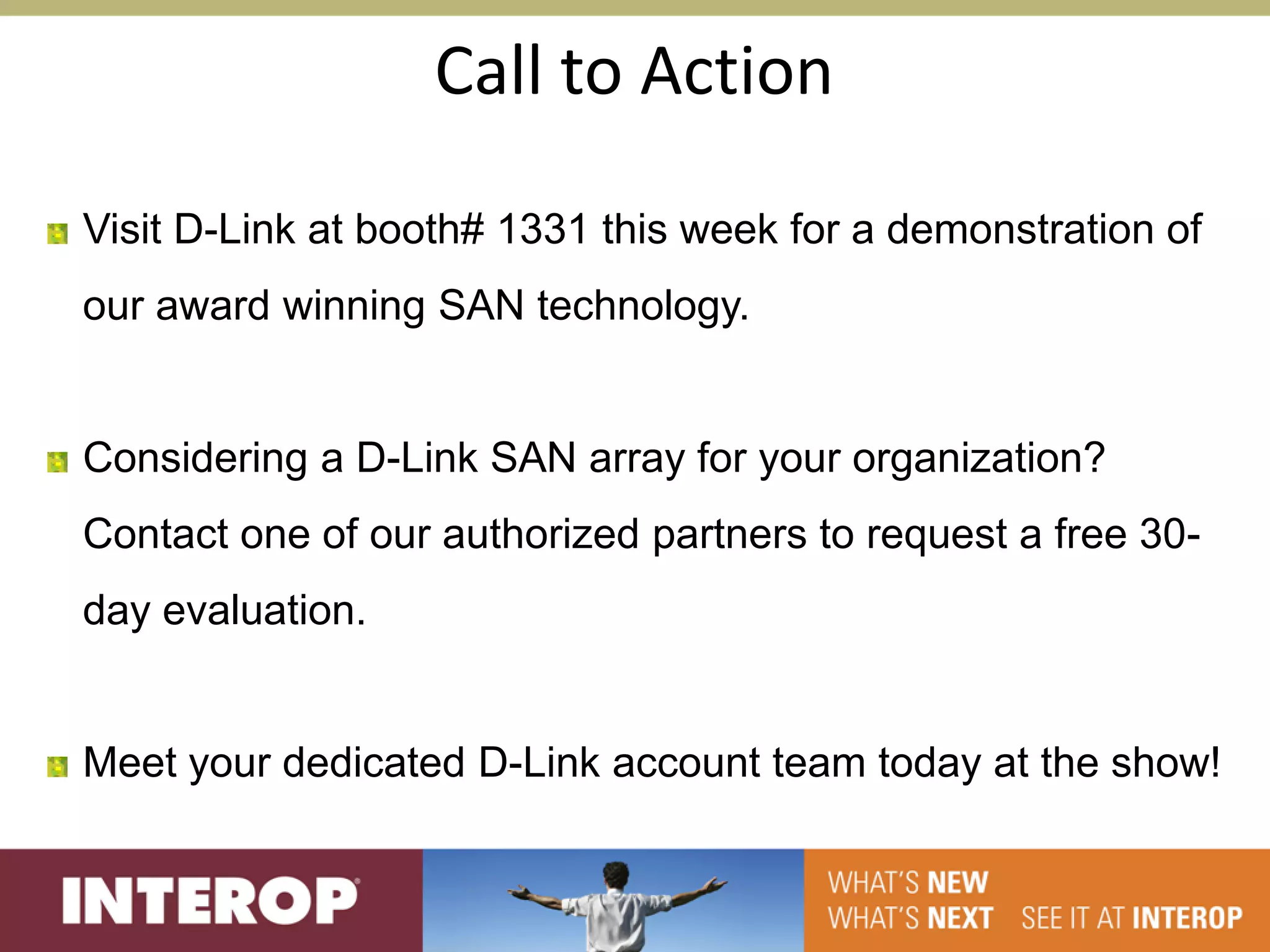

20. Call to Action
Visit D-Link at booth# 1331 this week for a demonstration of
our award winning SAN technology.
Considering a D-Link SAN array for your organization?
Contact one of our authorized partners to request a free 30-
day evaluation.
Meet your dedicated D-Link account team today at the show!

21. Thank You
