This document describes a project by Ji Sun Lee that visualizes ASMR sounds through embroidery applied to textiles and wearables. By utilizing conductive thread and programming, users can interact with embroidered patterns that trigger corresponding ASMR sounds. Lee is a professor specializing in maker education, with a background in user interface design and media arts exhibition.

1. ASMRVISUALIZATION
w. EMBROIDERY
可视化刺绣ASMR

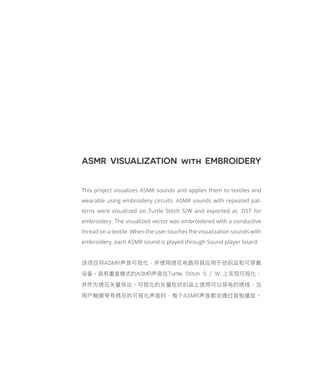

3. ASMR VISUALIZATION with EMBROIDERY
This project visualizes ASMR sounds and applies them to textiles and
wearable using embroidery circuits. ASMR sounds with repeated pat-
terns were visualized on Turtle Stitch S/W and exported as .DST for
embroidery. The visualized vector was embroidered with a conductive
thread on a textile. When the user touches the visualization sounds with
embroidery, each ASMR sound is played through Sound player board.
该项目将ASMR声音可视化，并使用绣花电路将其应用于纺织品和可穿戴
设备。具有重复模式的ASMR声音在Turtle Stitch S / W 上实现可视化，
并作为绣花矢量导出。可视化的矢量在纺织品上使用可以导电的绣线，当
用户触摸带有绣花的可视化声音时，每个ASMR声音都会通过音板播放。

4. CIRCLES
for burning asmr sound
<sprites>
<sprite name=”Sprite” idx=”1” x=”105.99999999999886” y=”-822.0000000000002” heading=”90” scale=”1”
volume=”100” pan=”0” rotation=”1” draggable=”true” hidden=”true” costume=”0” color=”0,0,0,1”
pen=”tip” id=”8”>
<costumes>
<list struct=”atomic” id=”9”/>
</costumes>
<sounds>
<list struct=”atomic” id=”10”/>
</sounds>
<blocks/>
<variables/>
<scripts>
<script x=”54” y=”71”>
<block s=”receiveGo”/>
<block s=”gotoXY”>
<l>0</l>
<l>0</l>
</block>
<block s=”doRepeat”>
<l>5</l>
<script>
<block s=”doRepeat”>
<l>30</l>
<script>
<block s=”down”/>
<block s=”doRepeat”>
<l>12</l>
<script>
<block s=”forward”>
<l>10</l>
</block>
<block s=”turn”>
<l>30</l>
</block>
</script>
</block>
<block s=”up”/>
<block s=”gotoXY”>
<block s=”reportSum”>
<block s=”xPosition”/>

5. <block s=”reportDifference”>
<block s=”yPosition”/>
<block s=”reportRandom”>
<l>30</l>
<l>60</l>
</block>
</block>
</block>
<block s=”doRepeat”>
<l>30</l>
<script>
<block s=”down”/>
<block s=”doRepeat”>
<l>24</l>
<script>
<block s=”forward”>
<l>10</l>
</block>
<block s=”turnLeft”>
<l>15</l>
</block>
</script>
</block>
<block s=”up”/>
<block s=”gotoXY”>
<block s=”reportDifference”>
<block s=”xPosition”/>
<block s=”reportRandom”>
<l>1</l>
<l>60</l>
</block>
</block>
<block s=”yPosition”/>
</block>
</script>
</block>
<block s=”gotoXY”>
<block s=”xPosition”/>
<block s=”reportDifference”>
<block s=”yPosition”/>
<l>120</l>
</block>
</block>
</script>
</block>
</script>
<script x=”339” y=”10”>
<block s=”receiveKey”>
<l>
<option>space</option>
</l>
</block>
<block s=”clear”/>
<block s=”resetAll”/>
</script>
<script x=”115.9912129375” y=”565.000002”>
<block s=”reportSum”>
<l/>
<l>60</l>
</block>
</script>
<script x=”176.9912129375” y=”370.000002”>
<block s=”reportDifference”>
<l/>
<l>60</l>
</block>
</script>
</scripts>
</sprite>

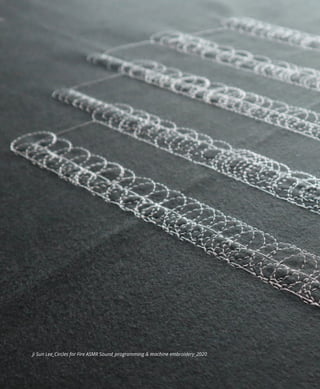

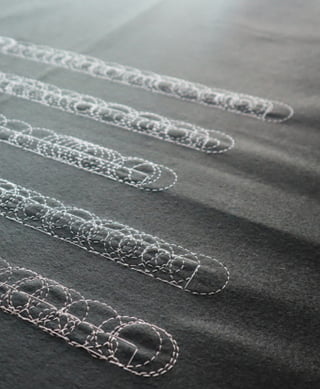

6. Ji Sun Lee_Circles for Fire ASMR Sound_programming & machine embroidery_2020

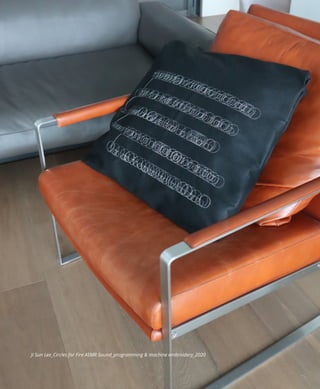

8. Ji Sun Lee_Circles for Fire ASMR_programming & machine embroidery_2020Ji Sun Lee_Circles for Fire ASMR Sound_programming & machine embroidery_2020

9. <sprites>
<sprite
name=”Sprite”
idx=”1”
x=”1660.4999999999545”
y=”- 2500.0000000000027” heading=”0”
scale=”1” volume=”100” pan=”0” rota-
tion=”1” draggable=”true” hidden=”true” cos-
tume=”0” col or=”2.0000000000000018,10,0,1” pen=”tip”
id=”15”>
<cos- tumes>
<list struct=”atomic” id=”16”/>
</costumes>
<sounds>
<list struct=”atomic” id=”17”/>
</sounds>
<blocks/>
<variables/>
<scripts>
<script x=”196.999998” y=”10”>
<block s=”receiveGo”/>
<block s=”doSetVar”>
<l>size</l>
<l>0</l>
</block>
<block s=”doSetVar”>
<l>Amplitude</l>
<l>0</l>
</block>
<block s=”doSetVar”>
<l>theta</l>
<l>0</l>
</block>
<block s=”up”/>
<block s=”clear”/>
<block s=”doRepeat”>
<l>19</l>
<script>
<block s=”doSetVar”>
<l>Amplitude</l>
<block s=”reportRandom”>
<l>30</l>
<l>70</l>
</block>
</block>
<block s=”up”/>
<block s=”doUntil”>
<block s=”reportGreaterThan”>
<block var=”theta”/>
<l>91</l>
</block>
<script>
<block s=”doSetVar”>
<l>r</l>
<block s=”reportQuotient”>

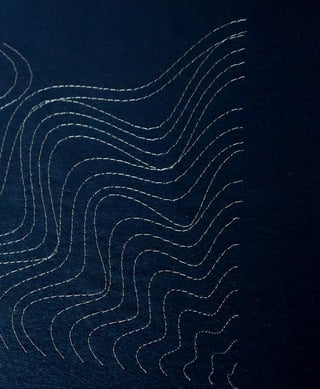

WAVES
for rowing asmr sound

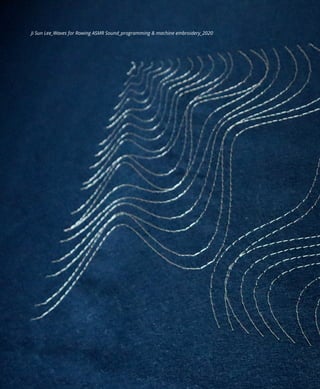

10. Ji Sun Lee_Waves for Rowing ASMR Sound_programming & machine embroidery_2020

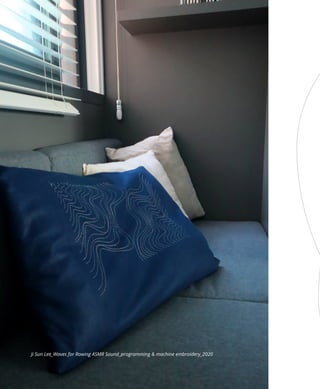

12. Ji Sun Lee_Waves for Rowing ASMR Sound_programming & machine embroidery_2020

13. ELLIPSES
for chirping asmr sound
<sounds>
<list struct="atomic" id="3"/>
</sounds>
<variables/>
<blocks/>
<scripts/>
<sprites>
<sprite name="Sprite" idx="1" x="-
2.315574192196421" y="-126.43603144155158"
heading="47" scale="1" volume="100" pan="0"
rotation="1" draggable="true" hidden="true" cos-
tume="0" color="0,0,0,1" pen="tip" id="8">
<costumes>
<list struct="atomic" id="9"/>
</costumes>
<sounds>
<list struct="atomic" id="10"/>
</sounds>
<blocks/>
<variables/>
<scripts>
<script x="14" y="14">
<block s="receiveGo"/>
<block s="resetAll"/>
<block s="gotoXY">
<l>0</l>
<l>0</l>
</block>
<block s="clear"/>
<block s="up"/>
<block s="doSetVar">
<l>x</l>
<block s="reportNewList">
<list>
<l/>
</list>
</block>
</block>
<block s="doSetVar">
<l>y</l>
<block s="reportNewList">
<list>
<l/>
</list>
</block>
</block>
<block s="doSetVar">
<l>combnum</l>
<l>0</l>
</block>
<block s="doSetVar">
<l>combnum2</l>
<l>0</l>
</block>
<block s="doSetVar">
<l>degrees</l>
<block s="reportNewList">
<list>
<l/>
</list>
</block>
</block>
<block s="doSetVar">
<l>repeats</l>
<block s="reportNewList">
<list>
<l/>
</list>
</block>
</block>
<block s="doSetVar">
<l>combnumcounter</l>
<block s="reportNewList">
<list>
<l/>
</list>
</block>
</block>
<block s="doSetVar">
<l>combnum2counter</l>
<block s="reportNewList">
<list>
<l/>
</list>

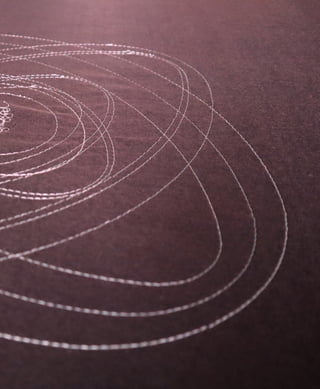

14. Ji Sun Lee_Ellipses for Chirping ASMR Sound_programming & machine embroidery_2020

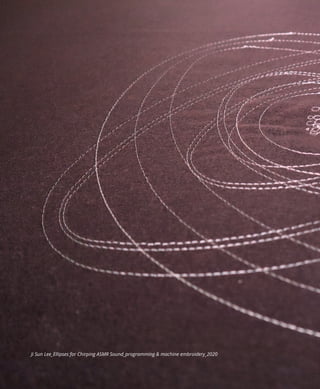

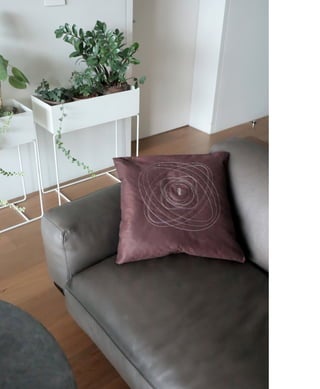

17. Ji Sun Lee_Ellipses for Chirping ASMR Sound_programming & machine embroidery_2020

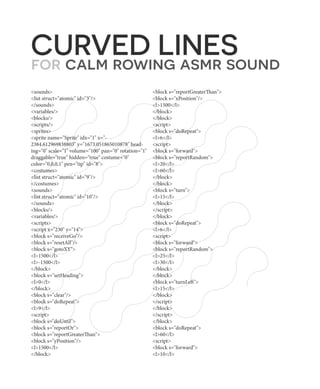

18. CURVED LINES
for calm rowing asmr sound
<sounds>
<list struct="atomic" id="3"/>
</sounds>
<variables/>
<blocks/>
<scripts/>
<sprites>
<sprite name="Sprite" idx="1" x="-
2384.612969838803" y="1673.051865010878" head-
ing="0" scale="1" volume="100" pan="0" rotation="1"
draggable="true" hidden="true" costume="0"
color="0,0,0,1" pen="tip" id="8">
<costumes>
<list struct="atomic" id="9"/>
</costumes>
<sounds>
<list struct="atomic" id="10"/>
</sounds>
<blocks/>
<variables/>
<scripts>
<script x="230" y="14">
<block s="receiveGo"/>
<block s="resetAll"/>
<block s="gotoXY">
<l>1500</l>
<l>-1500</l>
</block>
<block s="setHeading">
<l>0</l>
</block>
<block s="clear"/>
<block s="doRepeat">
<l>9</l>
<script>
<block s="doUntil">
<block s="reportOr">
<block s="reportGreaterThan">
<block s="yPosition"/>
<l>1500</l>
</block>
<block s="reportGreaterThan">
<block s="xPosition"/>
<l>1500</l>
</block>
</block>
<script>
<block s="doRepeat">
<l>6</l>
<script>
<block s="forward">
<block s="reportRandom">
<l>20</l>
<l>60</l>
</block>
</block>
<block s="turn">
<l>15</l>
</block>
</script>
</block>
<block s="doRepeat">
<l>6</l>
<script>
<block s="forward">
<block s="reportRandom">
<l>25</l>
<l>30</l>
</block>
</block>
<block s="turnLeft">
<l>15</l>
</block>
</script>
</block>
</script>
</block>
<block s="doRepeat">
<l>60</l>
<script>
<block s="forward">
<l>10</l>

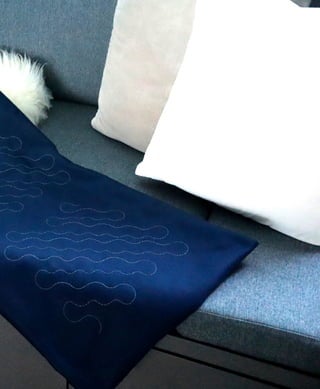

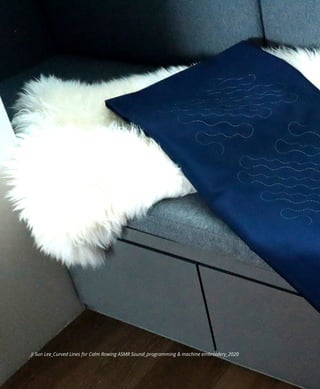

19. Ji Sun Lee_Curved Lines for Calm Rowing ASMR Sound_programming & machine embroidery_2020

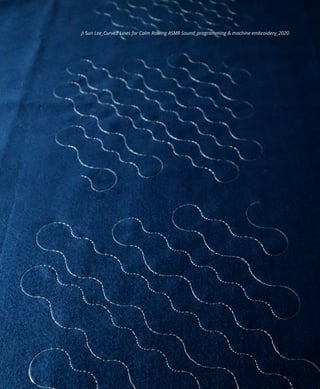

20. Ji Sun Lee_Curved Lines for Calm Rowing ASMR Sound_programming & machine embroidery_2020

22. DANGLED LINES
for pouring asmr sound
<sounds>
<list struct="atomic" id="3"/>
</sounds>
<variables/>
<blocks/>
<scripts/>
<sprites>
<sprite name="Sprite" idx="1" x="-1500" y="1500" heading="5" scale="1" volume="100" pan="0" rotation="1"
draggable="true" hidden="true" costume="0" color="0,0,0,1" pen="tip" id="8">
<costumes>
<list struct="atomic" id="9"/>
</costumes>
<sounds>
<list struct="atomic" id="10"/>
</sounds>
<blocks/>
<variables/>
<scripts>
<script x="35" y="26.99999600000001">
<block s="receiveGo"/>
<block s="resetAll"/>
<block s="gotoXY">
<l>0</l>
<l>0</l>
</block>
<block s="doSetVar">
<l>turn</l>
<l>0</l>
</block>
<block s="doRepeat">
<l>10</l>
<script>
<block s="down"/>
<block s="doRepeat">
<l>15</l>
<script>
<block s="gotoXY">
<block s="reportDifference">
<block s="xPosition"/>
<block s="reportRandom">
<l>25</l>
<l>30</l>
</block>
</block>
<block s=”reportDifference”>
<block s=”yPosition”/>
<block s=”reportRandom”>
<l>25</l>
<l>30</l>
</block>
</block>
</block>
</script>
</block>
<block s=”doRepeat”>
<l>12</l>
<script>
<block s=”doRepeat”>
<l>15</l>
<script>
<block s=”forward”>
<block s=”reportRandom”>

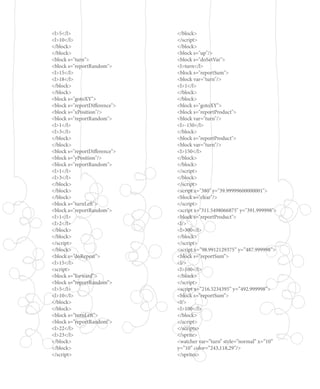

23. <l>5</l>
<l>10</l>
</block>
</block>
<block s="turn">
<block s="reportRandom">
<l>15</l>
<l>18</l>
</block>
</block>
<block s="gotoXY">
<block s="reportDifference">
<block s="xPosition"/>
<block s="reportRandom">
<l>1</l>
<l>3</l>
</block>
</block>
<block s="reportDifference">
<block s="yPosition"/>
<block s="reportRandom">
<l>1</l>
<l>3</l>
</block>
</block>
</block>
<block s="turnLeft">
<block s="reportRandom">
<l>1</l>
<l>2</l>
</block>
</block>
</script>
</block>
<block s=”doRepeat”>
<l>15</l>
<script>
<block s=”forward”>
<block s=”reportRandom”>
<l>5</l>
<l>10</l>
</block>
</block>
<block s=”turnLeft”>
<block s=”reportRandom”>
<l>22</l>
<l>23</l>
</block>
</block>
</script>
</block>
</script>
</block>
<block s="up"/>
<block s="doSetVar">
<l>turn</l>
<block s="reportSum">
<block var="turn"/>
<l>1</l>
</block>
</block>
<block s="gotoXY">
<block s="reportProduct">
<block var="turn"/>
<l>-150</l>
</block>
<block s="reportProduct">
<block var="turn"/>
<l>150</l>
</block>
</block>
</script>
</block>
</script>
<script x="380" y="39.99999600000001">
<block s="clear"/>
</script>
<script x="311.5498066875" y="391.999998">
<block s="reportProduct">
<l/>
<l>300</l>
</block>
</script>
<script x=”98.9912129375” y=”487.999998”>
<block s=”reportSum”>
<l/>
<l>100</l>
</block>
</script>
<script x=”216.5234395” y=”492.999998”>
<block s=”reportSum”>
<l/>
<l>100</l>
</block>
</script>
</scripts>
</sprite>
<watcher var=”turn” style=”normal” x=”10”
y=”10” color=”243,118,29”/>
</sprites>

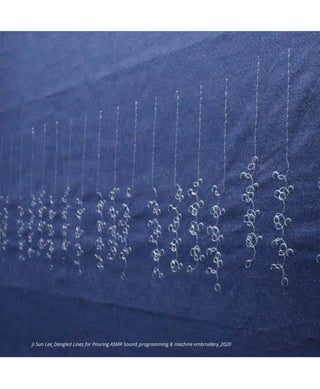

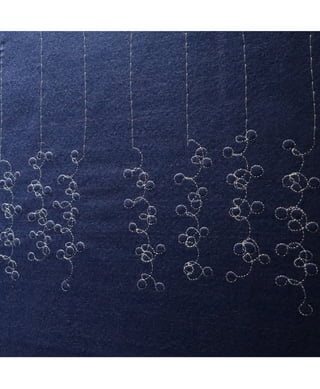

24. Ji Sun Lee_Dangled Lines for Pouring ASMR Sound_programming & machine embroidery_2020

27. Ji Sun Lee_Dangled Lines for Pouring ASMR Sound_programming & machine embroidery_2020

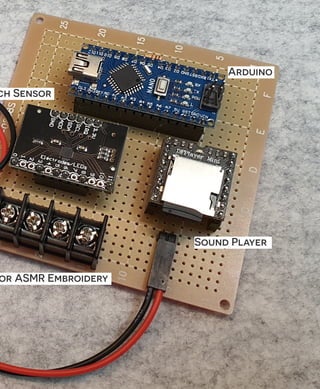

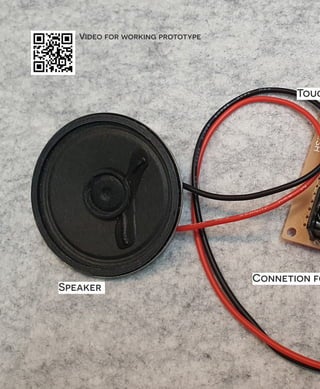

28. Touc
Video for working prototype
Connetion fo
Speaker

29. ch Sensor
Sound Player
or ASMR Embroidery
Arduino

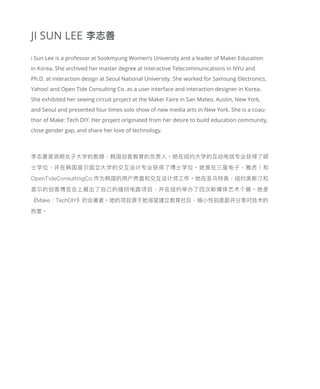

30. JI SUN LEE
i Sun Lee is a professor at Sookmyung Women’s University and a leader of Maker Education
in Korea. She archived her master degree at Interactive Telecommunications in NYU and
Ph.D. at interaction design at Seoul National University. She worked for Samsung Electronics,
Yahoo! and Open Tide Consulting Co. as a user interface and interaction designer in Korea.
She exhibited her sewing circuit project at the Maker Faire in San Mateo, Austin, New York,
and Seoul and presented four times solo show of new media arts in New York. She is a coau-
thor of Make: Tech DIY. Her project originated from her desire to build education community,
close gender gap, and share her love of technology.
李志善是淑明女子大学的教授，韩国创客教育的负责人。她在纽约大学的互动电信专业获得了硕
士学位，并在韩国首尔国立大学的交互设计专业获得了博士学位。她曾在三星电子，雅虎！和
OpenTideConsultingCo.作为韩国的用户界面和交互设计师工作。她在圣马特奥，纽约奥斯汀和
首尔的创客博览会上展出了自己的缝纫电路项目，并在纽约举办了四次新媒体艺术个展。她是
《Make：TechDIY》的合著者。她的项目源于她渴望建立教育社区，缩小性别差距并分享对技术的
热爱。
李志善

31. EXHIBITION
ASMR Sound Visualization on Embroidery Circuit, KSDS International Exhibition, Korea, 2019
Tech D.I.Y., Maker Faire 2019, ShenZhen, China, 2019
Tech D.I.Y., Maker Faire 2019, San Mateo, CA, 2019
Tech D.I.Y., New York Makery-The 4th Solo Show, New York, NY, 2016
People Colors, MediaNoche-The 3rd Solo Show, New York, NY, 2013
Quotidian-Documenting Everyday Life, MediaNoche-The 2nd Solo Show, New York, NY, 2012
Tech D.I.Y., Maker Faire 2012 in Seoul, Seoul, Korea, 2012
Urban Meditation, MediaNoche-The 1st Solo Show, New York, NY, 2011
Urban Meditation, SIGGRAPH Asia 2010, Seoul, Korea, 2010
Tech D.I.Y., SIGGRAPH 2008, Los Angeles, CA, 2008
Tech D.I.Y., Maker Faire 2008, San Mateo, CA, 2008
The Meditative Mind, ITP on the Big Screen at IAC, New York, NY, 2007
The Meditative Mind, Design Now, Seoul, Korea, 2007
The Meditative Mind & Tech D.I.Y., ITP Winter Show 2007, New York, NY, 2007
Affection, All light! All Right?, Seoul, Korea, 2007
Secret Tree, Maker Fare 2007, Austin, TX, 2007
Four Gracious Plants, NYC SIGRAPH-Metro CAF, New York, NY, 2007
Affection, Sony Wonder Technology Lab, New York, NY, 2007
Interactive Cake, Maker Faire 2007, San Francisco, CA2007
Affection & Interactive Cake, NYU ITP Spring Show, New York, NY, 2007
Four Gracious Plants, Screening of Video/Animation Work, New York, NY, 2007
Tales of Grim & Tea Ceremony, NYU ITP Winter Show, New York, NY, 2006
AWARD
The Grand Prize, Sewing Circuit Tech D.I.Y., KSDS International Exhibition, Korea, 2017
Best Education Website, SNOW.orkr, Web Award Korea, Korea, 2010
Semi-finalist, Documenting New York’s Diversity, Adobe Design Achievement Awards, USA,
2007
Winner, Documenting New York’s Diversity, Expression-Photography magazine, USA, 2007

32. Ji Sun Lee’s Solo Show in China
ASMR Visualization with Embroidery
07 27 2020 to 08 03 2020
Zhengzhou Shengda University Gallery
1 Wenchang Road , Longhu,
Xinzheng, 451191, China
T.+86 (0)371-62436336 | F.+86 (0)371-62436336
www.shengda.edu.cn/en/
** The show is made by research fund grand from Sookmyung Wemen’s University.
李志善的中国个展
ASMR可视化的刺绣
2020/07/27至2020/08/03
郑州胜达大学美术馆
龙湖市文昌路1号
新郑451191
电话+86（0）371-62436336 | 传真+86（0）371-62436336
www.shengda.edu.cn/cn/

33. This work is licensed under
http://creativecommons.org/licenses/by/3.0/
Programming Support by Hannah Kim and HyunJin Chu
Hardwear Support by JaeMin Yu
Design Support by Yuying Hu

34. JiSunLee.net
sun.neofuture@gmail.com
+82 (0)10 7385 9373
facebook : jisunlee.net
twitter : jisunlee
