Examples in OS synchronization for UG

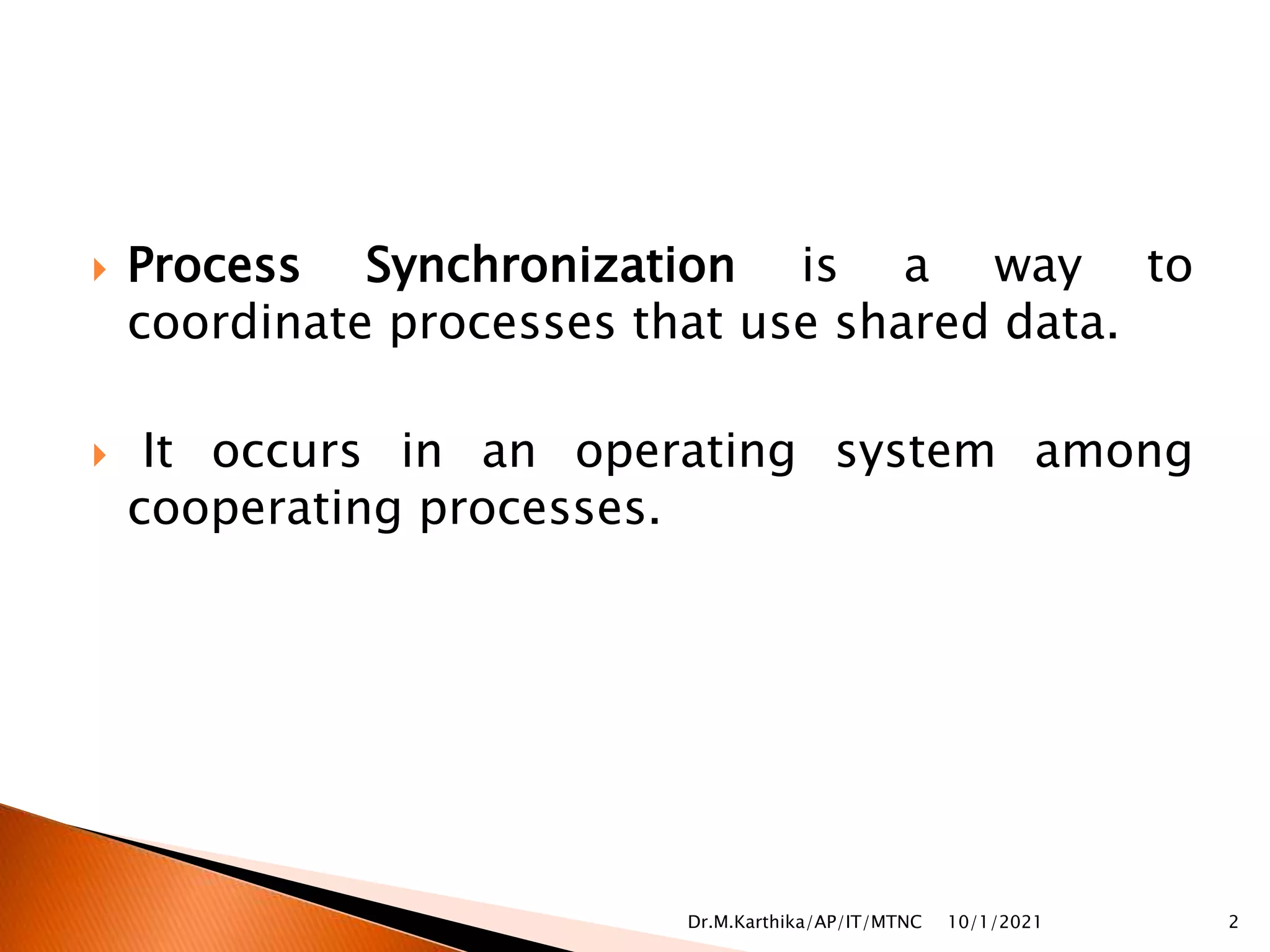

 Process Synchronization is a way to
coordinate processes that use shared data.
 It occurs in an operating system among
cooperating processes.
10/1/2021 2
Dr.M.Karthika/AP/IT/MTNC

 The main purpose of synchronization is the
sharing of resources without interference
using mutual exclusion.
 The other purpose is the coordination of the
process interactions in an operating system.
Semaphores and monitors are the most
powerful and most commonly used
mechanisms to solve synchronization
problems.
10/1/2021 3

 It is the task phenomenon of coordinating the
execution of processes in such a way that no two
processes can have access to the same shared
data and resources.
 It is a procedure that is involved in order to
preserve the appropriate order of execution of
cooperative processes.
 In order to synchronize the processes, there are
various synchronization mechanisms.
 Process Synchronization is mainly needed in a
multi-process system when multiple processes
are running together, and more than one
processes try to gain access to the same shared
resource or any data at the same time.
10/1/2021 4

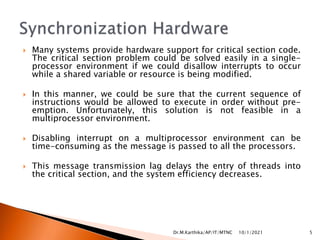

 Many systems provide hardware support for critical section code.
The critical section problem could be solved easily in a single-
processor environment if we could disallow interrupts to occur
while a shared variable or resource is being modified.
 In this manner, we could be sure that the current sequence of
instructions would be allowed to execute in order without pre-
emption. Unfortunately, this solution is not feasible in a
multiprocessor environment.
 Disabling interrupt on a multiprocessor environment can be
time-consuming as the message is passed to all the processors.
 This message transmission lag delays the entry of threads into
the critical section, and the system efficiency decreases.
10/1/2021 5

 As the synchronization hardware solution is
not easy to implement for everyone, a strict
software approach called Mutex Locks was
introduced.
 In this approach, in the entry section of code, a
LOCK is acquired over the critical resources
modified and used inside the critical section,
and in the exit section that LOCK is released.
 As the resource is locked while a process
executes its critical section hence no other
process can access it.
10/1/2021 6

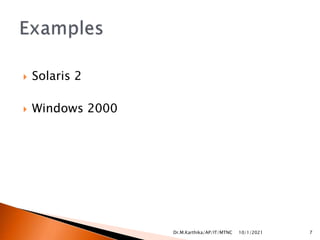

 Solaris 2
 Windows 2000
10/1/2021 7

 Solaris implements variety of locks to support
multitasking, multithreading and
multiprocessing.
 It uses adaptive mutexes, conditional variables,
semaphores, read-write locks, turnstiles to
control access to critical sections.
 On A multiprocessor system it starts as a
standard semaphore spin-lock.
 If the lock is held by a thread which is running
on another CPU then the thread spins.
 If the lock is held by a thread which is currently
in run state,the thread blocks, going to sleep
until it is awakened by the signal of releasing the
lock.
10/1/2021 8

 The spin-waiting method is exceedingly
inefficient if code segment is longer.
So conditional variables, semaphores are
used for them.
 Solaris provides Read-Write lock to protect
the data are frequently accessed by long
section of code usually in read-only manner.
 It uses turnstiles to order the list of threads
waiting to acquire either an adaptive mutex
or read-writer lock.
10/1/2021 9

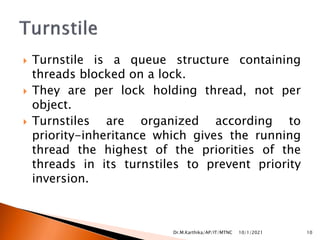

 Turnstile is a queue structure containing
threads blocked on a lock.
 They are per lock holding thread, not per
object.
 Turnstiles are organized according to
priority-inheritance which gives the running
thread the highest of the priorities of the
threads in its turnstiles to prevent priority
inversion.
10/1/2021 10

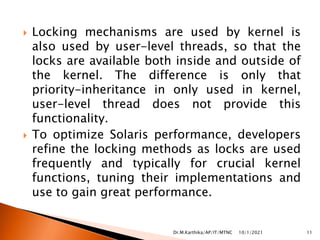

 Locking mechanisms are used by kernel is
also used by user-level threads, so that the
locks are available both inside and outside of
the kernel. The difference is only that
priority-inheritance in only used in kernel,
user-level thread does not provide this
functionality.
 To optimize Solaris performance, developers
refine the locking methods as locks are used
frequently and typically for crucial kernel
functions, tuning their implementations and
use to gain great performance.
10/1/2021 11

 Windows operating system is a multithreaded
kernel that provide support for real time
application and multiprocessors.
 On uniprocessor system, Windows provides
interrupt masks to protect access to global
resources.
 It protects access to global resource using
spinlock.
 The kernel uses spinlocks only to protect short
code segment like Solaris.
 The kernel ensures that while holding a spinlock,
a thread will never be preempted.
10/1/2021 12

 Windows provide dispatcher object for thread
synchronization according to several different
mechanisms including mutexes, semaphores,
events and timers.
 The system protects shared data by requiring
a thread to gain ownership of a mutex for
accessing the data and when it is finished,
releases the ownership.
10/1/2021 13

 Events acts as a conditional variable to notify
a waiting thread when desired condition
occurs.
 Timers are used to notify one or more thread
when time expired.

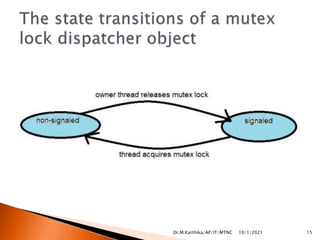

 Dispatcher objects may be either signaled
state or a non-signaled state.
10/1/2021 14

10/1/2021 15

 Signaled state indicates that an object is
available and a thread will not block when
acquiring the object.
 Non-signaled state indicates that an object is
not available and a thread will block when
trying to acquire the object.
10/1/2021 16

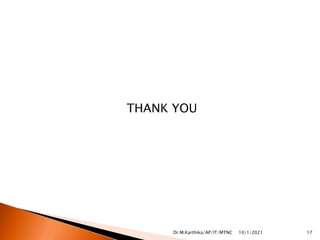

THANK YOU
10/1/2021 17
