Migrate custom components to the SharePoint Framework
1. Migrate your custom components
to the SharePoint Framework
Vincent Biret
Azure and Office 365 developer @ 2toLead
Microsoft Office Dev MVP
@baywet
Bit.ly/vince365
2. SharePoint Framework being GA and reaching on prem means it’s time for key decisions
making
Targeted audience
Seasoned
SharePoint
developer
Project manager New to SharePoint Dev Decision Maker

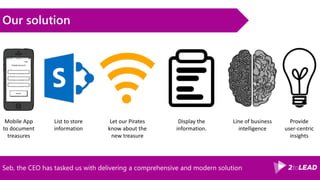

8. Mobile App
to document
treasures
Our solution
Seb, the CEO has tasked us with delivering a comprehensive and modern solution
List to store
information
Let our Pirates
know about the
new treasure
Display the
information.
Line of business
intelligence
Provide
user-centric
insights

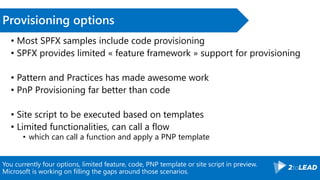

14. You currently four options, limited feature, code, PNP template or site script in preview.
Microsoft is working on filling the gaps around those scenarios.
Provisioning options
• Most SPFX samples include code provisioning
• SPFX provides limited « feature framework » support for provisioning
• Pattern and Practices has made awesome work
• PnP Provisioning far better than code
• Site script to be executed based on templates
• Limited functionalities, can call a flow
• which can call a function and apply a PNP template

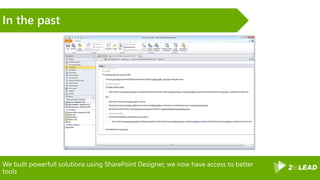

17. We built powerfull solutions using SharePoint Designer, we now have access to better
tools
In the past

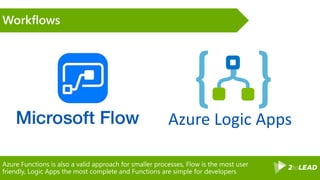

18. Azure Functions is also a valid approach for smaller processes, Flow is the most user
friendly, Logic Apps the most complete and Functions are simple for developers
Workflows
Azure Logic Apps
27. Power BI focuses on… BI and analytics, if you want more custom capabilities, you can
build components using the SharePoint framework
Your options
28. Microsoft has re-invented the extensibility model multiple times trying to find a solution
that scales
Our history
Full Trust Sandbox Add-ins (SP) Add-ins (PH)
Execution Server Side Server Side Front End Server Side out of SP
Context User & Service User Only User Only User & App
Bad code Impacts the farm Impacts the solution Impacts the user Impacts the solution
Deployment Farm downtime Solution downtime Solution downtime Solution downtime
Unit tests Hard Hard Better Better
APIs SSOM/JSOM SSOM/JSOM JSOM/REST CSOM/REST
Batch jobs Timer Jobs No No Your own
Surprise Throttling, API limitations Iframes Iframes
29. And the general feeling of an average SharePoint developer was either bitterness or
frustration, especially when we compared with other developers and the tools they had.
SharePoint Add-ins/Sandbox

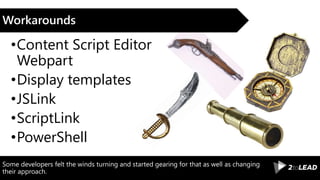

30. Some developers felt the winds turning and started gearing for that as well as changing
their approach.
Workarounds
•Content Script Editor
Webpart
•Display templates
•JSLink
•ScriptLink
•PowerShell

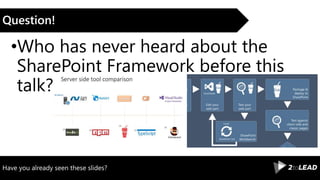

31. Have you already seen these slides?
Question!
•Who has never heard about the
SharePoint Framework before this
talk?

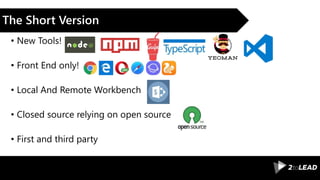

32. The Short Version
• New Tools!
• Front End only!
• Local And Remote Workbench
• Closed source relying on open source
• First and third party

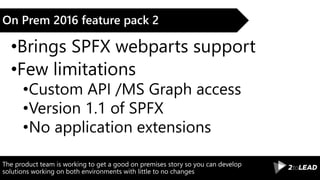

33. The product team is working to get a good on premises story so you can develop
solutions working on both environments with little to no changes
On Prem 2016 feature pack 2
•Brings SPFX webparts support
•Few limitations
•Custom API /MS Graph access
•Version 1.1 of SPFX
•No application extensions

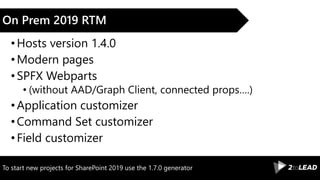

34. To start new projects for SharePoint 2019 use the 1.7.0 generator
On Prem 2019 RTM
•Hosts version 1.4.0
•Modern pages
•SPFX Webparts
• (without AAD/Graph Client, connected props….)
•Application customizer
•Command Set customizer
•Field customizer

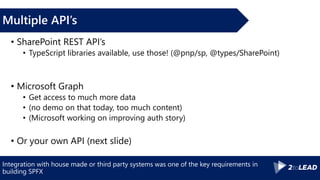

37. Integration with house made or third party systems was one of the key requirements in
building SPFX
Multiple API’s
• SharePoint REST API’s
• TypeScript libraries available, use those! (@pnp/sp, @types/SharePoint)
• Microsoft Graph
• Get access to much more data
• (no demo on that today, too much content)
• (Microsoft working on improving auth story)
• Or your own API (next slide)

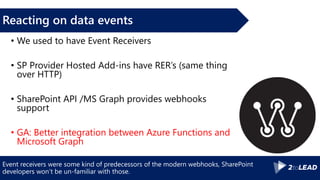

38. Event receivers were some kind of predecessors of the modern webhooks, SharePoint
developers won’t be un-familiar with those.
Reacting on data events
• We used to have Event Receivers
• SP Provider Hosted Add-ins have RER’s (same thing
over HTTP)
• SharePoint API /MS Graph provides webhooks
support
• GA: Better integration between Azure Functions and
Microsoft Graph

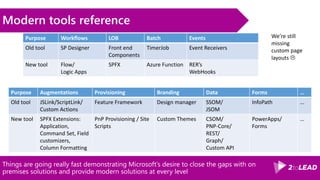

41. Things are going really fast demonstrating Microsoft’s desire to close the gaps with on
premises solutions and provide modern solutions at every level
Modern tools reference
Purpose Workflows LOB Batch Events
Old tool SP Designer Front end
Components
TimerJob Event Receivers
New tool Flow/
Logic Apps
SPFX Azure Function RER’s
WebHooks
Purpose Augmentations Provisioning Branding Data Forms …
Old tool JSLink/ScriptLink/
Custom Actions
Feature Framework Design manager SSOM/
JSOM
InfoPath …
New tool SPFX Extensions:
Application,
Command Set, Field
customizers,
Column Formatting
PnP Provisioning / Site
Scripts
Custom Themes CSOM/
PNP-Core/
REST/
Graph/
Custom API
PowerApps/
Forms
…
We’re still
missing
custom page
layouts
42. Conclusion
• We have a modern tooling
• The SharePoint Framework is one item of our pirate gear
• Add-ins are still relevant in some scenarios
• Leverage other tools to have a full spectrum
• SharePoint dev cost will decrease because bigger community
• SharePoint devs’ life just became better
• Happy coding
Show the solution in code, gulp serve https://baywet.sharepoint.com/sites/sessionmigratespfx/_layouts/15/workbench.aspx
gulp –tasks
https://docs.microsoft.com/en-us/sharepoint/dev/declarative-customization/column-formatting
PowerShell management support (6906.1200): https://aka.ms/spsitetheming
Theme builder tool (hosted on Fabric site): https://aka.ms/spthemebuilder
