Enjector Kernel - Workflow Module Demo

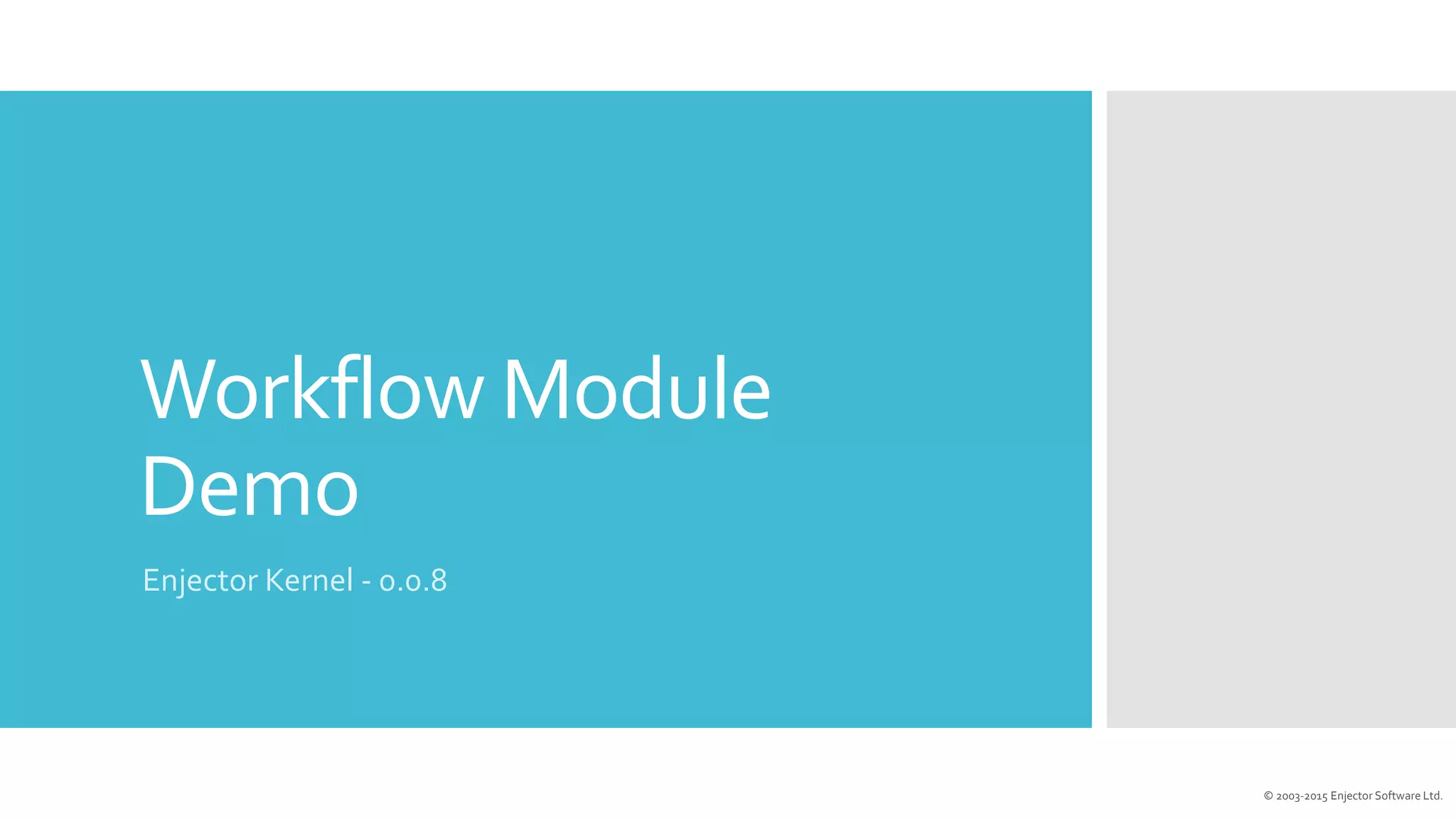

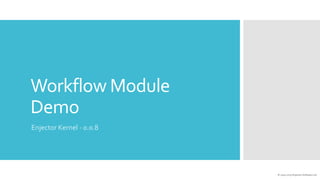

- 1. Workflow Module Demo Enjector Kernel - 0.0.8 © 2003-2015 Enjector Software Ltd.

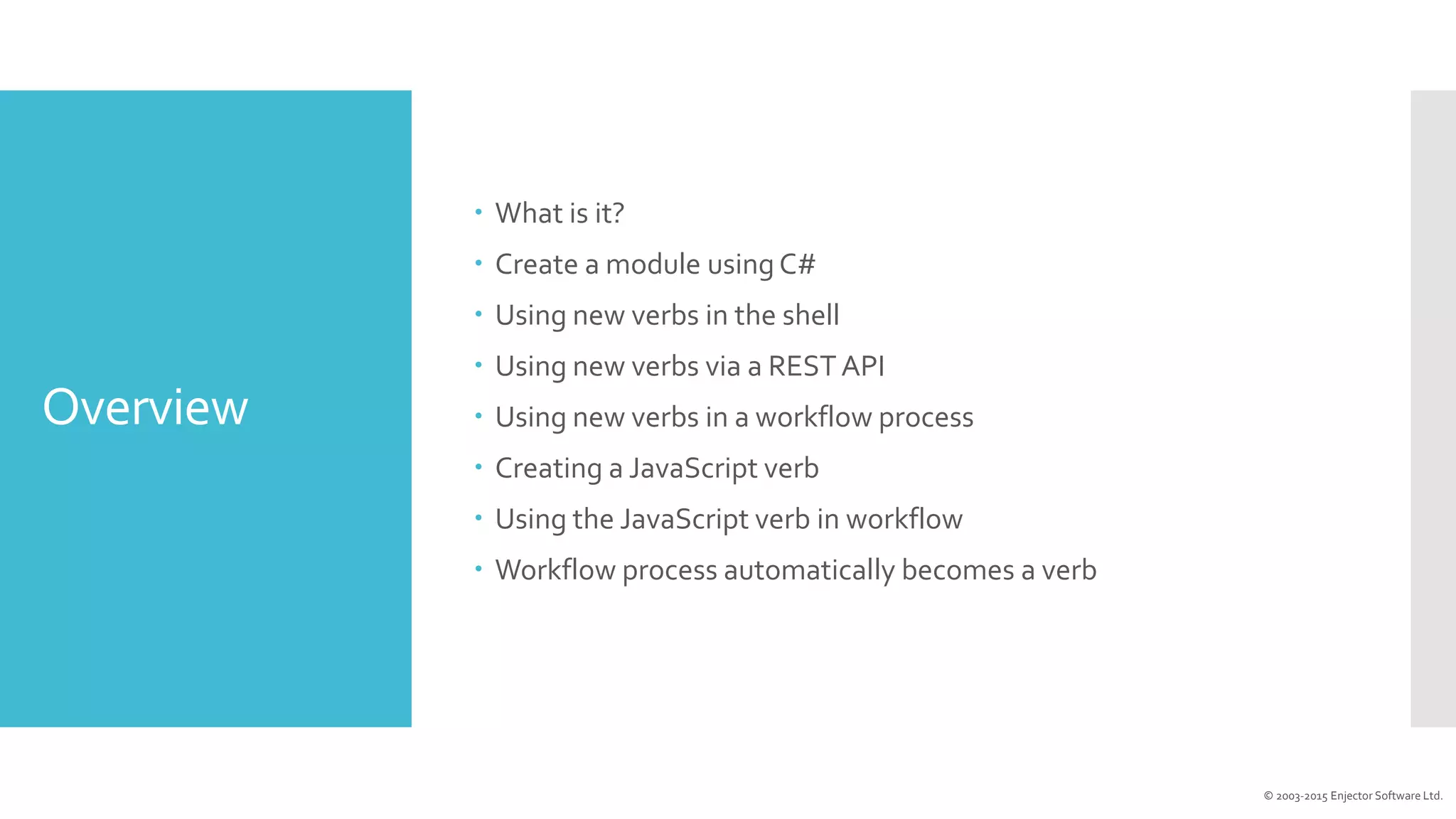

- 2. Overview What is it? Create a module using C# Using new verbs in the shell Using new verbs via a REST API Using new verbs in a workflow process Creating a JavaScript verb Using the JavaScript verb in workflow Workflow process automatically becomes a verb © 2003-2015 Enjector Software Ltd.
- 3. What is it? Verb Packs (dynamically loaded) Enjector Kernel Runtime Module Manager Verb Manager Workflow Kernel SchedulerEvent Bus Designer Prebuilt Workflow Processes C#JavaScript Your Application Application Embedding Enjector Kernel Application Embedding Enjector Kernel REST API Problems solved using Enjector Kernel: - Alter existing applications and support new use cases without restarting or rebuilding your desktop, console or web application. - Leverage existing gallery modules (Verb packs) without restarting or rebuilding your application.
- 4. Creating a module using C# - Create a class project in the format of <your company name domain>.enjector.mod-<context> For example: com.virginactive.enjector.mod- booking - Reference the Nuget package Enjector - Implement module using IModule interface © 2003-2015 Enjector Software Ltd.
- 5. Creating a module using C# - Implement a simple verb; decorate with [Verb(“<name>”)] © 2003-2015 Enjector Software Ltd.
- 6. Using new verbs in the shell -To run/debug set project properties Debug to run external program Enjector.exe from your Nuget packages - Press F5 and the Enjector Kernel will boot and provide you a login. - Login (any username, any password) -You new module DLL is now distributable (eg Nuget) © 2003-2015 Enjector Software Ltd.
- 7. Using new verbs in the shell - Shell useful for debugging module -Type in virgin and press tab to see all available verbs with this prefix -You can select these verbs to execute within shell © 2003-2015 Enjector Software Ltd.
- 8. Using new verbs via a RESTAPI - By default the kernel is running on port 8888 -The GET and POST REST API endpoint is automatically generated for all verbs: - GET: http://127.0.0.1:8888/api/<verb with spaces replaced with forward slashes>/<option args separated by forward slashes/ -POST: same endpoint but args in Body as x-www-form-urlencoded © 2003-2015 Enjector Software Ltd.
- 9. Using new verbs in a workflow process - By default the kernel is running on port 8888 -Web based workflow designer is available on http://127.0.0.1:8888 -You can search for the verbs and configure -Rename the process, this process will become a verb itself © 2003-2015 Enjector Software Ltd.
- 10. Creating a JavaScript verb - Good for creating verbs quickly especially stitching existing verbs - From the designer you can create JavaScript function and it is available as a verb from shell, REST API and workflow design © 2003-2015 Enjector Software Ltd.
- 11. Using the JavaScript verb in workflow -Use the JavaScript based verb in the process © 2003-2015 Enjector Software Ltd.
- 12. Workflow process automatically becomes a verb - Use the workflow process as a verb -Accessible via RESTAPI, shell, C# and JavaScript -Workflow (with any JavaScript) saved as an xml document which is loaded during Enjector Kernel start/bootstrap. © 2003-2015 Enjector Software Ltd.
Editor's Notes
- function run(sessionId, searchName) { var vclasses = exec("virginactive classes list today " + sessionId); var matches = vclasses.filter(function(c){ return c.name.indexOf(searchName) > -1; }); if (matches.length == 0) { return "No classes available"; } else { var match = matches[0]; if (!exec("virginactive class book " + sessionId + " " + match.id)) { return "Unable to book"; }else{ return "Booked on " + matches[0].name; } } } function test() { return run("1234", "Cycle"); }
