The document summarizes research comparing the Particle Swarm Optimization (PSO) and Differential Evolution (DE) algorithms for optimizing power consumption using smart energy meter data. Both algorithms were implemented in MATLAB and tested on 15 days of meter data from a university lab in India. PSO achieved an 11.5% reduction in power consumption while DE achieved a 9.4% reduction. PSO outperformed DE for this application, showing it is an effective technique for optimizing energy use and reducing electricity costs for consumers. Future work could integrate the models with real smart meters and controllers to achieve automated scheduling and greater savings.

1. 1
2022 Second International Conference on Advances in Electrical, Computing, Communications and Sustain
able Technologies (ICAECT 2022), 21-22 April 2022, Bhilai, Chhattisgarh, India
“COMPARATIVE ANALYSIS OF PARTICLE SWARM OP
TIMIZATION AND DIFFERENTIAL EVOLUTION ALGORIT
HM TO CURTAIL POWER CONSUMPTION USING SMA
RT ENERGY METER ANALYTICS”
Amisha Srivastava | Dr. M. Rizwan | Dr. Rinchin W. Mosobi
Department of Electrical Engineering, Delhi Technological Engineering, Delhi, India

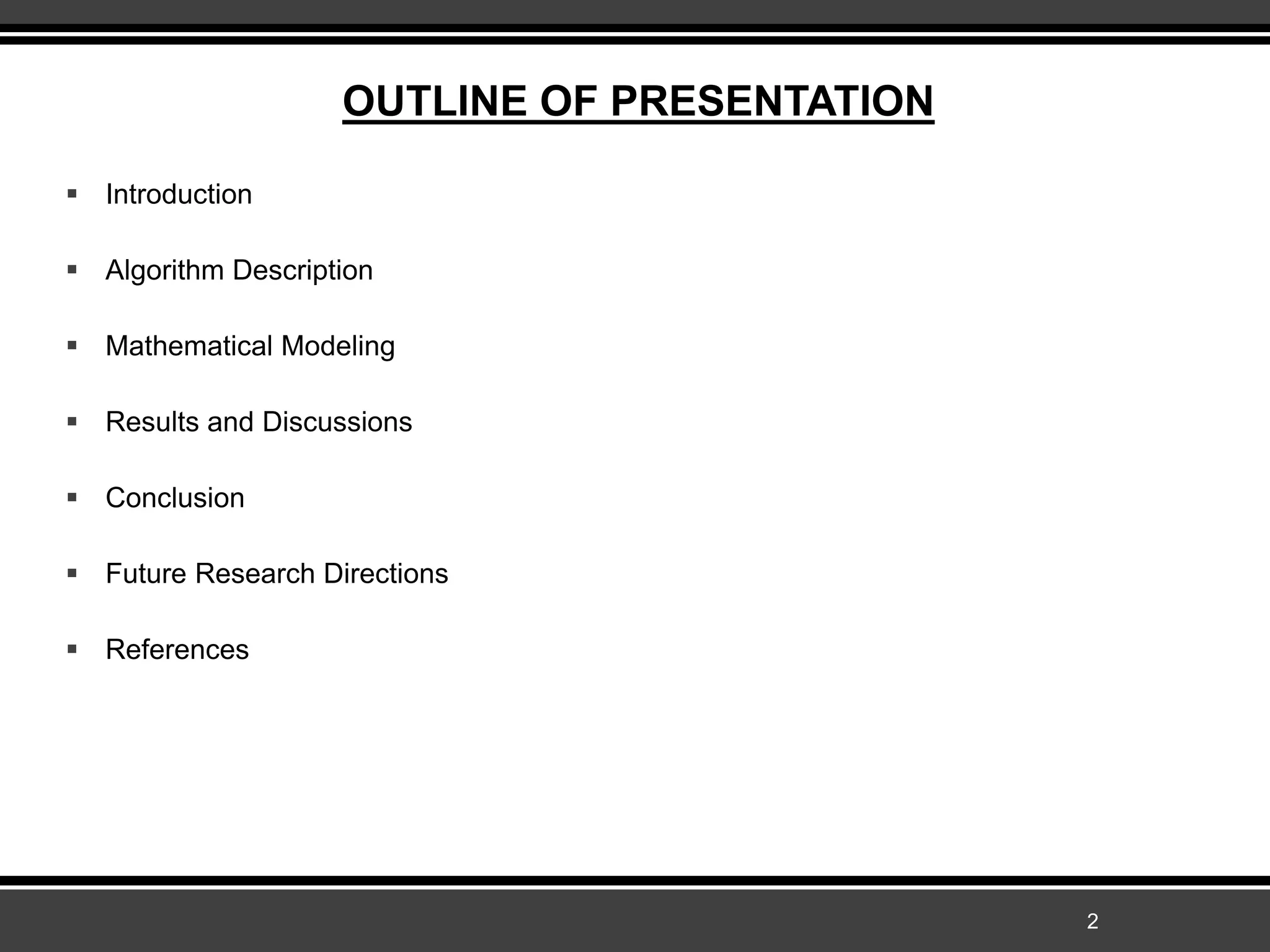

2. OUTLINE OF PRESENTATION
 Introduction
 Algorithm Description
 Mathematical Modeling
 Results and Discussions
 Conclusion
 Future Research Directions
 References
2

3. INTRODUCTION
 Modern power system with transformation of conventional grid into smart grid is one big step towards
energy management.
 Optimization techniques were introduced in early 70s and were applied largely in the field of
engineering. The global optimization techniques are classified as deterministic methods and
stochastic or meta-heuristic methods.
 The presented work makes use of two such algorithm called Particle Swarm Optimization and
Differential Evolution Algorithm for optimizing the power equation.
 The application of PSO and DE algorithm was implemented on MATLAB platform and the
simulation results were obtained thereafter.
 The case study is done using the 15 days data obtained from Smart Energy Meter present in UEE
Laboratory at Delhi Technological University, Delhi, India for deciding the constraints of the
problem.
3

4. ALGORITHM DESCRIPTION
PARTICLE SWARM OPTIMIZATION
 Particle Swarm Optimization was first recognized by Kennedy
and Eberhart in the year 1995.
 It is swarm intelligence centered stochastic algorithm employed
to deduce the finest solution i.e. the minimum or maximum value
in the multi-dimensional solution space.
 It starts with definition of the problem and then arbitrary
initialization of the population
▪ Three distinct features of PSO are Pbest,i , Gbest and velocity and
position update of each particle to discover the search space for
optimal solution.
4
Fig. 1 Flowchart of PSO

5. 5
MATHEMATICAL MODELING OF PSO
 Position of any particle i is updated as-
 Updated velocity of particle i is given as-
▪ The expression for local best is given as-
▪ The global best solution of the particle is the lowest amongst all the solutions and can be expressed as-
Where n denotes the generation number, Np is the population size, xi
(n+1) is the updated position, xi
(n)
denotes the current position and vi
(n+1) is the updated velocity of particle i
n) (n 1)
( 1) (
x v
i i
n
xi


 
(n)
(n 1) (n) ( ) (n) ( )
v ( x ) r ( x )
i
i i 2 2
1 1 ( , )
n n
v r P Pgb
i i lb
  

    
( 1) ( )
( 1)
( ) ( ( , )
( 1)
( , ) (n)
otherwise
( ,lb)
n n
n
x if f x f P
i
i i lb
n
P
i lb
Pi










( ) ( ) (n) (n) (n) (n)
{ ,......,x }| f(P ) min{f(x ,...,f(x )}
gb
Np 1
1 Np
n n
P x
gb  

6. 6
ALGORITHM DESCRIPTION
DIFFERENTIAL EVOLUTION ALGORITHM
 DE was introduced in 1990s by Storn and Price and since
then it has been majorly used by researchers in optimizing
various problems.
 Differential Evolution is loaded with a set of solutions and it
then follows analogous set of computational procedures
(like crossover, selection and mutation) after each iteration.
 It provides a simple algorithm for optimization, yet it is
effective for global optimization.
Fig. 2 Flowchart of DE

7. 7

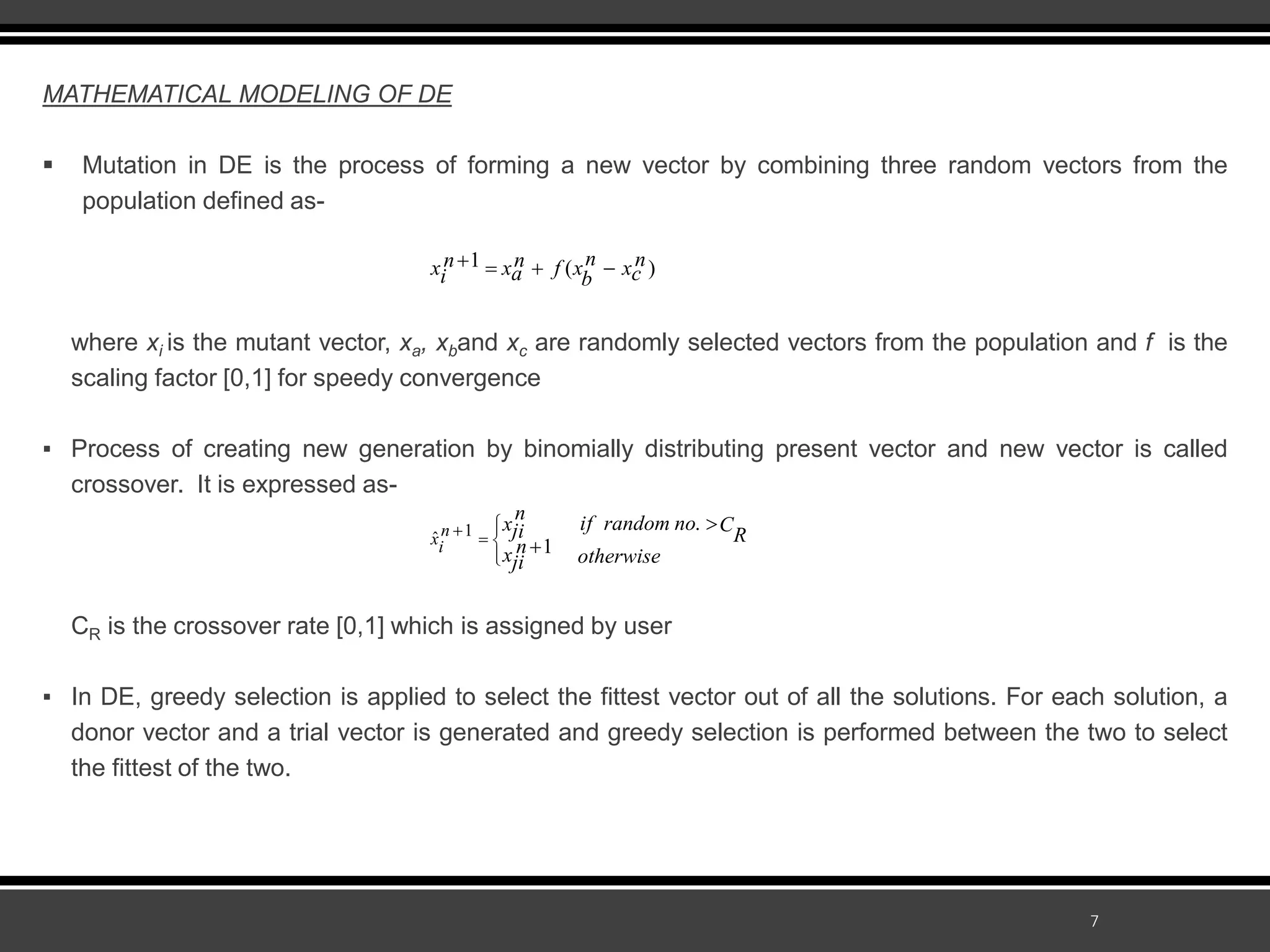

MATHEMATICAL MODELING OF DE
 Mutation in DE is the process of forming a new vector by combining three random vectors from the
population defined as-
where xi is the mutant vector, xa, xband xc are randomly selected vectors from the population and f is the
scaling factor [0,1] for speedy convergence
▪ Process of creating new generation by binomially distributing present vector and new vector is called
crossover. It is expressed as-
CR is the crossover rate [0,1] which is assigned by user
▪ In DE, greedy selection is applied to select the fittest vector out of all the solutions. For each solution, a
donor vector and a trial vector is generated and greedy selection is performed between the two to select
the fittest of the two.
1 ( )
n n
n n
x x f x x
a c
i b
   
1
ˆ
.
1
n
xi
n if random no
x C
ji R
n
x otherwise
ji


  





8. 8
RESULTS AND DISCUSSION
 The constraints for optimization is defined based on the range of voltage, current and power obtained
from the meter data of 15 days.
 The convergence characteristics of the algorithm show that a significant reduction in power
consumption can be achieved with presented algorithms
 The best solution of PSO was obtained at ω=1, c1=2, c2=2 and ωdamp=0.99 with population size
taken as 50. The best solution of DE was obtained at f=1 and CR =0.8 for a population of 50.
Table 1. Comparison of PSO and DE

9. 9
Fig. 4 Three phase voltage data
obtained from SEM
Fig. 3 Three phase current data
obtained from SEM
Fig. 5 Power Consumption data
obtained from SEM
Fig. 6 Convergence characteristics of PSO for optimized
power consumption
Fig 7 Convergence characteristics of DE for
optimized power consumption

10. 10
CONCLUSION
 The modeling and simulation of algorithms based on PSO and DE for the purpose of minimization
of energy consumption is carried out on MATLAB platform (version 2017).
 The power consumption equation has been optimized using first PSO then DE. The validity and
efficiency of the algorithm is tested using the real time data obtained from smart energy meter
and a comparative study is presented.
 Best solution of PSO was found to be 404.67 W and approximately 11.5% reduction in power is
achieved and that of DE came to be 417.37 W reducing up to 9.4% power
 So, overall both the algorithms can result in saving power but in present work PSO supersedes DE
algorithm by providing highly efficient results
 This arrangement is financially sound not only for the electricity consumer (in terms of cost and
energy saved) but also to the producer (in terms of higher energy generation).

11. FUTURE RESEARCH DIRECTIONS
▪ Future aspect of this work includes integrating these models with smart energy meter and operating
in real-time.
▪ This could also lead to automated load scheduling of all the appliances and successively a
remarkable reduction in electricity bills can be achieved making it economical and most sought
after solution for consumers.
▪ Further modifications in the algorithm using combined approach of multiple other optimization
techniques and making use of longer duration data is open for researchers which can yield even
better results with little complexity.
▪ Implementation in industrial scale controllers and using customized software is also
recommended.
11

12. REFERENCES

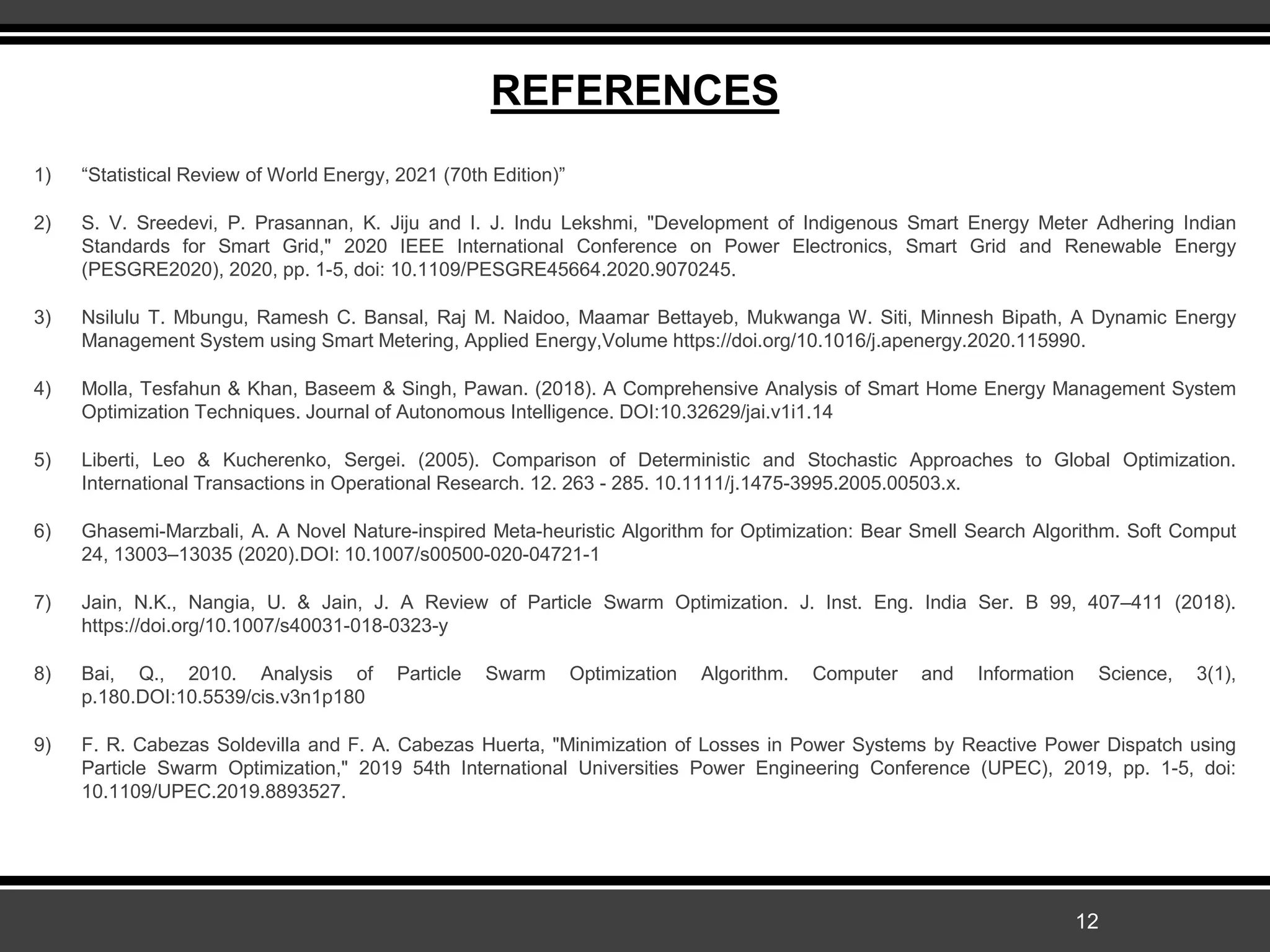

1) “Statistical Review of World Energy, 2021 (70th Edition)”
