EnContRA is a framework for content-based retrieval approaches and applications. It provides modularity, ease of use, and fast development of new approaches. EnContRA supports indexing, feature extraction, search/retrieval algorithms, and extensible query processing for different multimedia types including images, drawings, 3D objects, and audio. Typical applications are built using EnContRA modules including descriptors, indexing structures, and search algorithms. The document provides examples of building simple and more complex image retrieval applications using EnContRA.

1. EnContRA
Engine for Content-Based Retrieval Approaches
Ricardo José São Pedro Dias
07/02/2012

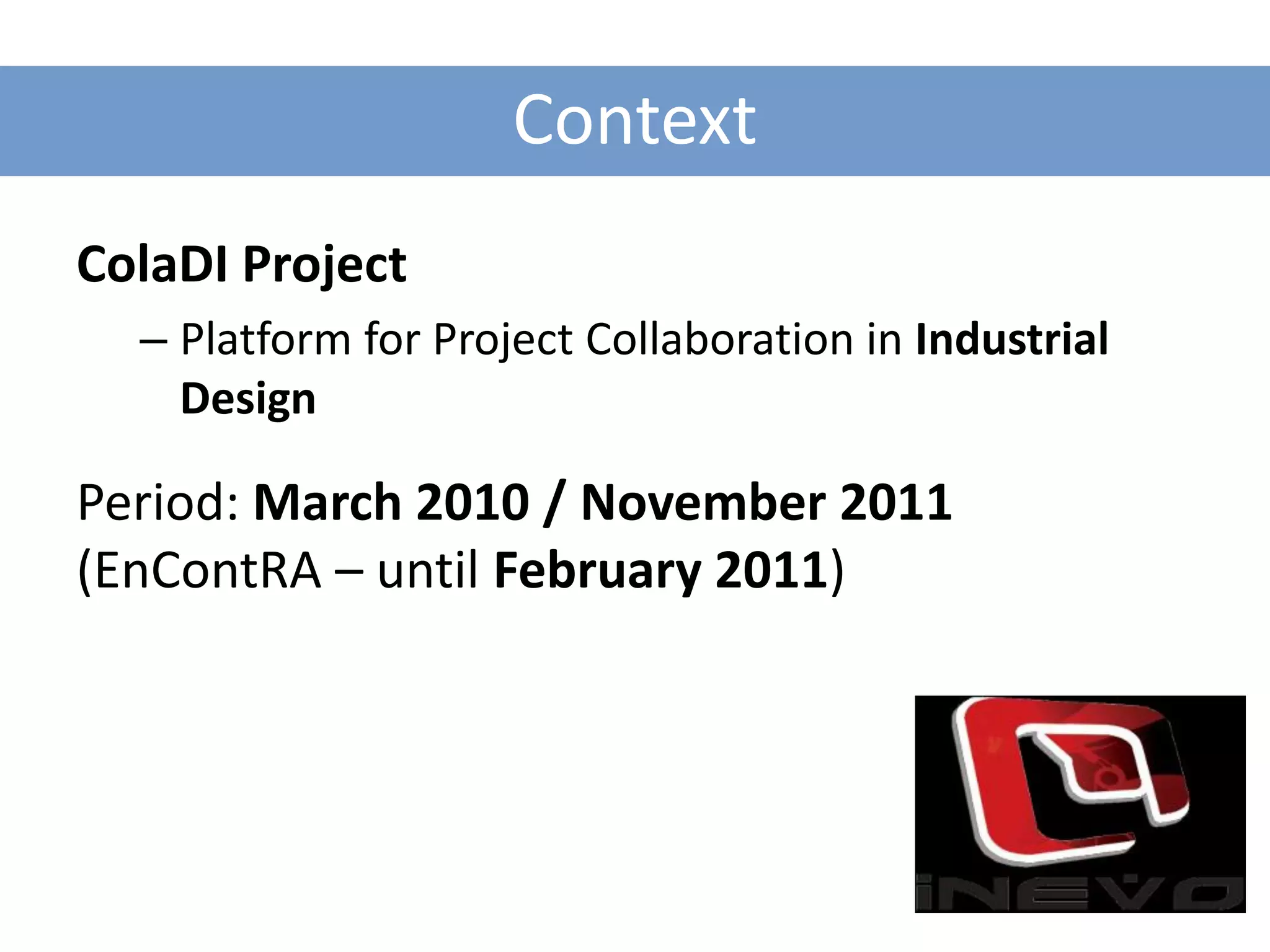

2. Context
ColaDI Project
– Platform for Project Collaboration in Industrial
Design
Period: March 2010 / November 2011
(EnContRA – until February 2011)

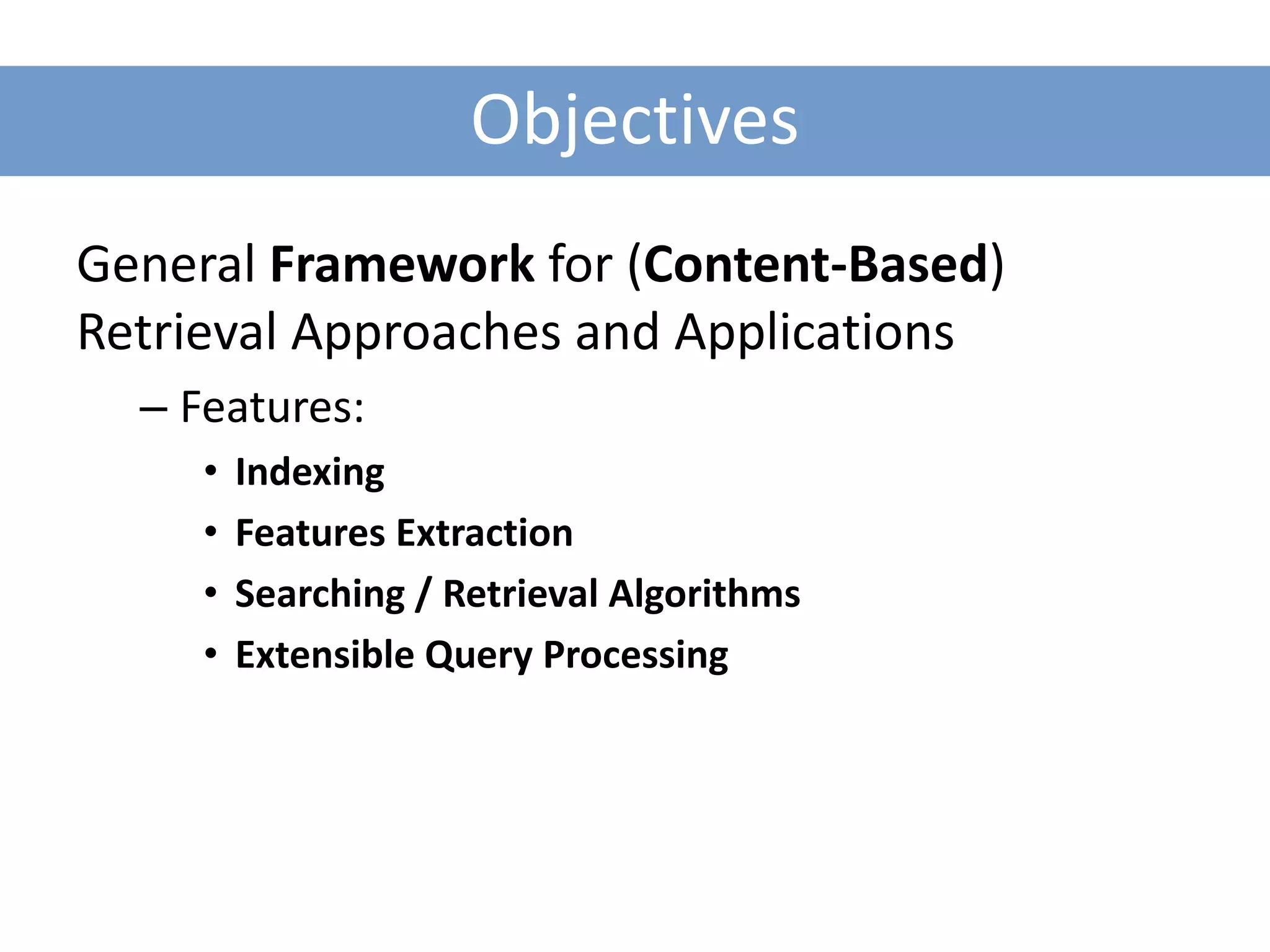

3. Objectives
General Framework for (Content-Based)
Retrieval Approaches and Applications
– Features:
• Indexing
• Features Extraction
• Searching / Retrieval Algorithms
• Extensible Query Processing

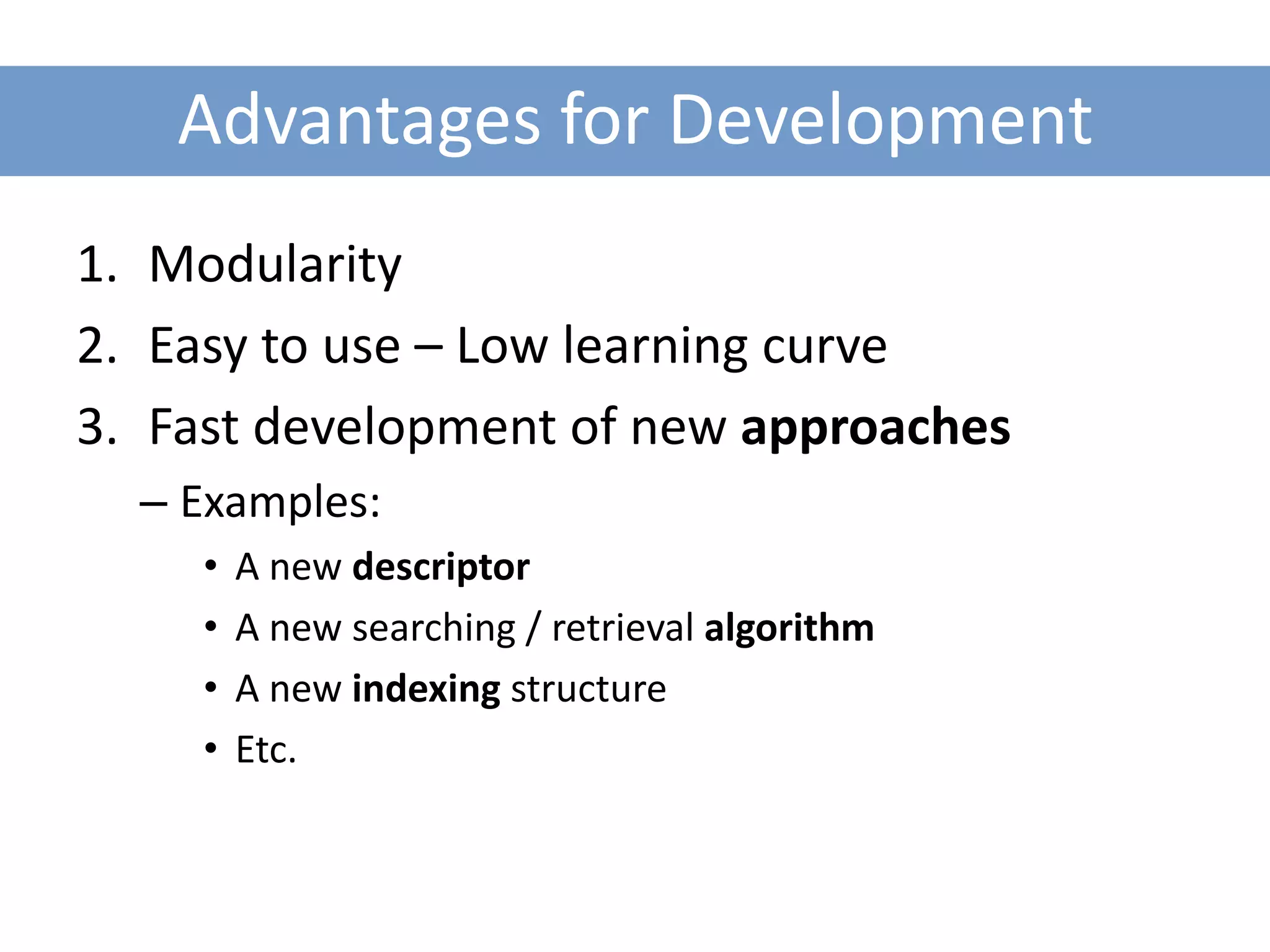

4. Advantages for Development
1. Modularity
2. Easy to use – Low learning curve
3. Fast development of new approaches
– Examples:
• A new descriptor
• A new searching / retrieval algorithm
• A new indexing structure
• Etc.

5. Multimedia Support

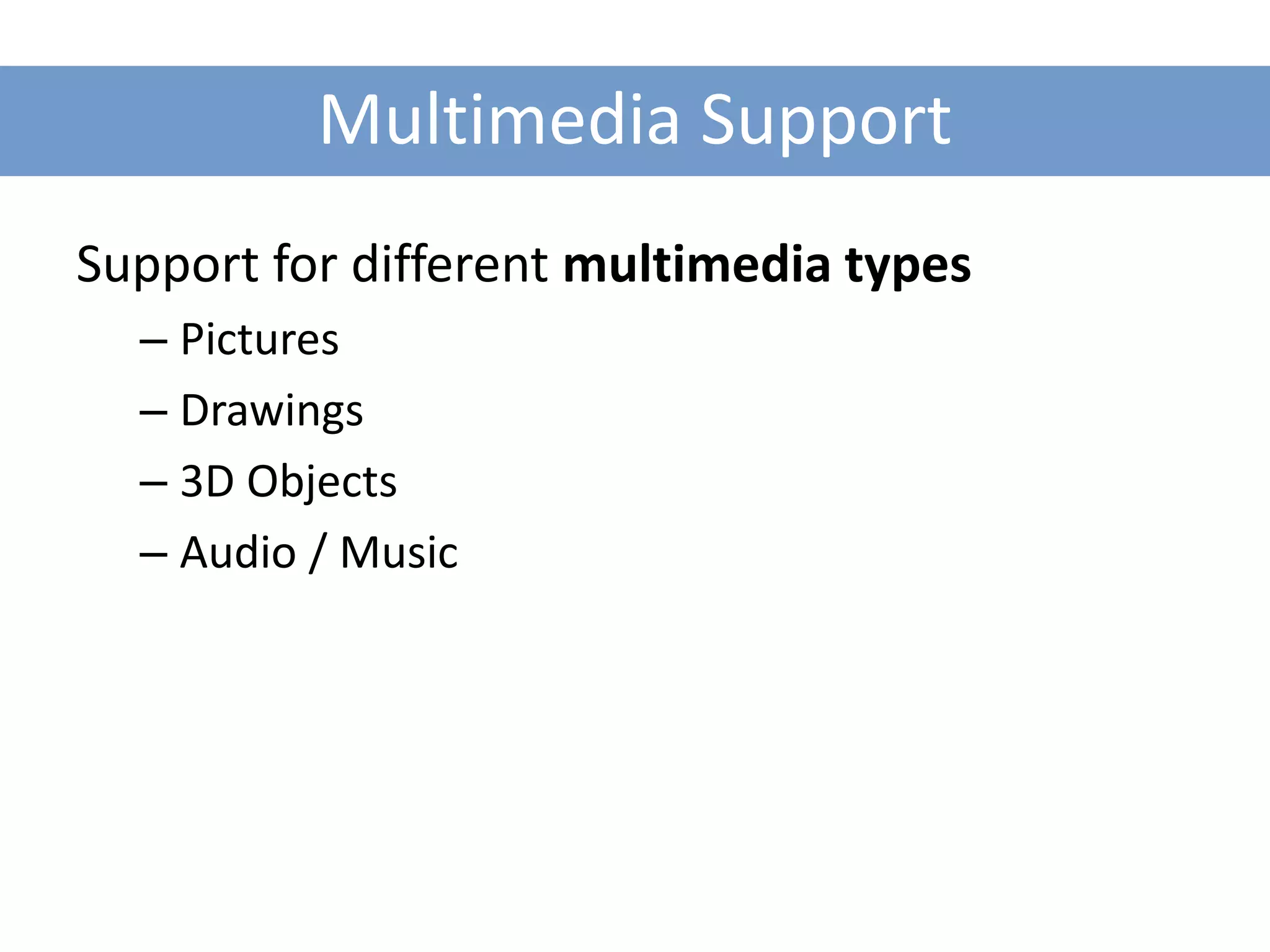

Support for different multimedia types
– Pictures
– Drawings
– 3D Objects
– Audio / Music

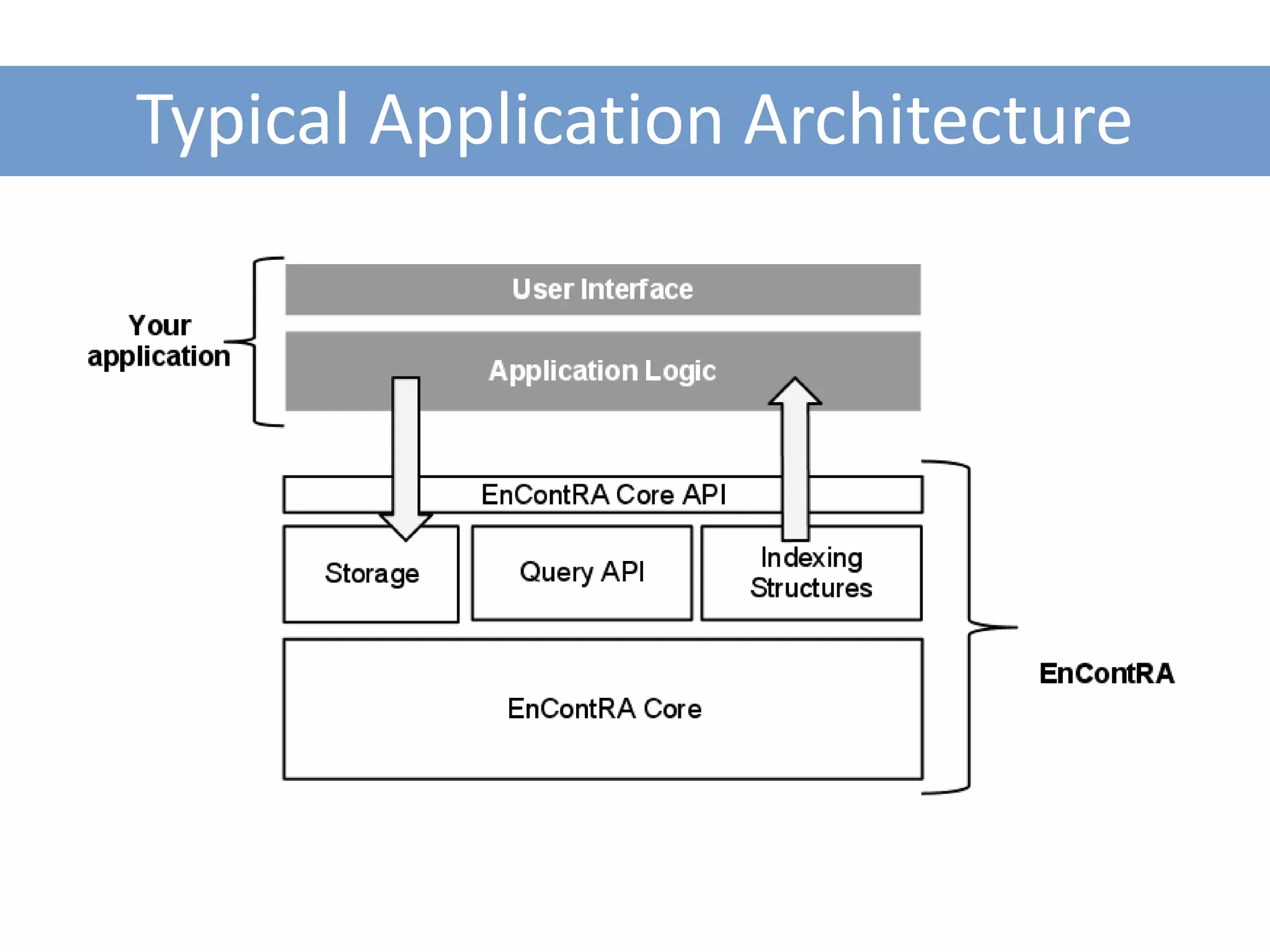

6. Typical Application Architecture

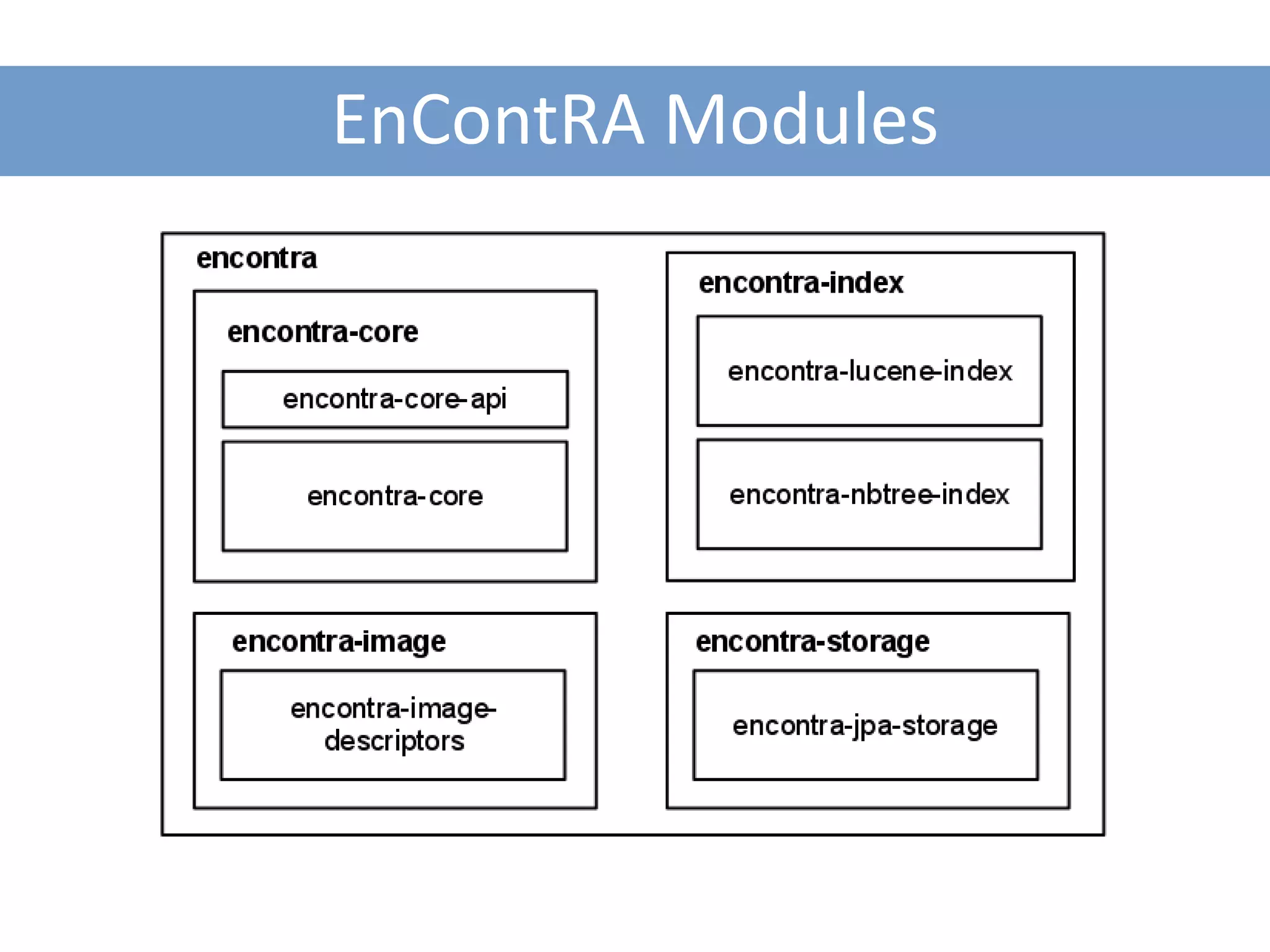

7. EnContRA Modules

8. Indexing and Retrieving Pictures using QBE

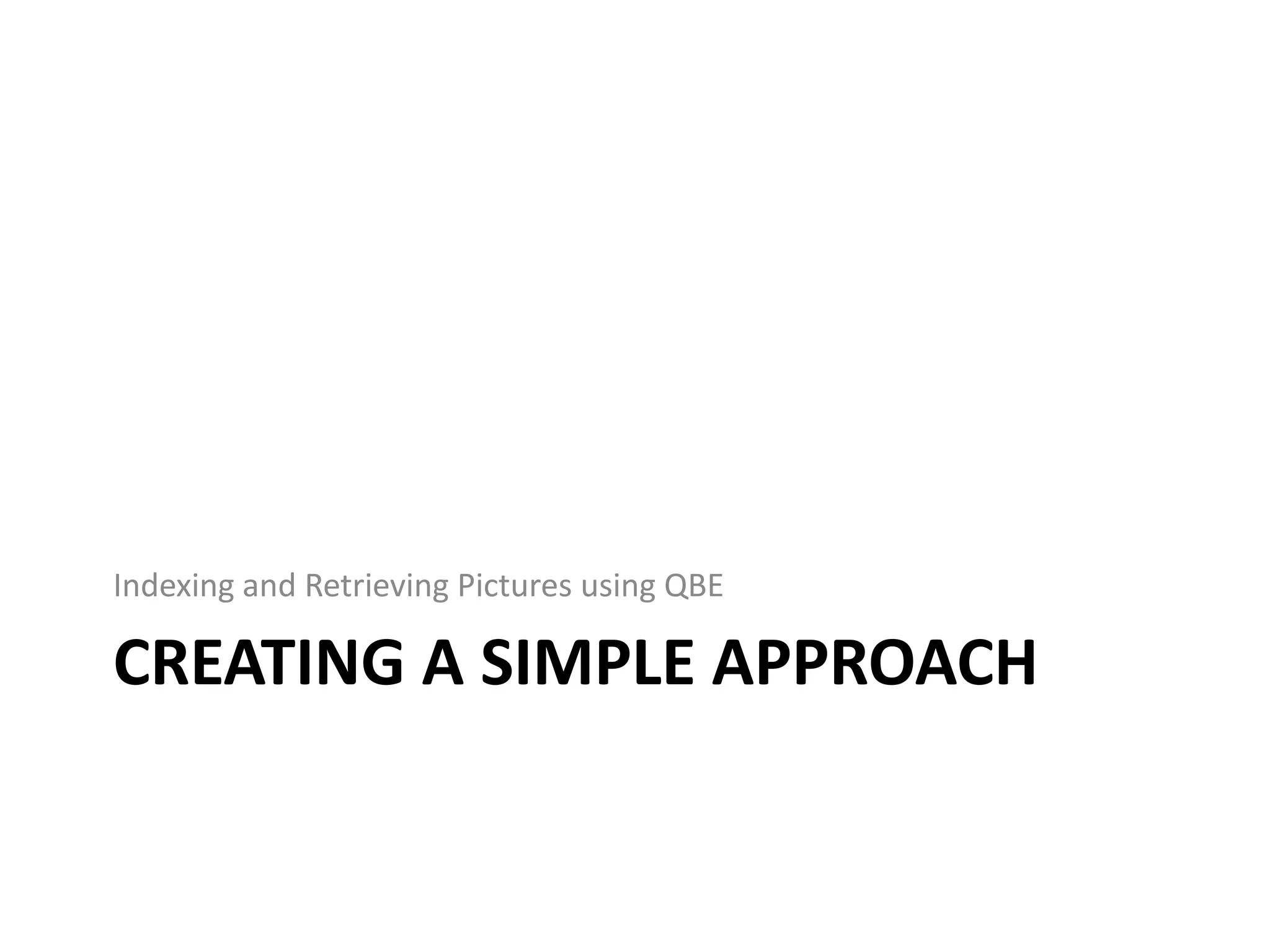

CREATING A SIMPLE APPROACH

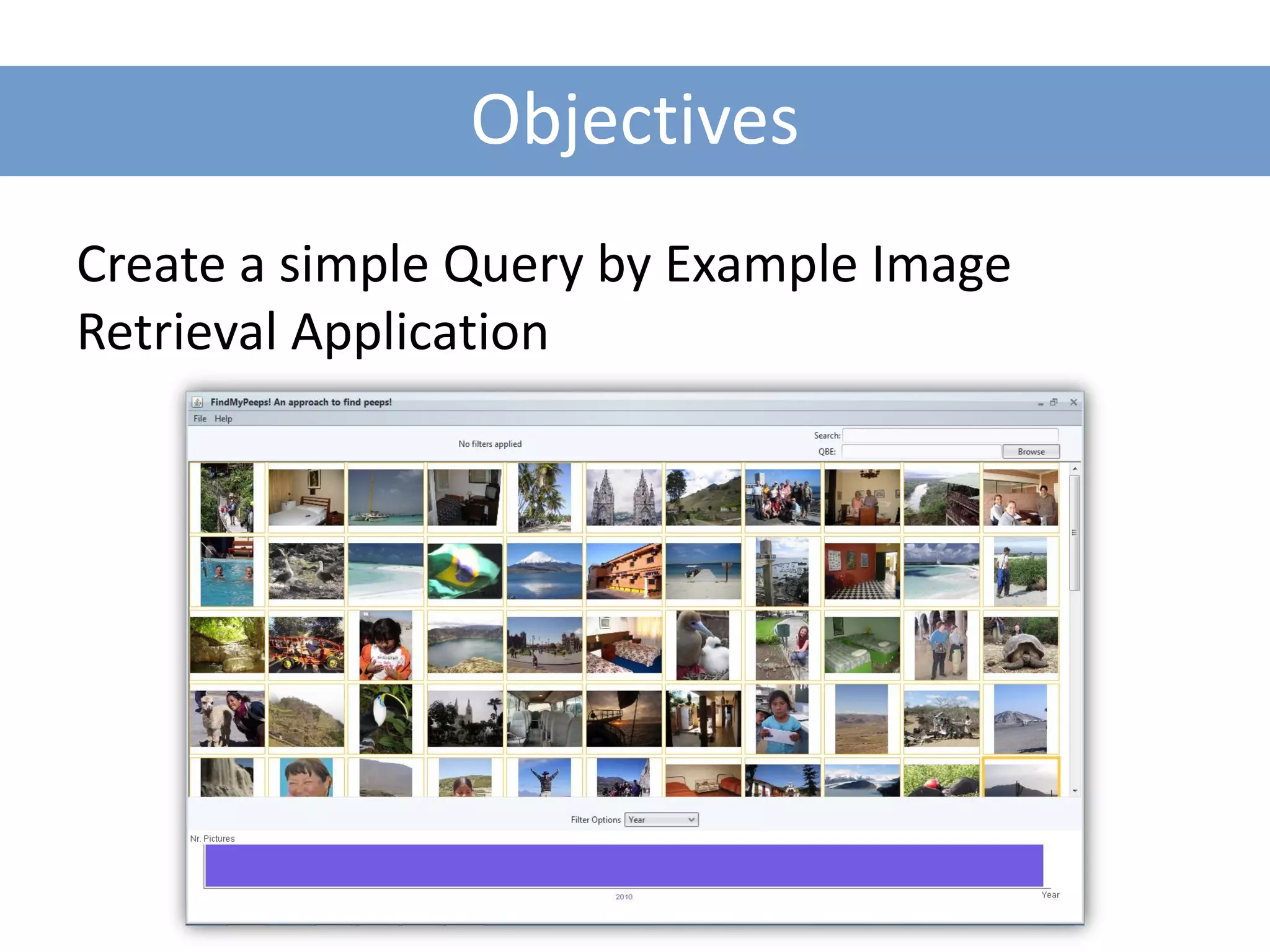

9. Objectives
Create a simple Query by Example Image
Retrieval Application

10. Data Model – Input Data

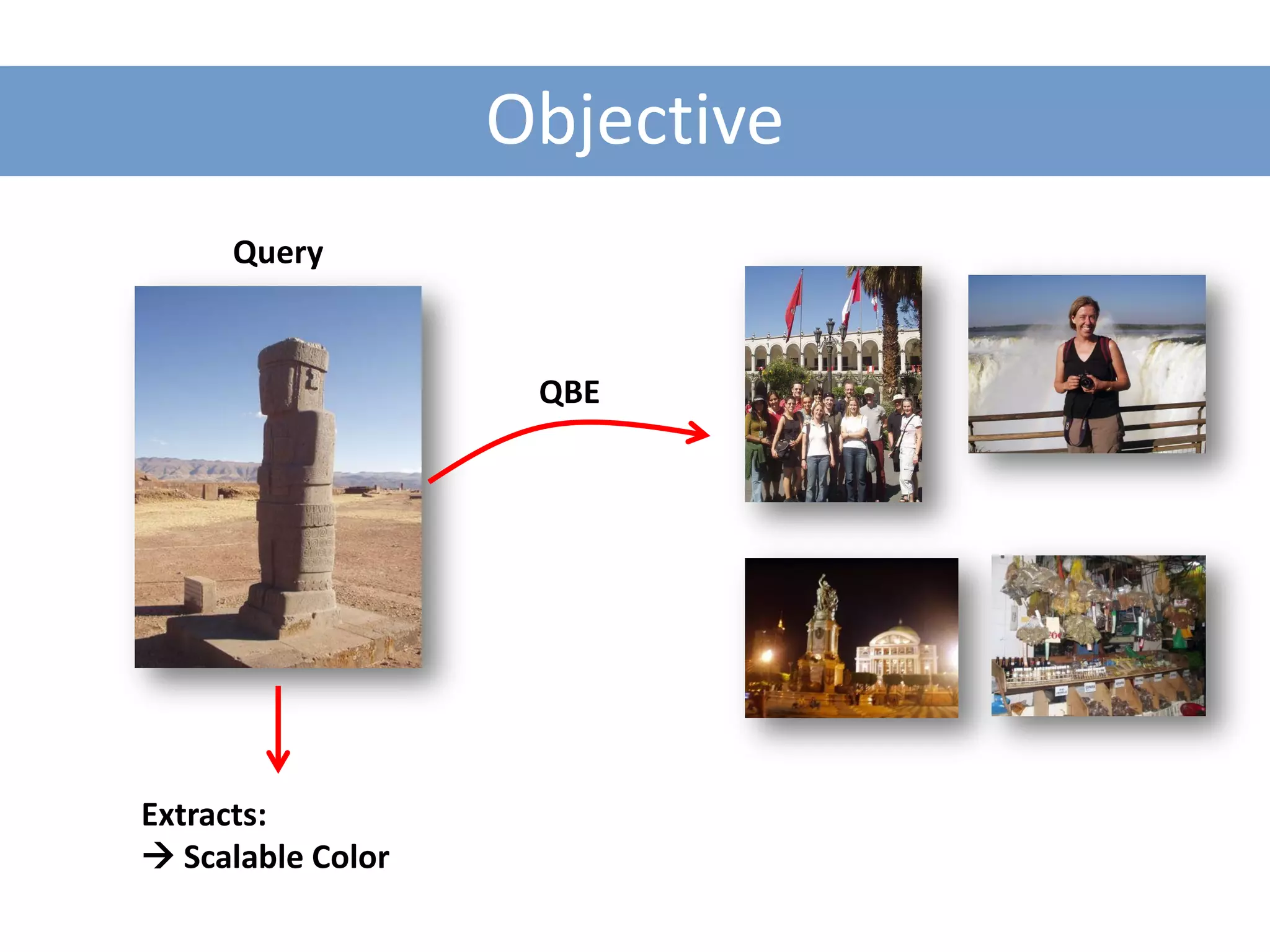

11. Objective
Query
QBE
Extracts:
 Scalable Color

12. Pieces to Assembly

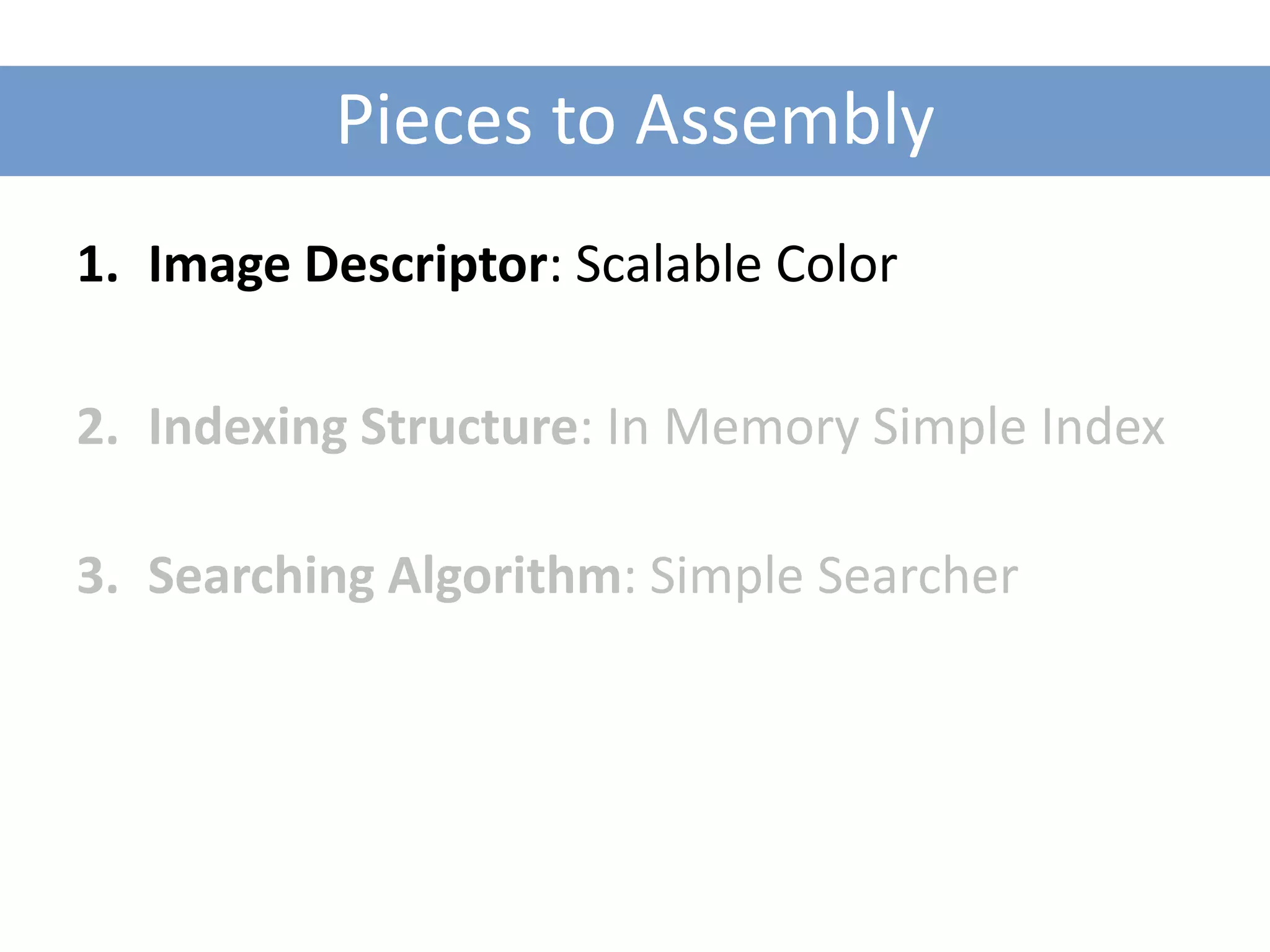

1. Image Descriptor: Scalable Color
2. Indexing Structure: In Memory Simple Index
3. Searching Algorithm: Simple Searcher

13. Pieces to Assembly
1. Image Descriptor: Scalable Color
2. Indexing Structure: In Memory Simple Index
3. Searching Algorithm: Simple Searcher

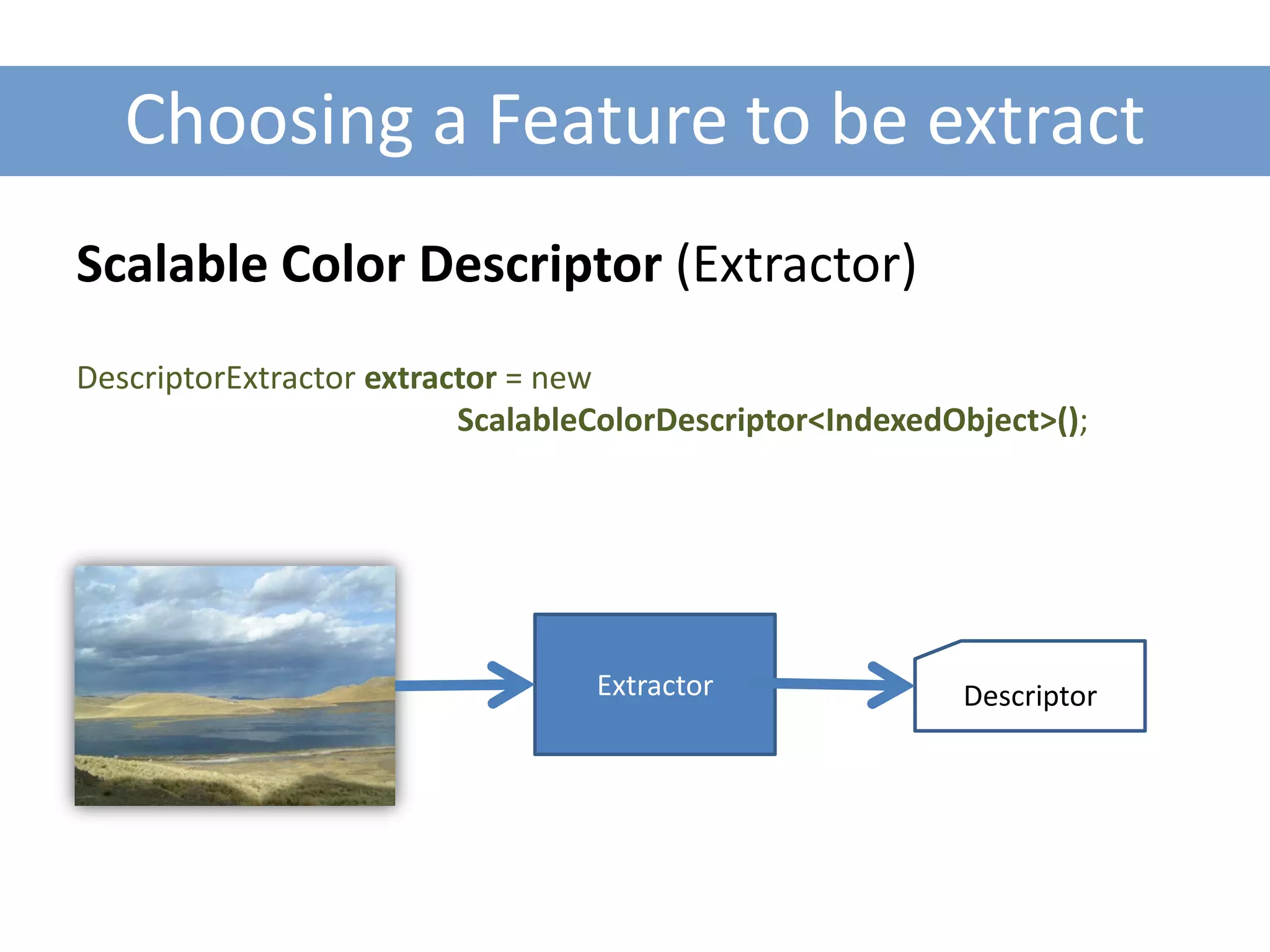

14. Choosing a Feature to be extract
Scalable Color Descriptor (Extractor)
DescriptorExtractor extractor = new
ScalableColorDescriptor<IndexedObject>();
Extractor Descriptor

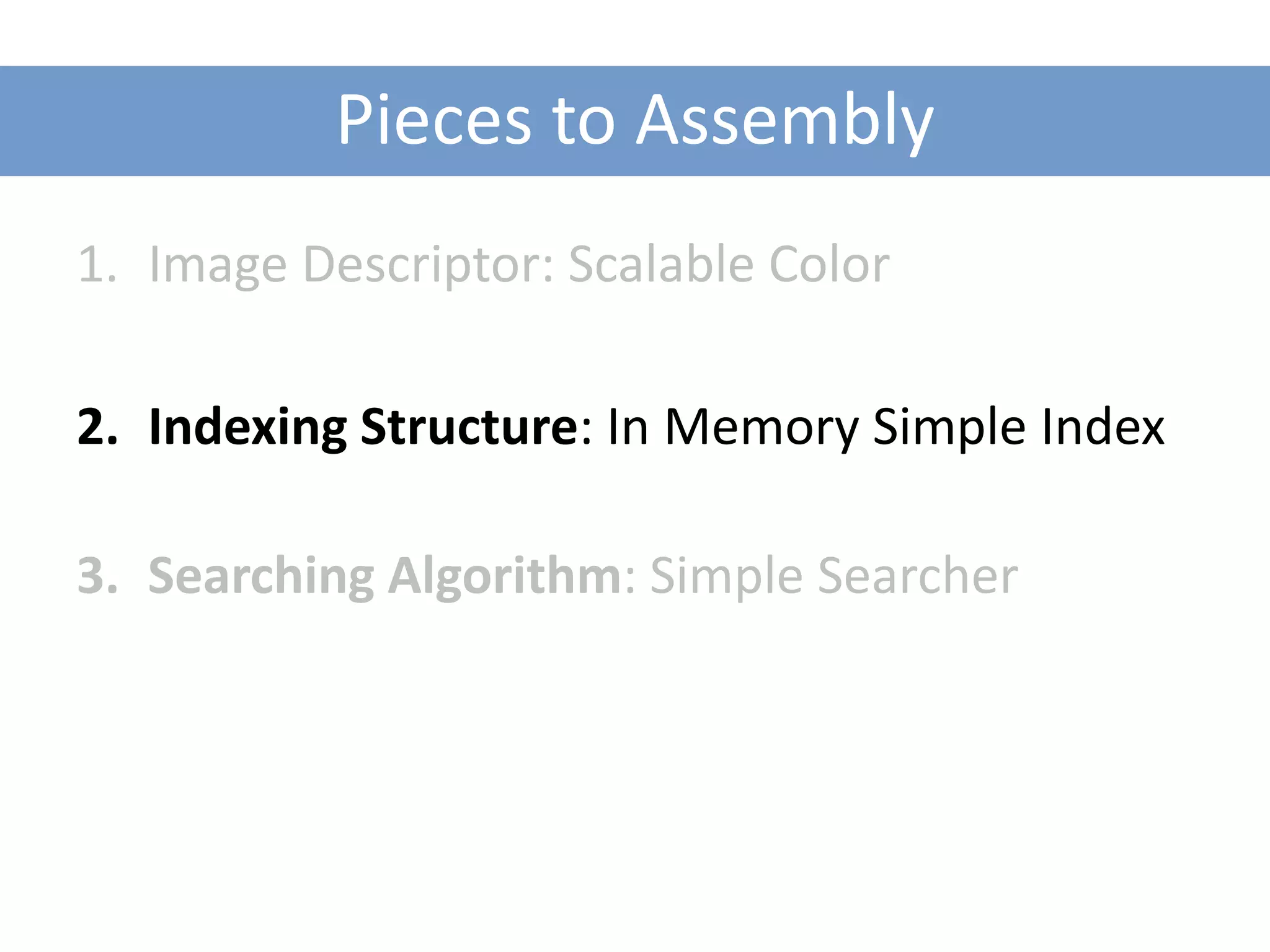

15. Pieces to Assembly
1. Image Descriptor: Scalable Color
2. Indexing Structure: In Memory Simple Index
3. Searching Algorithm: Simple Searcher

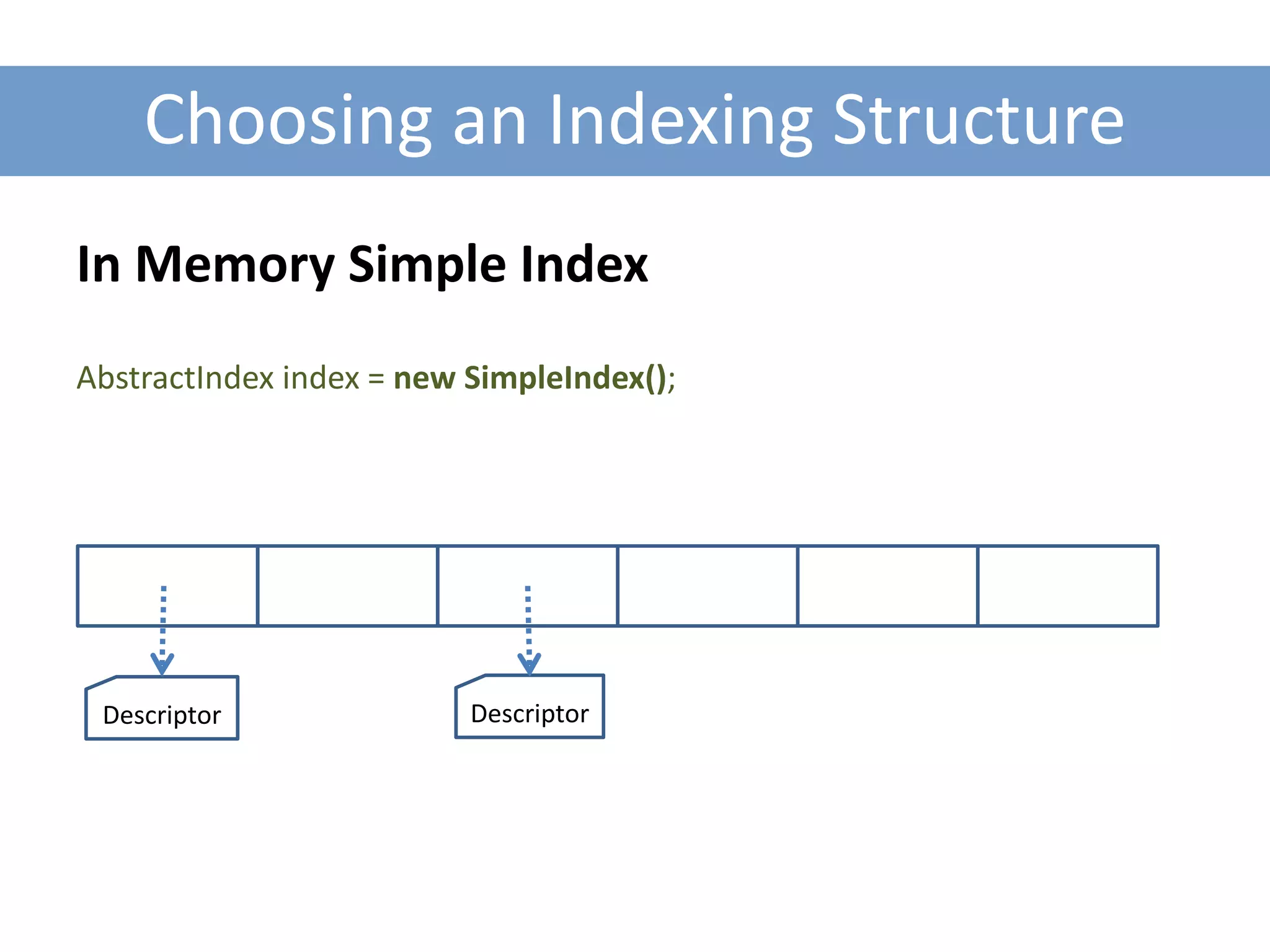

16. Choosing an Indexing Structure
In Memory Simple Index
AbstractIndex index = new SimpleIndex();
Descriptor Descriptor

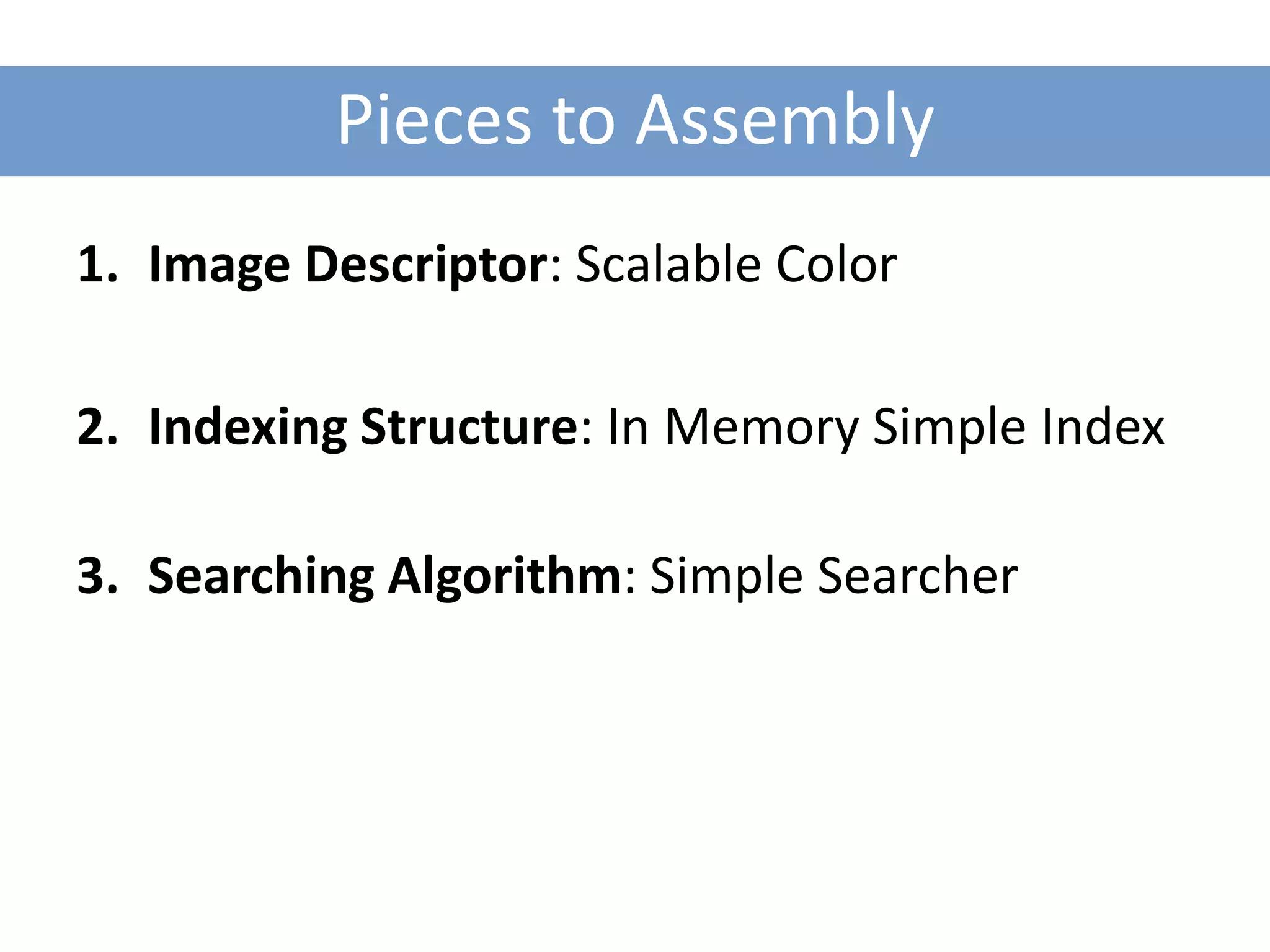

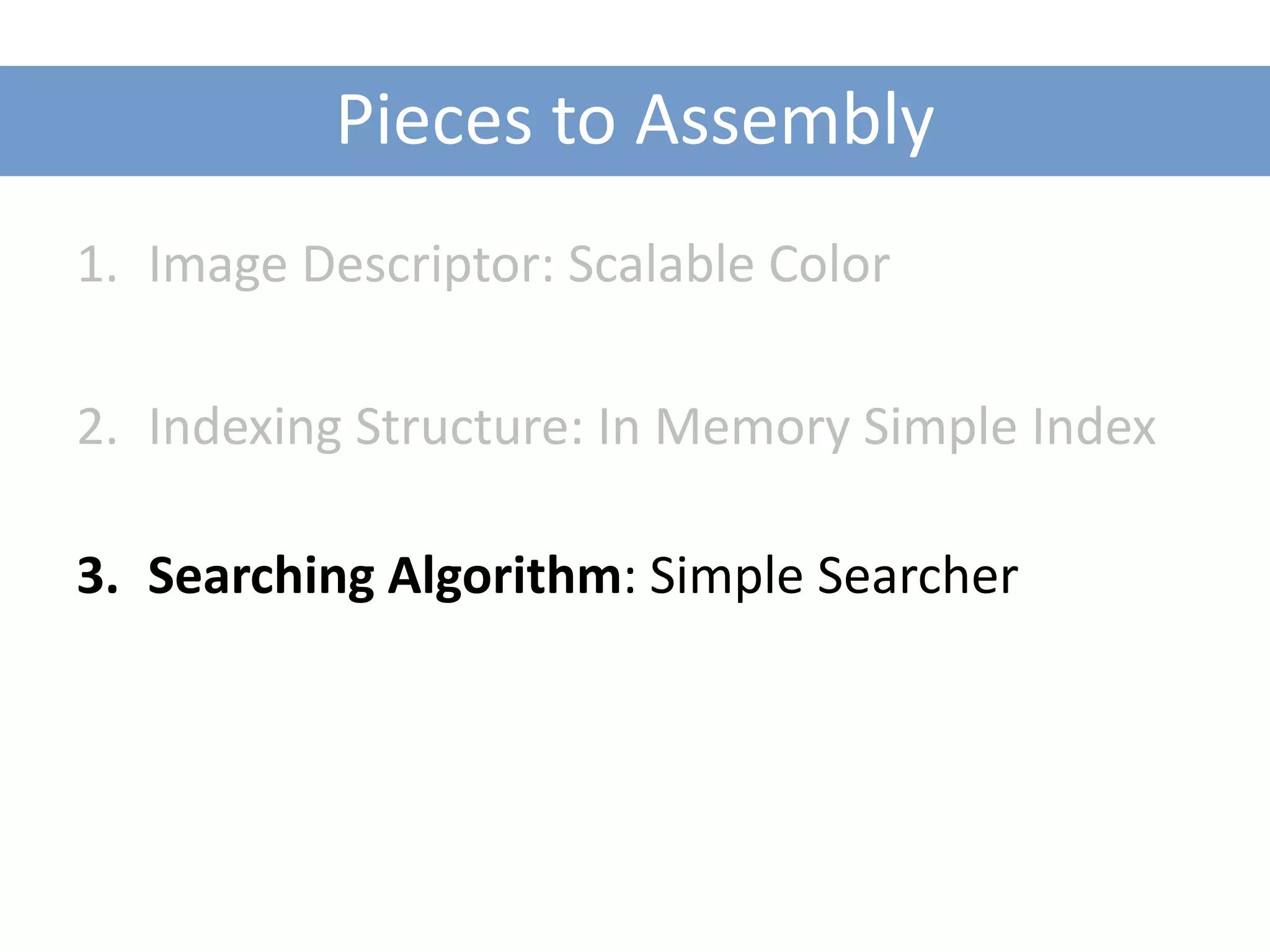

17. Pieces to Assembly
1. Image Descriptor: Scalable Color
2. Indexing Structure: In Memory Simple Index
3. Searching Algorithm: Simple Searcher

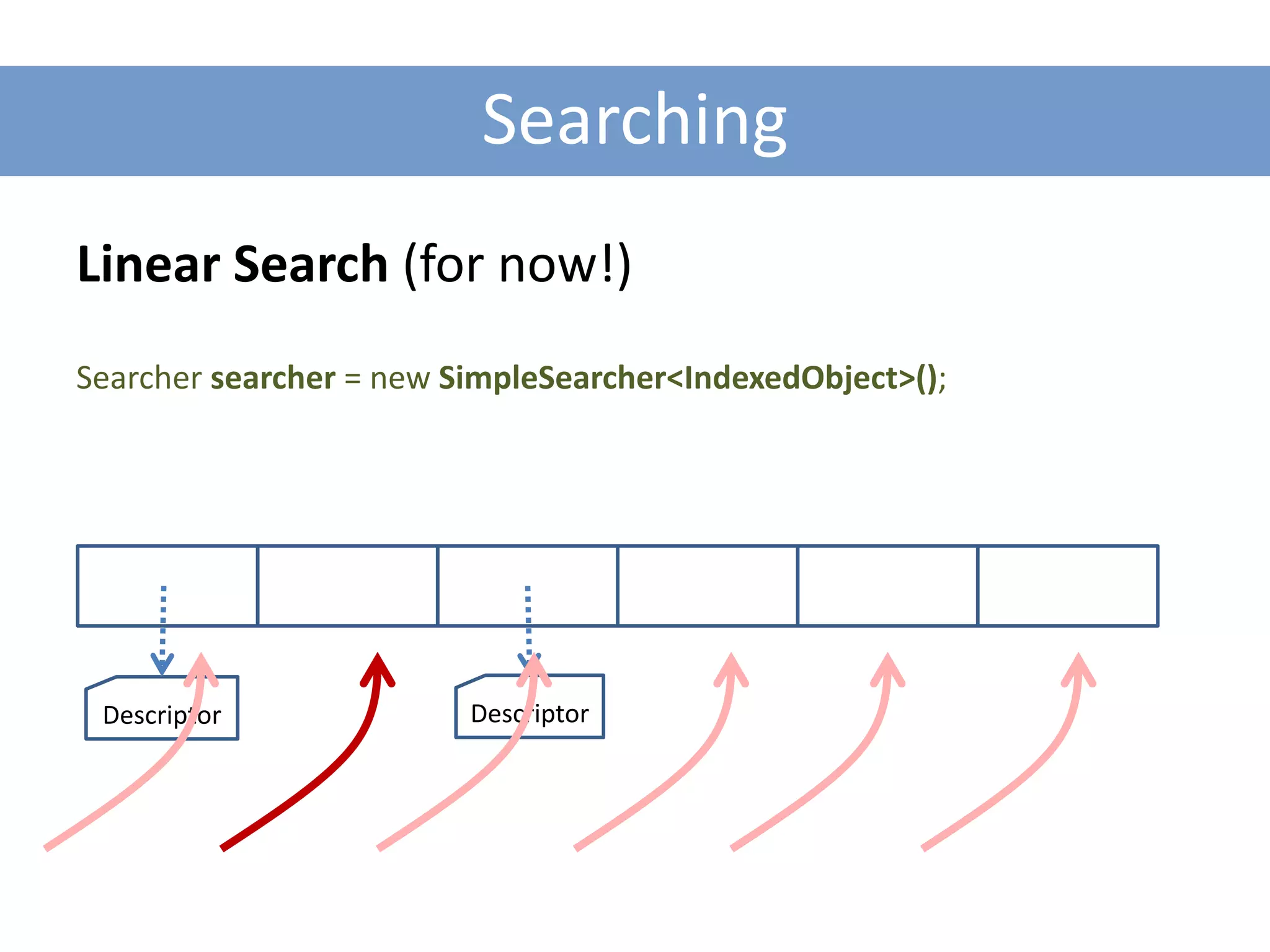

18. Searching
Linear Search (for now!)
Searcher searcher = new SimpleSearcher<IndexedObject>();
Descriptor Descriptor

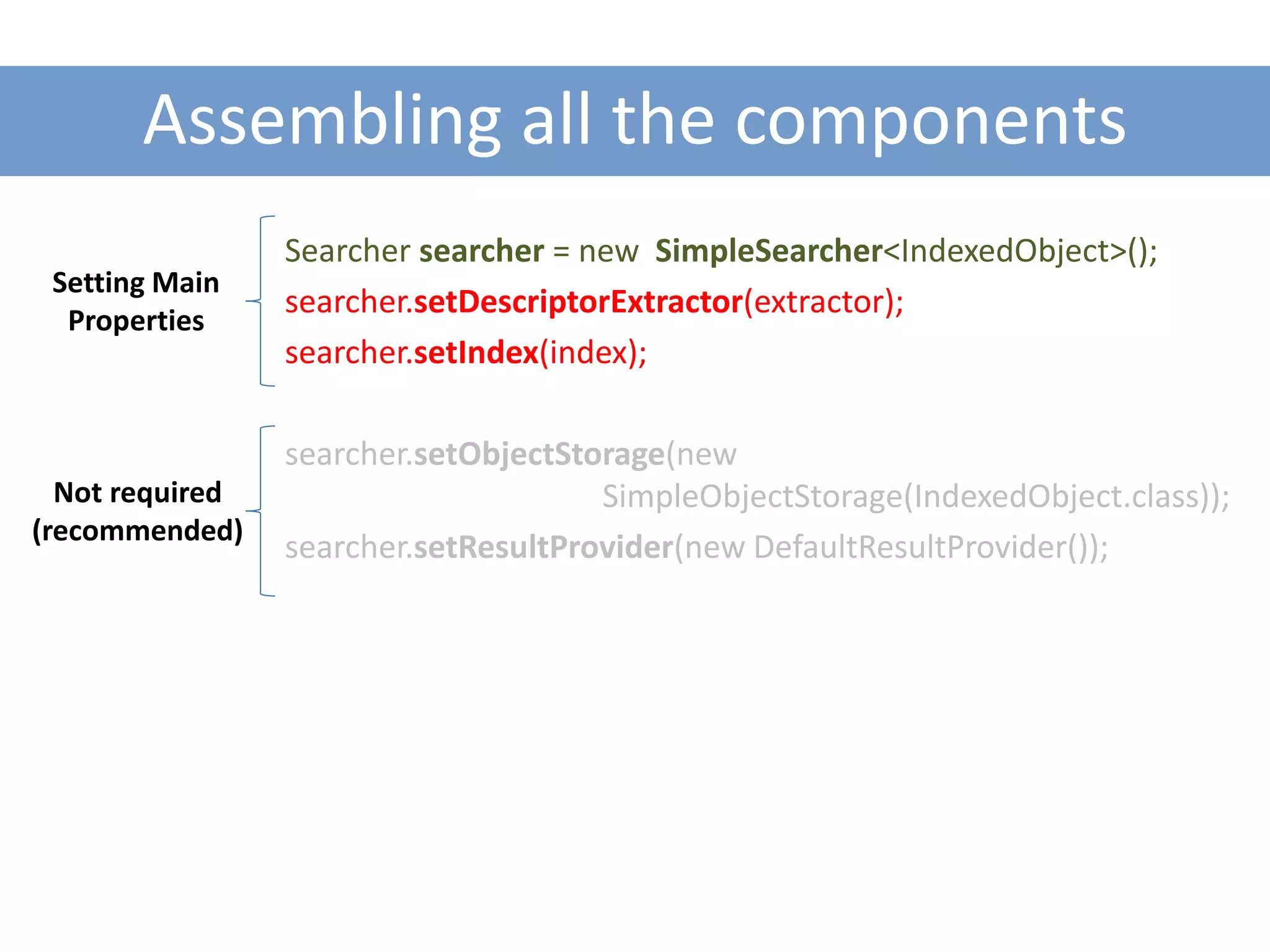

19. Assembling all the components
Searcher searcher = new SimpleSearcher<IndexedObject>();
Setting Main
searcher.setDescriptorExtractor(extractor);
Properties
searcher.setIndex(index);
searcher.setObjectStorage(new
Not required SimpleObjectStorage(IndexedObject.class));
(recommended)
searcher.setResultProvider(new DefaultResultProvider());

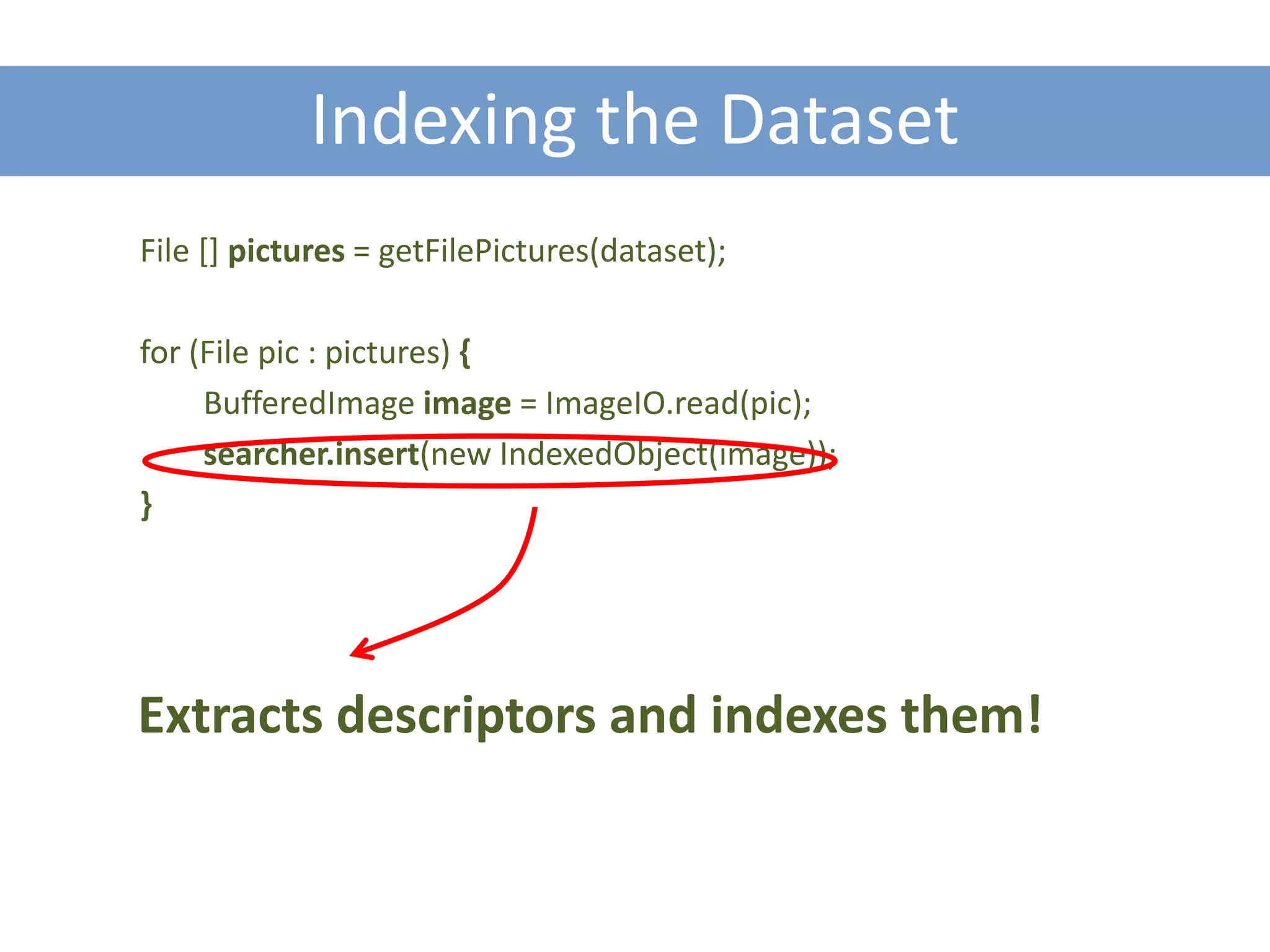

20. Indexing the Dataset
File [] pictures = getFilePictures(dataset);
for (File pic : pictures) {
BufferedImage image = ImageIO.read(pic);
searcher.insert(new IndexedObject(image));
}
Extracts descriptors and indexes them!

21. Performing a Search – Similar

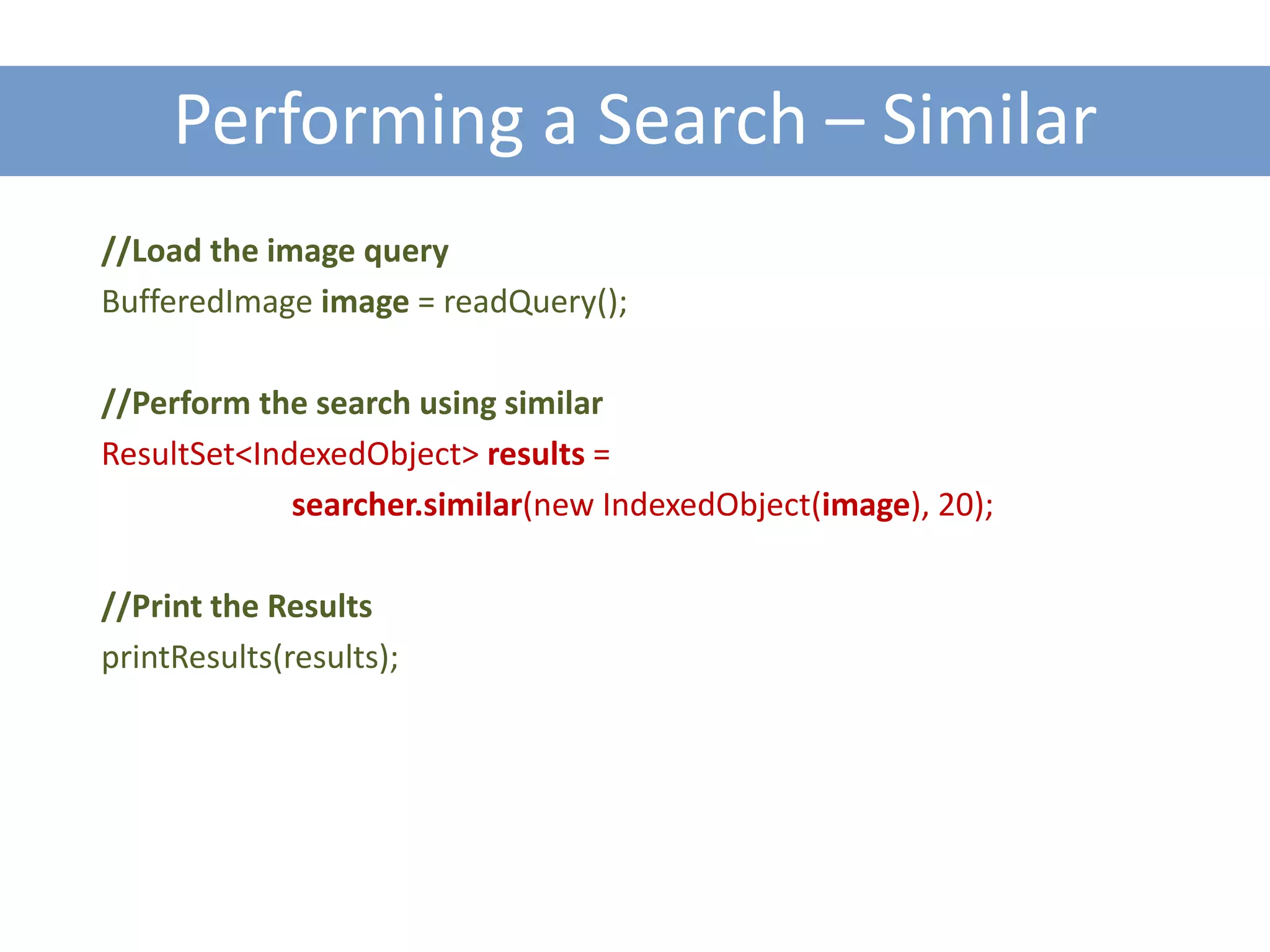

//Load the image query
BufferedImage image = readQuery();
//Perform the search using similar
ResultSet<IndexedObject> results =
searcher.similar(new IndexedObject(image), 20);
//Print the Results
printResults(results);

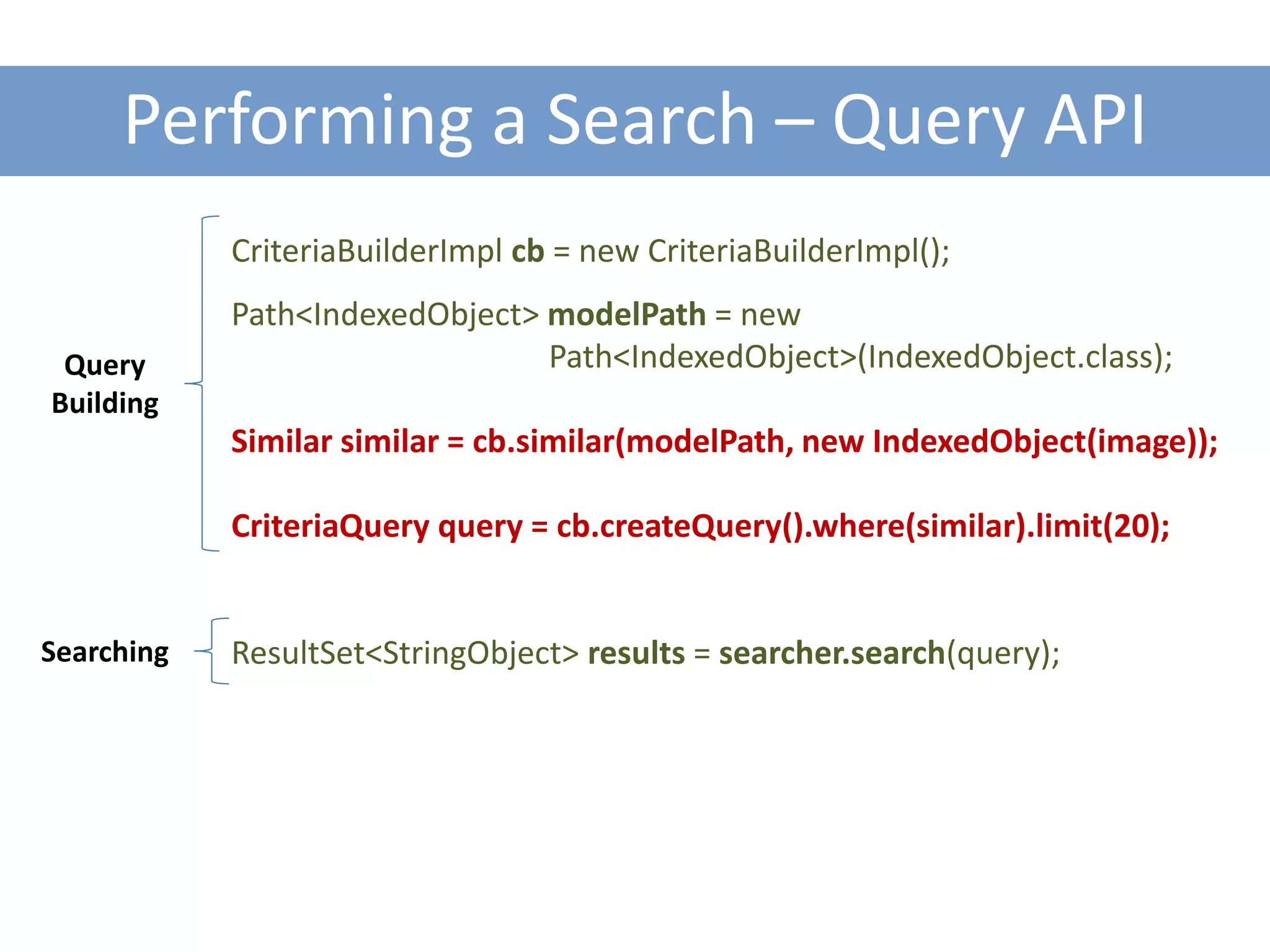

22. Performing a Search – Query API
CriteriaBuilderImpl cb = new CriteriaBuilderImpl();
Path<IndexedObject> modelPath = new
Query Path<IndexedObject>(IndexedObject.class);
Building
Similar similar = cb.similar(modelPath, new IndexedObject(image));
CriteriaQuery query = cb.createQuery().where(similar).limit(20);
Searching ResultSet<StringObject> results = searcher.search(query);

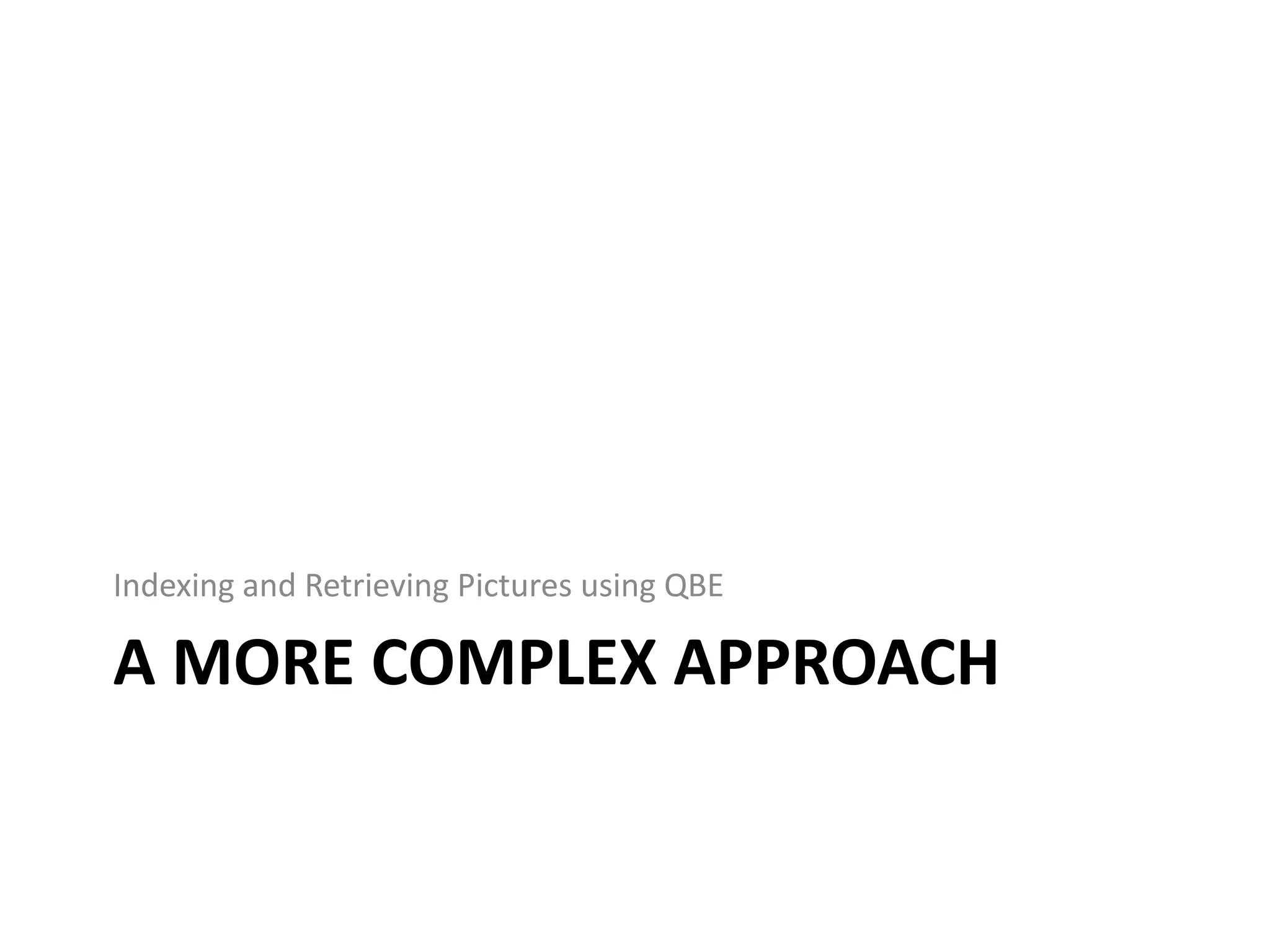

23. Indexing and Retrieving Pictures using QBE
A MORE COMPLEX APPROACH

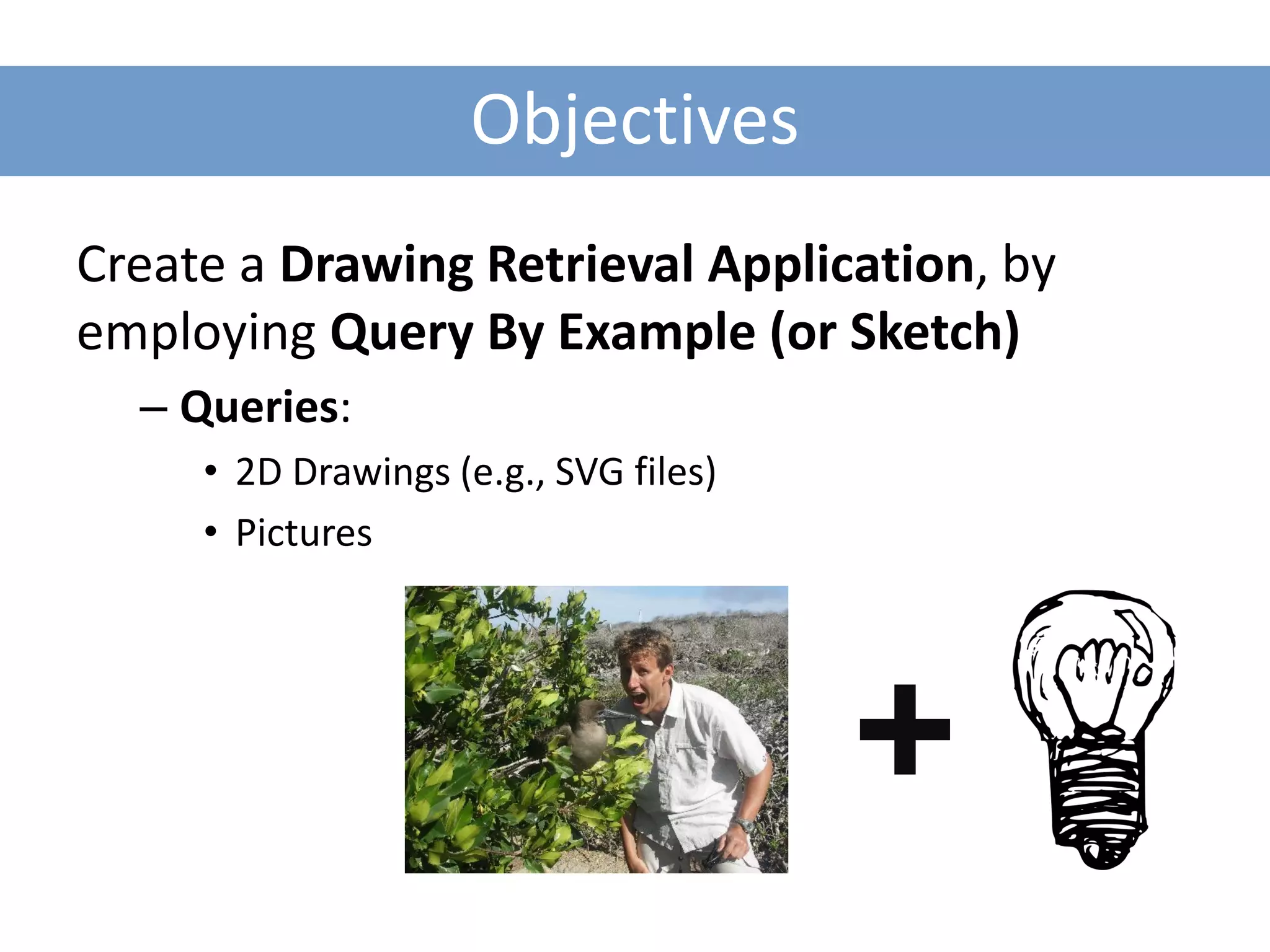

24. Objectives
Create a Drawing Retrieval Application, by
employing Query By Example (or Sketch)
– Queries:
• 2D Drawings (e.g., SVG files)
• Pictures

25. Input Model
Drawing Model

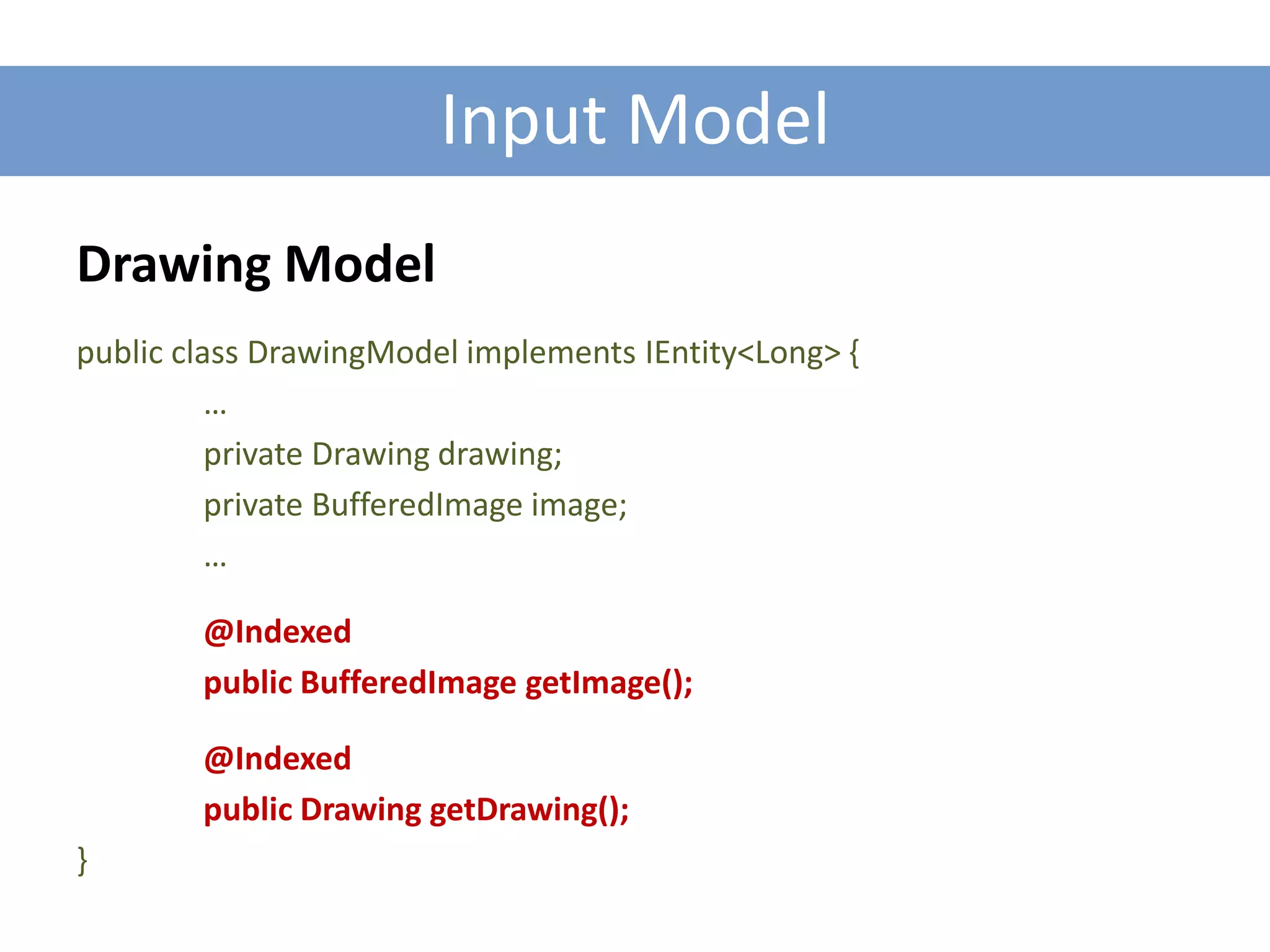

public class DrawingModel implements IEntity<Long> {
…
private Drawing drawing;
private BufferedImage image;
…
@Indexed
public BufferedImage getImage();
@Indexed
public Drawing getDrawing();
}

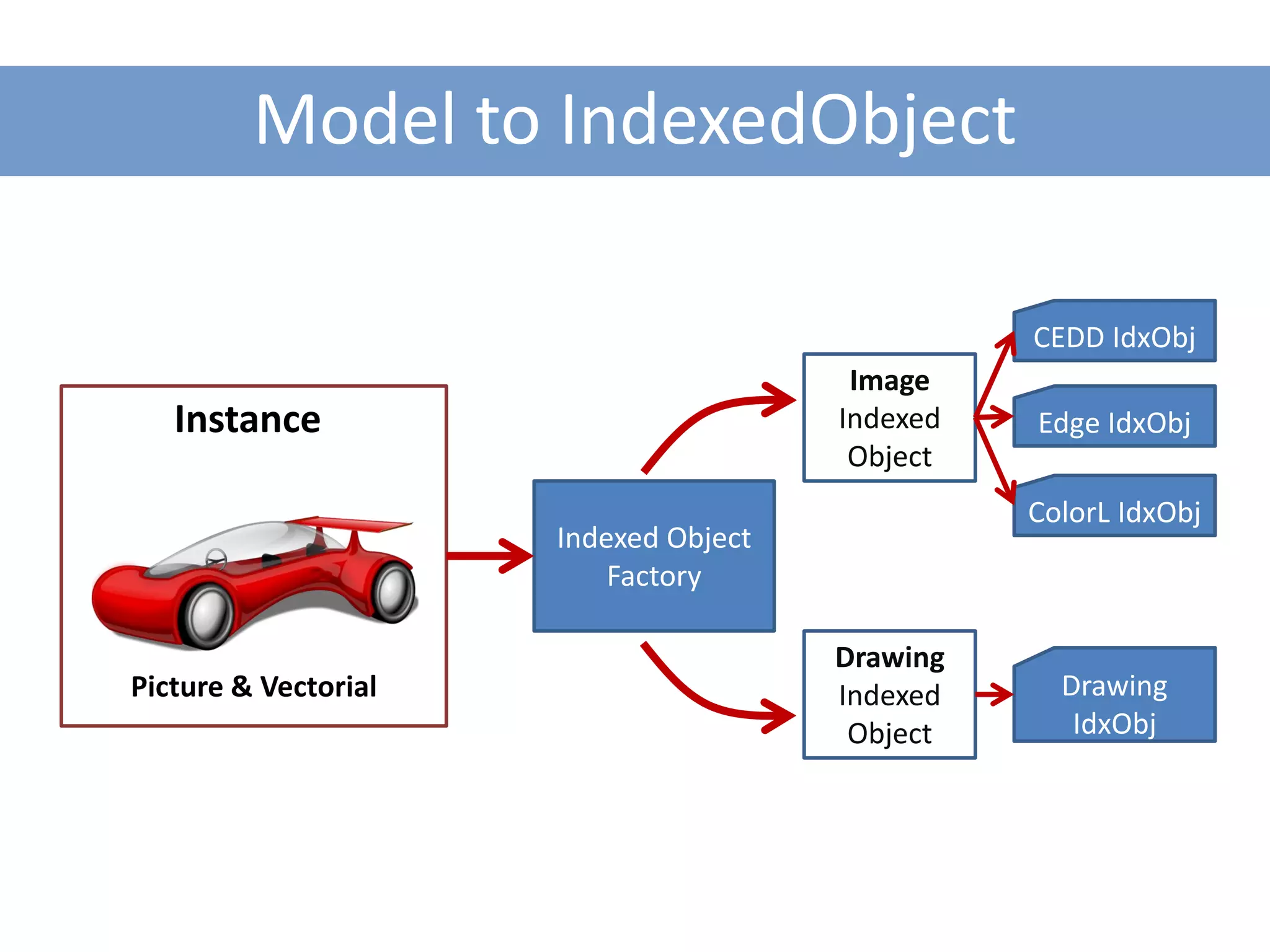

26. Model to IndexedObject
CEDD IdxObj
Instance Indexed Edge IdxObj
Object
ColorL IdxObj
Indexed Object
Factory
Drawing
Picture & Vectorial Indexed Drawing
Object IdxObj

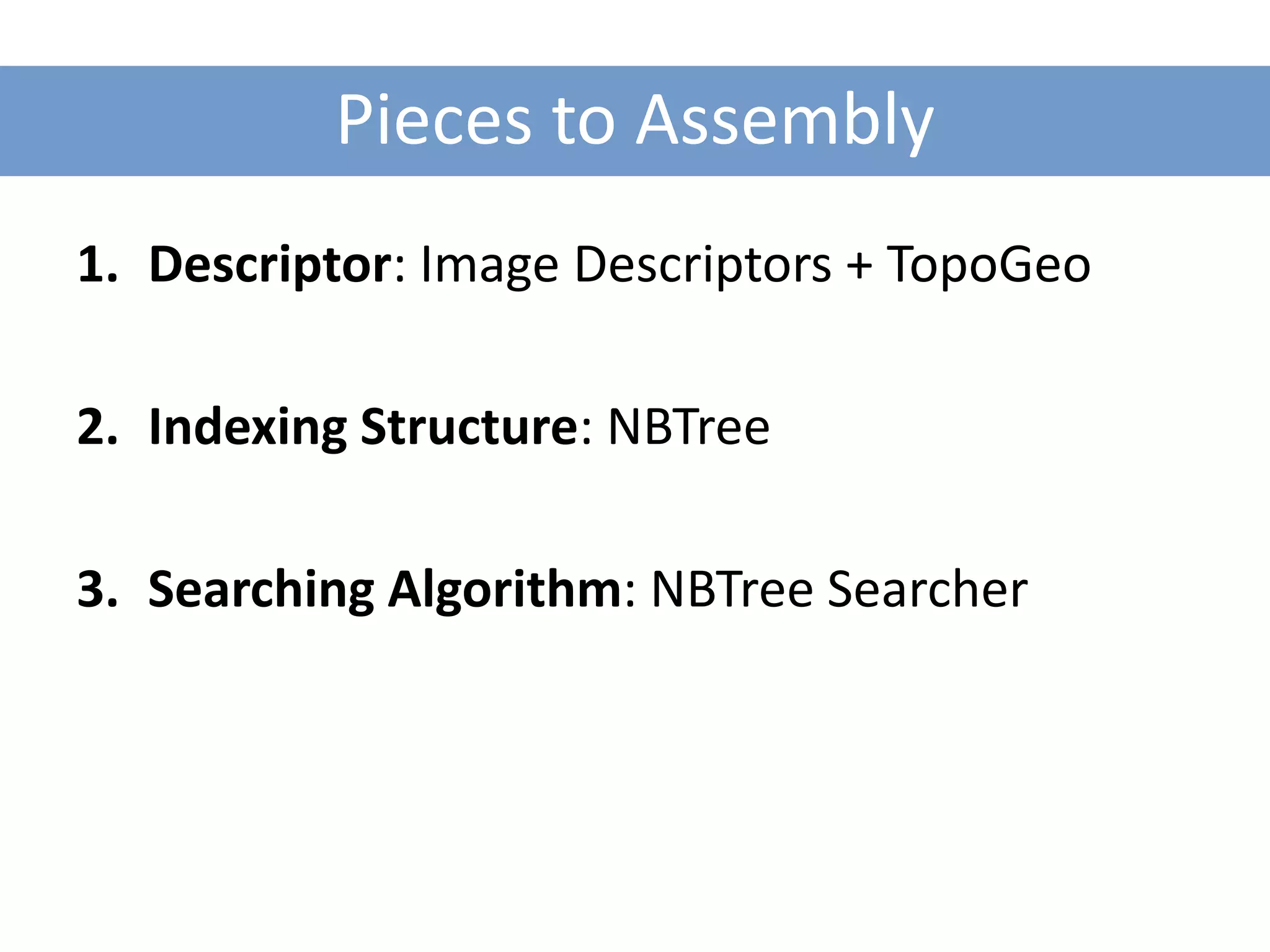

27. Pieces to Assembly
1. Descriptor: Image Descriptors + TopoGeo
2. Indexing Structure: NBTree
3. Searching Algorithm: NBTree Searcher

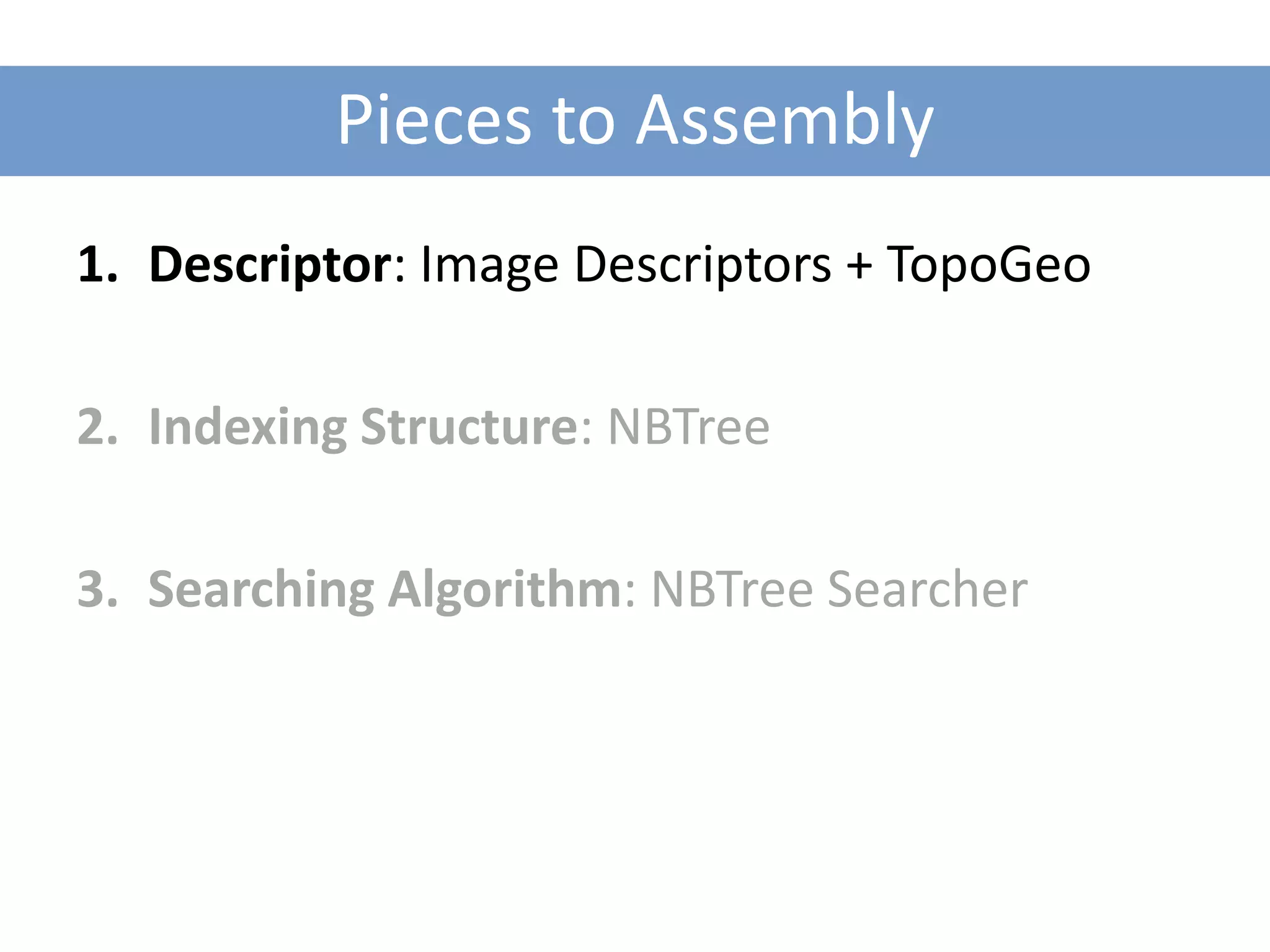

28. Pieces to Assembly
1. Descriptor: Image Descriptors + TopoGeo
2. Indexing Structure: NBTree
3. Searching Algorithm: NBTree Searcher

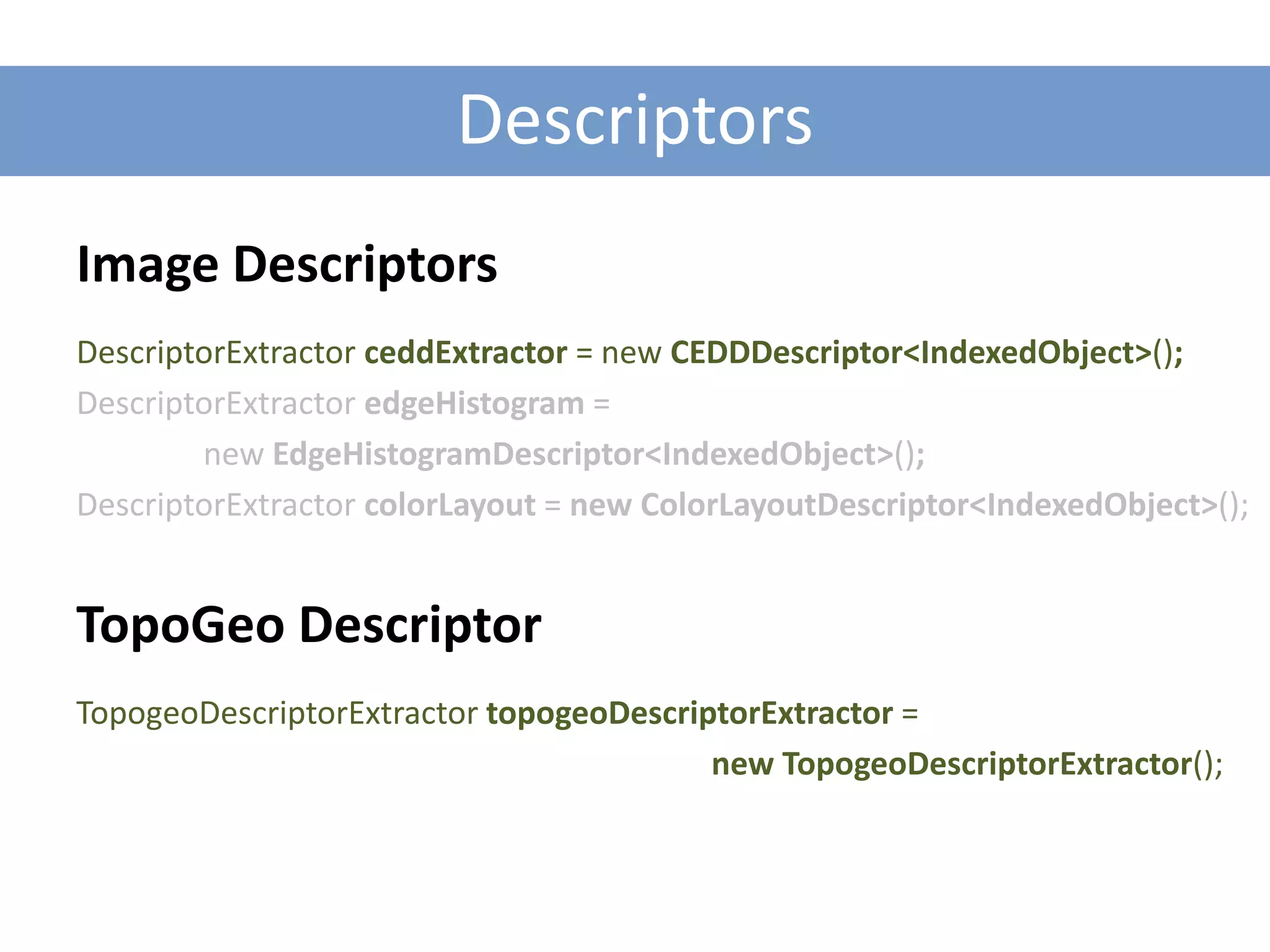

29. Descriptors
Image Descriptors
DescriptorExtractor ceddExtractor = new CEDDDescriptor<IndexedObject>();
DescriptorExtractor edgeHistogram =
new EdgeHistogramDescriptor<IndexedObject>();
DescriptorExtractor colorLayout = new ColorLayoutDescriptor<IndexedObject>();
TopoGeo Descriptor
TopogeoDescriptorExtractor topogeoDescriptorExtractor =
new TopogeoDescriptorExtractor();

30. Pieces to Assembly
1. Descriptor: Image Descriptors + TopoGeo
2. Indexing Structure: NBTree
3. Searching Algorithm: NBTree Searcher

31. BTree for Indexing

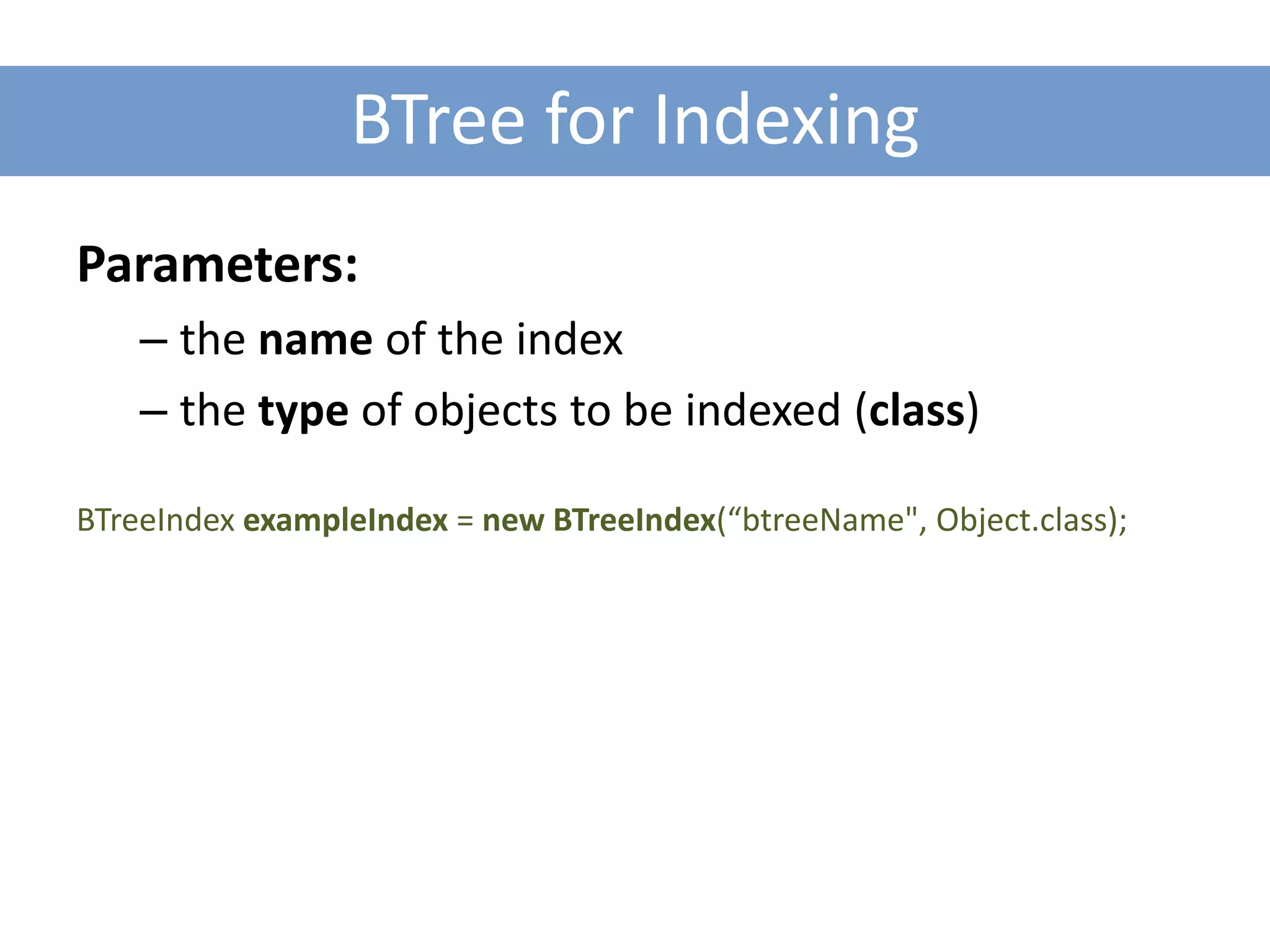

Parameters:
– the name of the index
– the type of objects to be indexed (class)
BTreeIndex exampleIndex = new BTreeIndex(“btreeName", Object.class);

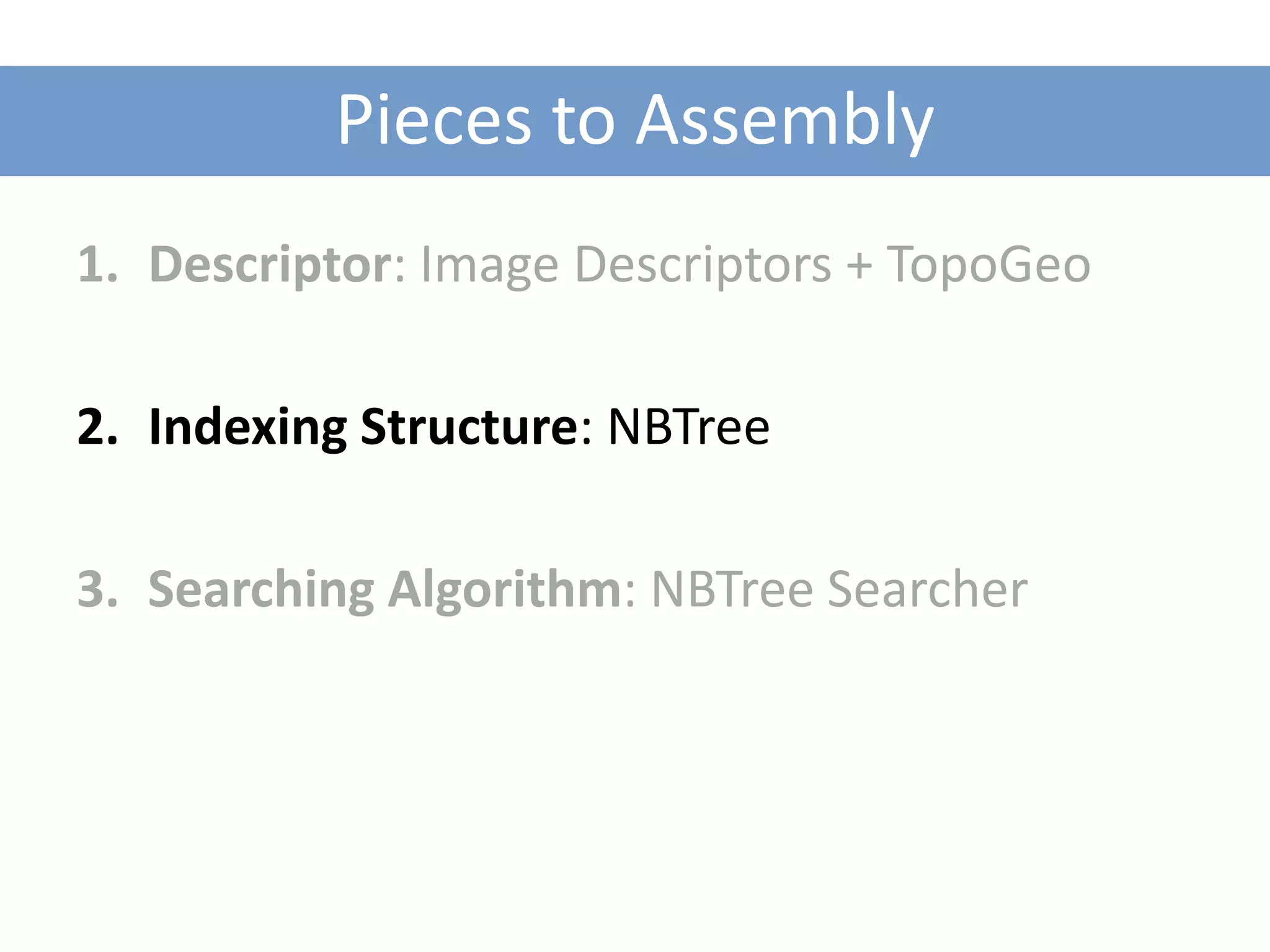

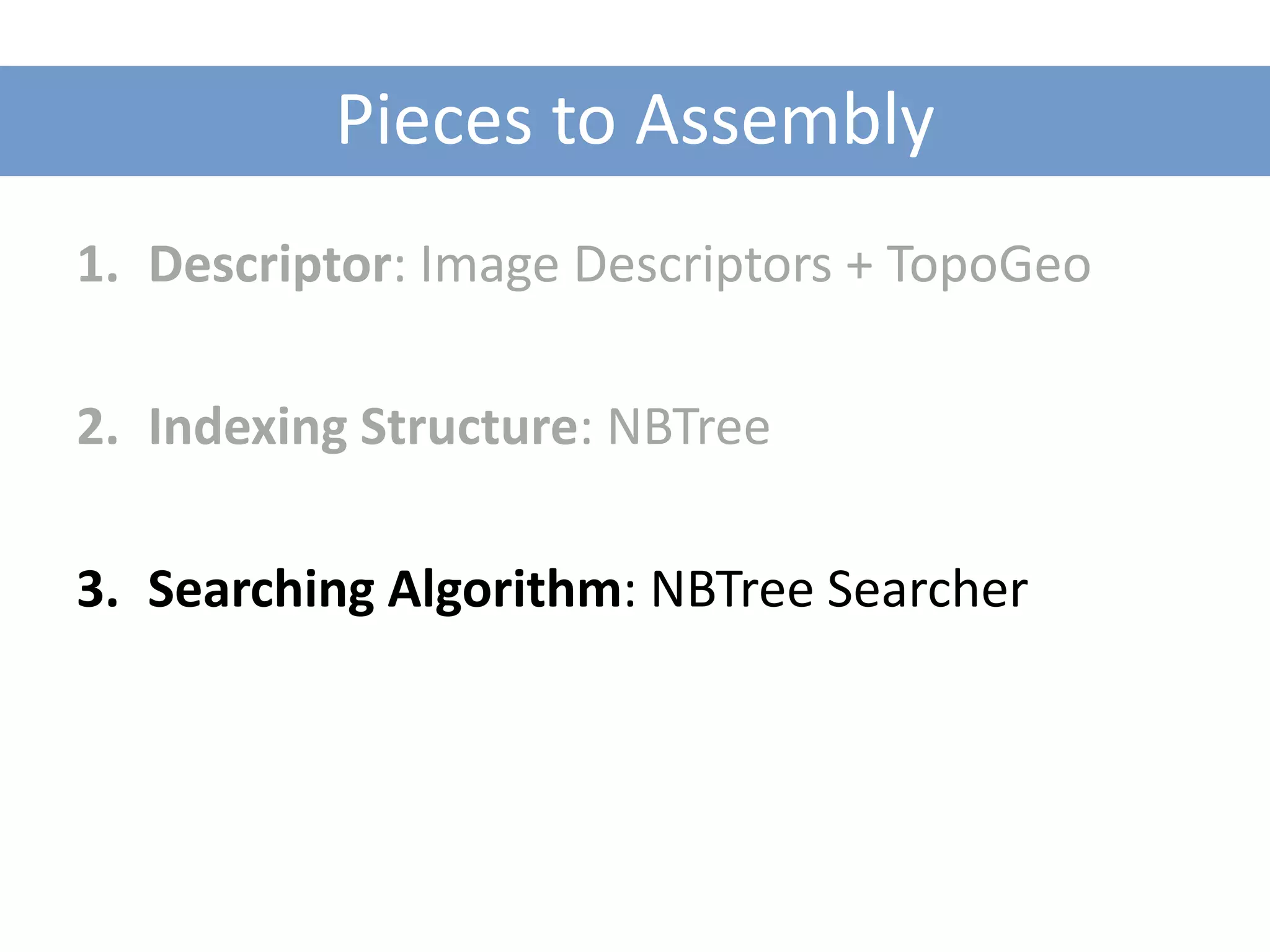

32. Pieces to Assembly
1. Descriptor: Image Descriptors + TopoGeo
2. Indexing Structure: NBTree
3. Searching Algorithm: NBTree Searcher

33. NBTree Searcher

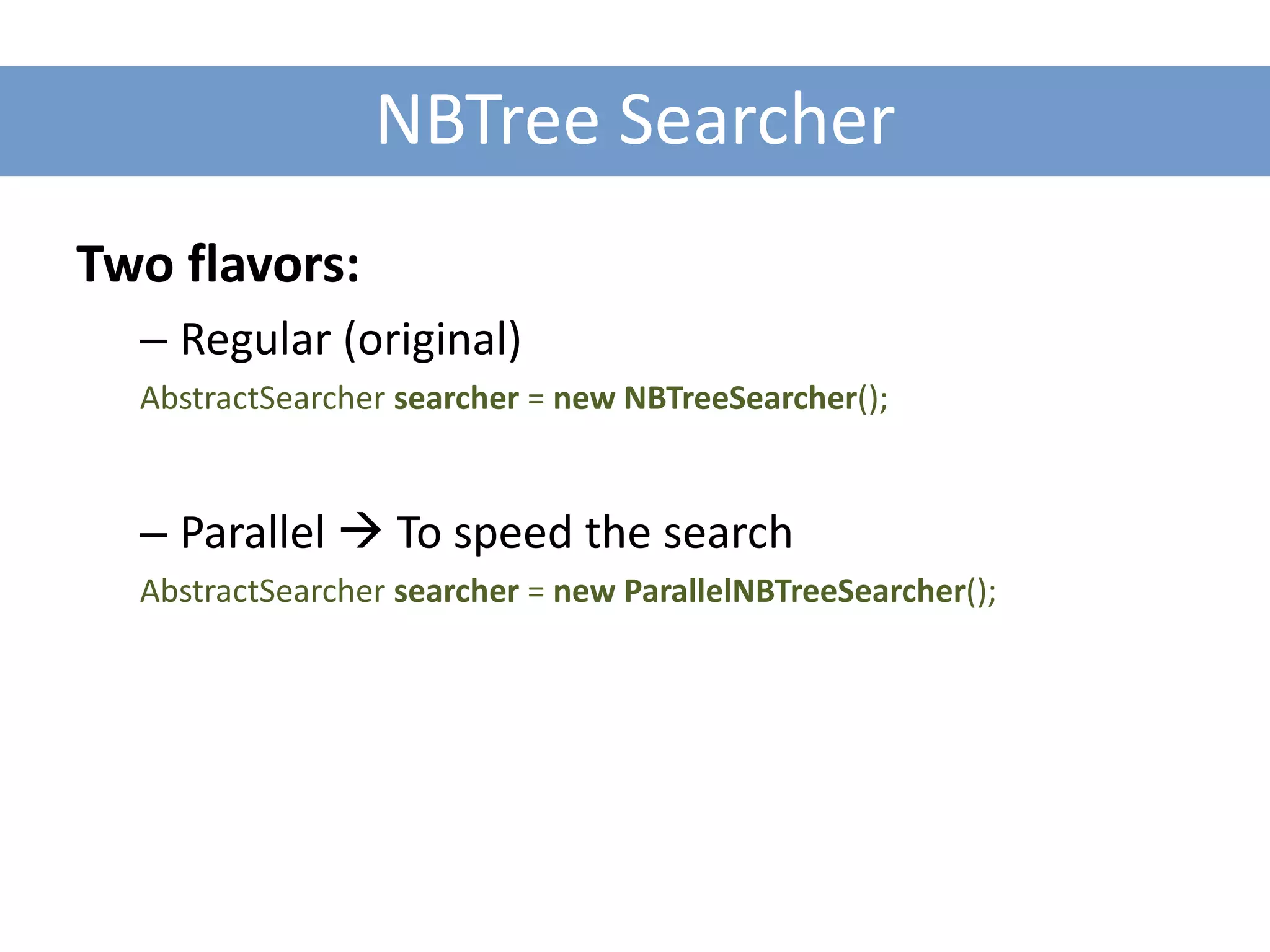

Two flavors:
– Regular (original)
AbstractSearcher searcher = new NBTreeSearcher();
– Parallel  To speed the search
AbstractSearcher searcher = new ParallelNBTreeSearcher();

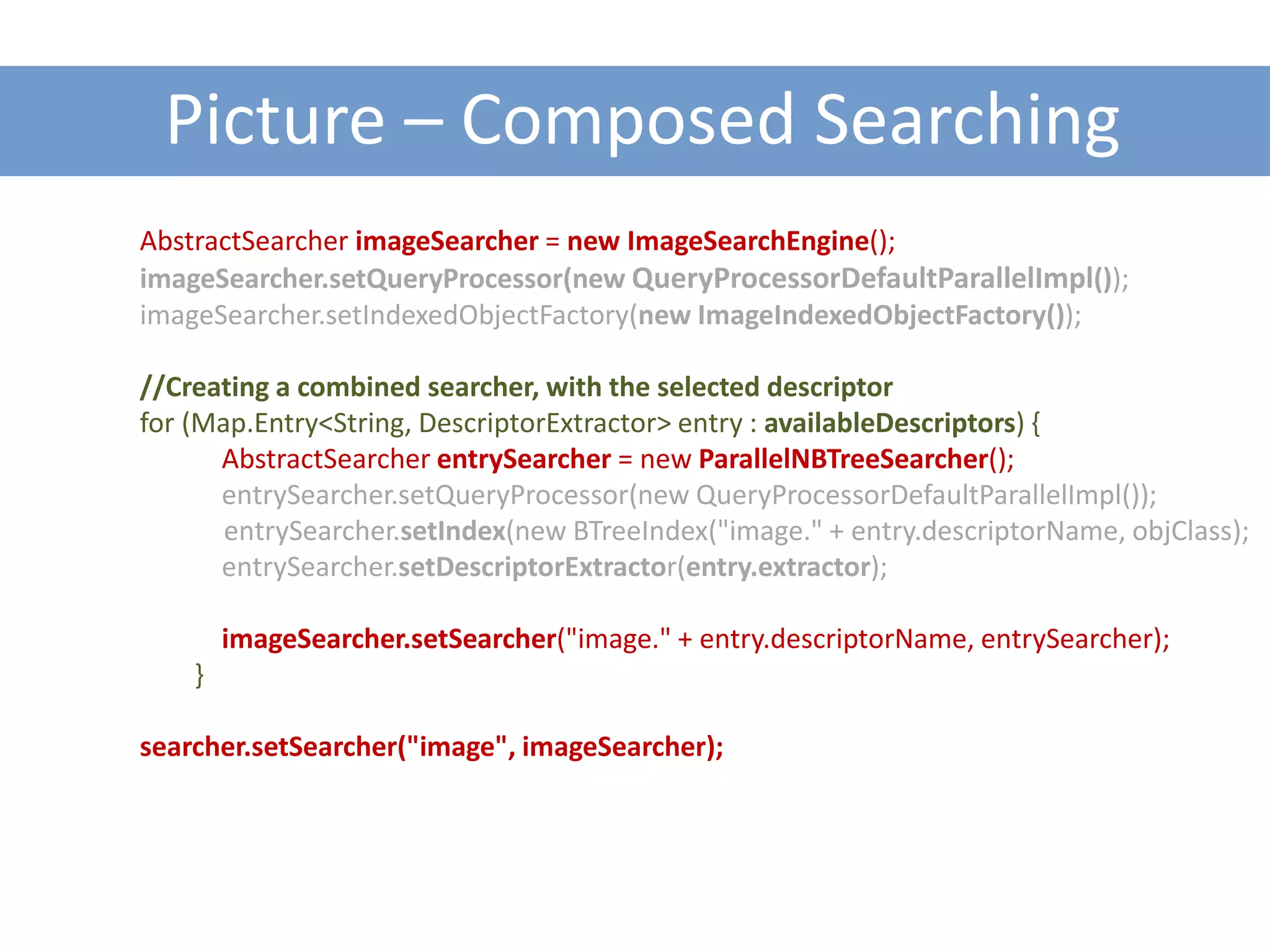

34. Picture – Composed Searching
AbstractSearcher imageSearcher = new ImageSearchEngine();
imageSearcher.setQueryProcessor(new QueryProcessorDefaultParallelImpl());
imageSearcher.setIndexedObjectFactory(new ImageIndexedObjectFactory());
//Creating a combined searcher, with the selected descriptor
for (Map.Entry<String, DescriptorExtractor> entry : availableDescriptors) {
AbstractSearcher entrySearcher = new ParallelNBTreeSearcher();
entrySearcher.setQueryProcessor(new QueryProcessorDefaultParallelImpl());
entrySearcher.setIndex(new BTreeIndex("image." + entry.descriptorName, objClass);
entrySearcher.setDescriptorExtractor(entry.extractor);
imageSearcher.setSearcher("image." + entry.descriptorName, entrySearcher);
}
searcher.setSearcher("image", imageSearcher);

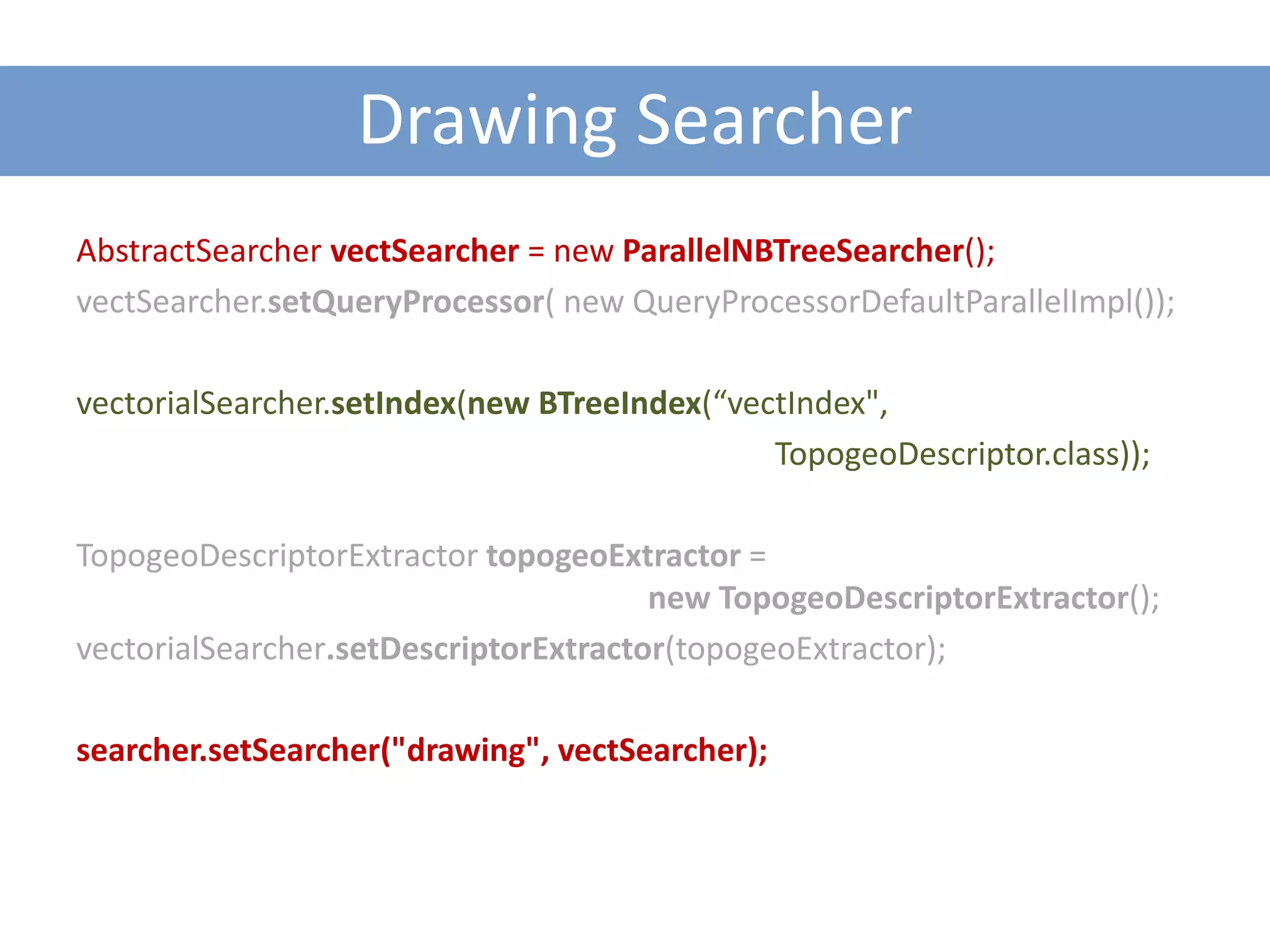

35. Drawing Searcher
AbstractSearcher vectSearcher = new ParallelNBTreeSearcher();
vectSearcher.setQueryProcessor( new QueryProcessorDefaultParallelImpl());
vectorialSearcher.setIndex(new BTreeIndex(“vectIndex",
TopogeoDescriptor.class));
TopogeoDescriptorExtractor topogeoExtractor =
new TopogeoDescriptorExtractor();
vectorialSearcher.setDescriptorExtractor(topogeoExtractor);
searcher.setSearcher("drawing", vectSearcher);

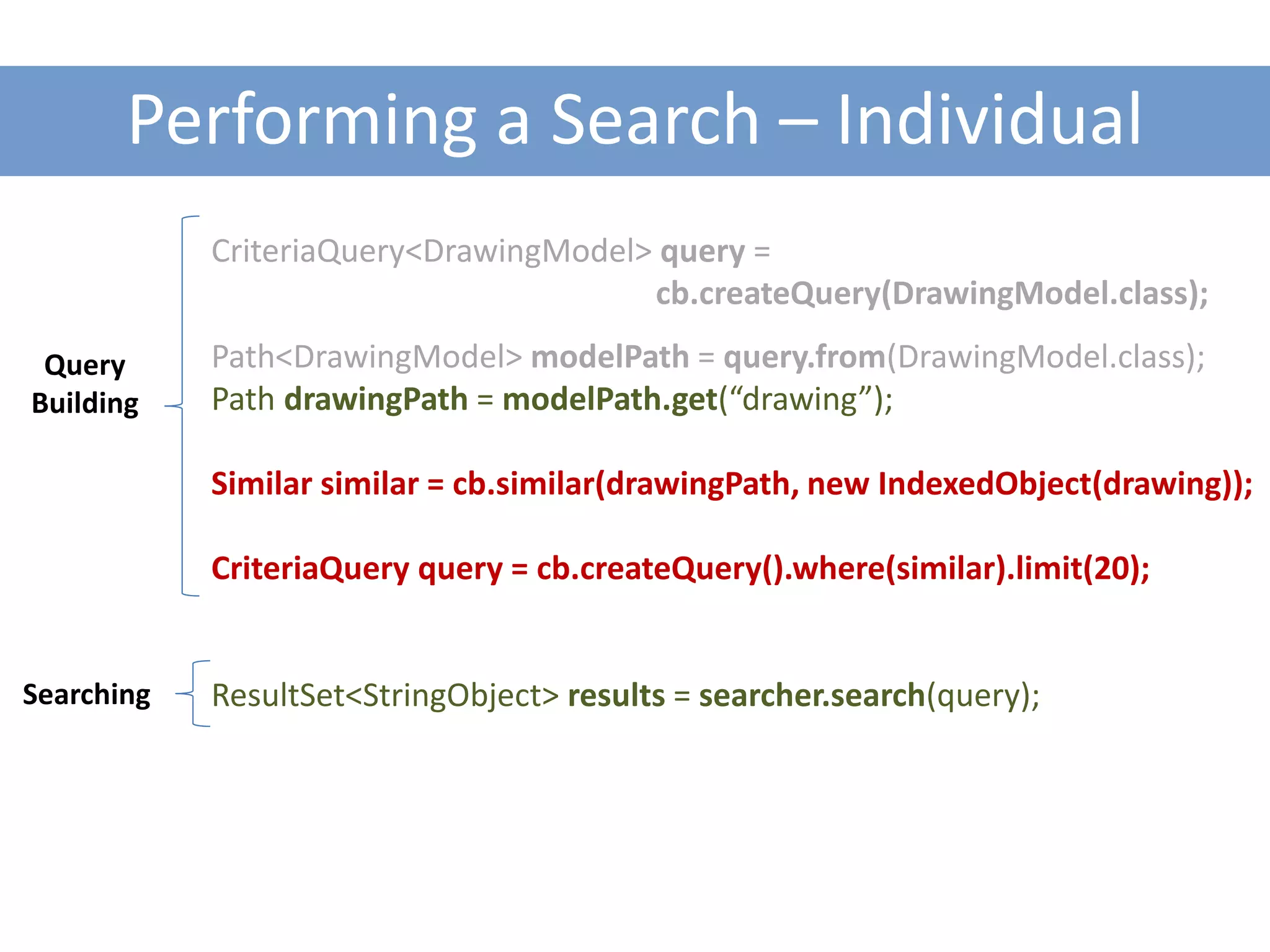

36. Performing a Search – Individual
CriteriaQuery<DrawingModel> query =
cb.createQuery(DrawingModel.class);
Query Path<DrawingModel> modelPath = query.from(DrawingModel.class);
Building Path drawingPath = modelPath.get(“drawing”);
Similar similar = cb.similar(drawingPath, new IndexedObject(drawing));
CriteriaQuery query = cb.createQuery().where(similar).limit(20);
Searching ResultSet<StringObject> results = searcher.search(query);

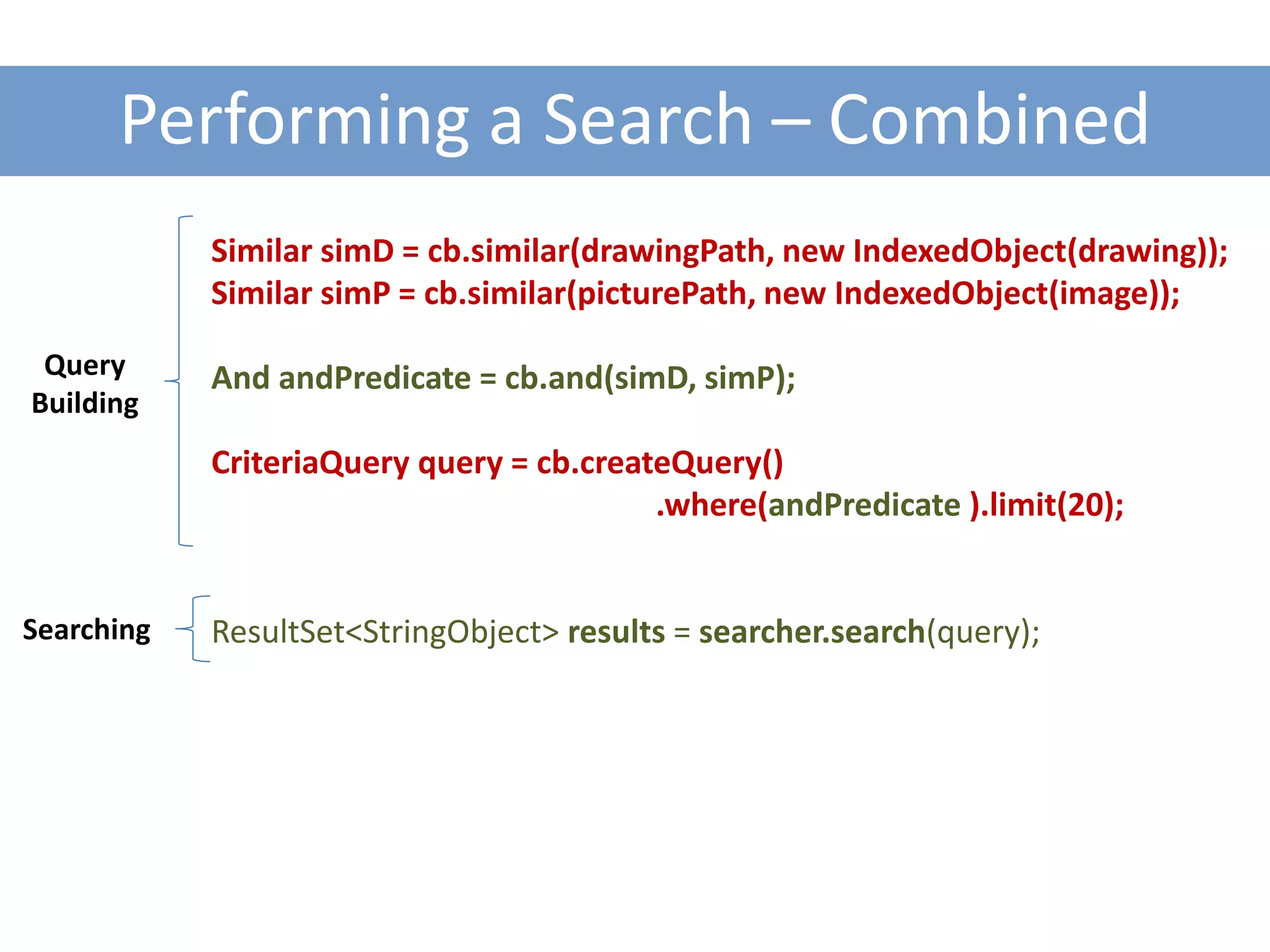

37. Performing a Search – Combined
Similar simD = cb.similar(drawingPath, new IndexedObject(drawing));
Similar simP = cb.similar(picturePath, new IndexedObject(image));
Query And andPredicate = cb.and(simD, simP);
Building
CriteriaQuery query = cb.createQuery()
.where(andPredicate ).limit(20);
Searching ResultSet<StringObject> results = searcher.search(query);

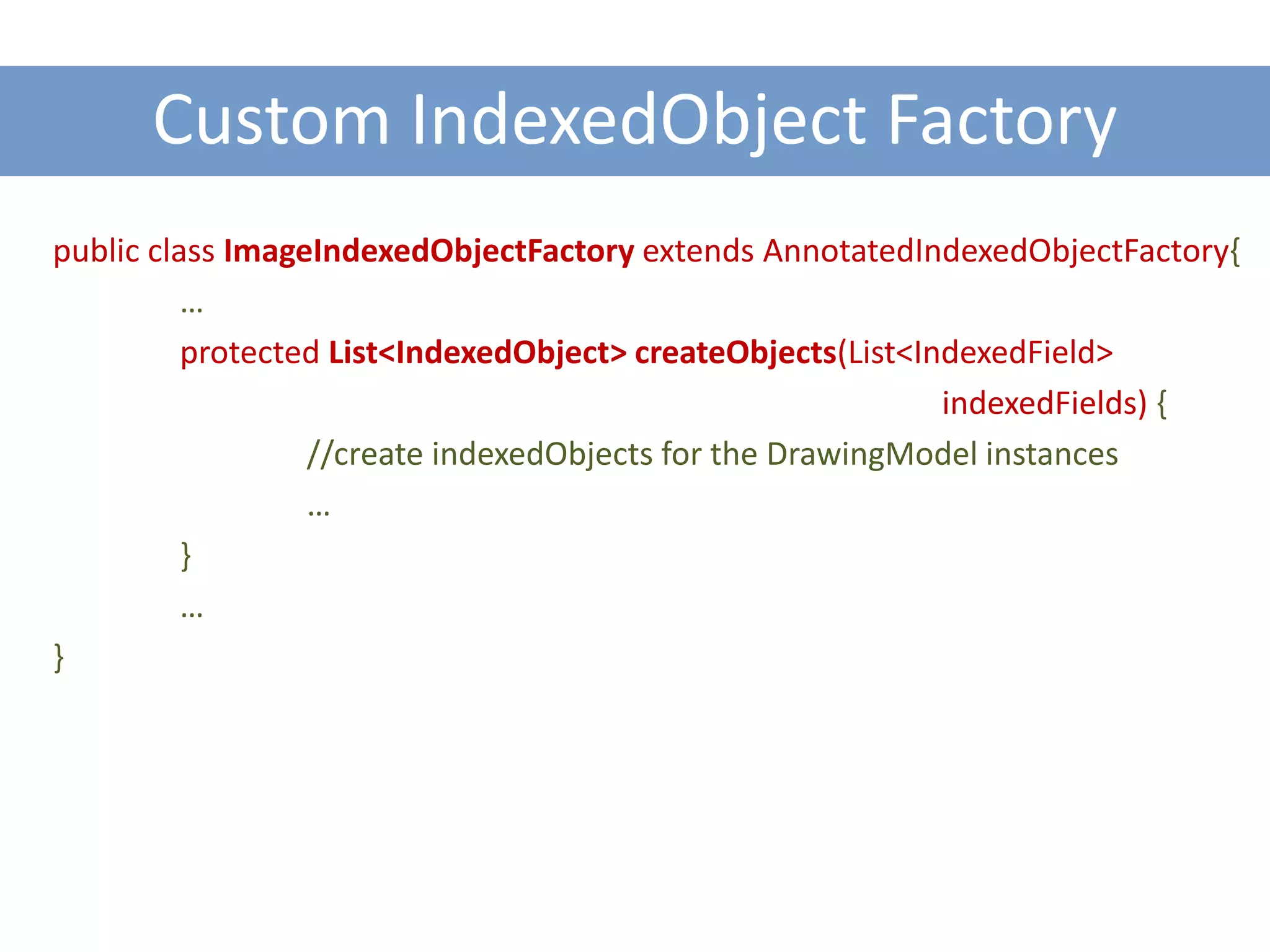

38. Custom IndexedObject Factory
public class ImageIndexedObjectFactory extends AnnotatedIndexedObjectFactory{
…
protected List<IndexedObject> createObjects(List<IndexedField>
indexedFields) {
//create indexedObjects for the DrawingModel instances
…
}
…
}

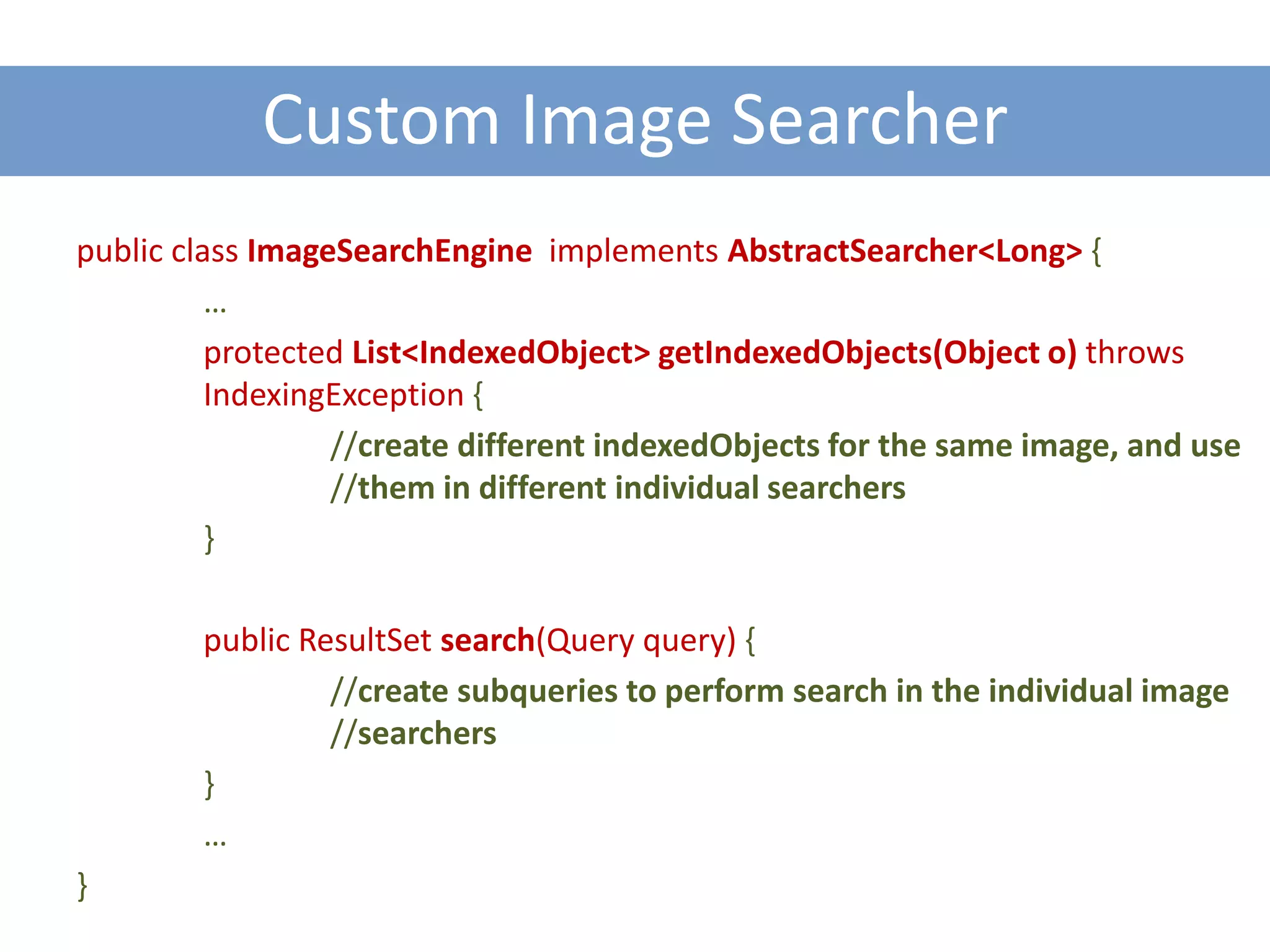

39. Custom Image Searcher
public class ImageSearchEngine implements AbstractSearcher<Long> {
…
protected List<IndexedObject> getIndexedObjects(Object o) throws
IndexingException {
//create different indexedObjects for the same image, and use
//them in different individual searchers
}
public ResultSet search(Query query) {
//create subqueries to perform search in the individual image
//searchers
}
…
}

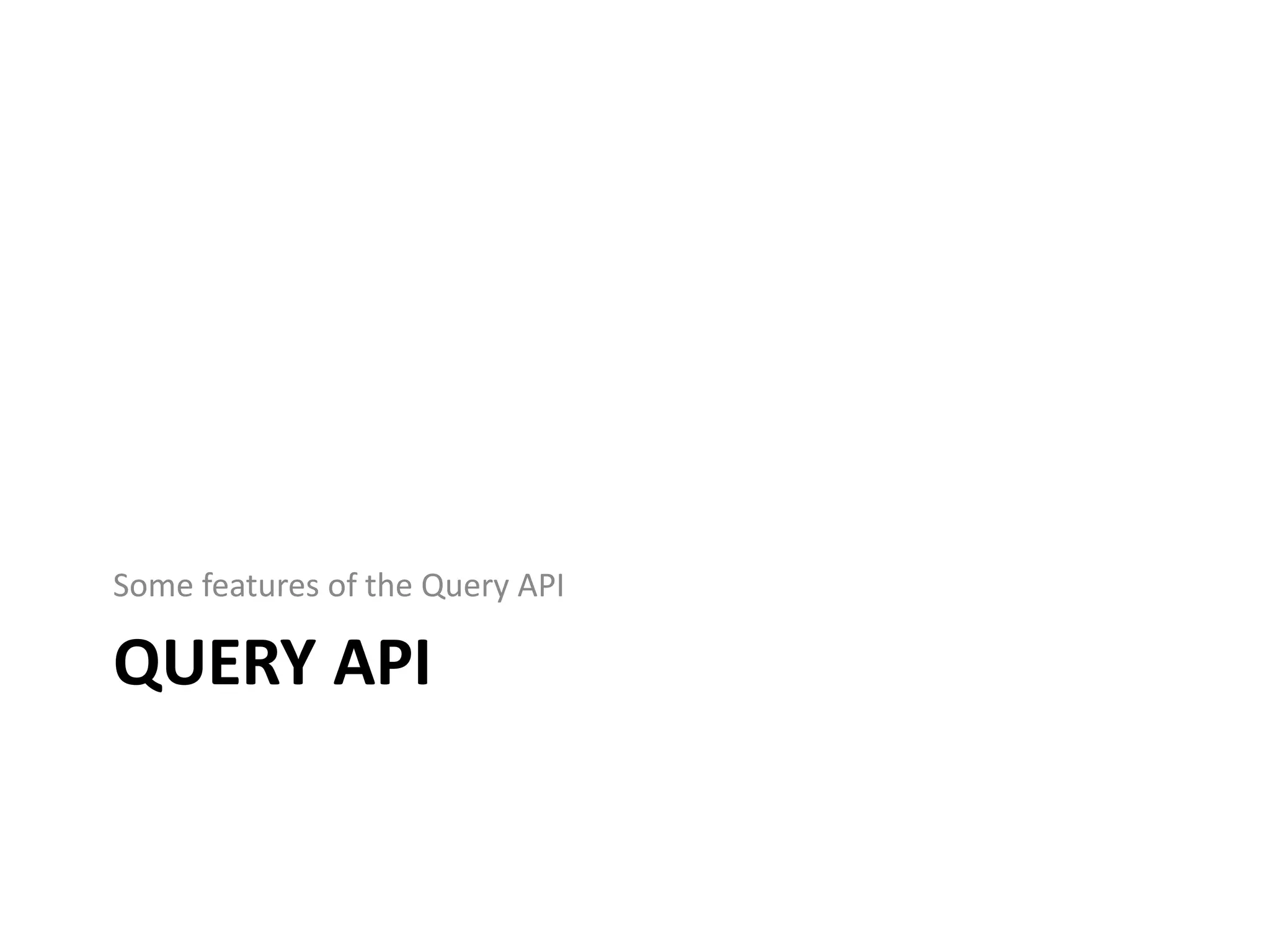

40. Some features of the Query API
QUERY API

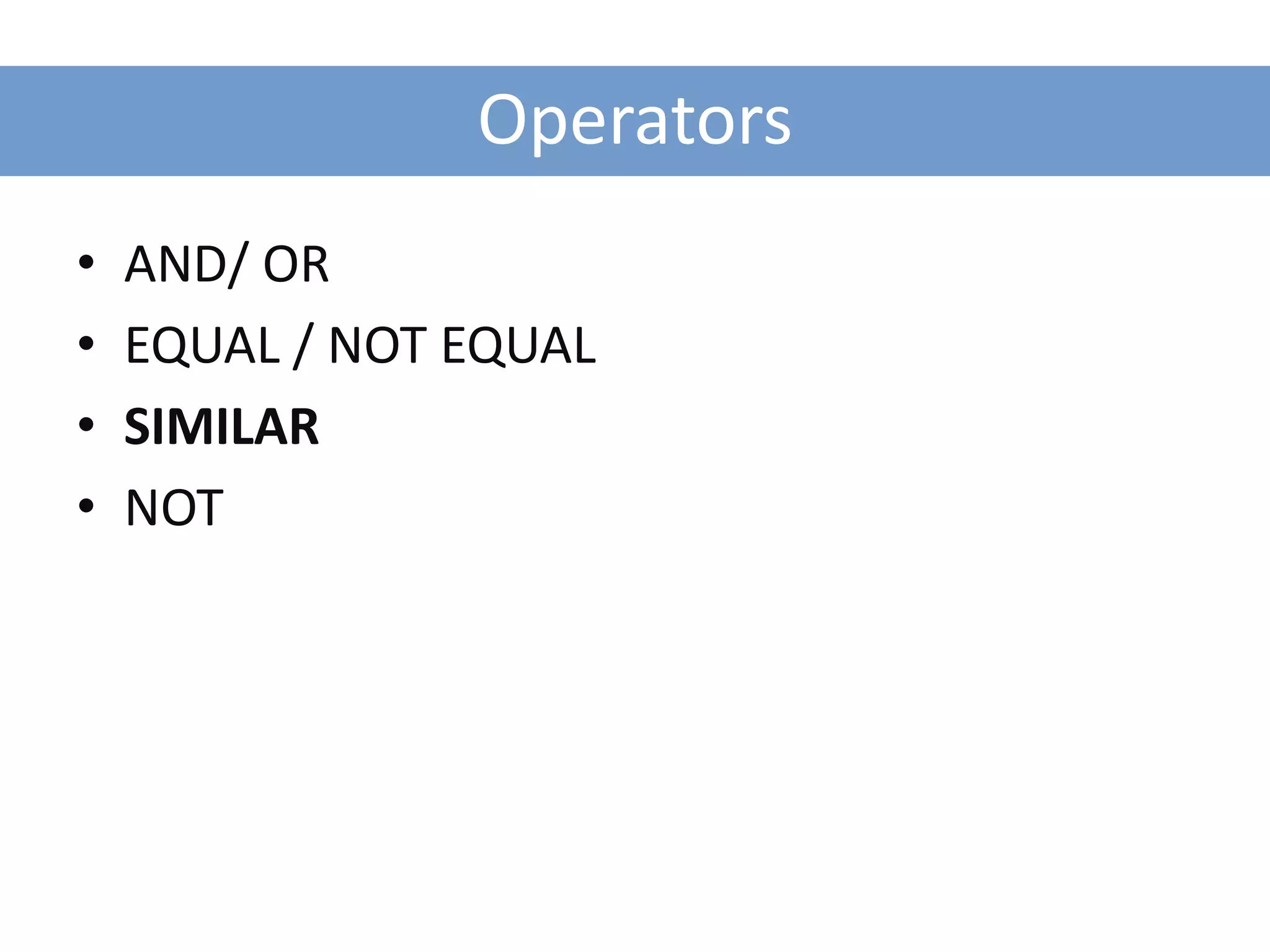

41. Operators
• AND/ OR
• EQUAL / NOT EQUAL
• SIMILAR
• NOT

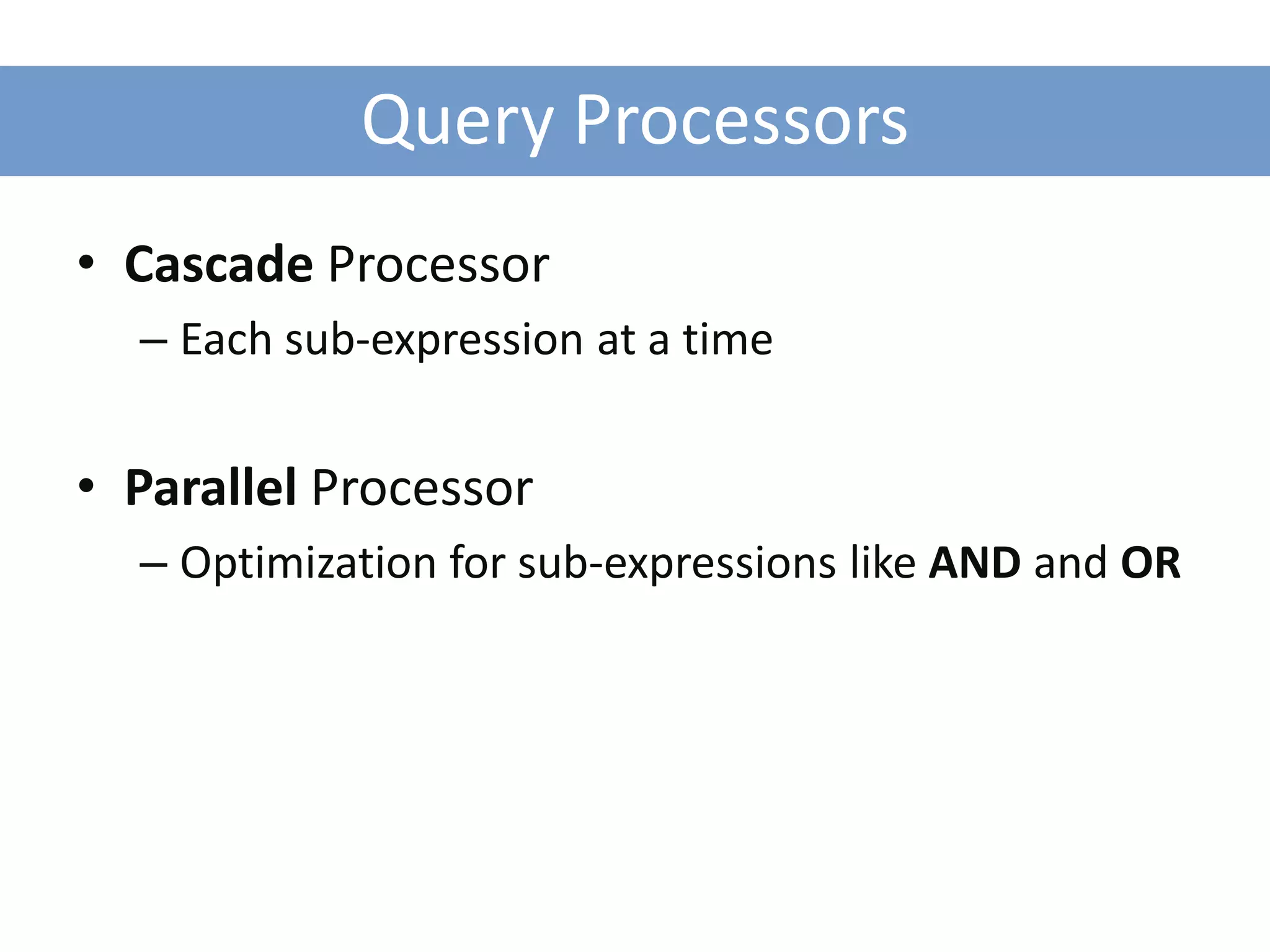

42. Query Processors
• Cascade Processor
– Each sub-expression at a time
• Parallel Processor
– Optimization for sub-expressions like AND and OR

43. Some demos developed during the project
DEMOS

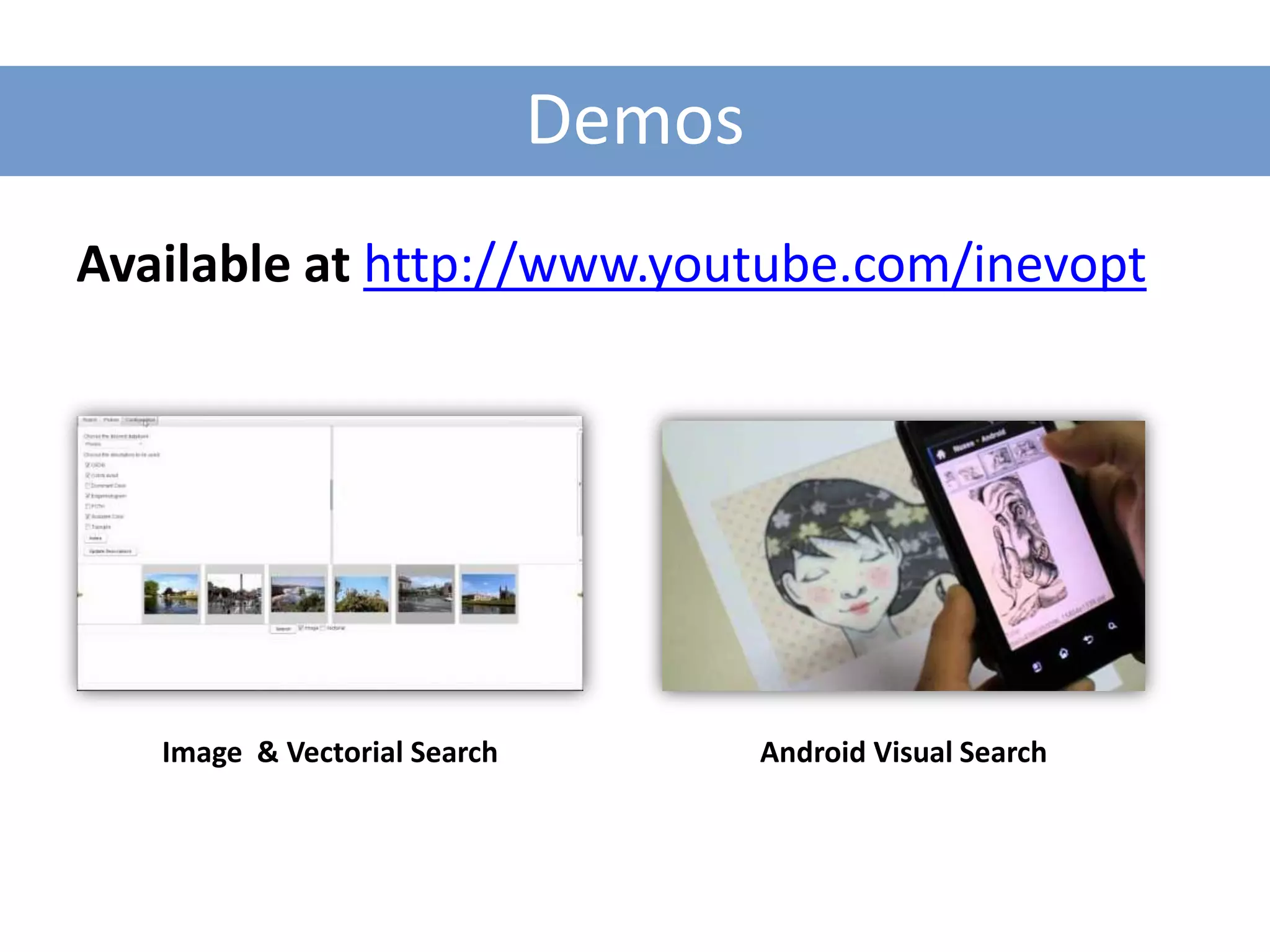

44. Demos
Available at http://www.youtube.com/inevopt
Image & Vectorial Search Android Visual Search

45. How to get EnContRA, and more documentation and support?
GETTING ENCONTRA

46. Checkout/Push Source Code

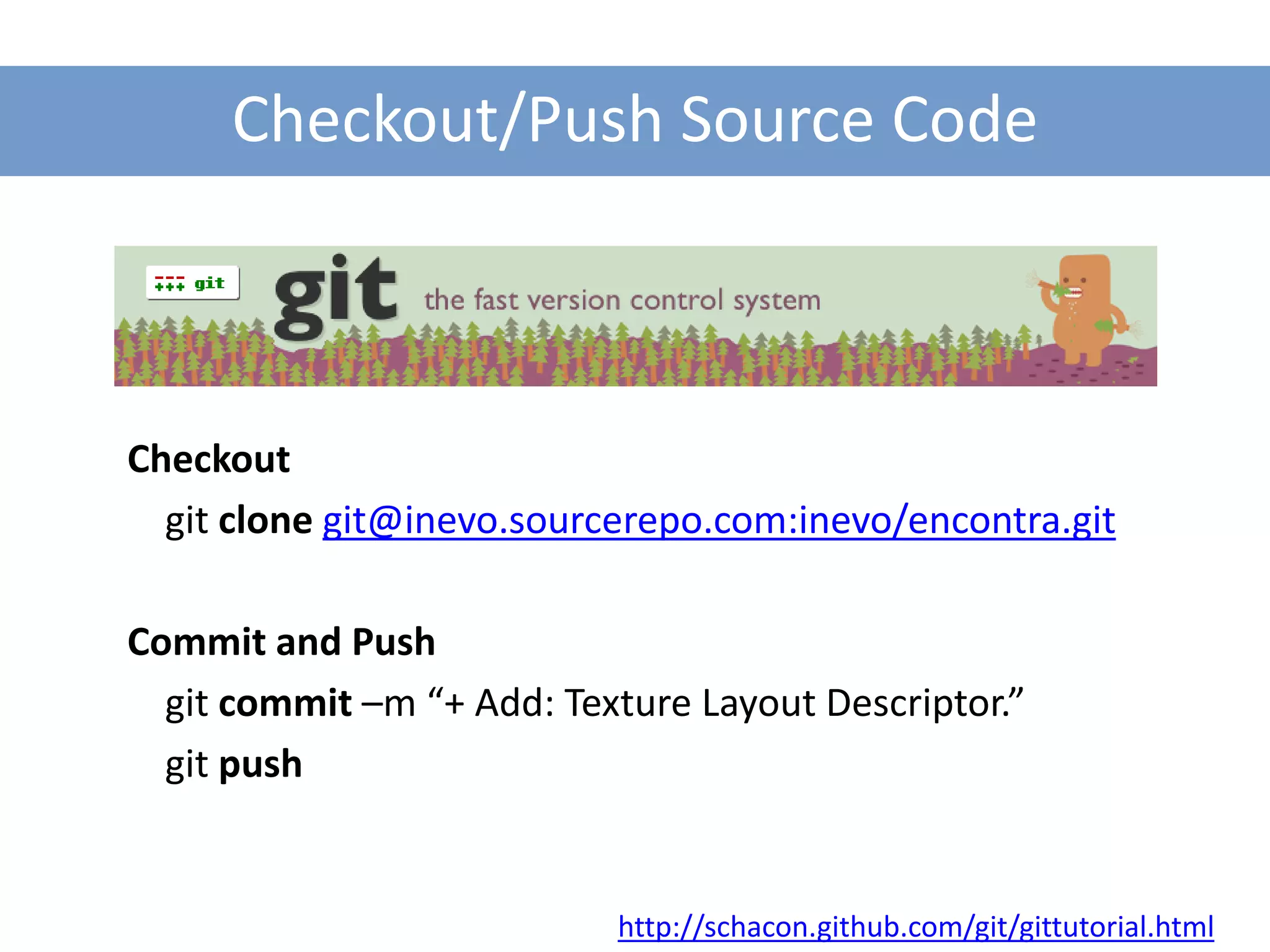

Checkout
git clone git@inevo.sourcerepo.com:inevo/encontra.git
Commit and Push
git commit –m “+ Add: Texture Layout Descriptor.”
git push
http://schacon.github.com/git/gittutorial.html

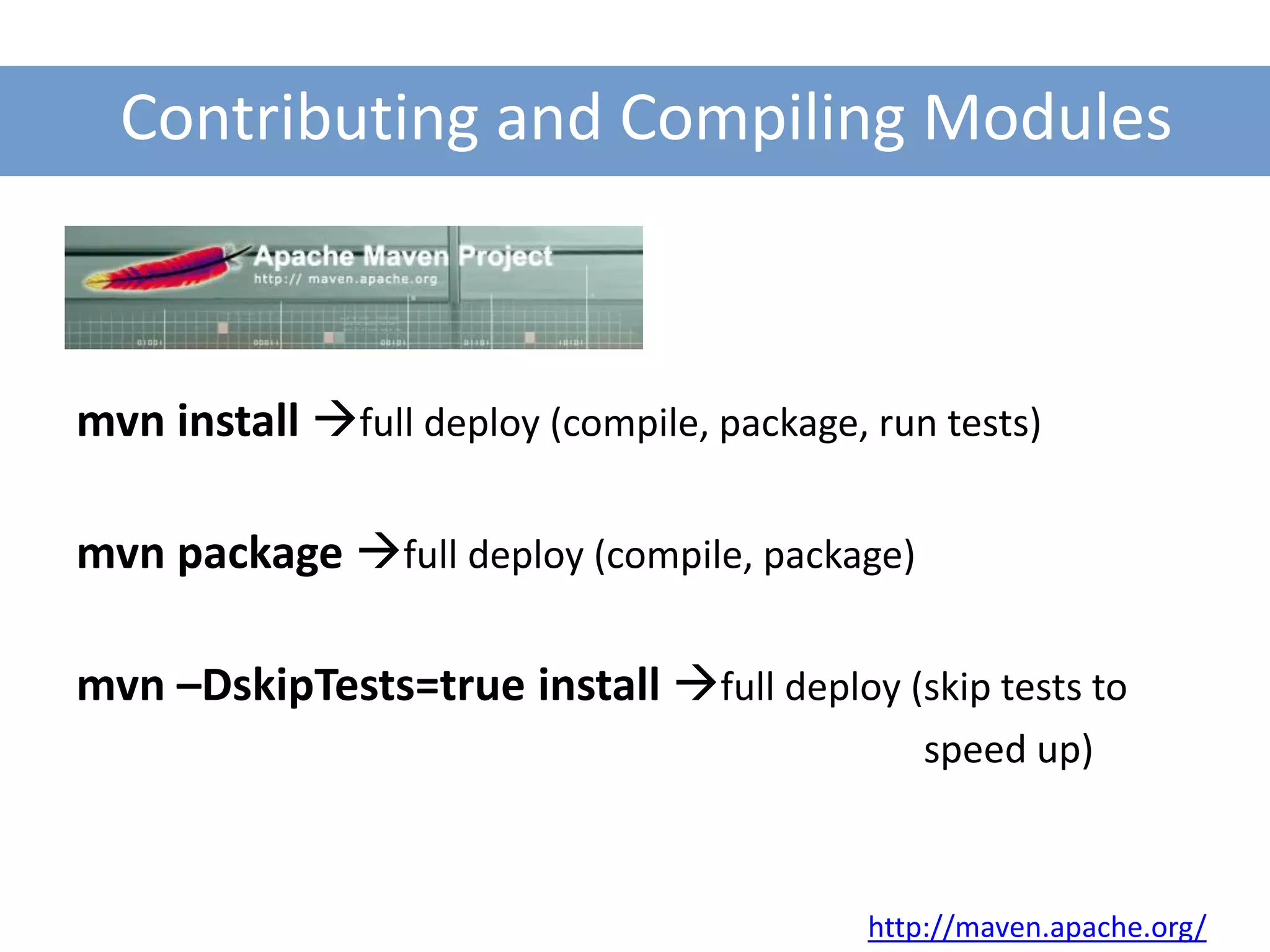

47. Contributing and Compiling Modules
mvn install full deploy (compile, package, run tests)
mvn package full deploy (compile, package)
mvn –DskipTests=true install full deploy (skip tests to
speed up)
http://maven.apache.org/

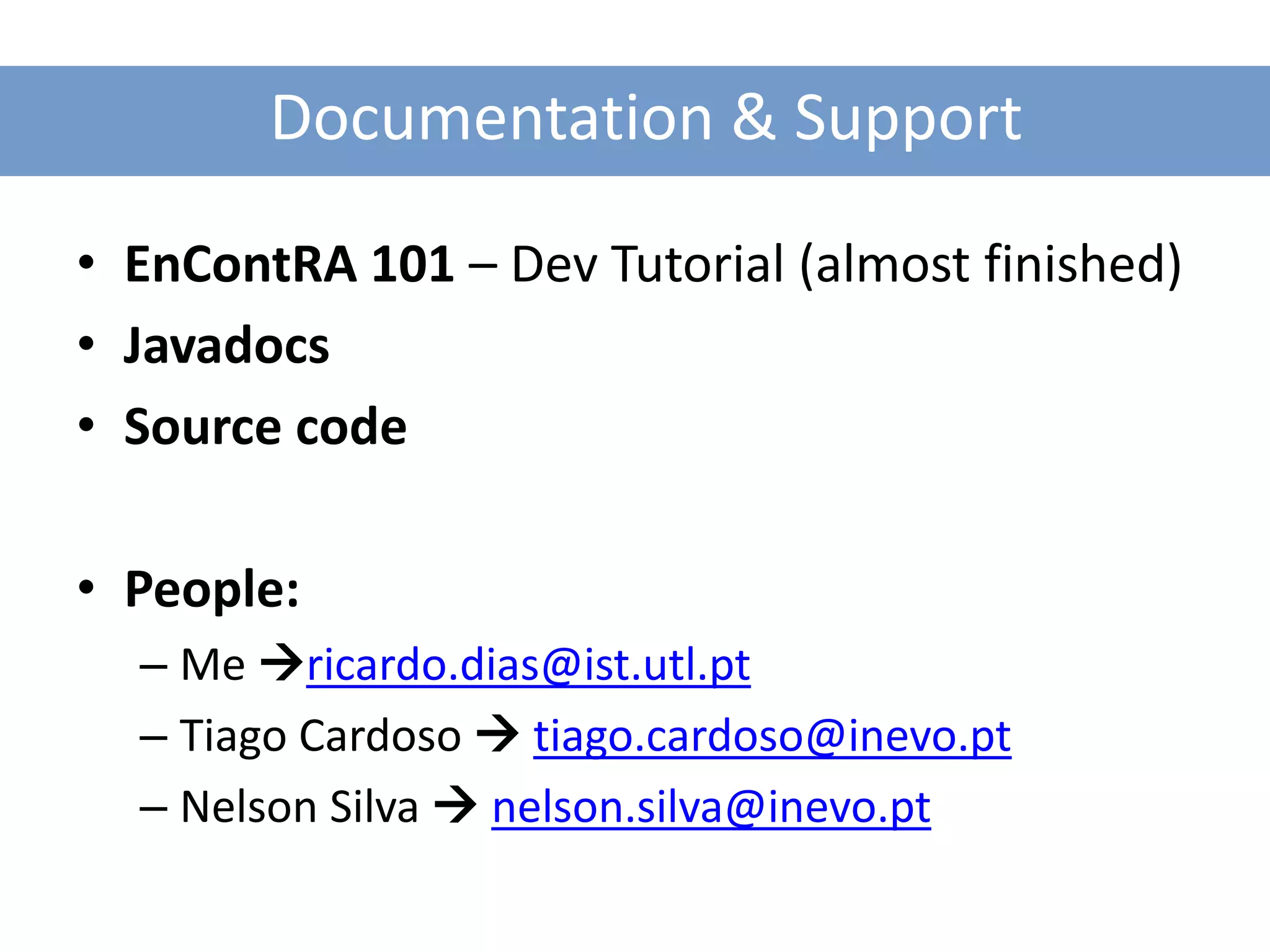

48. Documentation & Support
• EnContRA 101 – Dev Tutorial (almost finished)
• Javadocs
• Source code
• People:
– Me ricardo.dias@ist.utl.pt
– Tiago Cardoso  tiago.cardoso@inevo.pt
– Nelson Silva  nelson.silva@inevo.pt

50. EnContRA
Engine for Content-Based Retrieval Approaches
The End
Ricardo José São Pedro Dias
07/02/2012
