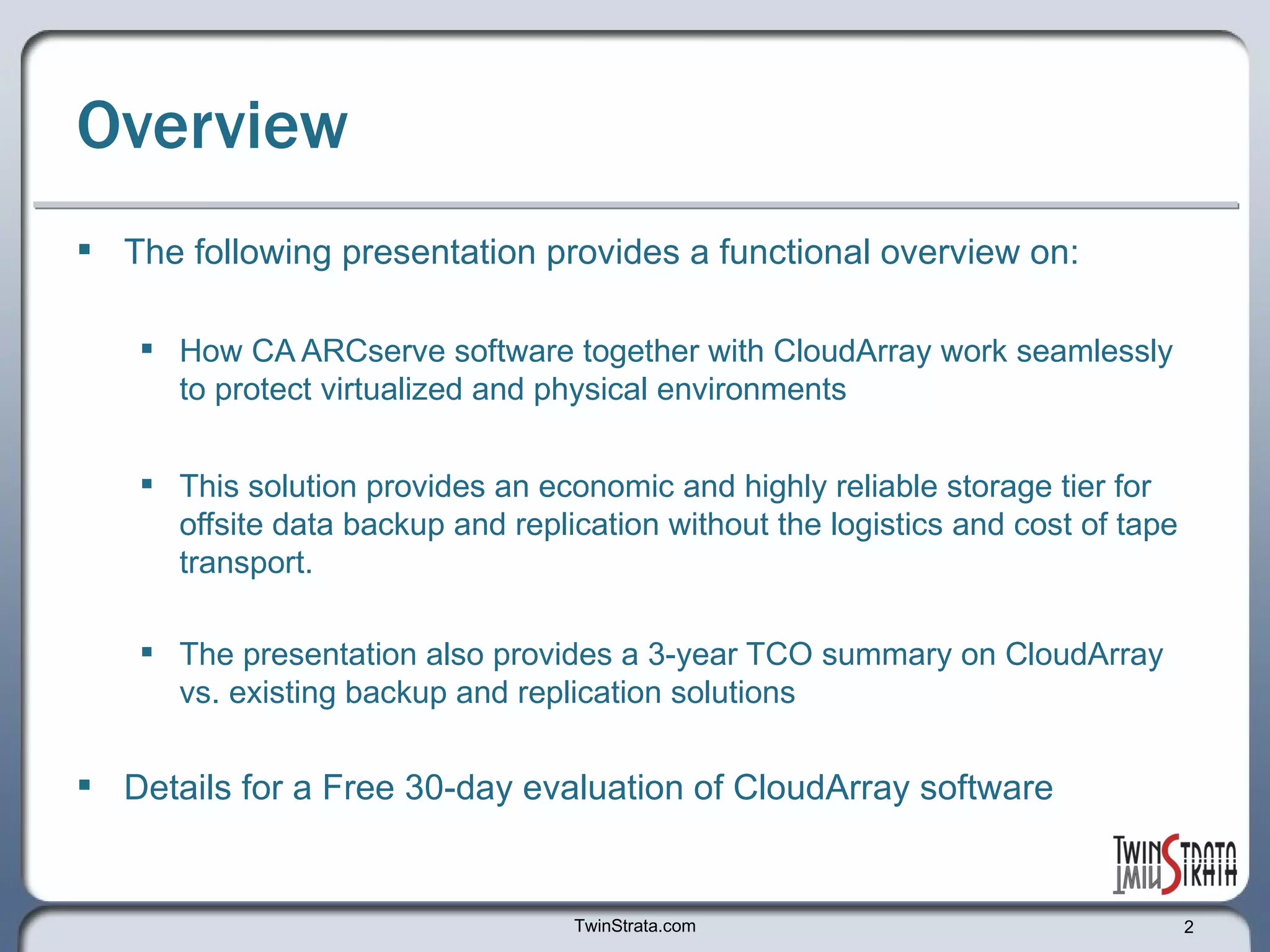

The following presentation provides a functional overview on: How CA ARCserve software together with CloudArray work seamlessly to protect virtualized and physical environments This solution provides an economic and highly reliable storage tier for off-site data backup and replication without the logistics and cost of tape transport. The presentation also provides a 3-year TCO summary on CloudArray vs. existing backup and replication solutions

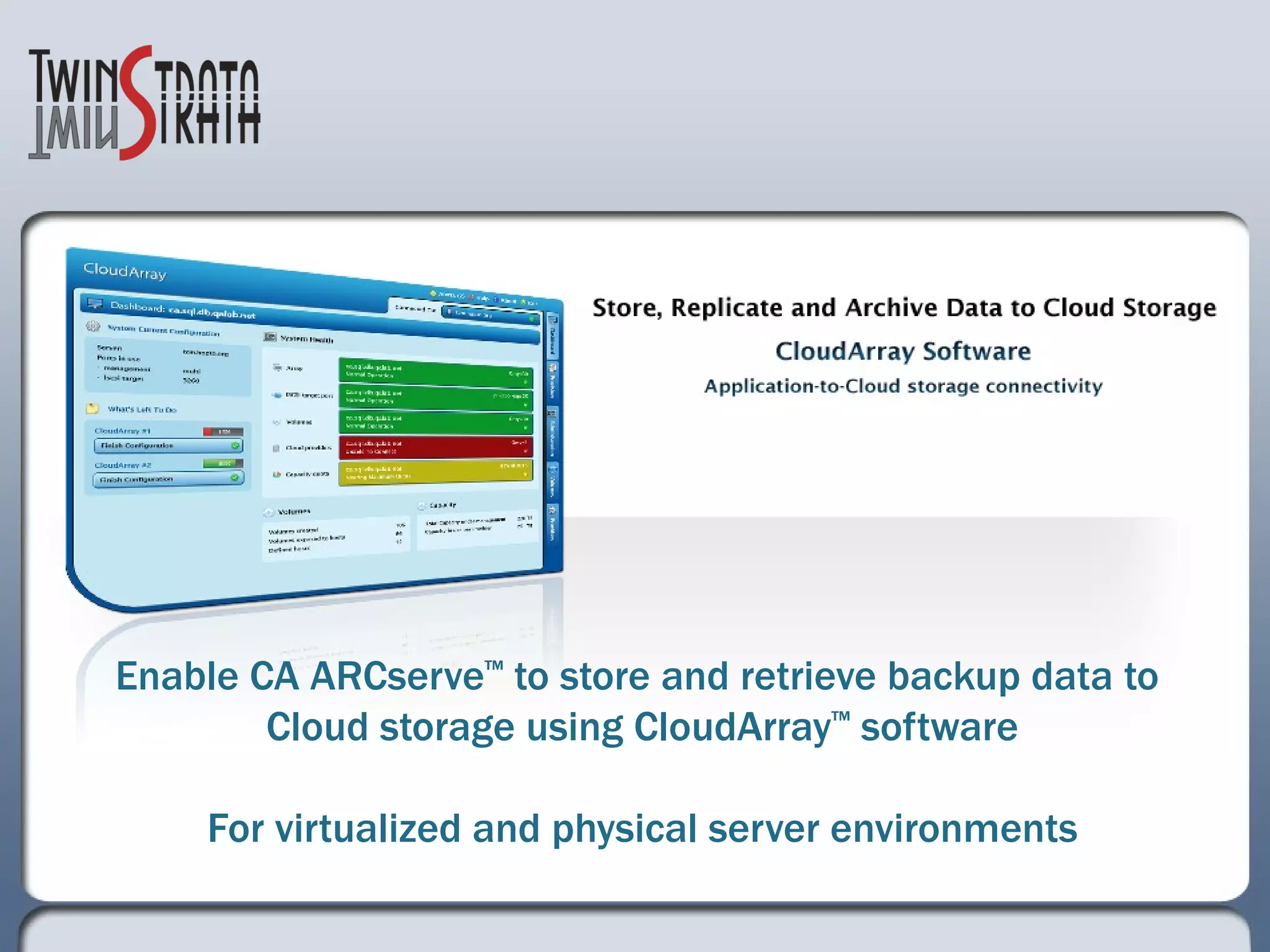

1. Enable CA ARCserve ™ to store and retrieve backup data to Cloud storage using CloudArray ™ software For virtualized and physical server environments

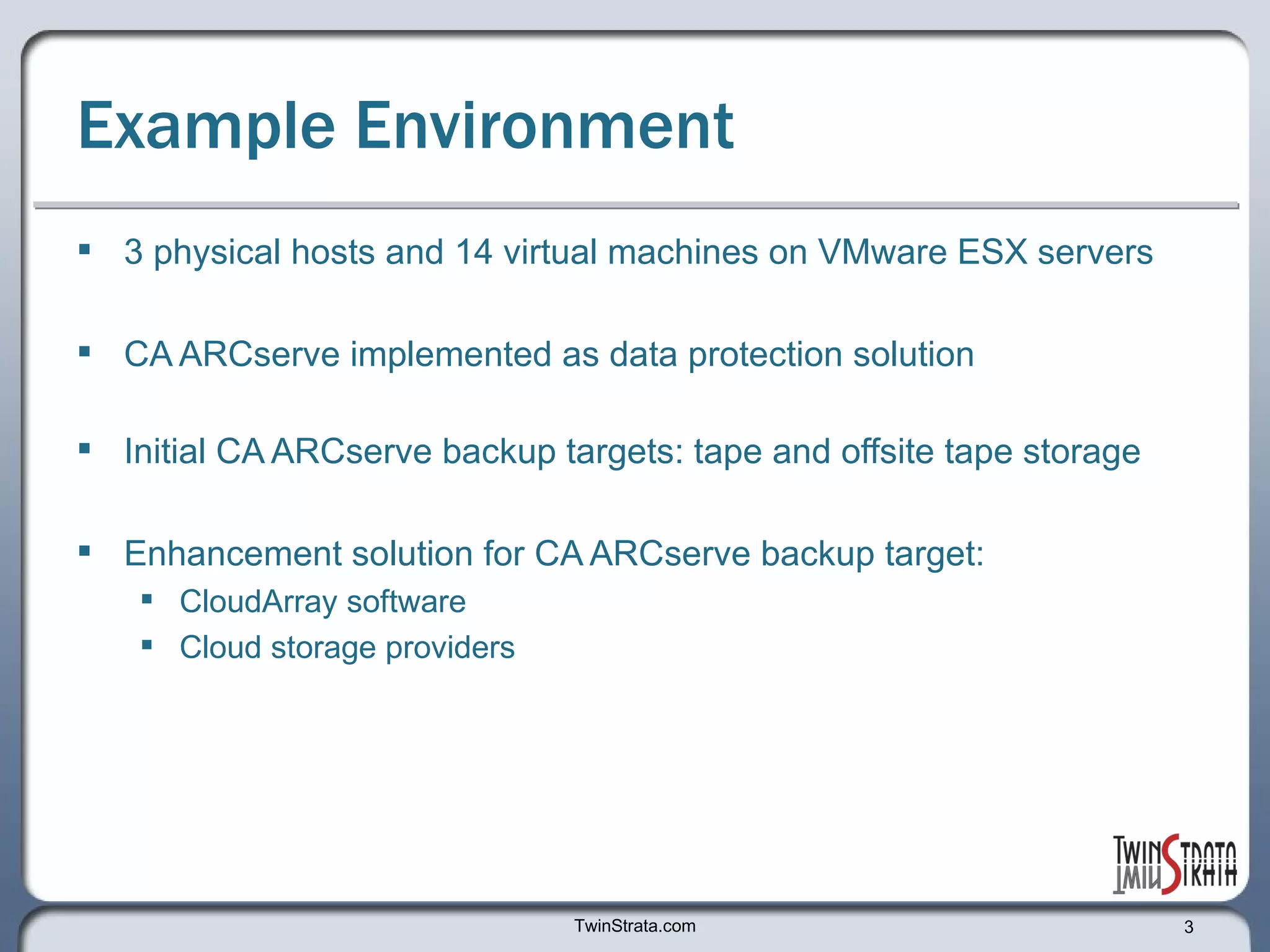

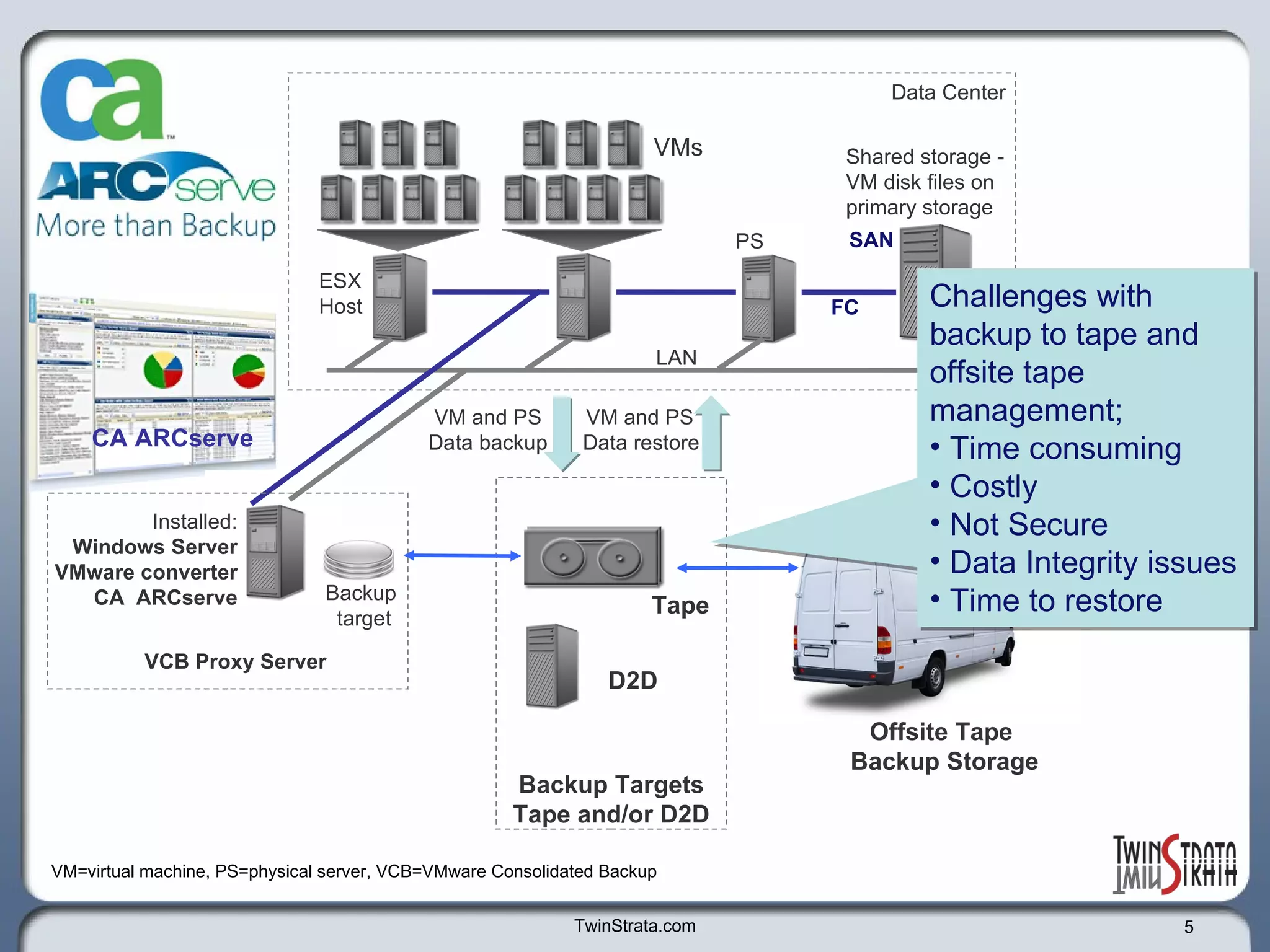

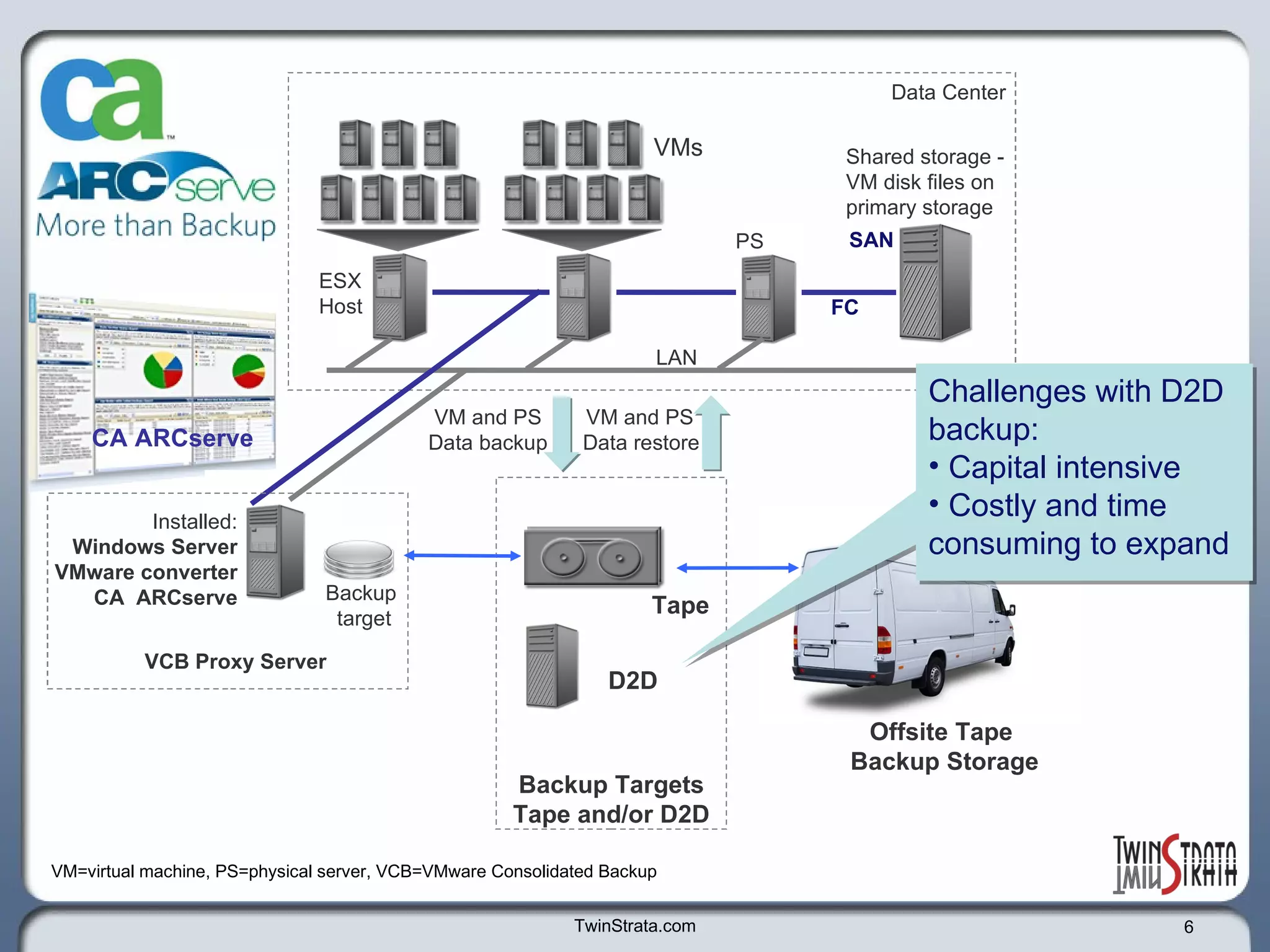

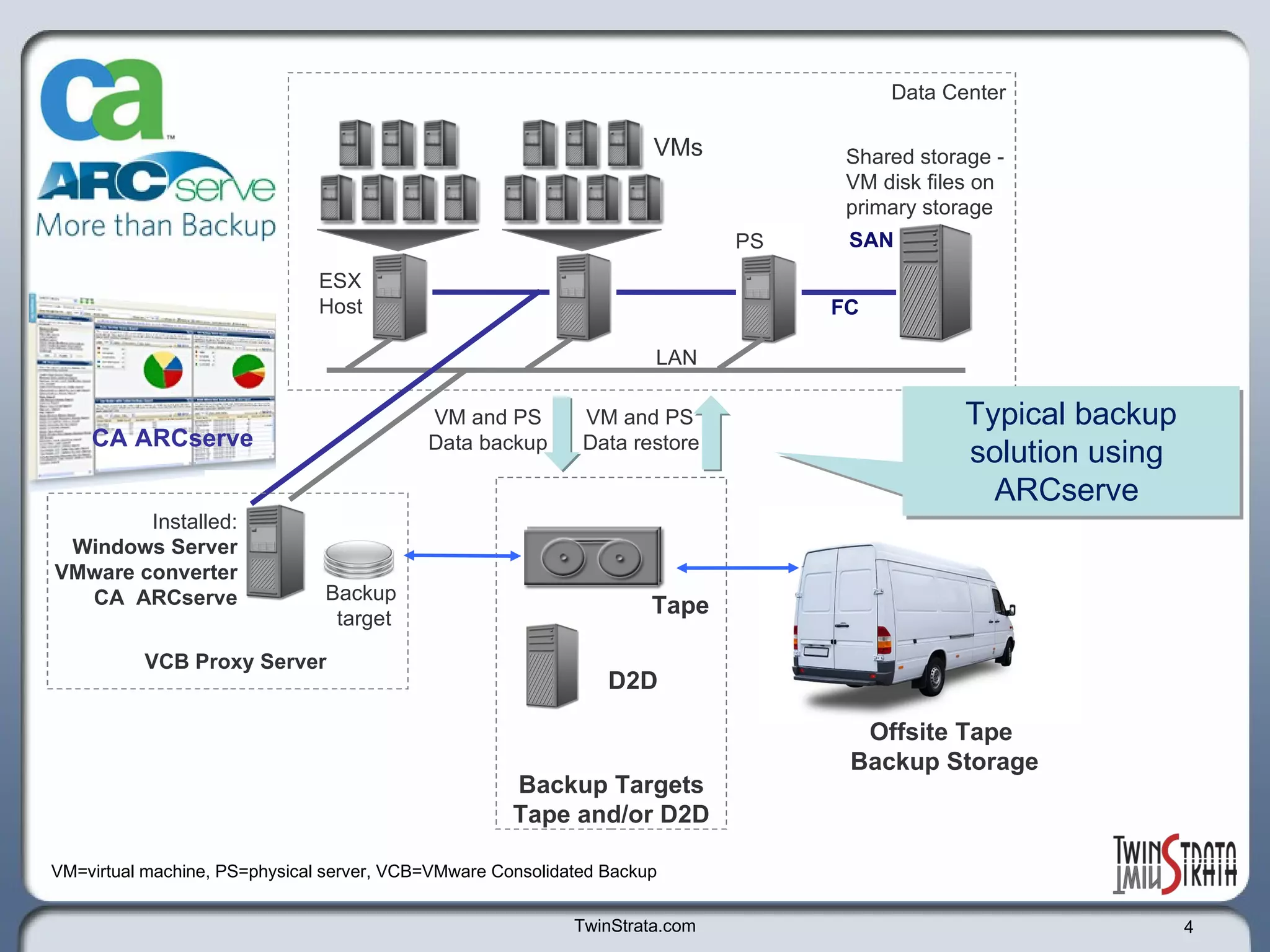

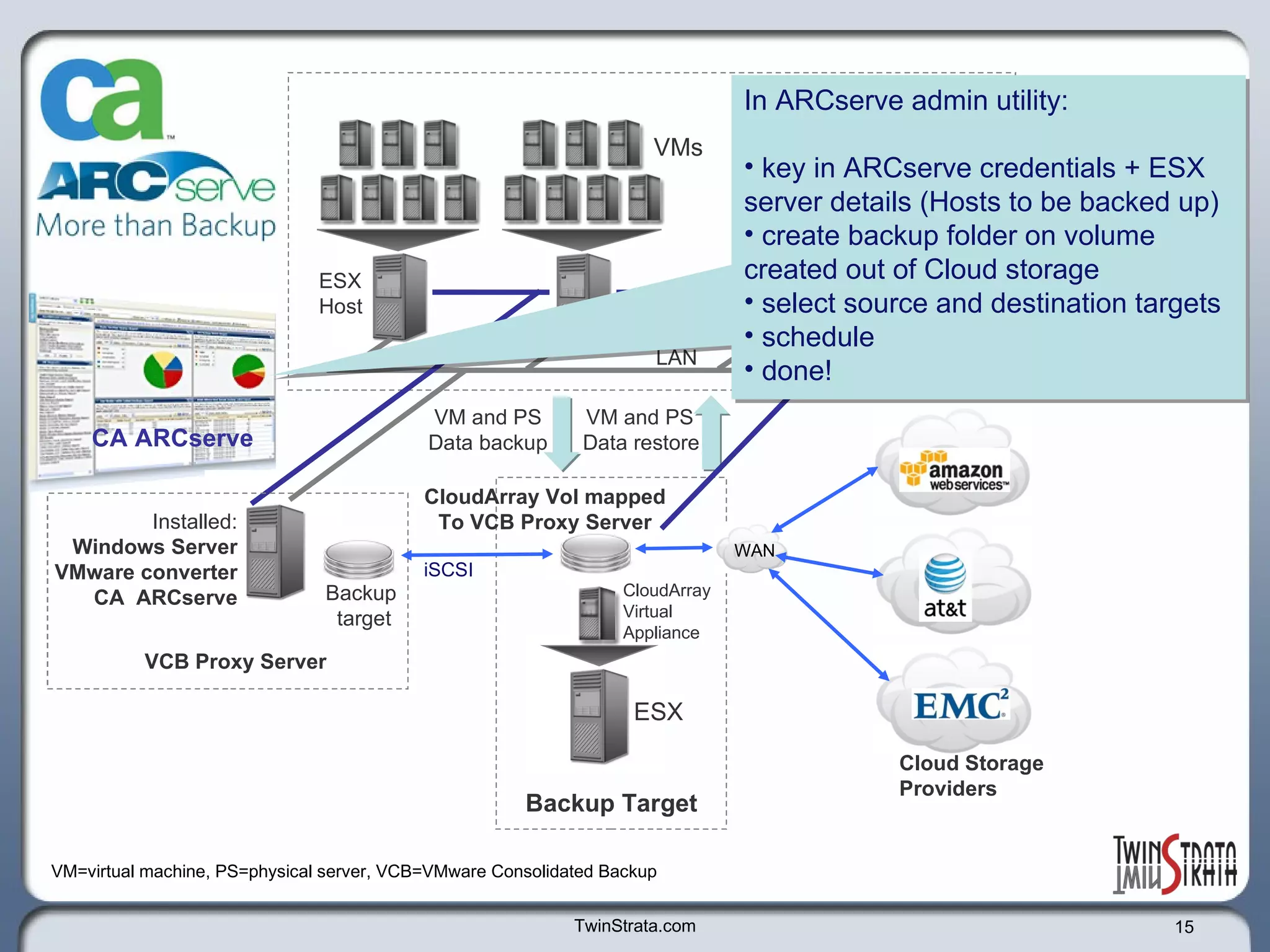

4. TwinStrata.com Backup Targets Tape and/or D2D VCB Proxy Server VMs ESX Host Shared storage - VM disk files on primary storage Data Center D2D Tape PS SAN LAN Offsite Tape Backup Storage Typical backup solution using ARCserve VM and PS Data backup VM and PS Data restore VM=virtual machine, PS=physical server, VCB=VMware Consolidated Backup CA ARCserve Backup target Installed: Windows Server VMware converter CA ARCserve FC

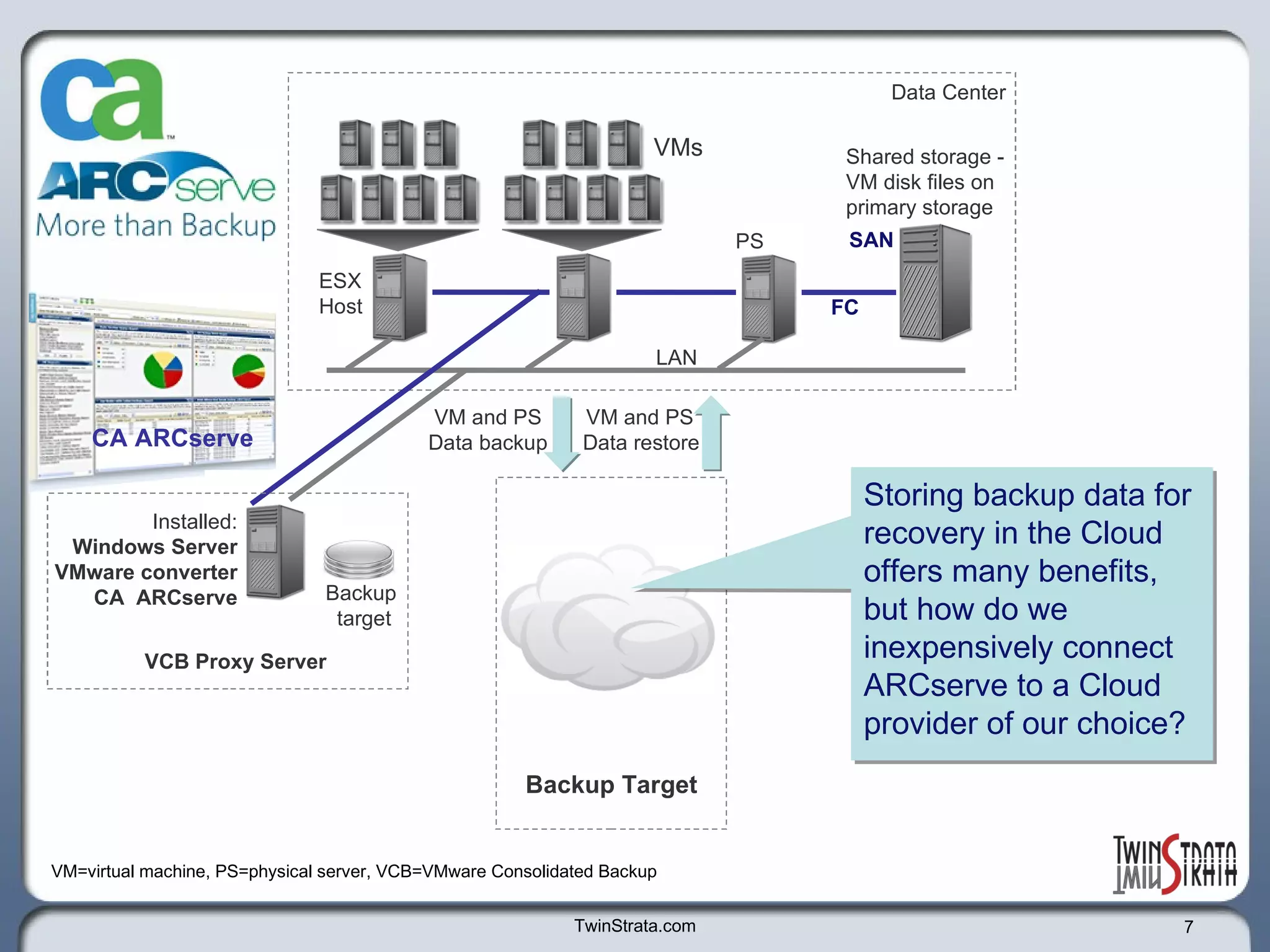

7. TwinStrata.com VCB Proxy Server VMs ESX Host Shared storage - VM disk files on primary storage Data Center PS SAN LAN VM and PS Data backup VM and PS Data restore VM=virtual machine, PS=physical server, VCB=VMware Consolidated Backup CA ARCserve Backup target Installed: Windows Server VMware converter CA ARCserve FC Backup Target Storing backup data for recovery in the Cloud offers many benefits, but how do we inexpensively connect ARCserve to a Cloud provider of our choice?

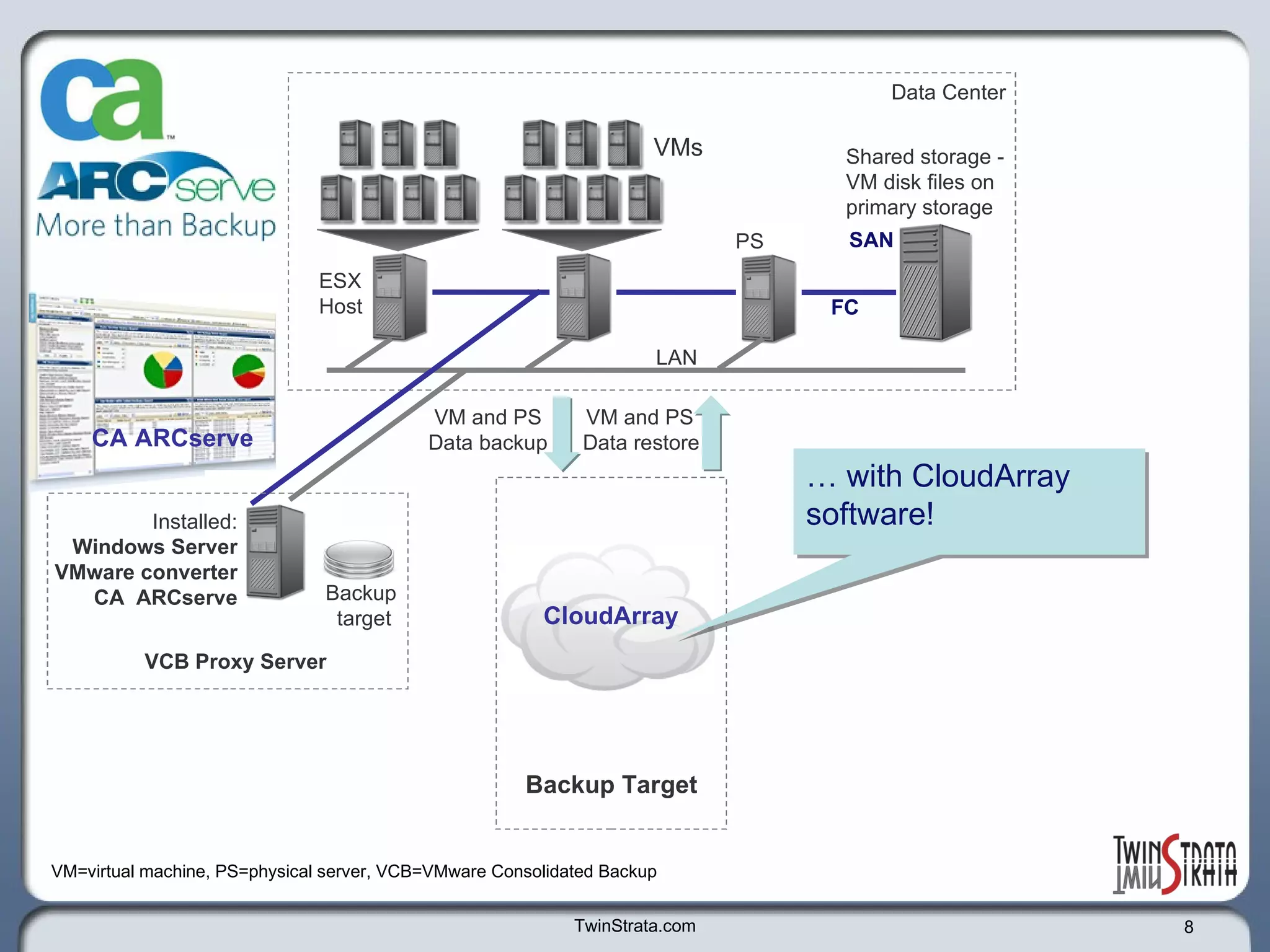

8. TwinStrata.com VCB Proxy Server VMs ESX Host Shared storage - VM disk files on primary storage Data Center PS SAN LAN VM and PS Data backup VM and PS Data restore VM=virtual machine, PS=physical server, VCB=VMware Consolidated Backup CA ARCserve Backup target Installed: Windows Server VMware converter CA ARCserve FC Backup Target … with CloudArray software! CloudArray

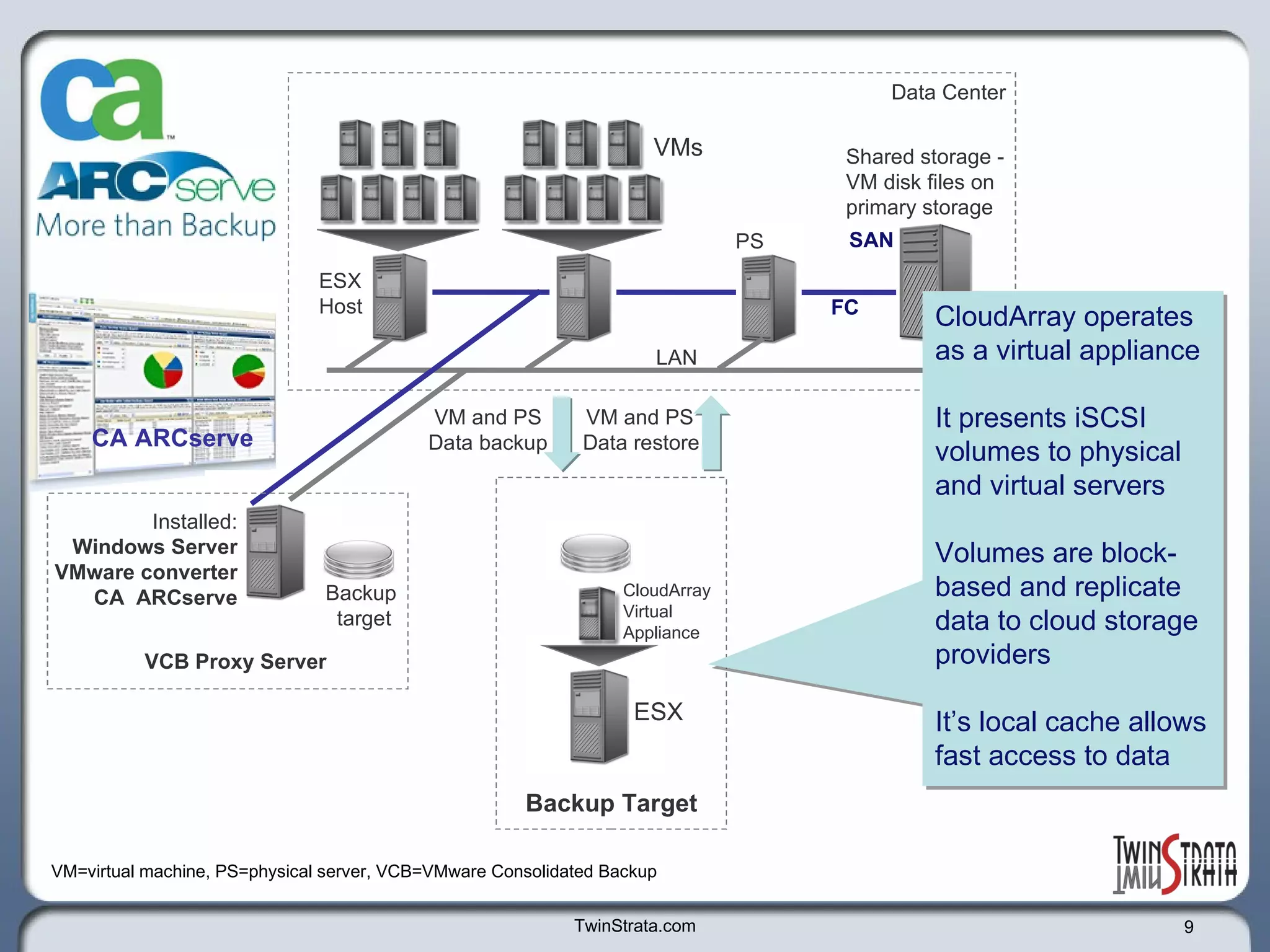

9. TwinStrata.com VCB Proxy Server VMs ESX Host Shared storage - VM disk files on primary storage Data Center PS SAN LAN VM and PS Data backup VM and PS Data restore VM=virtual machine, PS=physical server, VCB=VMware Consolidated Backup CA ARCserve Backup target Installed: Windows Server VMware converter CA ARCserve FC Backup Target ESX CloudArray Virtual Appliance CloudArray operates as a virtual appliance It presents iSCSI volumes to physical and virtual servers Volumes are block-based and replicate data to cloud storage providers It’s local cache allows fast access to data

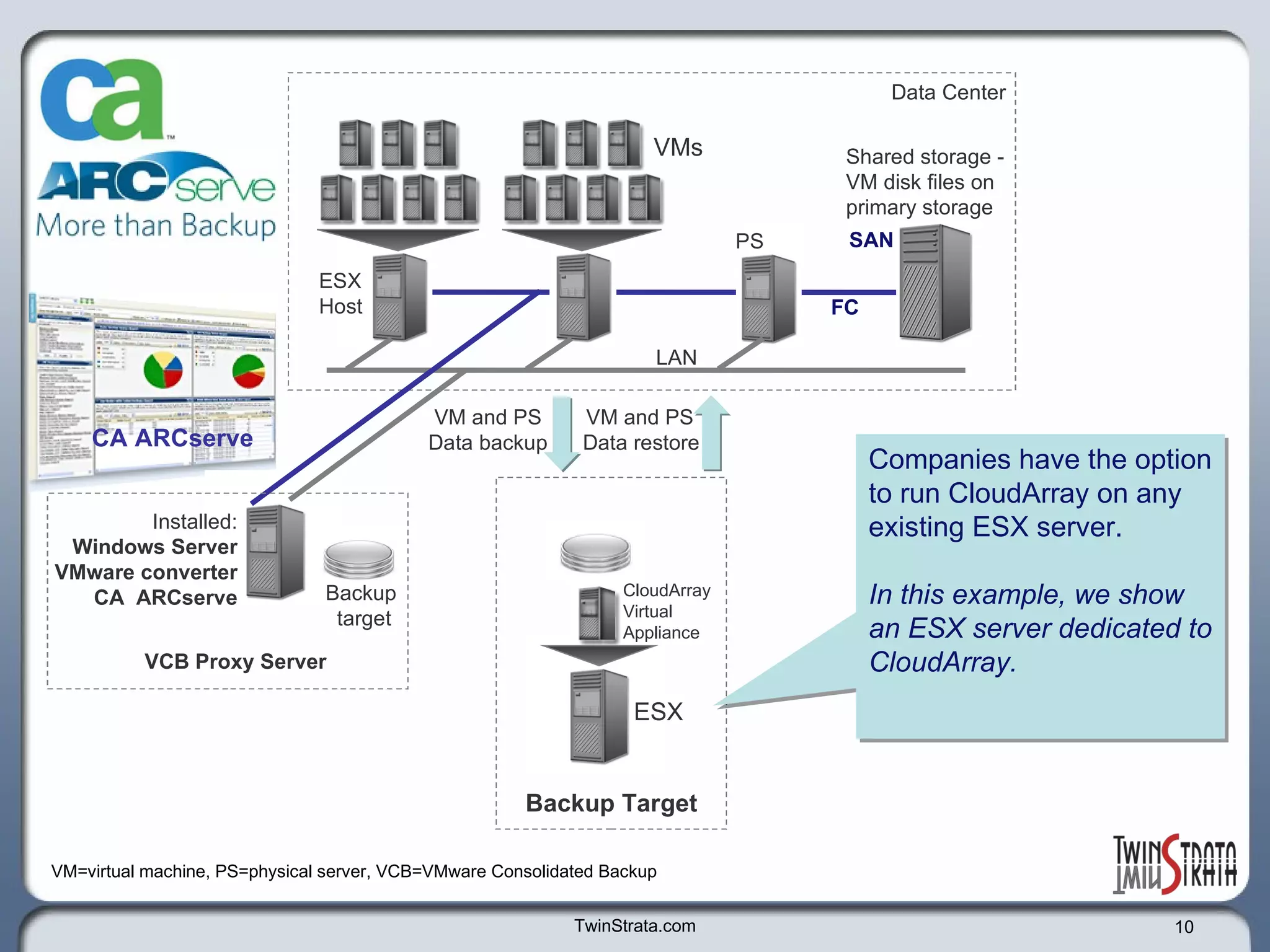

10. TwinStrata.com VCB Proxy Server VMs ESX Host Shared storage - VM disk files on primary storage Data Center PS SAN LAN VM and PS Data backup VM and PS Data restore VM=virtual machine, PS=physical server, VCB=VMware Consolidated Backup CA ARCserve Backup target Installed: Windows Server VMware converter CA ARCserve FC Backup Target ESX CloudArray Virtual Appliance Companies have the option to run CloudArray on any existing ESX server. In this example, we show an ESX server dedicated to CloudArray.

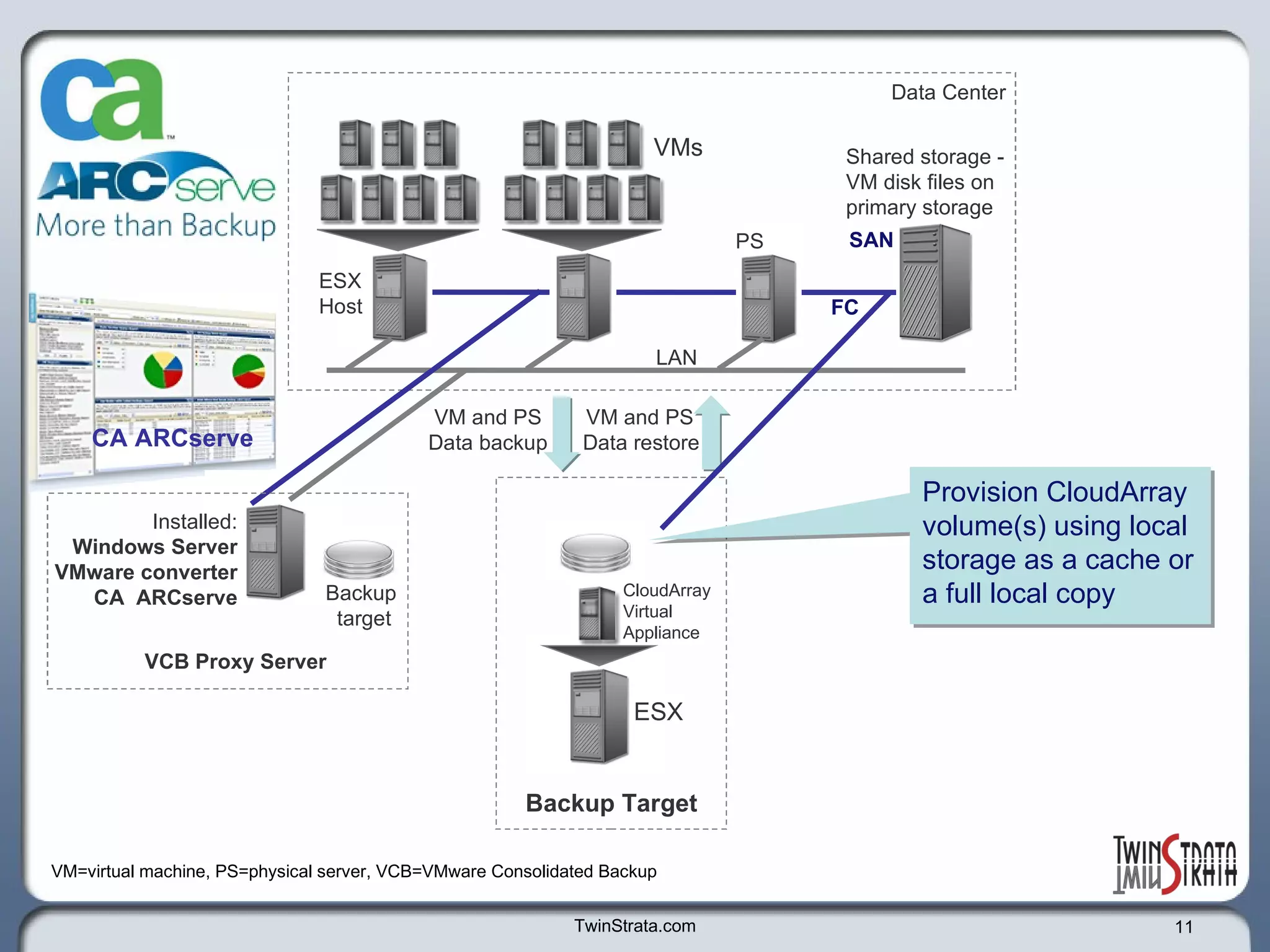

11. TwinStrata.com VCB Proxy Server VMs ESX Host Shared storage - VM disk files on primary storage Data Center PS SAN LAN VM and PS Data backup VM=virtual machine, PS=physical server, VCB=VMware Consolidated Backup CA ARCserve Backup target Installed: Windows Server VMware converter CA ARCserve FC Backup Target ESX CloudArray Virtual Appliance Provision CloudArray volume(s) using local storage as a cache or a full local copy VM and PS Data restore

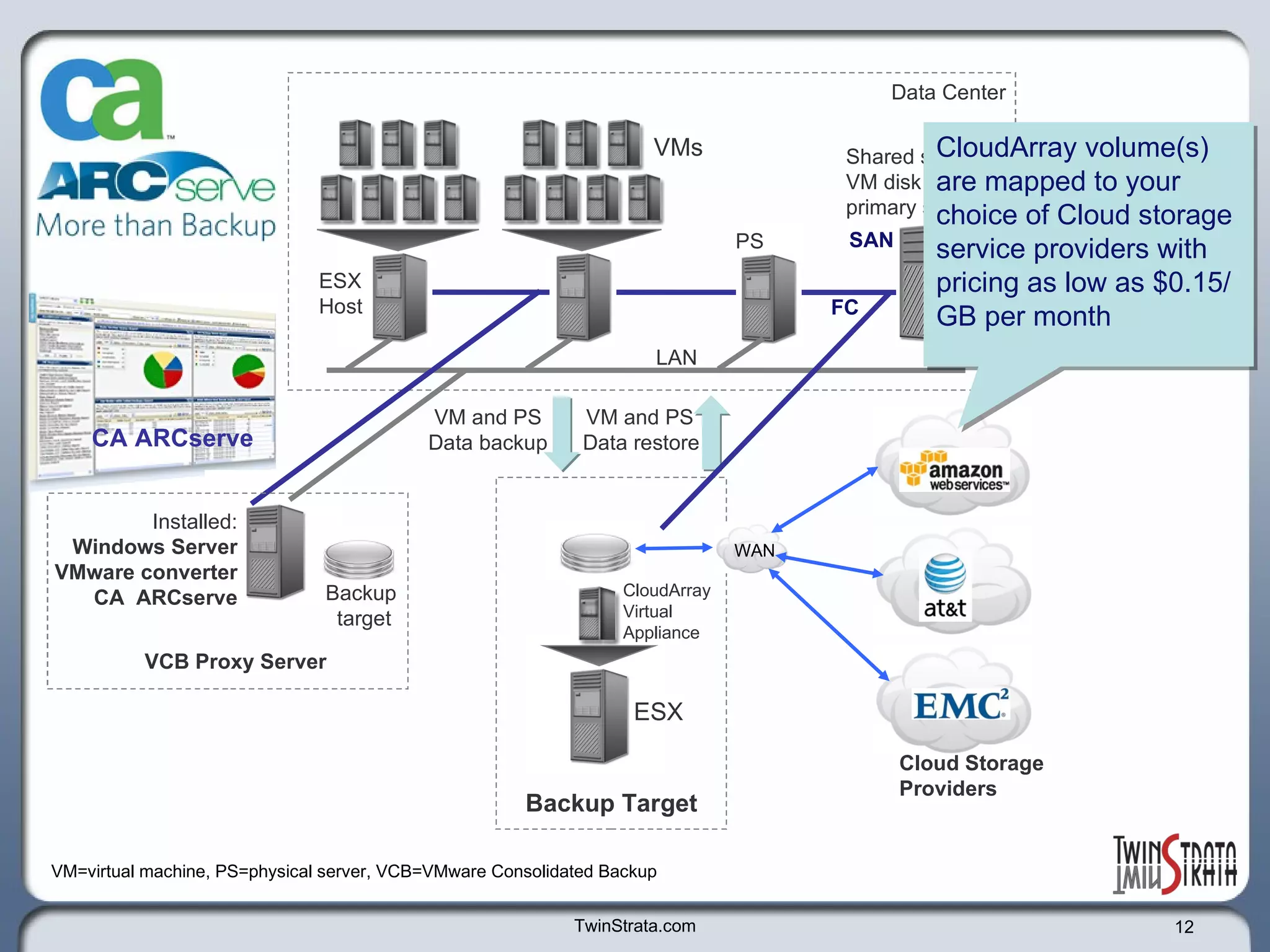

12. TwinStrata.com VCB Proxy Server VMs ESX Host Shared storage - VM disk files on primary storage Data Center PS SAN LAN VM and PS Data backup VM=virtual machine, PS=physical server, VCB=VMware Consolidated Backup CA ARCserve Backup target Installed: Windows Server VMware converter CA ARCserve FC Backup Target ESX CloudArray Virtual Appliance VM and PS Data restore Cloud Storage Providers WAN CloudArray volume(s) are mapped to your choice of Cloud storage service providers with pricing as low as $0.15/GB per month

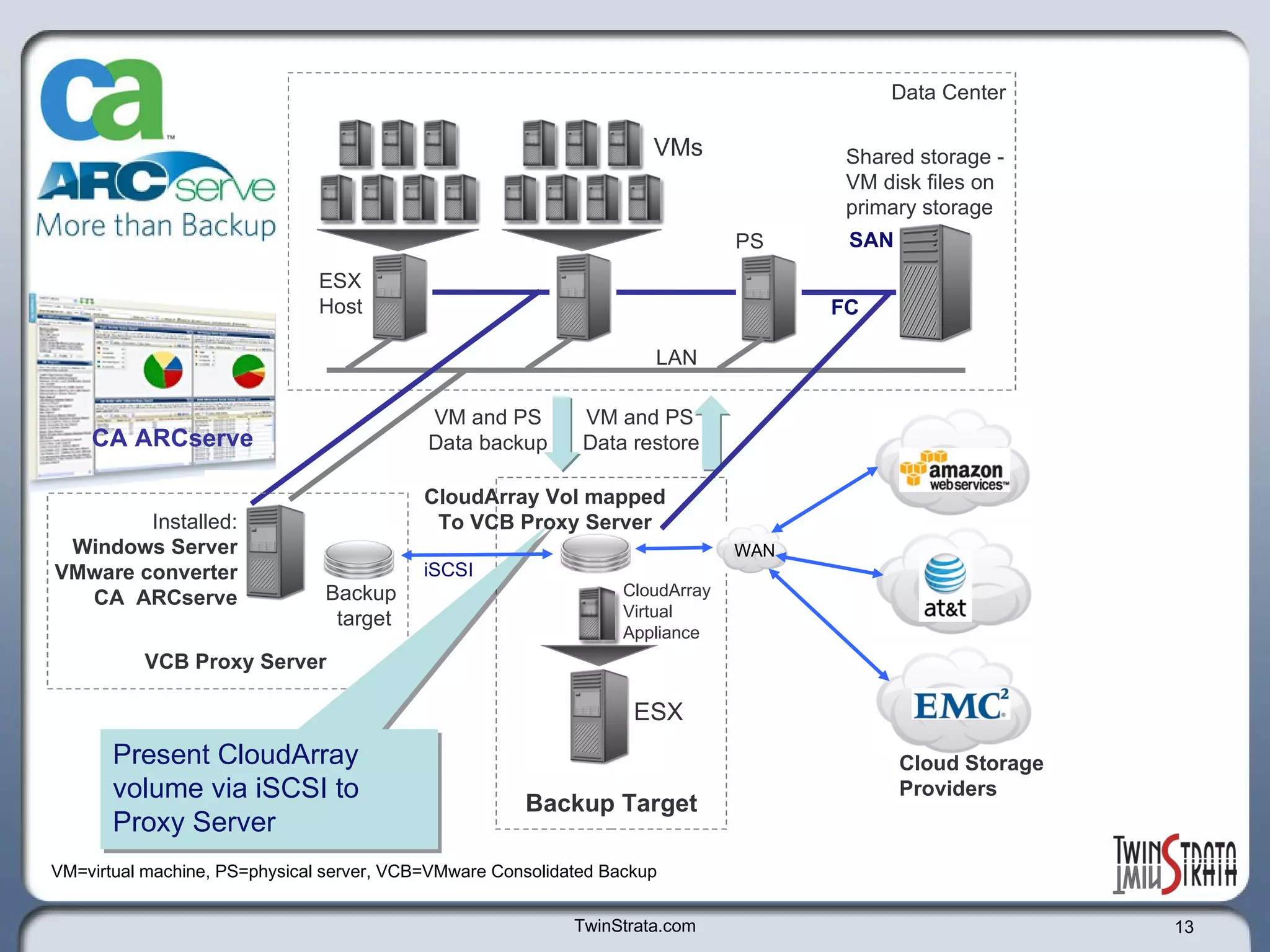

13. TwinStrata.com VCB Proxy Server VMs ESX Host Shared storage - VM disk files on primary storage Data Center PS SAN LAN VM and PS Data backup VM=virtual machine, PS=physical server, VCB=VMware Consolidated Backup CA ARCserve Backup target Installed: Windows Server VMware converter CA ARCserve FC Backup Target ESX CloudArray Virtual Appliance VM and PS Data restore Cloud Storage Providers WAN Present CloudArray volume via iSCSI to Proxy Server CloudArray Vol mapped To VCB Proxy Server iSCSI

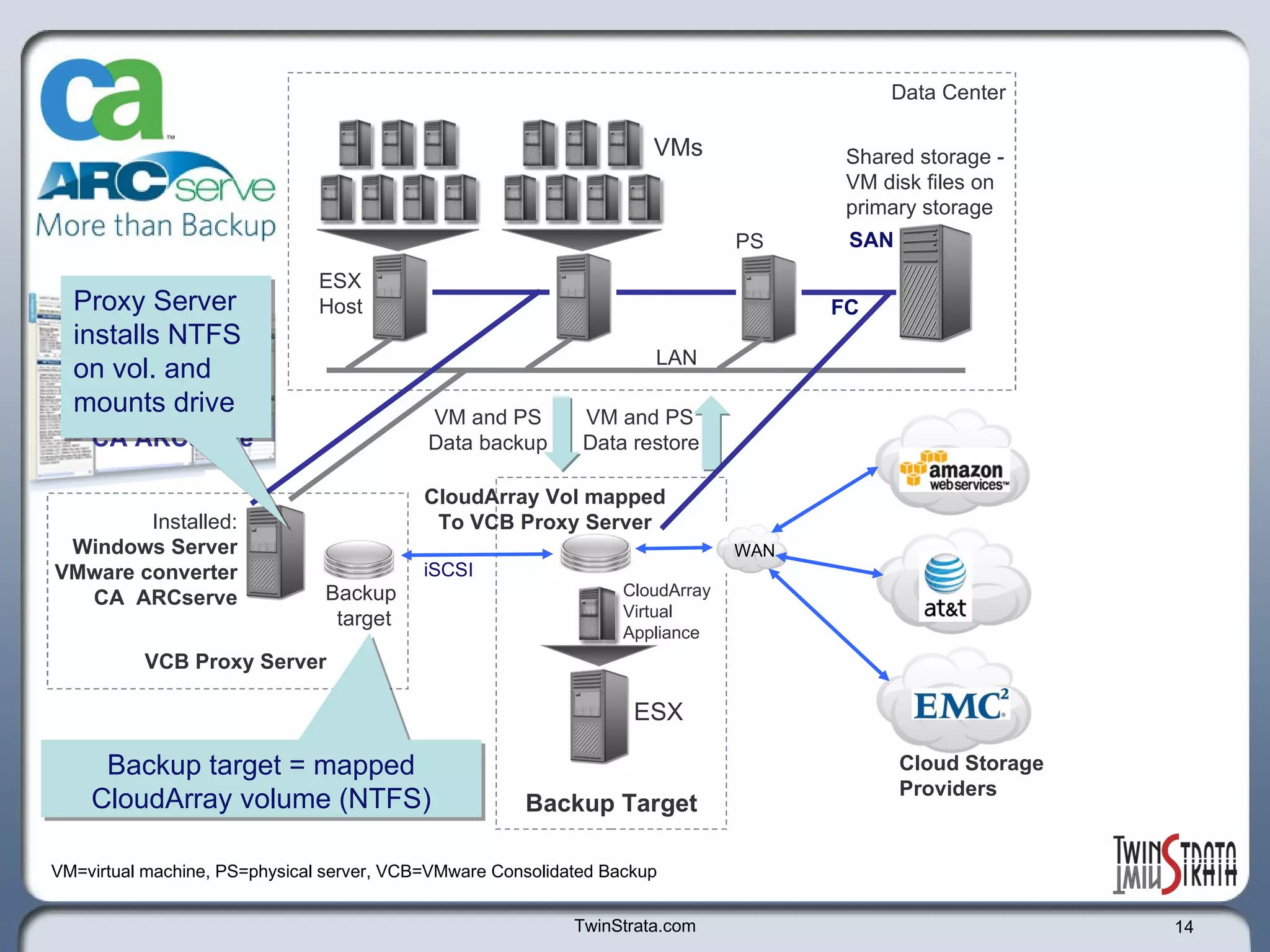

14. TwinStrata.com VCB Proxy Server VMs ESX Host Shared storage - VM disk files on primary storage Data Center PS SAN LAN VM and PS Data backup VM=virtual machine, PS=physical server, VCB=VMware Consolidated Backup CA ARCserve Backup target Installed: Windows Server VMware converter CA ARCserve FC Backup Target ESX CloudArray Virtual Appliance VM and PS Data restore Cloud Storage Providers WAN CloudArray Vol mapped To VCB Proxy Server Backup target = mapped CloudArray volume (NTFS) Proxy Server installs NTFS on vol. and mounts drive iSCSI

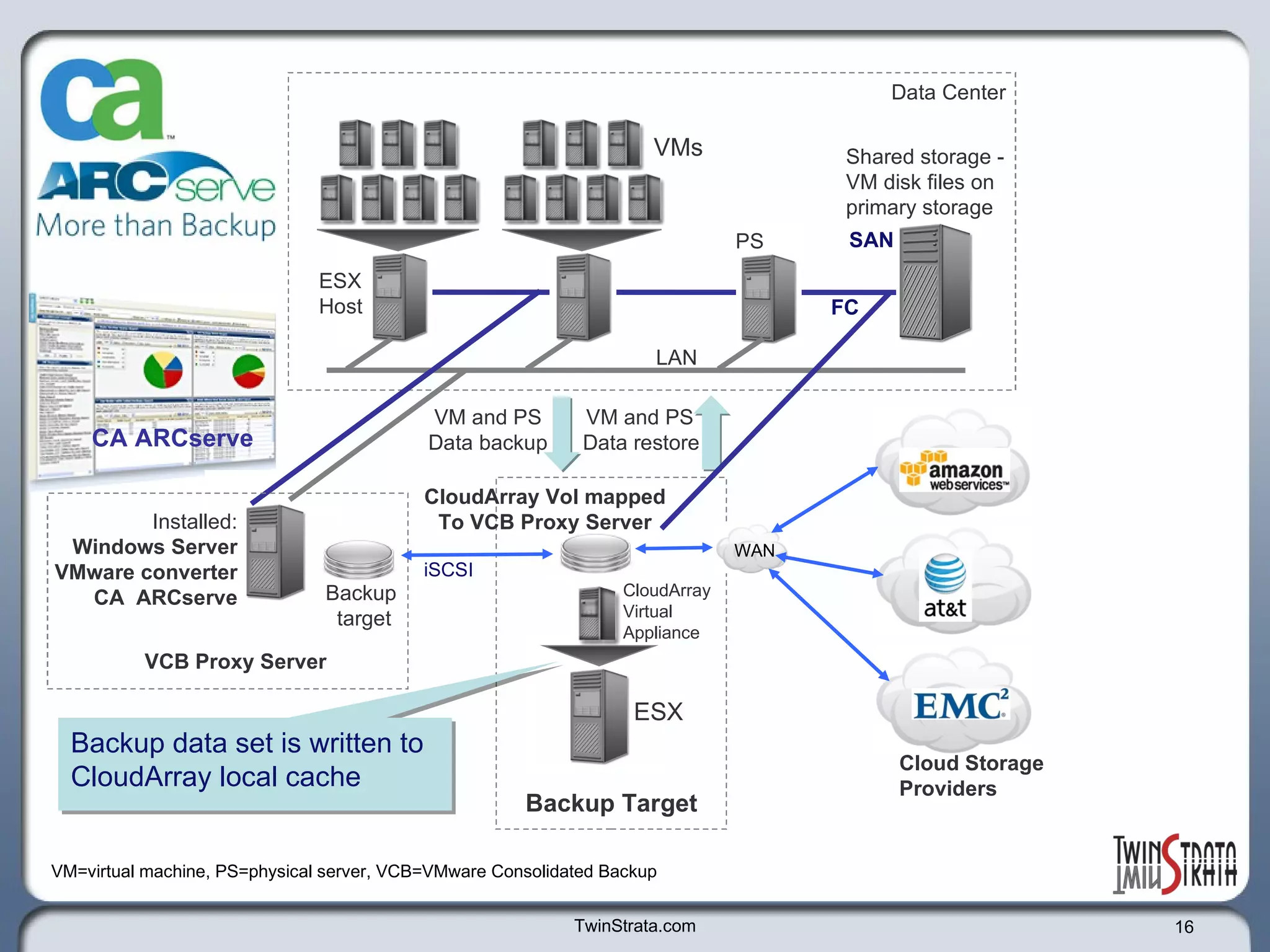

16. TwinStrata.com VCB Proxy Server VMs ESX Host Shared storage - VM disk files on primary storage Data Center PS SAN LAN VM and PS Data backup VM=virtual machine, PS=physical server, VCB=VMware Consolidated Backup CA ARCserve Backup target Installed: Windows Server VMware converter CA ARCserve FC Backup Target ESX CloudArray Virtual Appliance VM and PS Data restore Cloud Storage Providers WAN CloudArray Vol mapped To VCB Proxy Server Backup data set is written to CloudArray local cache iSCSI

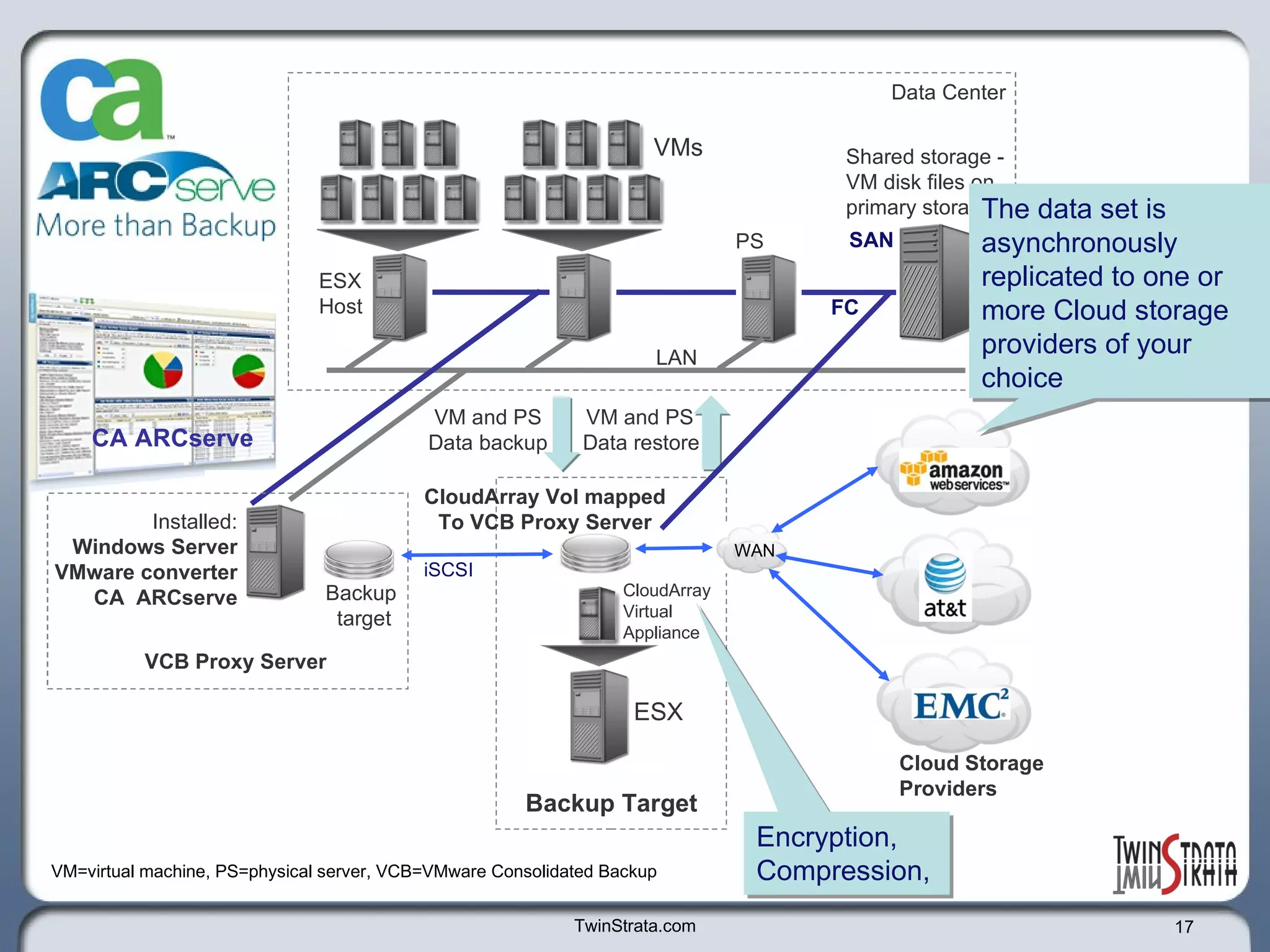

17. TwinStrata.com VCB Proxy Server VMs ESX Host Shared storage - VM disk files on primary storage Data Center PS SAN LAN VM and PS Data backup VM=virtual machine, PS=physical server, VCB=VMware Consolidated Backup CA ARCserve Backup target Installed: Windows Server VMware converter CA ARCserve FC Backup Target ESX CloudArray Virtual Appliance VM and PS Data restore Cloud Storage Providers WAN CloudArray Vol mapped To VCB Proxy Server The data set is asynchronously replicated to one or more Cloud storage providers of your choice Encryption, Compression, iSCSI

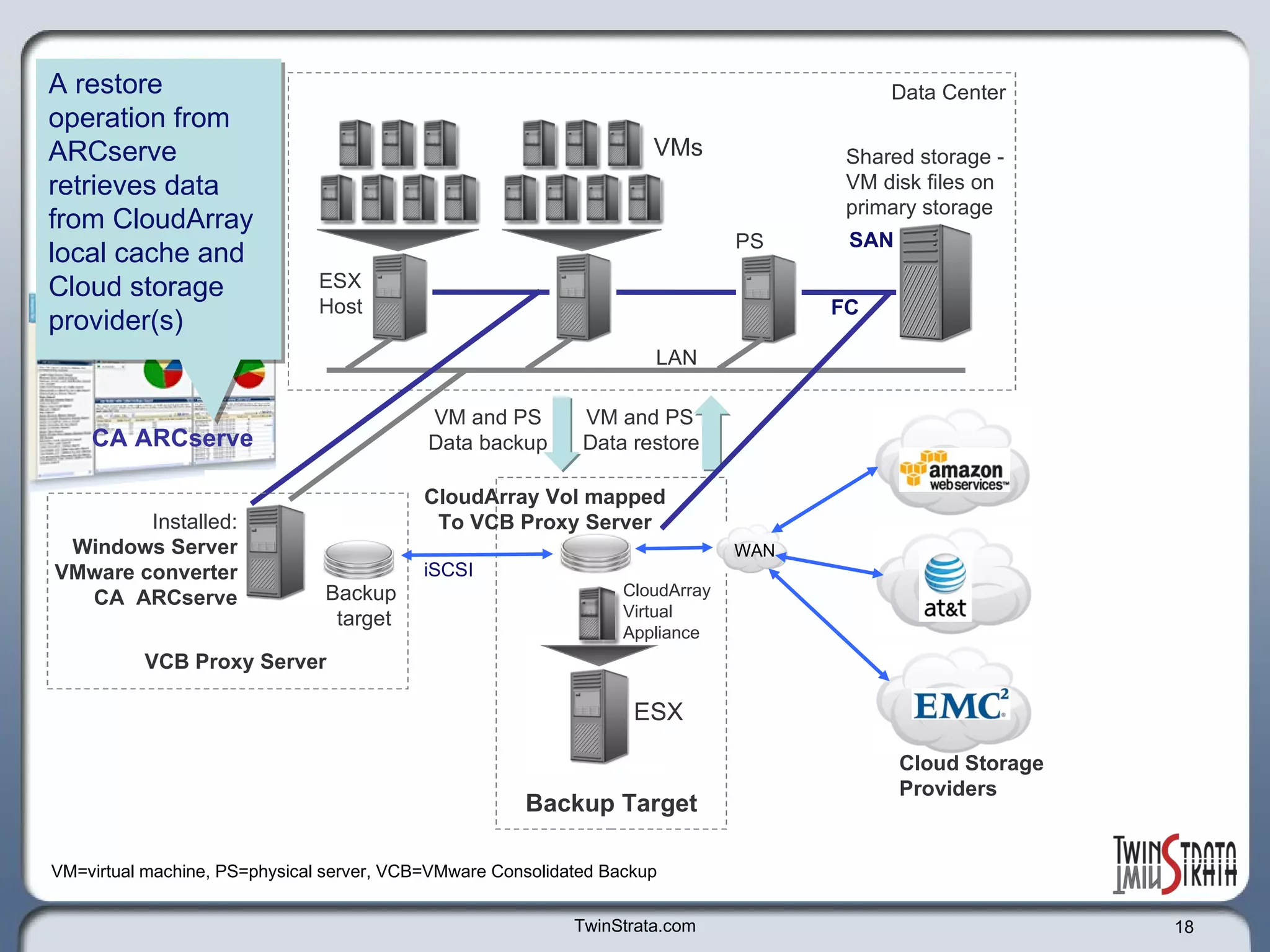

18. TwinStrata.com VCB Proxy Server VMs ESX Host Shared storage - VM disk files on primary storage Data Center PS SAN LAN VM and PS Data backup VM=virtual machine, PS=physical server, VCB=VMware Consolidated Backup CA ARCserve Backup target Installed: Windows Server VMware converter CA ARCserve FC Backup Target ESX CloudArray Virtual Appliance VM and PS Data restore Cloud Storage Providers WAN CloudArray Vol mapped To VCB Proxy Server A restore operation from ARCserve retrieves data from CloudArray local cache and Cloud storage provider(s) iSCSI
