The EMEA DSG Solutions Lab aims to provide a flexible multi-purpose lab for testing Dell technologies. It contains workshop pods that allow training without needing to bring equipment onsite. It also contains demo pods that showcase Dell security solutions. The lab infrastructure is built on Dell servers, networking, and security products running various Microsoft software. It provides a hands-on environment for interacting with and learning about Dell solutions.

1. EMEA DSG Solutions Lab
Multi Purpose Lab
Jody Spoor, Sr Enterprise Solutions Architect EMEA, Dell
Security
22015-10-28

2. Software Group
TheGoal

3. Software Group
EMEA DSG SolutionsLab – The Goal
• A flexible multi purpose lab built on Dell technology and latest
Windows Versions
• Ability to test interoperability with newest Windows Versions
• Ability to provide workshops onsite without having to bring equipment
• Overcome the struggle where for a training, pupils need to install a
number of VMs
• Showcase Dell Connected Security Solution sets

4. Software Group
Design

5. Software Group
EMEA DSG SolutionsLab - Design
• Three major parts:
– Core and Shared Services
– Workshop Pods
– Demo Pods
• Four separate planes
– Management Plane
– Data Plane
– Out of Band Management
– Access Plane

6. Software Group
Workshop Pods
6

7. Software Group
EMEA DSG SolutionsLab – Workshop Pods
• Flexible Workshop Pods to provide workshops / Training without the
need to bring equipment or to do onsite setups
• Each pod has 5 Subpods with each
– Dell SonicWALL NGFW or NGFW HA Pair
– Management PC
– Active Directory
– Client PC
– Dell SonicWALL Virtual Appliances
• Each pod has a Controller / Instructor PC
– Can access the entire Pod and help pupils

8. Software Group
EMEA DSG SolutionsLab – Workshop Pods
• Each Subpod is behind it’s own WAN Emulator
– To emulate Different type of WANs (DSL,T1, E1 etc)
• Each Subpod has 5 VLANs
• 6 Pods available:
– 2x 5x NSA 2600 with SMB-SRA VA
– 2x 5x NSA 3600 with SMB-SRA and WXA
– 2x 5x NSA 6600 HA with EX-SRA and WXA

9. Software Group
Demo Pods

10. Software Group
EMEA DSG SolutionsLab – Demo Pods
• Solutions sets to Demo Dell Solutions
• 11 Dell SonicWALL NGFW pods for Dell Solutions involving NGFW
• 1 SuperMassive 10400 Demo setup
• 1 FireWALL Sandwich Demo Setup
• Flexible Infrastructure to add other Demo’s without NGFW

11. Software Group
EMEA DSG SolutionsLab – Demo Pods
• Solution Demos Available:
– Authentication Partitioning and Single Sign-On
› Multi Active Directory Setup
– CFS 4.0
› CFS 4.0 Beta and CFS School Example Demo Setup
– Email Security Multi Tenancy
› Email Security Multi Tenancy Demo Setup
– Dell Defender Integration
› Dell Defender Integration with Dell NGFW, Dell SMA and Dell SRA
– Dell RISK Analytics
› CAM RISK Analytics engine with Dell NGFW
› Cloud Access Manager with Dell NGFW DPI-SSL

12. Software Group
EMEA DSG SolutionsLab – Demo Pods

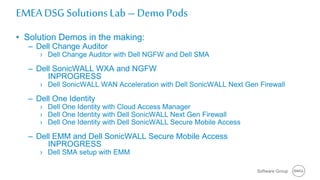

• Solution Demos in the making:
– Dell Change Auditor
› Dell Change Auditor with Dell NGFW and Dell SMA
– Dell SonicWALL WXA and NGFW
INPROGRESS
› Dell SonicWALL WAN Acceleration with Dell SonicWALL Next Gen Firewall
– Dell One Identity
› Dell One Identity with Cloud Access Manager
› Dell One Identity with Dell SonicWALL Next Gen Firewall
› Dell One Identity with Dell SonicWALL Secure Mobile Access
– Dell EMM and Dell SonicWALL Secure Mobile Access
INPROGRESS
› Dell SMA setup with EMM

13. Software Group
EMEA DSG SolutionsLab – Demo Pods
• Solution Demos in the making:
– Email Security, Anti Phish, Anti Spam, Anti Spoof
INPROGRESS
› Dual Email Security setup to show DMARC and DKIM anti spoof
– Dell Privileged Account Management
› Dell TPAM with Dell NGFW and Dell SMA
– Dell SonicWALL Firewall Sandwich
› Dell SonicWALL Next Gen Firewall and Dell PowerConnect
– Dell SonicWALL, Dell KACE and Dell EMM
INPROGRESS
– Dell One IDAM and Dell EMM
– And more to come

14. Software Group
POC Services

15. Software Group
EMEA DSG SolutionsLab – POC Services
• Services available for on site POCs
– Global Management System INPROGRESS
– Splunk to be created
– TBD

16. Software Group
Core andShared Services

17. Software Group

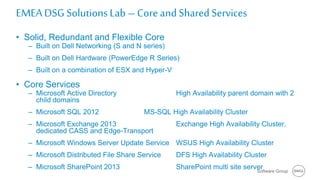

EMEA DSG SolutionsLab – Core and Shared Services
• Solid, Redundant and Flexible Core
– Built on Dell Networking (S and N series)
– Built on Dell Hardware (PowerEdge R Series)
– Built on a combination of ESX and Hyper-V
• Core Services
– Microsoft Active Directory High Availability parent domain with 2
child domains
– Microsoft SQL 2012 MS-SQL High Availability Cluster
– Microsoft Exchange 2013 Exchange High Availability Cluster,
dedicated CASS and Edge-Transport
– Microsoft Windows Server Update Service WSUS High Availability Cluster
– Microsoft Distributed File Share Service DFS High Availability Cluster
– Microsoft SharePoint 2013 SharePoint multi site server

18. Software Group
EMEA DSG SolutionsLab – Core and Shared Services
• Shared Services
– Microsoft Active Directory Dedicated Child domains for Demo and
Workshop pods
– Microsoft SQL 2012 Hosting WSUS, Password Manager, CAM,
DellOne
– Microsoft Exchange 2013 and Outlook Web Access 2013 Dedicated servers for parent and
demo domain
– Microsoft WSUS Managing updates for Windows
Clients and Servers (50+)
– Microsoft SharePoint SharePoint instance for Demo Pods
– Dell Password Manager Shared between Parent and Child Domains
– Dell Defender Shared between Parent and Child Domain
– Citrix Citrix instance for Demo Pods
– Ubuntu DNS Highly Scalable DNS architecture, forwarders
for AD

19. Software Group
EMEA DSG SolutionsLab – Core and Shared Services

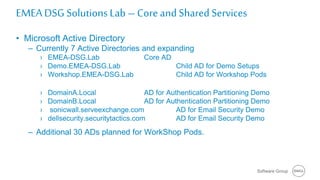

• Microsoft Active Directory
– Currently 7 Active Directories and expanding
› EMEA-DSG.Lab Core AD
› Demo.EMEA-DSG.Lab Child AD for Demo Setups
› Workshop.EMEA-DSG.Lab Child AD for Workshop Pods
› DomainA.Local AD for Authentication Partitioning Demo
› DomainB.Local AD for Authentication Partitioning Demo
› sonicwall.serveexchange.com AD for Email Security Demo
› dellsecurity.securitytactics.com AD for Email Security Demo
– Additional 30 ADs planned for WorkShop Pods.

20. Software Group
Statistics&Components

21. Software Group
EMEA DSG SolutionsLab – Statistics&Components
• Dell networking [12]
– 4x Force10 S60
– 2x Force10 S5000
– 2x PowerConnect N3024
– 4x PowerConnect N3038
• Dell Security NGFW [63]
– 4x SuperMassive 9600 2x Perimeter, 2x Firwewall Sandwich
– 4x TZ 600 3x Demo Pods, 1x Out of Band
– 20x NSA 2600 2x Perimeter, 10x Workshop Pods, 8x Demo Pods
– 14x NSA 3600 10x Workshop Pods, 4x Demo Pods
– 20x NSA 6600 20x WorkShop Pods (HA Pairs)
– 1x SuperMassive 10400 Demo Pod
• Dell Security SMA [5]
– 2x SMA EX-6000 Access Layer
– 1x SMA Virtual Appliance SMA Demo
– 1x CMS Virtual Appliance SMA Demo
– 1x SMA 400

22. Software Group
EMEA DSG SolutionsLab – Statistics&Components
• Dell Servers [11]
– 11x PowerEdge R series
• ESXi Hosts [9]
– 9x ESX 5.5 2x Services, 2x Workshop Pods, 4x Demo Pods, 1x PoC
• Hyper-V [8]
– 4x Hyper-V on physical hardware Services, GMS Demo and traffic generators
– 4x Hyper-V on ESXi Email Security and Authentication Partitioning Demos
• Servers (Excluding above Hyper-V) [43 windows, 4 Ubuntu]
– 26x Windows 2012R2 for Services 26x Virtual
– 2x Windows 2012R2 for WorkShop 2x Virtual, this will be expanded with another 90
(30 Hosts with each a DC and an SSO agent)
– 12x Windows 2012 R2 for Demos 12x Virtual and expanding
– 3x Windows 2012 R2 for DevTest 3x Virtual
– 4x Ubuntu
• Clients [11]
– 8x Windows 8.1 8x Virtual
– 3x Windows 10 3x Virtual, this will be expanded with another 30

23. Software Group
EMEA DSG SolutionsLab – Statistics&Components
• Dell SonicWALL Virtual Appliances [62]
– 20 SMB-SRA for Workshops
– 20 WXA for Workshops
– 10 EX-SRA for Workshops
– 2 Email Security for Services and Demo
– 1 SMA for Demo
– 1 SMA CMS for Demo
– 1 SMB SRA for Demo
– 4 Global Management Systems for POCs
– 2 WXA for Production and Demo
– 1 WXA for Demo
• Other Dell Virtual Appliances [2]
– TPAM DPA
– KACE 1000
• Other Non-Dell Virtual Appliances [31]
– 31 WANemulator

24. Software Group
Photos

25. Software Group
EMEA DSG SolutionsLab – Photos

26. Software Group
Skytap and DSG
SolutionsLab

27. Software Group
Skytap and DSG SolutionsLab
• What is it NOT?
– EMEA DSG Solutions Lab is NOT a replacement for Skytap
Skytap is a valuable tool to quickly Spinup Demos and to run POCs
Skytap is ideal for the IDAM PreSales engineers and Architects
With Skytap, flexible full read-write demos can be built
• What is it?
– EMEA DSG Solutions Lab can be used as an Add-On to the Skytap
demos.
– EMEA DSG Solutions Lab hosts a number of read-only demos showing
Dell Software Solution sets and integrations

28. Software Group
Skytap and DSG SolutionsLab
• What can NOT be done with Skytap?
– Certain Dell Software Solutions can not be hosted in Skytap. E.g. Next
Generation Firewalls
– Build complex Customer like Setups that include diverse routed networks
– Always on Demos, Skytap does not allow always on Demos
• DSG Solutions Lab and Skytap integration
– We are looking for the ability to integrate Skytap demos with the EMEA
DSG Solution Lab
– This will allow to quickly build add-ons in Skytap to EMEA DSG Solution
Demos and Workshop Pods
– This requires a Site to Site VPN between Skytap and EMEA DSG
Solutions Lab, this is currently being investigated
