elit Wirlesss Net. Solution
1. eLIT Wireless Net. Solution
(Business proposal)
Last update: March 18, 2013
eLIT Co., Ltd.; PNU, Republic of KOREA
유비쿼터스 컴퓨팅 데이터베이스 연구실
Ubiquitous Computing Database Lab

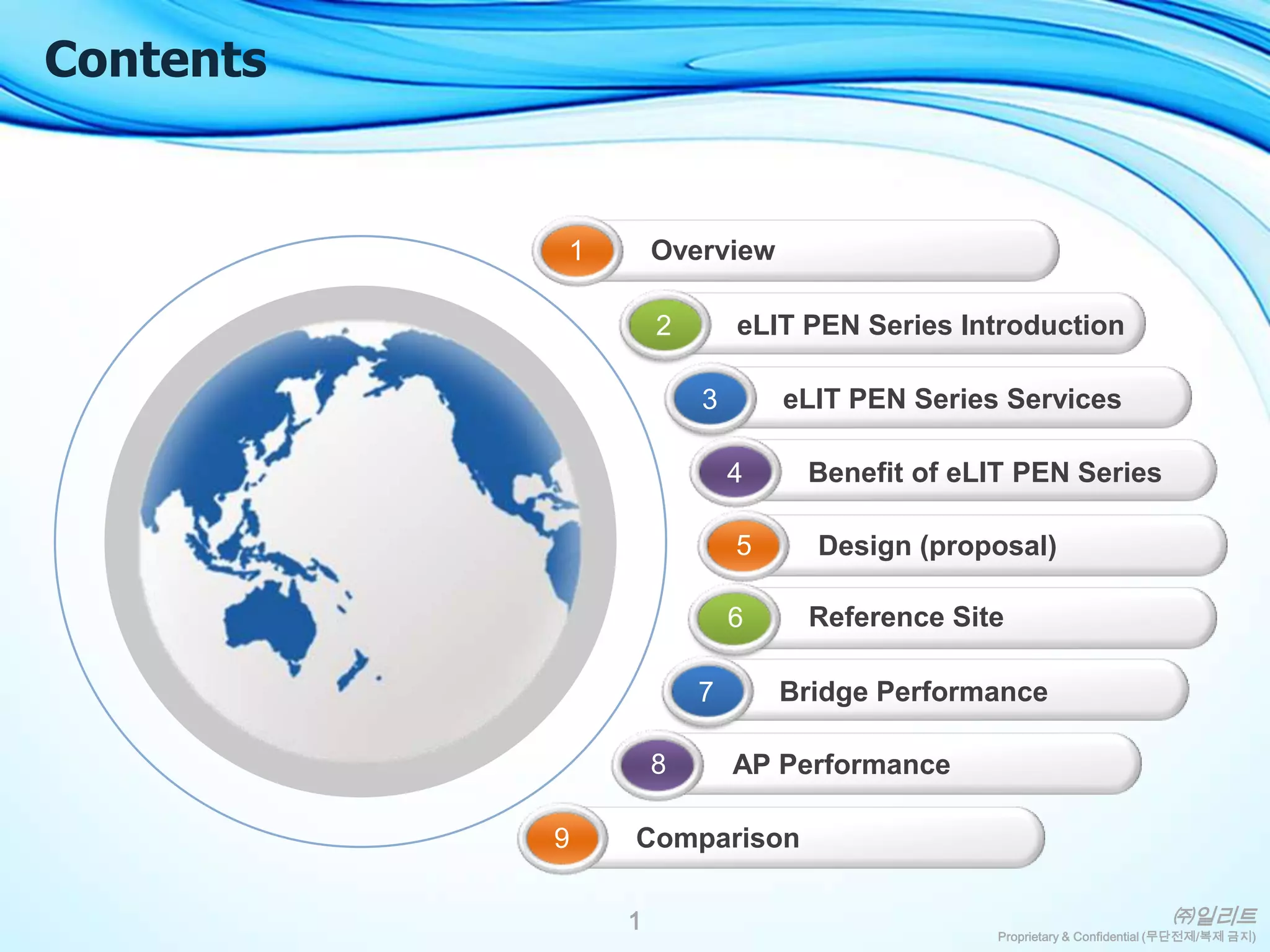

2. Contents
1 Overview
2 eLIT PEN Series Introduction
3 eLIT PEN Series Services
4 Benefit of eLIT PEN Series
5 Design (proposal)
6 Reference Site
7 Bridge Performance
8 AP Performance
9 Comparison
유비쿼터스 컴퓨팅 데이터베이스 연구실
1 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
3. Overview
Goal of business
Long-distance Wireless High-quality Customer
radio Infrastructure Internet satisfaction
communication management service
유비쿼터스 컴퓨팅 데이터베이스 연구실
2 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
4. eLIT PEN Series Introduction
City Wireless Internet Service
eLIT PEN series provide Internet service to various place in city
Security, Subway, Mobile, Enterprise etc.
City
Sector 1 Sector 2 Sector 3
PEN Series PEN Series PEN Series
Sector 4 Sector 5 Sector 6
PEN Series PEN Series PEN Series
[Example of City wireless Internet service]
유비쿼터스 컴퓨팅 데이터베이스 연구실
3 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
5. eLIT PEN Series Services (1/4)
Subway platform Wireless Internet Service
eLIT PEN series provide Wireless Internet service to subway platform
Back bone
: wireless link
: wire link
: Wi-fi [ Example Subway platform ]
유비쿼터스 컴퓨팅 데이터베이스 연구실
4 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
6. eLIT PEN Series Services (2/4)
Outdoor Wireless Internet Service
eLIT PEN series can provide Internet service to park, street, square, beach
and etc.
유비쿼터스 컴퓨팅 데이터베이스 연구실
5 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
7. eLIT PEN Series Services (3/4)
Enterprise Wireless Internet Service
eLIT PEN series is applied to construct a business Internet
Head and branches are linked by eLIT PEN series
With eLIT PEN, we can use business Internet to each floor in the building
: wireless link
Back bone : wire link
: Wi-fi
PEN
About 1~10km
Floor PEN
PEN
Mobile
About 100m
PEN Business About 300m
Intranet
PEN
About 150m PC
PEN
PEN
Branch A
Head Office PEN PEN
유비쿼터스 컴퓨팅 데이터베이스 연구실
Branch B
6 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
8. eLIT PEN Series Services (4/4)
Security Wireless Internet Service
eLIT PEN series provide CCTV service to military, bank, container terminal,
office etc.
PEN
About 10km PEN CCTV
CCTV PEN
About 8km
About 6km Bank
Military
About 7km PEN
About 15km
Integrated About 3km
CCTV CCTV
PEN Control PEN
Center
Container Terminal
유비쿼터스 컴퓨팅 데이터베이스 연구실
7
Office ㈜일리트
* Number of Camera, changes may occur by bandwidth of Camera
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
9. Benefits of eLIT PEN Series (example)
Aspect of installation(construction)
Using optical fiber network is complex to serve Internet from sector “A” to
sector “I”
Optical fiber must pass 4 fiber gap filters(14710) of telephone pole
eLIT PEN series is very easy
It is directly connected from sector “A” to sector “I”
Optical Fiber Gap Filter
1 2
eLIT PEN Series
A
3 4 5
6 7
8 9 10
11
I
유비쿼터스 컴퓨팅 데이터베이스 연구실
8 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
10. Benefits of eLIT PEN Series (example)
Aspect of construction cost (1/2)
eLIT wireless network(PEN) is maximum 10 times cheaper than optical
fiber network
Over 2Km, the former is beginning to sound inexpensive than the letter
Optical Fiber Wire Network
Gap Gap
Network wire(Optical Fiber)
1Km
Construction Cost
= $1,800 per 1Km
Back born
Ground
eLIT Wireless Network
Construction Cost
eLIT eLIT = $3,200 per 1~10Km
Wireless
PEN Series 1~10Km PEN-Series
Item
Distance 1Km 2Km 3Km …… 9Km 10Km
Optical Fiber Network $ 1,800 $ 3,600 $ 5,400 …... $ 24,300 $ 26,100
eLIT Wireless Network $ 3,200 $ 3,200 $ 3,200 …... $ 3,200 $ 3,200
유비쿼터스 컴퓨팅 데이터베이스 연구실
9 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
11. Benefits of eLIT PEN Series (example)
Aspect of construction cost (2/2)
1.4Km
1Km
8.4Km 8.4Km 1Km
Optical Fiber
Gap Filter
eLIT PEN-5000
Backborn
Optical Fiber Wire
Construction Cost
= 8.4Km * $ 1,800 * 4 Sector
8.4Km = $ 60,480
8.4Km
eLIT PEN Series Wireless
Construction Cost
= $ 3,200 * 4 Sector
= $ 12,800
Good~!
유비쿼터스 컴퓨팅 데이터베이스 연구실
10 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
12. Organization
Performance &
Item Description Figure
Feature
- Bandwidth: 300Mbps
- Wireless bridge, 300Mbps, Multi
- Effective speed: about
eLIT PEN- Point
200Mbps
5000 - 2 Interface(Bridge Link Service)
- Feature: Long
: Using 2 Interface(5Ghz * 2)
range(<10km)
- Function: MPP (Mesh Portal Point)
eLIT PEN- - Feature: MIMC(Multi
- 2 Interface(Mesh Link Service)
3000 Interface & Channel)
: Using 2 Interface(2.4Ghz * 2)
- Function: MAP (Mesh Access Point)
- AP Service coverage:
- 2 Interface
eLIT PEN- about 200m
+ 1 Interface: 2.4GHz / Mesh Link
2000 - Feature: “Hand over”,
Service
between Aps
+ 1 Interface: 2.4GHz / AP Service
* AP Service, about 20 people
* The type of Antenna, changes may occur by environment
유비쿼터스 컴퓨팅 데이터베이스 연구실
* Bandwidth, changes may occur by environment
* AP Service coverage, changes may occur by environment 11 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
13. Design (proposal)
Deployment
1 Cell: eLIT Bridge 2EA / MPP 1 EA / MAP 4 EA
Communication distance from MPP to MAP: about 500 m
AP Service(1 Cell): Maximum, about 80 people
Bridge: Long-range wireless data communications, about 2 Km
Bridge Bridge
Internet
[ 1 Cell ] MPP
11n 11n
MAP MAP MAP MAP MAP MAP MAP MAP
11n 11n 11n 11n 11n 11n 11n 11n 11n 11n 11n 11n 11n 11n 11n 11n
About ooom
MPP
11n 11n
Bridge Bridge : LOS of APs
About 2,000m
Internet 11n 11n : eLIT Mesh
: Wireless
: Wire
* Throughput, changes may occur by environment
* 1 Cell Deployment, can be changed at your disposal 유비쿼터스 컴퓨팅 데이터베이스 연구실
12 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
14. Design (proposal) cont.
Service scenario (Based on 1 Cell)
* Throughput, changes may occur by environment
* 1 Cell Deployment, can be changed at your disposal 유비쿼터스 컴퓨팅 데이터베이스 연구실
* LOS: Line Of Sight, Antenna view, changes may occur by environment 13 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
15. Reference site (Domestic)
Korea International Terminals, Republic of KOREA
Deployment
유비쿼터스 컴퓨팅 데이터베이스 연구실
14 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
16. Reference site (Domestic)
Korea International Terminals, Republic of KOREA (cont.)
유비쿼터스 컴퓨팅 데이터베이스 연구실
15 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
17. Reference site (Domestic)
Korea International Terminals, Republic of KOREA (cont.)
유비쿼터스 컴퓨팅 데이터베이스 연구실
16 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
18. Reference site (Domestic)
Single-hop
Mt. Bongrae,
KOREA E
IP Camera
Distance: 17.3km
Throughput: about 60Mbps
Building 709, To Mt. Bongrae
Pusan National Univ.,
KOREA
S
유비쿼터스 컴퓨팅 데이터베이스 연구실
17 ㈜일리트
* Throughput, changes may occur by environment
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
19. Reference site (Domestic)
Multi-hop
Mt. Bongrae,
KOREA E
Distance: 9.5km
Throughput: about 50Mbps To Mt. Bongrae
Mt. Geumryeon,
KOREA
To Building 709
Distance: 8.5km
Throughput: about 80Mbps
Building 709,
Pusan National Univ.,
KOREA
S
유비쿼터스 컴퓨팅 데이터베이스 연구실
18 ㈜일리트
* Throughput, changes may occur by environment
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
20. Reference site (Domestic)
Multi-hop
Central Library,
Catholic Univ.,
KOREA
E
Distance: 2.5km
Throughput: about 180Mbps
To Building 313
Building 707,
Pusan National Univ., To Catholic Univ.
KOREA
Distance: 600m
Throughput: about 200Mbps
Building 313,
Pusan National Univ.,
KOREA
S
유비쿼터스 컴퓨팅 데이터베이스 연구실
19 ㈜일리트
* Throughput, changes may occur by environment
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
21. Reference site (abroad)
Location: Telecom Cambodia-Headquarter
Internet Service: Mesh AP(PEN-2000 series)
2.4 GHz Directional Mesh Link
Internet Service
WiFi zone
2.4 GHz Omni-Directional
AP Service
유비쿼터스 컴퓨팅 데이터베이스 연구실
20 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
22. Bridge Performances (PEN-5000)
RSSI(Received Signal Strength Indication)
Minimum is -73dBm, Maximum is -63dBm
dBm value is asymmetry on the distance
dBm -56
-58
-60
-62
-64
-66
-68
-70
-72
-74
-76
500m 1000m 2000m 3000m 4000m 5000m 6000m 7000m 8000m 9000m
eLIT PEN-5000 -63 -65 -71 -73 -64 -71 -69 -69 -73 -75
유비쿼터스 컴퓨팅 데이터베이스 연구실
21 ㈜일리트
* RSSI, changes may occur by environment
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
23. AP Performances (PEN-2000)
RSSI(Received Signal Strength Indication)
Minimum is -35dBm, Maximum is -80dBm
dBm is falling depending on the distance
dBm 0
-10
-20
-30
-40
-50
-60
-70
-80
-90
10M 120M 180M 240M 290M 350M 400M
eLIT PRE-2000 -35 -66 -73 -73 -74 -75 -80
유비쿼터스 컴퓨팅 데이터베이스 연구실
22 ㈜일리트
* RSSI, changes may occur by environment
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
24. AP Performances (PEN-2000)
Throughput(Download)
Minimum is 75.6Mbps, Maximum is 45.5Mbps
Mbps of Download is falling depending on the distance
Mbps 80
70
60
50
40
30
20
10
0
10M 20M 30M 40M 50M 60M 70M 80M 90M
eLIT PRE-2000 75.6 72.8 64.6 57.8 54.4 53.4 53.1 48.9 45.5
유비쿼터스 컴퓨팅 데이터베이스 연구실
23 ㈜일리트
* Throughput, changes may occur by environment
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
25. AP Performances (PEN-2000)
Throughput(Upload)
Minimum is 73.7Mbps, Maximum is 42.3Mbps
Mbps of Upload is falling depending on the distance.
Mbps 80
70
60
50
40
30
20
10
0
10M 20M 30M 40M 50M 60M 70M 80M 90M
eLIT PRE-2000 73.7 71.2 66.6 62.7 54.2 53.4 51.7 47.1 42.3
유비쿼터스 컴퓨팅 데이터베이스 연구실
24 ㈜일리트
* Throughput, changes may occur by environment
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
26. Vender Bridge Comparison
Cisco Aironet 1552E(Bridge+AP) Firetide FWB-205 Wireless Bridge eLiT Pen-5000
Link: 300Mbps
Data Rate Link: 300Mbps Link: 300Mbps
AP Serice: 300Mbps
Frequency band LinK: 5.250 - 5.825 GHz LinK: 4.94 – 5.795 GHz Link: 5.15~5.825
Network IEEE 802.11 a/n IEEE 802.11 a/n
IEEE 802.11 a/n
Standard ISA100.11a IEEE 802.11 h(DFS) /e/l
Modulation OFDM, MIMO OFDM, MIMO OFDM, MIMO
RF Sensitivity 802.11 na: -76dBm~-92dBm 802.11 na: -74dBm~-90dBm 802.11 na: -74dBm~-94dBm
LinK: max 14 dBi, dual polarized patch Link: 8dBi omni LinK: max 18 dBi, dual polarized patch
Antenna
AP Service: max 8 dBi omni AP Service: Dual band 2.4Ghz/5GHz 3dBi AP Service: max 12 dBi omni(Optional)
IEEE 802.1x with WPA2, IEEE 802.1x with WEP, MAC filtering
Security WPA,EAP,EAP_TLS, Cisco LEAP WPA2-PSK WPA, WPA2 (128, 256 bit AES Key)
AES, TLIP, Ipsec, L2TP SSLVPN
Power 100-240 VAC, 12VDC, PoE 100-240 VAC, 12VDC, PoE Passive PoE (DC)7V~20V
Ethernet 100/10Mbps 100/10Mbps 100/10Mbps
Operating Temp -40C ~ +55C -40C ~ + 60C -40C ~ +80C
Environmental
IP67, NEMA Type 4 IP67, NEMA Type 4 Ip67
Ratings
Dimension 312x229x163(mm) 8.3x7.8X2.4(inch) 315x315x110(mm)
Weight 8Kg(without Bracket, Power Adaptor) 0.9Kg(without Bracket) 2.1Kg(with Bracket)
Management Cisco Network Manager Firetide Network Manager eLIT NMS (Network Management System)
Price $1,600
유비쿼터스 컴퓨팅 데이터베이스 연구실
25 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
27. Vender AP Comparison
Cisco Aironet 1552E(Bridge+AP) Firetide HotPoint 5200 Outdoor AP eLiT PEN-2000
Link: 300Mbps Link: 300Mbps Link: 300Mbps
Data Rate
AP Serice: 300Mbps AP Serice: 300Mbps AP Service: 300Mbps
LinK: 5.250 - 5.825 GHz LinK: 5.250 - 5.825 GHz Link: 5.15~5.825
Frequency band
AP Service: 2.400 - 2.483 GHz AP Service: 2.400 - 2.483 GHz AP Service: 2.412~2.485
Network IEEE 802.11 a/n a/g/b/n IEEE 802.11 a/n
IEEE 802.11 a/b/g/n
Standard ISA100.11a IEEE 802.11 a/g/b/n
Modulation OFDM, MIMO OFDM, MIMO OFDM, MIMO
802.11 a: -76dBm~-92dBm 802.11 a: -77dBm~-95dBm 802.11 a: -74dBm~-94dBm
RF Sensitivity
802.11 g: -78dBm~-94dBm 802.11 g: -76dBm~-96dBm 802.11 g: -74dBm~-94dBm
Link: 18 dBi Directional Antenna
LinK: max 14 dBi, dual polarized patch Link: 8dBi omni
Antenna AP Service: 12 dBi Omni-Directional
AP Service: max 8 dBi omni AP Service: Dual band 2.4Ghz/5GHz 3dBi
Antenna
IEEE 802.1x with WPA2,
IEEE 802.1x with WEP, MAC filtering
Security WPA,EAP,EAP_TLS, Cisco LEAP WPA2, 40/104bit WEP, RADIUS
WPA, WPA2 (128, 256 bit AES Key)
AES, TLIP, Ipsec, L2TP
Power 100-240 VAC, 12VDC, PoE 100-240 VAC, 12VDC, PoE Passive PoE (DC)7V~20V
Ethernet 100/10Mbps 10/100Mbps 100/10Mbps
Operating Temp -40C ~ +55C -40C ~ + 60C -40C ~ +90C
Environmental
IP67, NEMA Type 4 IP67, NEMA Type 4 Ip67
Ratings
Dimension 312x229x163(mm) 8.6x8.2X2.0(inch) 315x315x110(mm)
Weight 8Kg(without Bracket, Power Adaptor) 1.7Kg 2.1Kg(with Bracket)
Management Cisco Network Manager Firetide Network Manager eLIT NMS (Network Management System)
Price $1,400
유비쿼터스 컴퓨팅 데이터베이스 연구실
26 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
28. THANK YOU
Powered by eLIT Co., Ltd.
Room #403, Building 709 Pusan National Univ. Busan 609-735, KOREA
Tel: +82-51-510-3141 | Site: www.elit.kr | eMail: elit.kr@gmail.com
유비쿼터스 컴퓨팅 데이터베이스 연구실
27 ㈜일리트
Ubiquitous & Confidential (무단전제/복제 금지)
Proprietary Computing Database Lab
