Electron allows developers to build desktop applications using web technologies like JavaScript, HTML, and CSS. It uses Chromium and Node.js to package applications so they can run on Windows, macOS and Linux. The document discusses Electron's features, how to set up development environments, build user interfaces, debug applications, distribute builds, and implement updates.

1. ELECTRON:
BEGINNER TO PRO
BUILD CROSS PLATFORM DESKTOP APPS USING
GITHUB’S ELECTRON
@chrisgriffith

3. WHAT IS ELECTRON?
Released in July 2013 by Cheng Zhao
Foundation for GitHub Atom Editor

6. BUILT WITH ELECTRON
electronjs.org/apps

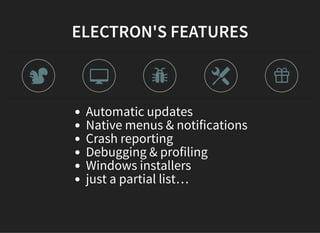

7. ELECTRON'S FEATURES
Automatic updates
Native menus & notifications
Crash reporting
Debugging & profiling
Windows installers
just a partial list…

8. PLATFORM SUPPORT

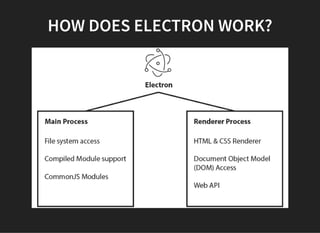

9. HOW DOES ELECTRON WORK?

10. UI?

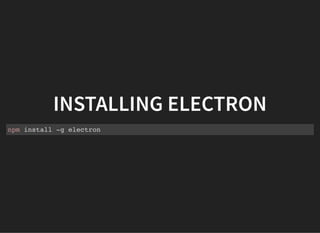

11. INSTALLING ELECTRON
npm install -g electron

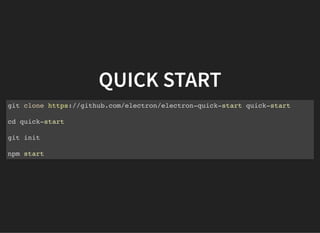

12. QUICK START
git clone https://github.com/electron/electron-quick-start quick-start
cd quick-start
git init
npm start

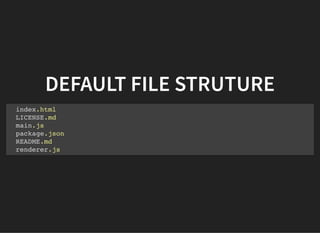

14. DEFAULT FILE STRUTURE
index.html
LICENSE.md
main.js
package.json
README.md
renderer.js

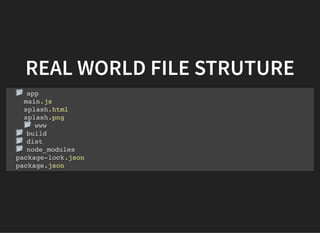

15. REAL WORLD FILE STRUTURE
app
main.js
splash.html
www
build
dist
node_modules
package-lock.json
package.json

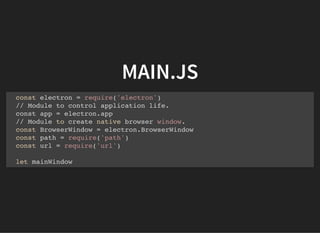

16. MAIN.JS
const electron = require('electron')
// Module to control application life.
const app = electron.app
// Module to create native browser window.
const BrowserWindow = electron.BrowserWindow
const path = require('path')
const url = require('url')
let mainWindow

17. CREATEWINDOW
function createWindow () {
// Create the browser window.
mainWindow = new BrowserWindow({width: 800, height: 600})
// and load the index.html of the app.
mainWindow.loadURL(url.format({
pathname: path.join(__dirname, 'index.html'),
protocol: 'file:',
slashes: true
}))
…

18. CREATEWINDOW
…
// Open the DevTools.
mainWindow.webContents.openDevTools()
// Emitted when the window is closed.
mainWindow.on('closed', function () {
// Dereference the window object, usually you would store windows
// in an array if your app supports multi windows, this is the time
// when you should delete the corresponding element.
mainWindow = null
})
}

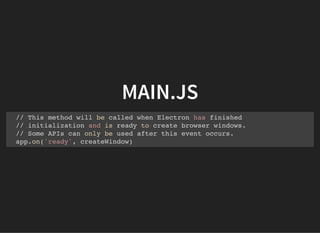

19. MAIN.JS
// This method will be called when Electron has finished
// initialization and is ready to create browser windows.
// Some APIs can only be used after this event occurs.
app.on('ready', createWindow)

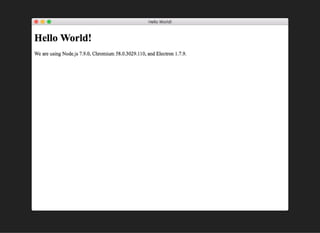

20. INDEX.HTML
…
<h1>Hello World!</h1>
<!-- All of the Node.js APIs are available in this renderer process. -->
We are using Node.js
<script>document.write(process.versions.node) < /script>,
Chromium
<script>document.write(process.versions.chrome) < /script>,
and Electron
<script>document.write(process.versions.electron) < /script>.
…

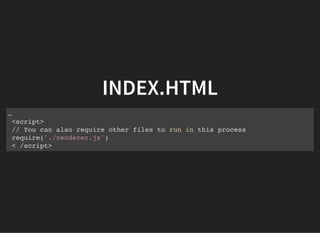

21. INDEX.HTML
…
<script>
// You can also require other files to run in this process
require('./renderer.js')
< /script>

22. WINDOWS

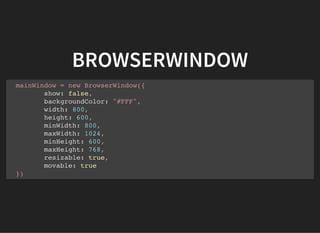

23. BROWSERWINDOW
mainWindow = new BrowserWindow({
show: false,
backgroundColor: "#FFF",
width: 800,
height: 600,
minWidth: 800,
maxWidth: 1024,
minHeight: 600,
maxHeight: 768,
resizable: true,
movable: true
})

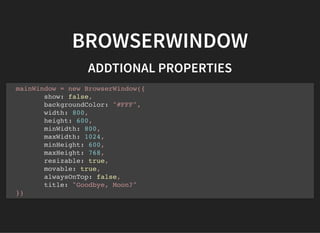

24. BROWSERWINDOW
ADDTIONAL PROPERTIES
mainWindow = new BrowserWindow({
show: false,
backgroundColor: "#FFF",
width: 800,
height: 600,
minWidth: 800,
maxWidth: 1024,
minHeight: 600,
maxHeight: 768,
resizable: true,
movable: true,
alwaysOnTop: false,
title: "Goodbye, Moon?"
})

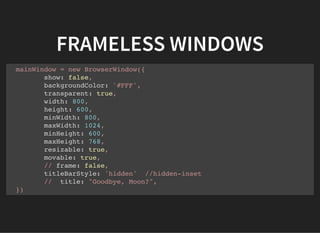

25. FRAMELESS WINDOWS
mainWindow = new BrowserWindow({
show: false,
backgroundColor: '#FFF',
transparent: true,
width: 800,
height: 600,
minWidth: 800,
maxWidth: 1024,
minHeight: 600,
maxHeight: 768,
resizable: true,
movable: true,
// frame: false,
titleBarStyle: 'hidden' //hidden-inset
// title: "Goodbye, Moon?",
})

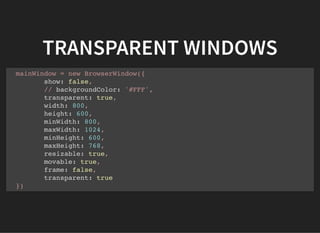

26. TRANSPARENT WINDOWS
mainWindow = new BrowserWindow({
show: false,
// backgroundColor: '#FFF',
transparent: true,
width: 800,
height: 600,
minWidth: 800,
maxWidth: 1024,
minHeight: 600,
maxHeight: 768,
resizable: true,
movable: true,
frame: false,
transparent: true
})

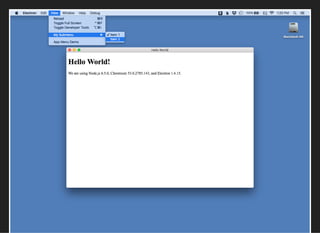

27. APPLICATION MENU

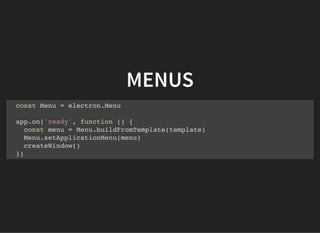

28. MENUS
const Menu = electron.Menu
app.on('ready', function () {
const menu = Menu.buildFromTemplate(template)
Menu.setApplicationMenu(menu)
createWindow()
})

29. MENU TEMPLATES
let template = [{
label: 'Menu 1',
submenu: [{
label: 'Menu item 1'
}]
}, {
label: 'Menu 2',
submenu: [{
label: 'Another Menu item'
}, {
label: 'One More Menu Item'
}]
}]

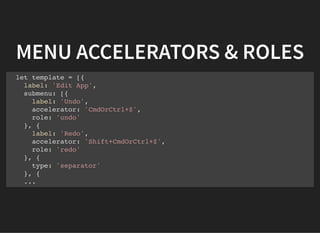

30. MENU ACCELERATORS & ROLES
let template = [{
label: 'Edit App',
submenu: [{
label: 'Undo',
accelerator: 'CmdOrCtrl+Z',
role: 'undo'
}, {
label: 'Redo',
accelerator: 'Shift+CmdOrCtrl+Z',
role: 'redo'
}, {
type: 'separator'
}, {
...

33. CONTEXTUAL MENUS

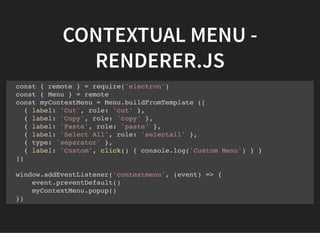

34. CONTEXTUAL MENU -
RENDERER.JS
const { remote } = require('electron')
const { Menu } = remote
const myContextMenu = Menu.buildFromTemplate ([
{ label: 'Cut', role: 'cut' },
{ label: 'Copy', role: 'copy' },
{ label: 'Paste', role: 'paste' },
{ label: 'Select All', role: 'selectall' },
{ type: 'separator' },
{ label: 'Custom', click() { console.log('Custom Menu') } }
])
window.addEventListener('contextmenu', (event) => {
event.preventDefault()
myContextMenu.popup()
})

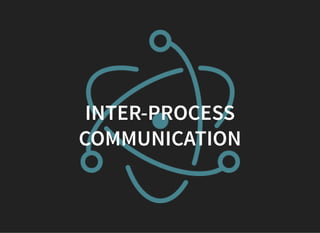

35. INTER-PROCESS
COMMUNICATION

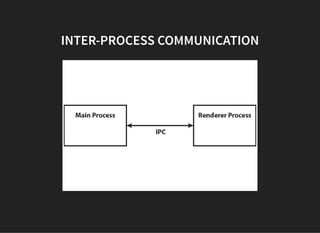

36. INTER-PROCESS COMMUNICATION

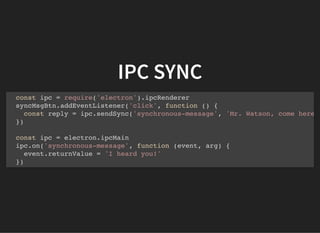

37. IPC SYNC
const ipc = require('electron').ipcRenderer
syncMsgBtn.addEventListener('click', function () {
const reply = ipc.sendSync('synchronous-message', 'Mr. Watson, come here
})
const ipc = electron.ipcMain
ipc.on('synchronous-message', function (event, arg) {
event.returnValue = 'I heard you!'
})

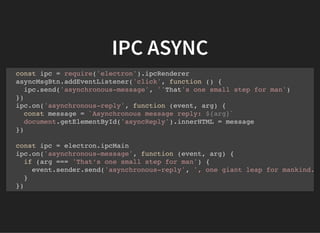

38. IPC ASYNC
const ipc = require('electron').ipcRenderer
asyncMsgBtn.addEventListener('click', function () {
ipc.send('asynchronous-message', ''That's one small step for man')
})
ipc.on('asynchronous-reply', function (event, arg) {
const message = `Asynchronous message reply: ${arg}`
document.getElementById('asyncReply').innerHTML = message
})
const ipc = electron.ipcMain
ipc.on('asynchronous-message', function (event, arg) {
if (arg === 'That’s one small step for man') {
event.sender.send('asynchronous-reply', ', one giant leap for mankind.
}
})

39. NATIVE DIALOGS

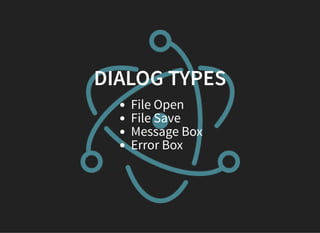

40. DIALOG TYPES
File Open
File Save
Message Box
Error Box

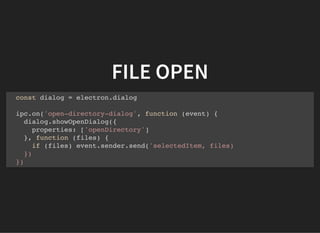

41. FILE OPEN
const dialog = electron.dialog
ipc.on('open-directory-dialog', function (event) {
dialog.showOpenDialog({
properties: ['openDirectory']
}, function (files) {
if (files) event.sender.send('selectedItem, files)
})
})

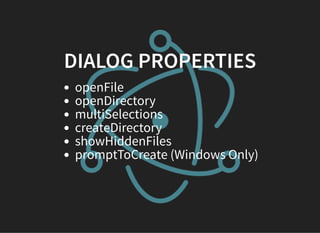

44. DIALOG PROPERTIES
openFile
openDirectory
multiSelections
createDirectory
showHiddenFiles
promptToCreate (Windows Only)

47. MESSAGE BOXES

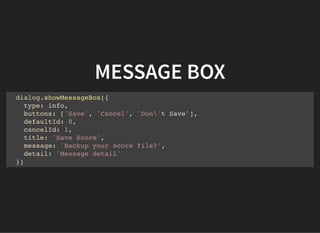

48. MESSAGE BOX
dialog.showMessageBox({
type: info,
buttons: ['Save', 'Cancel', 'Don't Save'],
defaultId: 0,
cancelId: 1,
title: 'Save Score',
message: 'Backup your score file?',
detail: 'Message detail'
})

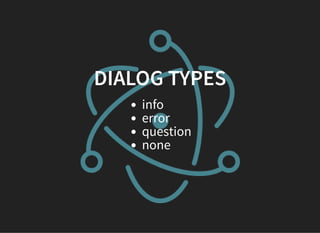

49. DIALOG TYPES
info
error
question
none

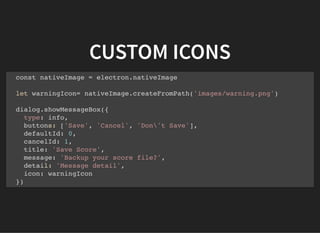

51. CUSTOM ICONS
const nativeImage = electron.nativeImage
let warningIcon= nativeImage.createFromPath('images/warning.png')
dialog.showMessageBox({
type: info,
buttons: ['Save', 'Cancel', 'Don't Save'],
defaultId: 0,
cancelId: 1,
title: 'Save Score',
message: 'Backup your score file?',
detail: 'Message detail',
icon: warningIcon
})

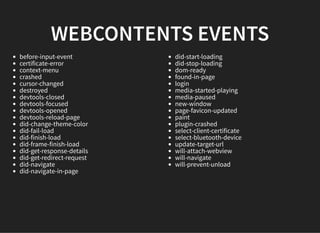

52. WEBCONTENTS EVENTS
before-input-event
certificate-error
context-menu
crashed
cursor-changed
destroyed
devtools-closed
devtools-focused
devtools-opened
devtools-reload-page
did-change-theme-color
did-fail-load
did-finish-load
did-frame-finish-load
did-get-response-details
did-get-redirect-request
did-navigate
did-navigate-in-page
did-start-loading
did-stop-loading
dom-ready
found-in-page
login
media-started-playing
media-paused
new-window
page-favicon-updated
paint
plugin-crashed
select-client-certificate
select-bluetooth-device
update-target-url
will-attach-webview
will-navigate
will-prevent-unload

53. DEBUGGING YOUR ELECTRON
APPLICATION
Chromium’s Dev Tools

54. DEBUGGING RENDERER
PROCESS
Chromium’s Dev Tools

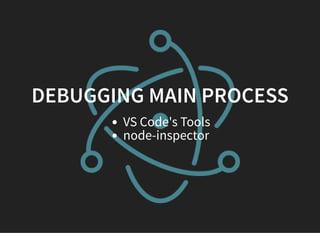

55. DEBUGGING MAIN PROCESS
VS Code's Tools
node-inspector

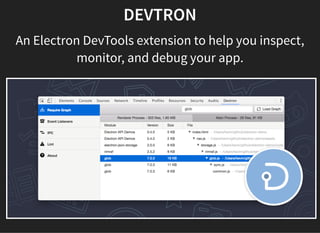

56. DEVTRON
An Electron DevTools extension to help you inspect,
monitor, and debug your app.

57. TESTING WITH SPECTRON

58. INSTALLATION
npm install --save-dev spectron

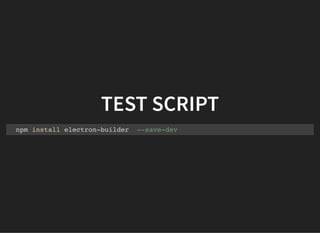

59. TEST SCRIPT
npm install electron-builder --save-dev

60. BUILDING YOUR APPLICATION

61. INSTALLATION
npm install electron-builder --save-dev

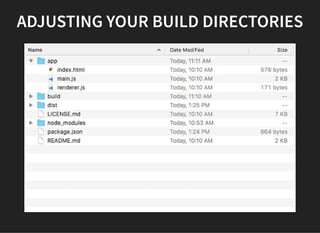

62. ADJUSTING YOUR BUILD DIRECTORIES

63. Build Platforms Descriptions
--mac, -m, -o, --macos Build for macOS
--win, -w, --windows Build for Windows
--linux, -l Build for Linux
Build Architectures Descriptions
--x64 Build for x64
--ia32 Build for ia32

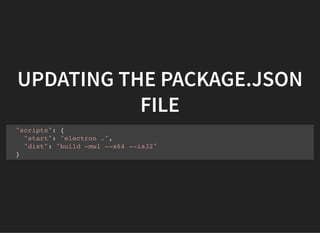

64. UPDATING THE PACKAGE.JSON
FILE
"scripts": {
"start": "electron .",
"dist": "build -mwl --x64 --ia32"
}

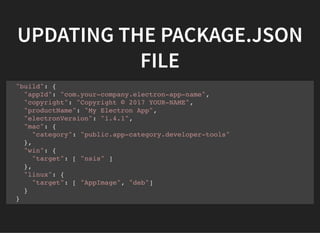

65. UPDATING THE PACKAGE.JSON
FILE
"build": {
"appId": "com.your-company.electron-app-name",
"copyright": "Copyright © 2017 YOUR-NAME",
"productName": "My Electron App",
"electronVersion": "1.4.1",
"mac": {
"category": "public.app-category.developer-tools"
},
"win": {
"target": [ "nsis" ]
},
"linux": {
"target": [ "AppImage", "deb"]
}
}

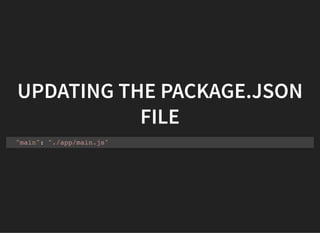

66. UPDATING THE PACKAGE.JSON
FILE
"main": "./app/main.js"

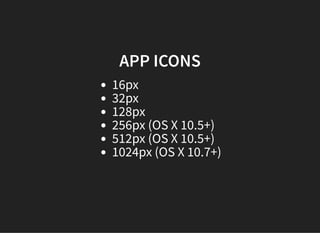

67. APP ICONS
16px
32px
128px
256px (OS X 10.5+)
512px (OS X 10.5+)
1024px (OS X 10.7+)

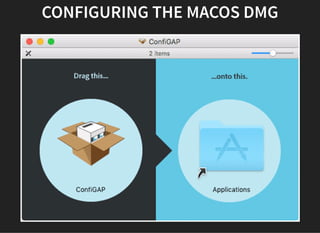

68. CONFIGURING THE MACOS DMG

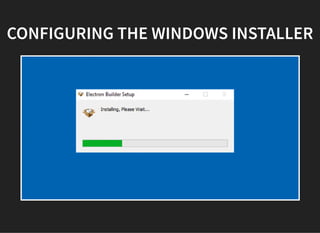

69. CONFIGURING THE WINDOWS INSTALLER

70. AUTO-UPDATING

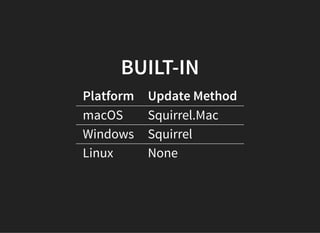

71. BUILT-IN
Platform Update Method
macOS Squirrel.Mac
Windows Squirrel
Linux None

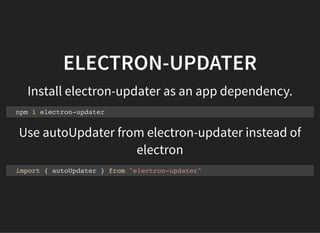

72. ELECTRON-UPDATER
Install electron-updater as an app dependency.
Use autoUpdater from electron-updater instead of
electron
npm i electron-updater
import { autoUpdater } from "electron-updater"

73. UPDATE EVENTS
autoUpdater.on('checking-for-update', () => { })
autoUpdater.on('update-available', () => { })
autoUpdater.on('update-not-available', () => {})
autoUpdater.on('update-downloaded', () => {})
autoUpdater.on('error', (event, error) => {})

74. ELECTRON FORGE
A complete tool for building modern Electron
applications.
https://github.com/electron-userland/electron-forge

76. THANK YOU!
Chris Griffith
San Diego, CA
@chrisgriffith
http://chrisgriffith.wordpress.com
https://github.com/chrisgriffith
