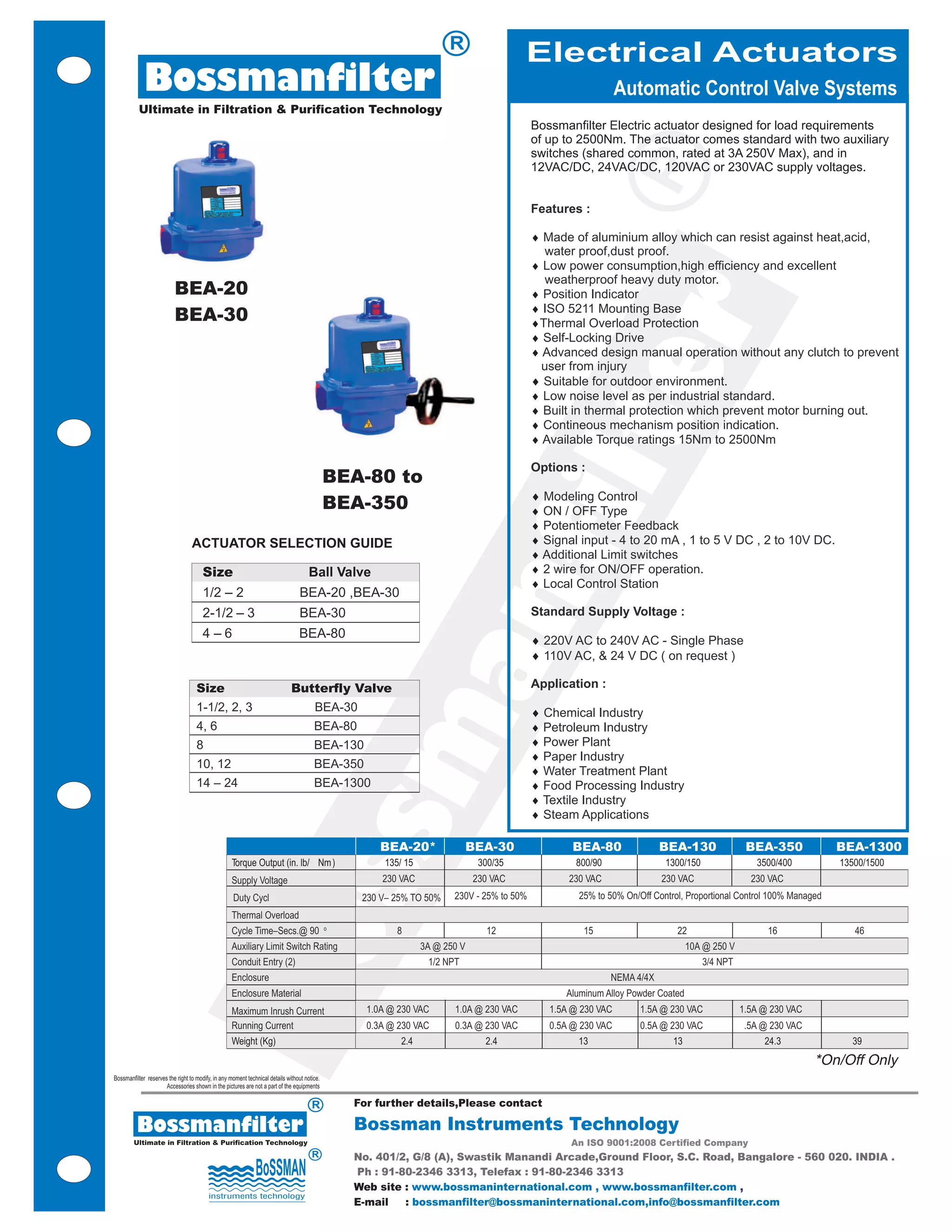

1. R
Electrical Actuators
Bossmanfilter Automatic Control Valve Systems
Ultimate in Filtration & Purification Technology
Bossmanfilter Electric actuator designed for load requirements
of up to 2500Nm. The actuator comes standard with two auxiliary
switches (shared common, rated at 3A 250V Max), and in
R
12VAC/DC, 24VAC/DC, 120VAC or 230VAC supply voltages.
Features :
¨ Made of aluminium alloy which can resist against heat,acid,
water proof,dust proof.
¨ Low power consumption,high efficiency and excellent
weatherproof heavy duty motor.
BEA-20 ¨ Position Indicator
er
¨ ISO 5211 Mounting Base
BEA-30 ¨Thermal Overload Protection
¨ Self-Locking Drive
¨ Advanced design manual operation without any clutch to prevent
user from injury
¨ Suitable for outdoor environment.
¨ Low noise level as per industrial standard.
¨ Built in thermal protection which prevent motor burning out.
t
¨ Contineous mechanism position indication.
¨ Available Torque ratings 15Nm to 2500Nm
Options :
fil
BEA-80 to
¨ Modeling Control
BEA-350 ¨ ON / OFF Type
¨ Potentiometer Feedback
ACTUATOR SELECTION GUIDE ¨ Signal input - 4 to 20 mA , 1 to 5 V DC , 2 to 10V DC.
¨ Additional Limit switches
Size Ball Valve ¨ 2 wire for ON/OFF operation.
¨ Local Control Station
an
1/2 – 2 BEA-20 ,BEA-30
2-1/2 – 3 BEA-30 Standard Supply Voltage :
4–6 BEA-80
¨ 220V AC to 240V AC - Single Phase
¨ 110V AC, & 24 V DC ( on request )
Size Butterfly Valve Application :
1-1/2, 2, 3 BEA-30 ¨ Chemical Industry
m
4, 6 BEA-80 ¨ Petroleum Industry
8 BEA-130 ¨ Power Plant
¨ Paper Industry
10, 12 BEA-350
¨ Water Treatment Plant
14 – 24 BEA-1300 ¨ Food Processing Industry
¨ Textile Industry
¨ Steam Applications
ss
BEA-20* BEA-30 BEA-80 BEA-130 BEA-350 BEA-1300
Torque Output (in. lb/ Nm ) 135/ 15 300/35 800/90 1300/150 3500/400 13500/1500
Supply Voltage 230 VAC 230 VAC 230 VAC 230 VAC 230 VAC
Duty Cycl 230 V– 25% TO 50% 230V - 25% to 50% 25% to 50% On/Off Control, Proportional Control 100% Managed
Thermal Overload Standard
Bo
o
Cycle Time–Secs.@ 90 8 12 15 22 16 46
Auxiliary Limit Switch Rating 3A @ 250 V 10A @ 250 V
Conduit Entry (2) 1/2 NPT 3/4 NPT
Enclosure NEMA 4/4X
Enclosure Material Aluminum Alloy Powder Coated
Maximum Inrush Current 1.0A @ 230 VAC 1.0A @ 230 VAC 1.5A @ 230 VAC 1.5A @ 230 VAC 1.5A @ 230 VAC
Running Current 0.3A @ 230 VAC 0.3A @ 230 VAC 0.5A @ 230 VAC 0.5A @ 230 VAC .5A @ 230 VAC
Weight (Kg) 2.4 2.4 13 13 24.3 39
*On/Off Only
Bossmanfilter reserves the right to modify, in any moment technical details without notice.
Accessories shown in the pictures are not a part of the equipments
