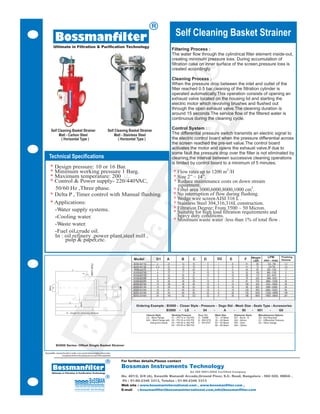

Bossmanfilter Self Cleaning Basket Strainer
Ultimate in Filtration & Purification Technology
Filtering Process :
The water flow through the cylindrical filter element inside-out,
creating minimum pressure loss. During accumulation of
filtration cake on inner surface of the screen,pressure loss is
R
created accordingly.
Cleaning Process :
When the pressure drop between the inlet and outlet of the
filter reached 0.5 bar,cleaning of the filtration cylinder is
operated automatically.This operation consists of opening an
exhaust valve located on the housing lid and starting the
electric motor which revolving brushes and flushed out
through the open exhaust valve.The cleaning duration is
er
around 15 seconds.The service flow of the filtered water is
continuous during the cleaning cycle.
Self Cleaning Basket Strainer Self Cleaning Basket Strainer
Control System :
Matl - Carbon Steel Matl - Stainless Steel The differential pressure switch transmits an electric signal to
( Horizontal Type ) ( Horizontal Type ) the electric control board when the pressure differential across
the screen reached the pre-set value.The control board
activates the motor and opens the exhaust valve.If due to
t
some fault the pressure drop over the filter is not eliminated by
Technical Specifications cleaning,the interval between successive cleaning operations
is limited by control board to a minimum of 5 minutes.
* Design pressure: 10 or 16 Bar.
* Minimum working pressure 1 Barg.
* Maximum temperature: 200 .
* Control & Power supply- 220/440V
50/60 Hz ,Three phase.
AC,
* Delta P , Timer control with Manual flushing.
fil * Flow rates up to 1200 m3 /H
* Size 2” ~ 14”.
* Reduce maintenance costs on down stream
equipment.
* Filter area 3000,6000,8000,1000 cm2.
* No interruption of flow during flushing.
* Wedge wire screen AISI 316 L .
an
* Applications: * Stainless Steel 304,316,316L construction.
-Water supply systems. * Filtration Degree: From 3500 ~ 50 Micron.
* Suitable for high load filtration requirements and
-Cooling water. heavy duty conditions.
* Minimum waste water :less than 1% of total flow .
-Waste water.
-Fuel oil,crude oil.
In : oil refinery ,power plant,steel mill ,
pulp & paper,etc.
m
Weight LPM Flushing
Model D1 A B C D D2 E F LBS min - max Volume
BOSS-SLF 50 2 21 12 15 5 1 8 41 60 133 - 750 1.3
Flush outlet
BOSS-SLF 65 2½ 21 12 15 5 1 8 41 73 133-750 1.6
C BOSS-SLF75 3 25 16 20 8 2 9 44 90 250 - 1333 1.7
BOSS-SLF100 4 27 17 19 10 2 10 52 105 666 - 2100 2
ss
BOSS-SLF150 6 32 20 27 10 2 10 58 172 833 - 4975 4
BOSS-SLF200 8 40 24 32 11 3 12 78 230 1666 - 8330 11
BOSS-SLF250 10 50 30 39 13 4 14 87 370 2666 - 13328 25
D
BOSS-SLF300 12 58 36 46 15 4 15 100 425 3332 - 18326 46
Inlett
BOSS-SLF350 14 59 38 50 16 4 16 99 650 4998 - 24990 54
BOSS-SLF400 16 61 40 53 19 4 19 120 950 6664 - 33320 94
BOSS-SLF500 20 94 64 88 22 6 28 152 3420 13328 - 49980 198
E
BOSS-SLF600 24 140 62 122 32 8 36 186 4840 19992 - 66640 281
outlet
B
Ordering Example : B3000 - Closer Style - Pressure - Dsgn Std - Mesh Size - Seals Type - Accessories
Bo
A
F
B3000 - LS - 04 - A - 80 - 001 - G0
G - Height for removing Strainer
Closure Style Working Pressure Dsgn Std Mesh Size Elastomer Seals Miscellaneous Options
LS – Blind Flange 01 – PN 10 or 150 PSI A - ASME 10 – 10 Mesh 001 - Buna - N G0 - Not Required
SW – Blind Flange with 02 – PN 16 or 232 PSI B - DIN STD 20 – 20 Mesh 002 - Silicon G1 - Differential Pressure
Swing Arm Assist 03 – PN 25 or 362 PSI C - EN STD 40 – 40 Mesh 003 - Viton G2 - Other Gauge
04 – PN 40 or 580 PSI 80 – 80 Mesh 004 - Others
B2000 Series- Offset Single Basket Strainer
Bossmanfilter reserves the right to modify, in any moment technical details without notice.
Accessories shown in the pictures are not a part of the equipments
